See all parts that fit your 2011 Caliber

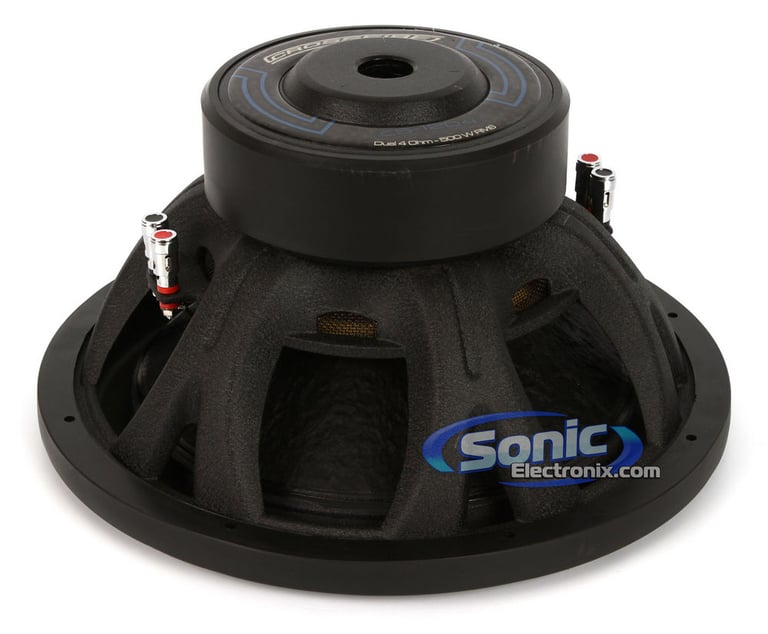

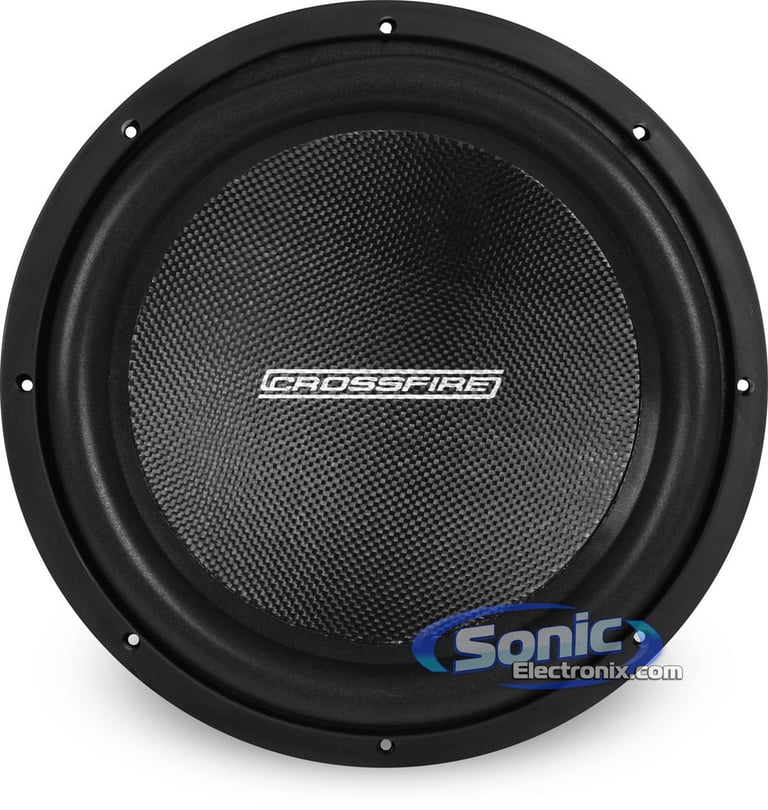

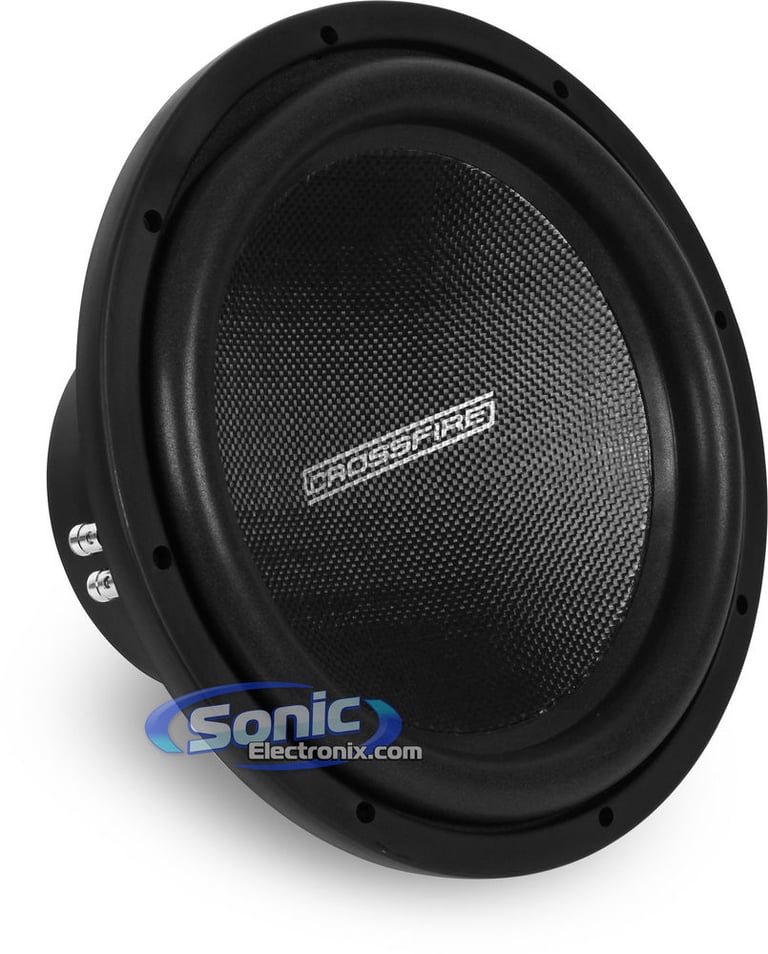

Crossfire C5 12D4

12" Dual 4 Ohm C5 Series Car Subwoofer

Crossfire
Shop all Crossfire
Product videos
highlight-star-icon

12" Dual 4 Ohm C5 Series Subwoofer • 1000W Max • 500W RMS • Injection Molded Polyprolene Woofer Cone • Foam Composite Woofer Surround • Spring Loaded Push Terminals • Dual 80 oz Ceramic Magnets • Designed for Small Enclosures

Learn more about the c512d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RP4-CH11 main

PAC RP4-CH11

Install New Car Stereo and Retain Steering Wheel Controls, Entertainment System, and Other Factory Features in select 2004-2018 vehicles from Dodge, Jeep, Chrysler

12
-59.63%

$152.99

List price $379.00

480BRGB main

Boss Elite 480BRGB

Double DIN Digital Media Receiver with Bluetooth

17

JVC KW-R950BTS

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

6
-10.58%

$169.00

List price $189.00

Product Highlights


12" Dual 4 Ohm C5 Series Subwoofer • 1000W Max • 500W RMS • Injection Molded Polyprolene Woofer Cone • Foam Composite Woofer Surround • Spring Loaded Push Terminals • Dual 80 oz Ceramic Magnets • Designed for Small Enclosures

Description


Get Started with Crossfire

Are you looking to add bass without waking the neighbors? Well Sonic Electronix is excited to introduce the low-wattage C5 series subwoofers from Crossfire. These subwoofers are rated 500 watts RMS, giving you the right amount of bass without the worry of drowning out your system. The subwoofers feature an injection molded polypropylene woofer cone and foam composite surround for rigidity and enhanced performance. Designed with spring loaded push terminals for easy and quick installation, along with dual stacked 120 oz. magnet structure for increased performance and better frequency range. The C5 subwoofers are capable of high excursion levels while still maintaining a clean, crisp and deep bass. Equipped with 2.5" aluminum high-temperature voice coils for increased stability and thermal handling, the C5 series subwoofers are perfect for anyone looking to add a little bass into their car.

  • 12" Dual 4 Ohm C5 Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Impedance: 4 Ohm
  • Injection Molded Polypropylene (IMPP) woofer cone material
  • Foam composite woofer surround
  • Rubberized trim ring
  • Designed for small enclosures
  • High excursion capability
  • Spring loaded push terminals
  • 2.5" Dual 4 ohm Aluminum high-temperature voice coil
  • Dual 120 oz. ceramic stacked magnet structure
  • Resonance frequency: 28.8 Hz
  • 21mm Peak-to-peak excursion
  • Mounting depth: 6"
  • Cutout dimensions: 11-4/16"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Crossfire C5 12D4 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Crossfire C5 12D4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Crossfire C5 12D4 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Crossfire C5 12D4 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.15%

$211.66

List price $232.98

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
C5 Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.5"
Xmax (millimeters)
21mm Peak to Peak
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.3 cubic feet
Maximum Sealed Box Volume
1.3 cubic feet
Minimum Ported Box Volume
2.2 cubic feet
Maximum Ported Box Volume
2.2 cubic feet
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
11-4/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30 Hz
Equivalent Compliance (Vas)
68 liters
Total Speaker Q Value (Qts)
0.45
Electrical Q Value (Qes)
0.53
Electrical Resistance of Voice Coil (Re)
0.9 ohm
Mechanical Q Value (Qms)
3.2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

C5 12D4

Weight:

13.50lbs

Internal SKU:

c512d4

Internal Product ID:

36233
