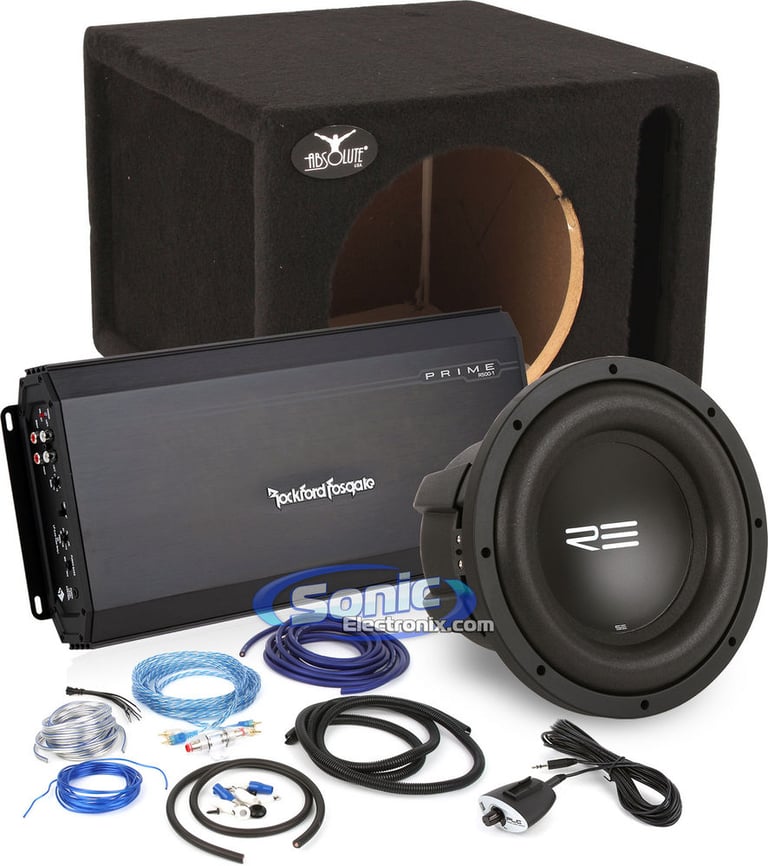

600W RE Audio + Rockford Fosgate Complete Bass Bundle

RE Audio 10" SEX10D4 Sub + Rockford Fosgate R500-1 Amp + Absolute Slot Vented Enclosure + Amp Kit

RE Audio
Shop all RE Audio
EXCLUSIVE
Product videos
highlight-star-icon

10" Dual 4 ohm SEX Series Car Subwoofer • Dual 4 Ohm • 600W RMS • PRIME Series Single-Channel Monoblock Class A/B Car Amplifier • MOSFET Power Supply • Tuned Bass EQ • Variable Low-Pass Filter • CEA-2006 Compliant

Learn more about the sex10d4_r5001

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104 Speaker Harness for 1990-2024 Toyota, Subaru, Mitsubishi

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

82-8148 main

Metra 82-8148

6" to 6.75" Speaker Bracket for select 1998-2024 vehicles from Toyota, Subaru, Scion

35
-50.01%

$18.99

List price $37.99

TOYNB3 main

GROM Audio TOYNB3 Lexus, Scion and Toyota Bluetooth Streaming Kit (GROM-BT3-TOY)

Add Bluetooth Hands Free Calling and Music Streaming to Select 2003-2012 Lexus, Scion and Toyota Factory Radios

1
82-8146 main

Metra 82-8146

6x9" Speaker Bracket for select 2002-2024 vehicles from Toyota, Subaru, Lexus

31
-46.07%

$19.95

List price $36.99

95-8202 main

Metra 95-8202 Dash Kit

Install a new Double-DIN car stereo in select 2000-2020 vehicles from Toyota, Subaru, Scion

35
-43.50%

$12.99

List price $22.99

70-8114 main

Metra 70-8114

Steering Wheel Control Wire Harness with RCA for 2003-Up Select Toyota/Scion/Lexus Vehicles (ASWC-1 Sold Separately)

26
-44.46%

$14.99

List price $26.99

95-8210 main

Metra 95-8210 Dash Kit

Install a new Double-DIN car stereo in select 2003-2009 4Runner

2
-48.02%

$12.99

List price $24.99

82-4201 main

Metra 82-4201

2.5" Tweeter Mounting Adapters for select 1999-2024 vehicles from Toyota, Subaru, Ram

1
-54.57%

$9.99

List price $21.99

ToyK961 main

American International ToyK961

Double DIN Stereo Dash Kit for select 2003-2009 4Runner

-65.55%

$9.99

List price $29.00

Product Highlights


10" Dual 4 ohm SEX Series Car Subwoofer • Dual 4 Ohm • 600W RMS • PRIME Series Single-Channel Monoblock Class A/B Car Amplifier • MOSFET Power Supply • Tuned Bass EQ • Variable Low-Pass Filter • CEA-2006 Compliant

Description


RE Audio brand icon

Authorized dealer

RE Audio and Rockford Fosgate Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a Rockford Fosgate PRIME R500-1 Amplifier along with a 10" SEX Series RE Audio Subwoofer. This excellent bass package pushes 600 watts of clean, continuous RMS power. The RE Audio Subwoofer has Dual 4 Ohm Voice Coils; meant to be wired in parallel, to a final impedance of 2 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

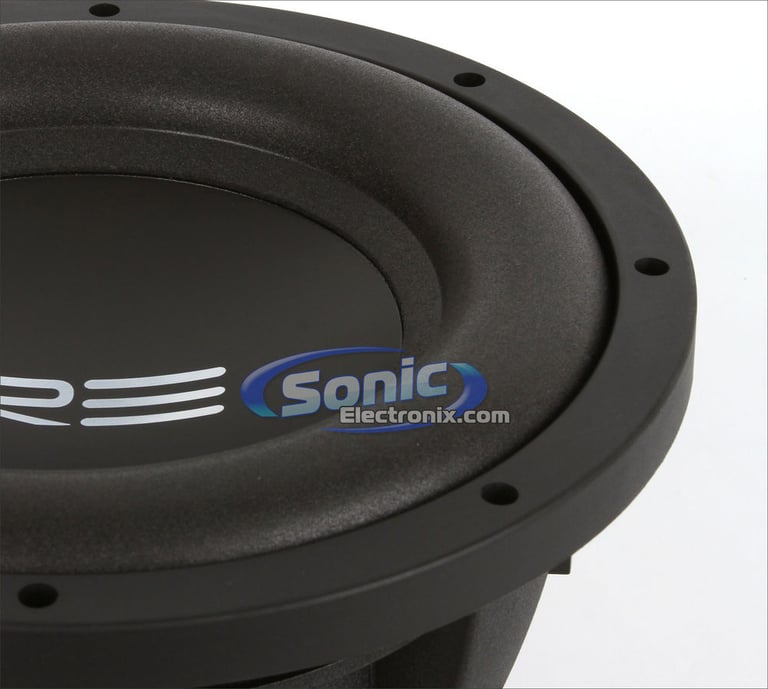

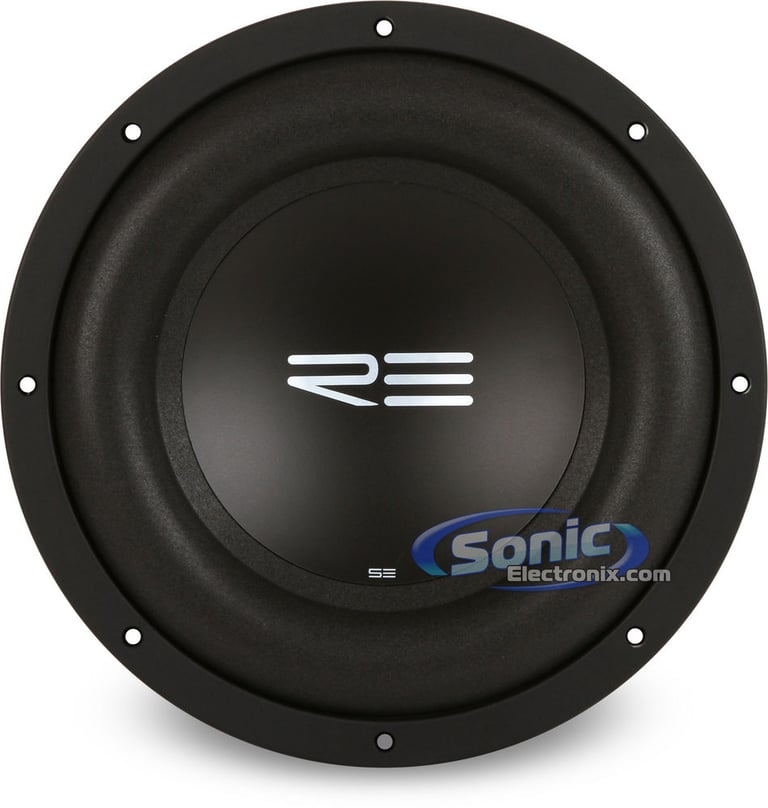

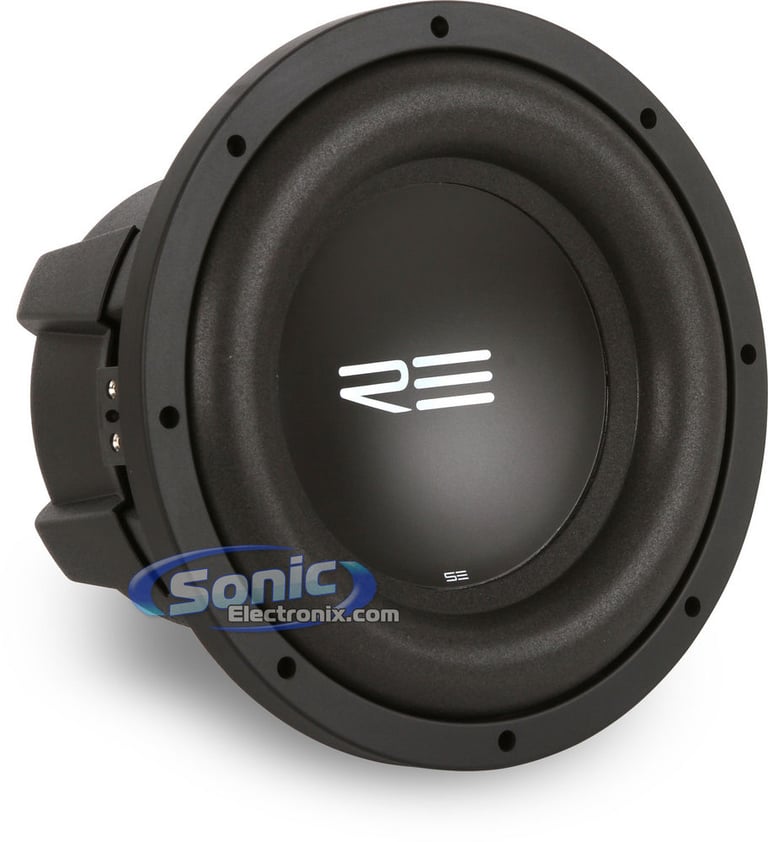

This RE Audio SEX10D4 10" SEX Series subwoofer requires 600 watts of RMS power. The included Rockford Fosgate PRIME R500-1 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a 4 gauge amplifier kit which is perfect to supply power to the amplifier. To make this a complete package, a 10" Absolute slot vented subwoofer enclosure has also been added to this package. Made from MDF wood with a rugged black carpet finish, this enclosure will go with any car and increase the quality of your subwoofer. With the RE Audio subwoofer, Rockford Fosgate amplifier, Absolute enclosure, and Raptor amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

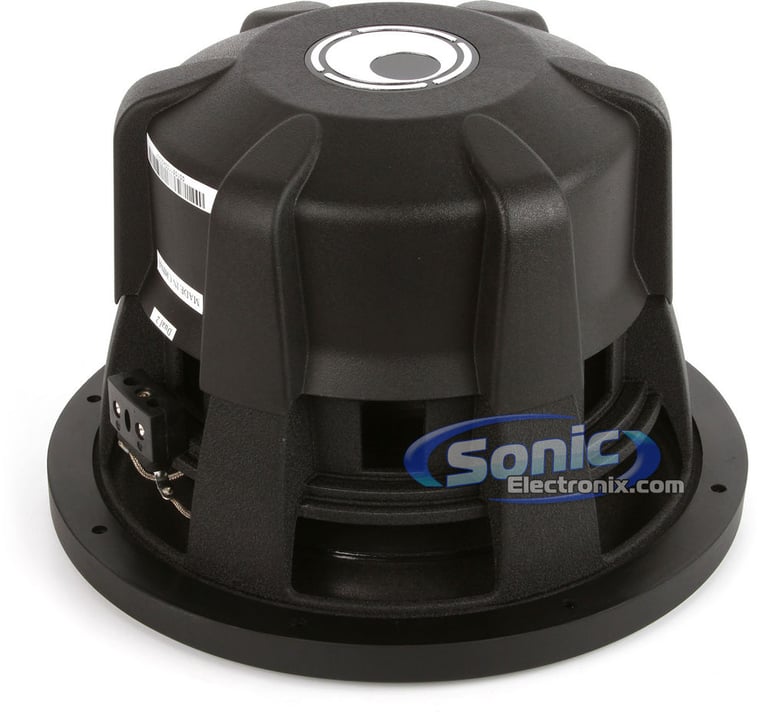

RE Audio SEX10D4 Features:
  • 10" Dual 4 ohm SEX Series Car Subwoofer
  • Power Handling:
    • RMS: 600 watts
  • Impedance: Dual 4 ohm
  • Dual composite 2-piece cone
  • Rubatek foam surround
  • FEA Optimized motor structure
  • Progressive spiders
  • Wrap around rubber gasket

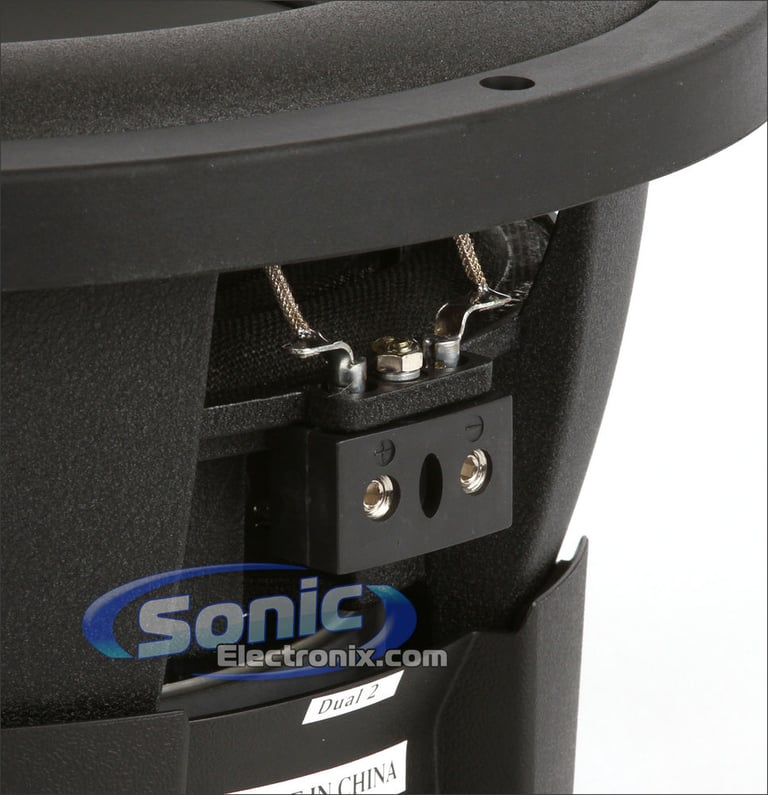

  • Tork-Tite terminals
  • 3" 4-Layer voice coil
  • Triple stacked magnets
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
SEX 10" T/S Parameters:
  • Electrical Q Value (Qes): 0.46
  • Mechanical Q Value (Qms): 4.4
  • Total Speaker Q Value (Qts): 0.42
  • Free Air Resonance (Fs): 26.6 Hz
  • Equivalent Compliance (Vas): 31 liters
  • One-Way, Linear Excursion (Xmax): 18 mm
  • Efficiency (SPL 1W/1m): 83.2 dB SPL
  • Effective Piston Area (Sd): 310 cm2
  • DC Resistance (Re): 2.8 ohm
  • Nominal Impedance (Znom): Dual 4 ohm
  • Thermal Power Handling (Pe): 600 W
  • Force Factor (Bl): 17.7

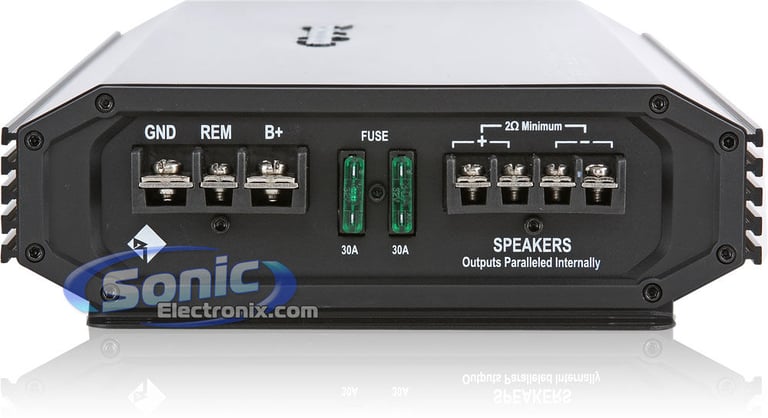

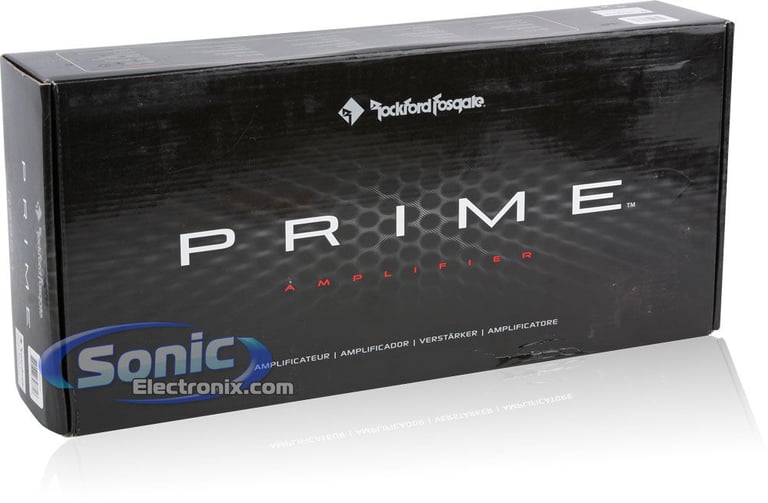

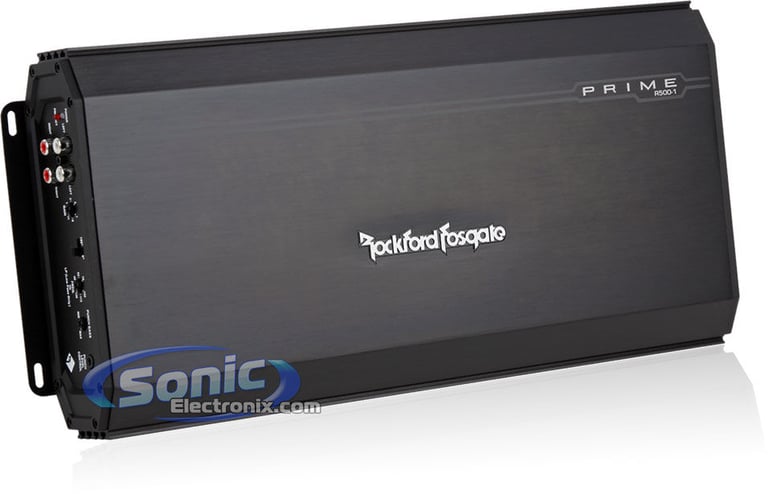

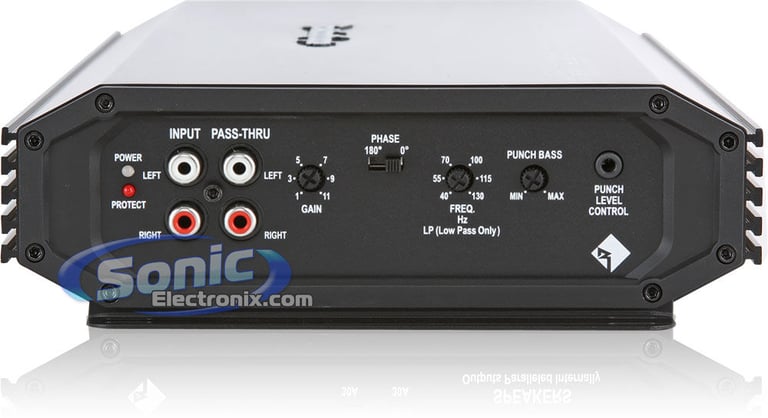

Rockford Fosgate PRIME R500-1 Features:
  • PRIME Series Single-Channel Monoblock Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 320 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • MOSFET Power supply
  • Power and protection LED indicators
  • Tuned Bass EQ (0-12 dB bass boost at 45 Hz)
  • Single-channel operation
  • 1 Pair of Preamp RCA outputs
  • Heavy duty extruded aluminum alloy heatsink for optimal heat dissipation
  • RCA level inputs
  • Screw terminals
  • Variable low-pass filter (40-130 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-250 Hz
  • Dimensions: 16-5/8"L x 7-5/8"W x 2-1/2"H
  • 8-gauge power and ground wiring is required for installation.
  • 1-year SonicElectronix.com warranty

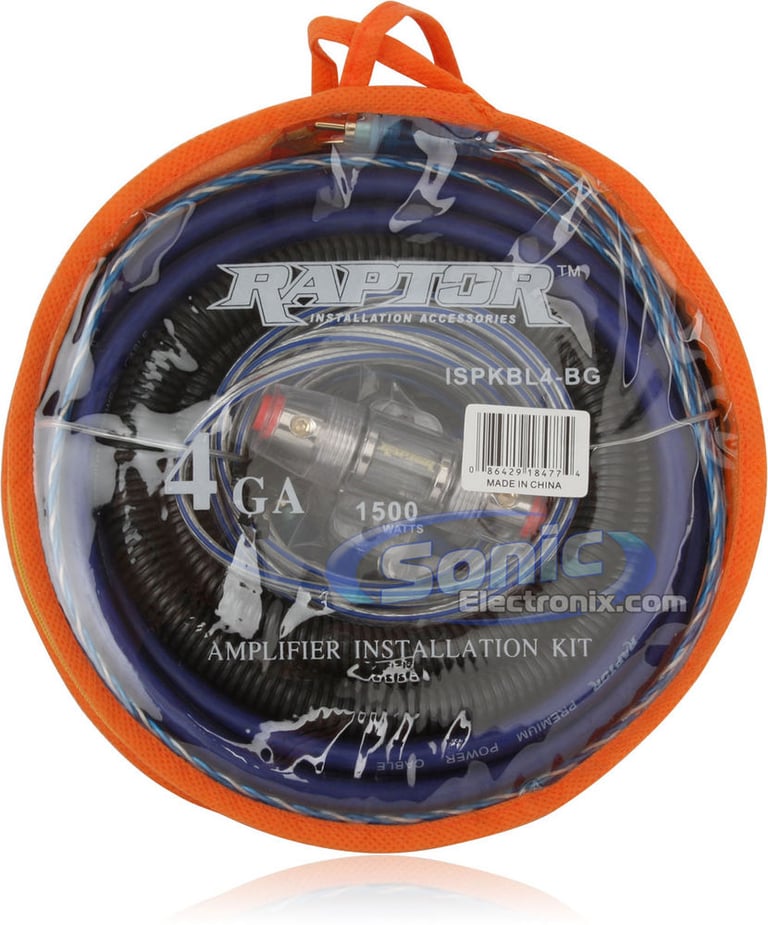

Raptor ISPKBL4-BG Features:
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 4 Gauge Power and ground cable for excellent power transfer
  • Designed for systems up to 1500W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Raptor ISPKBL4-BG Includes:

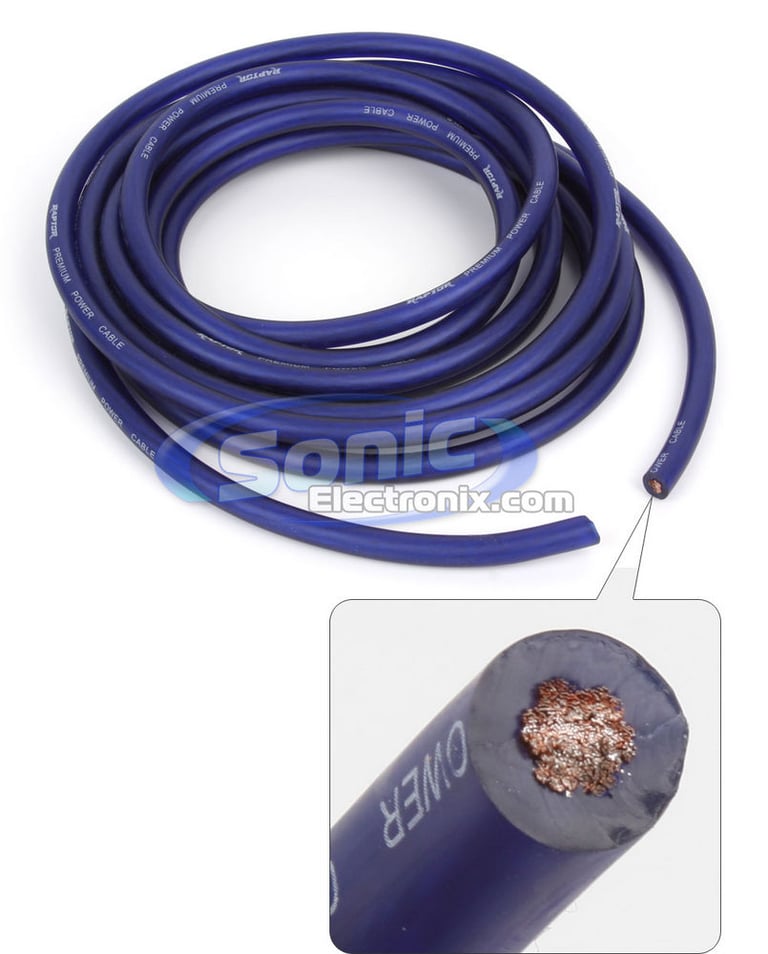

  1. 17 ft. of 4 Gauge blue power cable

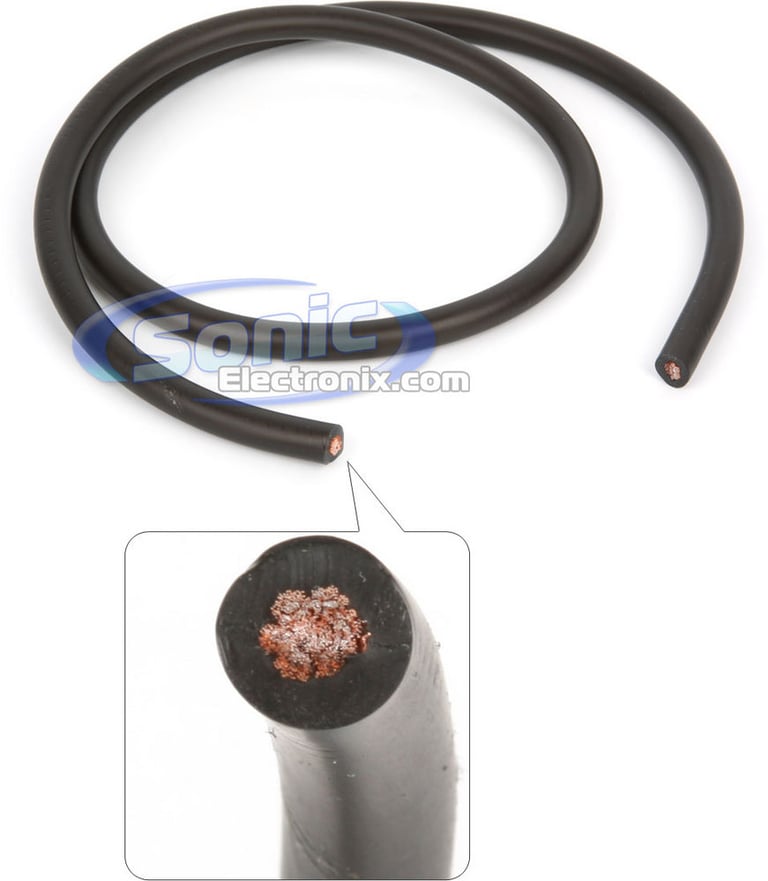

  2. 3 ft. 4 Gauge black ground cable

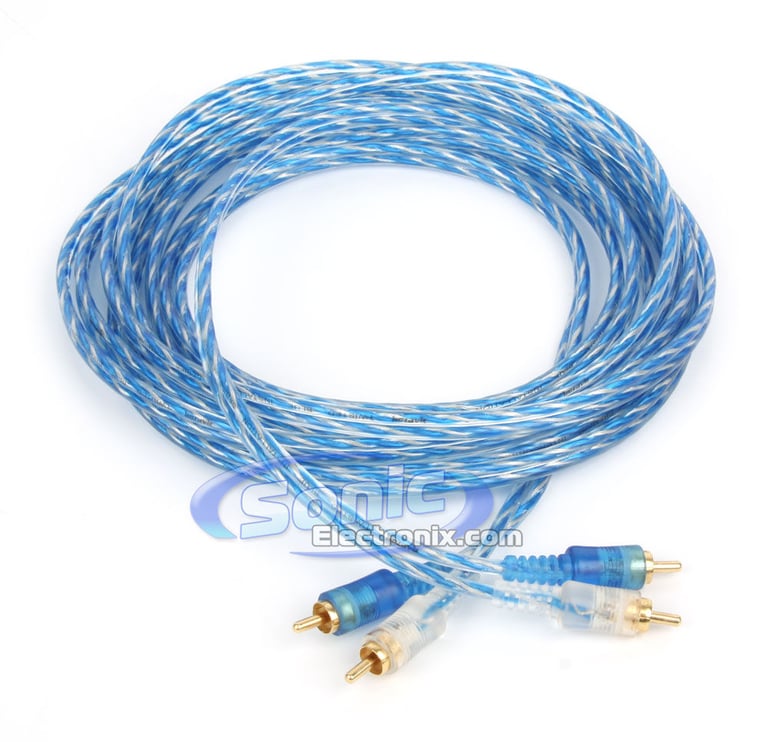

  3. 17 ft. Neon blue series RCA cable

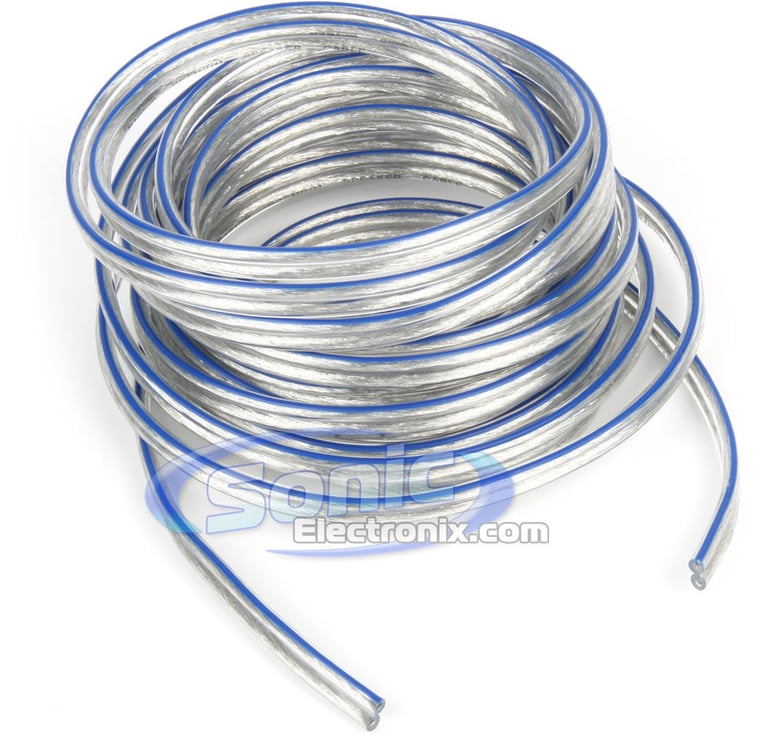

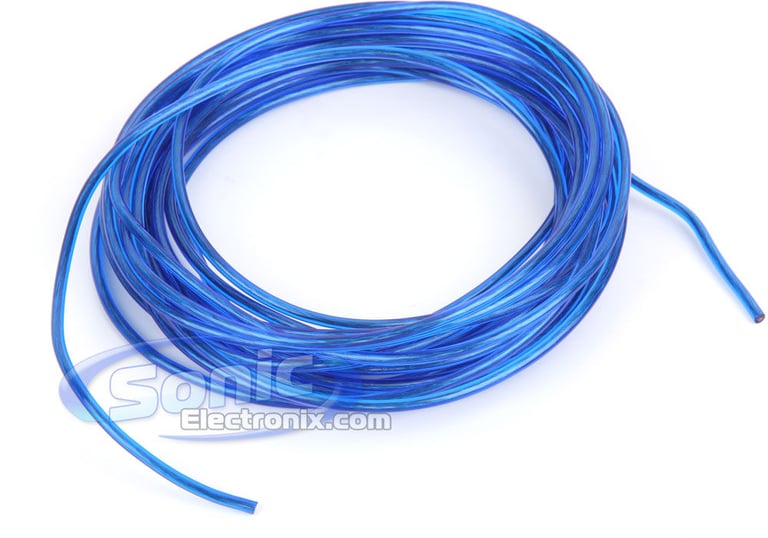

  4. 16 ft. of Speaker wire
  5. 17 ft. of 18 Gauge blue remote turn-on wire

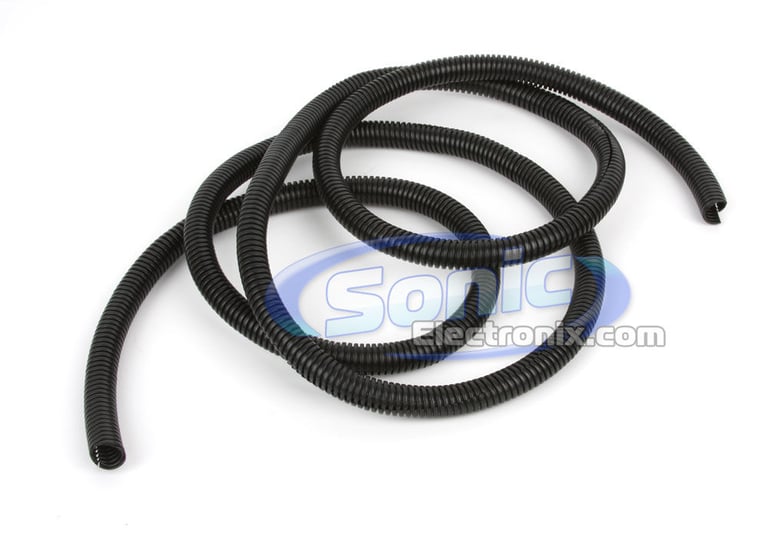

  6. 6 ft. of Split loom tubing

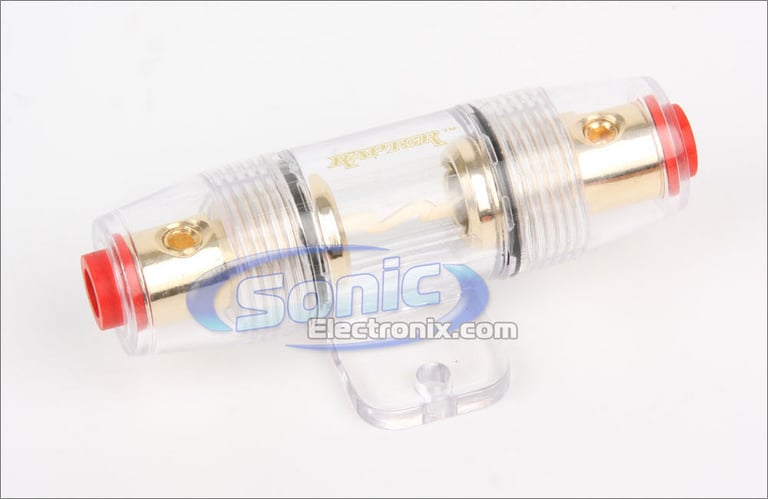

  7. 1 AGU Fuse Holder
  8. 60 AGU Fuse

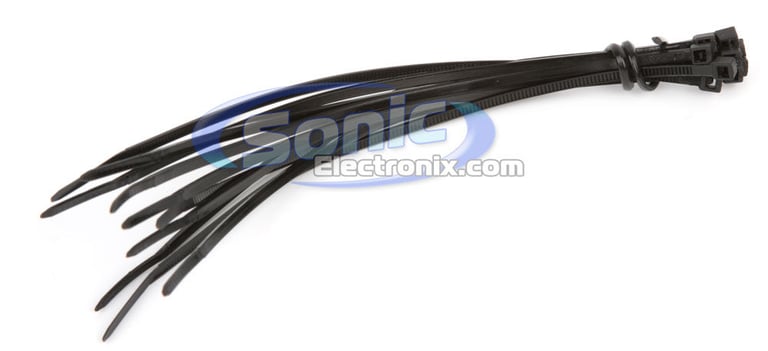

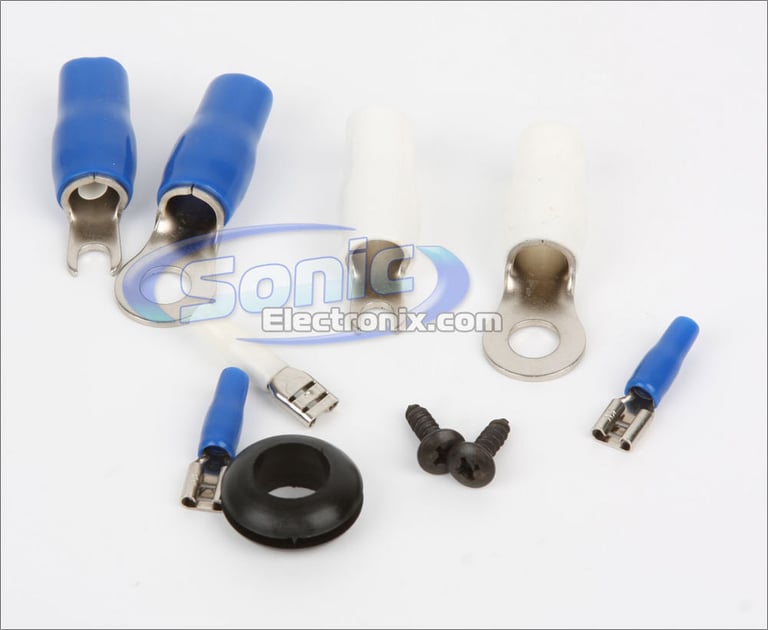

  9. All Necessary Hardware for Installation

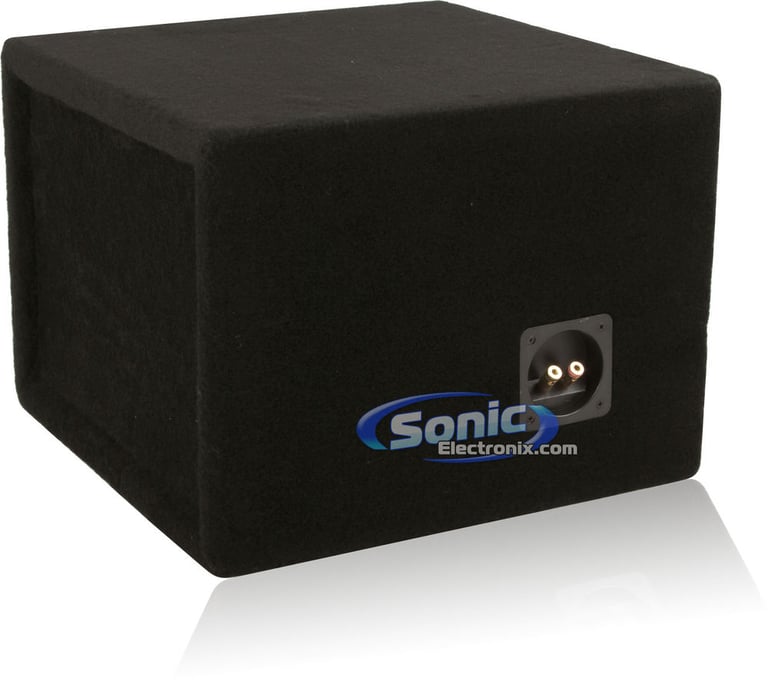

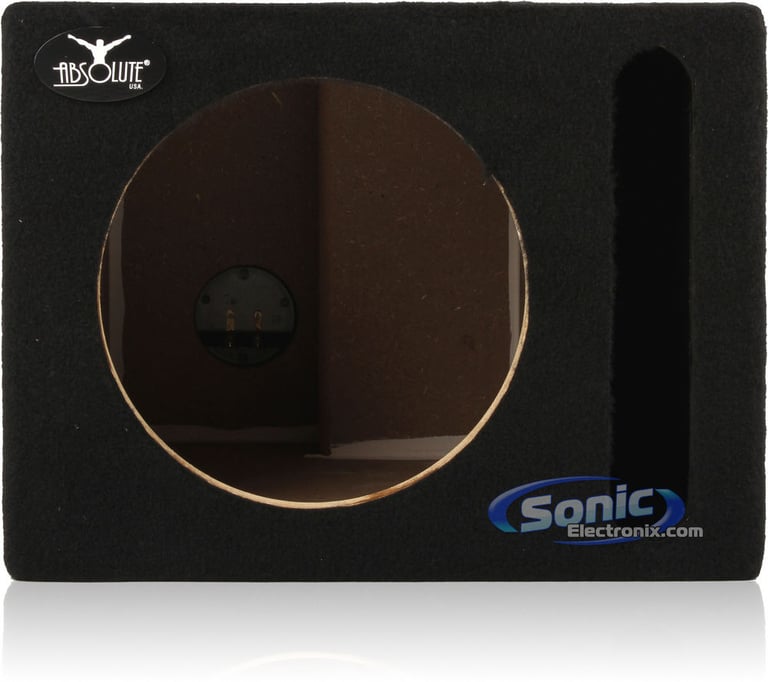

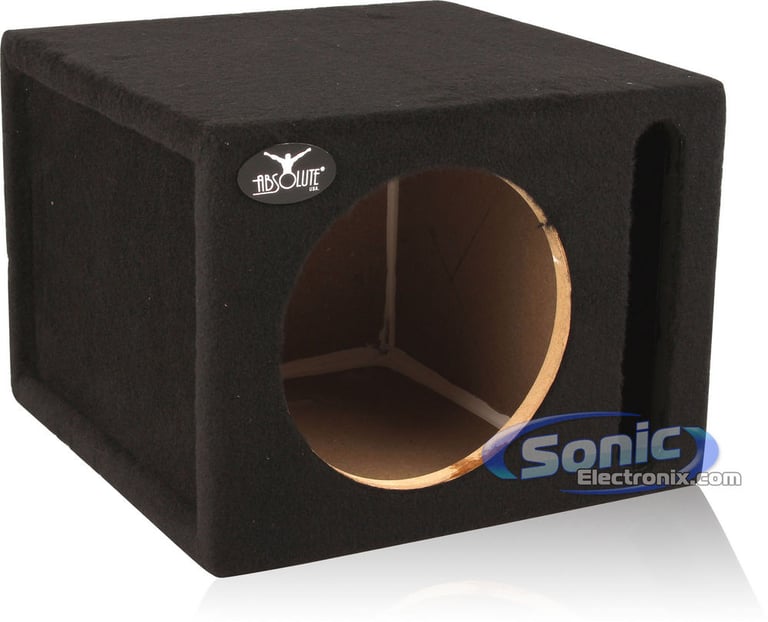

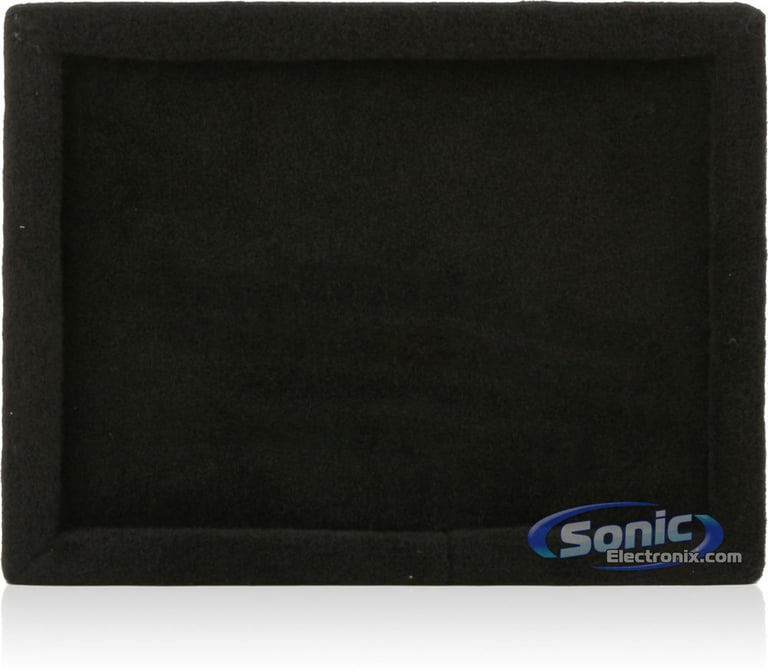

Enclosure Features:
  • Slot Vented 10" Car Subwoofer MDF Enclosure/Box
  • Fits one (single) 10" subwoofer
  • Rugged black carpet
  • Gold plated binding posts
  • Banana clip ready
  • 1 L-shaped vent/port
  • Mounting Depth: 12-3/4"
  • Cutout Diameter: 9-1/8"
  • Box Volume: 1.02 cubic feet
  • Total Port Volume: .25 cubic feet
  • Made from 3/4" Medium Density Fiberboard (MDF)
  • Dimensions: 16"D x 16"W x 12-1/4"H
  • Authorized Internet Dealer

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(196)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
320 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 130 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB

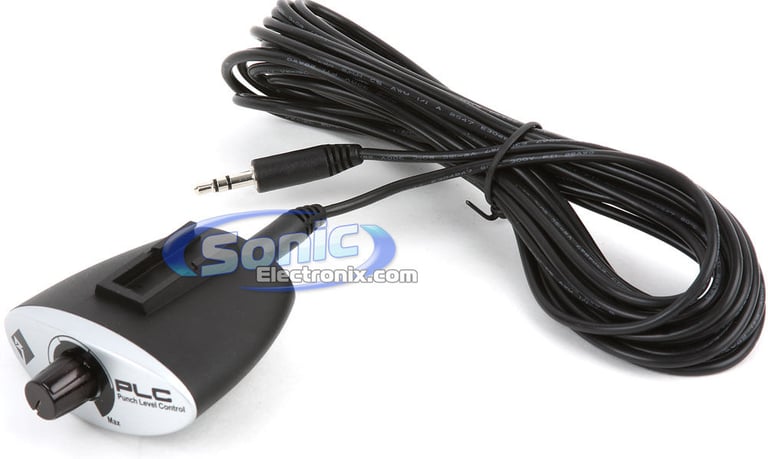

Remote bass/level controller
Yes
Fuse Rating
30A x 2
CEA-2031 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
600 watts
Total RMS Power Handling
600 watts
Peak Power Handling
Not Specified
Total Peak Power Handling
Not Specified
Woofer Surround
Rubatek Foam
Woofer Composition
Dual Composite 2-Piece Cone
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SEX10D4_R500-1

Weight:

62.80lbs

Internal SKU:

sex10d4_r5001

Internal Product ID:

36487

Product and How-to Videos


Customer Ratings & Reviews


600W RE Audio + Rockford Fosgate Complete Bass Bundle thumbnail image

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
3
Value
4
Features
5
Design
5
Usability
4

Customer Reviews

Sort by:

Loading...

Great products... The wiring kit is awful though

I bought this bundle as a starter. Great quality amp and sub. 2 problems.
1st - the diameter for the box is a few millimeters too small for the sub to fit so you need to shave down the edges.
2nd - The wiring kit is god awful. My amp would constantly overheat after only 15-20 minutes of playing. YOU MUST BUY A NEW WIRING KIT. The wire is more like an 8 gauge and one of the RCA connectors broke off inside my amp.

Besides that, I'm very happy. Sonic Electronix was very helpful with sending me refunds and the correct materials.

By David on July 27, 2011

1 found this helpful




XIAH-TY2 small

Axxess XIAH-TY2

1998-2005 Toyota Specific Harness for XIA-I01

$7.99

List price $19.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2013 Toyota Sequoia

2004 Toyota 4Runner

1974 Jeep J10

2006 Ford Focus ZXW

2006 Honda CR-V

2005 Toyota 4Runner

2022 BMW X6

2022 BMW X7

2010 Toyota Sequoia

2022 BMW X2

Vehicle
Store
Delete

1999 Harley Davidson FXSTC/I Softail Custom

2007 Harley Davidson FXSTSSE2 Screamin Eagle Softail Springer

2006 Harley Davidson FXST Softail Standard

2000 Harley Davidson FXST/I Softail Standard

Vehicle
Store
Delete

2018 Can-Am Defender HD10

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
