Alphasonik PMA1200DA

Class D Monoblock Amplifier

Product videos
highlight-star-icon

Class D Mono-Block Amplifier • 2470W x 1 @ 1 • Hour Meter • Digital Voltmeter • Bass Remote • Protective Acrylic Cover • RCA Outputs • Variable Crossovers

Learn more about the pma1200da

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
40-EU10 main

Metra 40-EU10 Antenna Adapter

Install a New Car Stereo and Retain Factory Antenna in select 2000-2017 vehicles from BMW, Mercedes-Benz, Ford

44
-14.30%

$11.99

List price $13.99

70-9003 main

Metra 70-9003 Wiring Harness

Install a new car stereo in select 2000-2018 vehicles from BMW, Mercedes-Benz, Pontiac

5
Lowest price in 30 days
VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-16.67%

$49.99

List price $59.99

C1-650 main

JL Audio C1-650

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Car Speakers

31

Product Highlights


Class D Mono-Block Amplifier • 2470W x 1 @ 1 • Hour Meter • Digital Voltmeter • Bass Remote • Protective Acrylic Cover • RCA Outputs • Variable Crossovers

Description


  • 1-Channel Class D Mono-Block Power Amplifier
  • RMS power Rating:
    • 1200 watts x 1 @ 4 ohm mono
    • 2000 Watts x 1 @ 2 ohm Mono
    • 2470 Watts x 1 @ 1 ohm Mono
  • Bridgeable with Second Identical Model
  • 3’ Modular Cord Included

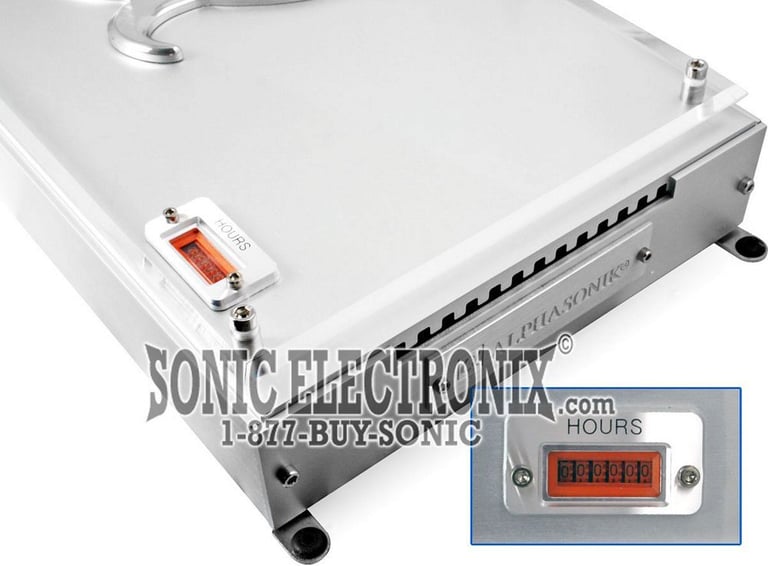

  • Hour Meter

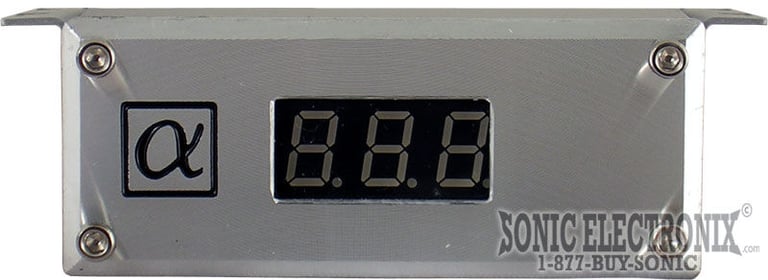

  • Remote Mount Digital Voltmeter Included

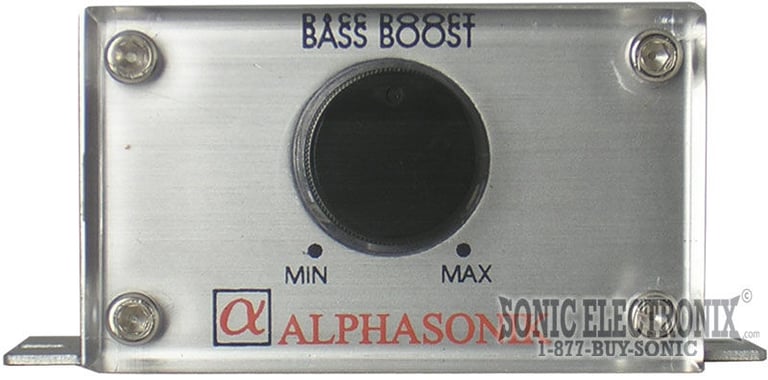

  • Remote Mount Bass Boost Control
  • Heavy Duty One-piece Extruded Aluminum Heat Sink
  • Variable Low Pass Filter: 50Hz~150Hz, 24dB/Octave
  • Variable Subsonic Filter: 15Hz~40Hz, 24dB/Octave
  • Variable Bass Boost at 45Hz: 0~+ 18dB
  • Variable Phase Shift: 0~180°
  • Input Impedance: 10K ohm
  • Variable Input Sensitivity: 300mV ~ 8V
  • Beveled Clear Acrylic Protective Cover
  • Tiffany-Style Input and Output RCA Jacks
  • Parallel Line-out RCA Jacks
  • Removable Covers Conceal Control and Terminal Panels
  • MOSFET High Speed Switching Power Supply
  • Milspec Double-Sided Glass Epoxy Circuit Board with Through-hole Plating
  • Heavy 4 oz. Pure Copper PC Traces at All Preamp and Amplification Stages
  • Internally Mounted Fan-Cooled Power Supply
  • Solid Brass Nickel-plated Terminal Blocks (4-gauge Power, 8-gauge Speaker)
  • Terminal Blocks are Compression Type and Soldered Directly to the PCB
  • 4-Way Protection Circuitry: Thermal, Short Circuit, Overload and DC Offset
  • Dimensions: 20-7/8” L x 9-1/8” W x 2 1/2” H
  • 1-year SonicElectronix.com warranty
