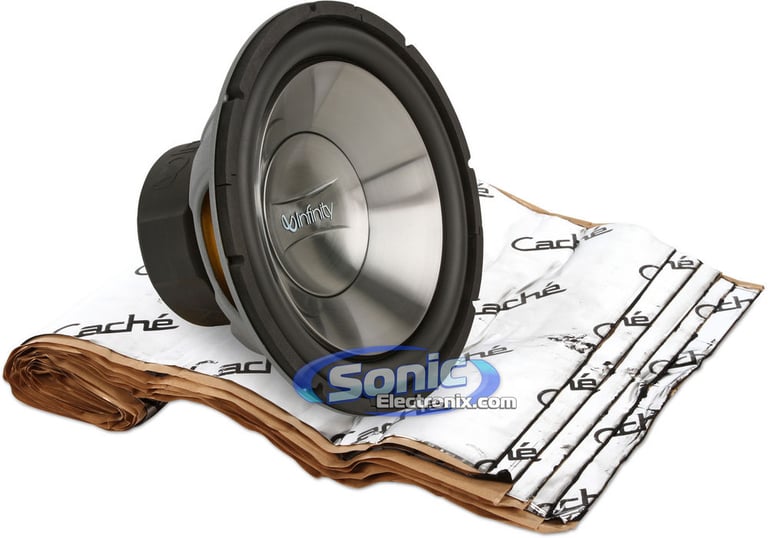

1200W Infinity + Sound Dampening Material Bass Bundle

12" Infinity 1262W Reference Series Subwoofer + Cache CTM Dead Shield Sound Dampening Material

Infinity
Shop all Infinity
EXCLUSIVE
Product videos
highlight-star-icon

12" Dual 4 Ohm Reference Series Subwoofer • 1200W Max • 300W RMS • High-Gloss Polypropylene Woofer Cone • Five 18" x 32" Pieces of Dead Shield Sound Dampening Material • Eliminates Road Noise • Simple To Install • Increases sound quality and output

Learn more about the 1262w_ctm

We apologize

This item has been discontinued


Loading...
40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

70-1784 main

Metra 70-1784

Install a New Car Stereo in select 1980-2020 vehicles from Volkswagen, Audi, Ram

16
99-9107B main

Metra 99-9107B Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2002-2009 S4 and A4 and RS4 (Matte Black)

8
-58.83%

$27.99

List price $67.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

JVC KW-R950BTS

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

6
-10.58%

$169.00

List price $189.00

Product Highlights


12" Dual 4 Ohm Reference Series Subwoofer • 1200W Max • 300W RMS • High-Gloss Polypropylene Woofer Cone • Five 18" x 32" Pieces of Dead Shield Sound Dampening Material • Eliminates Road Noise • Simple To Install • Increases sound quality and output

Description


Infinity brand icon

Authorized dealer

Alpine plus Sound Dampening Material Bass Bundle

This Sonic Electronix Exclusive Bundle showcases a 12" Dual 4 Ohm Infinity Reference Series Subwoofer. This subwoofers is rated at 300 watts RMS of continues power and 1200 watts of Max power. The subwoofer is equipped with a high-gloss polypropylene and large-roll rubber surround for rigidity and performance. It is also equipped with vented pole pieces that provide additional cooling and a progressive spider that provides better control at high excursion levels. This Infinity Reference Series subwwofer will provide deep and clean bass. In order to improve the all around sound of your audio car system, this bundle also includes five 18" x 32" pieces of Dead Shield sound dampening material. This dampening material will help reduce engine noise, vibrations, road noise and rattling to give you a higher sound quality. Four step peel and stick application makes installation simple and efficient. This sound dampening material is sure to improve the over all quality and output of your system.

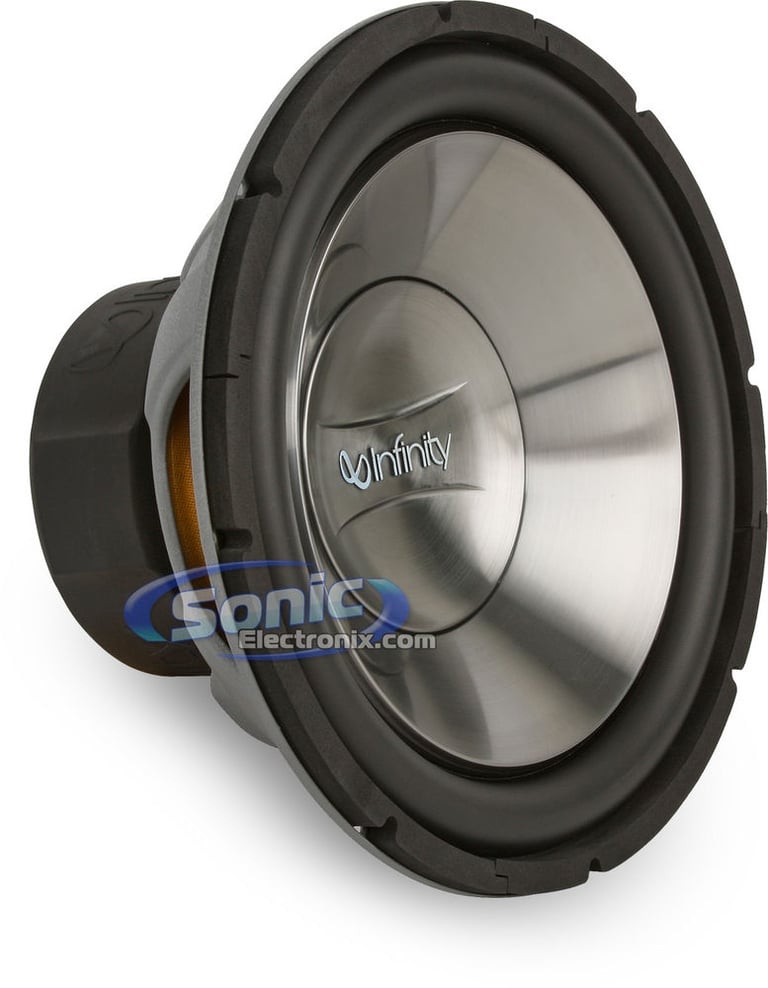

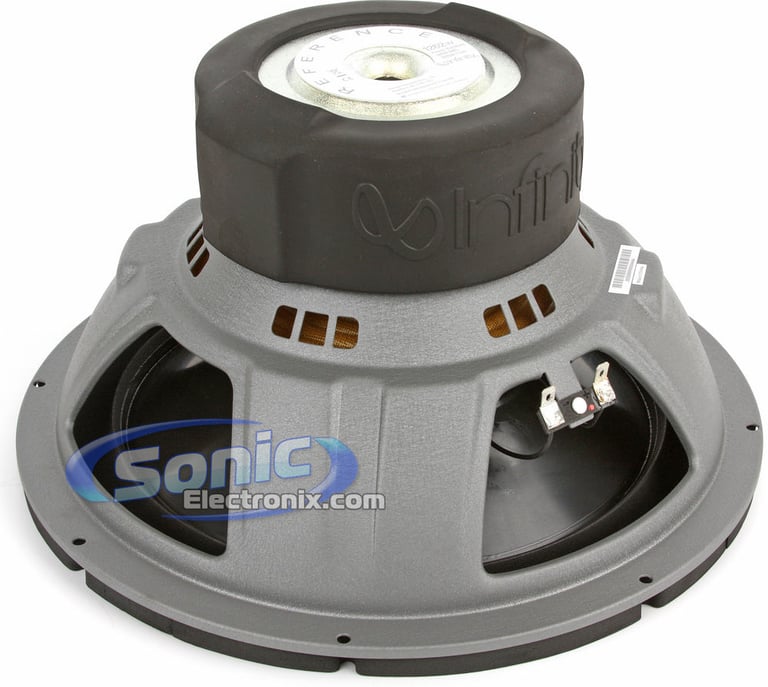

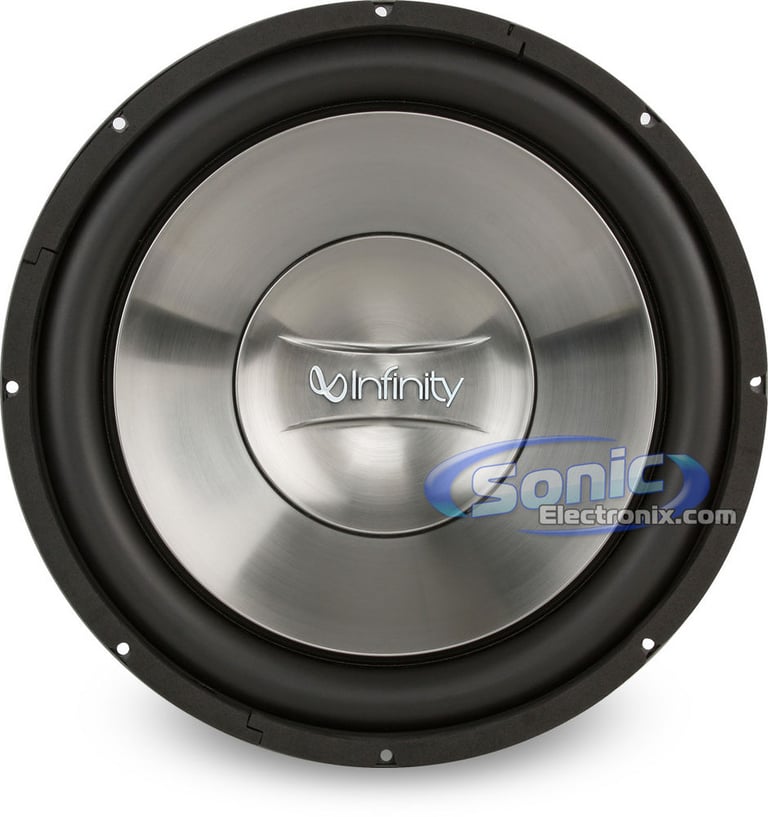

Infinity Reference 1262W Features:
  • 12" Dual 4 Ohm Reference Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 300 watts
  • Impedance: Dual 4 Ohm
  • High-gloss polypropylene woofer cone ensures maximum woofer efficiency
  • Large-roll rubber surround absorbs distortions
  • Vented pole pieces provide additional cooling of the motor
  • Progressive spider provides better control at excursion limits
  • 2" Voice coil
  • Frequency response: 23-400 Hz
  • Sensitivity: 91 dB
  • Mounting Depth: 6-3/8"
  • Cutout Diameter: 11-1/16"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

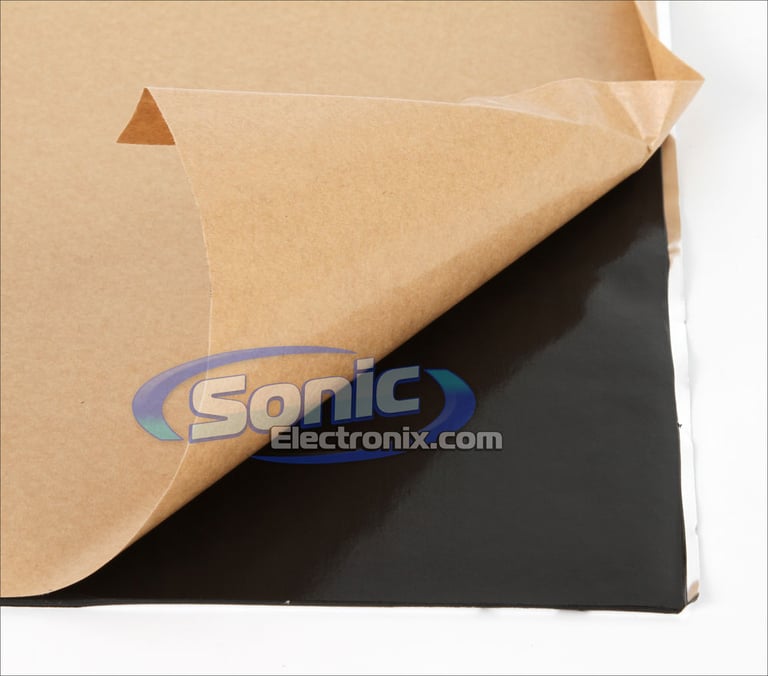

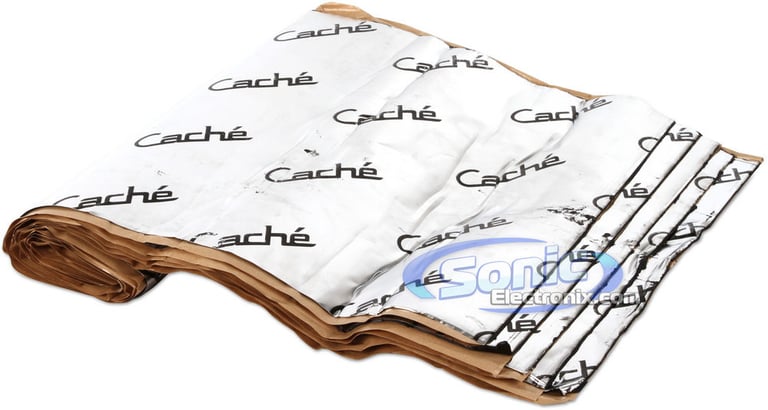

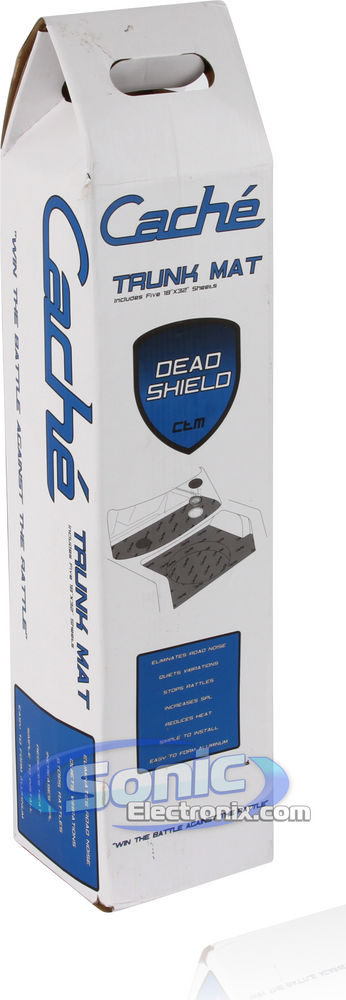

Cache CTM Features:
  • Five 18" x 32" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 18"L x 32"W

Subwoofer Wiring Guide


Wiring Guide to Wire 1 1200W Infinity + Sound Dampening Material Bass Bundle Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 1200W Infinity + Sound Dampening Material Bass Bundle Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 1200W Infinity + Sound Dampening Material Bass Bundle Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 1200W Infinity + Sound Dampening Material Bass Bundle Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

P3D4-12 small

Rockford Fosgate Punch P3 P3D4-12

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 6.66"
• Sensitivity: 85 dB

(134)

$229.99

List price $259.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$89.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(1)

$599.99

List price $719.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

Specifications & Details


Subwoofer Specifications
Series
Reference Series
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
23 - 400 Hz
Sensitivity
93 dB
Xmax (millimeters)
13 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
2.0 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
6-3/8"
Cutout Diameter
11-1/16"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

1262W_CTM

Weight:

34.00lbs

Internal SKU:

1262w_ctm

Internal Product ID:

36668

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


1200W Infinity + Sound Dampening Material Bass Bundle thumbnail image

5 star
78%
4 star
16%
3 star
6%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.6
Design
4.8
Usability
4.6

Customer Reviews

Sort by:

Loading...

Subwoofer by Infinity

The following review is for 1262w, which is a part of the bundle you are viewing.

Very nice sound and handling. shakes the entire car. Would buy from them again.

By Doug on April 21, 2014

67 found this helpful


Love this sub!

The following review is for 1262w, which is a part of the bundle you are viewing.

I bought one of these off of Ebay a while ago and was extremely pleased with it, so I bought a 2nd one from SonicElectronix during their Black November sale. I built my own custom ported enclosure at 2.0 cubic feet, tuned to 32hz. This sub hits the lows very well and puts out an insane amount of bass for only being a 300w RMS sub. In the enclosure that I built, it actually gives my buddy's 600w rms sub a run for it's money. I would highly recommend this sub to anyone, but also recommend that you look at the suggested enclosure size and don't skimp on a proper enclosure.

By Chris on December 21, 2013

74 found this helpful


Infinity 1262w

The following review is for 1262w, which is a part of the bundle you are viewing.

Great sub for the price. I used this with a 300rms MTX amp and it was loud, deep, and clear. Would recommend for sure.

By Chris from Toronto on April 4, 2012

64 found this helpful


Sound as accurate as JL Audio w1v2's

The following review is for 1262w, which is a part of the bundle you are viewing.

I was tired of the sloppy sound from my old subs, and I always knew Infinity was known for realistic, accurate bass sound, so I grabbed me two of these and put them in a Sound Ordinance 1.25 cf braced, sealed enclosure. They sound very, very good- just like my JL's in my Explorer... I am driving them with a Rockford Fosgate T1500-1BDcp amp at 4 ohms...a bit much, but they seem to handle that power fine with the gain set halfway and the crossover at about 70 hz.. I also have some Kappa 12's in my Camaro... go for them if you can.

By Bo on November 20, 2010

62 found this helpful


Infinity Reference 1262W

The following review is for 1262w, which is a part of the bundle you are viewing.

I have two of these speakers and they do the job just fine. They are not the hardest hitting subs but they are not that poor quality neither.

By Charles on January 16, 2015

59 found this helpful


Great subwoofer at a great price.

The following review is for 1262w, which is a part of the bundle you are viewing.

My goal was to find about a 300-500 watt RMS (DVC @ 4 ohms/coil) 12" subwoofer that would be somewhere between $50-$100. After extensive research on Sonic's awesome site, I chose this model over the similar Alpine, Pioneer and Kicker models.

Pioneer TS-W310D4
Alpine SWS-12D4

The Infinity was less than $60 to my door, looks great installed in my custom ported MDF/fiber box and hits really solid. If I had it to do again, I might have built a sealed box for tighter bass and less space. It still sounds great and I have it tuned right around 33Hz.

I would highly recommend this model. If you are on the fence with a 12" sub decision, you won't be disappointed. The magnet on this thing is MASSIVE!

By Ernie on January 1, 2014

59 found this helpful


Awesome value.

The following review is for 1262w, which is a part of the bundle you are viewing.

I recently purchased this sub for my Subaru Outback and have been more than pleased so far. It's in a sealed 1.25cu ft box, fed 500 watts @ 4 ohms. This exactly what I wanted at an amazing price. My goal was for a good sq sub that didn't require loads of power...goal met. If you're looking for a nice affordable sub look no further. Looks awesome, sounds terrific and doesn't break the bank.

Pros:
Killer price
Amazing sound quality in the recommended sealed box
Looks good

Cons:
Can't think of any off hand.

By Jordan on September 2, 2014

57 found this helpful


Infinity Sub

The following review is for 1262w, which is a part of the bundle you are viewing.

this is a great product sounds very clear I love them

By Ethan on January 23, 2015

55 found this helpful


great value

The following review is for 1262w, which is a part of the bundle you are viewing.

It's pretty good sub for that price hits hard enough for me loving this sub.

By Reggie on May 8, 2014

56 found this helpful


Amazing

The following review is for 1262w, which is a part of the bundle you are viewing.

I bought an old set of infinitys in a box and they were a few years old, those blew within a year. I then purchased 2 Infinity 1262Ws and they've been hitting hard and proud for the past year!

By Luke on June 15, 2012

55 found this helpful




XS-V160HP small

Sony XS-V160HP

6-1/2" 2-way Speakers (also fits 6-3/4" openings)

$49.99

List price $119.99

89186J small

Motorola H500 (Red)

Hands-Free Bluetooth Headset with 10 Hours of Talk Time (89186J)

$19.99

List price $69.99

AB-GMVET small

PAC AB-GMVET

Add Auxiliary Input to Factory Radio in 1997-2004 Chevrolet Corvettes (Use with PAC AUX-BOX or iPAC-OEM)

(2)

$6.95

List price $12.95

KDC-MP245 small

Kenwood KDC-MP245

In-Dash CD, MP3, WMA Car Stereo Receiver with Front Panel Aux-In and Remote

(8)

$79.99

List price $119.99

RFAP-0083F small

Powerbag Deluxe Backpack by ful (Red) RFAP-0083F

Backpack with Internal Battery for Multiple Device Charging (RFAP-0083F-RD)

(2)

$89.99

List price $169.99

EB91B small

Kicker EB91B Black MicroFit In-Ear Headphones/EarBuds

MicroFit™ In-Ear Black Monitor Ear Buds

(42)

$14.95

List price $39.95

PMSBL small

Scosche PMSBL boomCAN (Blue)

Portable Media Speaker for iPod, iPhone, iPad, Android, Smartphones, & Other Media Devices

(3)

$6.00

List price $24.99

IMAGE S4 small

Klipsch Image S4 (Black)

Image Series In-Ear Headphones with Noise-Isolation Technology and Built-In Strain Relief (1010471)

(31)

$54.99

List price $79.99

KDC-348U small

Kenwood KDC-348U

In-Dash CD Receiver w/ SAT Ready and Illuminated Front USB and AUX Inputs

(9)

$109.99

List price $170.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 Audi A4

2017 Honda HR-V

2001 Suzuki Esteem

2023 Kia Seltos

1988 Dodge Raider

1997 Toyota Celica

1997 Dodge B3500

2015 MINI Cooper

2006 BMW M3

1999 Mercury Tracer

Vehicle
Store
Delete

2013 Can-Am Commander E LSV

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
