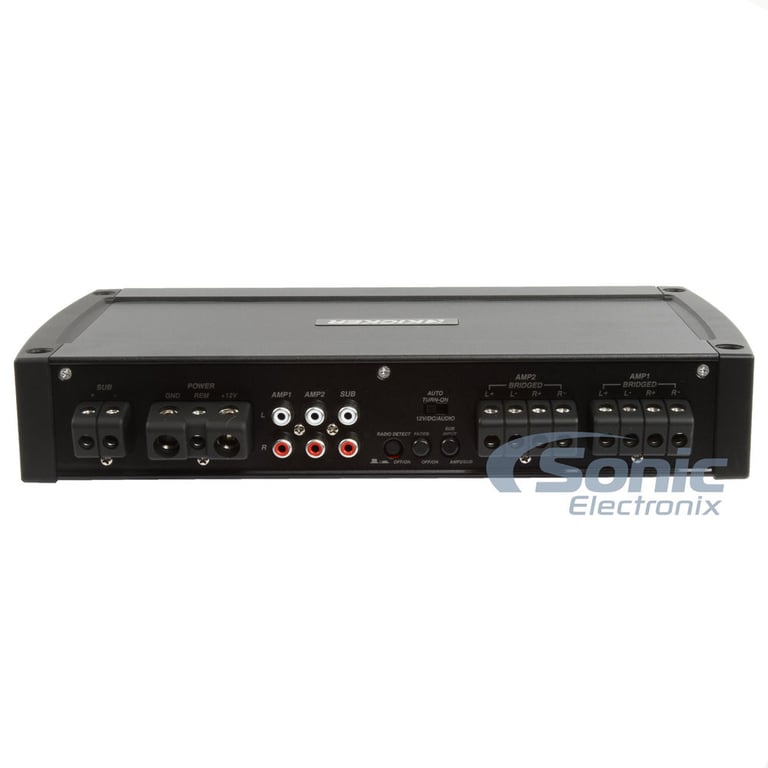

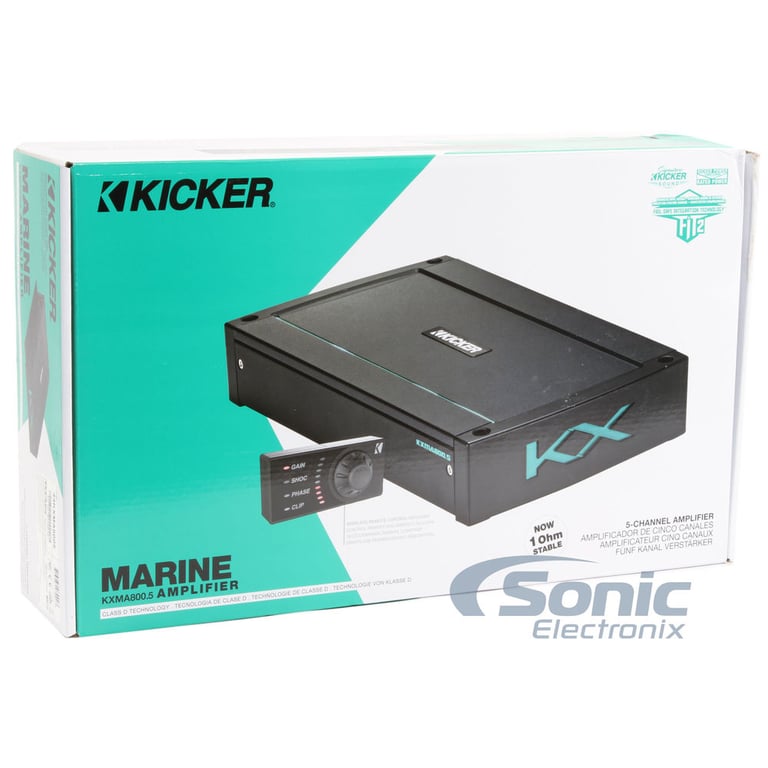

Kicker KXMA800.5 (44KXMA8005)

800W RMS KXM Series Marine Class-D 5-Channel Amplifier with Wireless Remote Level Control Knob Included

Kicker
Shop all Kicker
Product videos
highlight-star-icon

• 50 Watts RMS x 4 + 200 Watts x 1 @ 4 ohm
• 100 Watts RMS x 4 + 400 Watts x 1 @ 2 ohm
• Bridged, 4 ohm: 200 watts x 2 chan
• Wireless remote bass level control included
• CEA-2006 Compliant
• Conformal-Coated Circuit Boards
• Black Anodized Aluminum Chassis
• Stainless Steel Mounting Hardware Included

Learn more about the 44kxma8005

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

48kxma9005 thumbnail

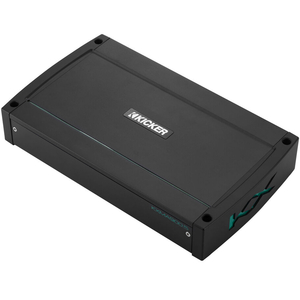

Kicker KXMA900.5 (48KXMA9005)

OUR PRICE: $575.96

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

70-1817 main

Metra 70-1817 Wiring Harness

Install a new car stereo in select 1984-2006 vehicles from Dodge, Chrysler, Plymouth

29
-14.31%

$5.99

List price $6.99

MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13

Product Highlights


• 50 Watts RMS x 4 + 200 Watts x 1 @ 4 ohm
• 100 Watts RMS x 4 + 400 Watts x 1 @ 2 ohm
• Bridged, 4 ohm: 200 watts x 2 chan
• Wireless remote bass level control included
• CEA-2006 Compliant
• Conformal-Coated Circuit Boards
• Black Anodized Aluminum Chassis
• Stainless Steel Mounting Hardware Included

Description


Kicker brand icon

Authorized dealer

General Features:

  • Kicker KXM Series KXMA800.5 (44KXMA8005)
  • Class-D 1-Ohm Stable (Sub Ch) 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 4 chan.
    • 2 ohm: 100 watts x 4 chan.
    • Bridged, 4 ohm: 200 watts x 2 chan
  • Subwoofer Channel Power Rating:
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 400 watts x 1 chan.
    • 1 ohm: 400 watts x 1 chan.
      Note: 2017 KXM amplifier subwoofer channels are 1Ω stable
      power rating equivalent to 2Ω operation, +/- 10%
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply

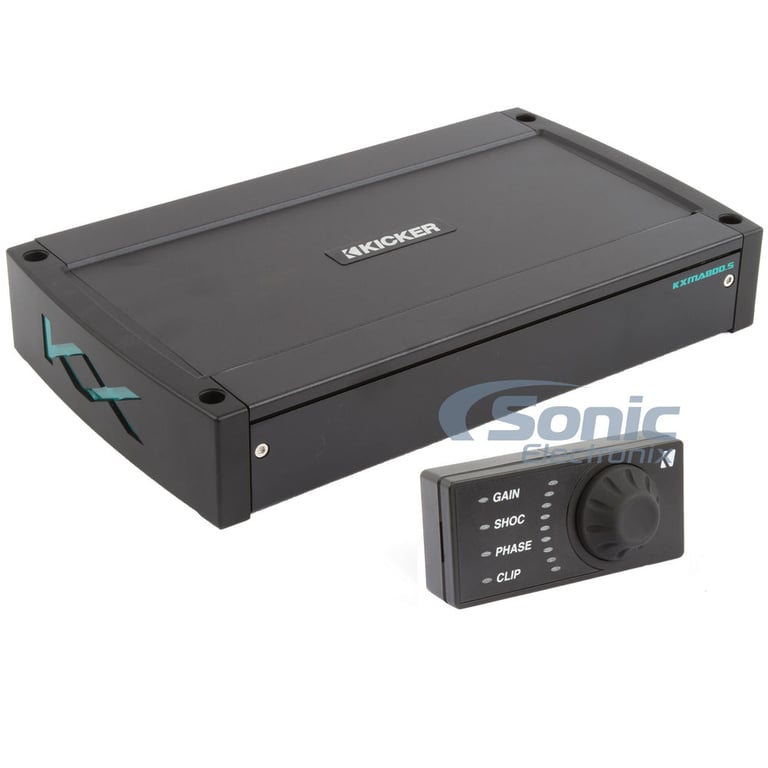

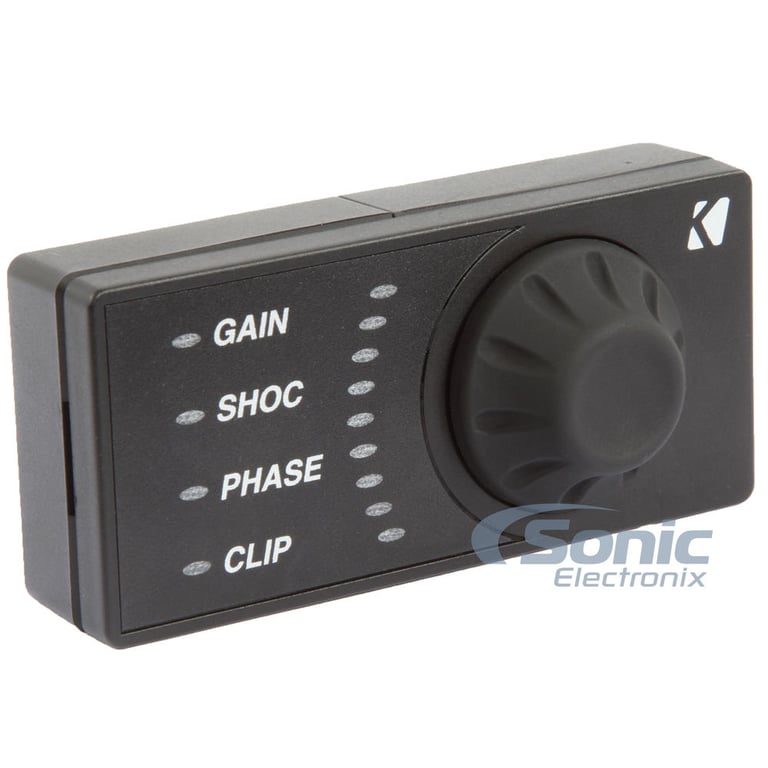

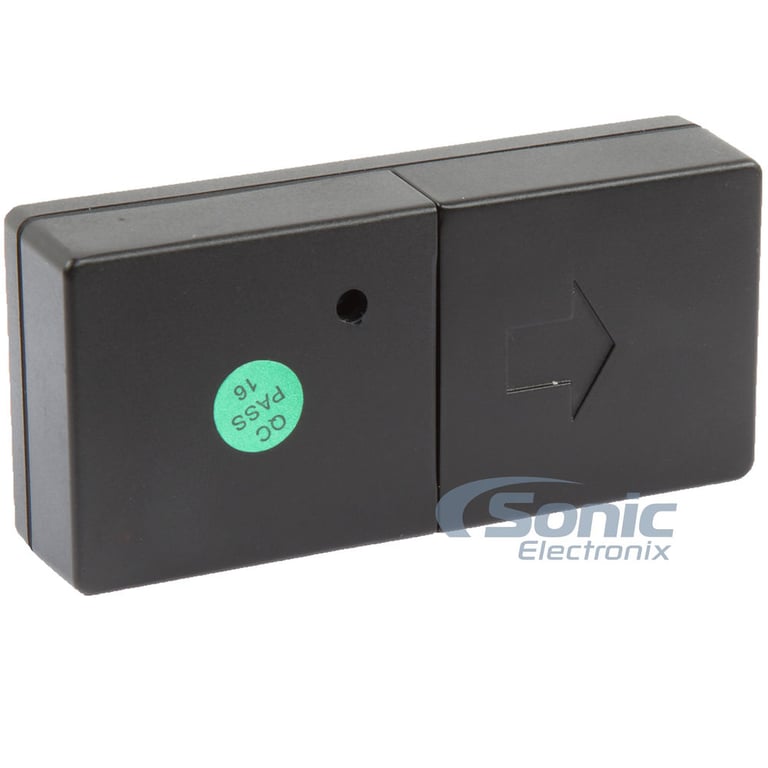

  • KXARC Wireless Remote Included
  • Speaker-level (high-level) inputs: Kicker KISL requires, sold separately
  • Gain Control With Optimal Input Indicator
  • SHOCwave™ Bass Restoration Processor
  • FIT2 (Fail-Safe Integration Technology) Circuitry
  • DSP-Controlled Preamp
  • ABYC/NMMA Compliant Power Terminals
  • Conformal-Coated Circuit Boards

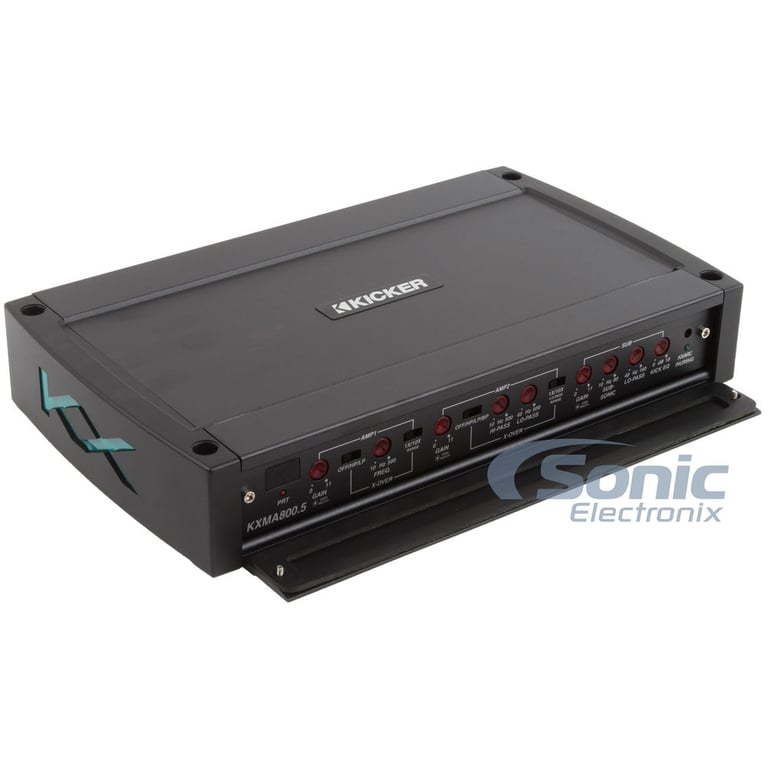

  • Easy Access to Settings behind Gasket-Sealed Cover Panel
  • Black Anodized Aluminum Chassis
  • Stainless Steel Mounting Hardware Included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity: 250mV - 10V
  • Frequency Response: 10 - 160 Hz
  • Total Harmonic Distortion (THD) 1%
  • Signal to Noise Ratio: 95dB

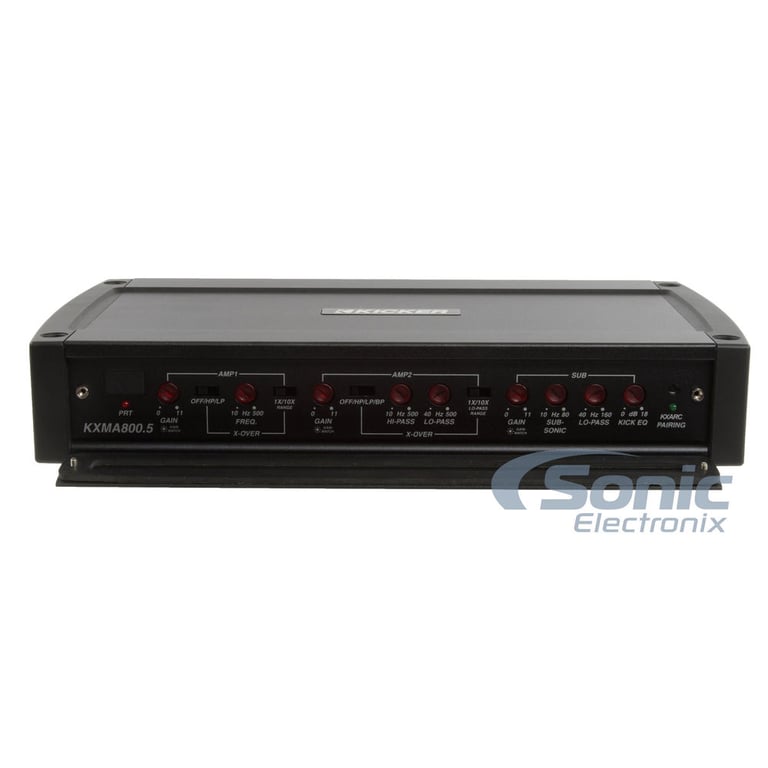

  • Selectable crossover mode (front/rear): Off / HP / LP , BP (Rear Only)
  • x1 & x10 Frequency Multiplier, Front & Rear
  • Variable crossover filter (Front): 10 - 500 Hz, 24 dB/octave
  • Variable high-pass filter (Rear): 10 - 500 Hz, 24 dB/octave
  • Variable low-pass filter (Rear): 40 - 500 Hz, 24 dB/octave
  • Variable low-pass filter (Sub): 40 - 160 Hz, 24 dB/octave
  • Subsonic filter: 10 - 80 Hz , 24 dB/octave
  • Fuse Rating: 100A x 1 External Fuse (sold separately)
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 8-5/16"W x 9-9/16"L x 2-1/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Kicker KXMA8005 (44KXMA8005) Owner's Manual

Product history:

Kicker KXMA900.5 thumbnail
(newest, current model)
Kicker 44KXMA8005 thumbnail
(previous model, replaced by Kicker KXMA900.5 (48KXMA9005))
Kicker 40KXM800.5 thumbnail
(previous model, replaced by Kicker KXMA800.5 (44KXMA8005))

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(137)

$349.99

List price $419.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(54)

$189.99

List price $239.99

VAD8402v2 small

NVX VAD8402 v2 (VAD8402v2)

• 300 watts x 2 channel @ 4 ohm
• 420 watts x 2 channel @ 2 ohm
• Bridged: 840 watts x 1 channel @ 4 ohm
• Total RMS Power: 840 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$229.99

List price $275.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
RMS Power @ 1 ohm
400 watts x 1 channel
Amplifier Specifications
Series
KXM Series
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
No
Built-in Crossover
Band-Pass (BP)
Low-Pass (LP)
High-Pass (HP)
Full (AP)
Subsonic
High-Pass Crossover Frequency
10 - 500 Hz
Low-Pass Crossover Frequency
40 - 500 Hz
Subsonic Filter
10 - 80 Hz
Signal-to-Noise Ratio
95 dB
Remote bass/level controller
Yes
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

44KXMA8005

Weight:

8.30lbs

Internal SKU:

44kxma8005

Internal Product ID:

127819

Product and How-to Videos


Customer Ratings & Reviews


Kicker KXMA800.5 (44KXMA8005) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.7
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

wonderful deal

The following review is for a previous version (40KXM800.5).

This lightweight incredible sounding kicker is awesome.I purchased this unit for my 43 foot motor yacht and the sound is crisp and clear.
Thank you
Donny

By Donny on July 10, 2014

61 found this helpful


AWESOME AMP!!! AWESOME SERVICE!!!

The following review is for a previous version (40KXM800.5).

This is the best amp I have ever owned! The sound quality, ease of use, adjustability, look and build of this amp is off the chart! Compact and solid it feels bulletproof! Installed in less than an hour, adjustment for each channel was easy, the remote sub control knob is a great feature. Kicker has hit a homerun with this one and the great pricing, service and fast shipping from Sonicelectronix makes it a grand slam!!! I would definately recommend this amp to anyone looking for a powerful all in one five channel amp with remote bass control and Sonicelectronix is simply the best!

By Che on August 23, 2014

52 found this helpful


Three "E" Words: Efficient, Easy, Effective

This amp was purchased as a replacement to my Kicker KCA 300.4 and 300.1 amps I loved. I wanted a simple setup, powerful, efficient, and most importantly a quality amplifier set up. In comes in the beautifully crafted kx 800.5! All I can say is wow!! My system now sounds that much tighter and powerful. The built in gain indicators make setting up the gains super easy, the crossovers are easy to set up, and the SHOC-Wave tech is just as amazing if not better then add on processors! The wireless remote is super convenient to mount anywhere there is space. You can control every function of your sub from one remote! The sound quality this amp produces is clear highs, strong mids, and thanks to Kicker's great tech you have super tight yet expansive bass. This amp is worth the investment if you want to have a powerful system in a tight package! This is the perfect package! Love my Kicker amps!
System:
Speakers: Polk DXI 650 Components
Polk DX 650 Coax
Sub: Kicker Comp 12 in Kicker enclosure (2ohm)
Amp: Kicker KX800.5 (wiring, distribution and fuses by Kicker)
Battery: Northstar H5 Capacitor : DB Link 2 Farad.
LOC: Audio Control LC7I (setup for use of front and rear channels only)

By Stephen on November 28, 2017

16 found this helpful


By billy on May 6, 2025 Checkmark Icon Verified purchase




ZXi8408 small

Hifonics ZXi 8408

880W RMS, 4-Channel Zeus ZXi Series Amplifier (ZXi8408)

$199.99

List price $469.99

XPFLEX0BL-20 small

XS Power XPFLEX0BL-20 (Iced Blue)

XS Power XP Flex 0 AWG CCA Power/Ground Cable

(2)

$47.99

List price $95.99

No picture

Audiopipe APMB-C6ND

6-1/2", 8 ohm APMB-RND Series Loudspeaker

$0.00

List price $0.00

PFL153IRB small

Absolute PFL153IRB (Black)

15" TFT-LCD Overhead Flip-down Monitor with Built-in IR Transmitter and Remote Control

(2)

$149.99

List price $699.99

No picture

VizuaLogic 82A-99063-L511

Lexus GS 300/GS 430 2004 Ivory Leather

$1599.99

List price $2999.99

GX-9201-Gray small

XO Vision GX-9201 (Gray)

2 (1 PAIR) x Universal GRAY Headrests with Built-in 9" Widescreen TFT-LCD Monitor and Wireless Remote

$219.99

List price $399.99

44KSC504 2 Pack-2 small

Buy One Get One Half Off Deal, Kicker KSC50 (44KSC504)

300W Peak (150W RMS) 5.25" KS Series 2-Way Coaxial Car Speakers

$199.90

List price $239.90

No picture

VizuaLogic 702-79019-L527

Lincoln Navigator 2003 - 2004 Parchment Leather

$1449.99

List price $2799.99

No picture

VizuaLogic 90A-79025-L533

Land Rover Range Rover 2003 Sand Leather

$549.99

List price $1299.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2000 Honda CR-V

1981 Datsun 810

2003 Dodge Ram 3500 Van

2013 Lexus LS600hL

1985 Audi Quattro

2004 Infiniti I35

1998 GMC Suburban

1983 Buick Skylark

2014 Subaru Legacy

2023 Subaru Ascent

Vehicle
Store
Delete

1957 Harley Davidson FL

2000 Harley Davidson FXR4

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
