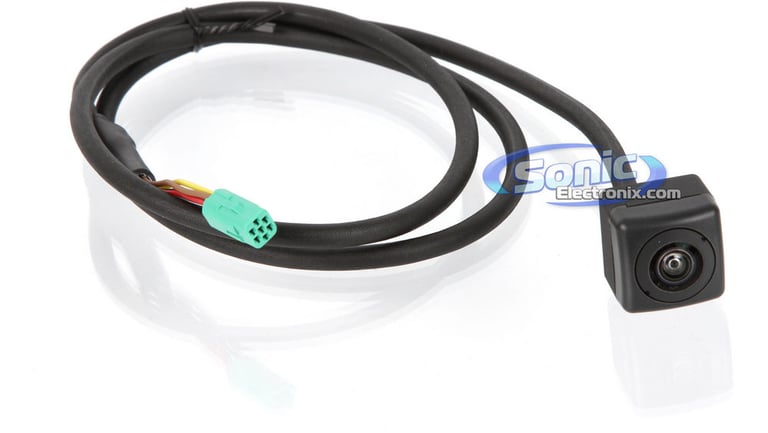

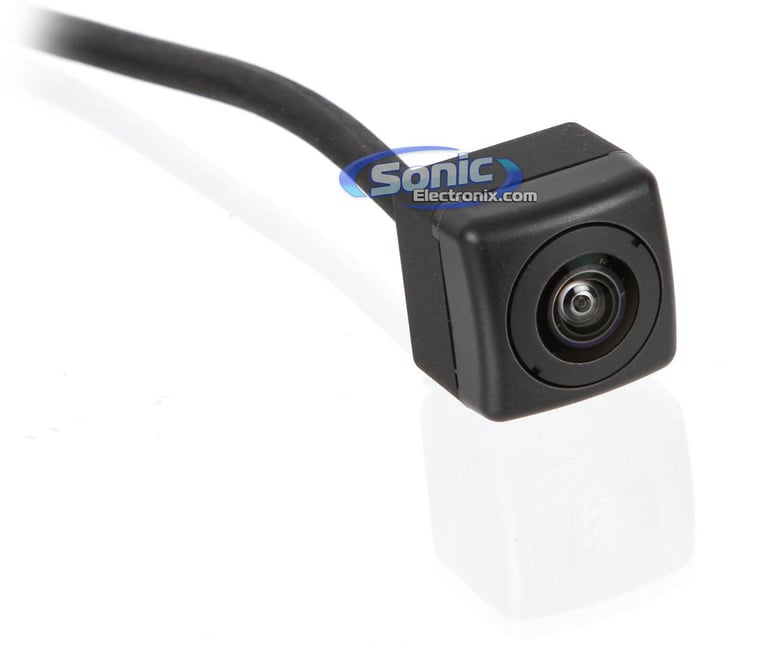

Alpine HCE-C200F

Add-on Front View Camera w/ Multiple Viewing Options (Panorama, Corner & Ground Viewing)

Alpine
Shop all Alpine
highlight-star-icon

• Front Multi-View Camera System
• Uses Black Box Image Processing and Control
• Four Total Viewing Modes for Ultimate Safety
• Panoramic View
• Top View
• Corner View

Learn more about the hcec200f

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
95-5026 main

Metra 95-5026 Dash Kit

Install a new Double-DIN car stereo in select 2002-2006 vehicles from Ford, Lincoln, Mercury (Black)

18
-41.68%

$13.99

List price $23.99

FD23B main

Scosche FD23B Wiring Harness

Install a new car stereo in select 2003-2014 vehicles from Ford, Lincoln, Hyundai

134
FD1428B main

Scosche FD1428B / FD1428 Dash Kit

Install a new Double-DIN car stereo in select 2001-2006 vehicles from Ford, Lincoln, Mercury (Black)

39
-9.51%

$11.99

List price $13.25

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$99.99

List price $119.99

DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

480BRGB main

Boss Elite 480BRGB

Double DIN Digital Media Receiver with Bluetooth

17
H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

Description


Alpine brand icon

Authorized dealer

HCE-C200F Features:

  • Add-on front multi-view camera to be used with the HCE-C200R system
  • Uses black box image processing and control
  • Three total viewing modes for ultimate safety
  • Front Panoramic View: Displays 185 degrees
  • Front Top View: Displays an image from above to gauge distance
  • Front Corner View: Splits the image to the left and the right view
  • This system requires the HCEC200R rear view camera to operate
  • Perfect for parking in any situation
  • Dimensions: 27/32"D x 29/32"W x 29/32"H
  • 1-year SonicElectronix.com warranty

HCE-C200F Specifications:

  • Power Requirements: 14.4V DC (11-16V allowable)
  • Ground Type: Negative ground type
  • Power Consumption: 1.7W
  • Output Image: Mirror image, VBCS (NTSC Color signal system) 16 : 9 Image output for wide-screen
  • Output Drive Capacity: 75 Ohm (Ω)
  • CCD: 1/3.8 Type Colour CMOS Image sensor CCD aspect ratio 4 : 3
  • Effective Number of Pixels: 1280 (horizontal) x 960 (vertical) approximately 1.23 Mega pixels
  • Lens Section: Focal length f=0.89mm, brightness F=2.8
  • Angle of field: Horizontal: 185°, Vertical: 144°
  • Automatic Image Adjusting Function: Automatic metering adjustment, Automatic white balance adjustment
  • Synchro-System: Internal synchronization
  • S/N: 40dB or more
  • Resolution (horizontal): 300 lines (center area)
  • Illumination Range: 2 to 100,000 lx
  • Operating Temperature Range: Camera section -22 to +176°F (-30 to +80°C)
  • Power section: -22 to +176°F (-30 to +80°C)
