MB Quart FX4.100 + Amplifier Kit Bundle

800W Max, 4-Channel Formula Amplifier + Raptor 8 Gauge Amp Kit + Cache CTM Sound Dampening Material

MB Quart
Shop all MB Quart
EXCLUSIVE
Product videos
highlight-star-icon

Formula Series 4-Channel Class A/B Car Amplifier • PWM MOSFET Power Supply • 4-way Protection Circuitry • Variable Low-Pass Filter • Variable High-Pass Filter • Amplifier Installation Kit with RCA Interconnect Cable • Designed for Systems Up to 1000W • Five 18" x 32" Pieces of Dead Shield Sound Dampening Material

Learn more about the fx4100_ispkbl8bg

We apologize

This item has been discontinued


Loading...
XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

Limited time!
TS-G1620F main

Pioneer TS-G1620F

600W Peak (80W RMS) 6.5" G-Series 2-Way Coaxial 4-ohm Car Speakers

13
-26.15%

$48.00

List price $65.00

Limited time!
TS-G1320S main

Pioneer TS-G1320S

500W Peak (70W RMS) 5.25" G-Series 2-way 4-ohm Coaxial Car Speakers

7
-30.78%

$44.99

List price $65.00

Product Highlights


Formula Series 4-Channel Class A/B Car Amplifier • PWM MOSFET Power Supply • 4-way Protection Circuitry • Variable Low-Pass Filter • Variable High-Pass Filter • Amplifier Installation Kit with RCA Interconnect Cable • Designed for Systems Up to 1000W • Five 18" x 32" Pieces of Dead Shield Sound Dampening Material

Description


MB Quart brand icon

Authorized dealer

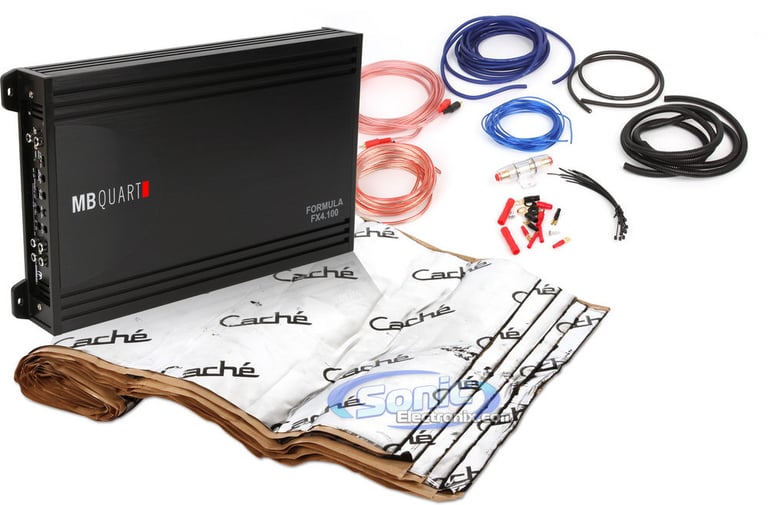

MB Quart and Raptor Bundle

Looking to add some power to your system? Sonic Electronix has created a bundle ideal for anyone looking to add an amplifier to their system. Included in this combo is an MB Quart FX4.100 4-Channel Car Amplifier. This amplifier is perfect for those looking to power up their car audio system. With an RMS power rating of 100 watts x 4 Chan. @ 4 Ohms, 200 watts x 4 Chan. @ 2ohms, and 400 watts x 2 Chan @ 4 Ohms Bridged, this amplifier will work with any car audio system. We have also included a high quality Raptor ISPKBL8-BG amplifier kit to get the best signal and performance out of your brand new amplifier. The Raptor 8 gauge amplifier kit will have everything you need for complete installation. For added sound quality we have included five 18" x 32" Pieces of Dead Shield Sound Dampening Material. The sound damp will eliminate road noise and reduce rattling and vibrations. This will increase the sound and quality output of your car audio system. This quality bundle comes with an affordable price, making it a must for anyone looking to add some power to their system.

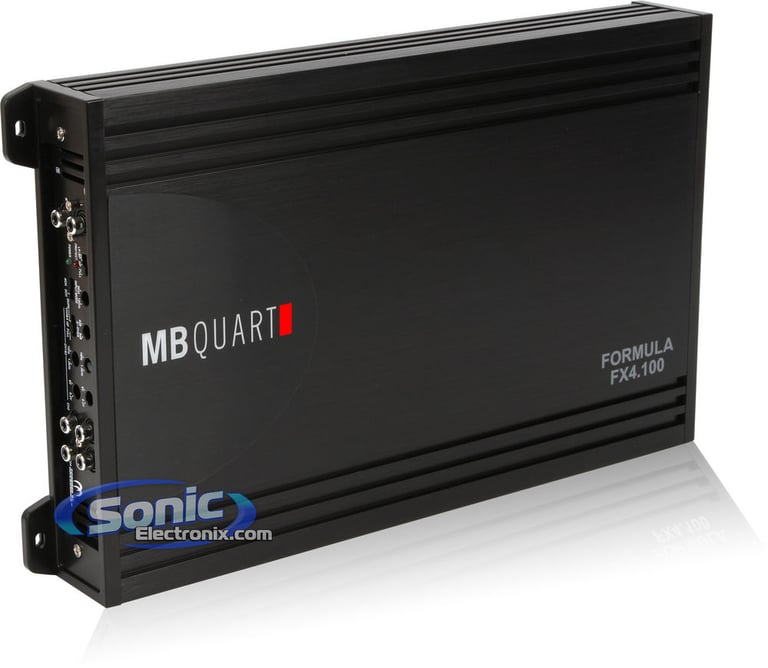

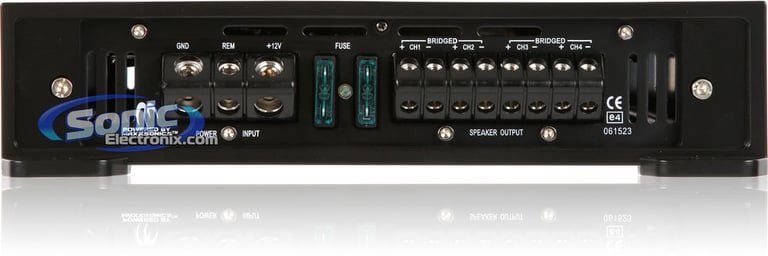

MB Quart FX4.100 Features:
  • Formula Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 chan.
    • 2 ohm: 200 watts x 4 chan.
    • Bridged, 4 ohm: 400 watts x 2 chan
  • PWM (Pulse Width Modulated) MOSFET power supply

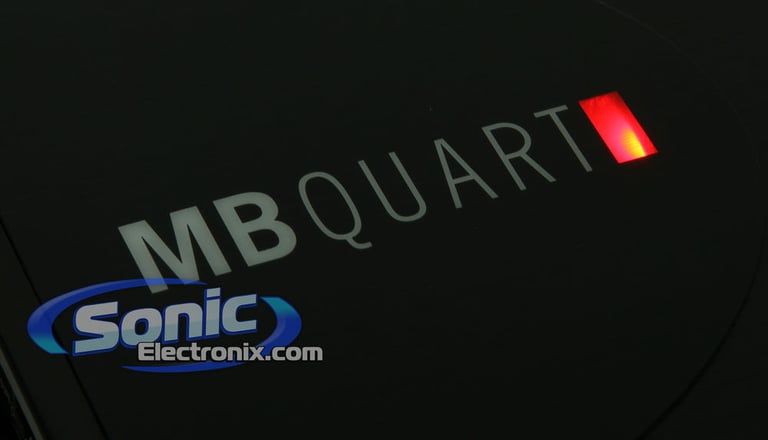

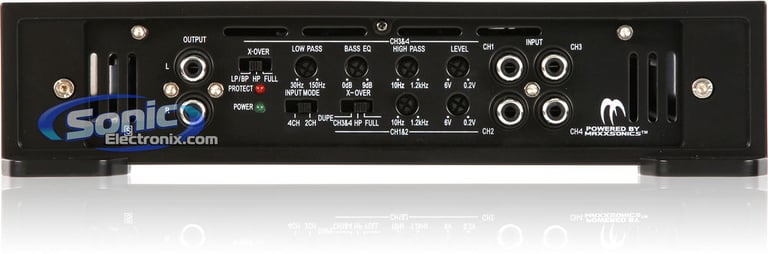

  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +9 dB bass boost at 45 Hz
  • 4/3/2 Channel operation
  • Unbalanced RCA input jack
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy convection heatsink for superb heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-6V
  • Signal to noise ratio: 90dB
  • Channel separation: 80dB
  • Variable low-pass filter: 30-150 Hz
  • Variable high-pass filer: 10-1200 Hx
  • LP/HP/Full crossover switch
  • Damping factor: >180
  • Frequency response: 10-45,000 Hz
  • Dimensions: 15-15/16"L x 9-1/2"W x 2-1/4"H
  • 8-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

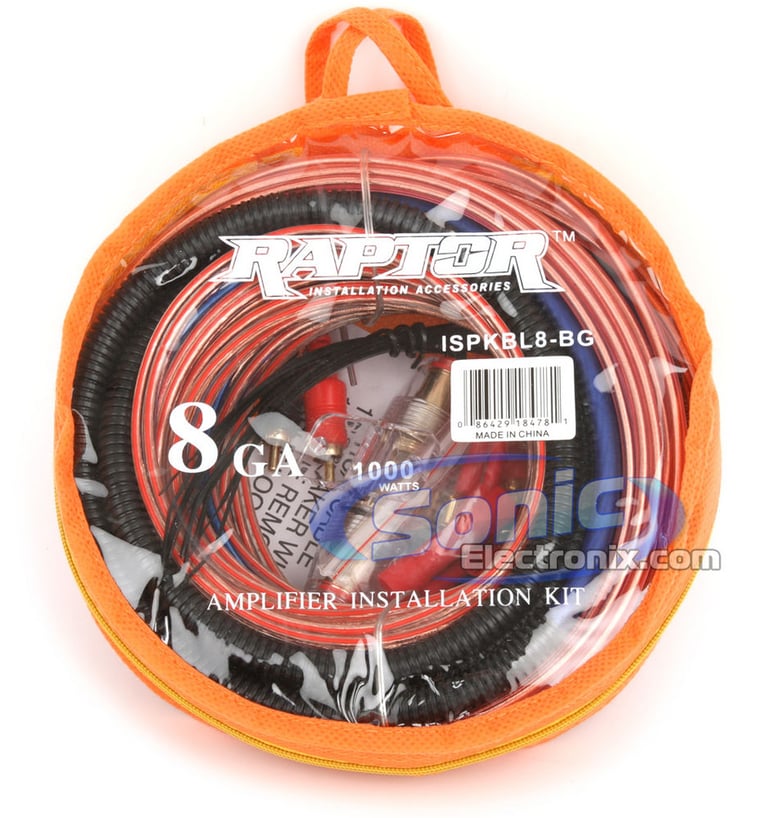

Raptor ISPKBL8-BG Features:
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 8 Gauge (AWG) Power and ground cable for excellent power transfer
  • Designed for systems up to 1000W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Raptor ISPKBL8-BG Includes:

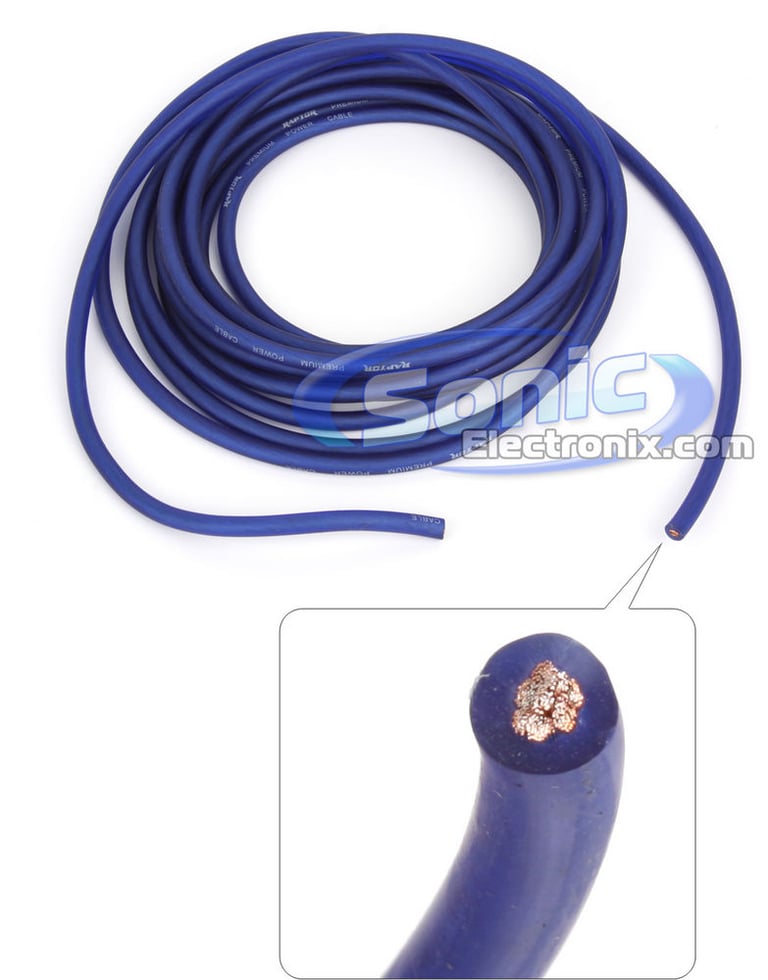

  1. 17 ft. of 8 Gauge blue power cable

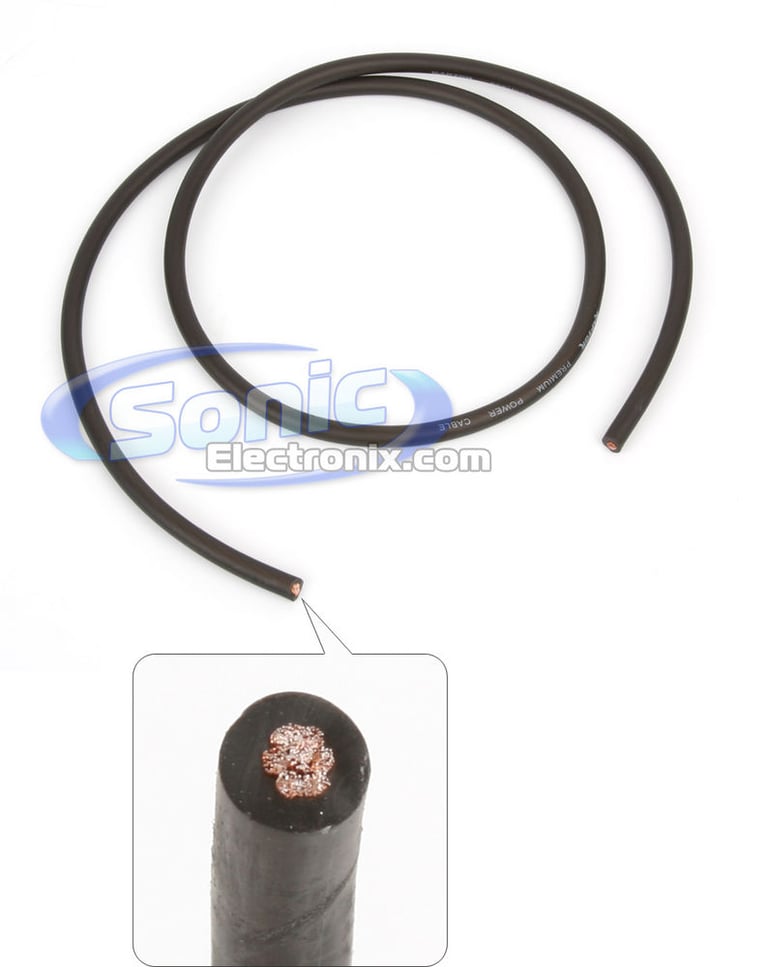

  2. 3 ft. 8 Gauge black ground cable

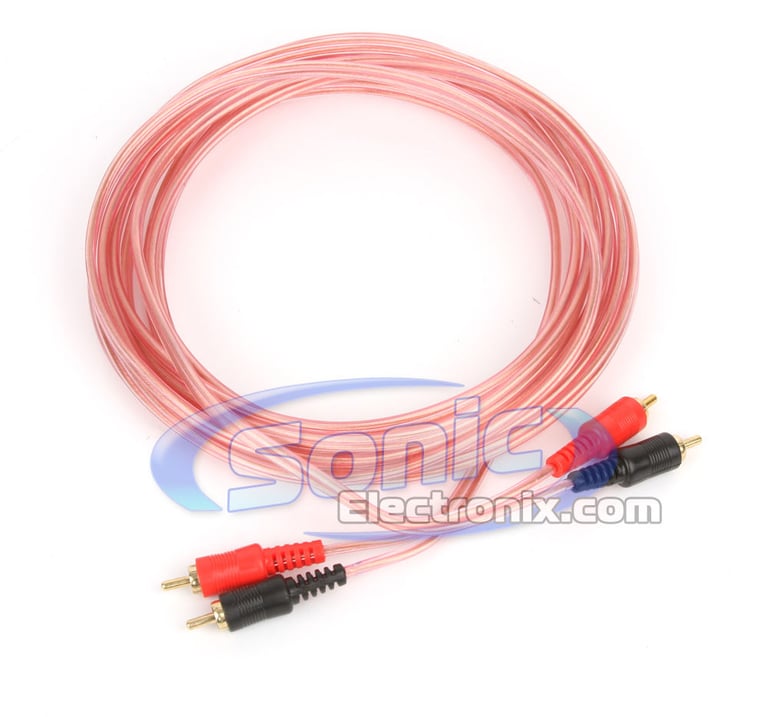

  3. 17 ft. Neon blue series RCA cable

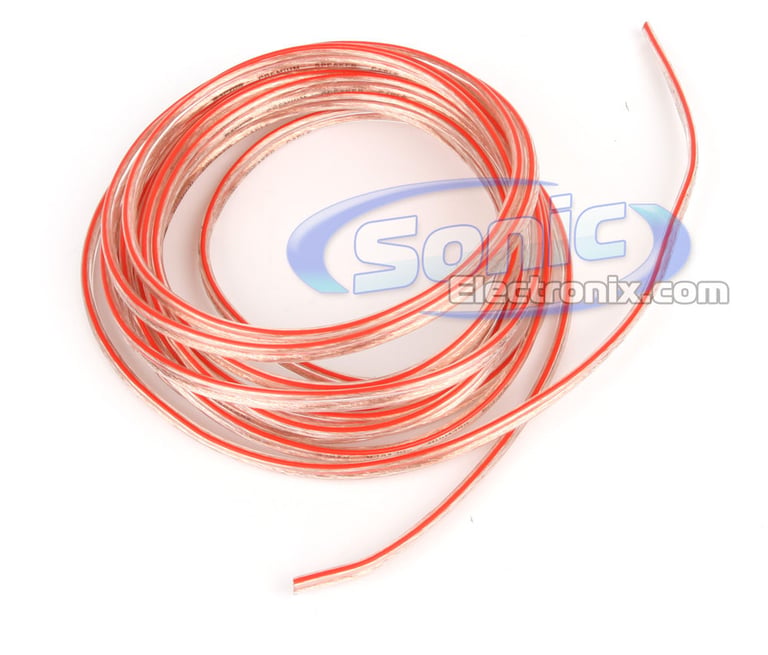

  4. 16 ft. of Premium speaker cable

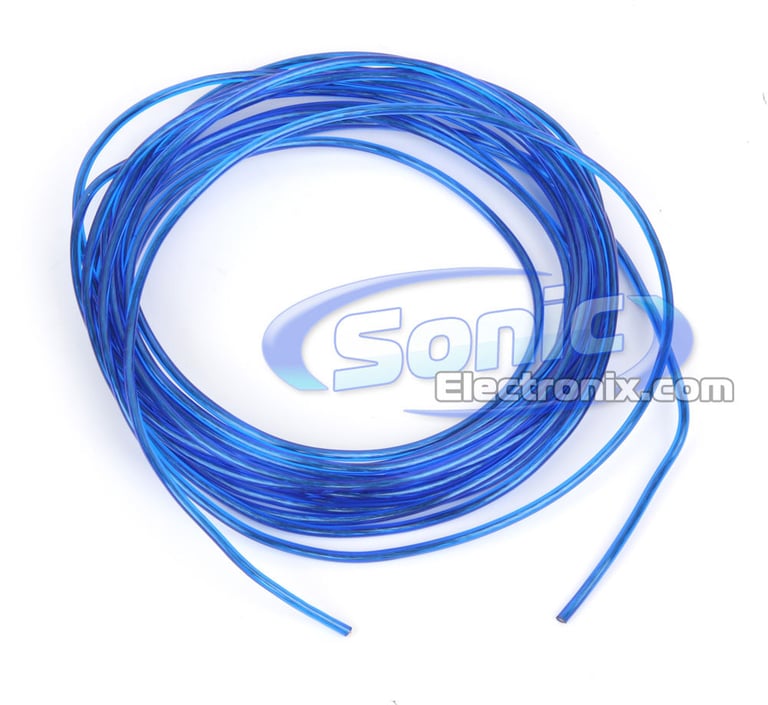

  5. 17 ft. of 18 Gauge blue remote turn-on wire

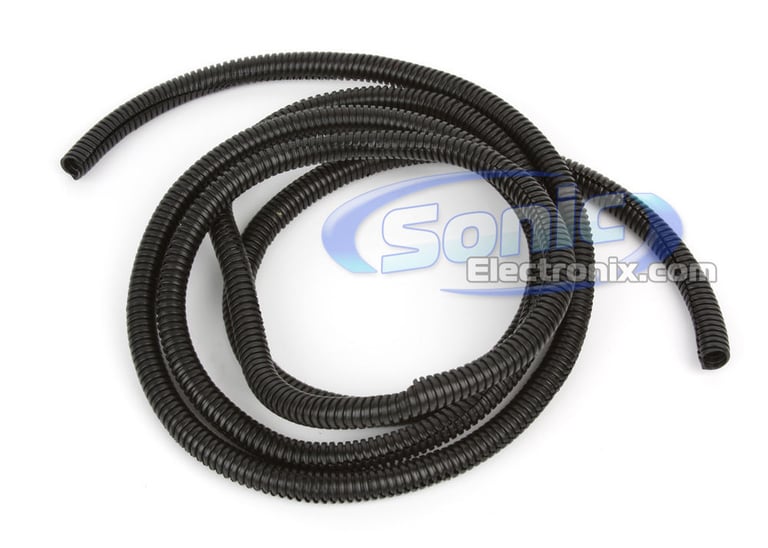

  6. 6 ft. Split loom tubing

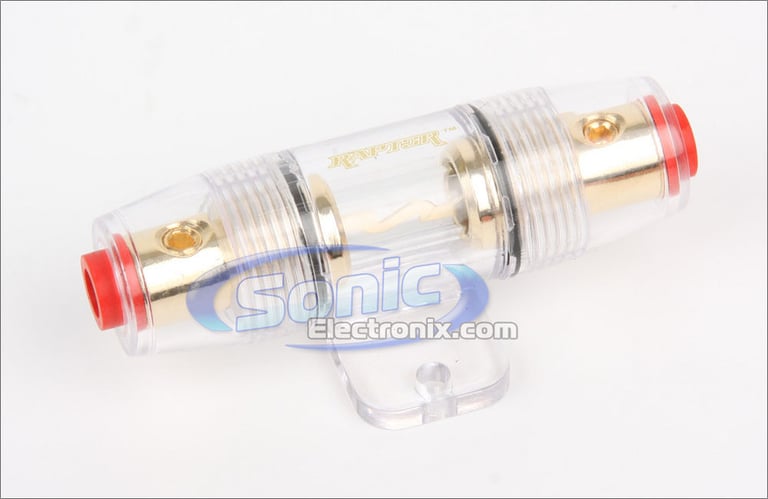

  7. 1 AGU Fuse Holder
  8. 50 AMP Fuse

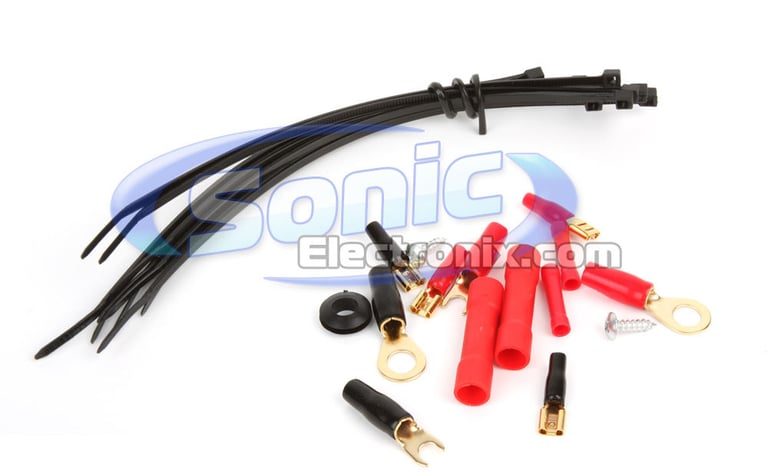

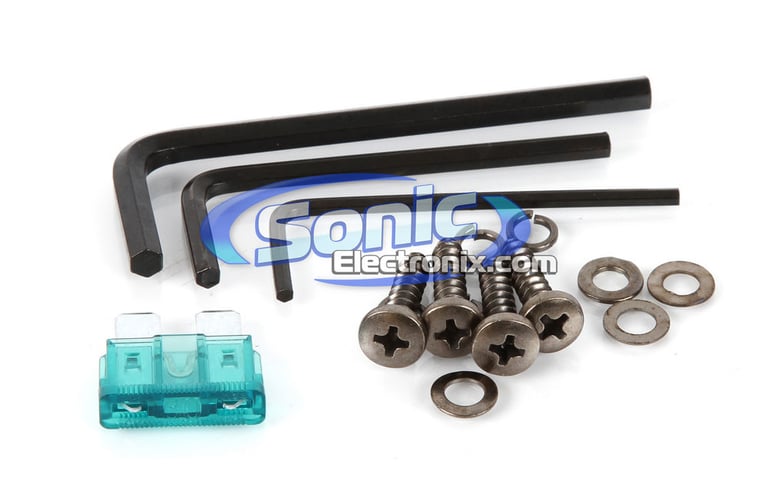

  9. All Necessary Hardware for Installation

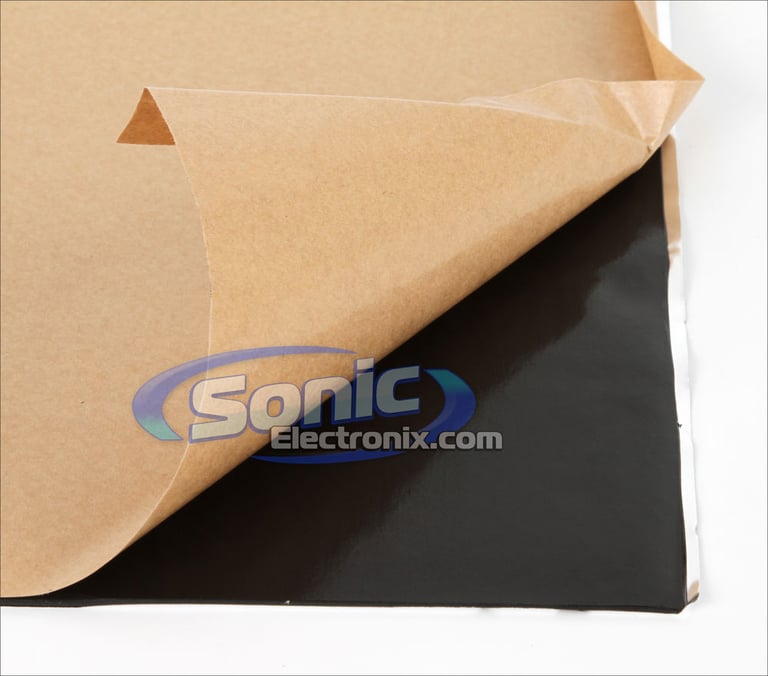

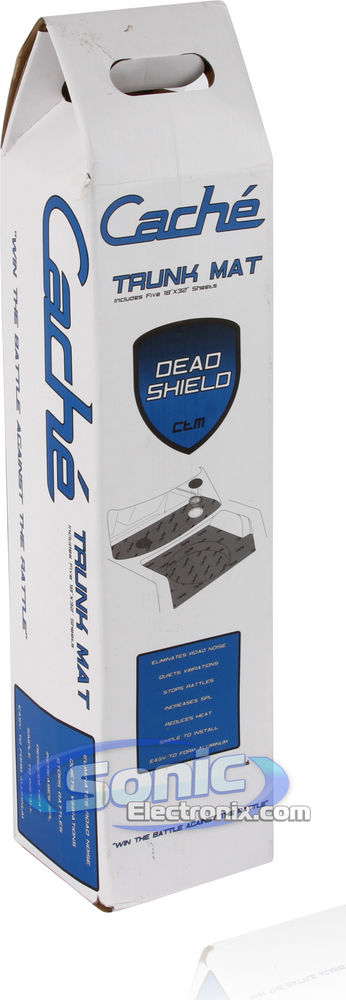

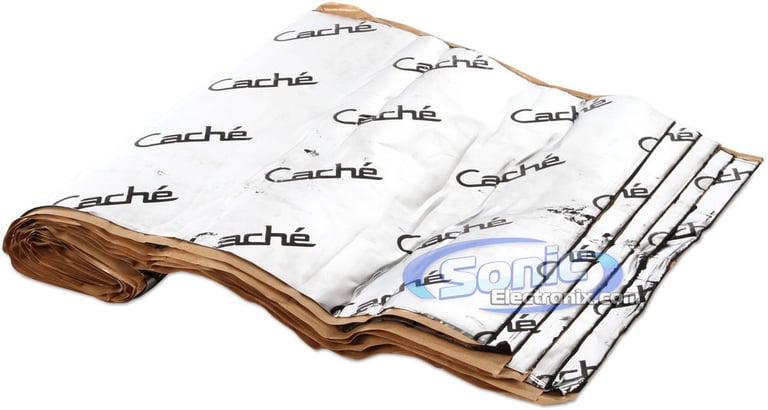

Cache CTM Features:
  • Five 18" x 32" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 18"L x 32"W

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
200 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
400 watts x 2 channel
Peak Power Output
Not Specified
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
Not Specified
Total RMS Power Output
800 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
10 - 1200 Hz
Low-Pass Crossover Frequency
30 - 150 Hz
Subsonic Filter
Not Specified
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
CEA-2031 Compliant
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
8 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
16 feet
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
AGU
Fuse Size
50A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

FX4.100_ISPKBL8BG

Weight:

32.00lbs

Internal SKU:

fx4100_ispkbl8bg

Internal Product ID:

36781

Product and How-to Videos


Customer Ratings & Reviews


MB Quart FX4.100 + Amplifier Kit Bundle thumbnail image

5 star
59%
4 star
26%
3 star
12%
2 star
0%
1 star
3%



Durability
4.4
Value
4.6
Features
4.3
Design
4.3
Usability
4.6

Customer Reviews

Sort by:

Loading...

Good Product

The following review is for ISPKBL8-BG, which is a part of the bundle you are viewing.

Used this package on my Mazda 6 i Sport and it covered the length of the car fine. Had scrap to splice off onto multiple amps.

By NETech on November 14, 2011

37 found this helpful


Comes with everything you need at a great price!

The following review is for ISPKBL8-BG, which is a part of the bundle you are viewing.

I ordered this kit for my two 12" mtx subs and a one channel amp and it came with all of the wiring necessary to gets my subs bumping

By Luke on August 23, 2010

35 found this helpful


GOOD PRODUCT

The following review is for CTM, which is a part of the bundle you are viewing.

Super thick and easy to install. Noticeable difference and reasonably priced. 5 stars

By Brendan on April 18, 2012

31 found this helpful


What a difference

The following review is for CTM, which is a part of the bundle you are viewing.

I came across this while looking for something to get rid of the rattle in my trunk. I bought it and when I opened my package, immediately knew it was of good quality. its thick and stuck well wherever I placed it and it made a noticeable difference. The rattling is gone and my JL Audio W3 sounds much deeper and louder. Thanks Sonic!

By Todd on April 27, 2011

31 found this helpful


Sound Dampner

The following review is for CTM, which is a part of the bundle you are viewing.

Best bang for the buck.

By Brian on March 11, 2012

30 found this helpful


Mb quart amp

The following review is for FX4.100, which is a part of the bundle you are viewing.

A solid amp for the price. Puts out clean sound. Alot cleaner then my previous sound storm amps. I have this thing powering the re audio components and re audio subs and its very nice.

By Brandon on December 26, 2012

10 found this helpful


Great Value

The following review is for ISPKBL8-BG, which is a part of the bundle you are viewing.

I shopped around but couldn't beat the deal I got from Sonic Electronix on this Raptor cable set for connecting my subwoofer.

By Mike on May 30, 2011

9 found this helpful


Great Amp

The following review is for FX4.100, which is a part of the bundle you are viewing.

This amp looks simple but it packs alot of power under the hood.

By Chang Pang on April 29, 2012

9 found this helpful


Great amp!

The following review is for FX4.100, which is a part of the bundle you are viewing.

Bought 2 of these to power door and back deck speakers and they work great.

By Marshall on April 19, 2011

10 found this helpful


Powerfull Amp

The following review is for FX4.100, which is a part of the bundle you are viewing.

the is very power i recommend it for mids or bass
its not that well on tweeters..but overall can't complain , it doesn't get hot and runs my 8" audiopipe dry mids and 2 pyramid tweets
way out of control..

By CHANG on July 10, 2012

8 found this helpful



PW18400YE small

Hitron PW18400YE (Yellow)

400 Ft of 18 Gauge OFC Remote Wire Cable

$18.99

List price $29.99

BT OV STUDIO BLK small

Beats By Dre Studio - Black

Professional Over-Ear Studio Headphones with Built-In Active Noise Cancelling Function

$229.95

List price $349.99

PMX-2 small

Rockford Fosgate PMX-2

2.7” Square Gauge Mount Style Digital Audio Marine Receiver with Bluetooth

(2)

$549.99

List price $549.99

CB1-8000D small

Power Acoustik CB1-8000D

8000W Peak (4000W RMS) Calber Class-D Monoblock 1-Ohm Stable Amplifier With Bass Knob Included

(7)

$209.99

List price $299.95

MPC-P300-8S-5 small

Monster Cable MPC P300 8S-5

5 Ft of 8 Gauge Monster 300 PowerFlex Power & Ground Cable

(1)

$10.00

List price $14.99

SI1220 small

Stinger SI1220

20 Ft 1000 Series 2-Channel Audiophile Grade RCA Stereo Interconnect Cable

(4)

$11.99

List price $19.00

CCA748 small

Clarion CCA-748-600

iPod Audio/Video Connection Cable Adapter for Select Clarion Receivers

(4)

$29.99

List price $59.99

DSC-480_AMP850BL small

MB Quart DSC 480 + Amplifier Kit

640W RMS, Class A/B 4-Channel Discus Series Amplifier (DSC480d) w/ 4 Gauge Amp Kit

(44)

$146.59

List price $582.97

THA475 small

Blaupunkt THA475

Thin Series 4-Channel Amplifier

$119.99

List price $299.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2015 Nissan Leaf

2016 Dodge Charger

2000 BMW Z3

1982 Ford Escort

2011 Ford Fiesta

2006 Toyota 4Runner

2014 Chrysler 300

2011 Acura TSX

1976 Cadillac Eldorado

2007 Mazda B Series

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
