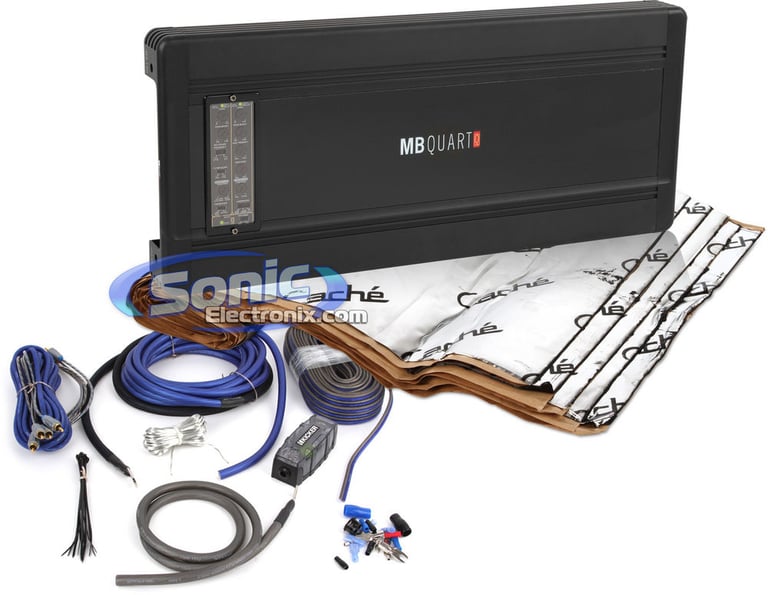

MB Quart Q4.150 + Amplifier Kit Bundle

1760W Max, 4-Channel Class A/B Q Series Amp + Kicker 4 Gauge Amp Kit + Cache CTM Sound Damp Material

MB Quart
Shop all MB Quart
EXCLUSIVE
Product videos
highlight-star-icon

Q Series 4-Channel Class AB Car Amplifier • MOSFET Power Supply • 3-way Protection Circuitry • Variable Low-Pass Filter • Double Sided PCB Design • Amplifier Complete 4 Gauge Z-Series 4-Channel Amplifier Installation Kit• Designed for Systems Up to 1000W • Five 18" x 32" Pieces of Dead Shield Sound Dampening Material

Learn more about the q4150_09zck44

We apologize

This item has been discontinued


Loading...
72-9005 main

Metra 72-9005

Install New Speakers in select 1996-2021 vehicles from BMW

-10.81%

$32.99

List price $36.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

MEX-N5300BT main

Sony MEX-N5300BT

Single DIN CD Receiver with Bluetooth and Built-in NFC

4

$158.00

List price $159.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

KMM-BT732HD main

Kenwood KMM-BT732HD

Single DIN Digital Media Bluetooth Receiver with HD Radio

3
-14.09%

$189.00

List price $220.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

DB522 main

Polk Audio DB522 (DB 522)

600W Peak (200W RMS) 5.25" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

13
-9.08%

$100.00

List price $109.99

Product Highlights


Q Series 4-Channel Class AB Car Amplifier • MOSFET Power Supply • 3-way Protection Circuitry • Variable Low-Pass Filter • Double Sided PCB Design • Amplifier Complete 4 Gauge Z-Series 4-Channel Amplifier Installation Kit• Designed for Systems Up to 1000W • Five 18" x 32" Pieces of Dead Shield Sound Dampening Material

Description


MB Quart brand icon

Authorized dealer

MB Quart and Raptor Bundle

Looking to add some power to your system? Sonic Electronix has created a bundle ideal for anyone looking to add an amplifier to their system. Included in this combo is an MB Quart Q4.150 4-Channel Car Amplifier. This amplifier is perfect for those looking to power up their car audio system. With an RMS power rating of 150 watts x 4 Chan. @ 4 Ohms, 220 watts x 4 Chan. @ 2ohms, and 440 watts x 2 Chan @ 4 Ohms Bridged, this amplifier will work with any car audio system. We have also included a high quality Kicker ZCK44 / 09ZCK44 amplifier kit to get the best signal and performance out of your brand new amplifier. The Kicker 4 gauge amplifier kit will have everything you need for complete installation. For added sound quality we have included five 18" x 32" Pieces of Dead Shield Sound Dampening Material. The sound damp will eliminate road noise and reduce rattling and vibrations. This will increase the sound and quality output of your car audio system. This quality bundle comes with an affordable price, making it a must for anyone looking to add some power to their system.

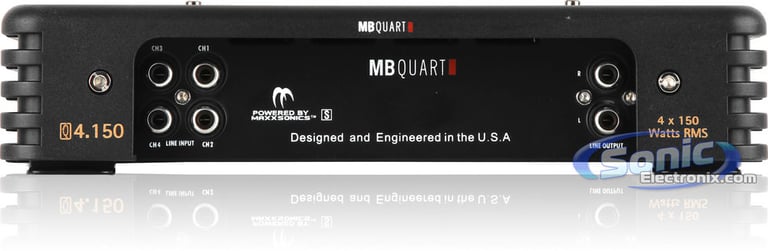

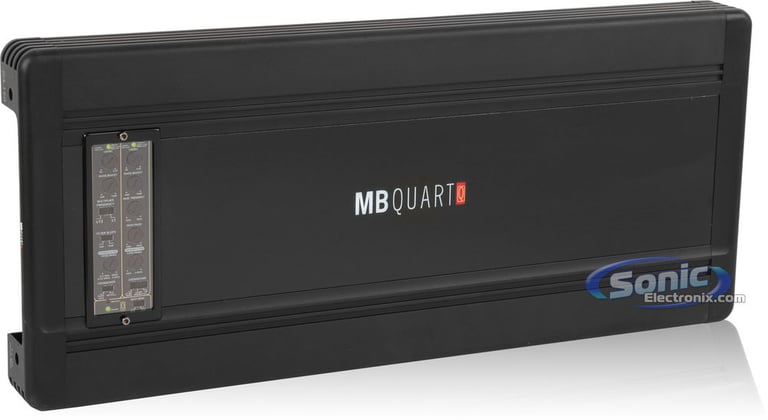

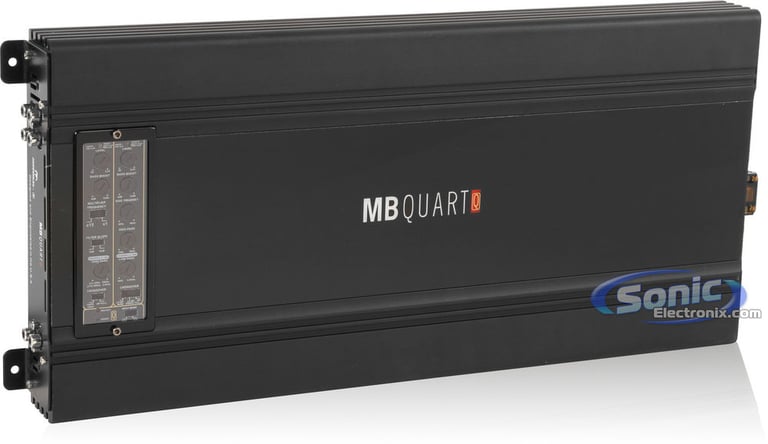

MB Quart Q4.150 Features:
  • Q Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 4 chan.
    • 2 ohm: 220 watts x 4 chan.
    • Bridged, 4 ohm: 440 watts x 2 chan.
  • Max power output: 1760 watts
  • High Speed MOSFET Output Devices
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost from selectable frequency range 30-80 Hz)
  • Soft Start Turn-on
  • 4/3/2 channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)

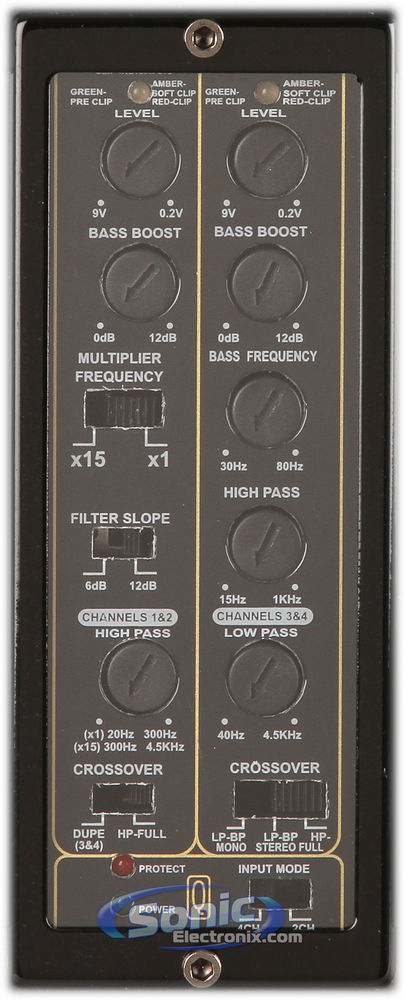

  • Top Mount Control
  • Variable Low Pass, and High Pass for specific tuning adjustments
  • Full Feature Crossover Design
  • Clipping Control with Pre-Clip, Soft Clip and Full Clip Visual Indicators
  • Built-in System Diagnostics
  • Double Sided PCB Design
  • High-density split-dome convection heat sink for high amounts of heat dissipation
  • Plated RCA level inputs
  • Input sensitivity:
    • Low level: 0.2V-9V
  • Channels 1 & 2 high-pass filter (20-45,000 Hz)
  • Channels 3 & 4 high-pass filter (15-1000 Hz)
  • Variable low-pass filter (40-45,000 Hz)
  • Damping factor: >285
  • Frequency response: 15-45,000 Hz
  • Dimensions: 20-1/4"L x 9-1/8"W x 2"H
  • 4-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

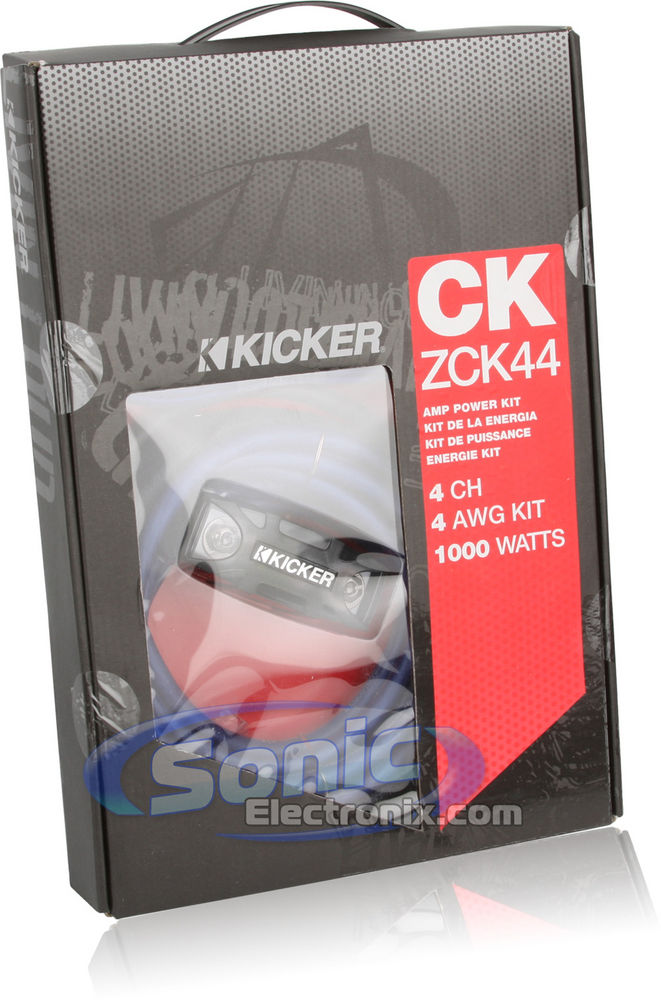

Kicker ZCK44 / 09ZCK44 Features:
  • Complete 4 Gauge Z-Series 4-Channel Amplifier Installation Kit
  • 1000 Watts max
  • Direct-connect engineering
  • Fewer connections for less signal distortion
  • Twisted-pair technology eliminates noise for crystal clear sound
  • Hyper-flex cable and wire
  • Full spec cable is true to gauge
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Kicker ZCK44 / 09ZCK44 Includes:

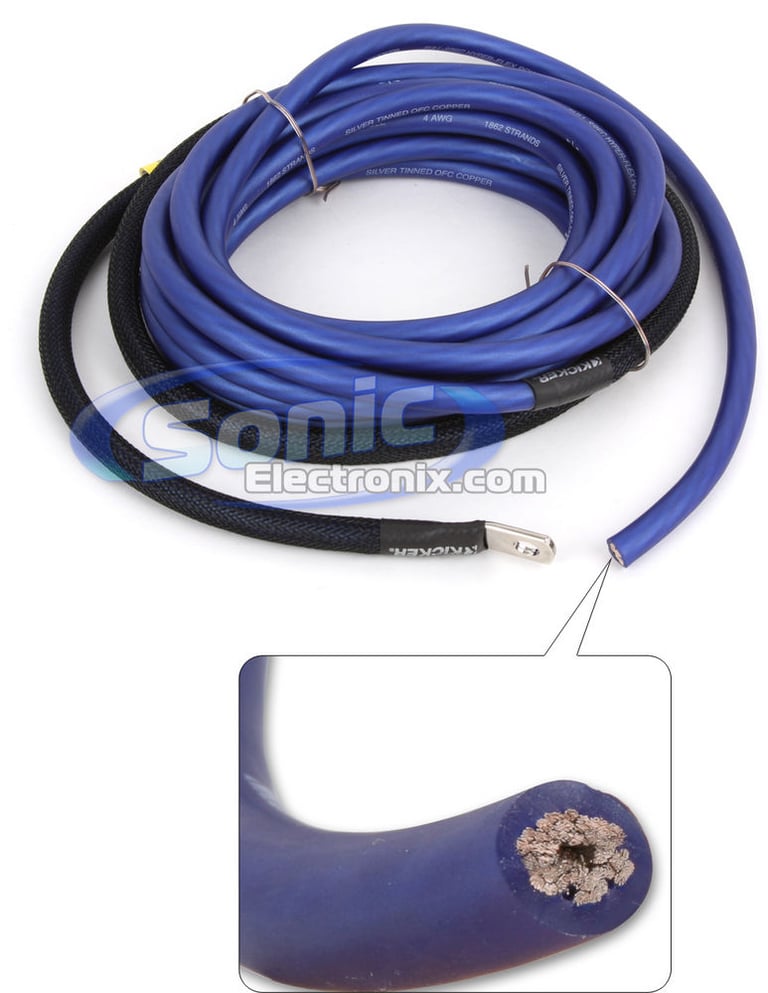

  1. 20ft(6.1m) Blue 4AWG power wire

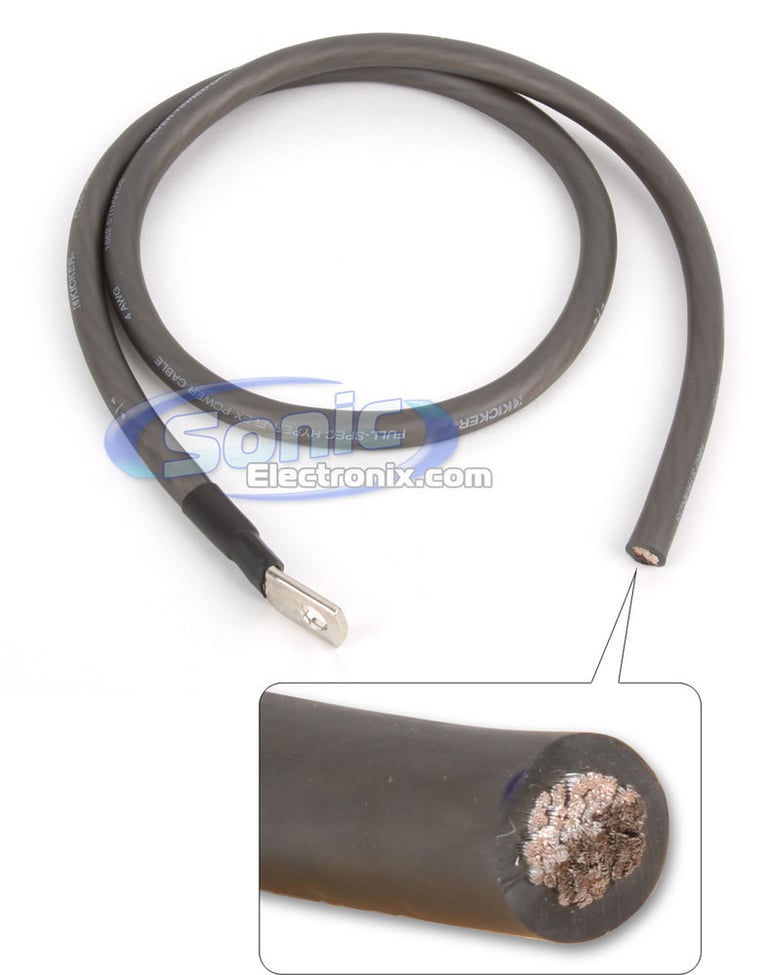

  2. 3ft(0.9m) Black 4AWG ground wire
  3. 20ft(6.1m) Silver 18AWG remote lead wire

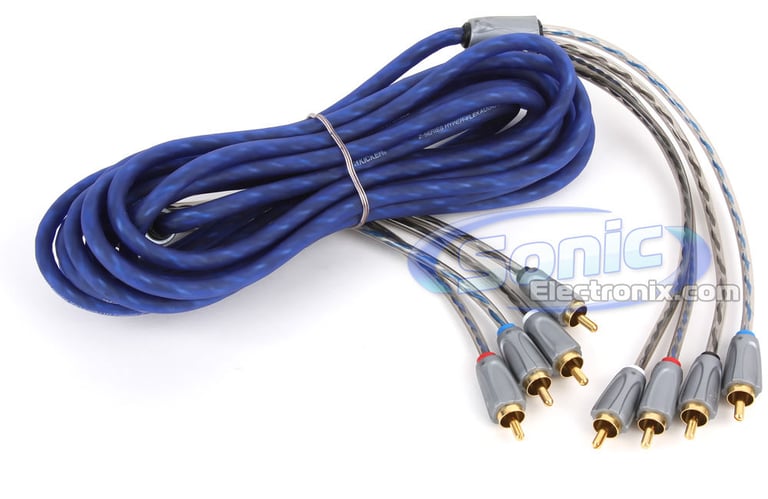

  4. 16.4(5m) Blue, black, and gray 4 Channel RCA cable

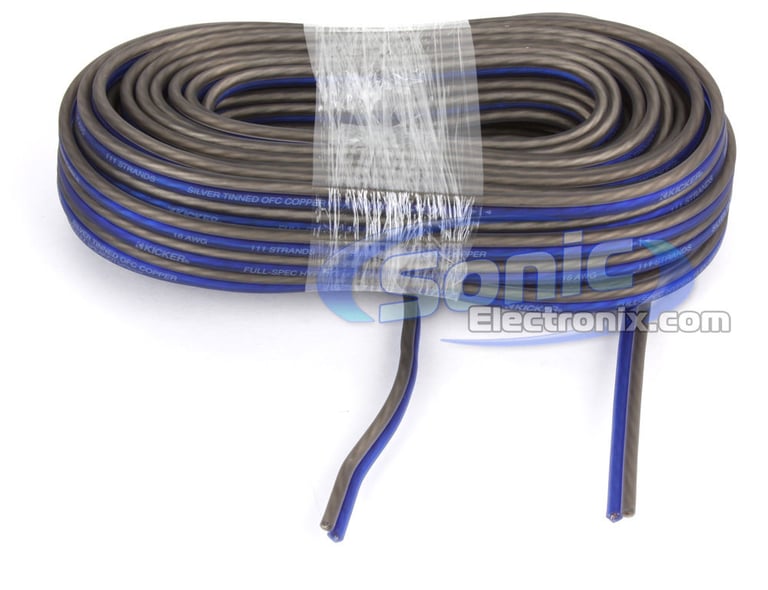

  5. 60ft(18.2m) Blue and gray 16AWG speaker cable

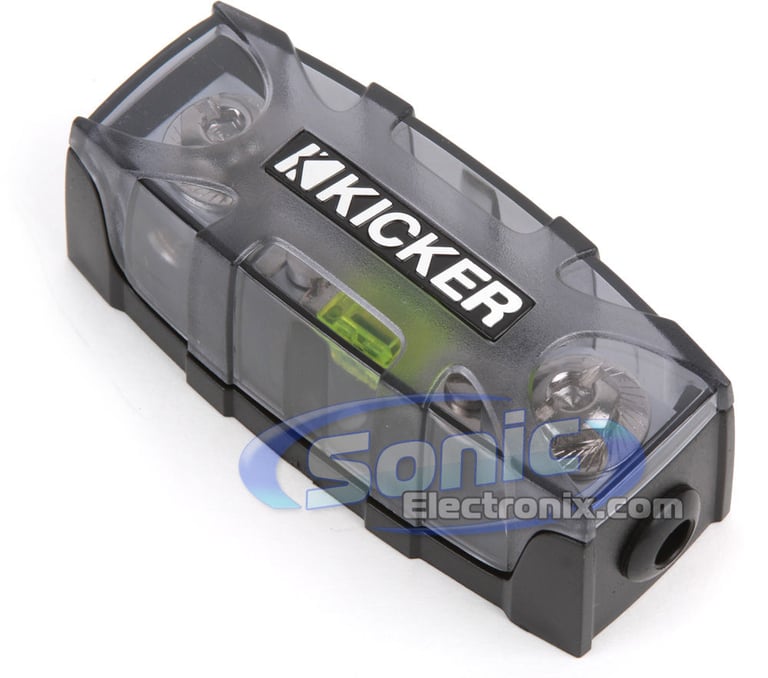

  6. 1 Kicker 09FHS Fuse holder with 100 amp AFS fuse

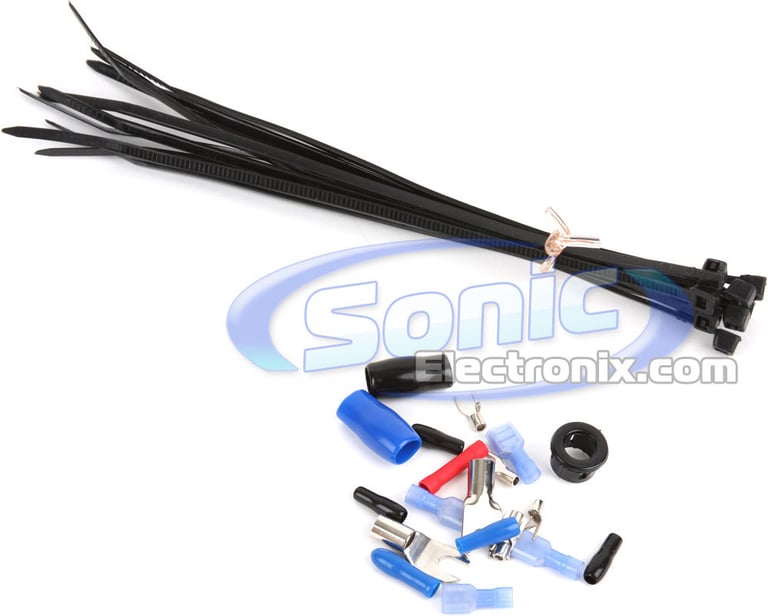

  7. Black rubber firewall grommet
  8. 2 4AWG Spade terminals
  9. 5 16AWG Spade terminals
  10. 4 Female quick disconnect connectors
  11. Black zip ties
  12. Red butt connector

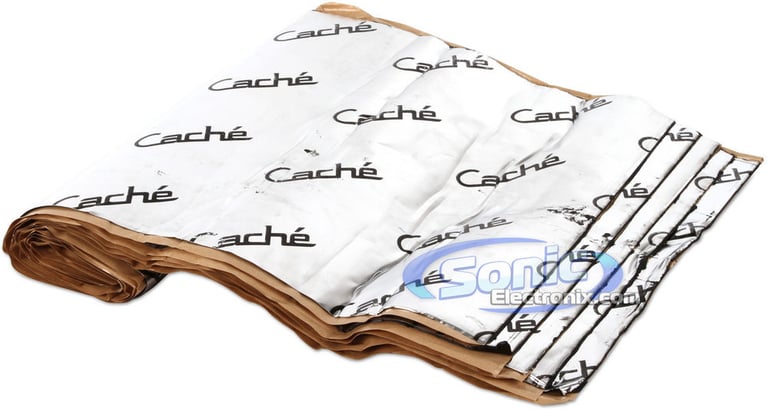

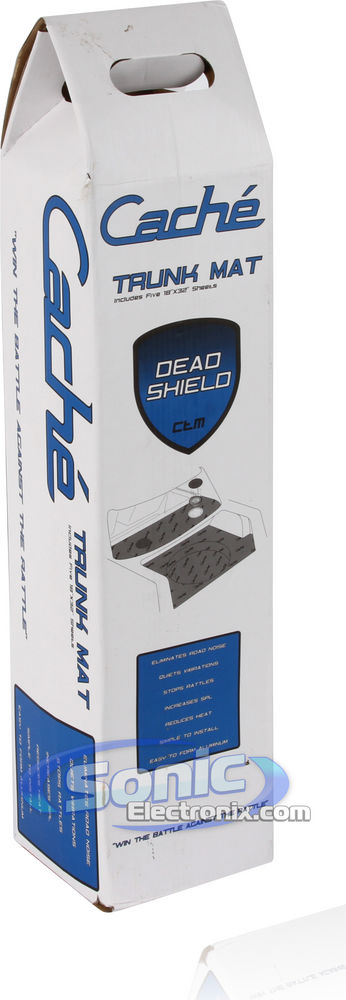

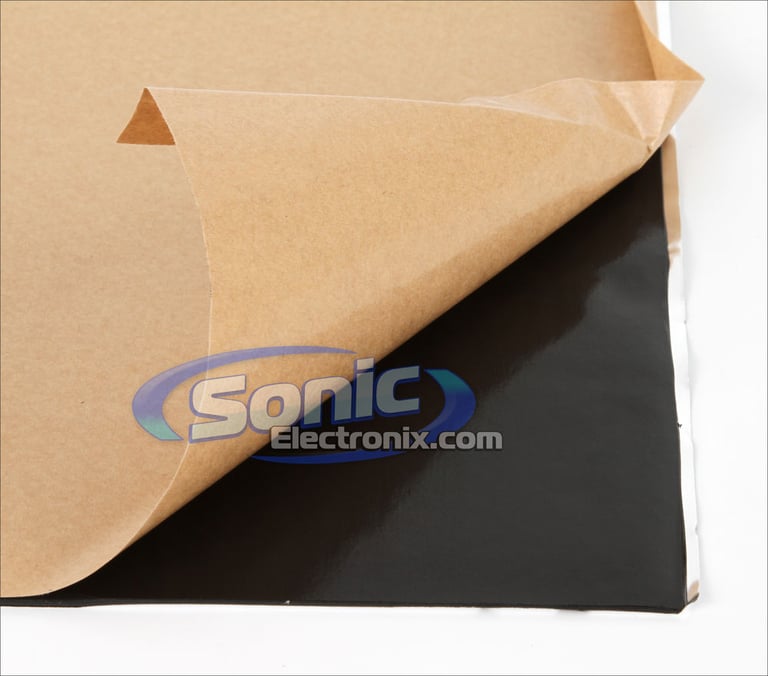

Cache CTM Features:
  • Five 18" x 32" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 18"L x 32"W

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 4 channel
RMS Power @ 2 ohms
220 watts x 4 channel
Bridged RMS Power
440 watts x 2 channel
Peak Power Output
440 watts x 4 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1760 watts
Total RMS Power Output
880 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
2 pairs
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
20 - 45,000 Hz
Low-Pass Crossover Frequency
40 - 45,000 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No

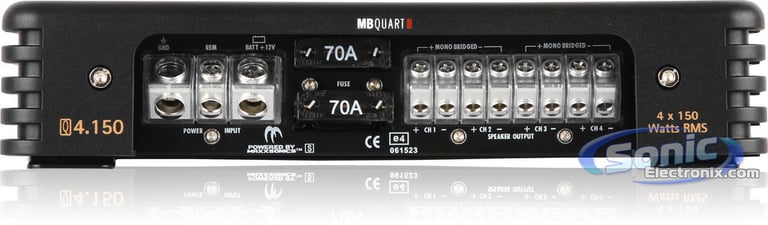

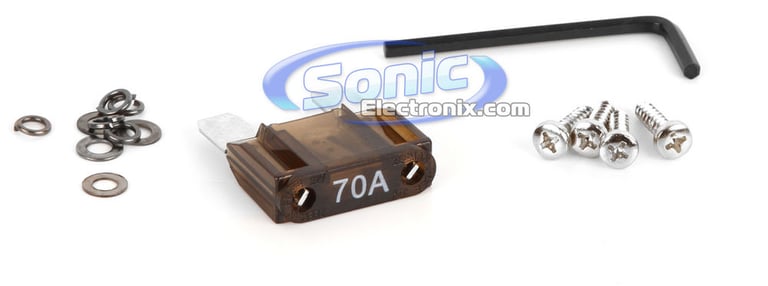

Fuse Rating
70A x 2
CEA-2031 Compliant
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
60 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
4 Channel
Fuse Holder
AFS
Fuse Size
100A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Q4.150_09ZCK44

Weight:

41.00lbs

Internal SKU:

q4150_09zck44

Internal Product ID:

36790

Product and How-to Videos


Customer Ratings & Reviews


MB Quart Q4.150 + Amplifier Kit Bundle thumbnail image

5 star
90%
4 star
10%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.9
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

GOOD PRODUCT

The following review is for CTM, which is a part of the bundle you are viewing.

Super thick and easy to install. Noticeable difference and reasonably priced. 5 stars

By Brendan on April 18, 2012

31 found this helpful


What a difference

The following review is for CTM, which is a part of the bundle you are viewing.

I came across this while looking for something to get rid of the rattle in my trunk. I bought it and when I opened my package, immediately knew it was of good quality. its thick and stuck well wherever I placed it and it made a noticeable difference. The rattling is gone and my JL Audio W3 sounds much deeper and louder. Thanks Sonic!

By Todd on April 27, 2011

31 found this helpful


Sound Dampner

The following review is for CTM, which is a part of the bundle you are viewing.

Best bang for the buck.

By Brian on March 11, 2012

30 found this helpful


great buy

The following review is for 09ZCK44, which is a part of the bundle you are viewing.

i have this hooked up to my kicker zx1000.1 amp that powers my 2 L5's. GREAT BUY

By Thomas on February 18, 2010

27 found this helpful


Hi Quality Wire....

The following review is for 09ZCK44, which is a part of the bundle you are viewing.

I used this kit to install a Hifonics amp in my grand cherokee.
The quality of the wire is very good and flexible.
However the 4 gauge wire postive wire has a built in connector on the battery end that has a whole that is way too small for putting a side post bolt through... I had to grind it out to the correct size. That is my
only gripe. I would recommend this product anyway.

By Michael on April 24, 2011

23 found this helpful


PA600 with 4 DXi650

The following review is for 09ZCK44, which is a part of the bundle you are viewing.

I used this kit to put a Polk PA660 behind 4 DXi650s. The kit is beautiful! The fuse box is awesome. The 4G hot and ground wires are flexible and are very high quality. This kit contains some of the best speaker wire I have seen. I didn't need to use the speaker wire it in my 07' Civic, so wired my 3 year old's Cerwin Vega D5's with it in her room. The RCA's are nice looking and now my car set up is wired professionally from home! I chose the 4G over the 8G so I could split the wire to 2-8s in the trunk for 2 amps later.

By Jason Salafia on October 4, 2012

22 found this helpful


def worth it

The following review is for 09ZCK44, which is a part of the bundle you are viewing.

After looking at a few kits I decided to go with this one. The price was a little higher than most but omg is this stuff great. its extremely flexible, provides a vast amount of power to your system, looks cool, and sounds great! lots of copper stuffed in these things. Highly recommend it

By Tim on February 21, 2011

22 found this helpful


Best

The following review is for 09ZCK44, which is a part of the bundle you are viewing.

Very good!!!

By Ulugbek on June 30, 2011

22 found this helpful


heavy duty product

The following review is for 09ZCK44, which is a part of the bundle you are viewing.

At first I thought the price was a little on the high side but when I opened the package I was impressed with the quality and amount of product delivered. I felt I got good value for my purchase.

By Mario on September 22, 2010

21 found this helpful


All you'll need for a 4-Channel Amplifier

The following review is for 09ZCK44, which is a part of the bundle you are viewing.

I'm very happy I chose the Kicker Amp Install Kit with RCAs. High quality 4 gauge that not only does the job but looks real pretty under the hood. That Fuse holder with 100 amp AFS fuse is no slouch either.

By CommercialRig on July 7, 2010

21 found this helpful



SPRO1400.4 small

Cerwin Vega SPRO1400.4

1400W RMS Stroker Pro Series Class-D 4-Channel 2-Ohm Stable Amplifier

$499.99

List price $879.99

190-WP-CGS-8S small

SSV Works 190-WP-CGS-8S

Replacement Star Grille Inserts for SSV Works WP-A8 8" Marine Speakers (Silver Gray)

$15.99

List price $15.99

AVIC-Z3 small

Pioneer AVIC-Z3

Double DIN 7" TFT-LCD Monitor with Built-in 30GB Hard Drive GPS Navigation, DVD, DivX, CD, MP3 Player

(3)

$1299.99

List price $1799.99

AVIC-D2 small

Pioneer AVIC-D2

In-Dash Double DIN 6.5" LCD DVD Navigation GPS Unit

(2)

$899.99

List price $1599.99

108-CH1B small

Metra 108-CH1B Dash Kit

Install a new Double-DIN car stereo in select 2011-2018 Wrangler and Wrangler (JK) (Matte Black)

$28.99

List price $57.99

PS-SWMCP-B-1.850 small

JL Audio PS-SWMCP-B-1.850

Enclosed Speaker System Swivel Mount -1.850"

$139.99

List price $139.99

10IX500.1 small

Kicker IX500.1 (10IX500.1)

500W RMS, Monoblock Class D IX Series Amplifier (IX5001)

(14)

$189.99

List price $449.95

AXM-I5USBFL1 small

Axxess AXM-I5USBFL1

Flat Tangle Free Apple Lighning To USB Cable

(2)

$13.99

List price $25.99

MRVBM-77P small

Crux MRVBM-77P

Multimedia Integration Interface for select 2011-2025 vehicles from BMW, MINI with CIC-High (NBT) 6-Pin LVDS Connector and 6.5", 8.8", 10.2" Monitors

$506.25

List price $787.50

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Ford Flex

2007 Lexus RX400h

2000 Kia Spectra

2017 Lexus CT200h

1998 Dodge Neon

2001 Jeep Wrangler

2008 Mazda RX-8

2008 Audi A8 Quattro

2000 Lexus SC400

2000 BMW Z3

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
