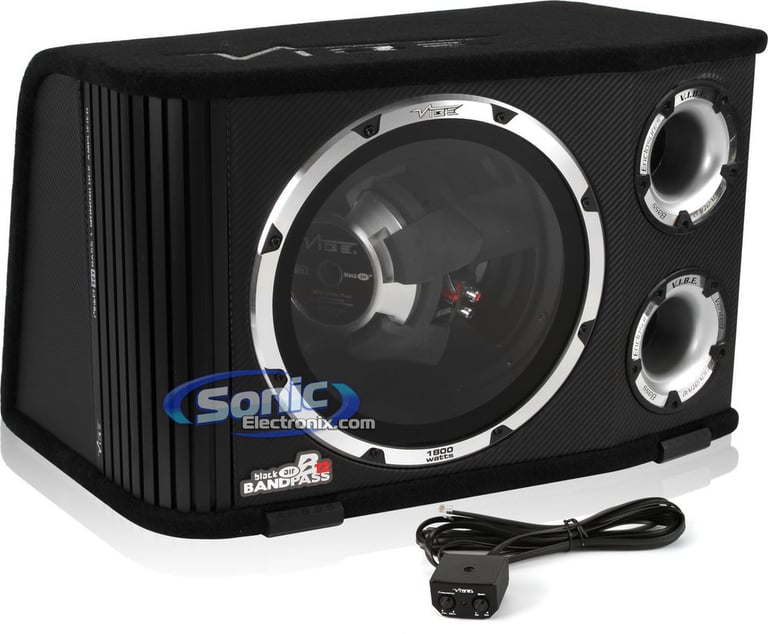

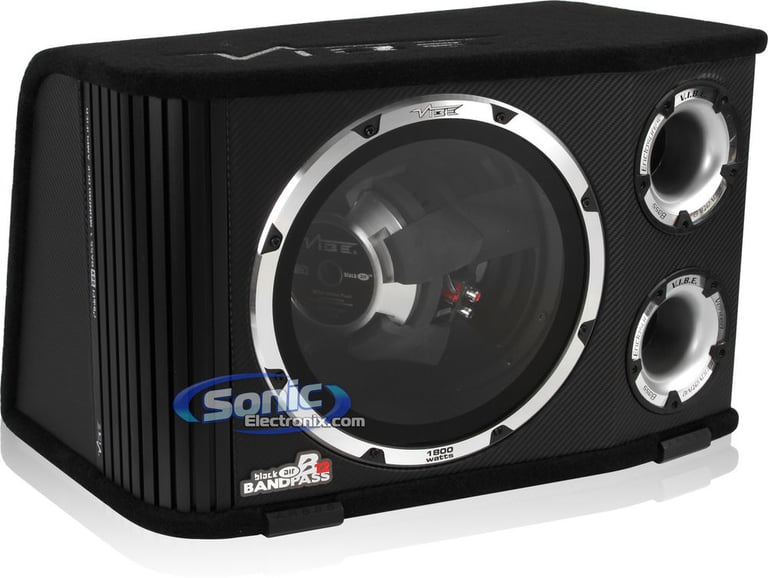

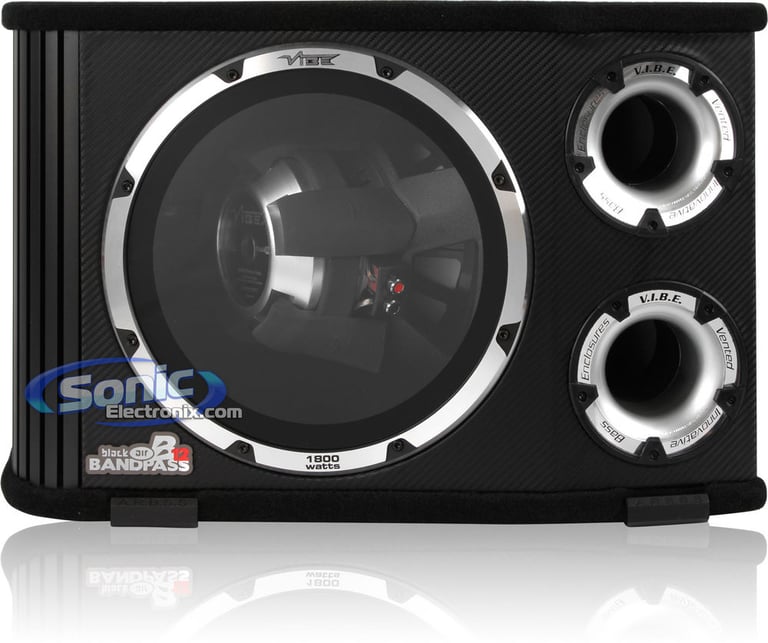

VIBE Audio BlackAir B12 Active

1600W Max 12" Black Air Series Amplified Bandpass Subwoofer Enclosure with Variable Port Tuning

VIBE
Shop all VIBE
highlight-star-icon

12" Black Air Series Subwoofer • Dual 2 Ohm • 1600 Watts Max • 550 Watts RMS • Polyglass Cone • Multi-Roll Rubber Surround • FEMM Motor and FEA Cone • Built-in Amplifier and Box • Variable Port Tuning

Learn more about the blackairb12v1

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Description


VIBE brand icon

Authorized dealer

What is Bandpass?

Bandpass Enclosures are designed to get the best performance from the subwoofer and allow bass performance that would normally only be possible from a sealed or ported enclosure twice the size. In a Bandpass design the subwoofer is placed inside the enclosure where it can be worked much harder, with increased pressure on the front and back of the cone. Overall Bandpass Enclosures result in better efficiency from the subwoofer and amplifier, considerably more volume, greater bass presence and a bigger, deeper bass sound. The BlackAir Bandpass push enclosure engineering to the extreme, producing unbelievable levels of bass previously unheard of from an enclosure of this size.

Subwoofer Features:
  • 12" Dual 2 ohm Black Air Series Subwoofer
  • Power Handling:
    • Peak: 1600 watts
    • RMS: 550 watts
    • Minimum: 275 watts
  • Final Impedance (of enclosure): 4 ohm (Wired in series internally to create a 4-Ohm amplifier load)
  • Polyglass cone made from a combination of polypropylene and fiberglass
  • Multi-roll rubber surround achieves better linearity throughout the subwoofers excursion range
  • Dual Voice Coils (DVC) offers multiple impedance options
  • Unique cone support is specially designed for rigidity without excessive weight
  • Dual spider assists with the control and stability of the cone, as well as higher power handling
  • FEMM Motor provides low distortion and linear flux saturation
  • FEA Cone is designed using Finite Element Analysis (FEA) to ensure maximum rigidity to weight
  • Alloy torsion basket provides rigidity and support for motor and moving parts
  • Removable rubber boot for greater magnet protection
  • Aluminum alloy gasket is made from high quality machined aluminum
  • Screw input terminals allow for heavier gauge speaker wire to be connected to the voice coil
  • 2" Aluminum 4-layer voice coil
  • Single 60 oz. ferrite magnet
  • Mounting depth: 6-3/4"
  • Mounting diameter: 11-1/4"
  • Frequency response: 25-1,500 Hz
  • Sensitivity: 89 dB
  • Also found as: BLACKAIRB12-V1, BLACKAIRB12V1, BAB12-V1, BA12v1, BA12-v1
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

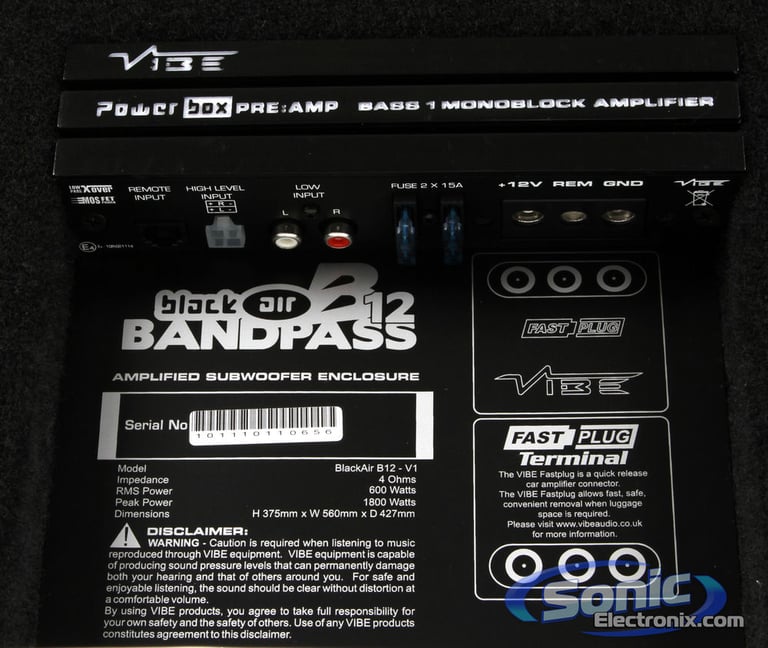

Amplifier Features:
  • PowerBox Series Class AB Car Amplifier
  • Designed to perfectly power the included 12" Black Air Series Subwoofer
  • MOSFET Power Supply

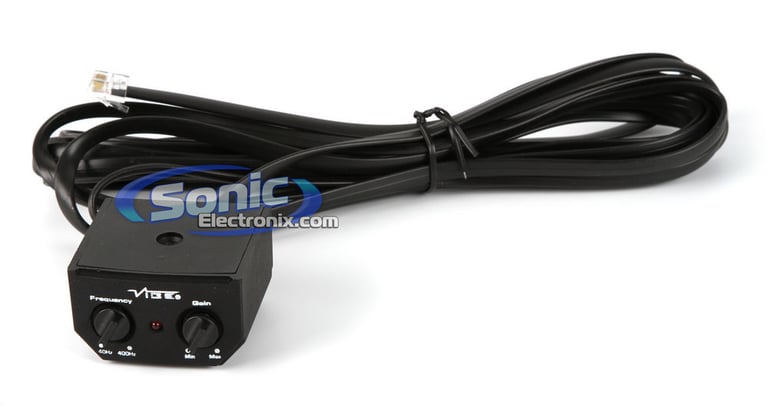

  • Remote level bass control included
  • LED power protection indicators
  • Heavy duty aluminum alloy heatsink

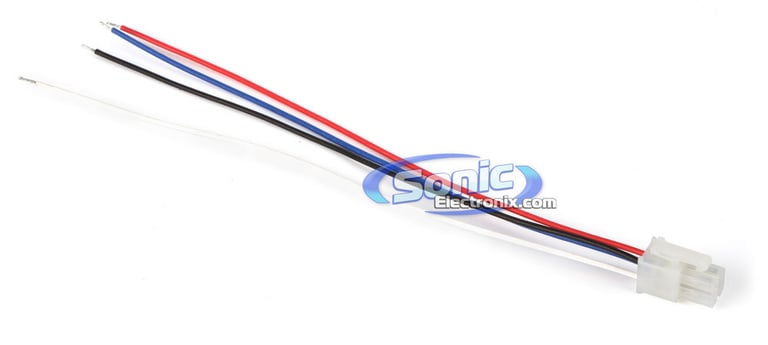

  • High and low-levels inputs
  • Low-pass crossover adjustable from 40-200 Hz
  • Gain adjustment from 0.25v to 6v
General Enclosure Features:

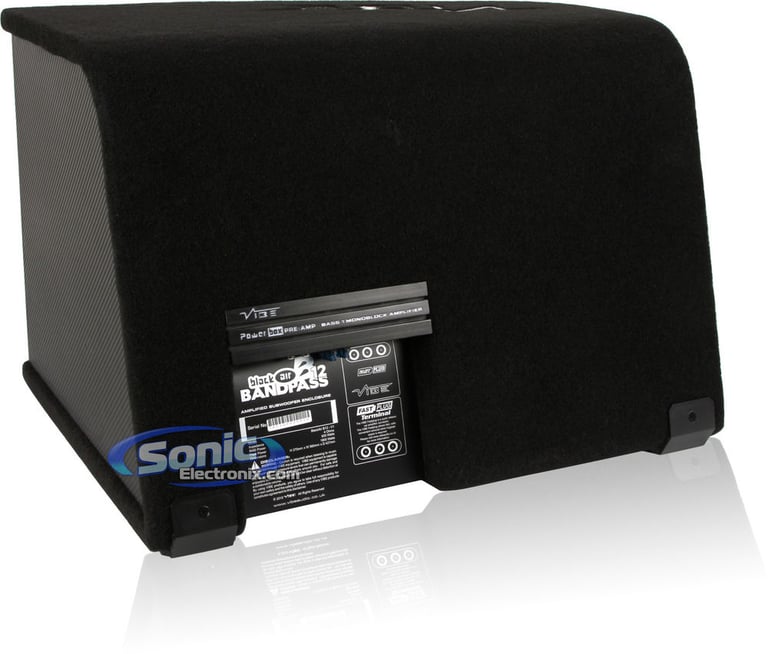

  • 12" Bandpass Subwoofer Enclosure

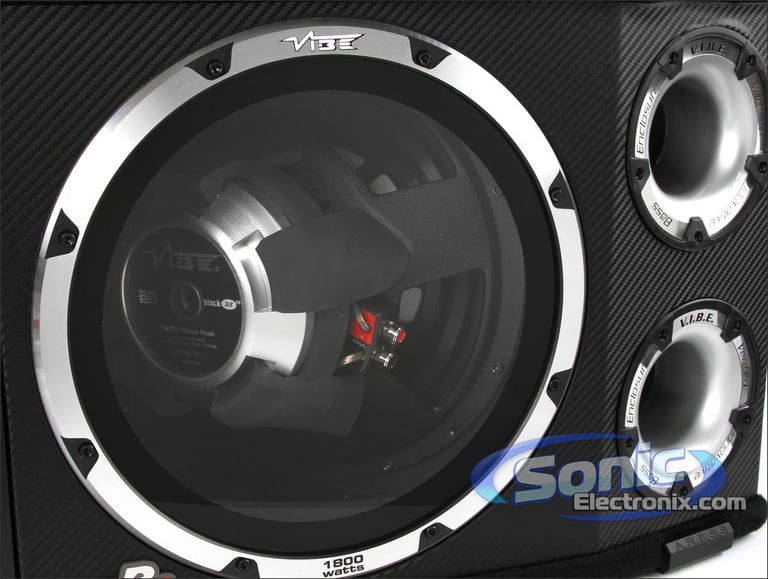

  • Box pre-installed with VIBE BA12-V1 Subwoofer
  • Variable Port Tuning allows for different port configurations
  • Made from durable 3/4" MDF
  • Designed and engineered specifically for the loaded subwoofer

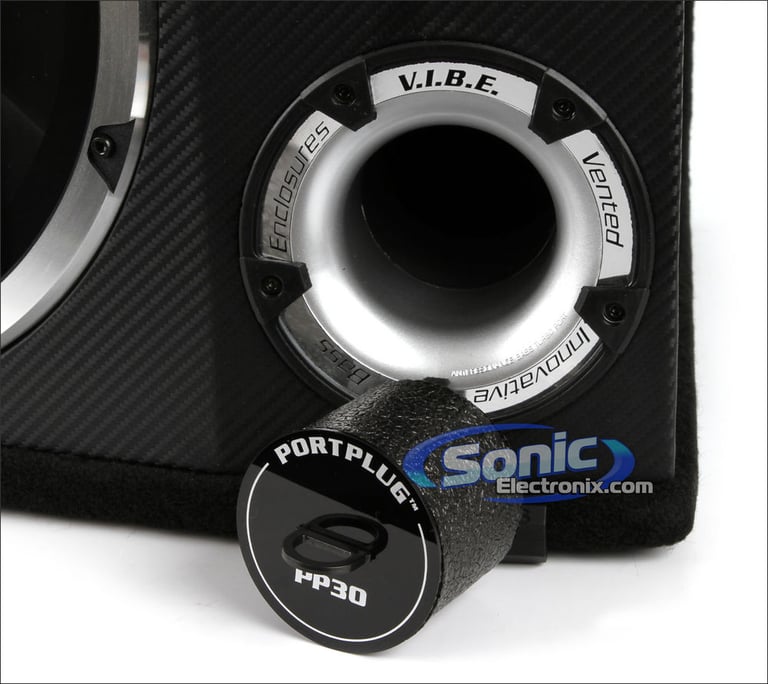

  • Inserting both Port Plugs allows enclosure to act as Sealed
  • Final impedance of the entire loaded enclosure is 2 or 8 ohm
  • Dimensions: 15-11/16"L x 22-1/16"W x 14-13/16"H

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
550 watts
Total RMS Power Handling
550 watts
Peak Power Handling
1600 watts
Total Peak Power Handling
1600 watts
Woofer Surround
Rubber
Woofer Composition
Polyglass
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
89 dB
Frequency Response
25 - 1,500 Hz
Enclosure Specifications
Box Type
Bandpass Ported
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
14-3/4"
Width
22-1/16"
Depth
16-13/16"
Wood Thickness
3/4"
Number of Terminals
1
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BlackAirB12-V1

Weight:

51.25lbs

Internal SKU:

blackairb12v1

Internal Product ID:

37075
