Rockford Fosgate Speakers + Dual Amplifier Bundle

6-1/2" P1653 Punch Series Speakers + Dual XPE4700 4 Channel Amplifier + Kit + Sound Dampening

EXCLUSIVE
Product videos
highlight-star-icon

6-1/2" Punch Series 3-Way Car Speakers • 240W Max • 120W RMS • XPE Series 4-Channel Class A/B Car Amplifier • PWM MOSFET Power Supply • Selectable Bass Boost • Amplifier Kit • Sound Dampening Material

Learn more about the xpe4700_09-p1653

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

35
-9.99%

$90.00

List price $99.99

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

CVMPCL8.0 main

Cerwin Vega CVMPCL8.0 (Sold Individually)

400W Peak (200W RMS) 8" Stroker Pro Series Full Range 4-ohm Speakers

-16.67%

$139.99

List price $167.99

DMDX8 main

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

PPROV2-8 main

Rockford Fosgate Punch Pro V2 PPROV2-8

300W Peak (150W RMS) 8" Punch Pro Series Pro Audio Midrange 4-ohm Car Speakers

Limited time!
REF407F main

Infinity REF407F (INFSPKRF407FUS)

210W Peak (75W RMS) 4" Reference Series 2-Way Coaxial 3-ohm Speakers

-37.16%

$87.95

List price $139.95

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

H80C main

Cerwin-Vega H80C

900W Peak (300W RMS) 8" HED Series 2 Way Component 4-ohm Speaker System

-16.67%

$219.99

List price $263.99

S2-S80C main

Alpine S2-S80C

520W Peak (170W RMS) 8" S-Series Hi-Res 2-Way Component Car Speakers

1
-17.26%

$239.95

List price $290.00

Product Highlights


6-1/2" Punch Series 3-Way Car Speakers • 240W Max • 120W RMS • XPE Series 4-Channel Class A/B Car Amplifier • PWM MOSFET Power Supply • Selectable Bass Boost • Amplifier Kit • Sound Dampening Material

Description


Rockford Fosgate brand icon

Authorized dealer

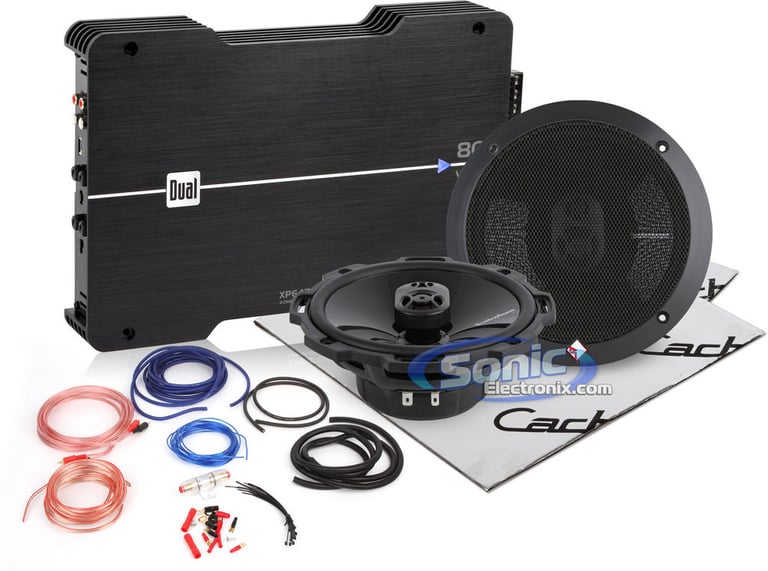

Rockford Fosgate Speakers and Dual Amplifier Bundle

This Sonic Electronix Exclusive offer showcases a pair of 6-1/2" Rockford Fosgate Punch Series Coaxial Car Speakers. These speakers are rated at 240 watts Peak power per set, and 120 watts RMS per set. The speakers feature a injection molded mineral filled polypropylene cone and a VAST butyl rubber surround, for rigidity and optimum performance. With a 4 Ohm impedance, PEI dome tweeter, and FlexFit basket design, these speakers are great if you are looking to improve that factory installed sound in your vehicle.

In order to provide the sufficient power to the Punch Series speakers, this bundle will also include a Dual XPE4700 4-Channel XPE Series Amplifier. This amplifier is rated at 50 watts x 4 Chan. @ 4 Ohms, 75 watts x 4 Chan. @ 2 ohms, and 150 watts x 2 Chan. @ 4 Ohms bridged. The amplifier features 3-way protection circuitry. Also featured is variable high and low pass filters for complete control of your music. With PWM MOSFET power supply and selectable bass boost, this amp will give you all the power you need. In addition this bundle will include a complete 8 gauge amplifier kit with RCA interconnect cables for complete installation. In order to increase the overall sound quality and output from your system, this bundle also includes two 10" x 10" Piece of Dead Shield Sound Dampening Material. The sound damp will reduce road noise, vibrations and rattles that diminish the sound quality of your car audio system. This bundles has everything you need to take your factory sound and make it a sound all your own.

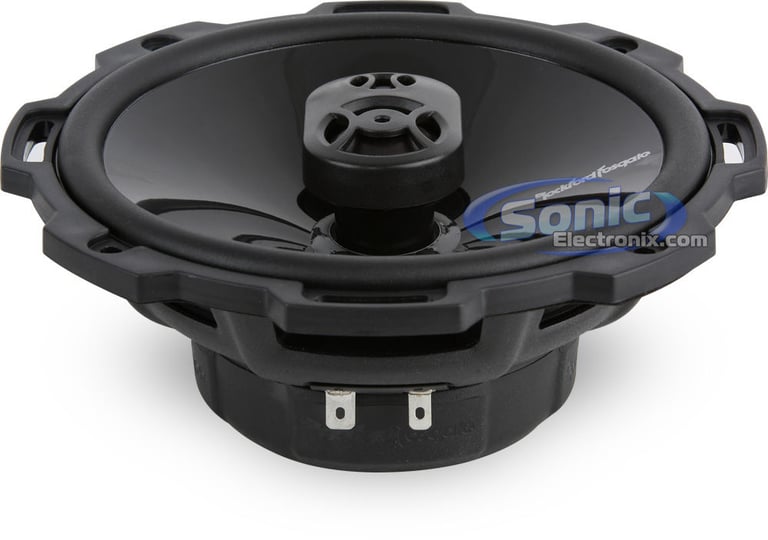

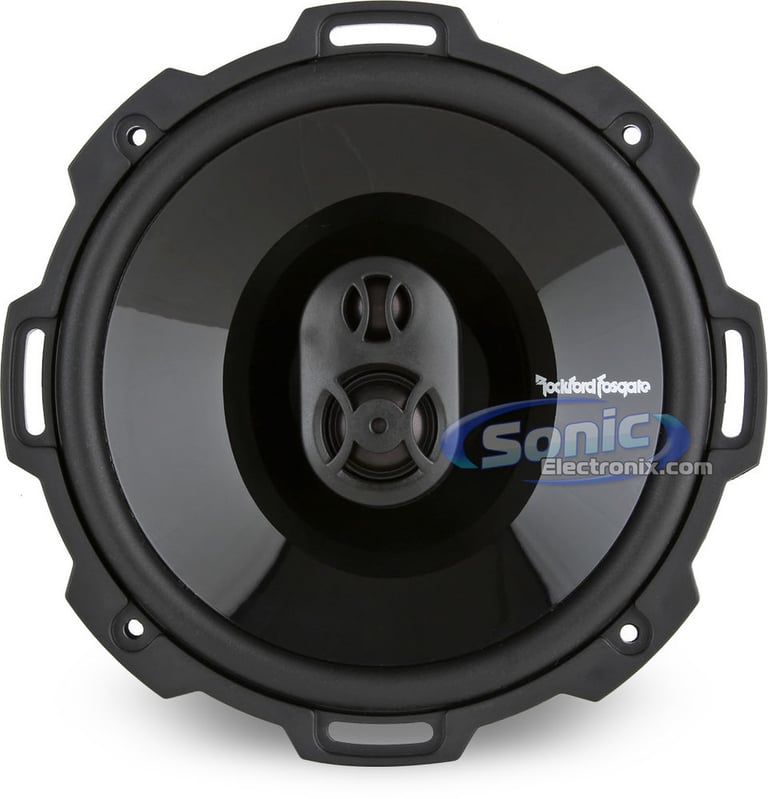

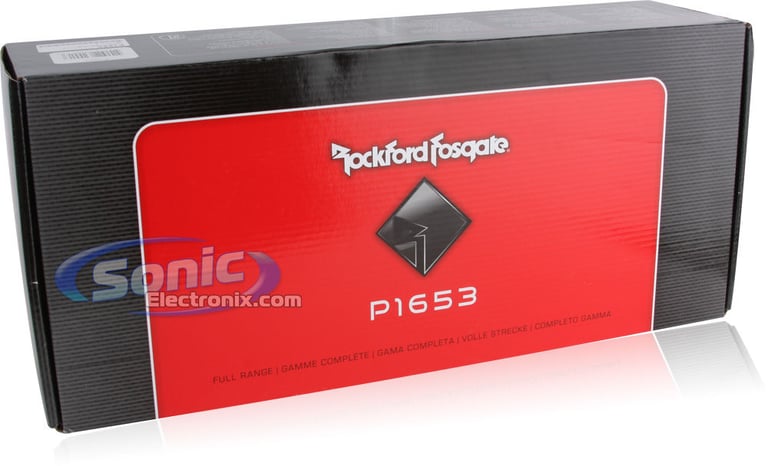

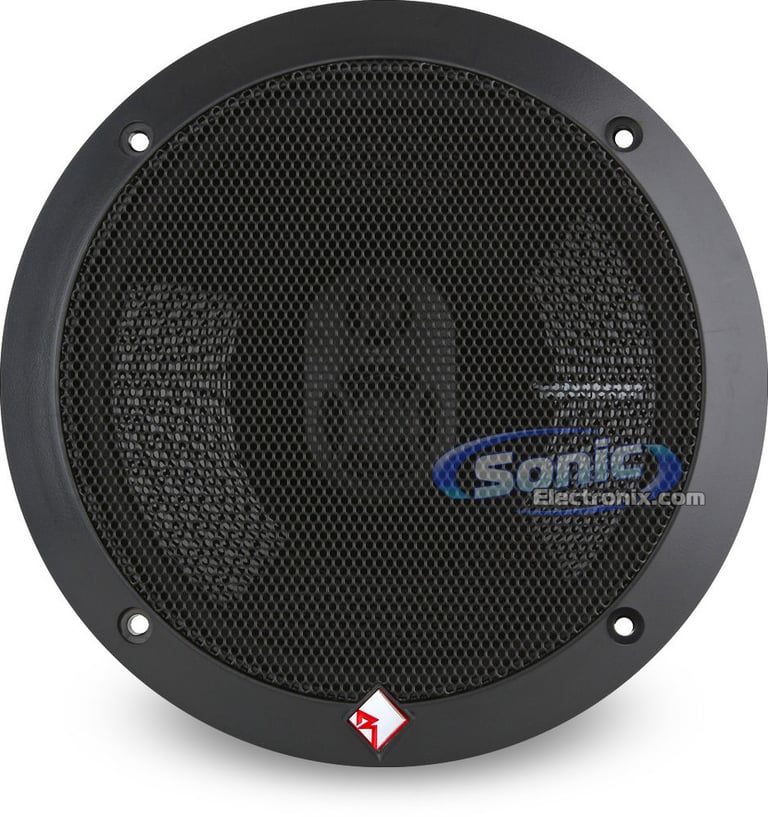

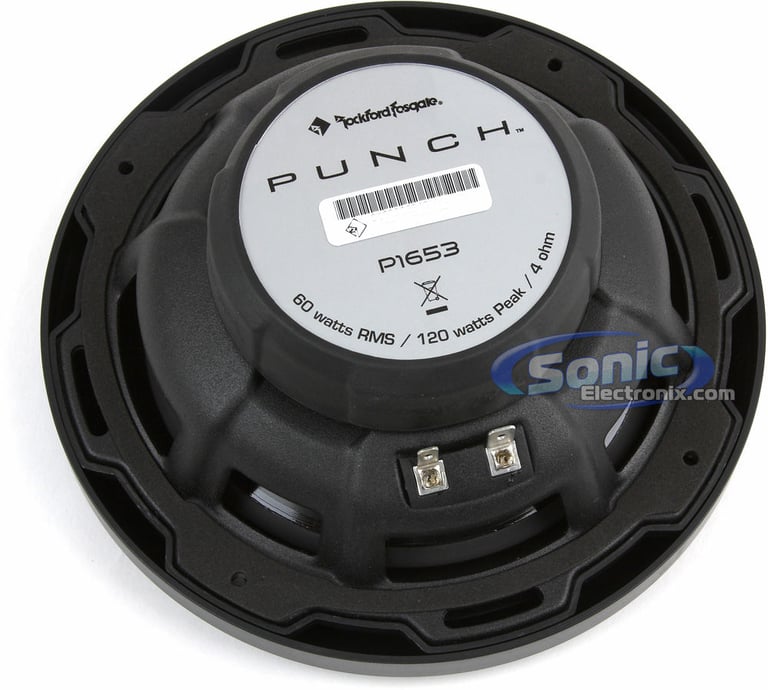

Rockford Fosgate Punch P1653 Features:
  • 6-1/2" Punch Series 3-Way Car Speakers
  • Power Handling:
    • Peak: 240 watts per pair / 120 watts each
    • RMS: 120 watts per pair / 60 watts each
  • Injection molded mineral filled polypropylene cone
  • VAST Butyl rubber surround
  • PEI Dome tweeter

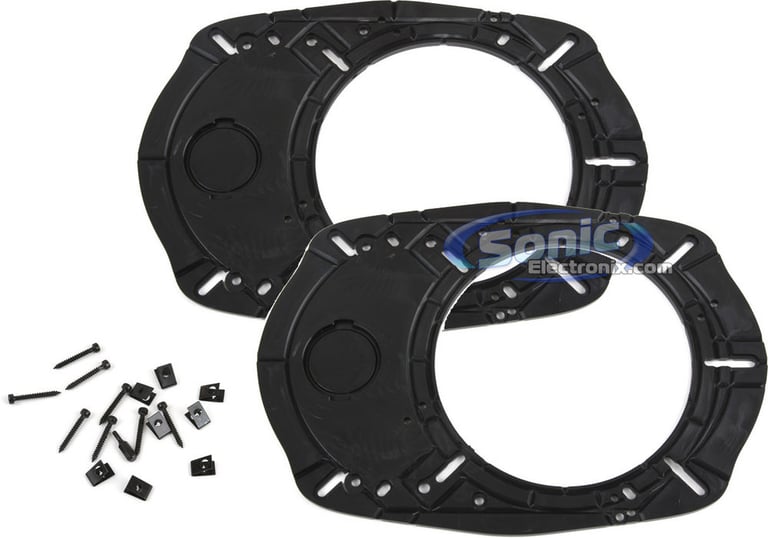

  • OEM adapter plate included
  • FlexFit basket design
  • 4 ohm impedance

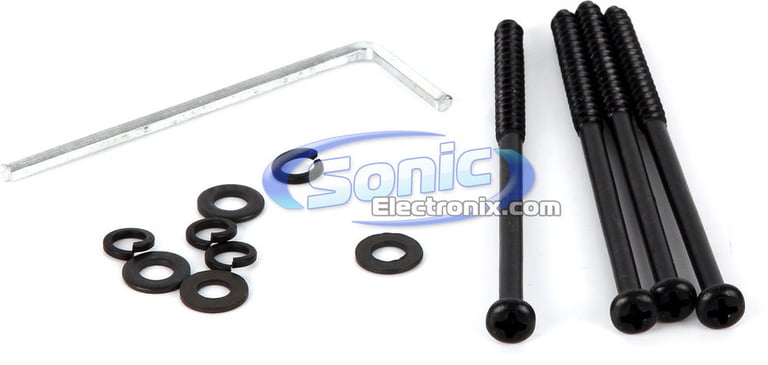

  • Includes grill and mounting hardware
  • Top-mount depth: 2"
  • CEA-2031 Compliant
  • 1-year SonicElectronix.com warranty

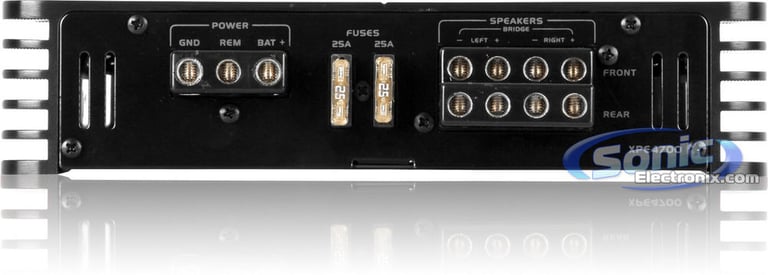

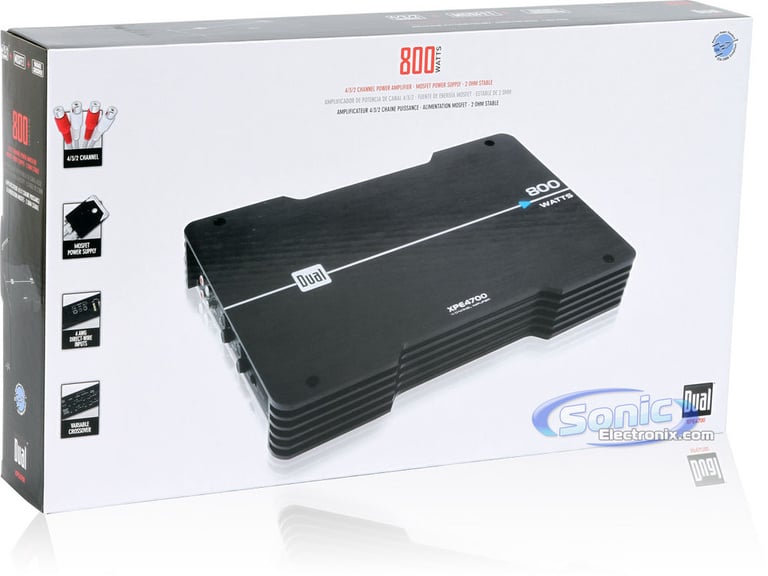

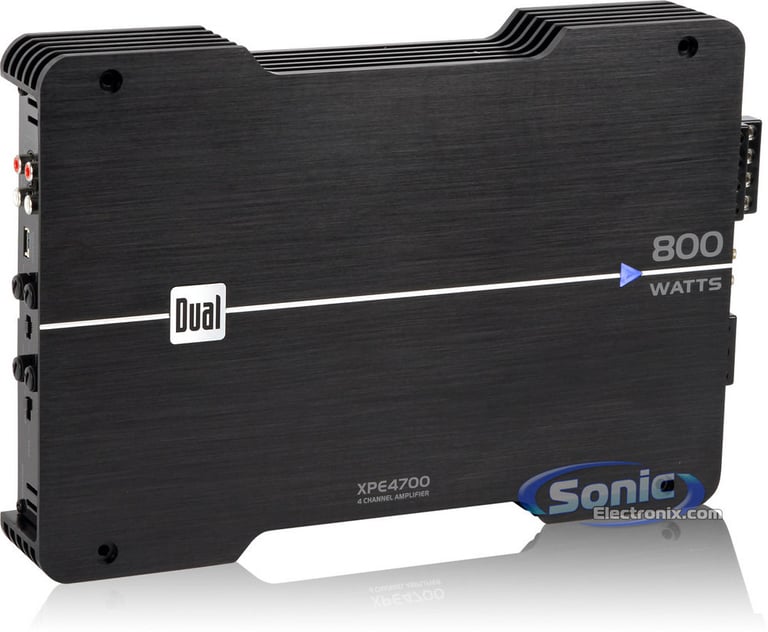

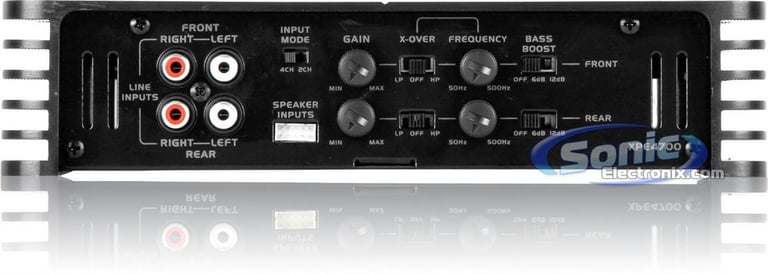

Dual XPE4700 Features:
  • XPE Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating (14.4V <1% THD+N):
    • 4 ohm: 50 watts x 4 chan.
    • 2 ohm: 75 watts x 4 chan.
    • Bridged, 4 ohm: 150 watts x 2 chan.
  • Dynamic power output: 800 watts @ 4 ohm
  • Pulse Width Modulated MOSFET power supply
  • Bi-color LED status indicators
  • Selectable bass boost (0, 6, 12 dB at 45 Hz)
  • Soft Start Turn-on
  • 4/3/2 channel operation

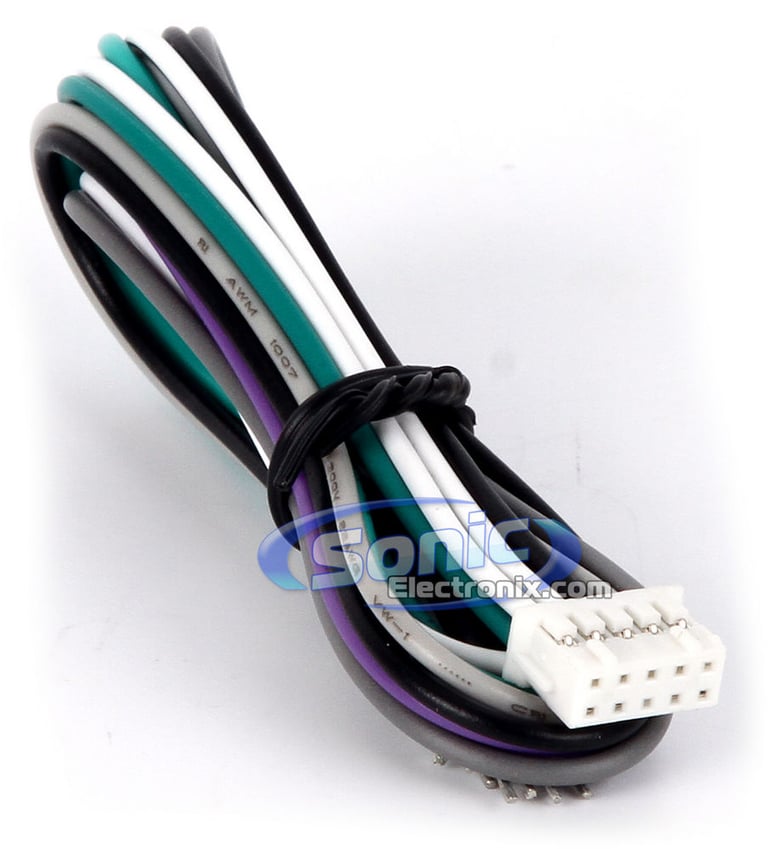

  • Speaker-level inputs with signal sensing for automatic turn-on
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Variable high-pass filter (50-500 Hz, 24 dB/octave)
  • Variable low-pass filter (50-500 Hz, 24 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20,000 Hz
  • Dimensions: 8-15/16"L x 14-1/8"W x 2-1/16"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

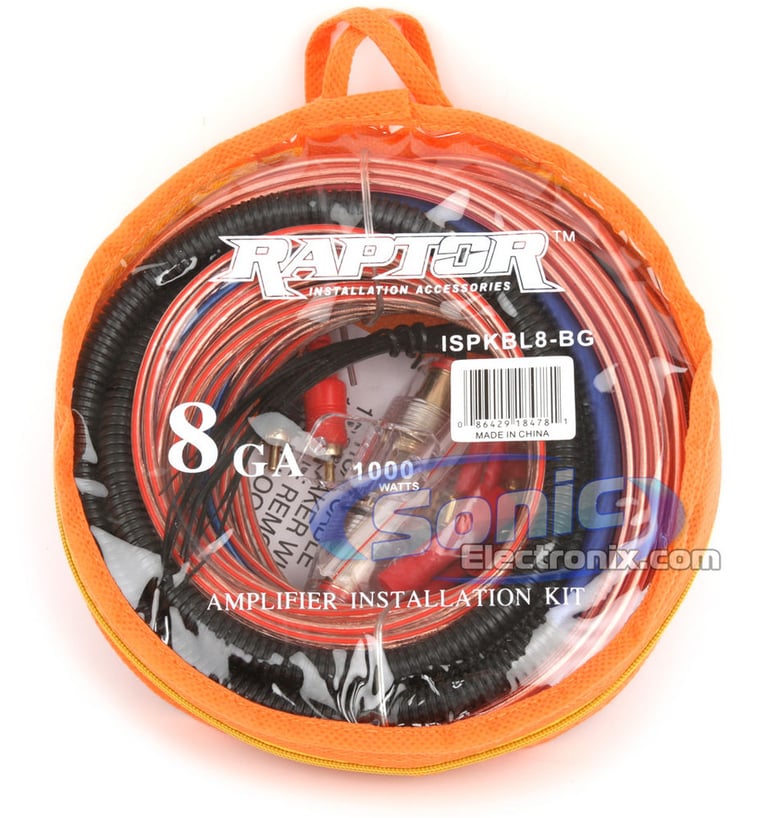

Raptor ISPKBL8-BG Features:
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 8 Gauge (AWG) Power and ground cable for excellent power transfer
  • Designed for systems up to 1000W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Raptor ISPKBL8-BG Includes:

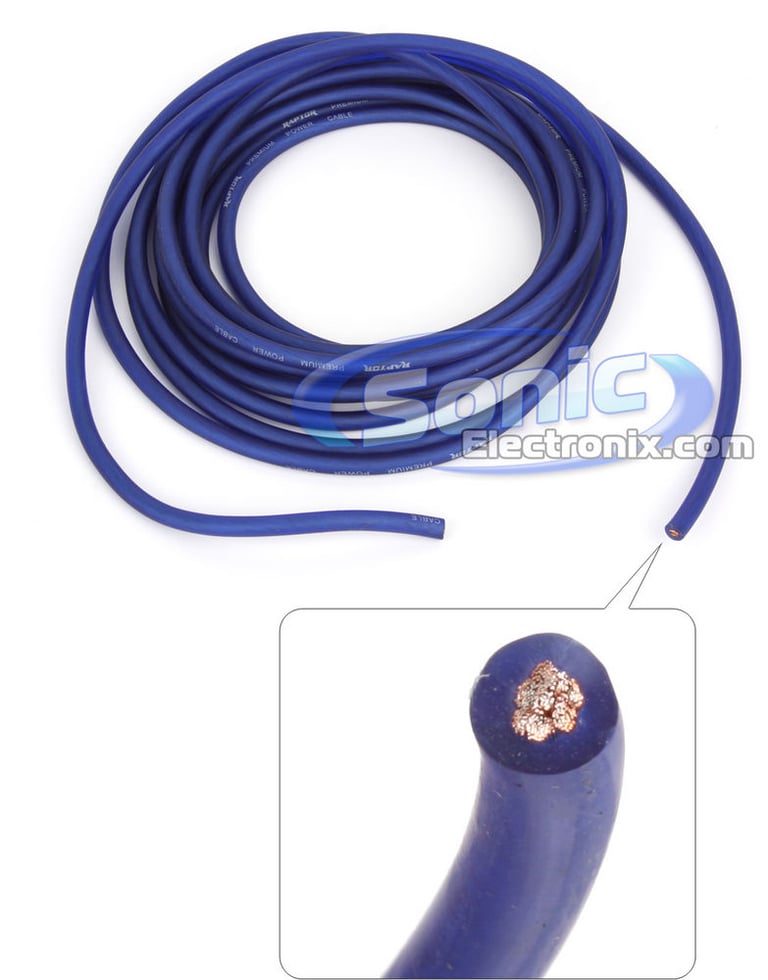

  1. 17 ft. of 8 Gauge blue power cable

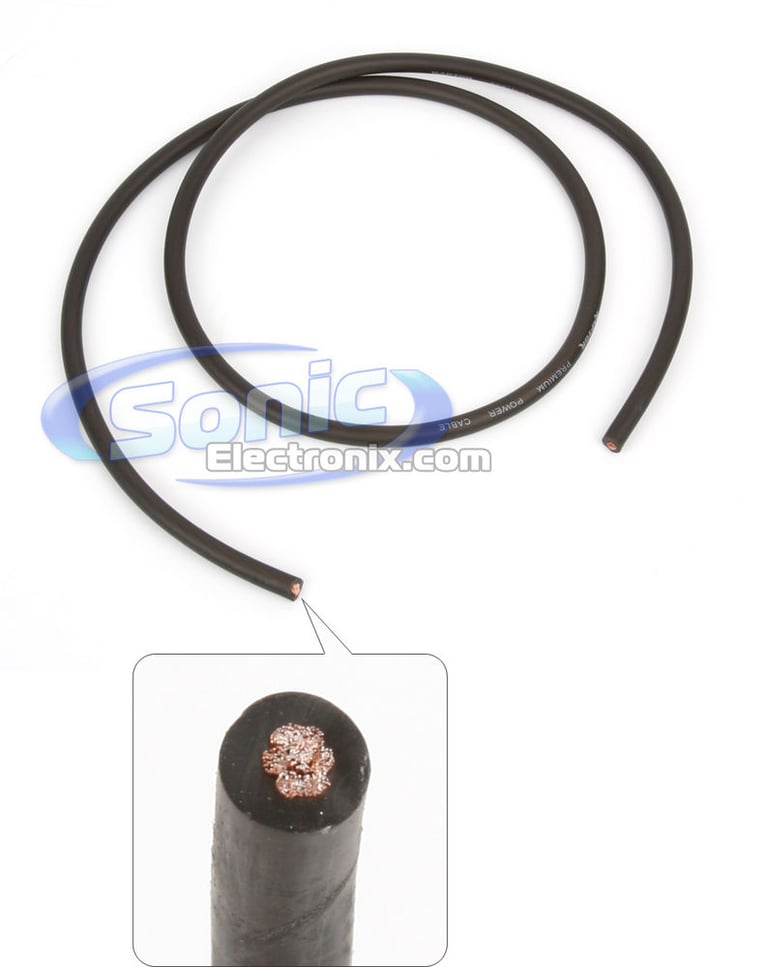

  2. 3 ft. 8 Gauge black ground cable

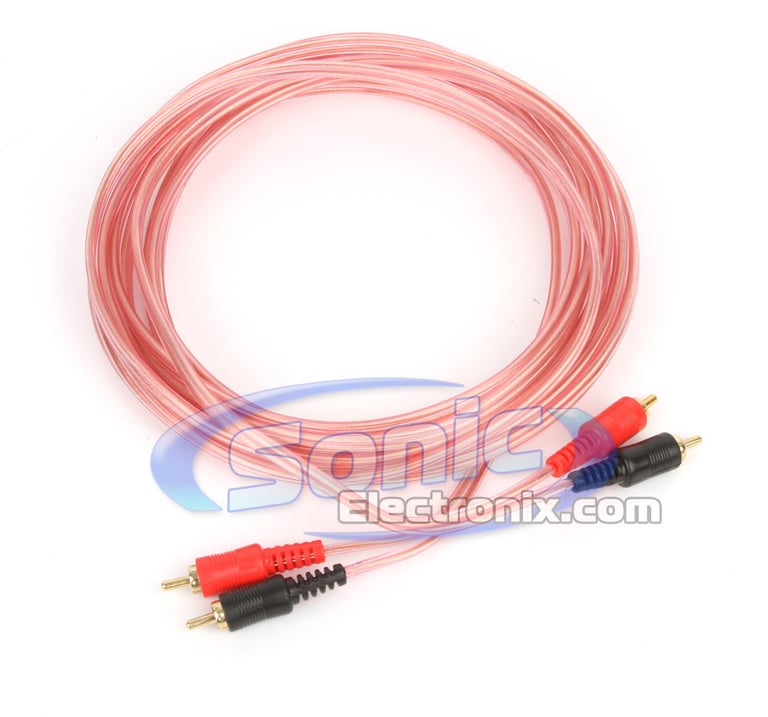

  3. 17 ft. Neon blue series RCA cable

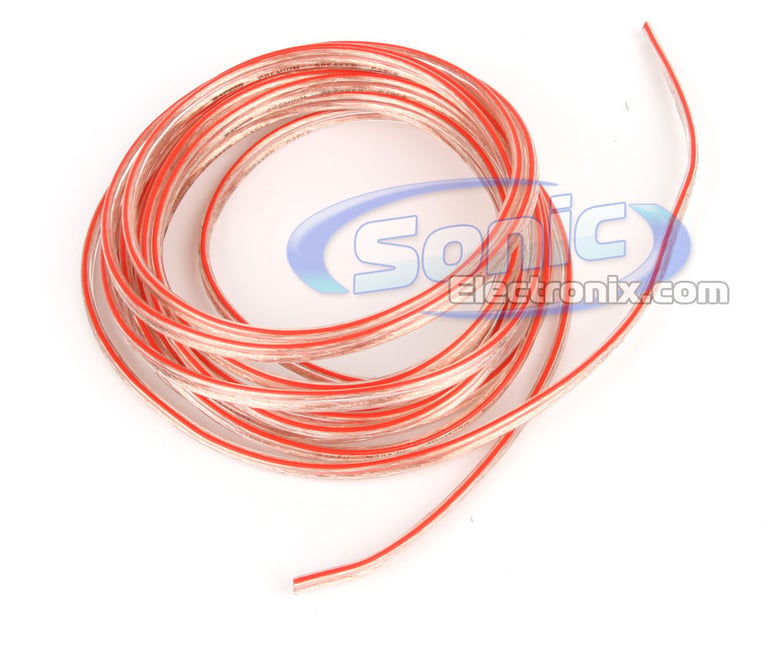

  4. 16 ft. of Premium speaker cable

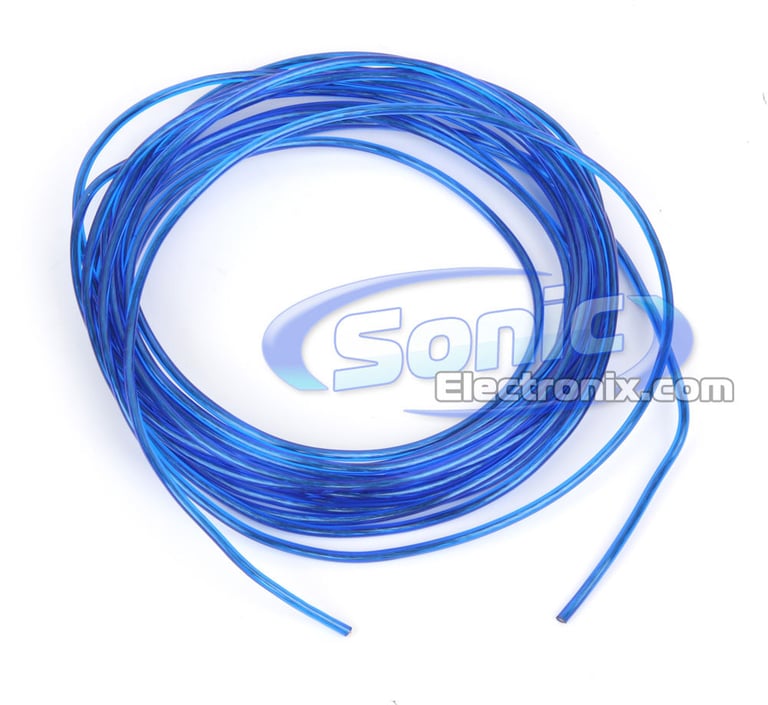

  5. 17 ft. of 18 Gauge blue remote turn-on wire

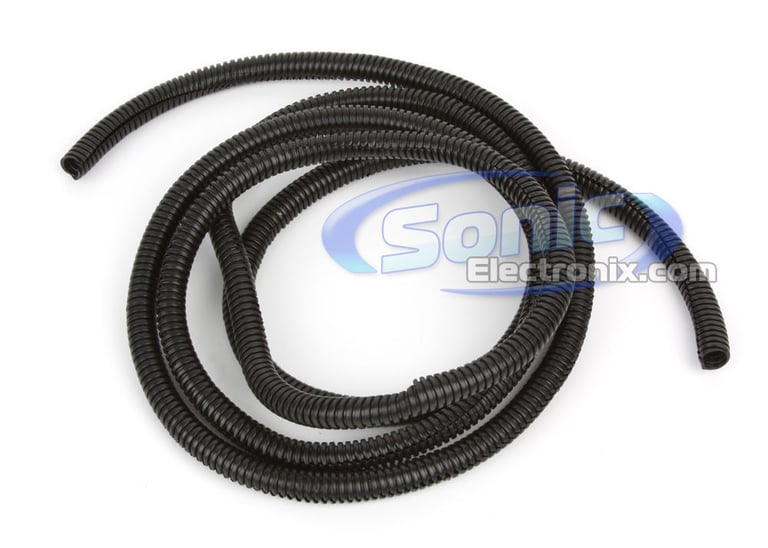

  6. 6 ft. Split loom tubing
  7. 1 AGU Fuse Holder
  8. 50 AMP Fuse

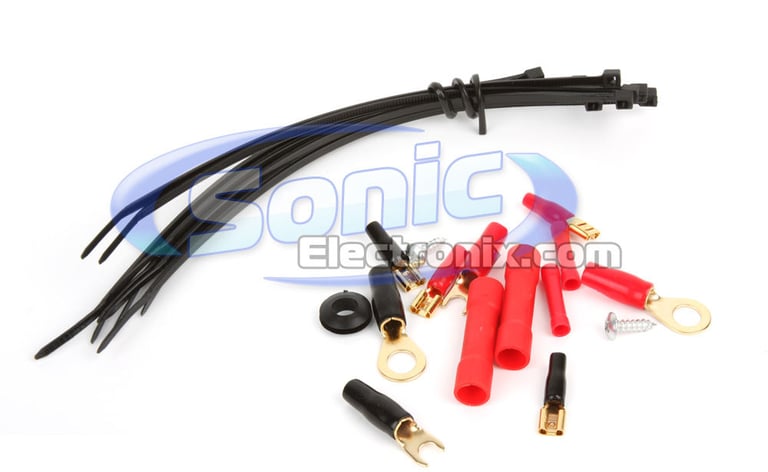

  9. All Necessary Hardware for Installation

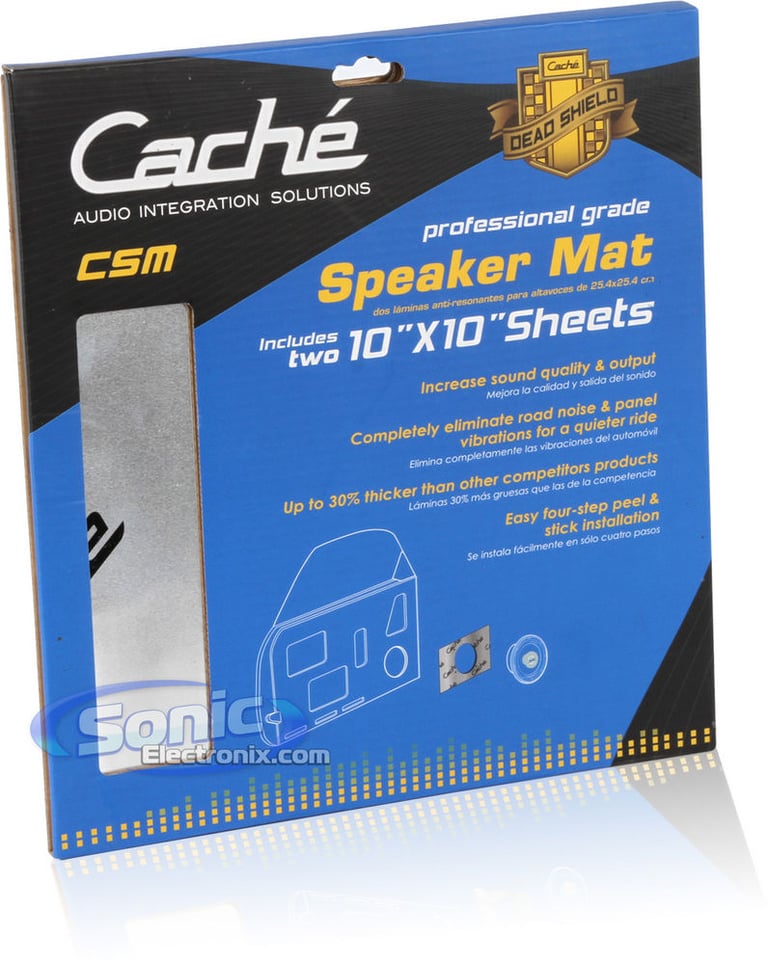

Cache CSM Features:
  • Two 10" x 10" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 10"L x 10"W

Specifications & Details


Front Speaker Specifications
Speaker Size
6-1/2"
Design
3-way Coaxial
Tweeter Design
Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
120 watts
RMS Power Handling
60 watts
Sensitivity
89 dB
Frequency Response
60 - 24,000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-1/8"
Cutout Dimensions
5-1/2" x 5-1/2"
Speaker Grilles
Yes
Amplifier Power Specifications
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
150 watts x 2 channel
Peak Power Output
400 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
70 dB
Bass Boost
0dB, 6dB, 12dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
25A x 2
CEA-2031 Compliant
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XPE4700_P1653

Weight:

19.10lbs

Internal SKU:

xpe4700_09-p1653

Internal Product ID:

37375

Product and How-to Videos


  • 3Sixty3 Aftermarket Setup Wizard Tutorial
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Rockford Fosgate Speakers + Dual Amplifier Bundle thumbnail image

5 star
72%
4 star
21%
3 star
5%
2 star
0%
1 star
2%



Durability
4.7
Value
4.7
Features
4.5
Design
4.6
Usability
4.6

Customer Reviews

Sort by:

Loading...

Good Product

The following review is for ISPKBL8-BG, which is a part of the bundle you are viewing.

Used this package on my Mazda 6 i Sport and it covered the length of the car fine. Had scrap to splice off onto multiple amps.

By NETech on November 14, 2011

37 found this helpful


Comes with everything you need at a great price!

The following review is for ISPKBL8-BG, which is a part of the bundle you are viewing.

I ordered this kit for my two 12" mtx subs and a one channel amp and it came with all of the wiring necessary to gets my subs bumping

By Luke on August 23, 2010

35 found this helpful


good product

The following review is for CSM, which is a part of the bundle you are viewing.

Really stops the rattling that comes from having the punch from the kiker speakers i have installed in the doors of my car.

By george on December 7, 2011

32 found this helpful


Easy to use and apply

The following review is for CSM, which is a part of the bundle you are viewing.

I used this product in my rear component speakers (Alpines) for the mid-range woofers in the doors to shield against vibration and they do a good job and the speakers sound great for it!

By Aaron on November 25, 2011

31 found this helpful


Cache CSM

The following review is for CSM, which is a part of the bundle you are viewing.

These came in a package deal from Sonic
with JBL GTO series speakers one of the decisions why I bought the GTO speakers, easy to use. Currently installing the sound system but having used similar products before these will make a good speaker sound better.

By Doc on September 26, 2012

30 found this helpful


Great product

The following review is for CSM, which is a part of the bundle you are viewing.

Worked good, stopped the rattling. Deeper bass.

By Joseph on December 13, 2011

29 found this helpful


good stuff!

The following review is for CSM, which is a part of the bundle you are viewing.

I bought this in a combo package that Sonic put together with a set of hifonics components, the zxi65c. i liked it, i havent heard any rattling from my speakers. works well, i recommend it.

By Stan on June 1, 2011

28 found this helpful


Sounds Great!

The following review is for CSM, which is a part of the bundle you are viewing.

I installed the Dead Shield Sound Dampening Material under all 4 of the speakers I replaced in my truck and the stereo system sounds great, better than I expected.

By Kevin on December 20, 2011

27 found this helpful


Not Bad for $40

The following review is for XPE4700, which is a part of the bundle you are viewing.

this is running Mono bridged pushing an NVX 10" in a 1 cu ft. sealed box with Infinity Kappas, 6.5's on all 4 doors with the 2700 model Dual. Nice budget build. Solid low end amps.Not going to win any competition, but $70, 2 amps, decent sound, You can't go wrong

By Anonymous on August 19, 2019 Checkmark Icon Verified purchase

14 found this helpful


Good Value

The following review is for XPE4700, which is a part of the bundle you are viewing.

Great bang for the buck amp...be careful you can over-torque the screws but other than that it does its job.

As for Sonic Electronix - doubled boxed and shipped promptly, the item arrived sooner than expected.

By James on February 19, 2020 Checkmark Icon Verified purchase

12 found this helpful




SK4641 small

Stinger SK4641

4 Gauge 100% Oxygen-Free Copper Tru Spec 4000 Series Power + Signal Amplifier Wiring Installation Kit for Amplifiers Up to 1500W RMS

(33)

$114.99

List price $229.00

No picture

Hertz CX 130 - New (Damaged Packaging, Product A+)

300W Peak (100W RMS) 5.25" Cento Series 2-Way Coaxial Car Speakers

$215.62

List price $260.00

TS-A6985R small

Pioneer TS-A6985R

6x9" 4-Way A-Series Coaxial Speakers

(26)

$64.99

List price $159.99

D4GY small

Limitless Creations D4GY Gray Denim EZsnap Padded Case for new iPad and iPad 2

6-Position Case for For new iPad 4, iPad 3, or iPad 2 with Wake/Sleep Smart Cover Function and Apple Logo Cutout

$2.99

List price $49.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1990 Cadillac Allante

2013 BMW 760Li

2003 Ford Focus ZX5

2025 Chevrolet Silverado 3500 HD

2013 Kia Rio

2016 Jeep Renegade

2022 Nissan Titan XD

1979 Oldsmobile Toronado

2012 Honda CR-Z

1988 Mazda 323

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
