800W Crossfire + Sound Dampening Material Bass Bundle

10" Crossfire BMF1014 BFM Series Subwoofer + Cache CDM Dead Shield Sound Dampening Material

Crossfire
Shop all Crossfire
EXCLUSIVE
Product videos
highlight-star-icon

10" Dual 2 Ohm BMF Series Car Subwoofer • 800W Max • 400W RMS • Co-Polymer Cone • Four 12" x 36" Pieces of Dead Shield Sound Dampening Material • Eliminates Road Noise • Increases sound quality and output

Learn more about the bmf1014_cdm

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

iLX-407 main

Alpine iLX-407

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

7
-16.93%

$539.95

List price $650.00

Infinity REF-6532ex (REF6532EXAM)

330W Peak (110W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

6
-38.47%

$79.99

List price $130.00

Product Highlights


10" Dual 2 Ohm BMF Series Car Subwoofer • 800W Max • 400W RMS • Co-Polymer Cone • Four 12" x 36" Pieces of Dead Shield Sound Dampening Material • Eliminates Road Noise • Increases sound quality and output

Description

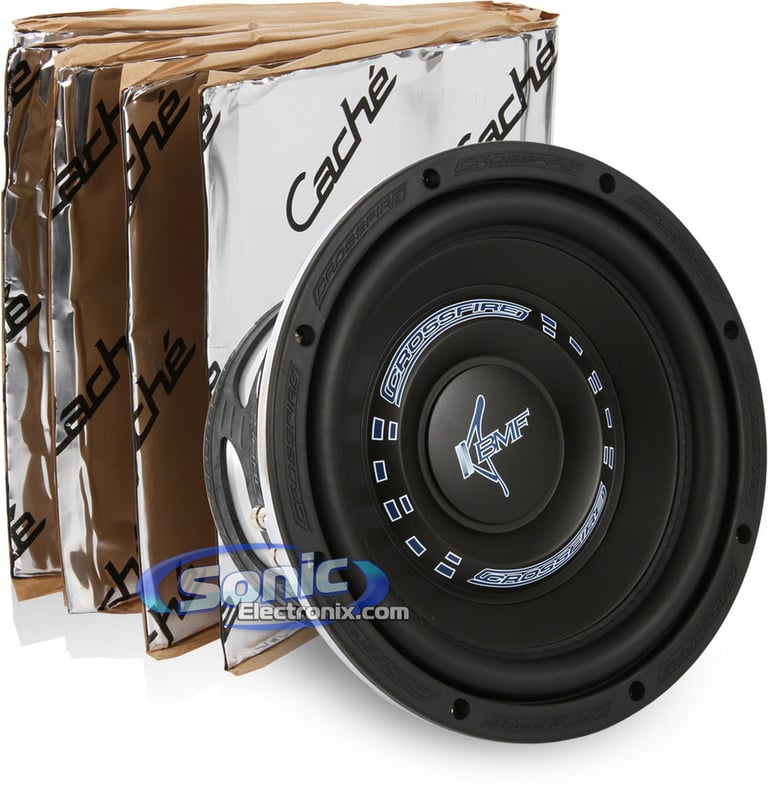

Crossfire plus Sound Dampening Material Bass Bundle

This Sonic Electronix Exclusive Bundle showcases a 10" Dual 2 Ohm Crossfire BMF series Subwoofer. This subwoofer is rated at 400 watts RMS of continues power and 800 watts of Max power. The subwoofer is equipped with a co-polymer cone material and stitched rubber surround for rigidity and performance. It is also equipped with spring loaded terminals for a secure installation. Along with Flexible Impedance Technology (FIT), dual stacked 85 oz magnet structure, and 2-1/2" voice coil, make this Crossfire BMF series subwoofer the perfect solution when adding bass to your audio system. In order to improve the all around sound of your audio car system, this bundle also includes four 12" x 36" pieces of Dead Shield sound dampening material. This dampening material will help reduce engine noise, vibrations, road noise and rattling to give you a higher sound quality. Four step peel and stick application makes installation simple and efficient. This sound dampening material is sure to improve the over all quality and output of your system.

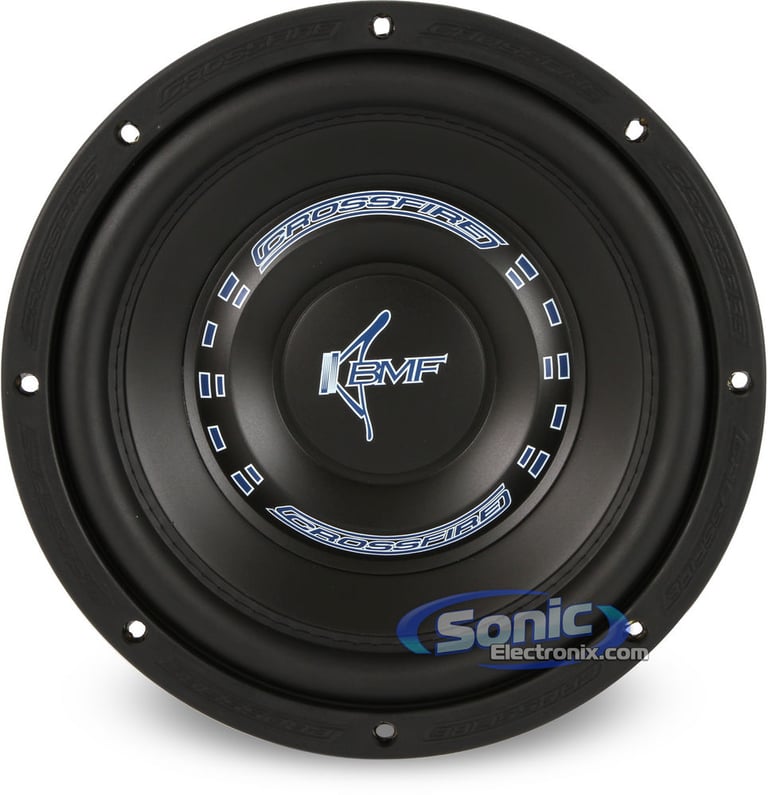

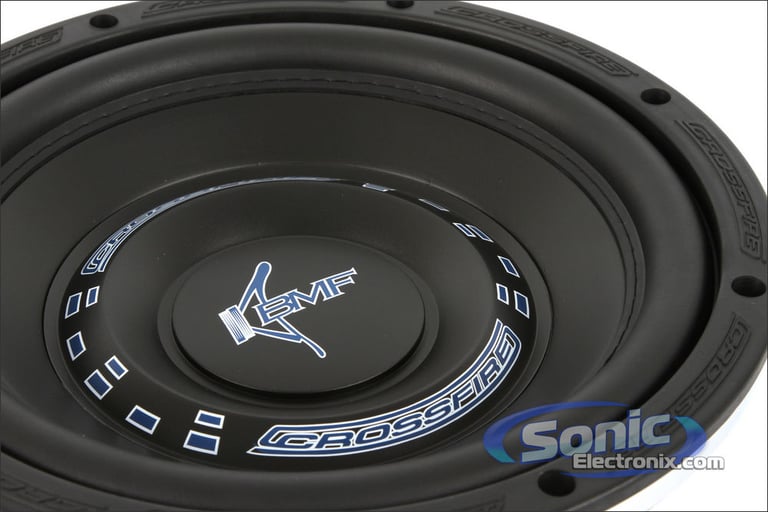

Crossfire BMF1014 Features:

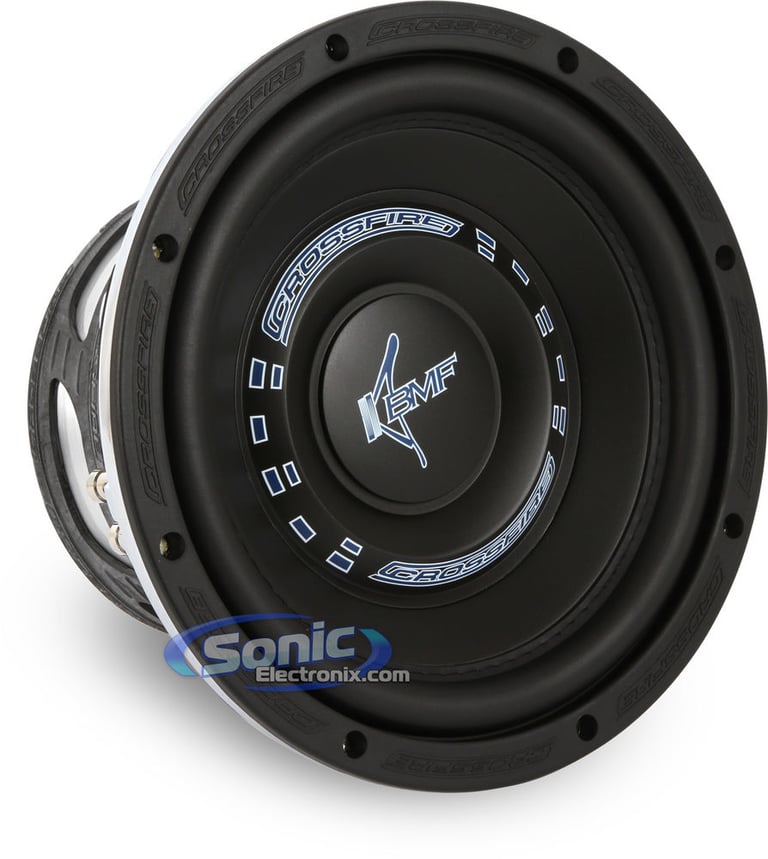

  • 10" Dual 2 Ohm BMF Series Car Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: 2 Ohm
  • Co-polymer cone material
  • Stitched rubber surround

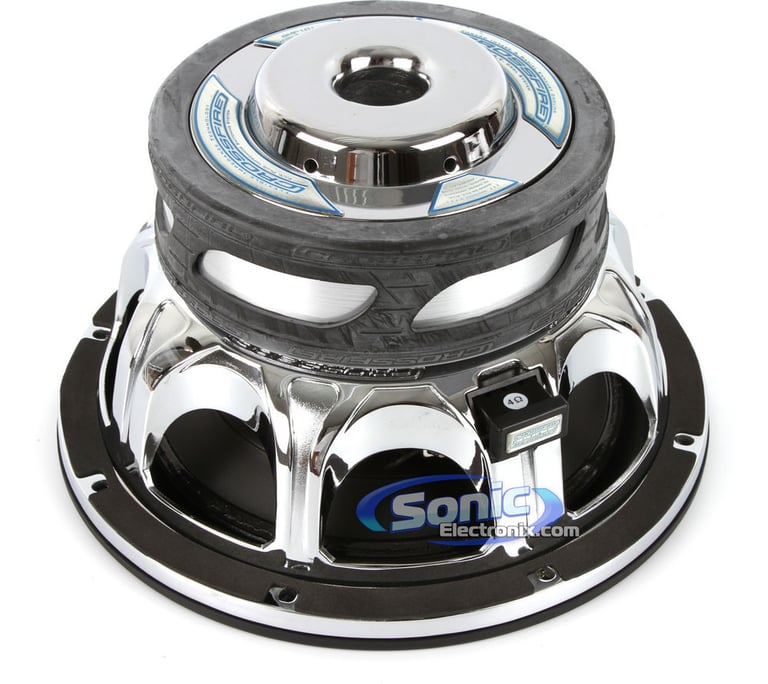

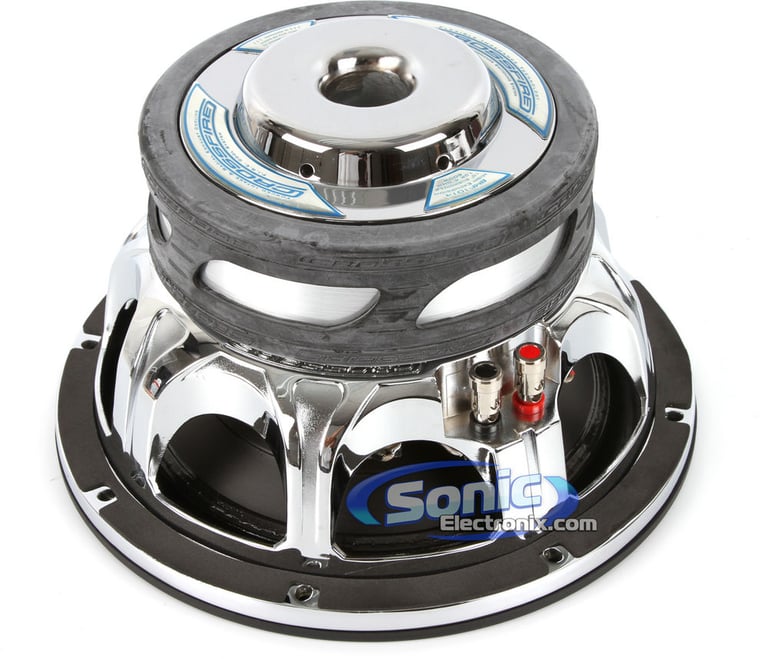

  • Proprietary chrome aluminum cast frame
  • Flexible Impedance Technology (FIT)

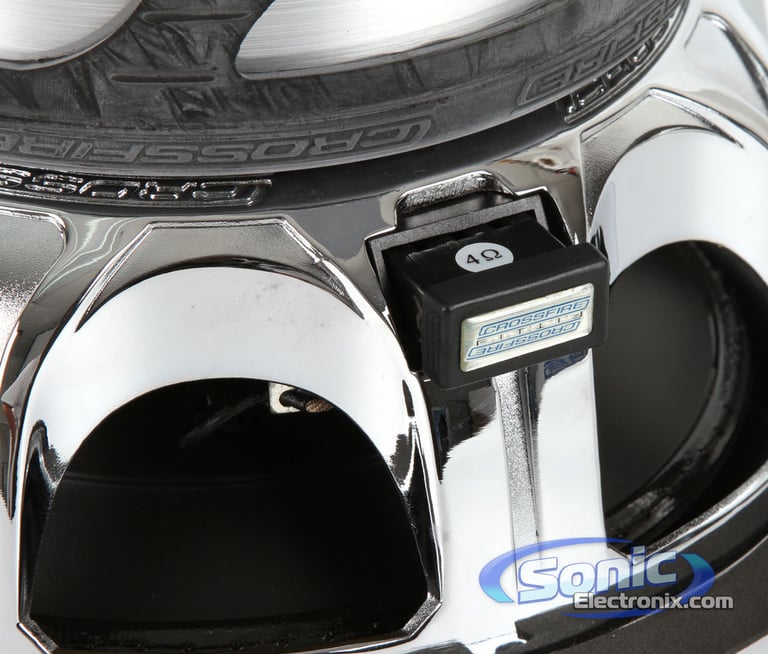

  • Dual Voice Coil (DVC) impedance selector
  • Chromed signature etched back plate
  • Chrome plated extended/vented back plate

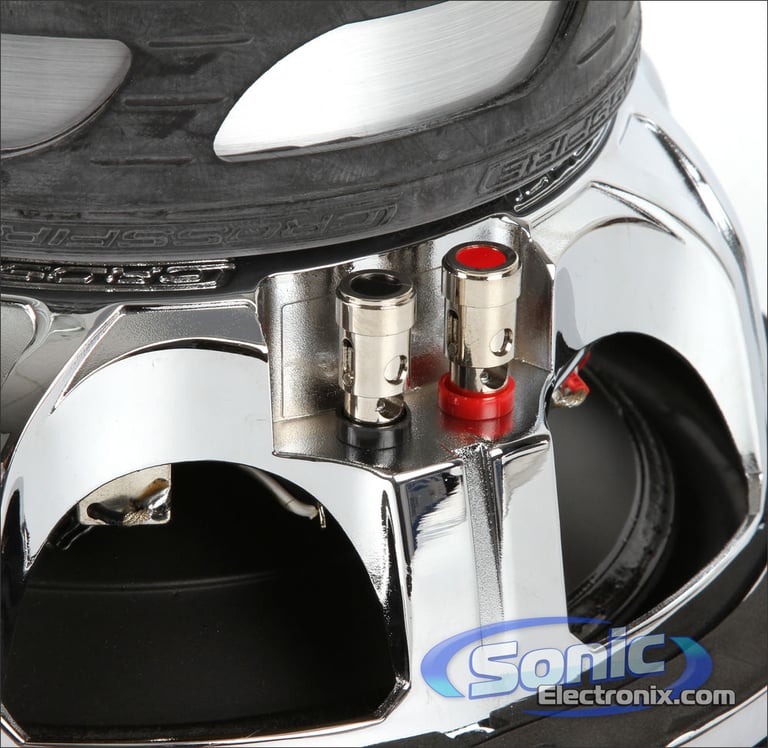

  • Compression nickel-plated sprig loaded input terminals
  • Designed for both vented and sealed enclosures
  • 2-1/2" 4 Layer Dual 2 Ohm Kapton voice coil
  • Dual 85 oz. ceramic stacked magnet structure
  • Frequency response: 20-250 Hz
  • Sensitivity: 83.4 dB
  • Xmax: 14mmm
  • Mounting depth: 5-7/8"
  • Cutout dimensions: 9-1/2"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

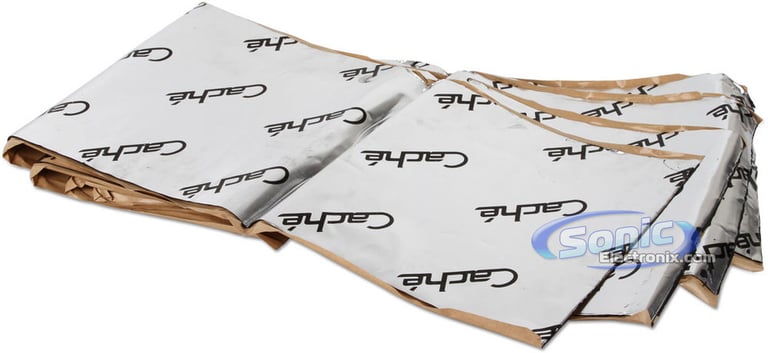

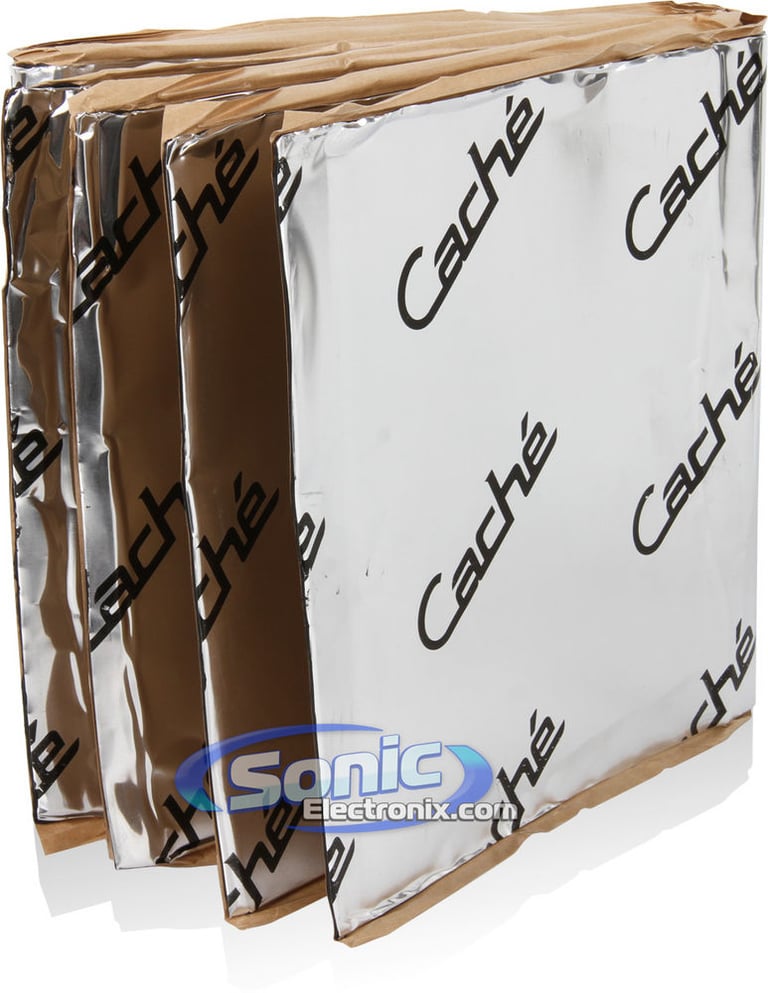

Cache CDM Features:

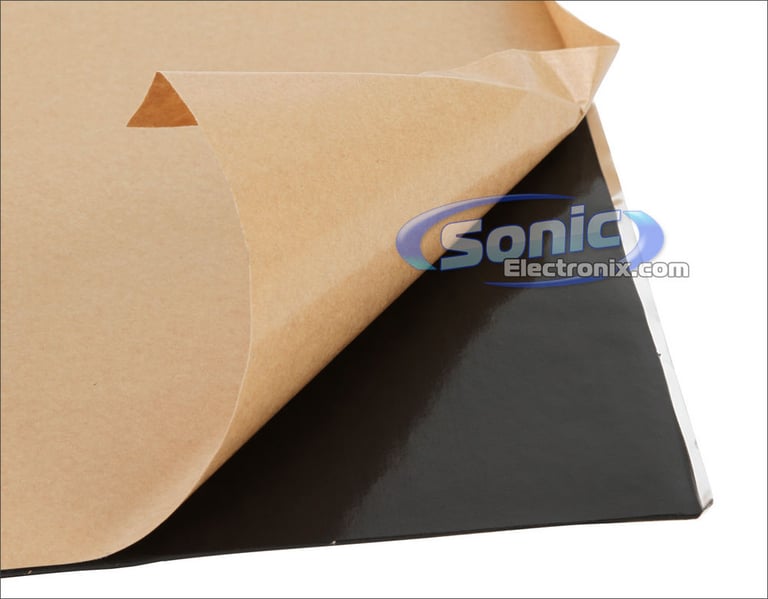

  • Four 12" x 36" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 12"L x 36"W

Subwoofer Wiring Guide


Wiring Guide to Wire 1 800W Crossfire + Sound Dampening Material Bass Bundle Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 800W Crossfire + Sound Dampening Material Bass Bundle Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 800W Crossfire + Sound Dampening Material Bass Bundle Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 800W Crossfire + Sound Dampening Material Bass Bundle Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
BMF Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
20 - 250 Hz
Sensitivity
83.4 dB
Xmax (millimeters)
14 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Copolymer
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.35 cubic feet
Maximum Sealed Box Volume
1.10 cubic feet
Minimum Ported Box Volume
0.8 cubic feet
Maximum Ported Box Volume
1.80 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
9-1/2"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BMF1014_CDM

Weight:

29.30lbs

Internal SKU:

bmf1014_cdm

Internal Product ID:

37478

Product and How-to Videos


Customer Ratings & Reviews


800W Crossfire + Sound Dampening Material Bass Bundle thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Excellent product

The following review is for CDM, which is a part of the bundle you are viewing.

This is great material and is very easy to put on with a heat gun!

By Matt on May 23, 2012

24 found this helpful


Great package deal value.

The following review is for CDM, which is a part of the bundle you are viewing.

I recieved this as part of a package deal. It is enough to cover the lid of my 98 Civic sedan trunk. This will clean up the sound of your lows by decreasing noise (rattles, distortion of sound, etc). This is the first step in noise reduction and everybody should start here.

I doubt it will create a noticable increase in sound from your speakers.

Very flexible, sticks like crazy! Easy to work with.

By Tyler on December 21, 2011

23 found this helpful


Great Price and Product

The following review is for CDM, which is a part of the bundle you are viewing.

I found the price great for the product I got. Installation was very easy, product sticks very well (Remember to clean/prep the surface). I noticed a difference right away in my music as well as overall noise level while driving on the highway (Doors done - trunk is next). Not the thickest sound dampening out there but it def. helps :)

By Jeremy on April 2, 2012

24 found this helpful


The battle against rattle

The following review is for CDM, which is a part of the bundle you are viewing.

Got the sound dampening door kit with some speakers, the installer put it on the rear deck of my vehicle where my two rear speakers and factory sub are. The difference is night and day, expensive but quality, good to get with speakers or a sub.

By robert paulson on July 14, 2011

22 found this helpful


Just Like JLs

The following review is for BMF1014, which is a part of the bundle you are viewing.

I own 2 of this subs and they're loud. They're loud and clear just like JL subs. I bough em like new in a pawn shop apparently the guys there never heard of the brand so they sold them to me for 60 bucks the pair. When i saw how much they were i was like damn they're expensive but worth it.

By Jose on May 23, 2011

11 found this helpful


10" Crossfire BMF

The following review is for BMF1014, which is a part of the bundle you are viewing.

My BMF came Brand New as described, in perfect working condition, and still sounds as good as the first day I installed it!

Great Price on a Great Product!!

By DBDragCars on July 13, 2012

4 found this helpful




No picture

Naztech iPhone Navy Blue Gelskin (9879)

$5.99

List price $14.99

4421001 small

Weber 4421001

Spirit E-310 Black 3-Burner Propane Gas Grill with Center-Mounted Thermometer

$499.99

List price $649.99

CP4CKDS small

Rockford Fosgate CP4CKDS

Type RF 4 Gauge Amplifier Kit FREE UPGRADE TO KICKER 09ZCK4

(6)

$79.99

List price $149.99

NOK4-N97MI-20-C5OTR small

OtterBox NOK4-N97MI-20-C5OTR

Nokia N97 mini Commuter Series Case with Clear Protective Screen Film

$25.99

List price $34.95

GXY 2000RS small

ScyTek Galaxy 2000RS (2000RS-DBP)

Galaxy Remote Start and Keyless Entry System with Two 5-Button Remote Controls and Data Bus Port

$52.99

List price $159.99

17103 small

Weber Mesquite Wood Chunks (17103)

3 lb. Bag of Mesquite Wood Chunks for Weber Grills

$3.99

List price $13.99

KMM-BT315U small

Kenwood KMM-BT315U

Single DIN Bluetooth In-Dash Digital Media Car Stereo w/ Siri Voice Control, Pandora/iHeartRadio App Ready for iPhone and Android and SiriusXM Ready

(8)

$109.99

List price $189.99

OTTR1942055 small

OtterBox 1942-05.5 (Black/Yellow)

iPhone 3G and 3GS Defender Silicone Case and Clear Screen Guard

(1)

$12.99

List price $49.99

KD-X330BTS_SXV300V1 small

JVC KD-X330BTS + SiriusXM Tuner + $70 Mail In Rebate and 3 Months Free Service*

Single DIN Bluetooth In-Dash Digital Media Car Stereo w/ Pandora & iHeartRadio Support, FLAC Playback and iPod/iPhone connectivity

(165)

$147.94

List price $199.94

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2015 Ford Escape

1998 Ford Contour

2000 Mazda MPV

2009 Subaru Forester

2008 Dodge Viper

2010 Mazda RX-8

1968 Cadillac DeVille

1996 Dodge Dakota

2012 Hyundai Sonata

1972 Cadillac DeVille

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
