3000W Boss + Visonik Complete Bass Package

2 Boss CX124DVC 12" Chaos Exxtreme Series Subs + Visonik VK1600.1D Amp + Sub Enclosure + Amp Kit

Boss
Shop all Boss
EXCLUSIVE
highlight-star-icon

Pair of 12" Dual 4 ohm Chaos Exxtreme Series Subwoofers • 3000W MAX • 1500W RMS • Visonik Monoblock Power Amplifier • MOSFET Power Supply • Variable Bass Boost • Variable Low-Pass Filter • 12" Dual Sealed Subwoofer Enclosure • Complete 4 Gauge Amp Kit

Learn more about the vk16001d_2-cx124dvc

We apologize

This item has been discontinued


Loading...
DCX130.3 main

Hertz DCX130.3

160W Peak (80W RMS) 5.25" Dieci Series 2-way 4-ohm Coaxial Car Speakers

-13.34%

$129.99

List price $150.00

JL Audio C2-525

120W RMS 5.25" C2 Series 2-Way 4-ohm Component Speaker System

9

$329.99

Rockford Fosgate Punch P1 P152-S

200W Peak (100W RMS) 5.52" Punch Series 2 Way Component 4-ohm Speaker System

13

Description


Boss brand icon

Authorized dealer

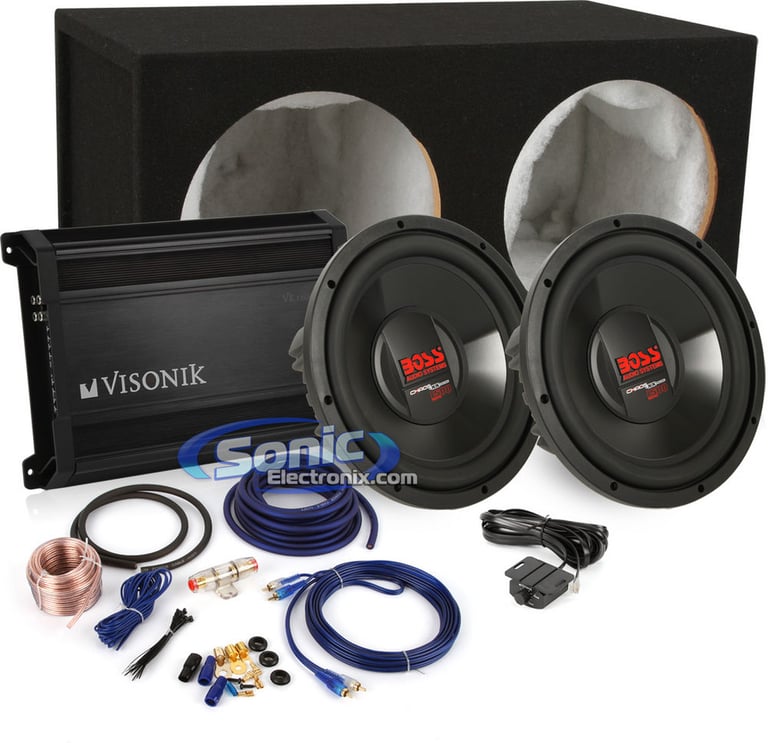

Boss and Visonik Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a Visonik VK1600.1D amplifier along with a pair of 12" Chaos Exxtreme Series Boss Subwoofers. This excellent bass package pushes 1500 watts of clean, continuous RMS power. The Boss Subwoofers have Dual 4 Ohm Voice Coils; meant to be wired in parallel/parallel, to a final impedance of 1 Ohm. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

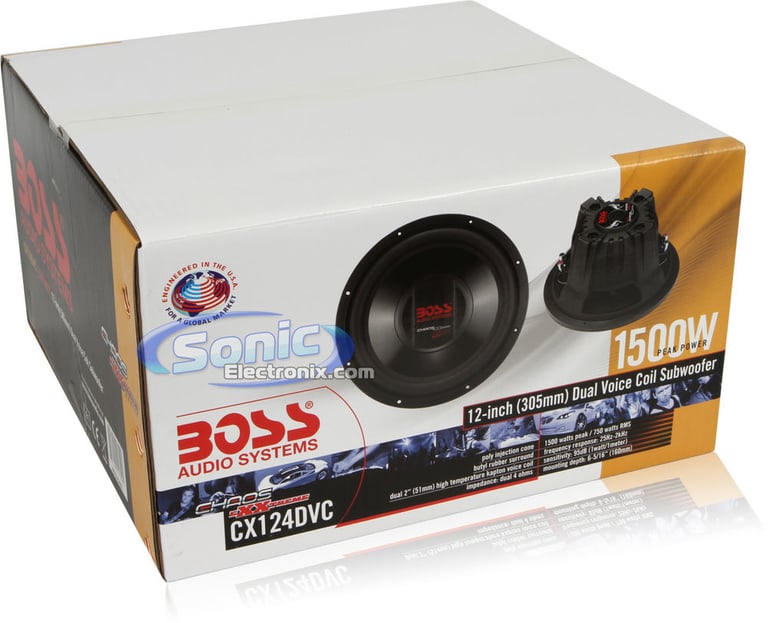

These Boss CX124DVC 12" Chaos Exxtreme Series subwoofers require 1500 watts of RMS power. The included Visonik VK1600.1D amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a complete 4 gauge amplifier kit, which is perfect to supply power to the amplifier. Also included will be a dual 12" sealed enclosure, this enclosure will come with pre-line Poly-Fil and will be made with durable MDF wood. The sealed design will provide a tighter and quicker responsive bass. With the Boss subwoofers, Visonik amplifier, sealed enclosure, and The Install Bay amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

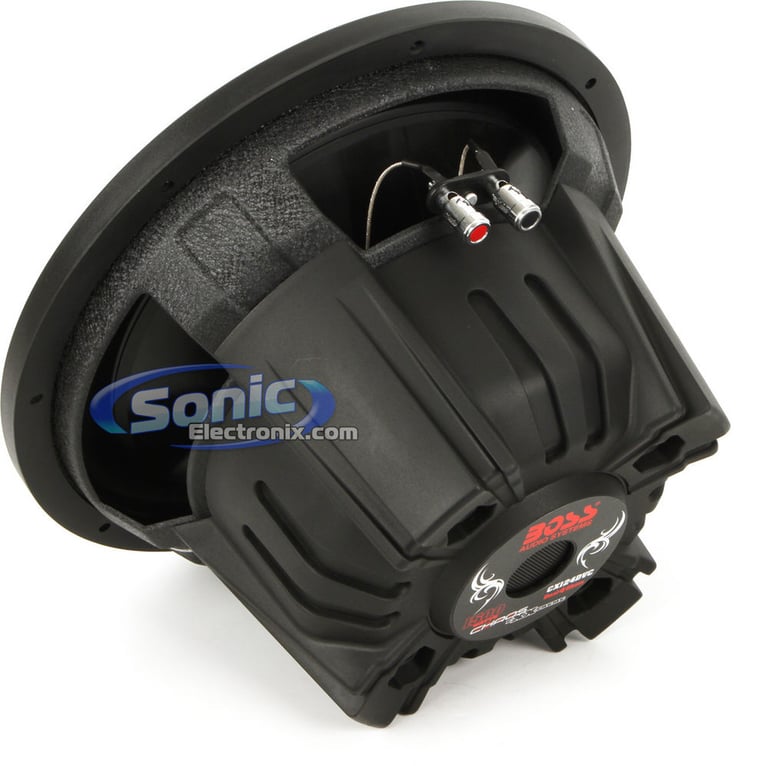

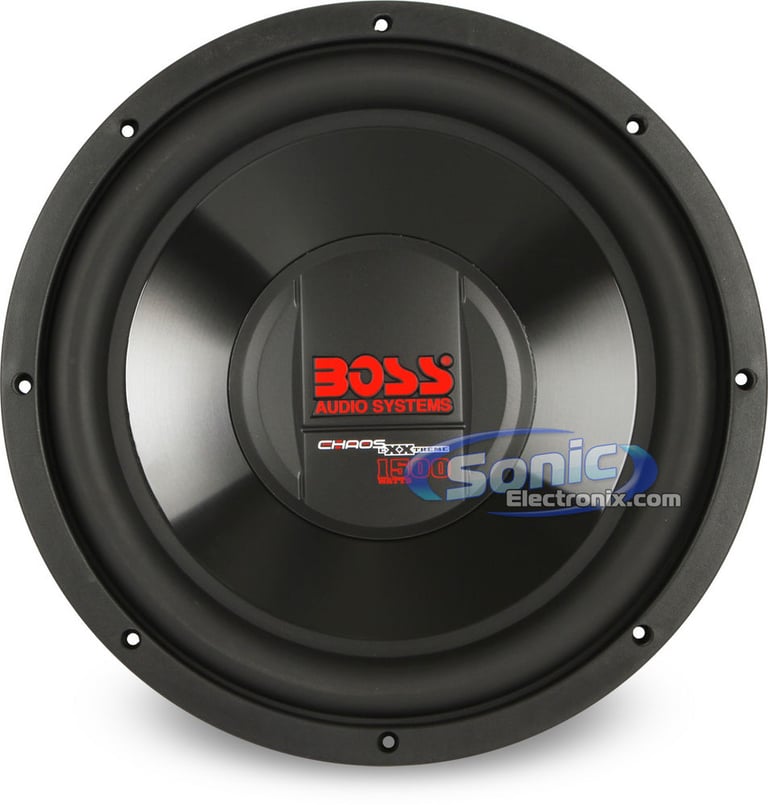

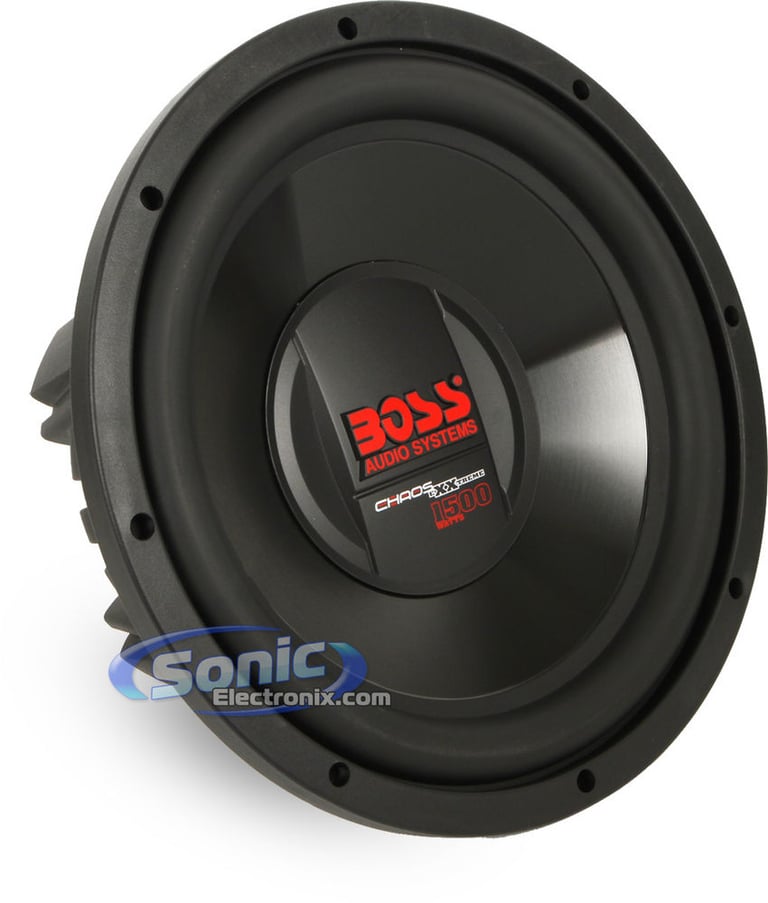

Boss CX124DVC Features:
  • Pair of 12" Dual 4 ohm Chaos Exxtreme Series Subwoofers
  • Power Handling:
    • Peak: 3000 watts total / 1500 watts each
    • RMS: 1500 watts total / 750 watts each
  • Impedance: Dual 4 Ohm
  • Polypropylene injection molded cone
  • Butyl rubber surround
  • Silver spring binding posts
  • Sturdy black steel basket
  • 2" High temperature kapton voice coil
  • Magnet with a black protective cover
  • Frequency response: 25-2,000 Hz
  • Sensitivity: 95 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

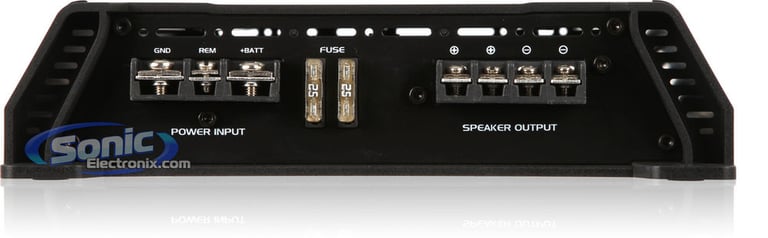

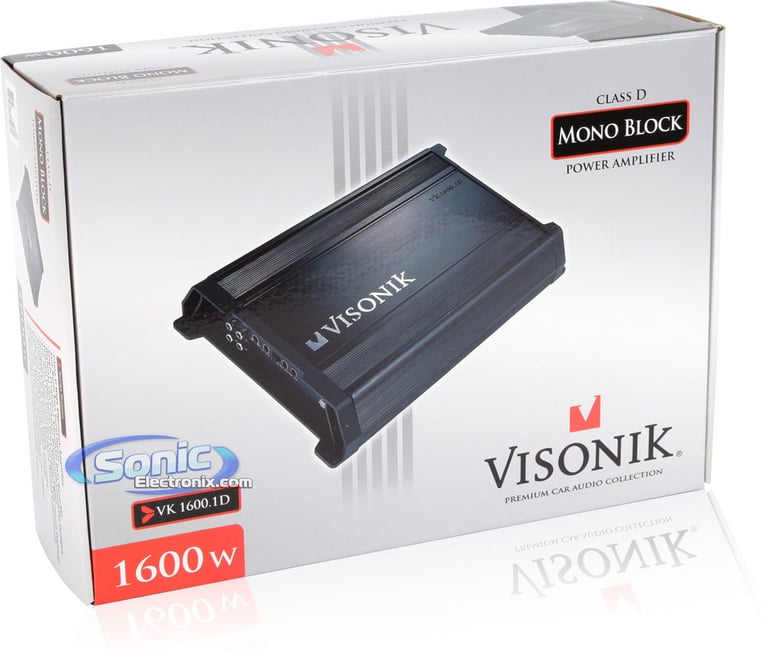

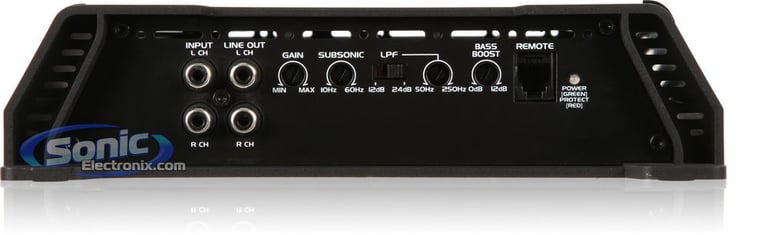

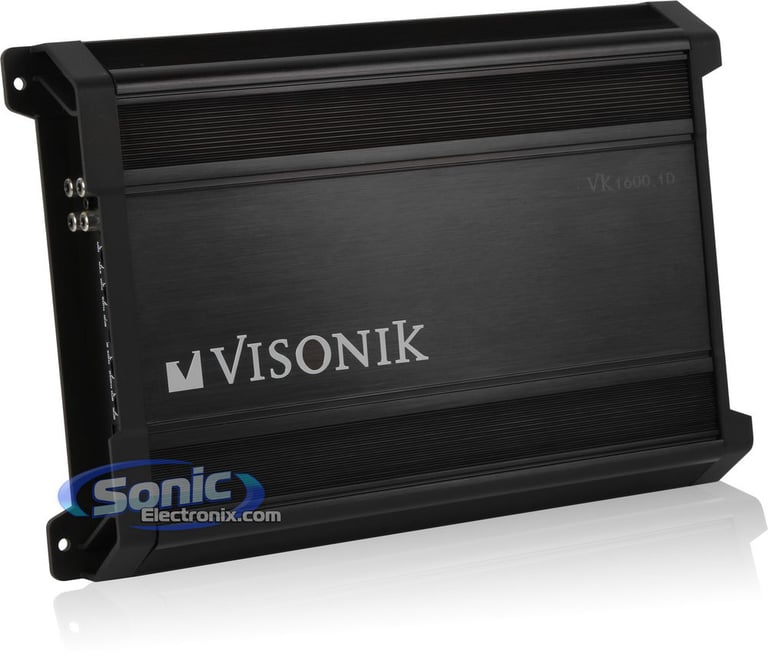

Visonik VK1600.1D Features:
  • Visonik Mono Block Power Amplifier
  • RMS Power Rating:
    • 4 ohm: 800 watts x 1 chan.
    • 2 ohm: 1600 watts x 1 chan.
  • Class D Mono Block amplifier
  • Low noise line level inputs
  • Single frequency adjustable bass boots EQ
  • Low-pass butterworth crossover designs
  • Internal differential drive Preamp inputs
  • Low noise, low distortion full signal path circuit topology
  • Complete differential feedback ground loop control
  • MOSFET P.W.M power supply
  • LED power and protect indicators
  • Fully regulated Preamp power supply
  • Four-way amplifier protection (thermal, short circuit, overload, and DC offset)
  • Delayed turn on / turn off circuitry
  • Isolated signal and power grounds
  • Fast acting power supply capacitor banks
  • Variable Bass Boost (0-12 dB)
  • Adjustable sensitivity range: 0.2-6v
  • Single channel operation
  • Variable Low-Pass Filter (50-250 Hz), (12dB, 24dB)
  • Subsonic Filter: 10Hz-60Hz
  • Frequency Response: 250,000 Hz
  • THD (Total Harmonic Distortion): 0.01%
  • Fuse: 25A x 2
  • Dimensions: 13"D x 8-13/16"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

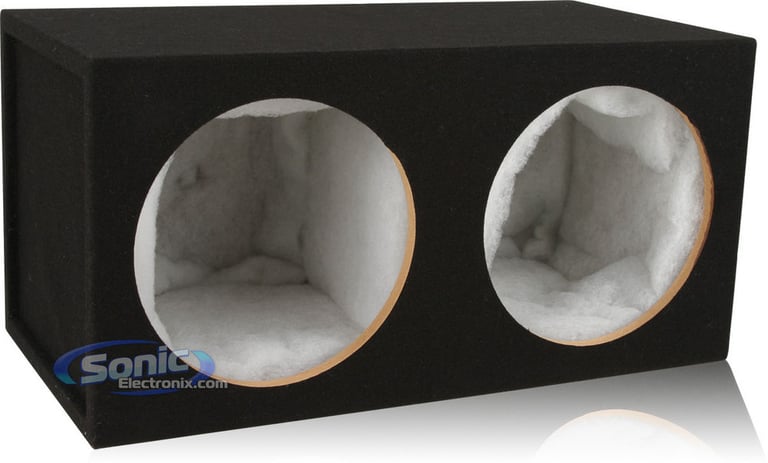

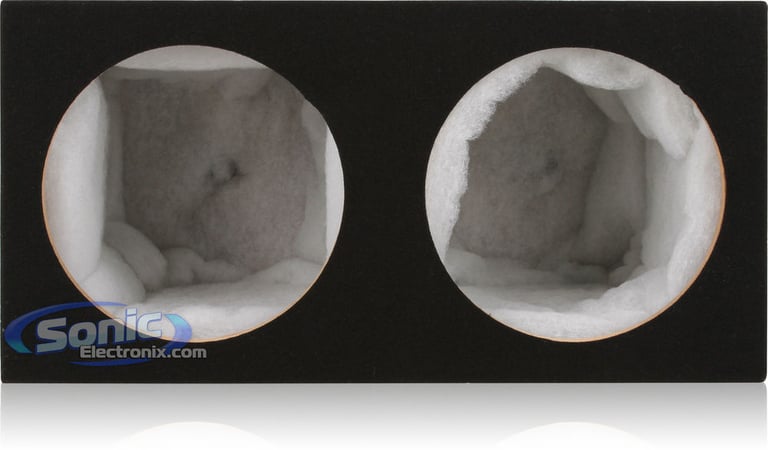

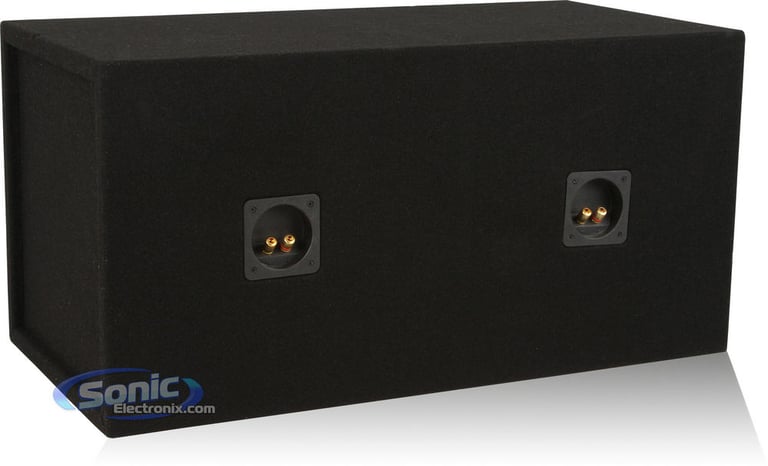

House Brand 12DSPF Features:
  • 12" Dual Sealed Subwoofer Enclosure
  • Durable MDF enclosure for car subwoofers
  • Covered in a black carpet
  • Pre-lined with Poly-Fil

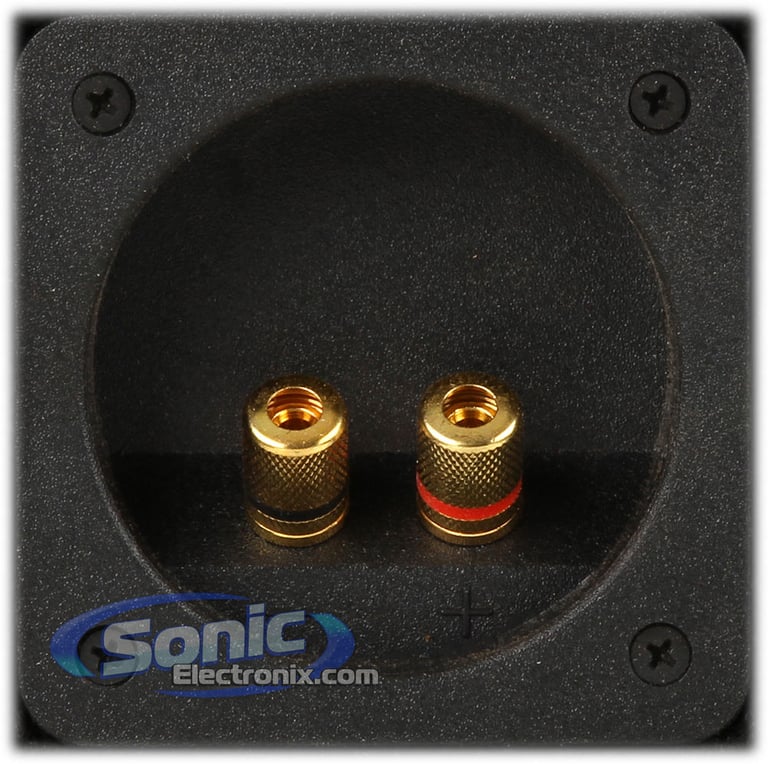

  • Two sets of gold-plated speakers terminals
  • Banana-clip ready
  • Subwoofer mounting depth: 12-1/2"
  • Subwoofer cutout diameter: 11"
  • Box volume: 1.13 cubic feet (per chamber)
  • Total box volume: 2.26 cubic feet
  • Dimensions: 14"D x 28-1/4"W x 14"H

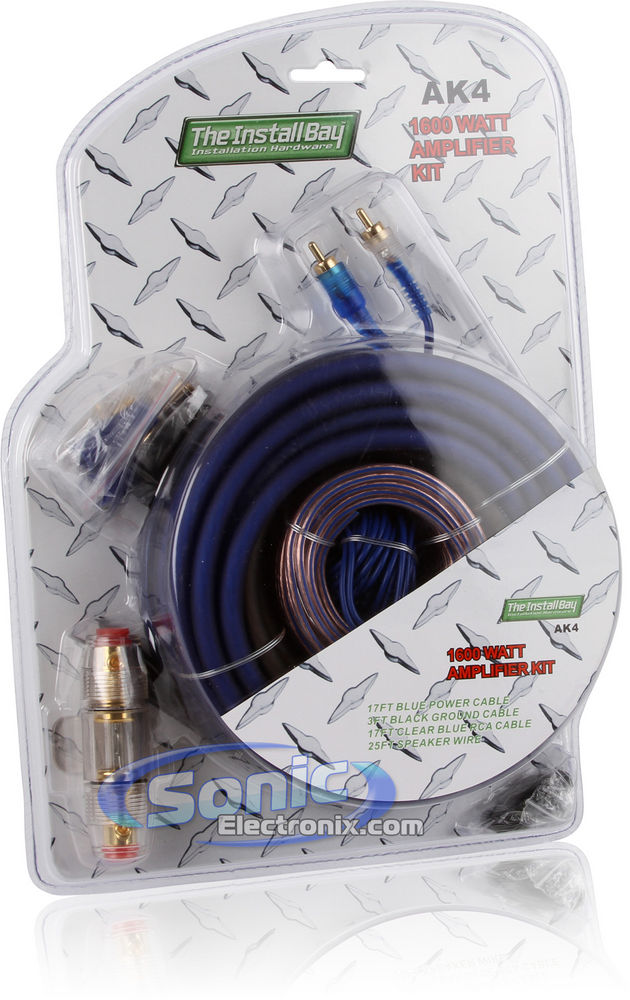

The Install Bay AK4 Features:
  • Complete 4 Gauge Amplifier Installation Kit with RCA Interconnect Cables
  • Perfect for 1600 watts amplifier setup
  • Includes everything that you need to install a single amplifier
  • Premium power and ground cable
  • 1-year Manufacturer's warranty
The Install Bay AK4 Includes:

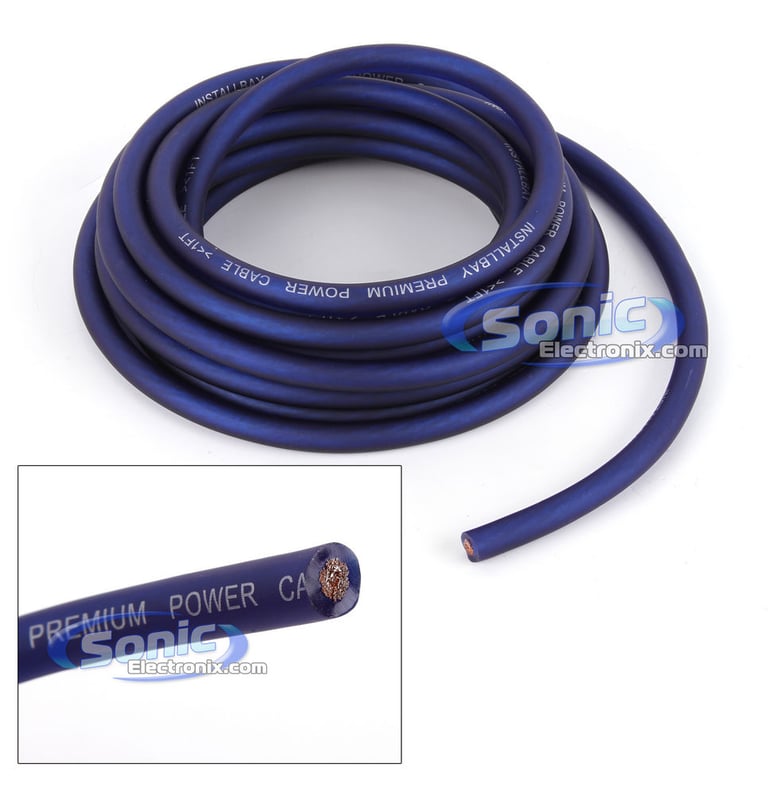

  1. 17 ft. of Blue power cable

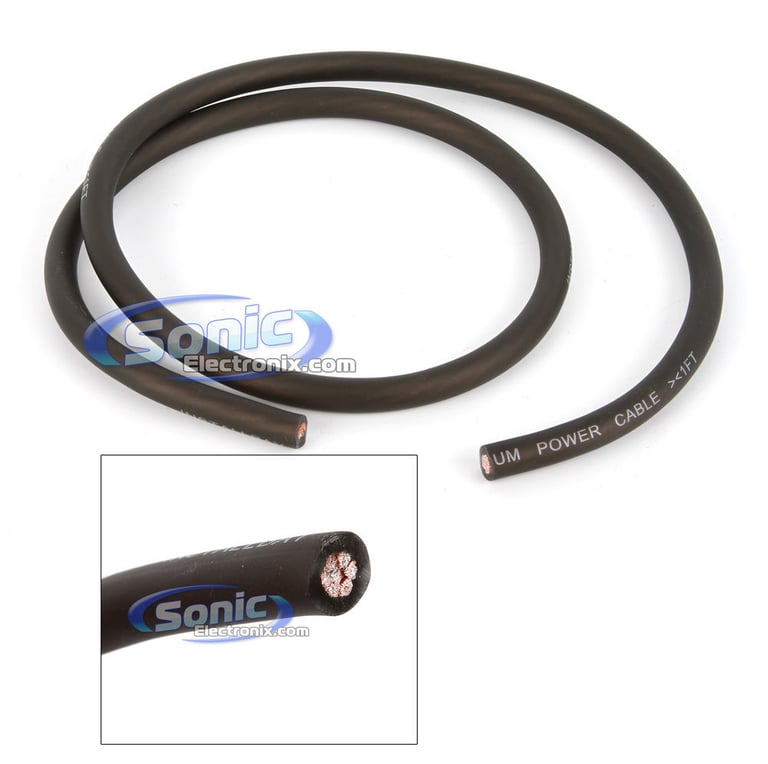

  2. 3 ft. of Black ground cable

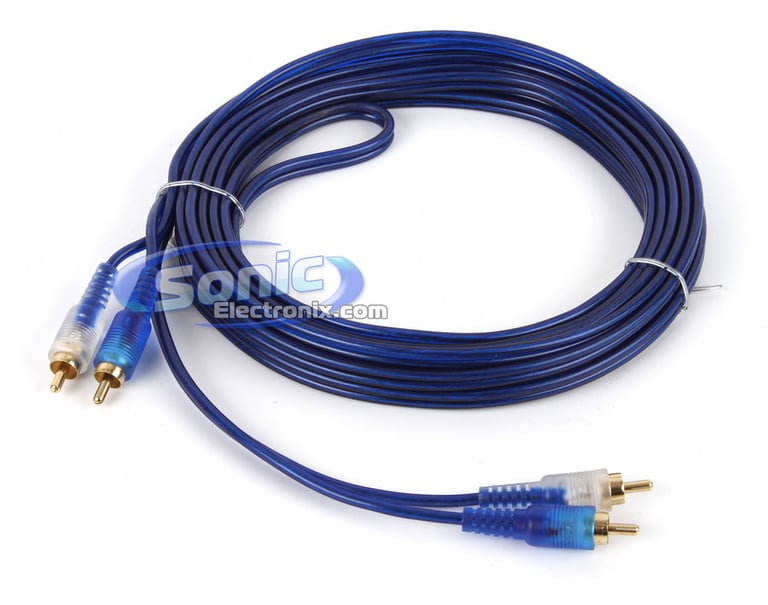

  3. 17 ft. of Clear/blue RCA cable

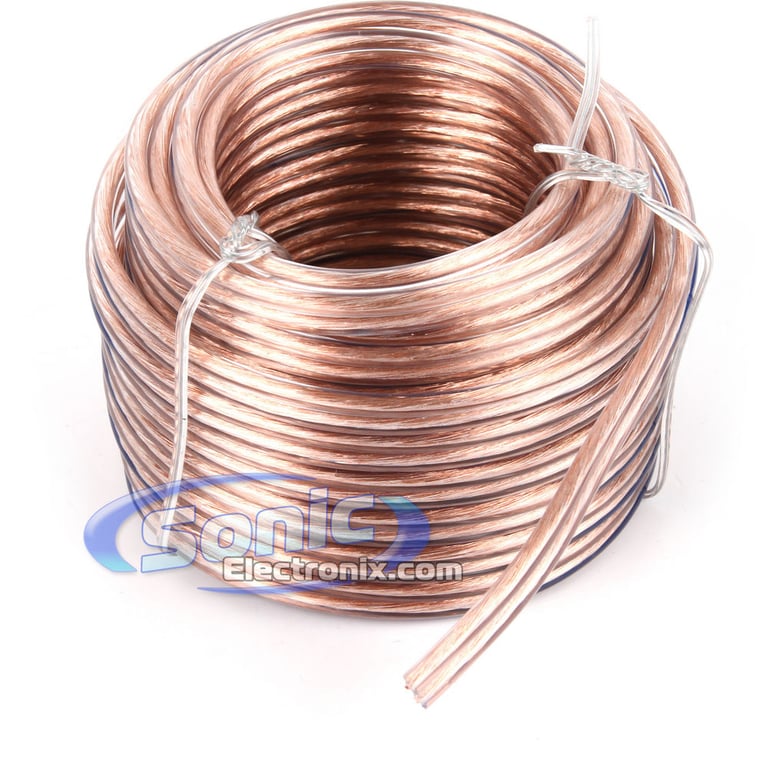

  4. 25 ft. of Speaker wire

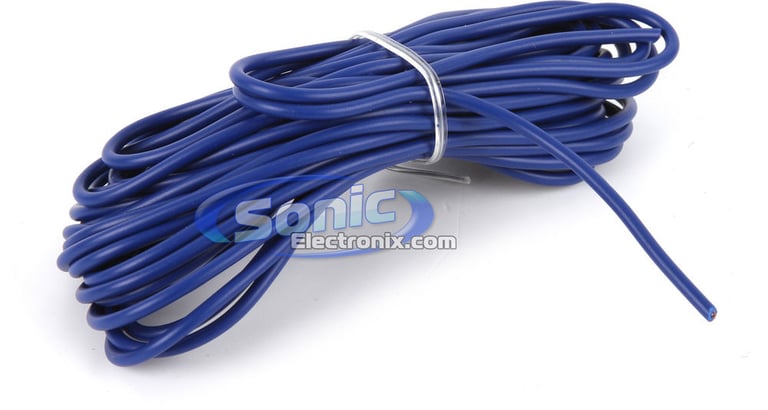

  5. 17 ft. of Remote turn-on wire

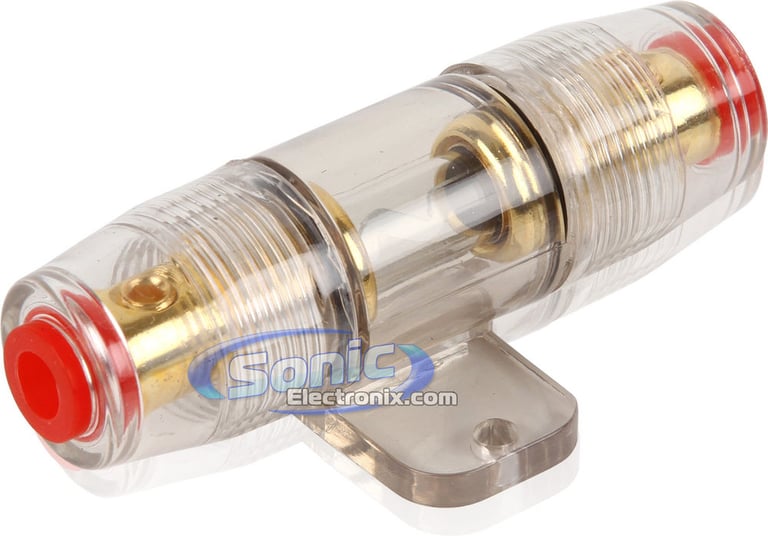

  6. In-line AGU fuse holder
  7. 60 Amp AGU fuse

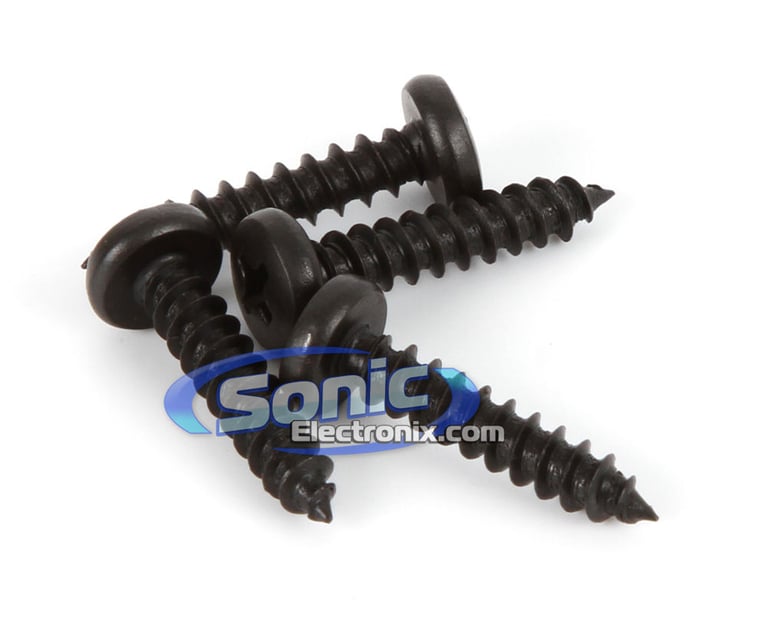

  8. Installation hardware

Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

DB5252 main

Polk Audio DB5252 (DB 5252)

600W Peak (200W RMS) 5.25” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4

$200.00

List price $209.99

DSK 130.3 main

Hertz DSK 130.3

240W Peak (120W RMS) 5.25” Dieci Series 2-way 4-ohm Component Speaker System

-13.05%

$199.99

List price $230.00

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

DB522 main

Polk Audio DB522 (DB 522)

600W Peak (200W RMS) 5.25" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

13
-9.08%

$100.00

List price $109.99

VSP525KIT main

NVX VSP525KIT

750W Peak (250W RMS) 5.25" V-Series 2 Way Component Car Speakers

27
-16.67%

$99.99

List price $119.99

VSP525 main

NVX VSP525

480W Peak (160W RMS) 5.25" V-Series 2 Way Coaxial Car Speakers

23
-16.67%

$79.99

List price $95.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
800 watts x 1 channel
RMS Power @ 2 ohms
1600 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass Crossover Frequency
Not Specified
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 60 Hz
Signal-to-Noise Ratio
Not Specified
Channel Separation
Not Specified
Bass Boost
0 - 12 dB

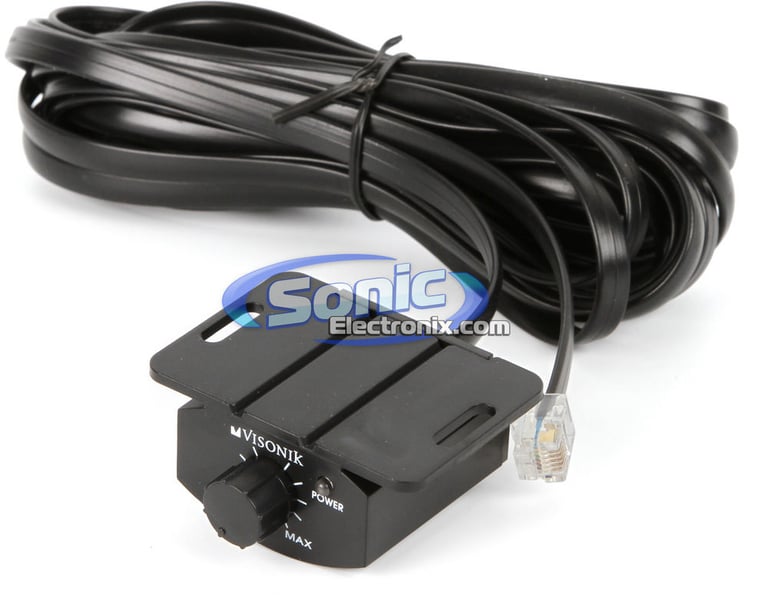

Remote bass/level controller
Yes
Fuse Rating
25A x 2
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
750 watts
Total RMS Power Handling
1500 watts
Peak Power Handling
1500 watts
Total Peak Power Handling
3000 watts
Woofer Surround
Butyl Rubber
Woofer Composition
Injection Molded Polypropylene
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
95 dB
Frequency Response
25 - 2,000 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
2
Box Style/Shape
Square/Rectangle
Height
14"
Width
28-1/4"
Depth
14"
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VK1600.1D_2-CX124DVC

Weight:

61.65lbs

Internal SKU:

vk16001d_2-cx124dvc

Internal Product ID:

37936
