MB Quart OA1000.1

1000W Max Class Q1 1-Channel Monoblock Onyx Series Amplifier

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• Peak: 475W x 1 @ 4 ohm, 750W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Total Peak Power: 1000W
• 1 Pair of Preamp RCA Outputs
• Variable Bass Boost: 0 to +12 dB
• Class Q1 Circuitry
• Dimensions: 9-7/16"W x 17-3/4"D x 2-1/4"H

Learn more about the oa10001

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

GMSB356 main

American International GMSB356

6.5" to 6.75" Speaker Mounting Adapters for select 1997-2020 vehicles from Chevrolet, GMC, Pontiac

33
-58.38%

$9.99

List price $24.00

95-7526B main

Metra 95-7526B Dash Kit

Install a new Double-DIN car stereo in select 2014-2018 3

-10.00%

$89.99

List price $99.99

40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

82-7501 main

Metra 82-7501

Speaker Brackets for select 2013-2023 vehicles from Mazda - Pair

3
-48.85%

$21.99

List price $42.99

82-3016 main

Metra 82-3016

Speaker Adapters to Mount Tweeter without Adapter or Modification for select 1990-2024 vehicles from Dodge, Subaru, Ram

1
-52.02%

$11.99

List price $24.99

SWRMZ-64C main

Crux SWRMZ-64C Wiring Interface

Install new car stereo and retains steering wheel audio controls and other factory features in select 2003-2015 vehicles from Mazda

2
-35.71%

$85.05

List price $132.30

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Product Highlights


• Peak: 475W x 1 @ 4 ohm, 750W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Total Peak Power: 1000W
• 1 Pair of Preamp RCA Outputs
• Variable Bass Boost: 0 to +12 dB
• Class Q1 Circuitry
• Dimensions: 9-7/16"W x 17-3/4"D x 2-1/4"H

Description


MB Quart brand icon

Authorized dealer

General Features:

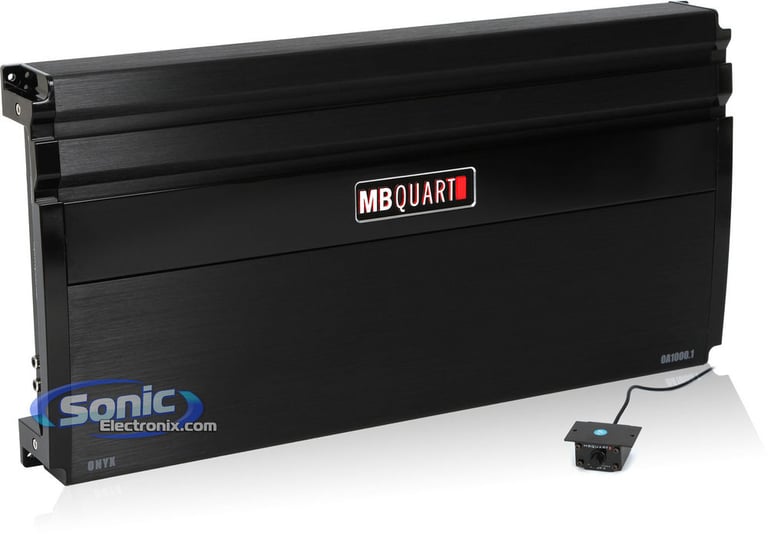

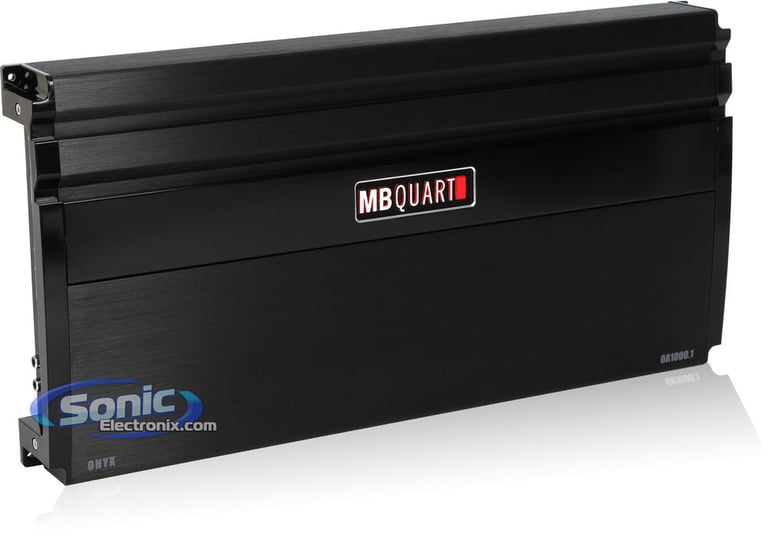

  • Onyx Series 1-Channel Monoblock Class Q1 Car Amplifier
  • Max Power Rating:
    • 4 ohm: 475 watts x 1 chan.
    • 2 ohm: 750 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.
  • FLUID-FETS MOSFET Circuit maximizing power efficiency while improving sound quality
  • 1 Ohm stable
  • LED power (green) and protect (red) indicators

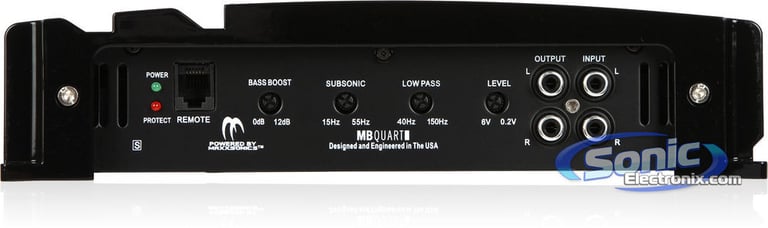

  • Variable BassEQ Boost (0 to +12 dB bass boost fixed at 45 Hz)
  • Built-in system diagnostics
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

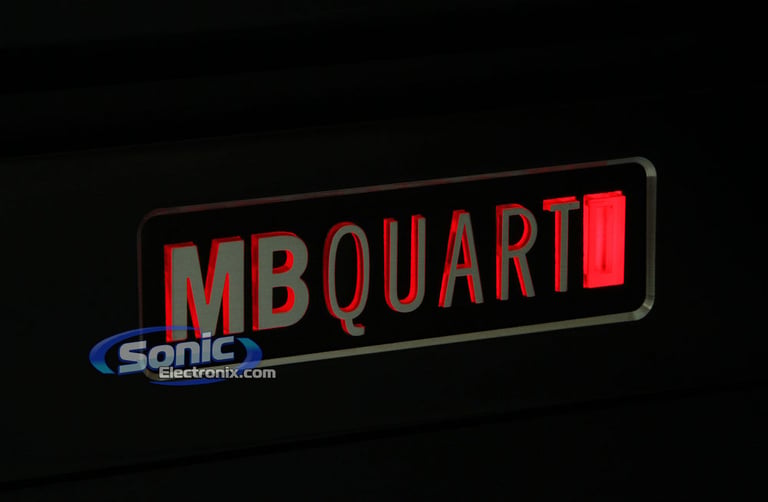

  • Heavy duty Black Onyx aluminum alloy heat-sink with illuminated MB Quart design
  • Input sensitivity:
    • Level: 200mV-6V
  • Variable high-pass filter (40-300 Hz)
  • Variable low-pass filter (10-40 Hz)

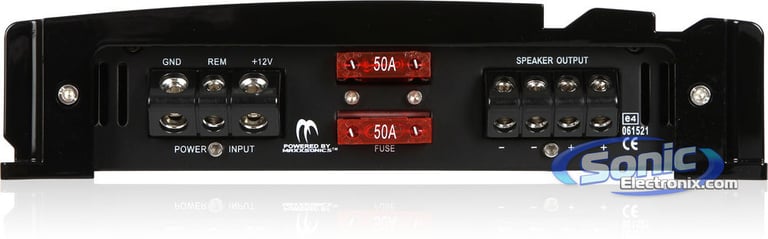

  • 2 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-7/16"W x 17-3/4"D x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

MB Quart OA1000.1 thumbnail
(newest, current model)
MB Quart ONX1.1000D thumbnail
(previous model, replaced by MB Quart OA1000.1)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Specifications & Details


Amplifier Specifications
Series
ONYX Series
Amplifier Class
Q1
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 300 Hz
Subsonic Filter
10 - 40 Hz
Signal-to-Noise Ratio
92 dB
Bass Boost
0 - 12 dB

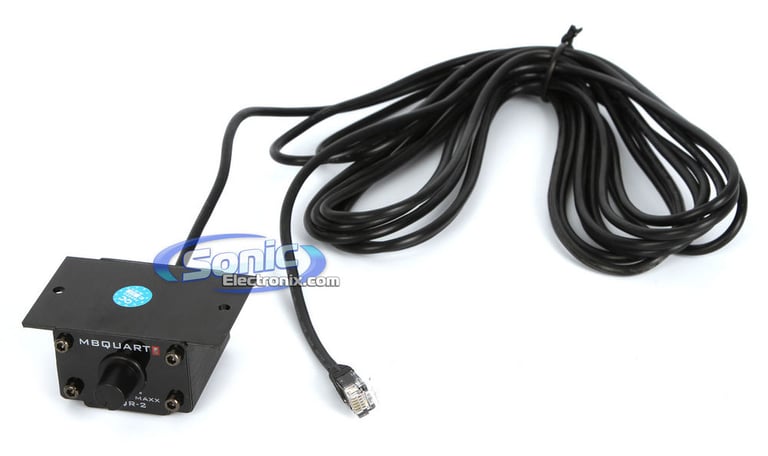

Remote bass/level controller
Yes
Fuse Rating
50A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

OA1000.1

Weight:

12.50lbs

Internal SKU:

oa10001

Internal Product ID:

67859

Product and How-to Videos


  • MB Quart Onyx Amplifiers | New for 2013 OA Series
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


MB Quart OA1000.1 thumbnail image

5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
4.8
Features
4.8
Design
4.5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Really great amp!

I got one of these powering 2 mb quart 10" square onyx subs, plenty of power, sounds great! its good that mb quart kept true quality like they where in the 90's.

pros: sounds amazing!
gives true power!
easy to hook up!
looks pretty neat.

Cons:
It gets pretty hot at 1 ohm however, not like "hmm this is pretty warm" its more like "wow i cant keep my hand in it" hot.
needs more cooling fins.
its hard to stuff 0/1/2 gauge wire into the power/ground terminals
power/ground terminals are pointed down?! why...
remote terminal its really really big for a remote wire.

overall, the pros outweigh the cons by a ton. i would recommend this to a friend, and i would buy again in a heartbeat.

By Fox on September 17, 2013

15 found this helpful


Good amp overall

I have this amp paired with 2 Pioneer 12" 4 ohm SVC subs so it's running into a single 2 ohm load and it works excellent. Plenty of power and doesn't get super hot or shut down. The only problem I have had is that the fan inside the amplifier started buzzing in the winter and I had to send it in for warranty replacement. This was done quickly though and communication from Maxxsonics was great.

I was a bit hesitant to purchase the amp because in reality it is a Hifonics amp with different badging but it has performed above my expectations.

By Joker on June 27, 2014

13 found this helpful


Great amp

This is a great amp lots of power great sound pushes my 4 12 great

By Mike on November 11, 2014

12 found this helpful


AWESOME

I would recommend this app it Powers my Sundown Audio subwoofer awesome that sounds great it never cuts out and never overheats killer amp for the price I would tell everybody to get this one for their sub

By Roger on January 15, 2021




AF32-RD small

MEElectronics Air-Fi Runaway AF32 (Red)

Wireless Bluetooth Headset Stereo Headphones with Hidden Microphone

$54.95

List price $99.99

No picture

AlcoHawk Q3I-2600 Breathalyzer

Slim Digital Breath Alcohol Tester Breathalyzer

$39.95

List price $54.99

JAM Splash HX-P530BL small

HMDX JAM Splash HX-P530 - Blue

Water-Resistant Wireless Bluetooth Shower Speaker with Speakerphone Mic Built-In

$24.95

List price $79.99

EB91B small

Kicker EB91B Black MicroFit In-Ear Headphones/EarBuds

MicroFit™ In-Ear Black Monitor Ear Buds

(42)

$14.95

List price $39.95

SCB432020002/02/1 small

Saitek SCB432020002/02/1

Pc Pro Flight Combat Rudder Pedals

$209.00

List price $199.99

ST 2 10-GRAY small

Ground Shaker ST 2 10-GRAY

10” Dual Sealed Single Cab Truck Subwoofer Box

$69.95

List price $89.95

M6P2-BK small

MEElectronics Sport-Fi M6P (Black)

Active Sports Earbuds Stereo Headset Ear-Hook In-Ear Headphones with Microphone and Memory Wire

$19.99

List price $59.99

S18.1000 small

Absolute S18.1000 (S-18-1000)

1000 ft. Spool of 18 Gauge Speaker Wire

$46.99

List price $69.99

RAVE (Grey) HX-P205GY small

HMDX Audio RAVE HX-P205 (Grey)

Portable Wireless Bluetooth Speaker with Rechargeable Lithium-Ion Battery

(1)

$15.00

List price $39.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1982 Mercury Capri

2014 Mazda 3

1990 Acura Integra

2018 Audi A3

2012 Chrysler 300

2016 Volkswagen CC

2009 Dodge Durango

2012 BMW 335is

2017 Audi Q3

1994 Jeep Wrangler

Vehicle
Store
Delete

1997 Honda ST1100

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
