See all parts that fit your 2014 CT200h

400W Kenwood + Crossfire Complete Bass Package

Kenwood KFC-W12 12" Performance Series Sub + Crossfire BMF200.2 Amplifier + Amp Kit + Enclosure

Kenwood
Shop all Kenwood
EXCLUSIVE
highlight-star-icon

12" Single 4 ohm Performance Series Car Subwoofer • 400W MAX • 200W RMS • BMF Series 2-Channel Class A/B Car Amplifier • MOSFET Power Supply • Variable Bass Boost • Variable Low-Pass Filter • 12" Single Sealed Subwoofer Enclosure • Complete 8 Gauge Amp Kit

Learn more about the bmf2002_kfcw12

We apologize

This item has been discontinued


Loading...
AXSWCH-T28 main

Axxess AXSWCH-T28 Wiring Harness

Install a new car stereo and retain factory amplifier in select 2011-2025 vehicles from Toyota, Subaru, Lexus

3
-12.51%

$13.99

List price $15.99

Description


Kenwood brand icon

Authorized dealer

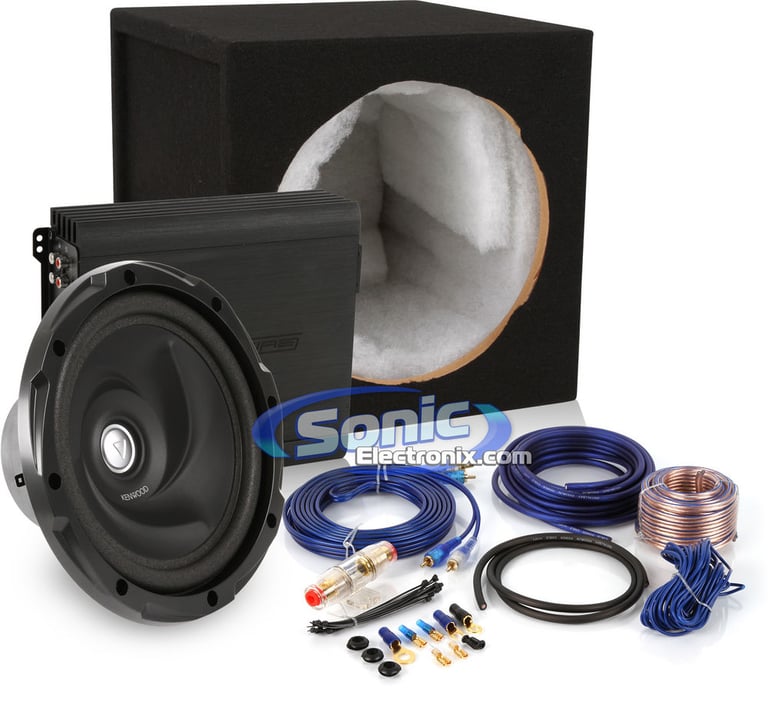

Kenwood and Crossfire Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a Crossfire BMF200.2 amplifier along with a 12" Performance Series Kenwood Subwoofer. This excellent bass package pushes 200 watts of clean, continuous RMS power. The Kenwood Subwoofer has a Single 4 Ohm Voice Coil; meant to be wired in directly, to a final impedance of 4 Ohms Bridged. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Kenwood KFC-W12 12" Performance Series subwoofer requires 200 watts of RMS power. The included Crossfire BMF200.2 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a complete 8 gauge amplifier kit, which is perfect to supply power to the amplifier. Also included will be a single 12" sealed enclosure, this enclosure will come with pre-line Poly-Fil and will be made with durable MDF wood. The sealed design will provide a tighter and quicker responsive bass. With the Kicker subwoofer, Crossfire amplifier, sealed enclosure, and The Install Bay amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

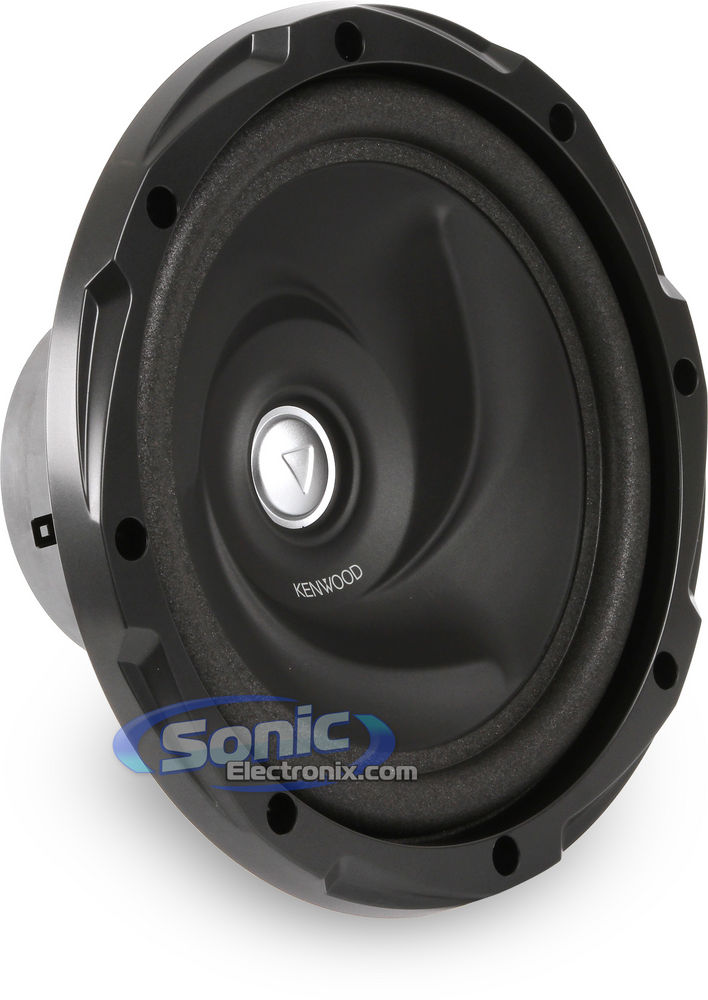

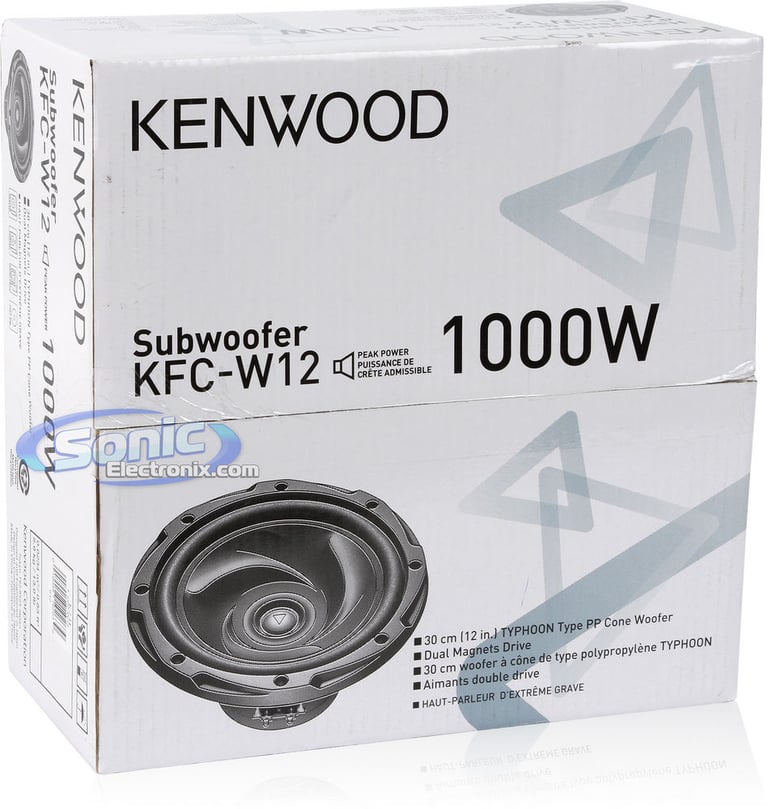

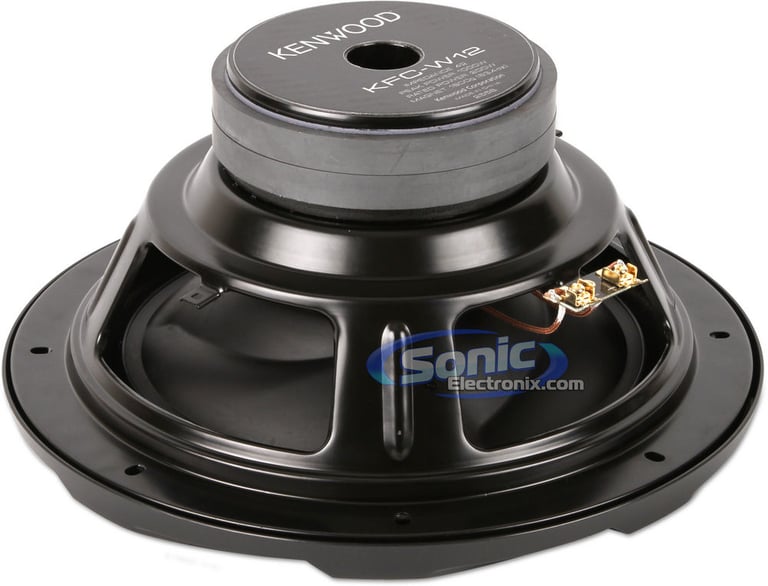

Kenwood KFC-W12 Features:

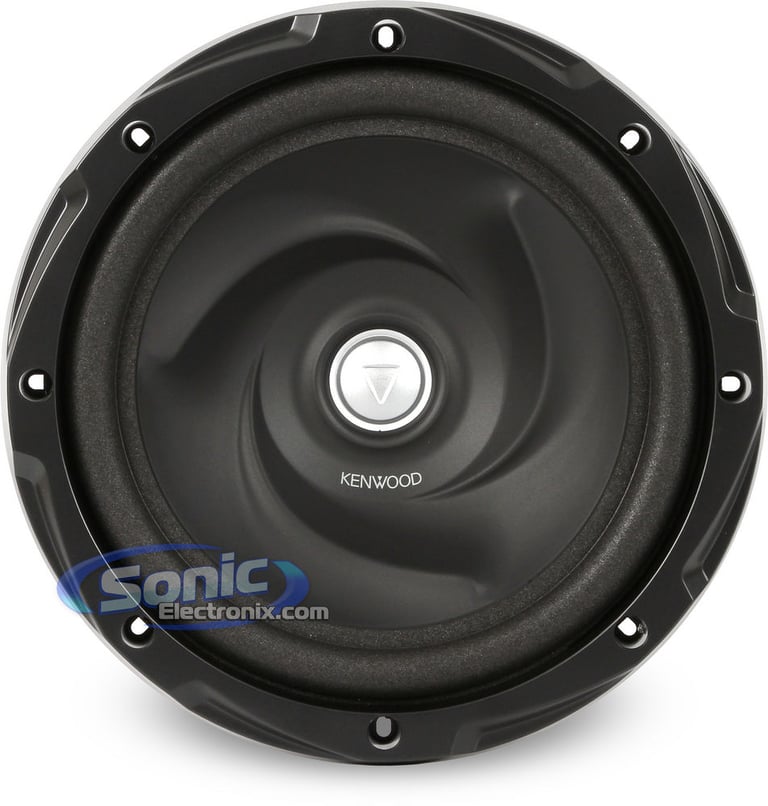

  • 12" Single 4 ohm Performance Series Car Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • Max: 400 watts
    • RMS: 200 watts
  • Impedance: 4 ohm

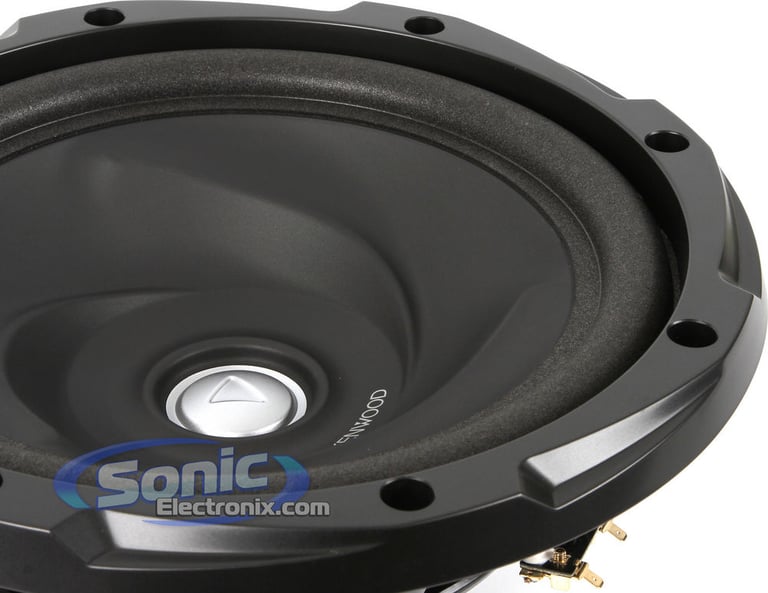

  • Typhoon type pearl mica polypropylene cone provides durability and stability
  • Foam surround allows high amounts of excursion
  • Typhoon deign trim ring

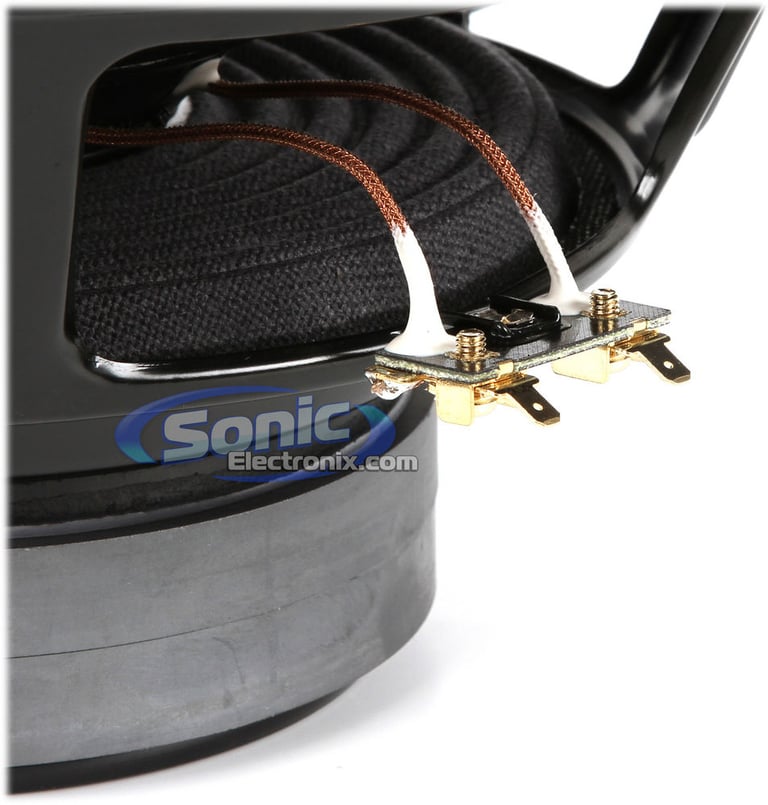

  • 2-9/16" Single 4 ohm voice coil
  • 63 oz Dual magnet drive structure
  • Frequency Response: 25-800 Hz
  • Sensitivity: 93 dB
  • Xmax: 8mm
  • Mounting Depth: 5-5/16"
  • Cutout Diameter: 11-1/2"
  • 1-year SonicElectronix.com warranty

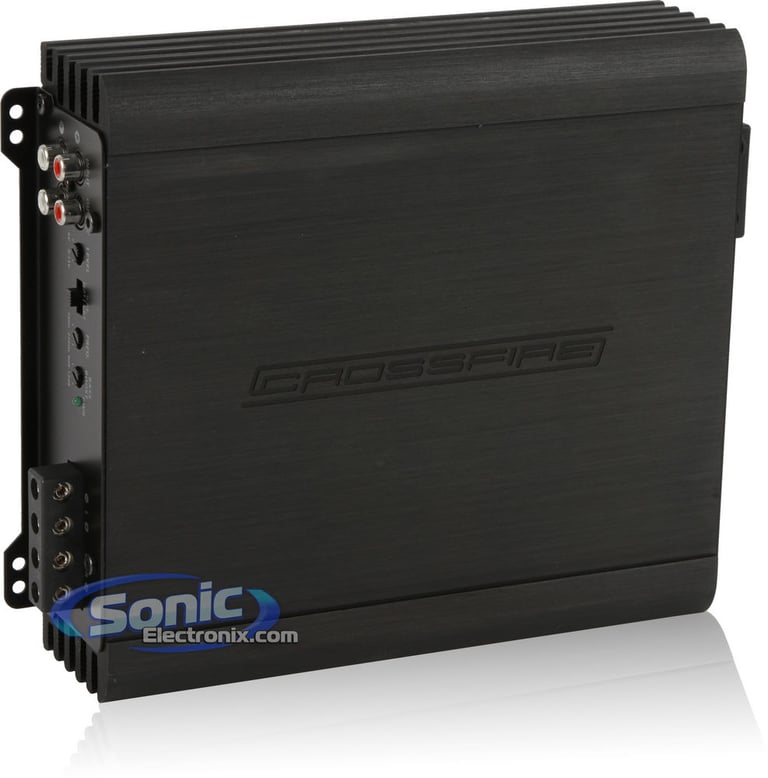

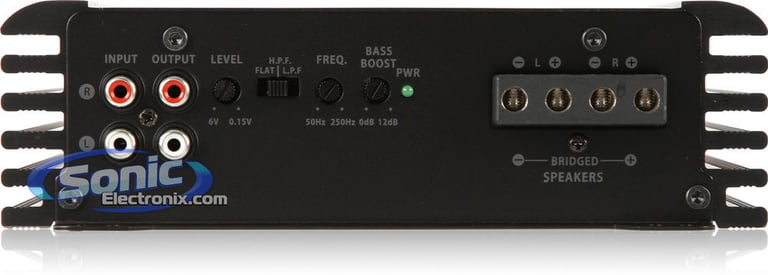

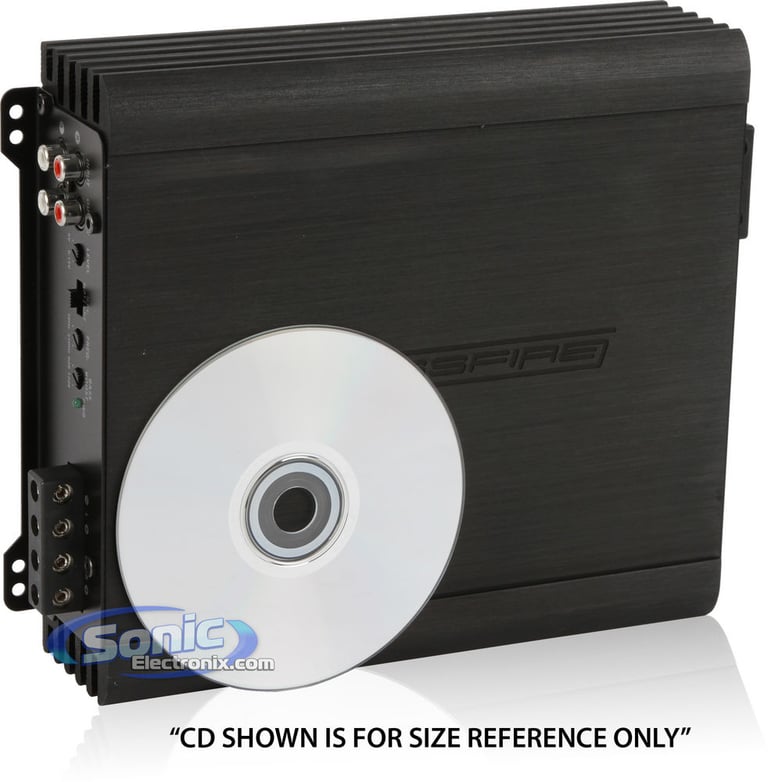

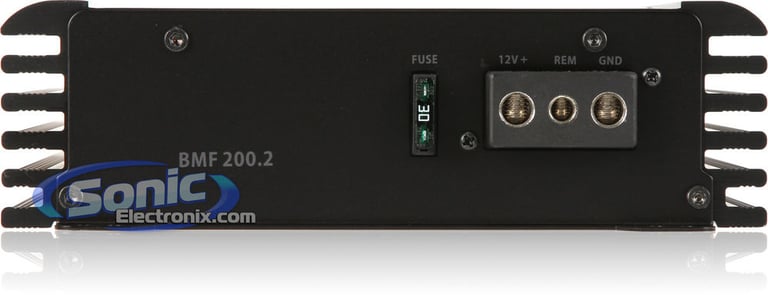

Crossfire BMF200.2 Features:
  • BMF Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating: (12.5V)
    • 4 ohm: 50 watts x 2 chan.
    • 2 ohm: 100 watts x 2 chan.
    • Bridged, 4 ohm: 200 watts x 1 chan.
  • Total power output: 200 watts x 1 chan.
  • High efficiency MOSFET power supply
  • LED power (green) indicator
  • Variable Bass Boost (0 to +12 dB at 45Hz)
  • Soft Start, on/off circuitry
  • Military spec. audiophile grade components
  • Multi-stranded power toroid
  • High-efficiency Bipolar output transistors
  • Wire free PC Board layouts
  • Over-sized capacitor bank
  • Variable high-pass and low-pass electronics crossovers
  • 2/1 channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 5-Way System Protection circuitry
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 0.15V-6V
  • Full-range crossover filter
  • Variable high-pass filter (50-250 Hz)
  • Variable low-pass filter (50-250 Hz)
  • Dimensions: 8-11/16"L x 8"W x 2-3/8"H
  • 8 gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

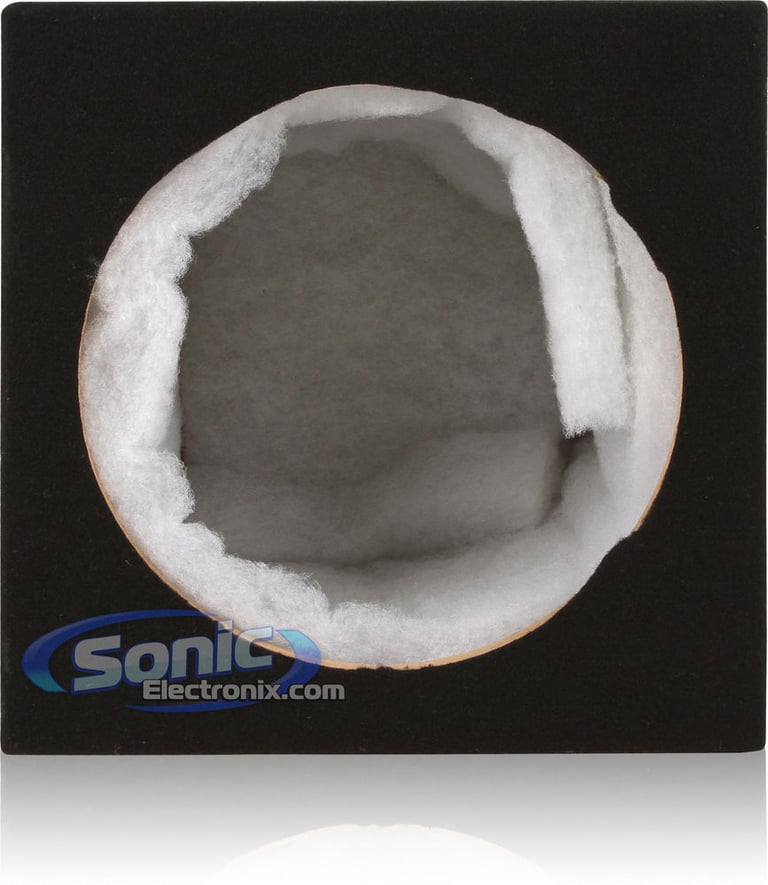

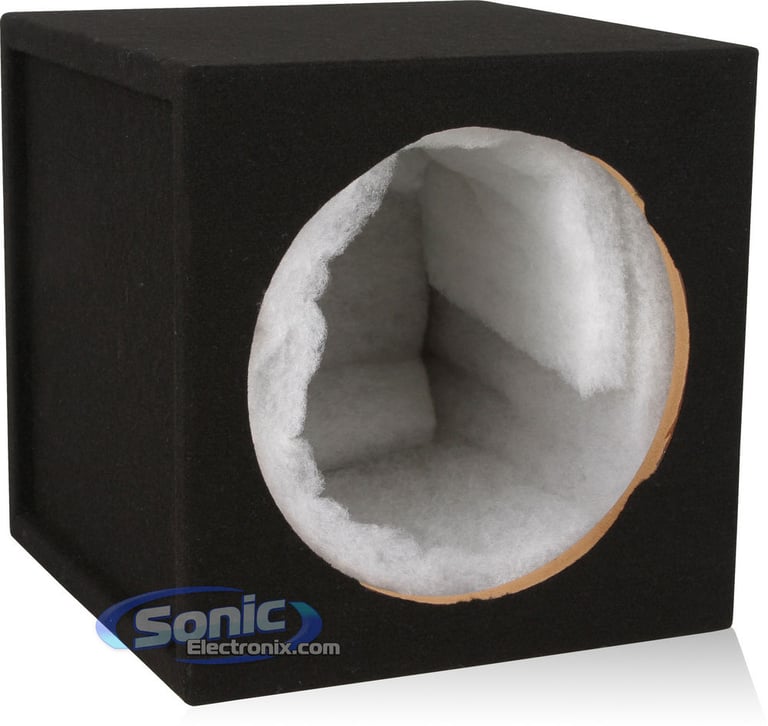

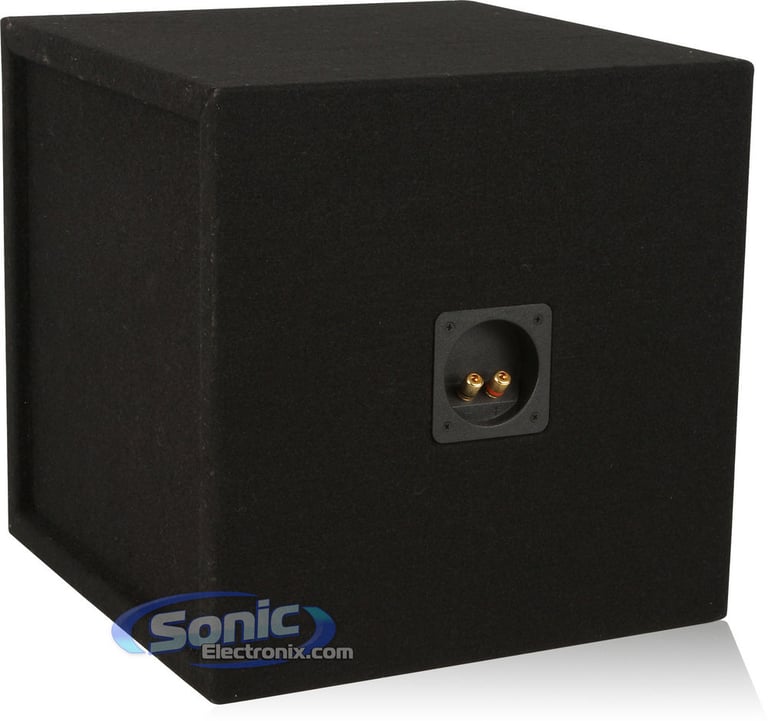

Enclosure Features:
  • 12" Single Sealed Subwoofer Enclosure
  • Durable MDF enclosure for car subwoofers
  • Covered in a black carpet
  • Pre-lined with Poly-Fil

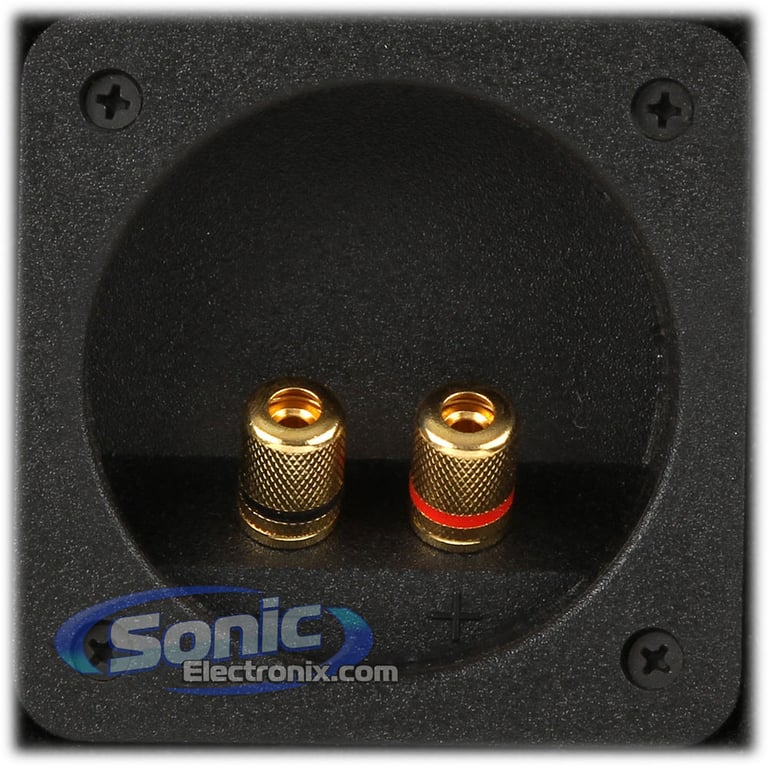

  • Gold-plated speakers terminals
  • Banana-clip ready
  • Subwoofer mounting depth: 12-1/2"
  • Subwoofer cutout diameter: 11"
  • Box volume: 1.0 cubic feet (per chamber)
  • Total box volume: 1.0 cubic feet
  • Dimensions: 14"D x 14"W x 14"H

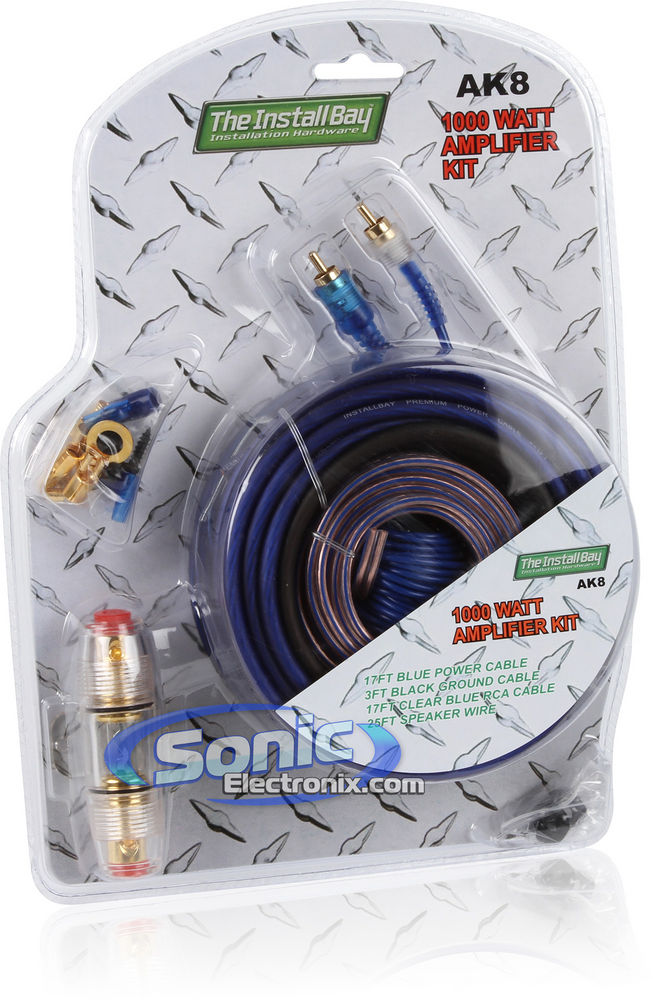

The Install Bay AK8 Features:
  • Complete 8 Gauge Amplifier Installation Kit for a full installation of an amp
  • Includes gold plated RCA interconnect cables
  • Designed by the manufacturer for systems up to 1000 watts max
  • Everything you need for an amplifier installation in one convenient package
  • 1-year Manufacturer's warranty
The Install Bay AK8 Includes:

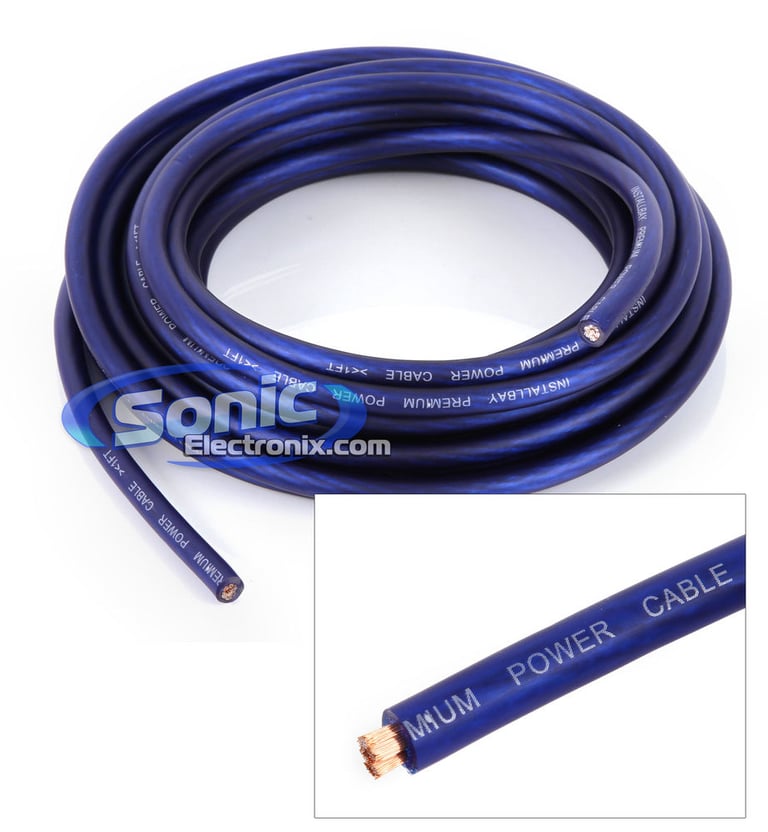

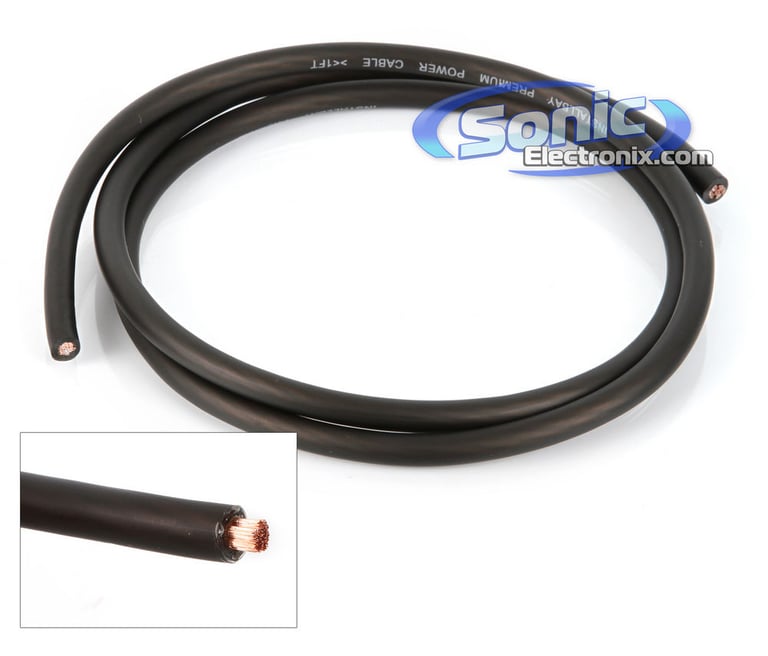

  1. 17 ft. of 8AWG Blue power cable
  2. 3 ft. of Black ground cable

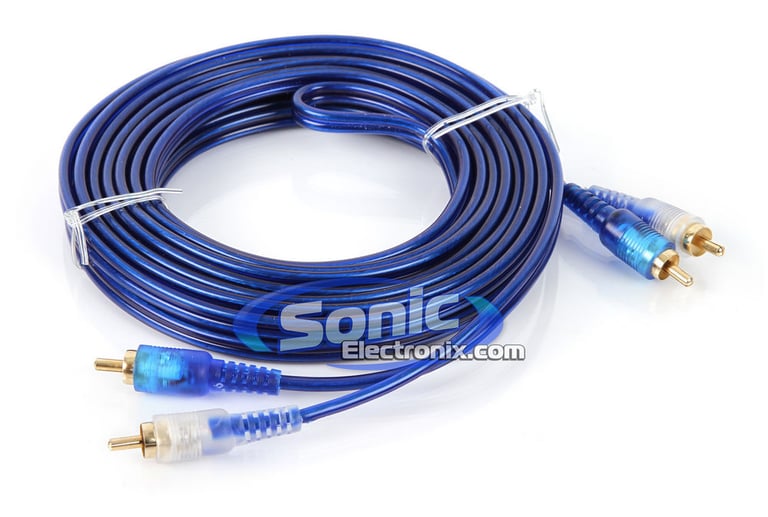

  3. 17 ft. of Clear blue RCA cable

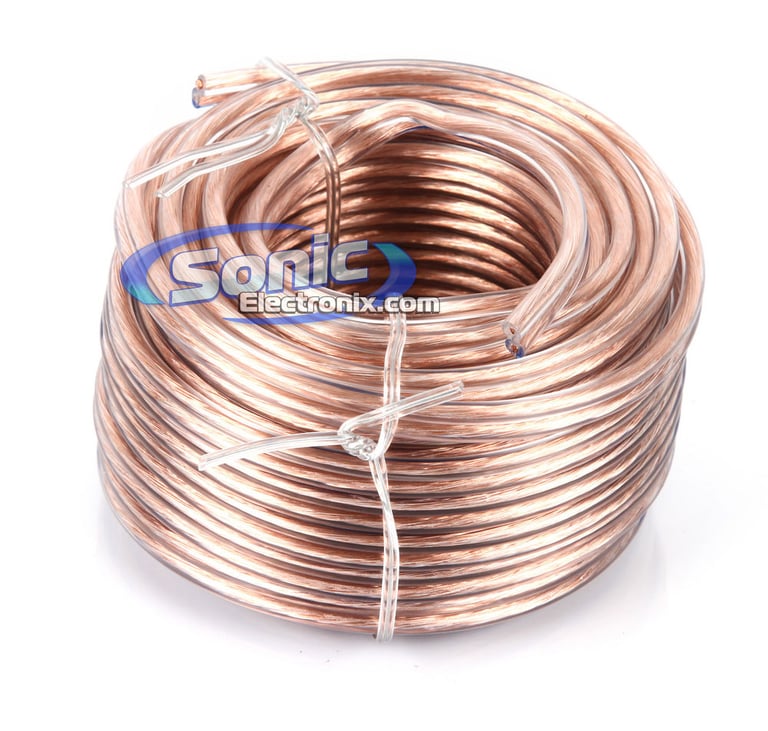

  4. 25 ft. Speaker wire

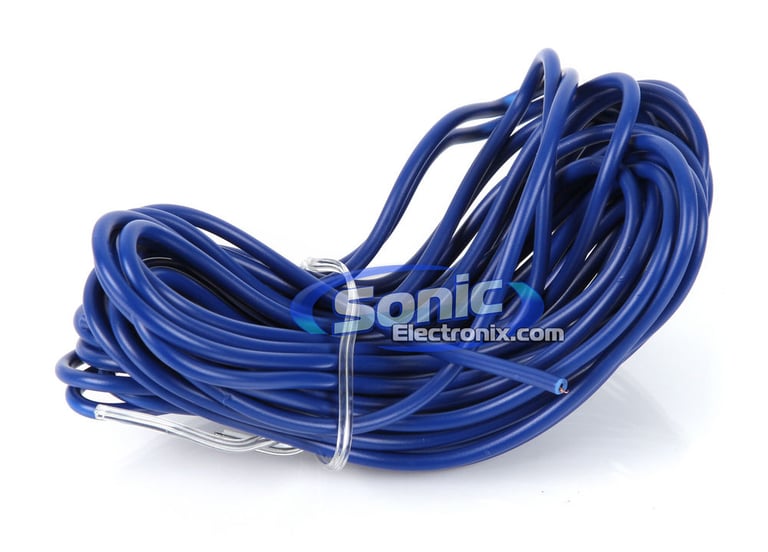

  5. 17 ft. of Clear blue remote turn-on wire

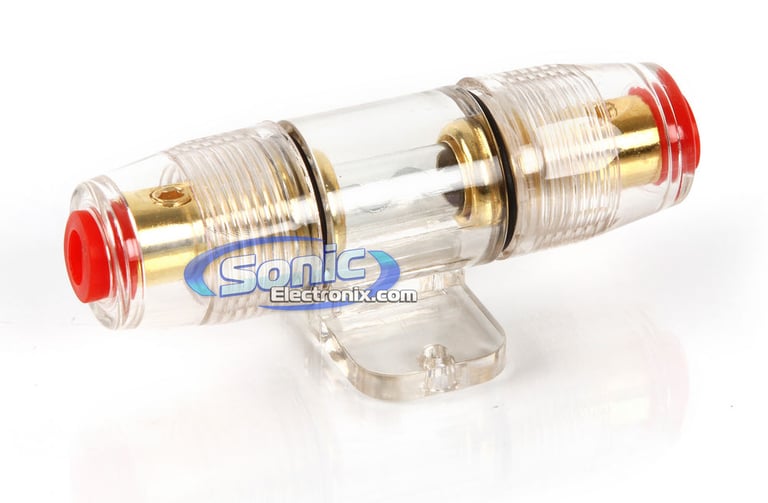

  6. 1 AGU fuse holder + 40AMP AGU fuse

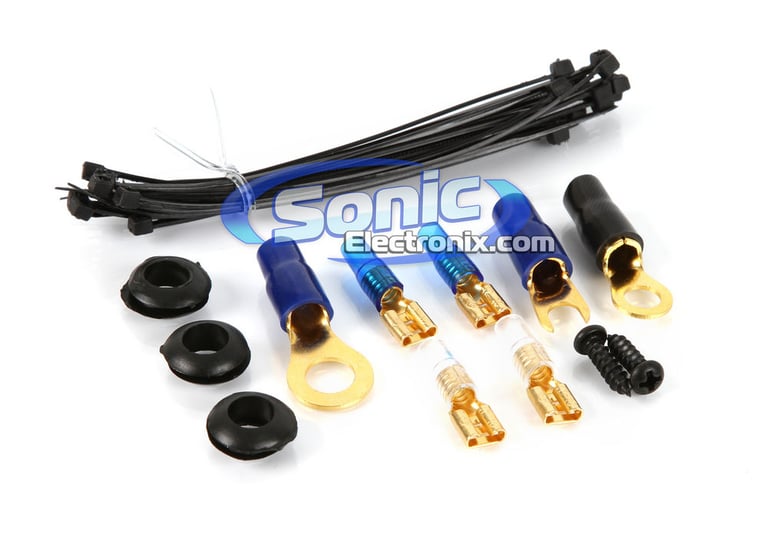

  7. 5/16" Gold ring terminal
  8. 1/4" Gold ring terminal
  9. #10 Gold spade terminal
  10. 4 Gold speaker terminals
  11. 3 Grommets
  12. 20 4" cable ties

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Reference 6530CX main

Infinity Reference REF-6530cx (REF6530CXAM)

540W Peak (180W RMS) 6.5" Reference Series 2 Way 3-ohm Component Speaker System

14
-56.40%

$108.99

List price $249.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
50 watts x 2 channel
RMS Power @ 2 ohms
100 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
200 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Maximum Input Gauge Size
8 AWG
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
30A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
200 watts
Total RMS Power Handling
200 watts
Peak Power Handling
1000 watts
Total Peak Power Handling
1000 watts
Woofer Surround
Foam
Woofer Composition
Pearl Mica Polypropylene - PMI-PP
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
93 dB
Frequency Response
25 - 800 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
14"
Width
14"
Depth
14"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BMF200.2_KFC-W12

Weight:

39.77lbs

Internal SKU:

bmf2002_kfcw12

Internal Product ID:

37950
