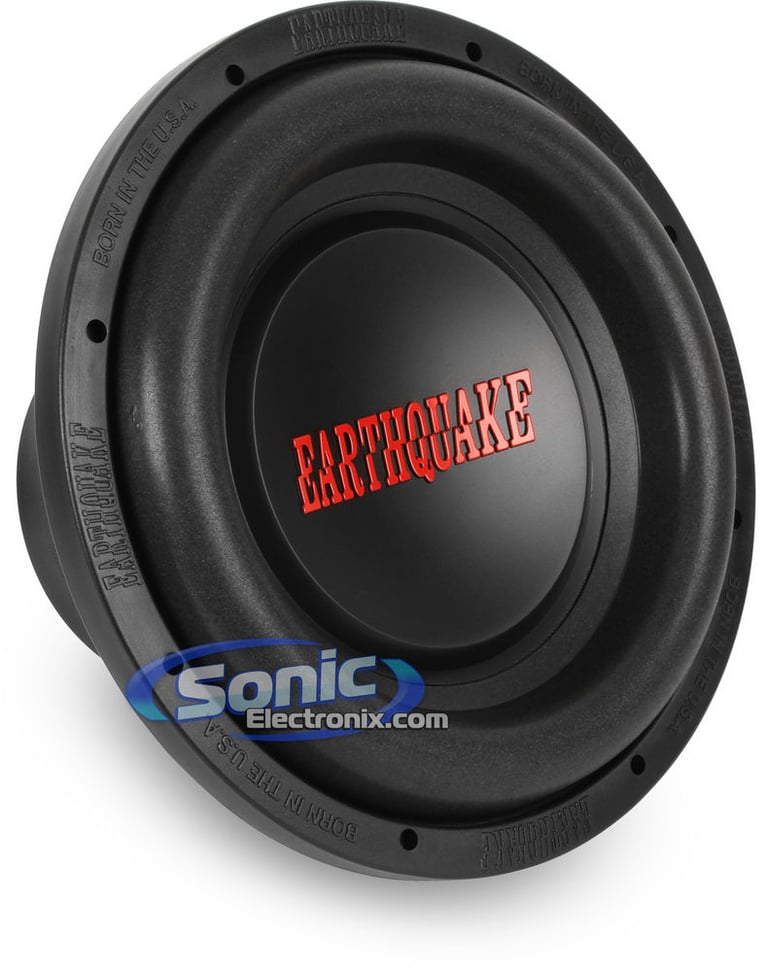

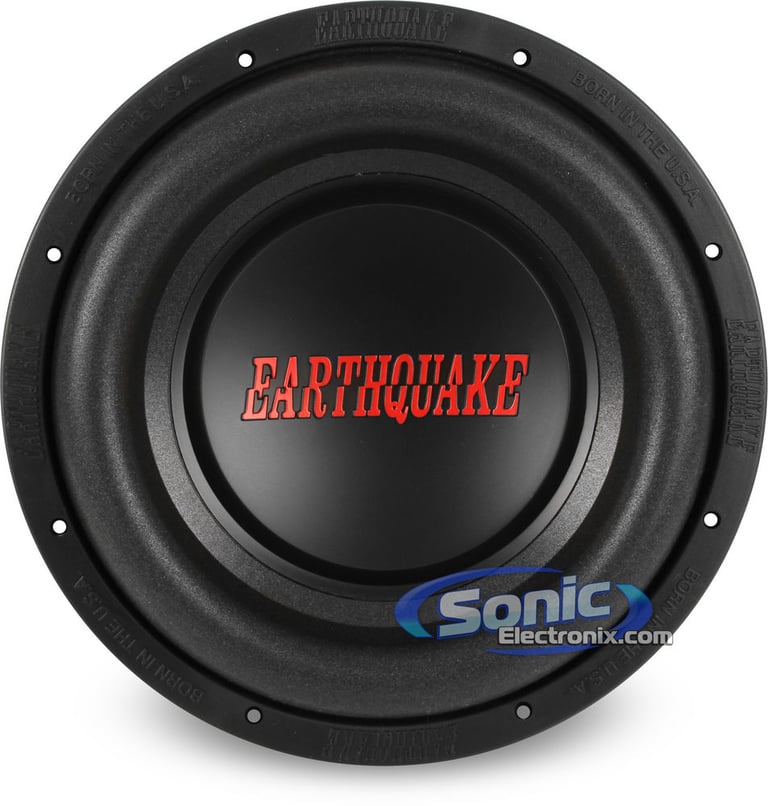

Earthquake Sound DBXI-12

12" Single 4 Ohm DBXi Series Car Subwoofer

Product videos
highlight-star-icon

• 1500W Peak
• 500W RMS
• 2" Aluminum Bobbin Voice Coil
• 140 Oz. Double Stacked Magnet
• Sensitivity: 85dB
• Mounting Depth: 6-3/4"

Learn more about the dbxi12

We apologize

This item has been discontinued


Loading...
XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

FRING525 main

NVX FRING525

Universal 5.25" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

2
-45.02%

$10.99

List price $19.99

Rockford Fosgate Prime R1675-S

160W Peak (80W RMS) 6.75” Prime Series 2 Way Component 4-ohm Speakers

16

Product Highlights


• 1500W Peak
• 500W RMS
• 2" Aluminum Bobbin Voice Coil
• 140 Oz. Double Stacked Magnet
• Sensitivity: 85dB
• Mounting Depth: 6-3/4"

Description


Earthquake Sound brand icon

Authorized dealer

Go off the Richter Scale with DBXi Subwoofers

The DBXI-12 Single 4 ohm 12" subwoofer is the perfect example of what it means to carry the Earthquake Sound name. Earthquake Sound subwoofers need to not only be loud but also sound great and perform without any problems. With an RMS of 500 watts this woofer will produce enough bass to really satisfy those low-frequency reproduction needs. The woofer features a pressed pulp fiber woofer cone and high-roll rubber surround for added stiffness, rigidity, and higher excursion capabilities. Its turbo propped cooling reduces thermal heat and thus increases output and lowering distortion during all periods of play. The woofer also features a 2" voice coil and double stacked magnet structure able to produce an impressive 3.5" of linear excursion, giving you deep impact bass. The DBXi woofer is your everyday driver that will perform day in and day out without compromising quality.

  • 12" Single 4 ohm DBXi Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 500 watts
  • Impedance: Single 4 ohm
  • Pressed pulp fiber woofer cone material

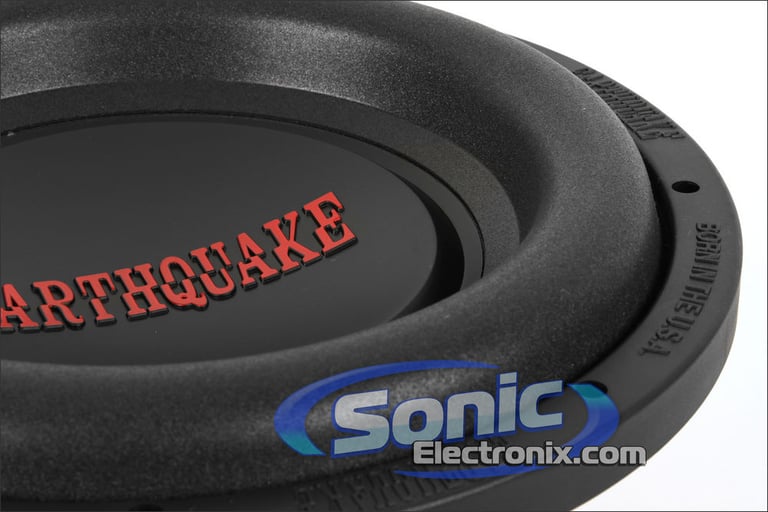

  • High-roll rubber woofer surround
  • New and improved design

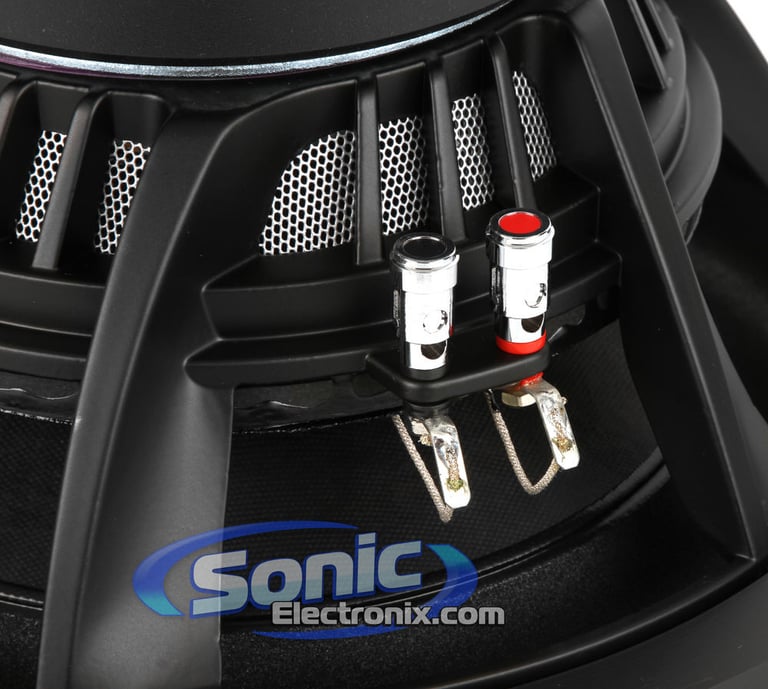

  • Stitched tensile leads
  • Deep impact bass
  • Turbo propped cooling

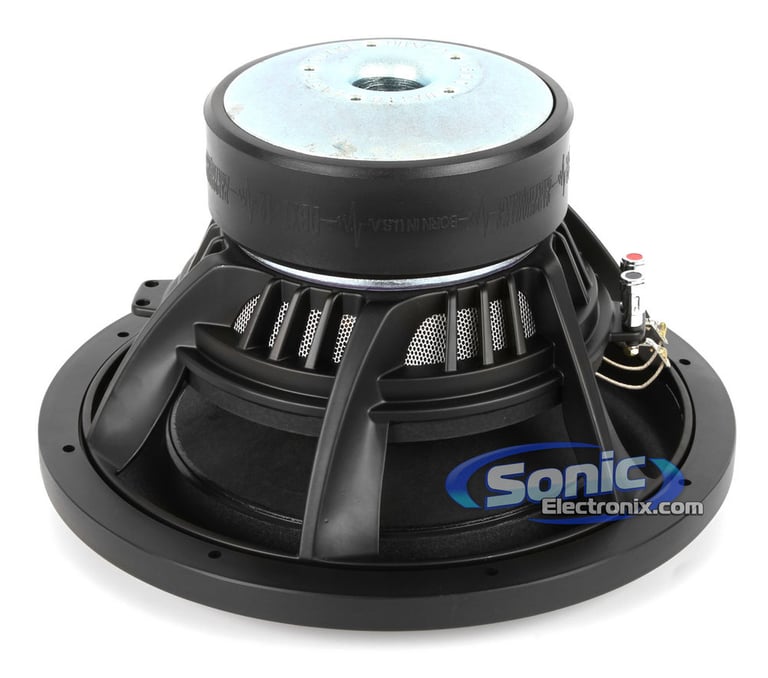

  • Die-cast aluminum basket
  • 2" Aluminum bobbin voice coil
  • 140 oz. Double stacked magnet structure
  • Sealed, ported, or bandpass compatible
  • Sensitivity: 87 dB
  • Xmax: 88.9 mm
  • Mounting Depth: 6-3/4"
  • Cutout dimensions: 11-7/8"
  • Authorized Internet Dealer
  • 5-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Earthquake Sound DBXI-12 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Earthquake Sound DBXI-12 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Earthquake Sound DBXI-12 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Earthquake Sound DBXI-12 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

Limited time!
P1V2-675 main

Rockford Fosgate Punch P1V2-675

300W Peak (150W RMS) 6.75" Punch P1 Series 3 Way Coaxial 4-ohm Speakers

-25.00%

$179.99

List price $239.99

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

R1675X2 main

Rockford Fosgate Prime R1675X2

180W Peak (90W RMS) 6.75" Prime Series 2 Way Coaxial 4-ohm Speakers

59
P1675 main

Rockford Fosgate Punch P1 P1675

240W Peak (120W RMS) 6.75” Punch Series 3 Way Coaxial 4-ohm Speakers

48
PNW-525 main

AudioControl PNW-525

150W Peak (100W RMS) 5.25″ PNW Series 2-way 3-ohm Coaxial Car Speakers

1
-7.72%

$239.00

List price $259.00

S2-S65 main

Alpine S2-S65

480W Peak (160W RMS) 6.5" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

5
-16.69%

$149.95

List price $180.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

SW-LCSV212D4 small

Sundown Audio LCS 12 v.2 D4 12" (LCS12V2D4)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Paper cone
• Foam surround
• Sensitivity: 87.4 dB

(3)

$99.99

List price $209.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Earthquake DBXI Series
Subwoofer Size
12"
Peak Power Handling
1500 watts
RMS Power Handling
500 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Sensitivity
87 dB
Xmax (millimeters)
88.9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Pressed Pulp Fiber
Woofer Surround
High-Roll Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.90 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.50 cubic feet
Maximum Ported Box Volume
2.5 cubic feet
Top-Mount Depth (Mounting Depth)
6-3/4"
Cutout Diameter
11-7/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
25 Hz
Equivalent Compliance (Vas)
46.4 liters
Total Speaker Q Value (Qts)
0.50
Electrical Q Value (Qes)
0.45
Electrical Resistance of Voice Coil (Re)
4.8 ohm
Mechanical Q Value (Qms)
4.70
Warranty and Return Policy
Parts Warranty Duration
5 years
Labor Warranty Duration
5 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DBXI-12

Weight:

21.00lbs

Internal SKU:

dbxi12

Internal Product ID:

38106
