900W 12" Image Dynamics + Crossfire Bass Bundle

Two 12" Image Dynamics ID12D4V3 Subwoofers + Crossfire C3 501 Monoblock Amplifier + Amp Kit

EXCLUSIVE
highlight-star-icon

Two 12" Dual 4 ohm ID V.3 Series Subwoofers • 900W Max • 500W RMS • Crossfire Monoblock Class A/B Car Amplifier • MOSFET Power Supply • 12" Dual Sealed Subwoofer Enclosure • Stinger 8 Gauge Amplifier Kit

Learn more about the 2-id12d4_c3501

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

3
-20.01%

$119.95

List price $149.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Description


Image Dynamics brand icon

Authorized dealer

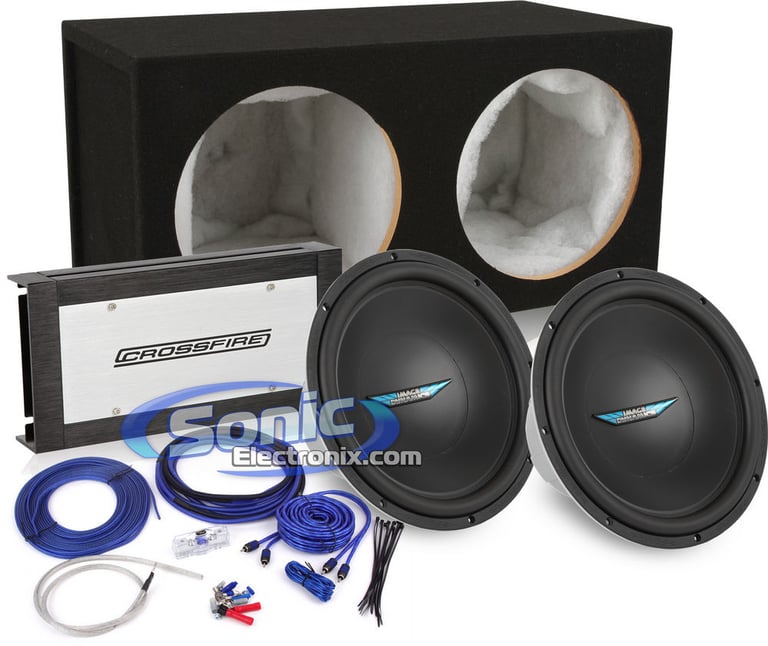

Image Dynamics and Crossfire Bundle

This Sonic Electronix Exclusive Bass package showcases an Crossfire C3 501 Amplifier along with two 12" ID V.3 series Image Dynamics subwoofers. This excellent bass package pushes 500 watts of clean, continuous RMS power. The Image Dynamics subwoofers have Dual 4 ohm voice coils; meant to be wired together and then directly to the amplifier, to a final impedance of 1 Ohm. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

These Image Dynamics ID12 D4 V.3 ID series subwoofers require 250 watts of RMS power each. The included Crossfire C3 501 amplifier will compliment this required power by supplying a near perfect match-up of certified RMS continuous power. This package also includes a 8 gauge Stinger amplifier kit which is perfect to supply power to the amplifier. With the Image Dynamics subwoofer, Crossfire amplifier, and Stinger amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

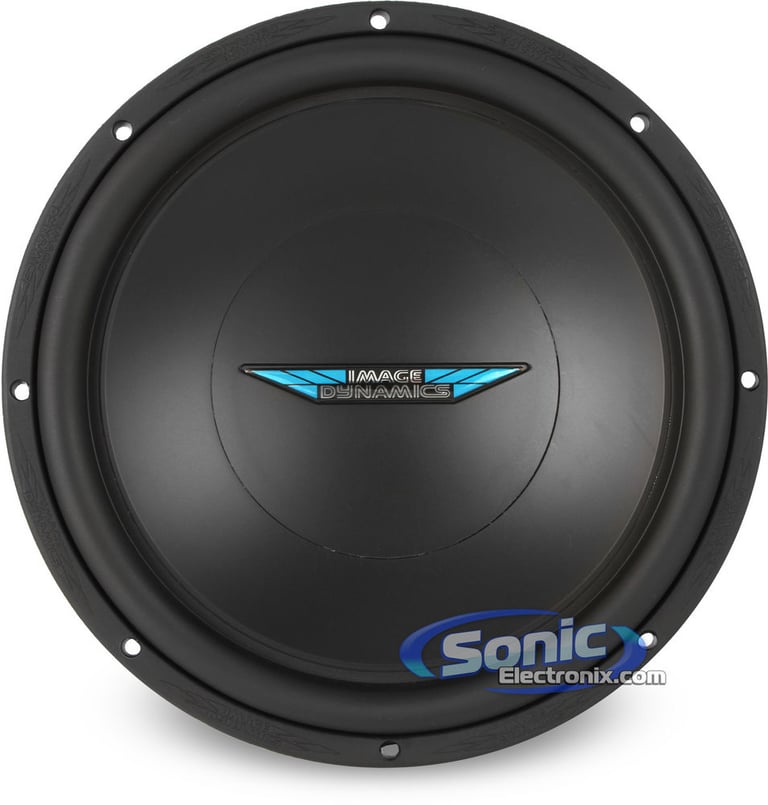

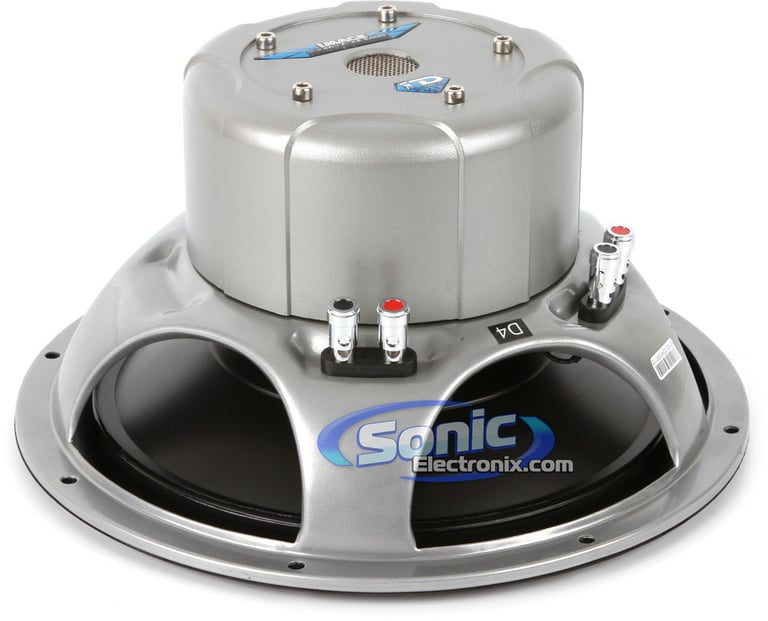

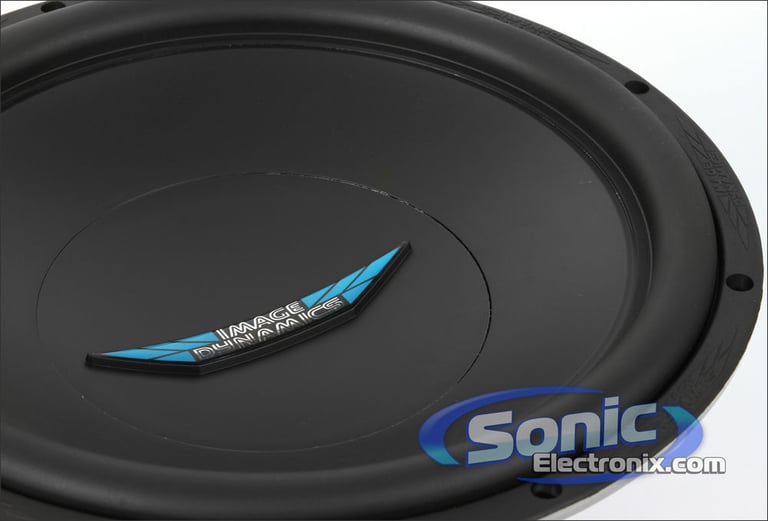

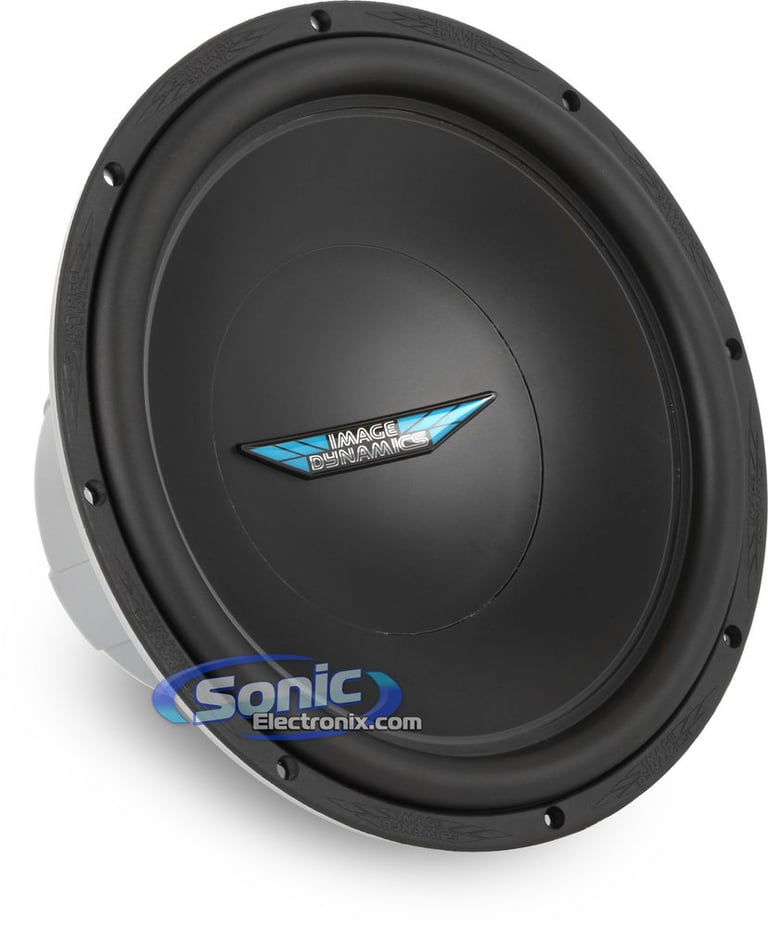

Image Dynamics ID12 D4 V.3 Features:
  • 12" Dual 4 ohm ID V.3 Series Subwoofer
  • Power Handling:
    • Peak: 450 watts
    • RMS: 250 watts
  • Impedance: Dual 4 ohm
  • Mica Polypropylene cone woofer
  • Rubber surround
  • Black anodized aluminum high temperature copper voice coil
  • Stamped steel basket for improved rigidity and better power handling
  • Optimized motor structure that uses finite element analysis for symmetrical and long linear excursion
  • Also found as: ID12D4 V.3, ID12 V.3 D4, ID12 D4, ID12D4, ID12V.3 D4
  • Sensitivity: 88.6dB
  • Mounting Depth: 6"
  • Cutout dimensions: 11"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

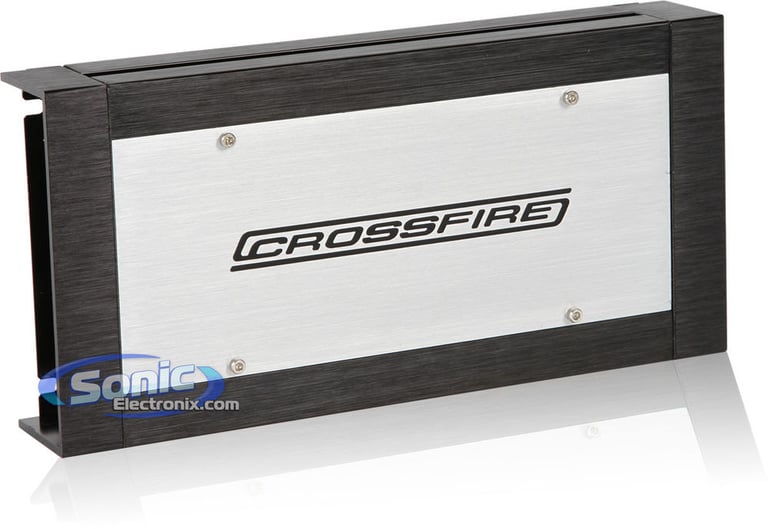

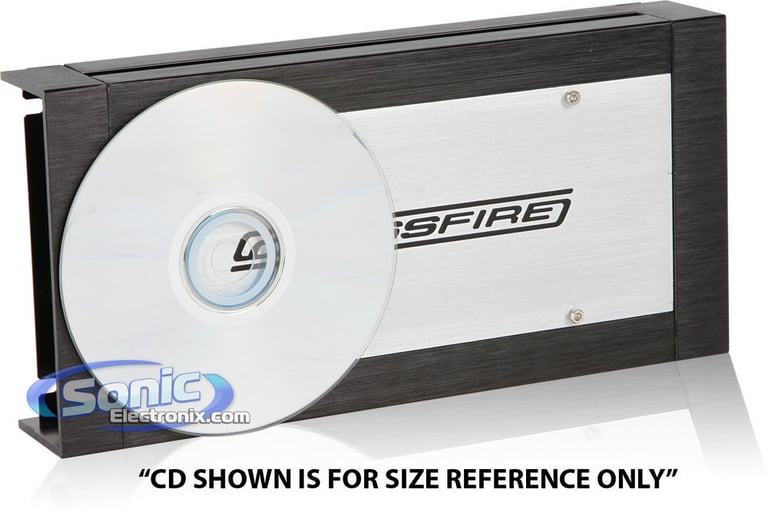

Crossfire C3 501 Features:
  • C3 Series Monoblock Class D Car Amplifier
  • RMS Power Rating(13.8V):
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 340 watts x 1 chan.
    • 1 ohm: 500 watts x 1 chan.
  • MOSFET power supply
  • SMD dedicated audio chip devices

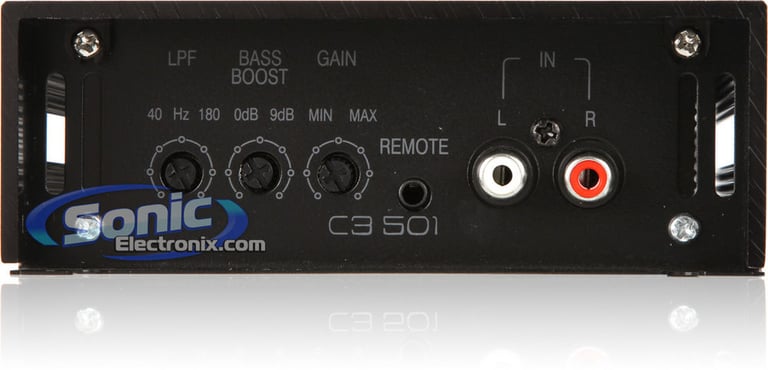

  • Variable Bass Boost (0 to +9 dB)
  • Mono channel operation
  • 2-Way System Protection circuitry
  • Heavy duty heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 0.1V-2V
  • Variable low-pass filter (40-180 Hz)
  • Dimensions: 10"L x 4-13/16"W x 1-13/16"H
  • 8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

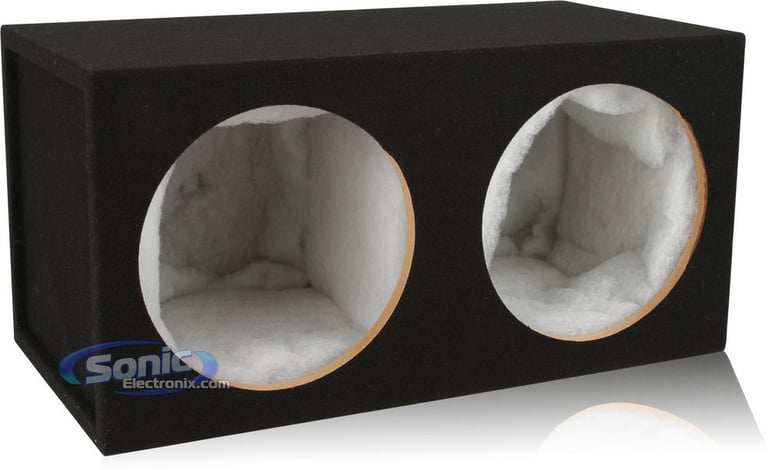

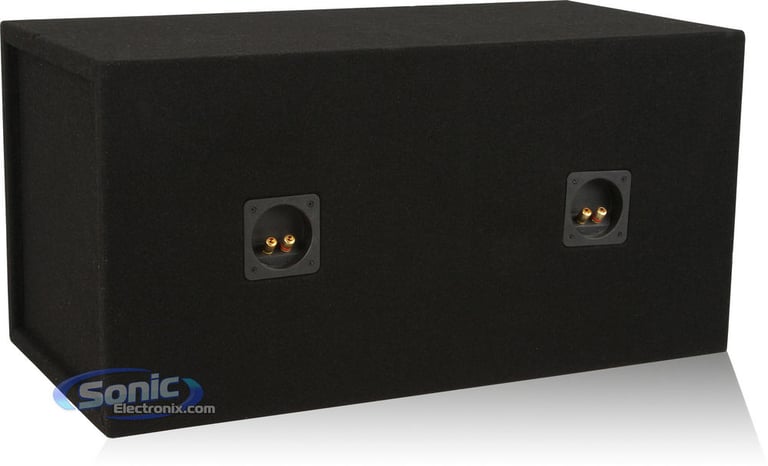

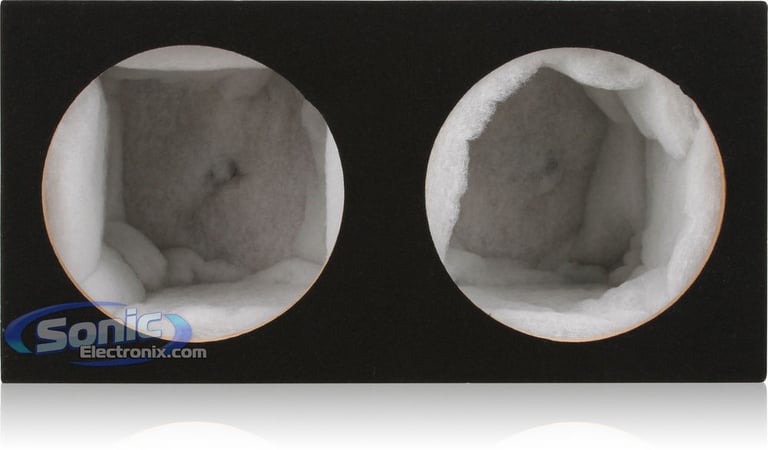

12DSPF Dual 12-inch Sub Box Features:
  • 12" Dual Sealed Subwoofer Enclosure
  • Durable MDF enclosure for car subwoofers
  • Covered in a black carpet
  • Pre-lined with Poly-Fil

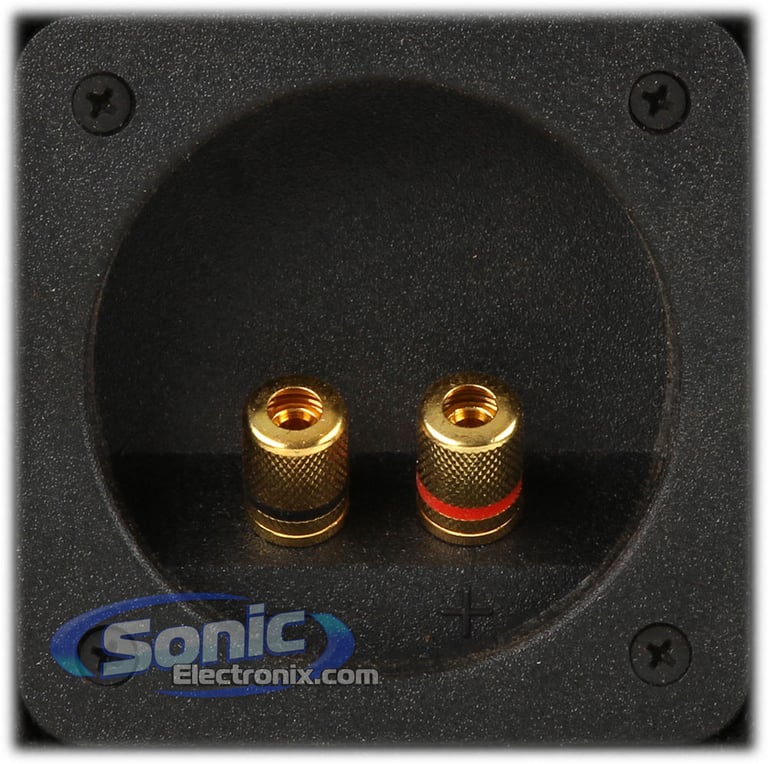

  • Two sets of gold-plated speakers terminals
  • Banana-clip ready
  • Subwoofer mounting depth: 12-1/2"
  • Subwoofer cutout diameter: 11"
  • Box volume: 1.13 cubic feet (per chamber)
  • Total box volume: 2.26 cubic feet
  • Dimensions: 14"D x 28-1/4"W x 14"H

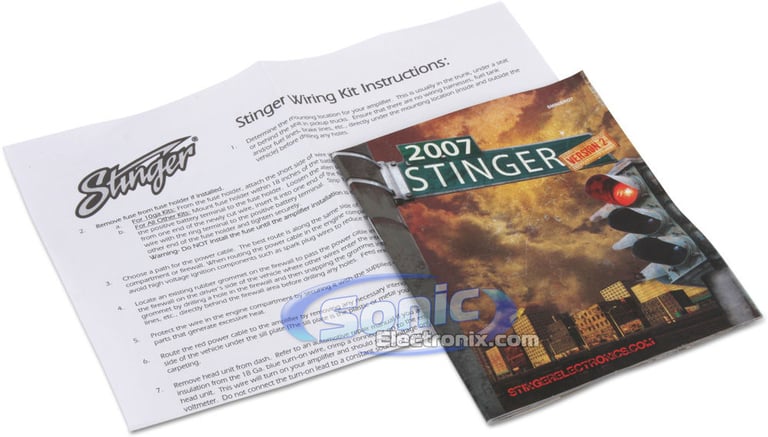

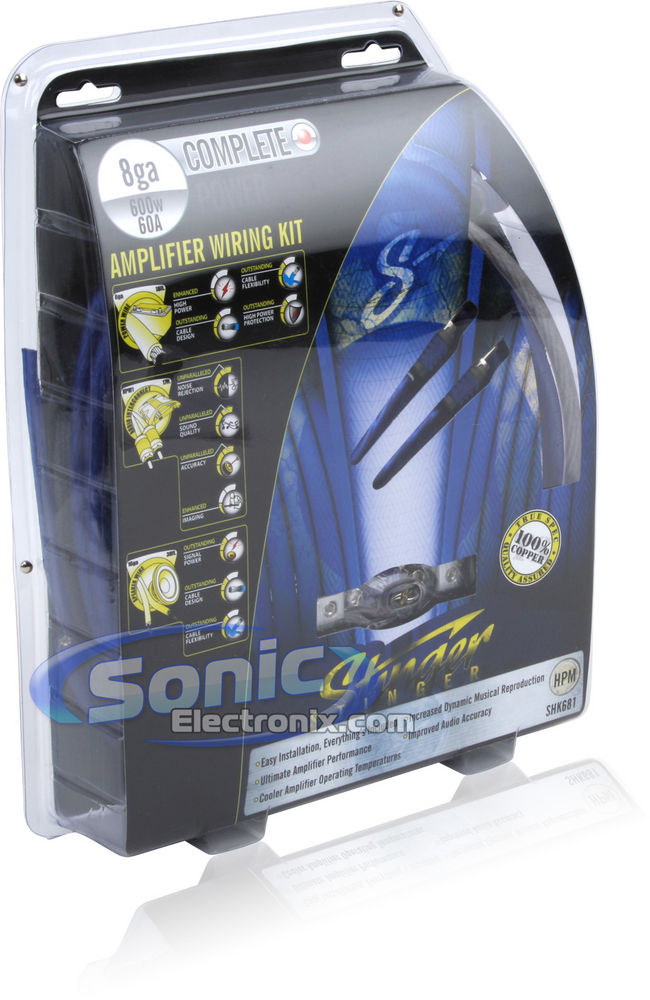

Stinger SK6681 Product Features:
  • 8 Gauge 6000 Series Complete Amplifier Wiring Kit
  • Designed specifically for car audio systems up to 400 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
  • 6000 Series shielded RCA audio interconnect cables for increased noise rejection
  • Mini-ANL style fuse holder for maximum power delivery and safety
  • HPM style speaker wire for optimum performance
  • Pre-Installed black nylon mesh covering protects power & ground wire from damage
  • TruSpec cables/wires meet or exceed the industry standard of copper required for the gauge size
  • Matte finish HyperTwist wire construction provides excellent flexibility
  • Pre-Terminated power connections provide reliable performance
Stinger SK6681 Package Includes:

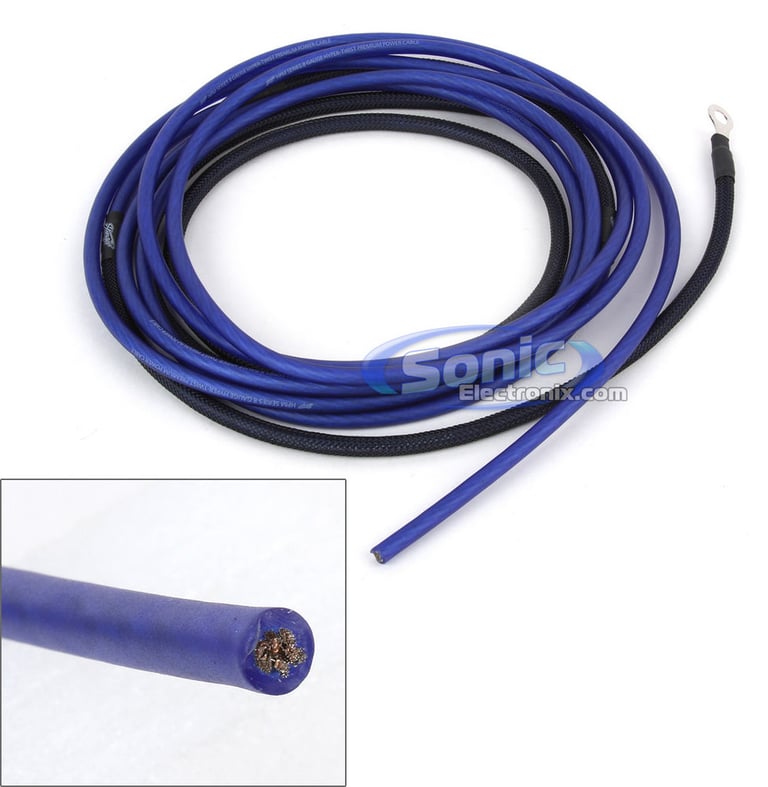

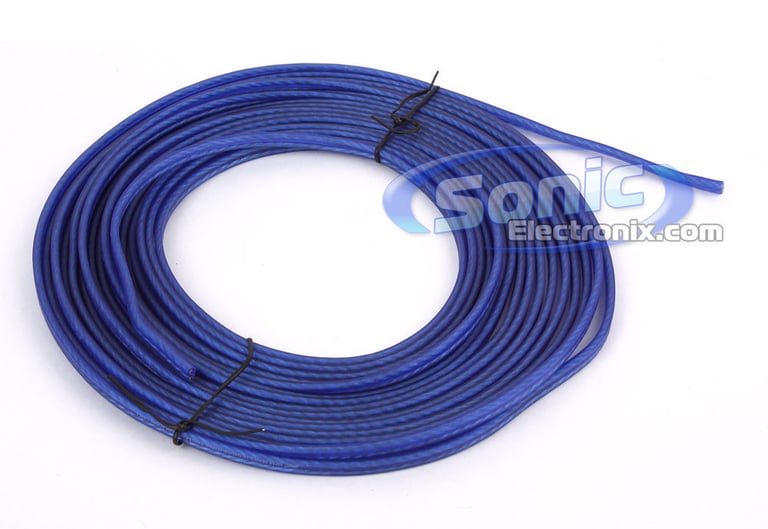

  1. 17 ft. of 8 Gauge matte blue hyper-twist power wire

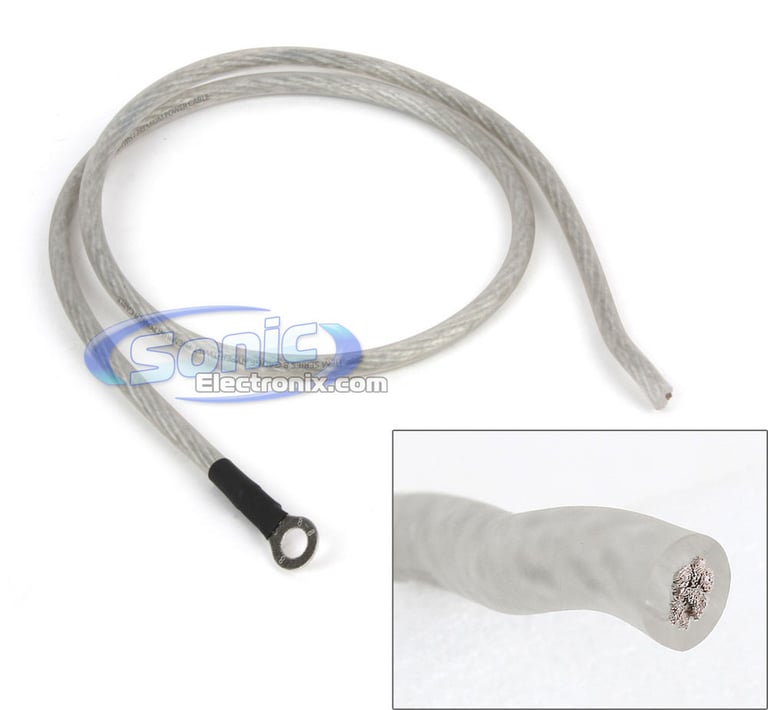

  2. 3 ft. of 8 Gauge Matte silver hyper-twist ground wire
  3. 17 ft. of 18 Gauge Blue turn-on wire

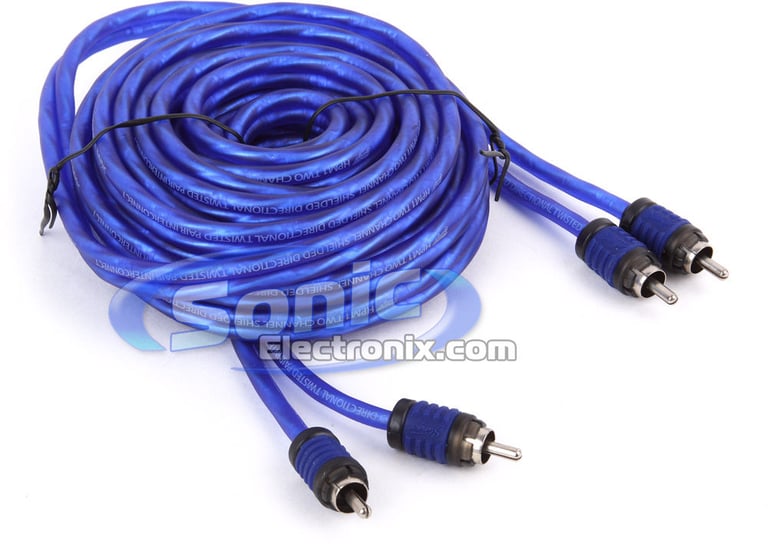

  4. 17 ft. 6000 Series RCA interconnects
  5. 30 ft. 16 Gauge HPM speaker wire
  6. Fuse included

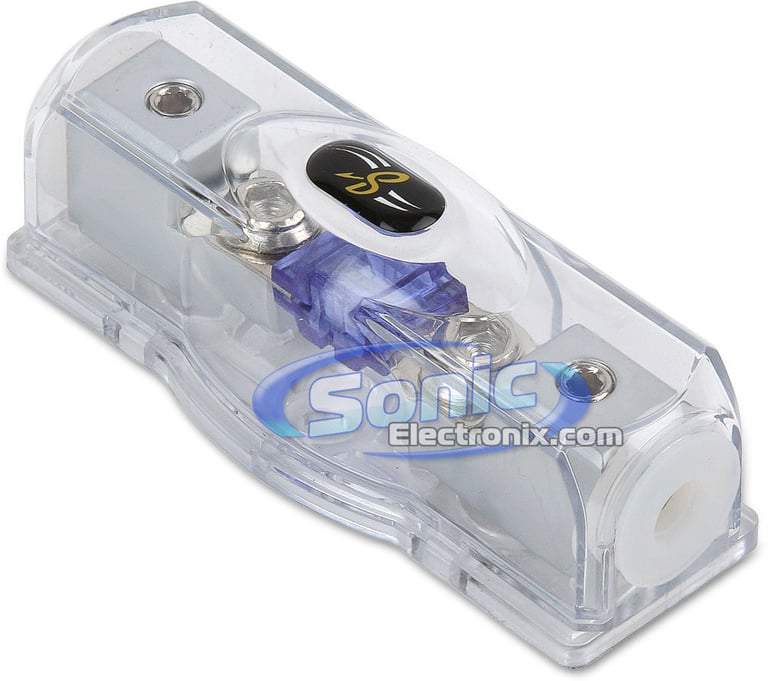

  7. Mini-ANL style fuse holder
  8. 70 Amp Mini-ANL fuse
  9. Pre-Terminated ends
  10. Mesh wire loom
  11. Stinger metal badge

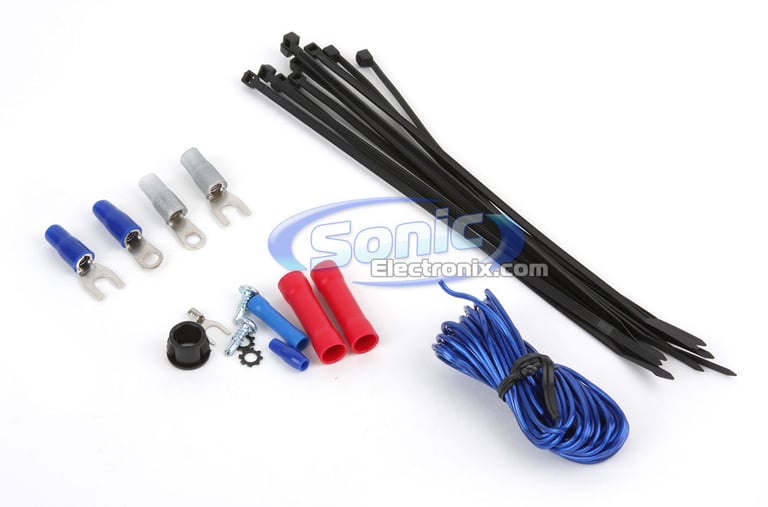

  12. Includes installation accessories

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(250)

$311.43

List price $533.42

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

T500-1bdCP, BAK42 small

Rockford Fosgate Power T500-1bdCP & BAK42 4 AWG Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm, 500W x 1 @ 1 ohm
• Dynamic Power Output: 690W
• CEA-2006 Compliant
• Variable Bass Boost: 0 to +18 dB at 45 Hz
• Ultra Efficient Class bD Circuitry
• Dimensions: 11-7/16"L x 8-3/16"W x 2-3/16"H

(185)

$574.48

List price $609.98

BAK42BK,46CXA12001T small

Kicker 43CXA12001 with Amplifier Wiring Kit

• 1200 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 2400 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Dimensions: 7-3/16"W x 8-1/8"L x 2-3/8"H • Includes Amplifier Wiring Kit

(82)

$399.99

List price $489.98

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
340 watts x 1 channel
RMS Power @ 1 ohm
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 180 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
250 watts
Total RMS Power Handling
500 watts
Peak Power Handling
450 watts
Total Peak Power Handling
900 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene-Mica
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
88.6 dB
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
2
Box Style/Shape
Square/Rectangle
Height
14"
Width
28-1/4"
Depth
14"
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

2-ID12D4_C3 501

Weight:

61.76lbs

Internal SKU:

2-id12d4_c3501

Internal Product ID:

38620

Customer Ratings & Reviews


900W 12

5 star
88%
4 star
6%
3 star
6%
2 star
0%
1 star
0%



Durability
4.7
Value
4.7
Features
4.6
Design
4.6
Usability
4.8

Customer Reviews

Sort by:

Loading...

Great buy with high quality

The following review is for SK6681, which is a part of the bundle you are viewing.

This kit is a complete easy to use kit. The kit is in every way a high quality kit. I have used SEVERAL stinger kits of this line and they have never failed me. This kit is by no means what i consider a top quality kit however for the price you can not even get closer with other brands. Yes i will be back for more as I am a car electeonics installer and master auto technician.

By Evan on September 27, 2012

56 found this helpful


STINGER

The following review is for SK6681, which is a part of the bundle you are viewing.

Awesome wire , always used it always will!!!! Wire is durable, flexable

By Charles on May 8, 2014

56 found this helpful


Not bad for the price.

The following review is for SK6681, which is a part of the bundle you are viewing.

The wires are OFC and the gauge is what Stinger says it is (too many companies aren't being truthful on that nowadays), so it's a win.

By Trent on February 3, 2023 Checkmark Icon Verified purchase

37 found this helpful


Very Happy

The following review is for ID12 D4 V.3, which is a part of the bundle you are viewing.

I kind of went out on a limb ordering this (came in a combo package with CTX-6.5cs the CTX-6.5 and the RE Audio XTX-500.5) I had never heard of Image Dynamics until I had shopped around for a new system for my 04 Trailblazer. I am by no means an audiophile, but I know what sounds good, and these things do. You can definitely push this thing and get your car rumbling if that's your cup of tea. I'm using it for low end reinforcement not showing off(not that I haven't).

I have never owned a subwoofer until this one. I have not been disappointed in my purchase by any means. I have this in the minimum sized enclosure that is recommended in the directions(scosche enclosure from Walmart). This has given me a great amount of low end punch, and low enough response for what I listen to and then some. Since I haven't had a sub before I'm honestly not sure what I should expect out of it. What I do know is that the low end is clean, sounds tight and has a great amount of low end.

Having this sub has truly changed what I expect to hear in most cars. It has been a completely new listening experience for me. It's amazing how much cleaner you can make your system when your 2ways and Components are not used to be the primary low end reinforcement. I highly recommend this sub.

By Andrew on September 18, 2012

33 found this helpful


Solid Sub!

The following review is for ID12 D4 V.3, which is a part of the bundle you are viewing.

Bought this sub to replace my JL W3 v1 because JL is no longer making dual voice coil subs with the exception of the W6 (not sure why?). Overall, this is a great sub for the price! I agree with one of the other reviews regarding the punch, it does hit more like a 8" sub, most noticeable when listening to Electronic music. This is one area where Image subs beat out JL for a 12". If true depth of sound is what you're looking for, then stick with JL. I don't think anyone beats JL when it comes to the richness of their subs, at least this is my opinion.

Overall I give this sub 8 out of 10. Great sub!

By Sub Zero on December 1, 2012

29 found this helpful


Sound Great, Very Detailed...

The following review is for ID12 D4 V.3, which is a part of the bundle you are viewing.

These are a pretty detailed sounding subwoofer. At low volumes you can still here individual bass notes which is what I use as a determining factor when gauging a subs overall performance and what my ears seem to detect as a "quality sub". Many subs only sound good when cranked, and these sound good at ALL volumes from low to flat out pounding. I was actually pretty surprised at how loud and hard hitting these subs are. I unfortunately had just upgraded my sub amp though and I melted the voicecoils on these in about an hour! That is NOT a fault of the subs, it is my own abuse of the product. I would feel very comfortable playing these with up to 300w rms, but not the 750 I had going to each of them... again, I know I had too much power going to them, they were a temporary product for me while I was getting ready to upgrade to higher power handling subwoofers... I think I may try the next higher series of these subs, if they sound as clean and detailed and can handle my amp, they are surely to be the best sounding subs I've ever owned. On pair easily with former JL w'3 in sound quality, just not the power handling. I currently have 2 re-sex12's that POUND but don't have the clarity I'm looking for so I'm thinking of plunking down the funds on the next higher series of image subs based solely on the outstanding detail of these subs I'm writing the review on.

My ONLY complaint about these subwoofers is the plastic cover over the magnets. Mine arrived off of the magnet and had worked loose during shipping. The only thing holding the entire plastic cover over the magnet was a thick washer glued to the bottom of the magnet, and then the cover glued to that washer.. looked pretty hokey cheap to me to do this. The next series up looks to be of a little better build quality in the basket and magnet structure. The frame around the edge of the subwoofer is super thin too, which I found to be quite a turn off.

Overall great sound but build quality was lacking quite a bit on this series. If that doesn't bother you, they would be a great choice for someone with around 200-300w rms per sub used. I had them sealed 1.20 cu ft.

By Scott on March 30, 2012

26 found this helpful


wow

The following review is for ID12 D4 V.3, which is a part of the bundle you are viewing.

Great product Great service. Bought this woofer for its sonic abilities and it has lived up to its reputation for quality bass with sonic detail at low and hi volume with modest power. Thanks for friendly and fast service
Pros, great sound tight clean and clear sound.
cons, none found

By jon on September 18, 2013

24 found this helpful


small price big sound

The following review is for ID12 D4 V.3, which is a part of the bundle you are viewing.

running off an old PPI 200w amp, free air in my 2002 Lexus IS300, this sub sounds awesome! distinctive bass notes, hits the lows and punches like an 8".

By Will on December 23, 2011

21 found this helpful


Awesome Deal!

The following review is for 12DSPF, which is a part of the bundle you are viewing.

No need of a huge review here. Very sturdy, carpeting is great, leaves me with alot of space in my trunk. It holds 2 kicker CVR's that are 1600 watts max. Wont be dissapointed if you buy this! I've had it for 6 months and not a single problem!

By Jake on December 19, 2011

16 found this helpful


Solid As A Rock

The following review is for 12DSPF, which is a part of the bundle you are viewing.

Box was bought for the Pioneer 3000 watt 12" Subs and its a Perfect Match for them plus,it saves trunk space. Subs Mounting Holes are nice cut. However,I did add a extra lining of polyfil but,it was nothing to it. "GOOD BOX" For Subs that requires small enclosures!

By calhoonism on May 7, 2013

11 found this helpful




SK6681 main

Stinger SK6681

• 8 Gauge 6000 Series Complete Amplifier Wiring Kit
• Designed Specifically for Car Audio Systems up to 400 Watts
• HyperTwist Wire Construction
• TruSpec Cables/Wires
• Pre-Terminated Power Connections
• Made From 100% Oxygen-Free Copper

(4)

$100.99

List price $189.00


99-7954 small

Metra 99-7954 Dash kit

Install a new Single-DIN or Double-DIN car stereo in select 2007-2013 SX4

(2)

$14.99

List price $29.99

CD-AH200 small

Pioneer CD-AH200

Android Connection Kit to Connect Compatible Android Smartphones to Compatible Pioneer Car Stereos

(1)

$39.99

List price $69.99

STEALTH-6_Core_Black-2 small

Wet Sounds STEALTH 6 Core v2 - Black

21” 6-Speaker Non-Amplified Powersports Soundbar

$549.99

List price $699.99

STEALTH-10 Core Black-2 small

Wet Sounds STEALTH-10 Core - Black

34” 10-Speaker Non-Amplified Powersports Soundbar

$499.99

List price $899.99

(2)PRO-X5M, XBAF525, SDSK2, SDRLR1, BTK106 small

DS18 PRO-X5M with Speaker Installation Kit

150W RMS5.25” 8-Ohms Coaxial Speaker + 5.25" Speaker Baffles, Sound Dampening, Roller, and Panel Removal Kit

(149)

$129.93

List price $162.61

1411-07-2 small

Excalibur TX1411-07 Extended Range Transmitter

4 Button Remote with Extended Range Antenna and Backlit Buttons

$18.99

List price $39.99

Stage2 624 small

JBL Stage2 624 (STAGE2624)

480W Peak (80W RMS) 6.5" Stage2 Series 2 Way Coaxial 4-ohm Speakers

(7)

$57.95

List price $99.95

PH001B small

Padholdr PH001B

Auto Universal Dash Kit for Apple iPad/iPad2 (Black)

$99.99

List price $149.99

AVIC-Z140BH small

Pioneer AVIC-Z140BH

In-Dash Double DIN 7" DVD/CD/MP3 Car Stereo Receiver w/ USB, GPS Navigation, Bluetooth, & HD Radio

(3)

$699.99

List price $1500.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Audi A4 Quattro

2003 Lotus Esprit

1980 Volkswagen Scirocco

1992 Oldsmobile Eighty Eight Royale

1974 Cadillac Eldorado

2005 Saab 9-2X

2015 Subaru Forester

1984 Cadillac DeVille

2001 Toyota 4Runner

1983 Saab 900

Vehicle
Store
Delete

1988 BMW K100RT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
