Description


Cerwin-Vega brand icon

Authorized dealer

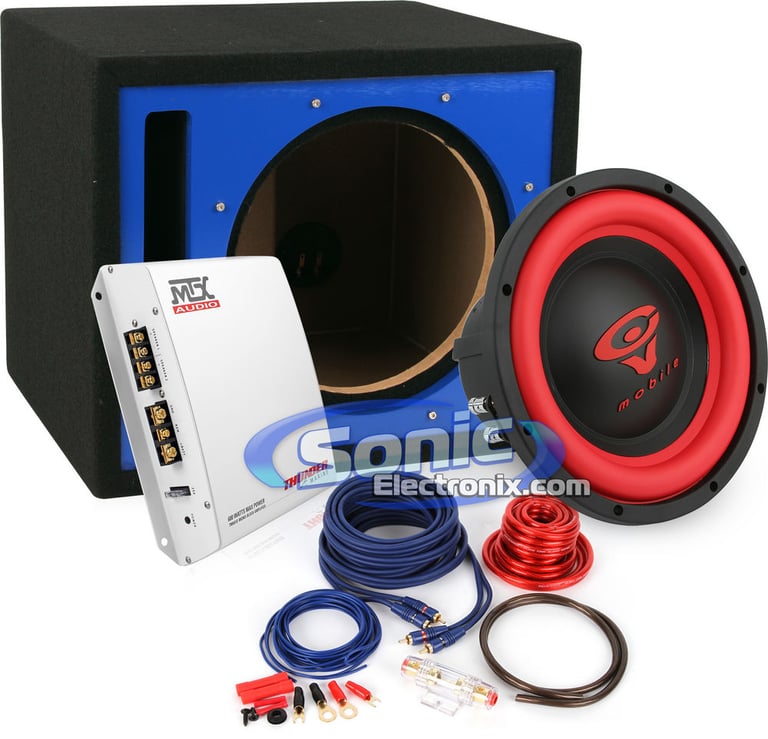

Cerwin-Vega and MTX Audio Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a MTX Audio Thunder Marine TM601D amplifier along with a 10" VEGA series, Cerwin-Vega subwoofer. This excellent bass package pushes 200 watts of clean, continuous RMS power. The Cerwin-Vega subwoofer has a Dual 4 Ohm Voice Coil; meant to be wired in parallel, to a final impedance of 2 ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

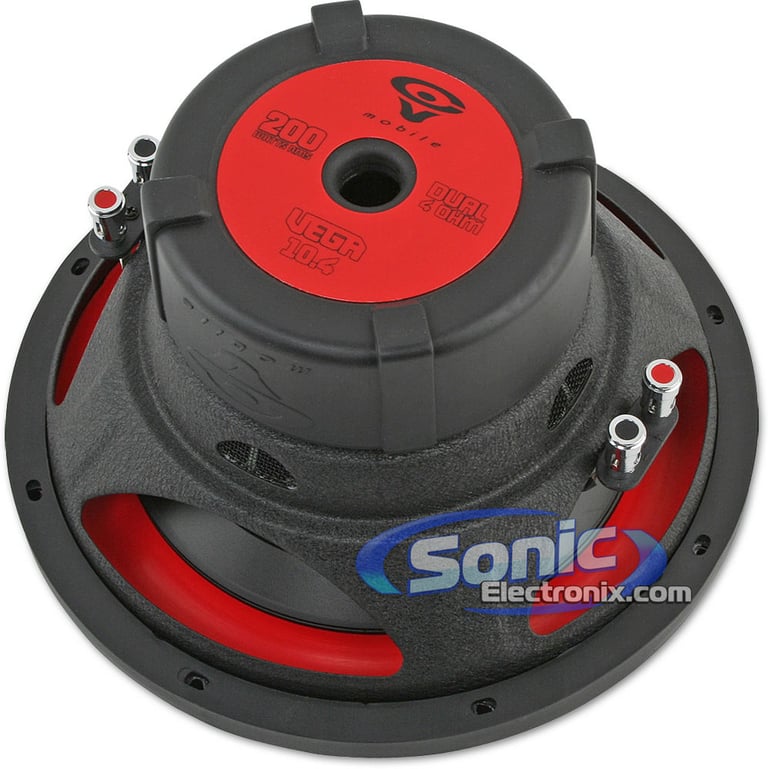

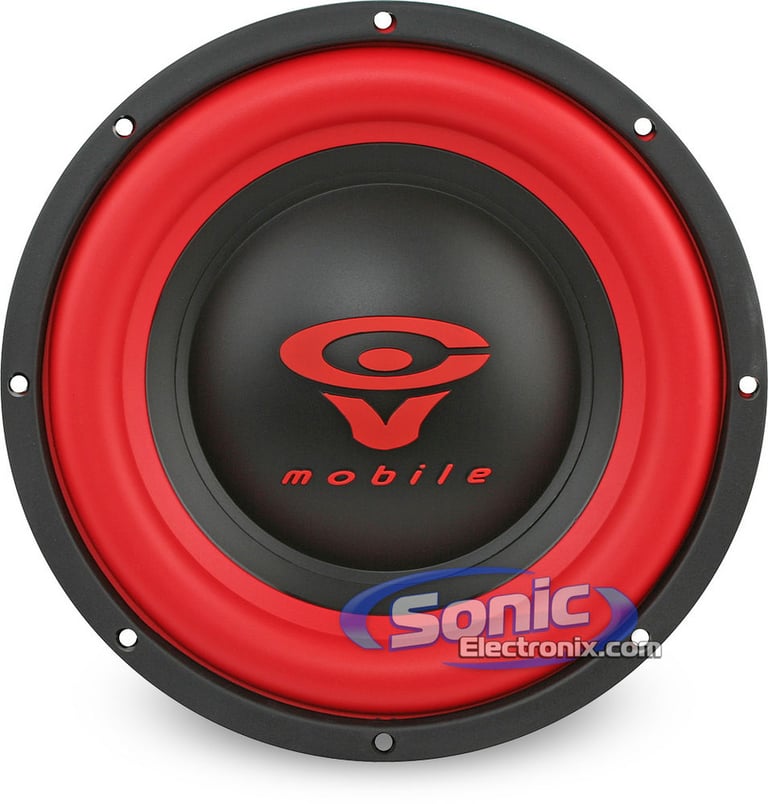

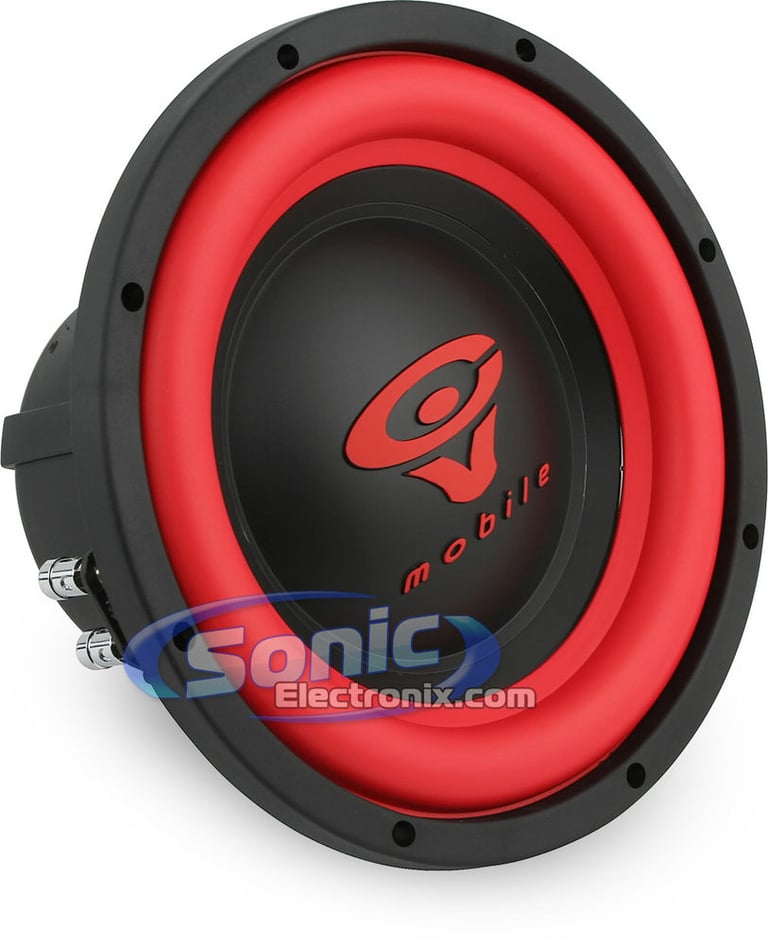

This Cerwin-Vega Vega 104 10" VEGA series subwoofer requires 200 watts of RMS power. The included MTX Audio Thunder Marine TM601D amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a complete 8 gauge amplifier kit, which is perfect to supply power to the amplifier. Also included in this package will be a single 10" ported enclosure with a blue front face board. With the Cerwin-Vega subwoofer, MTX Audio amplifier, ported enclosure, and Renegade amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

Cerwin-Vega Vega 104 Features:
  • 10" Dual 4 Ohm Vega Series Subwoofer
  • Power Handling:
    • Peak: 400 watts
    • RMS: 200 watts
  • Impedance: Dual 4 ohm
  • Mica-filled polypropylene cone woofer
  • Red rubber surround
  • Bumped back piece with vented pole piece
  • Woven tinsel leads
  • 2" Voice coil
  • Sensitivity: 85 dB
  • 1-year Manufacturer's warranty

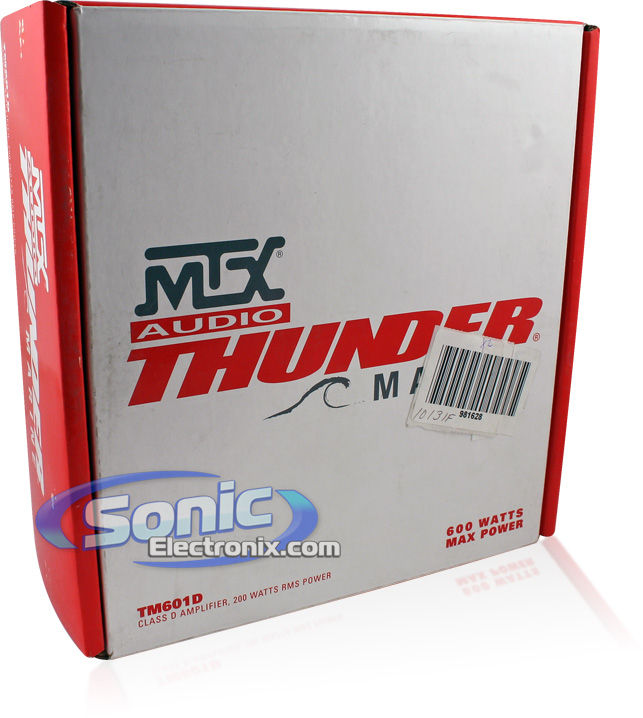

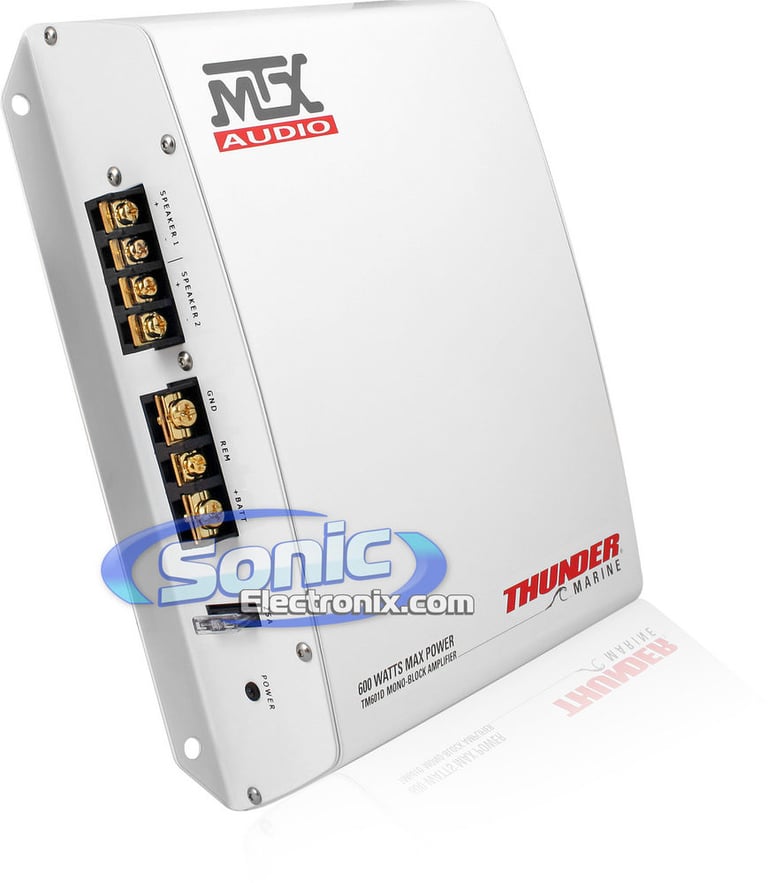

MTX Audio Thunder Marine TM601D Features:
  • Thunder Marine Series Class D Monoblock Marine Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 1 chan.
    • 2 ohm: 200 watts x 1 chan.
  • Max power output: 600 watts x 1 chan.
  • MOSFET power supply
  • LED power indicators

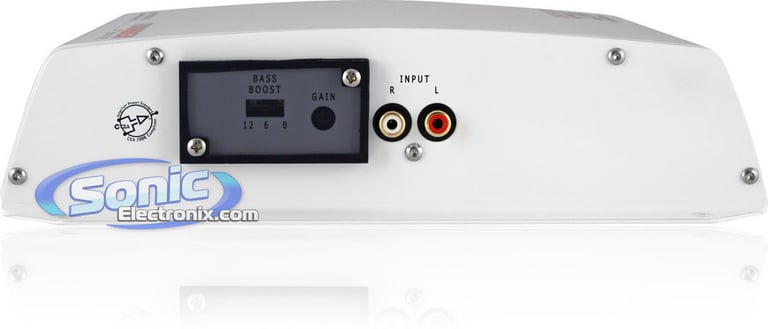

  • Selectable Bass EQ (0, 6, or 12 dB bass boost)
  • Preamp RCA outputs
  • Conformal coated circuit board
  • Sealed covers keep amplifier controls and speaker terminals dry

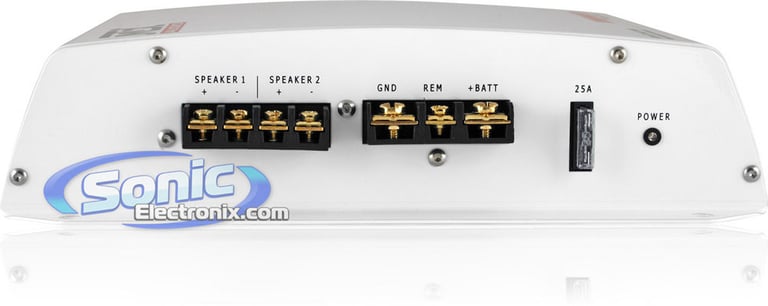

  • Gold-plated screw terminals
  • Defeatable low-pass filter (85 Hz, 18 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-85 Hz
  • Dimensions: 9-1/2"L x 7-5/16"W x 2-3/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer’s warranty

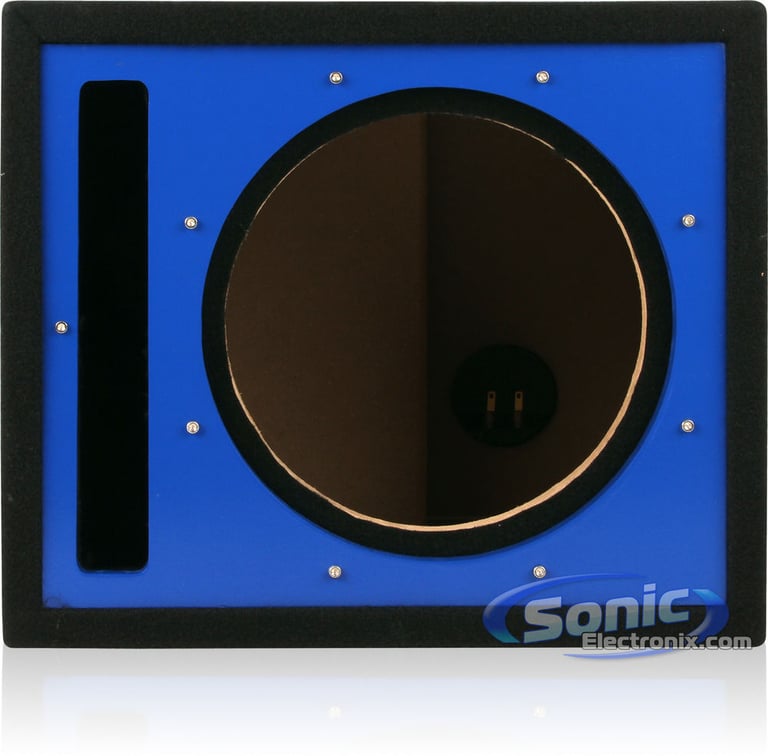

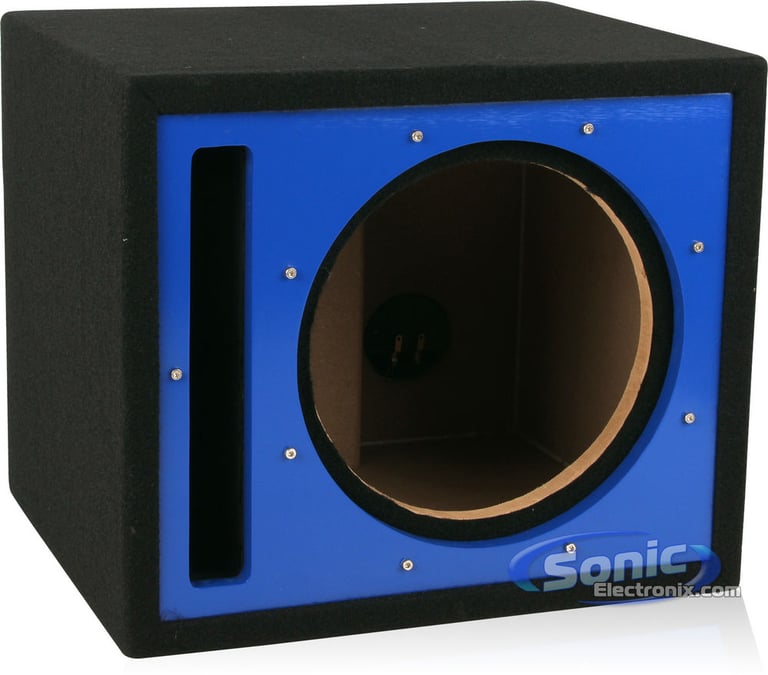

Absolute Enclosure Features:
  • Single 10" Ported Subwoofer Enclosure
  • Made from durable 3/4" Medium Density Fiberboard (MDF)
  • Blue high gloss front face board
  • Covered in durable black carpet

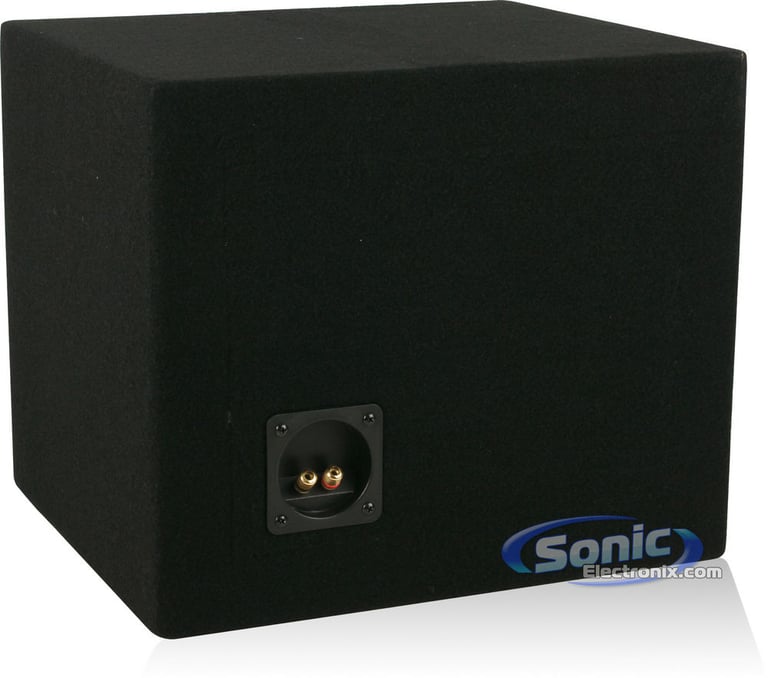

  • Binding post terminals on the back of the enclosure
  • Each terminal is banana-clip ready
  • Square box enclosure universal for most vehicles
  • Front Panel is Blue
  • Subwoofer mounting depth: 10"
  • Subwoofer cutout diameter: 9-1/8"
  • Total Box volume: 1.0 cubic feet
  • Dimensions: 14"D x 16-1/2"W x 14"H
  • Authorized Internet Dealer
Enclosure Port Specifications:
  • Single rectangular slot ports
  • Number of ports: 1
  • Port volume: 0.2 cubic feet (per port)
  • Port dimensions: 19"D x 1-1/2"W x 12-1/4"H

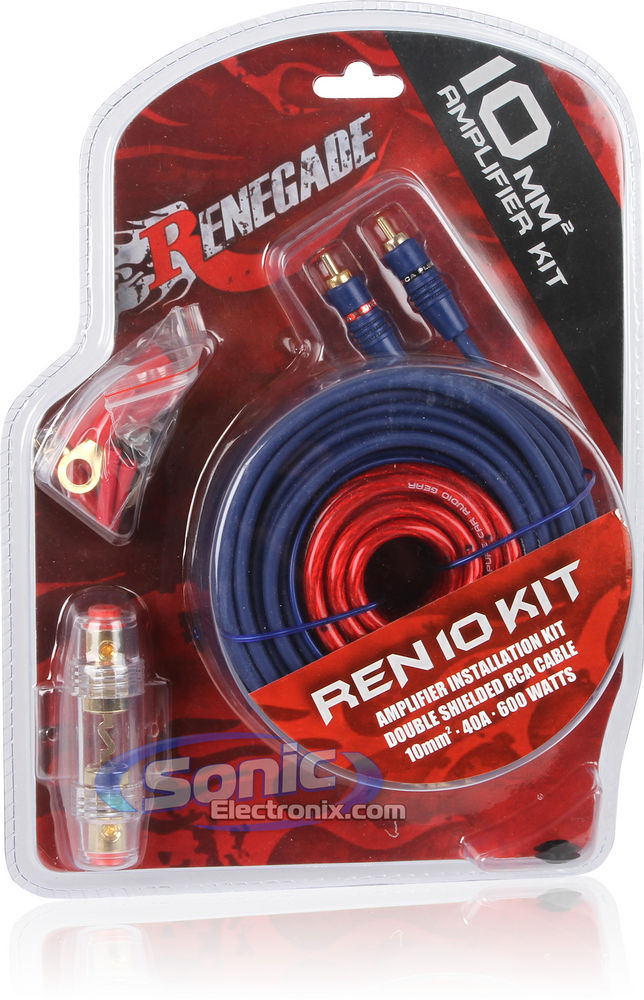

Renegade REN10KIT Features:
  • Renegade REN Series 10 MM Amplifier Kit
  • Primary wire is 10 MM, comparable to 8 AWG
  • RCA cables included
Renegade REN10KIT Includes:

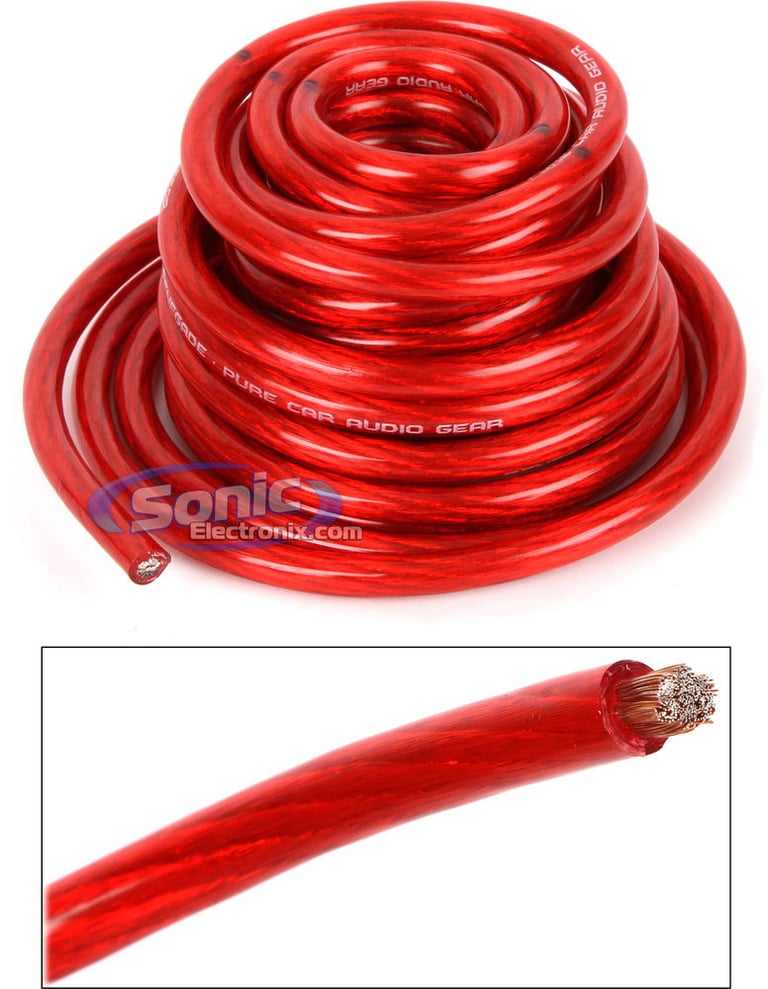

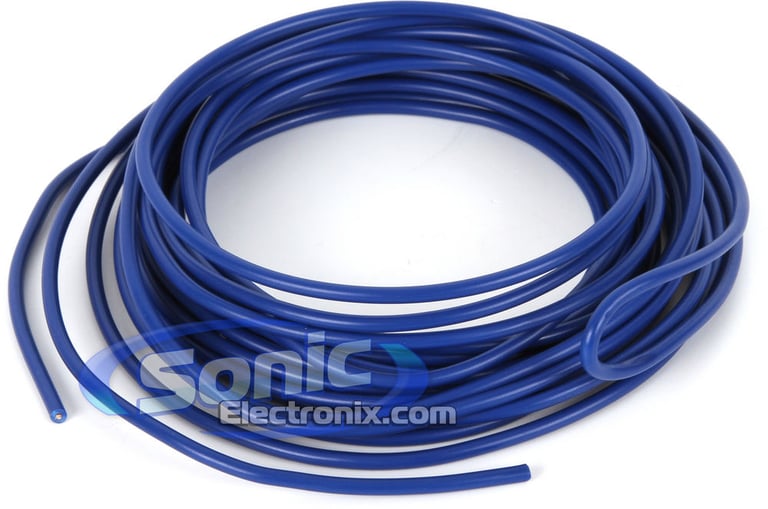

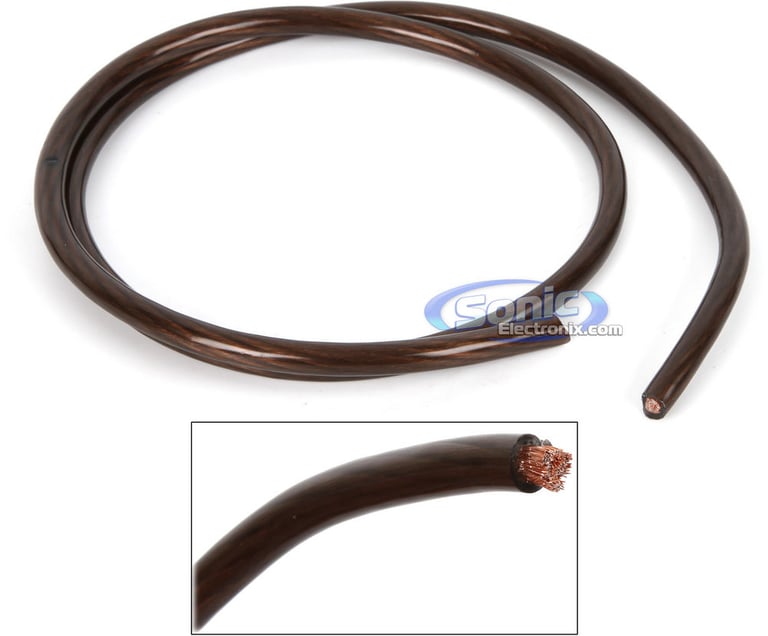

  1. 16ft. 10 MM Power cable
  2. 2-1/2 ft. 10 MM Ground cable

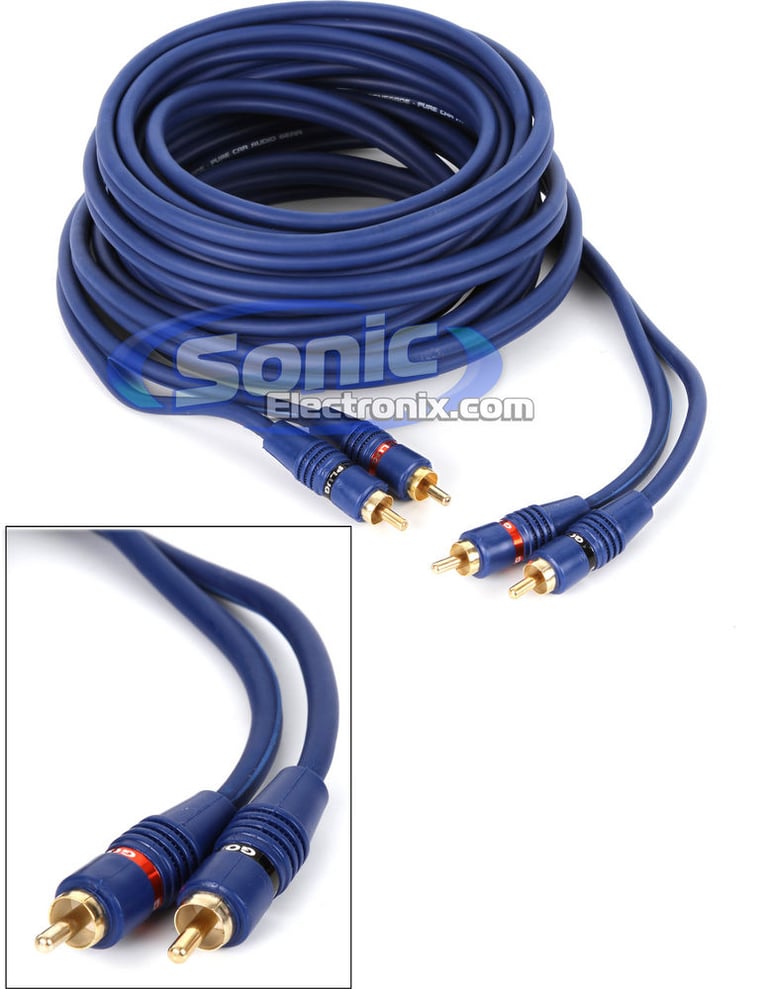

  3. 16 ft. RCA stereo cable pair, double shielded
  4. 16ft. 0.5 MM Remote Turn-On Wire

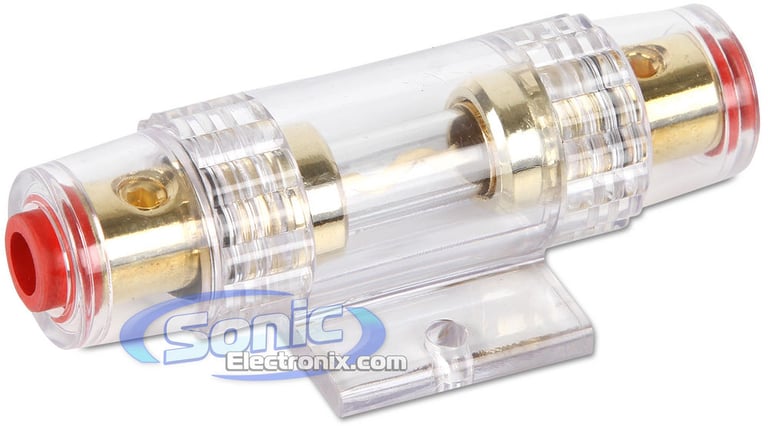

  5. 1 x AGU Fuse holder
  6. 1 x 40A Glass fuse

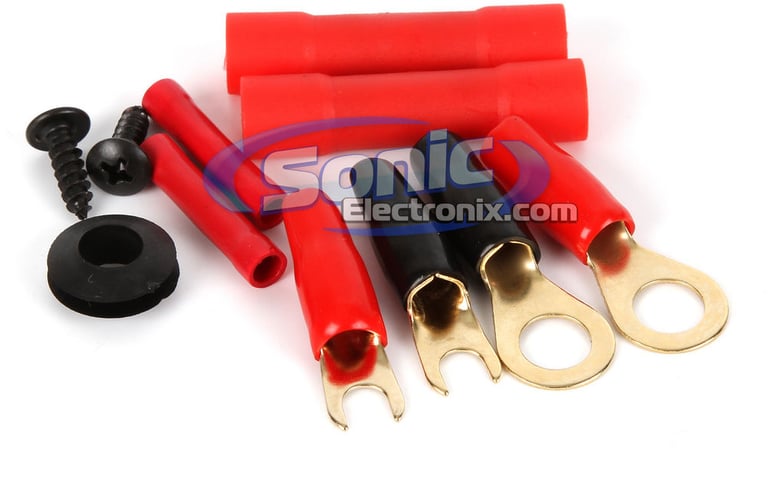

  7. Gold plated jacks and installation hardware

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(149)

$530.20

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(250)

$311.43

List price $533.42

VCW84_NDA12001_XKIT42 small

NVX VCW84v3 + NDA12001 + XKIT42

• Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
• 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(153)

$619.96

List price $791.96

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

S2-A55V_XKIT46 small

Alpine S2-A55V with Amplifier Wiring Kit

• 40 watts x 4 channel + 200 watts x 1 channel @ 4 ohm
• 60 watts x 4 channel + 300 watts x 1 channel @ 2 ohm
• Bridged: 120 watts x 2 channel @ 4 ohm + 300 watts x 1 channel @ 2 ohm
• Total RMS Power: 540 watts
• Class D 2 ohm Stable 5-Channel-Channel Amplifier

(46)

$564.94

List price $779.99

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
100 watts x 1 channel
RMS Power @ 2 ohms
200 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Peak Power Output
600 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
85 Hz
Signal-to-Noise Ratio
73 dB
Bass Boost
Selectable 0, 6, 12 dB
Remote bass/level controller
No
Fuse Rating
25A x 1
CEA-2031 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
200 watts
Total RMS Power Handling
400 watts
Peak Power Handling
400 watts
Total Peak Power Handling
810 watts
Woofer Surround
Rubber
Woofer Composition
Mica Injected Polypropylene - MIPP
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
85 dB
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
14"
Width
16-1/2"
Depth
14"
Second Width
14"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Blue
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TM601D_Vega-104

Weight:

43.45lbs

Internal SKU:

tm601d_vega104

Internal Product ID:

38827

Customer Ratings & Reviews


400W Cerwin-Vega + MTX Audio Bass Bundle thumbnail image

5 star
64%
4 star
36%
3 star
0%
2 star
0%
1 star
0%



Durability
4.6
Value
4.7
Features
4.7
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

jake 17 and bumpin

The following review is for Vega-104, which is a part of the bundle you are viewing.

these things bump like crazy.
i built a box that is 5.2 cubic ft that is split in half with 2 on each side and 2 ports 4 inch big and 20 in deep in each chamber. i have a kenwood x1r with a kenwood kac-993 deck and it bumps so hard i can barely breath i have cerwin vega component speakers all around and a kac x4r amp to those and it is in a 99 malibu and these subs are by far the loudest i have heard they compete with the cars at comps easily i have them running at 2 ohm so they are getting 1200 watts rms power they are flexin tuff

By jakefleck on August 20, 2009

26 found this helpful


Cerwin Vega 104

The following review is for Vega-104, which is a part of the bundle you are viewing.

I ordered a Cervin Vega 104 From Sonic and it sounds great. It was shipped promptly and was as described! A+

By Clyde on September 28, 2009

25 found this helpful


Update to its good

The following review is for Vega-104, which is a part of the bundle you are viewing.

I just finished building a bandpass for ONE of these subwoofers.
Its big....
The ported section is 1.2 cubic feet with a slot port about 2 inches wide by 10 inches tall by 11 inches long. The sealed section is exactly 1 cubic foot and is stuffed heavily with fill. This is where the magnet is. I know its somewhat backward, you are supposed to install the speaker so that its magnet is in the ported section for proper voice coil cooling, but I don't care.
I am pushing this subwoofer with a US Amp 800.2 in stereo mode, the left channel pushing one voice coil and the right channel pushing the other. Kicker power and ground wires. These amplifiers are highly underrated, so the sub is receiving at least 100 watts RMS to each coil, but oh well. Gain 1/3 the way up, bass boost 1/3 way up (centered at 40Hz). I went from two of these, each in 1.1 cubic feet sealed enclosures to just this one and - it - is - so - awesome...
I honestly cannot believe my ears. Its louder than when I had two in the sealed box.... JUST ONE IS deeper, much much deeper and louder. I am truly astonished. Also, the really low bass is very, very pronounced. Before, i could barely get the lift gate to my jeep cherokee to rattle, I had to push them hard. Now, everything rattles, the roof rack, doors, windows, i just can't get over this setup. I'm now building an identical box for the other.
This speaker is made for a bandpass with these or similar specs. All the other enclosures are nothing but compromises. Expect for midbass(I don't want that at all) this one hits every note and boy is it loud for being only 200 watts! Get two for a bandpass, give them about 200 watts RMS to each, and you'll be really happy! Hope this was helpful!

By oldskewl on May 23, 2009

23 found this helpful


good

The following review is for Vega-104, which is a part of the bundle you are viewing.

I recommend this because they do get loud in the right enclosure, with enough power. I'm feeding each voice coil about 75 watts RMS and it sound nice.
Pro: handles descent power, wiring possibilities with an additional CV DVC, can perform well in small enclosures and sound clean and deep in larger ones. And it looks cool!

Summary: Get at least two and feed them a true 450~500 watts RMS in a medium sealed enclosure and you'll love them

By Kyle on April 10, 2009

23 found this helpful


its good.

The following review is for Vega-104, which is a part of the bundle you are viewing.

I have had this subwoofer in three different enclosure, manufacturer specs for sealed enclosure (.7cubic feet), for ported (1 cubic feet) and my own sealed(1.1 cubic foot) and mine sounds the best. The 1 cubic foot ported is loudest in its tuned frequency, but everything else is poor. Everything out of that set up sounds horrible. The.7cubic foot small sealed sounds pretty good but doesn't go low at all. BUT, my 1.1 sealed box gets loud, not as loud as the ported though. Mine goes lower than everything else and sounds the cleanest, but with about 1/3 less power handling. 150 watts rms in my box will push one to its limits without distortion. The .7 cubic foot one is a bit louder than mine, but its a trade off. I like the bass to go lower and i am willing to trade off a little spl to do so. I recommend this speaker cause its a DVC that can come with each coil in 2 ohms or 4 so it allows you to do more with it. Looks great in my opinion! I oprefer this one over kickers entry level subs, including the 12 incher. Yes, I prefer this ten over kickers entry level 12. 50 more watts RMS and its looks awesome

By oldskewl on May 19, 2009

23 found this helpful


Cerwin Vega Mobile 10 Inch Woofer

The following review is for Vega-104, which is a part of the bundle you are viewing.

I had this sub installed into my Vw Polo 6. I used a JVC Amplifier on bridge mode 120 rms to power this 200 rms sub, it sounded ok. I recently installed a starsound amplifier on bridge mode which equates to 350 rms at 6 ohms. These woofers now sound incredible and play like a 12 inch woofer. The bass gets deeper as you turn up the volume. There is no distortion, just deeper bass as you turn up the volume. I would strongly recommend this product. Get the right Amplifier and get a sealed box. You will not be disappointed. These subs can handle a powerful amplifier. I have my amplifier turned full and this sub plays strong.

By Chase on October 8, 2013

22 found this helpful


Great Product

The following review is for Vega-104, which is a part of the bundle you are viewing.

I had previously ordered the Cerwin Vega 10" Subs and fully Enjoy them. I had their predecessors and realy enjoyed them so decided to give Cerwin-Vega another shot, and couldn't be happier.

I have two of theses 10's in a downward sealed box in my extra cab Silverado. Even though they are under the backseat in a custom box, they put out some serious SPL.
These 10's are wired straight out from a 4 channel amp bridged amp. 2 channels are bridged together putting out probably 300 watts on channels 1+2(bridged), and channel 3+4(bridged). Sound GREAT

By Patrick on June 10, 2010

21 found this helpful


Great!

The following review is for Vega-104, which is a part of the bundle you are viewing.

Full recommendation! Great deal for great price!

By Andrzej on September 19, 2009

21 found this helpful


AMP works great

The following review is for TM601D, which is a part of the bundle you are viewing.

We put this amp in a Jeep Wrangler that frequently has the top off and is in sand and dirty areas. The amp stays nice and cool mounted under the back seat and work great in conjunction with a small kicker sub that replaced the factory sub in the factory arm rest enclosure. Our Jeep thumps well with this amp and a single 6" kicker sub. Plans to add a second sub next to the amp in the back to get even more. VERY pleased!!

By Zach and Amy on December 18, 2012

20 found this helpful


Great product

The following review is for REN10KIT, which is a part of the bundle you are viewing.

This product came with everything i needed except speaker wire. but it is a great kit.

By hubey on September 5, 2011

1 found this helpful




07CVR104 small

Kicker CVR104 (07CVR104)

10" Dual 4 ohm CompVR Series Car Subwoofer

(60)

$109.99

List price $149.95

MS-RA210KCW small

Fusion MS-RA210KCW Marine audio package

MS-RA210 Digital Media Receiver and Two 6.5" Marine Speakers (Classic - White)

$549.99

List price $719.99

RM 6.2 small

DLS Reference RM6.2

6-1/2" 2-way Component System (Reference RM 62 -- 10-21406)

(1)

$279.95

List price $339.95

H1500.1D, XKIT02 small

Cerwin-Vega H1500.1D with Amplifier Wiring Kit

1500W RMS Digital Monoblock Class D Amplifier

(42)

$504.98

List price $671.98

D10K small

Massive Audio Drago D10K

10000W Max (5000W RMS) Drago Series Class D 1-Ohm Stable Monoblock Amplifier

$809.96

List price $1714.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1996 Mazda 929

1980 Ford LTD Crown

1990 Toyota Pickup

1993 Mazda B2600

2005 Cadillac Escalade EXT

2023 Chevrolet Express 3500

2006 Subaru Baja

2012 Kia Forte

1987 Chevrolet V30 Pickup

1975 Mercury Monarch

Vehicle
Store
Delete

2005 Harley Davidson FXSTSI Springer Softail

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
