600W RE Audio + Image Dynamics Complete Bass Bundle

2 RE Audio SRX12D4 12" SRX Series Subs + Image Dynamics i2600 2-Chan. Amp + Amp Kit + Enclosure

RE Audio
Shop all RE Audio
EXCLUSIVE
Product videos
highlight-star-icon

Pair of 12" Dual 4 ohm SRX Series Subwoofers • 600W RMS • 2-Channel Class AB i Series Car Amplifier • MOSFET Power Supply • Variable Bass Boost • Variable Low-Pass Filter • Complete 4 Gauge Amp Kit • 12" Dual Ported Subwoofer Enclosure

Learn more about the 2-srx12d4_i2600

We apologize

This item has been discontinued


Loading...
70-2003 main

Metra 70-2003 Wiring Harness

Install a new car stereo in select 1998-2008 vehicles from Chevrolet, GMC, Kia

33
99-3413 main

Metra 99-3413 Dash Kit

Install a new Single-DIN car stereo in select 1998-2002 Corolla and Prizm

1
-12.50%

$27.99

List price $31.99

Pioneer MVH-S720BHS

Single DIN Digital Media Receiver with Bluetooth, HD Radio and SiriusXM Ready

4
-13.64%

$189.99

List price $220.00

Limited time!

JBL Stage2 624 (STAGE2624)

480W Peak (80W RMS) 6.5" Stage2 Series 2 Way Coaxial 4-ohm Speakers

7
-42.02%

$57.95

List price $99.95

Product Highlights


Pair of 12" Dual 4 ohm SRX Series Subwoofers • 600W RMS • 2-Channel Class AB i Series Car Amplifier • MOSFET Power Supply • Variable Bass Boost • Variable Low-Pass Filter • Complete 4 Gauge Amp Kit • 12" Dual Ported Subwoofer Enclosure

Description


RE Audio brand icon

Authorized dealer

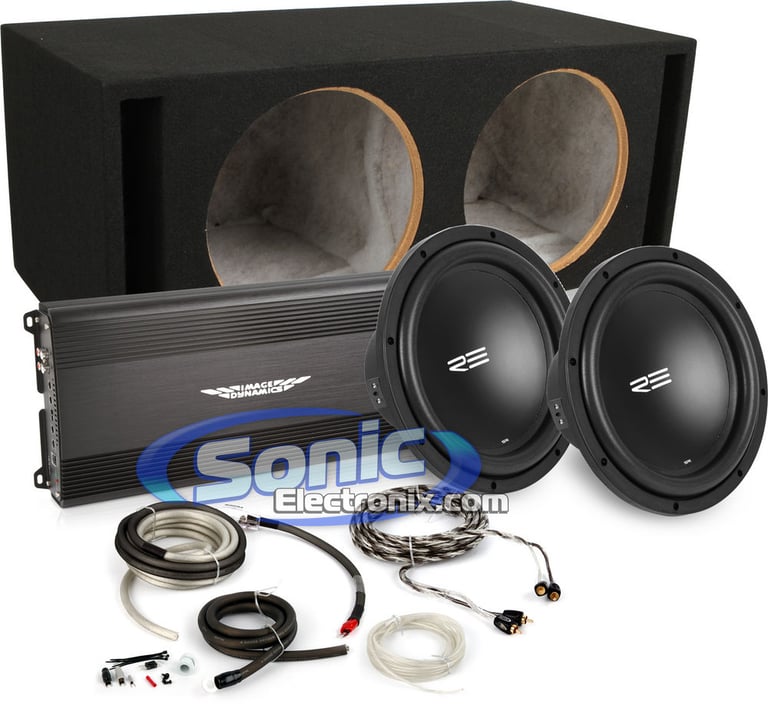

RE Audio and Image Dynamics Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a Image Dynamics i2600 amplifier along with a pair 12" SRX Series RE Audio Subwoofers. This excellent bass package pushes 600 watts of clean, continuous RMS power. The RE Audio Subwoofers each have a Dual 4 Ohm Voice Coil; meant to be wired in series/parallel, to a final impedance of 4 Ohms at the Bridged impedance. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

These RE Audio SRX12D4 12" SRX series subwoofers require 600 watts of RMS power. The included Image Dynamics i2600 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a complete 4 gauge amplifier kit, which is perfect to supply power to the amplifier. Also included will be a dual 12" ported enclosure, this enclosure is made with durable MDF wood and has been pre-lined with poly-fill. The ported design will provide a deeper and fuller bass. With the RE Audio subwoofers, Image Dynamics amplifier, ported enclosure, and EFX amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

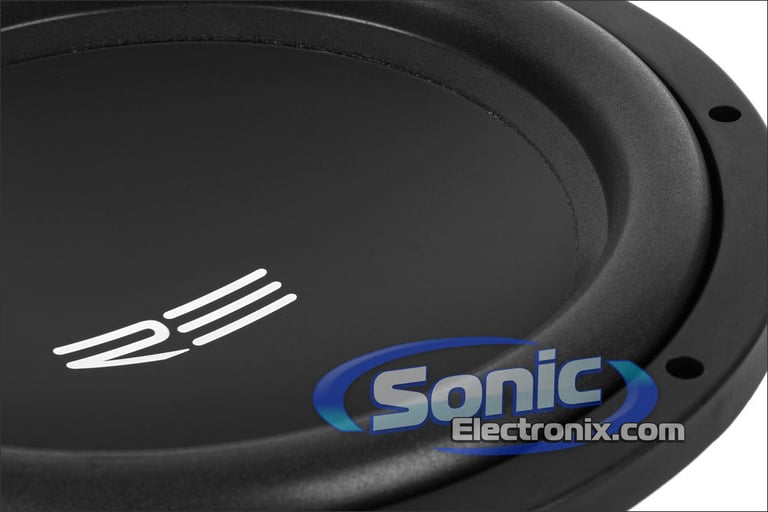

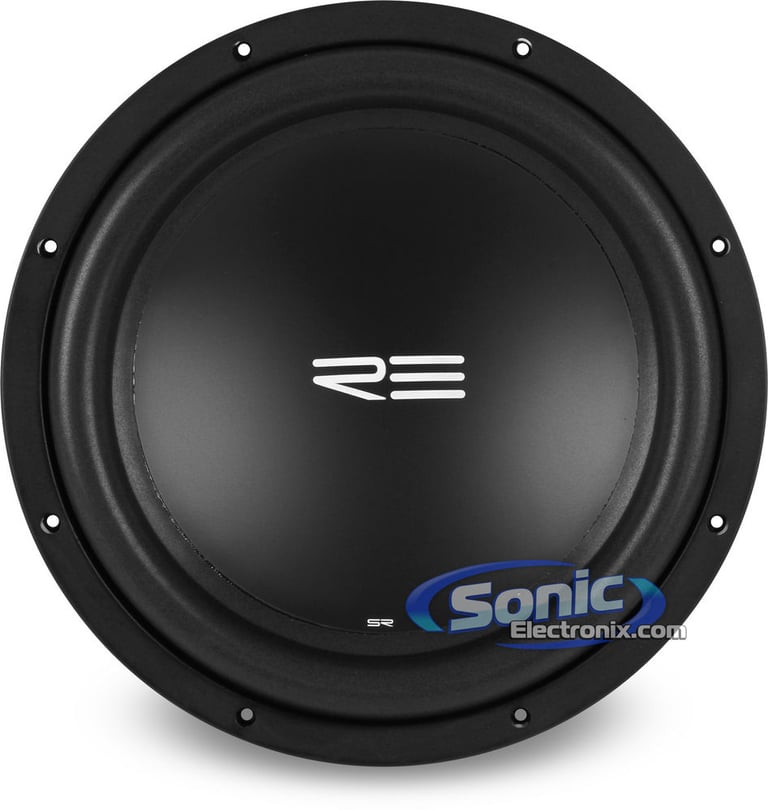

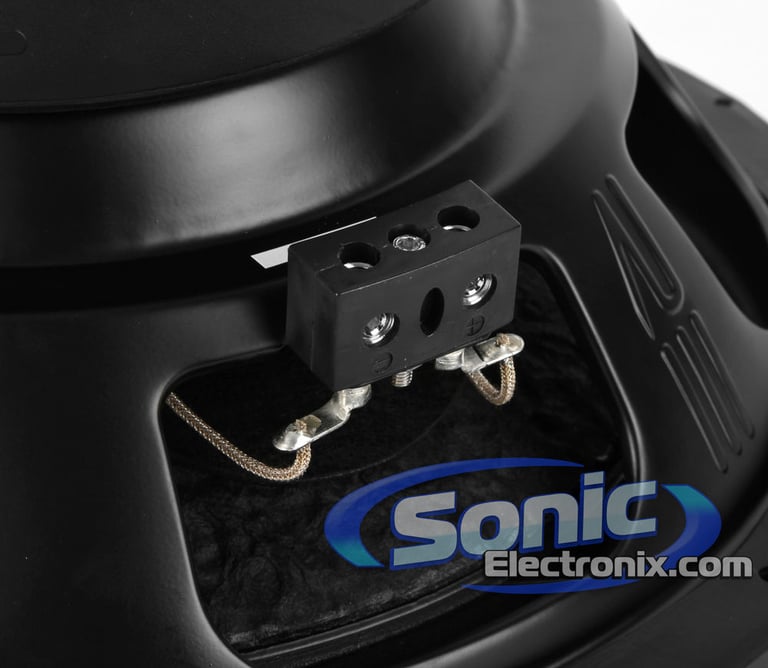

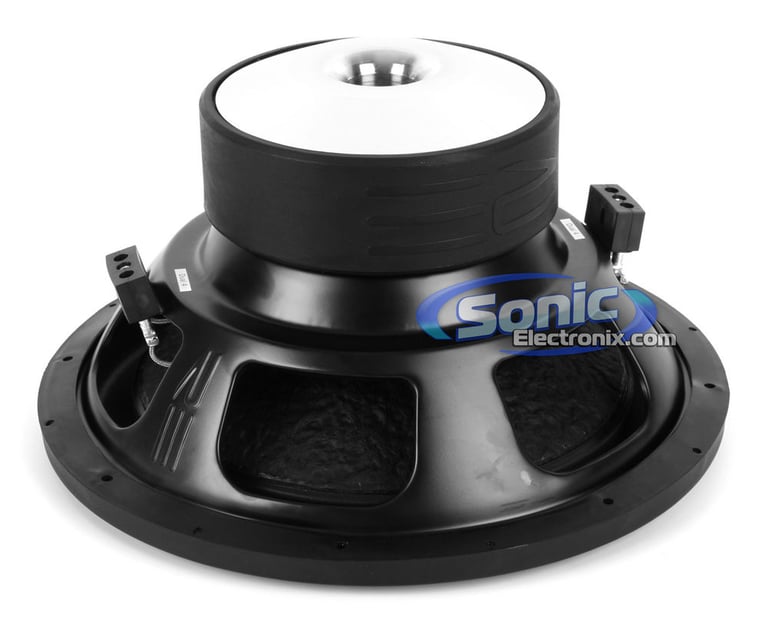

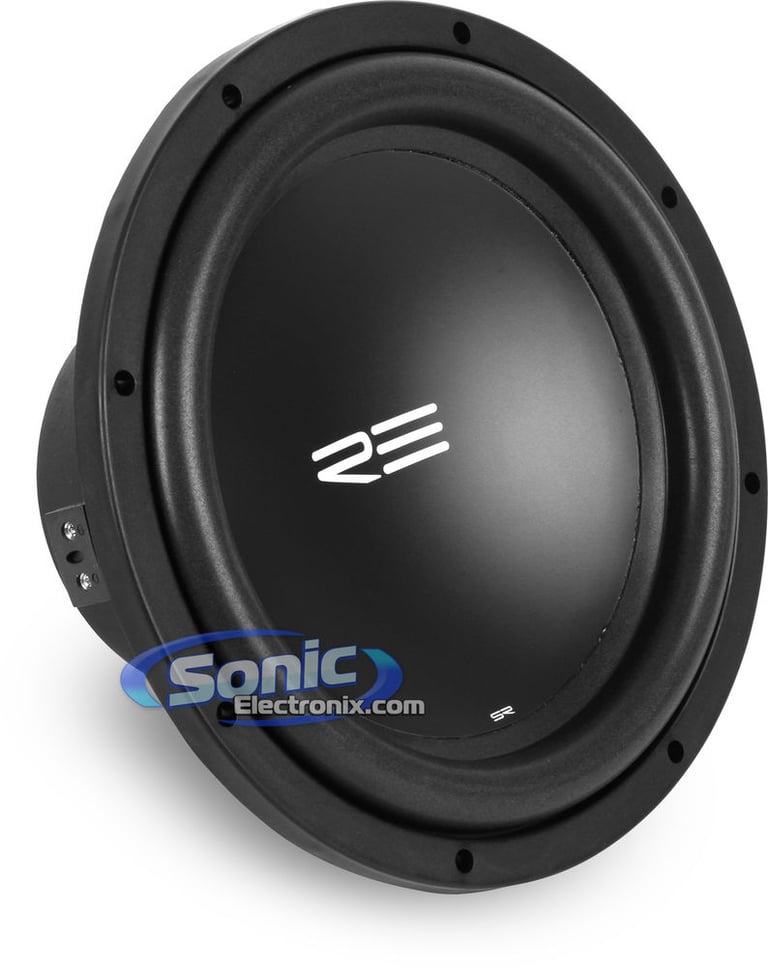

RE Audio SRX12D4 Features:
  • Pair of 12" Dual 4 ohm SRX Series Subwoofers
  • Power Handling:
    • RMS: 600 watts total / 300 watts each
  • Impedance: Dual 4 ohm
  • Kraft pulp woofer cone
  • Rubber surround
  • Pressed steel basket
  • FEA optimized motor structure
  • Linear spiders
  • Foam gasket
  • 4-Layer copper voice coil
  • Double stacked magnets
  • Also available in dual 2 ohm: RE Audio SRX12D2
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
SRX 10" T/S Parameters:
  • Electrical Q Value (Qes): 0.41
  • Mechanical Q Value (Qms): 4.99
  • Total Speaker Q Value (Qts): 0.38
  • Free Air Resonance (Fs): 23.6 Hz
  • Equivalent Compliance (Vas): 85 liters
  • One-Way, Linear Excursion (Xmax): 18 mm
  • Efficiency (SPL 1W/1m): 86.2 dB SPL
  • Effective Piston Area (Sd): 480 cm^2
  • DC Resistance (Re): 1.8 ohm
  • Nominal Impedance (Znom): Dual 4 ohm
  • Thermal Power Handling (Pe): 300 W
  • Force Factor (Bl): 14.35

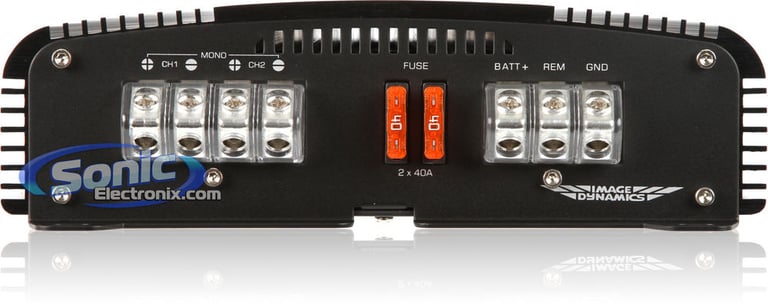

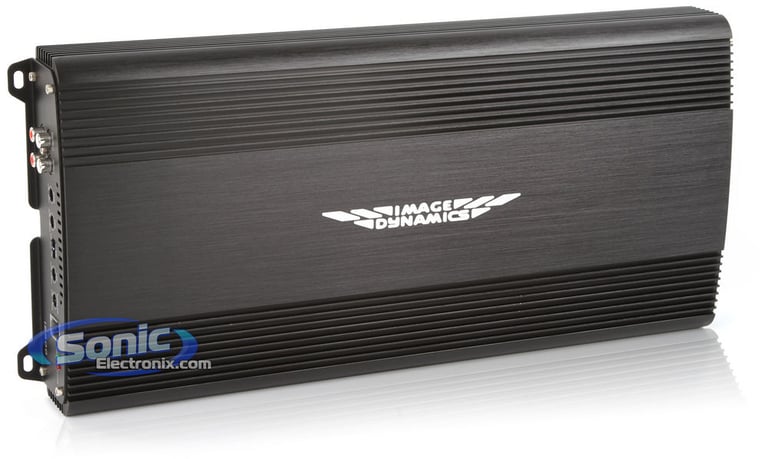

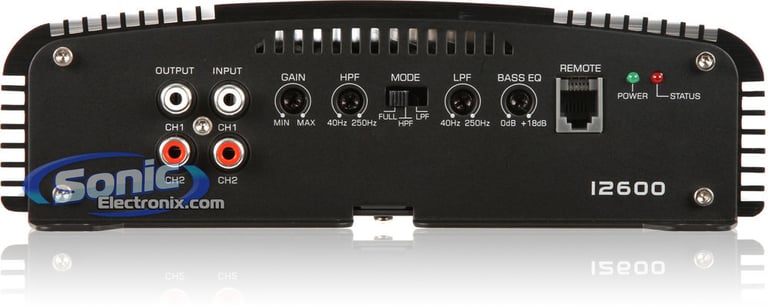

Image Dynamics i2600 Features:
  • 2-Channel Class AB i Series Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 2 chan.
    • 2 ohm: 300 watts x 2 chan.
    • Bridged, 4 ohm: 600 watts x 1 chan.
  • CEA Power Rating @ 14.4V:
    • 2 ohm: 325 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED status indicator
  • Fully adjustable bass EQ (0-18 dB @ 40 Hz)
  • Soft delay remote turn on/off circuit to eliminate pops and clicks
  • 2/1 Channel operation
  • Low level line inputs and outputs
  • 3-Way System Protection circuitry (thermal, DC, and speaker short protection)
  • Remote bass level sold separately
  • Heavy duty aluminum finned heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity: 0.5V-4.0V
  • Variable High-Pass Filter (40-250 Hz)
  • Variable Low-Pass Filter (40-250 Hz)
  • Crossover Slope: 12 dB
  • Damping Factor: >150
  • THD (Total Harmonic Distortion): 0.5%
  • Frequency Response: 20-22,000 Hz
  • Signal-to-Noise Ratio: >94 dB
  • Fuse Rating: 2 x 40 amp
  • Dimensions: 16-1/2"L x 8"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation.
  • 1-year SonicElectronix.com warranty

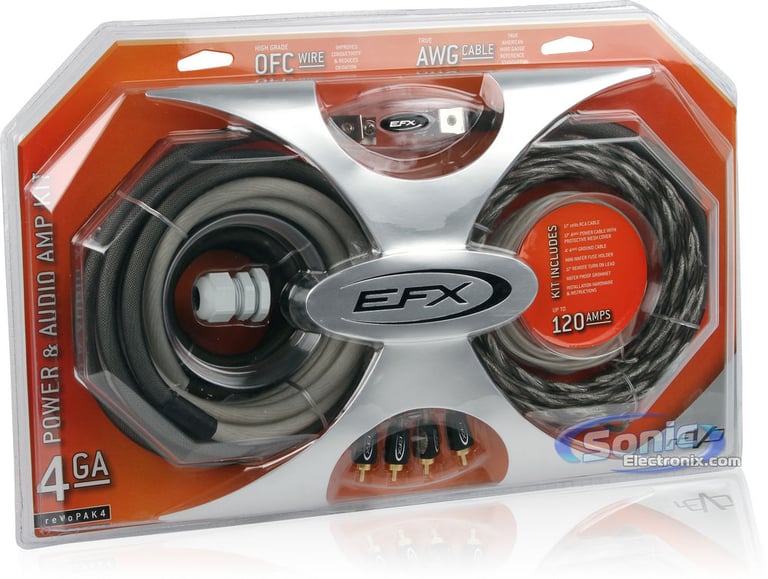

  • EFX reVoPAK4 Features:
    • 4 Gauge Single Amplifier Power and Audio Kit
    • FLUX Power and ground wire made with pure Oxygen Free Copper
    • Pre-terminated with ring terminals for easy installation
    • Durable nylon overbraid for extra security

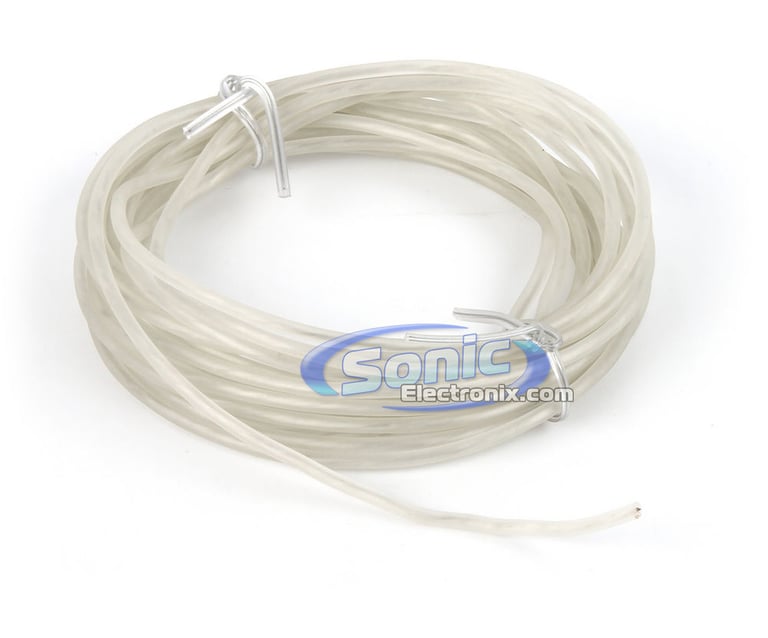

    • 17' Remote turn-on lead

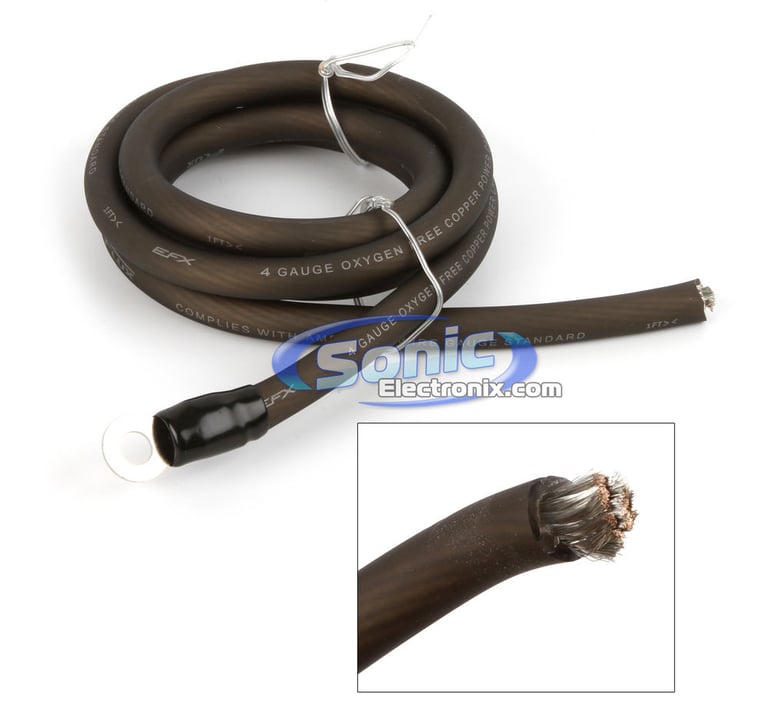

    • 4' 4 AWG Ground cable

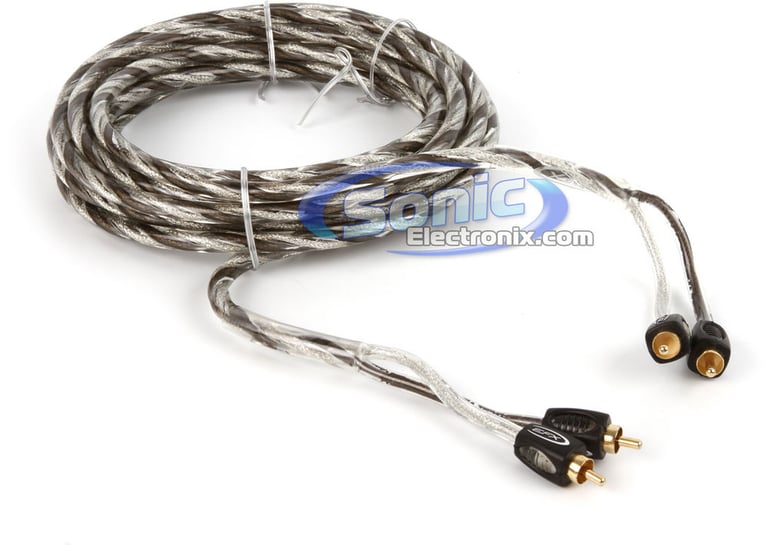

    • 17' reVo RCA Cable

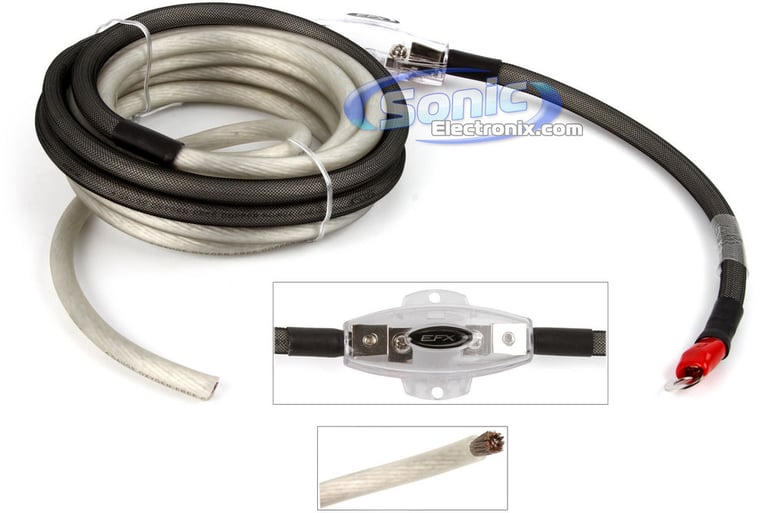

    • 17' 4 AWG Power cable with mesh cover

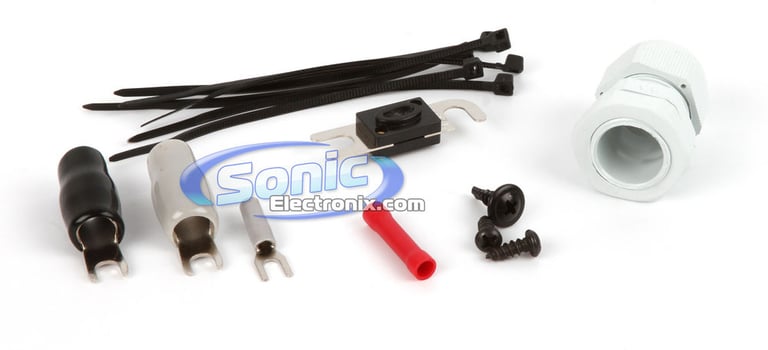

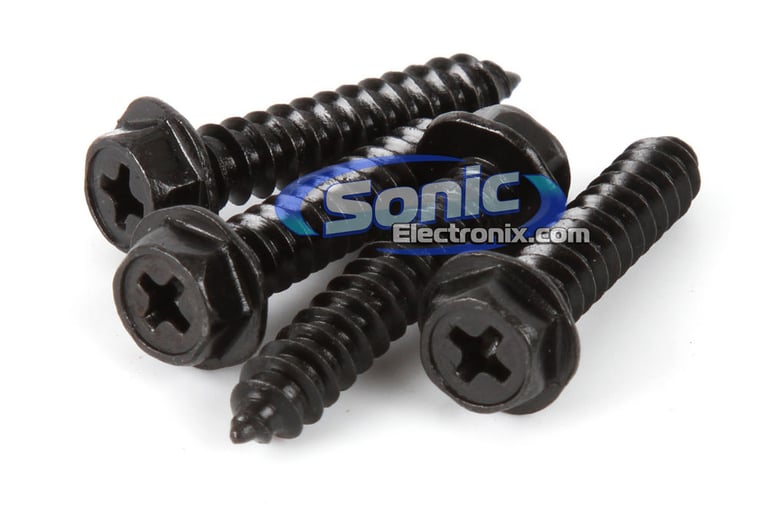

    • Hardware pack
    • Mini wafer fuse holder
    • Water proof grommet
    • Authorized Internet Dealer
    • 1-year Manufacturer's warranty

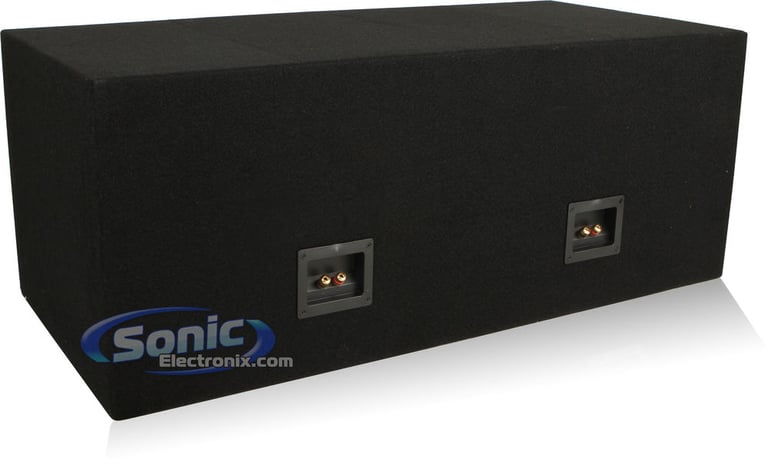

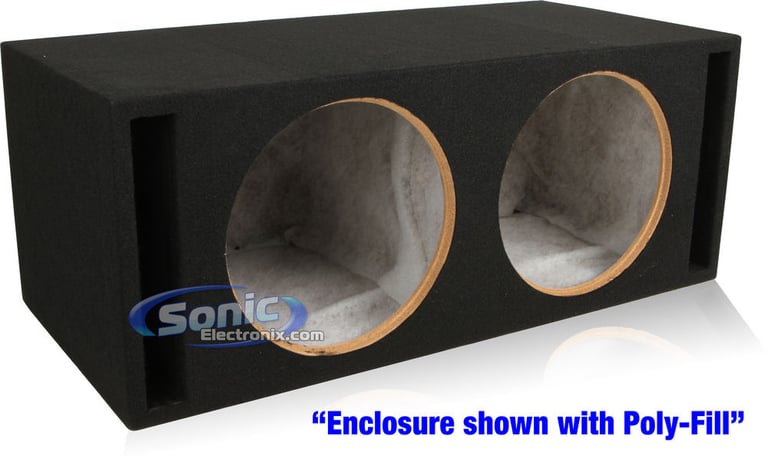

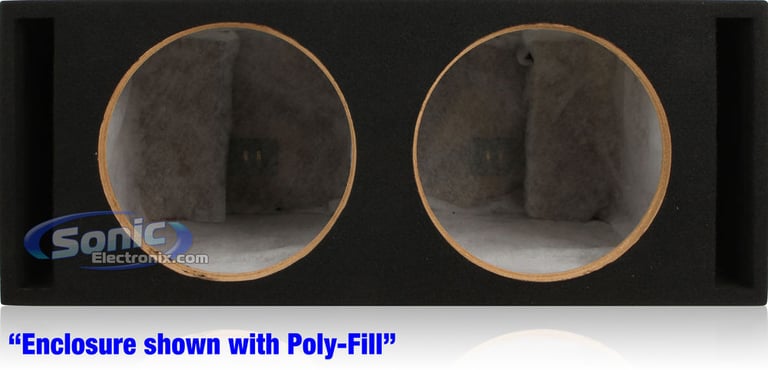

    Absolute VEGD12 Features:
    • 12" Dual Ported Rectangle Subwoofer Enclosure
    • 3/4" MDF (Medium Density Fiberboard) construction
    • Encased in durable black carpeting
    • Gold binding post terminals
    • Banana clip ready
    • Tuned Ported Slots ( tuned at 45Hz to optimize Bass Response ) L-Shaped
    • Subwoofer mounting depth: 15-1/4"
    • Subwoofer cutout diameter: 11-1/4"
    • Box volume: 1.635 cubic feet (per chamber)
    • Total box volume: 3.27 cubic feet
    • Port volume: 0.16 cubic feet (per port)
    • Dimensions: 16"D x 34"W x 13-1/2"H
    • Authorized Internet Dealer
    • 1-year Manufacturer's warranty

    Loading...
    Limited time!
    46CSC654 main

    Kicker CSC65 (46CSC654)

    600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

    123
    -33.36%

    $79.96

    List price $119.99

    UTE-73BT main

    Alpine UTE-73BT

    Single DIN Digital Media Receiver with Bluetooth

    44
    -16.69%

    $149.95

    List price $180.00

    Limited time!
    Club 622 main

    JBL Club 622

    360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

    5
    -28.58%

    $99.95

    List price $139.95

    43DSC6504 main

    Kicker DSC650 (43DSC6504)

    480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

    28
    -10.53%

    $84.99

    List price $94.99

    CV15BT main

    Cerwin-Vega CV15BT

    Single Din Digital Media Receiver with Bluetooth

    3
    DB652 main

    Polk Audio DB652 (DB 652)

    600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

    12
    -9.16%

    $109.00

    List price $119.99

    MPK 163.3 main

    Hertz MPK163.3

    600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

    2
    -14.89%

    $999.99

    List price $1175.00

    PNW-65CS2 main

    AudioControl PNW-65CS2

    250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

    4
    -5.90%

    $319.00

    List price $339.00

    XED62 main

    Cerwin-Vega XED62

    600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

    15
    -16.67%

    $49.99

    List price $59.99

    NSP65 main

    NVX NSP65

    540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

    93
    -35.19%

    $69.99

    List price $107.99


    Best selling similar products

    NPKG212 small

    NVX NPKG212 Dual 12" Bass Package

    • 12" Loaded Dual Subwoofer Enclosure with Amplifier
    • 500 watts RMS
    • Class D Amplifier
    • Variable Bass Boost
    • Speaker-Level Inputs
    • Wired Remote Bass Level Control

    (11)

    $374.99

    List price $419.99

    MB210SP small

    MTX Audio Magnum MB210SP

    • 10" Amplified Loaded Subwoofer System
    • 400 watts RMS
    • Built-In Class D amplifier
    • Variable bass boost
    • Speaker-level inputs

    (65)

    $269.95

    List price $299.95

    F-150EX-09A small

    MTX F-150EX-09A

    • 10" Amplified Loaded Subwoofer System
    • 250 watts RMS
    • Built-In Class D amplifier
    • Speaker-level inputs
    • External bass control

    $719.95

    List price $637.95

    JBLBassPro 12 small

    JBL BassPro 12

    • 12" Amplified Loaded Subwoofer System
    • 150 watts RMS
    • Built-In Class D Amplifier
    • Variable Bass Boost
    • Speaker-Level Inputs

    (1)

    $364.95

    List price $419.95

    MBQBRO-302 small

    MB Quart MBQBRO-302

    • 12" Amplified Loaded Subwoofer System
    • 400 watts peak
    • Built-In class D amplifier
    • Variable bass boost
    • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

    $679.99

    List price $899.99

    RTP8A small

    MTX Audio RTP8A

    • 8" Amplified Loaded Subwoofer System
    • 120 watts RMS (360 watts Peak)
    • Built-In amplifier
    • Variable bass boost
    • Speaker-Level Inputs
    • EBC wired remote bass level control

    (8)

    $199.95

    List price $219.95

    TNP212D2 small

    MTX Audio TNP212D2

    • 12" Amplified Loaded Subwoofer System
    • 400 watts RMS
    MTX TN250/1 amplifier included
    • Selectable bass boost
    • Speaker-level (high-level) inputs (adapter included)
    • Wired remote bass level control

    (156)

    $369.95

    List price $399.95

    W10S4_2, BXD3K, BAK42BK small

    (2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

    • 750W Max
    • 250W RMS
    • Polypropylene-Mica cone
    • High-excursion poly-foam surround
    • High-strength custom steel frame
    • Progressive Wavelit Ribs (P.W.R.) cone design

    (82)

    $364.88

    List price $489.98

    QB10SPA small

    NVX QB10SPA

    • 10" Amplified Loaded Subwoofer System
    • 350 watts RMS
    • Built-In Class D Amplifier
    • Variable Bass Boost
    • Speaker-Level Inputs
    • Wired Remote Bass Level Control

    $179.99

    List price $275.98

    Specifications & Details


    Full Range Amplifier Power Specifications
    RMS Power @ 4 ohms
    150 watts x 2 channel
    RMS Power @ 2 ohms
    300 watts x 2 channel
    RMS Power @ 1 ohm
    Not Stable
    Bridged RMS Power
    600 watts x 1 channel
    Amplifier Specifications
    Amplifier Class
    A/B
    Number of Channels
    2-Channel
    Maximum Input Gauge Size
    4 AWG
    THD at Rated RMS Power
    0.5%
    Speaker Level Inputs
    No
    Preamp Outputs
    1 pair
    Built-in Crossover
    Low-Pass (LP)
    High-Pass (HP)
    High-Pass Crossover Frequency
    40 - 250 Hz
    Low-Pass Crossover Frequency
    40 - 250 Hz
    Signal-to-Noise Ratio
    >94 dB
    Bass Boost
    0 - 18 dB
    Remote bass/level controller
    Optional (Accessory required and sold separately)
    Fuse Rating
    2A x 40
    CEA-2031 Compliant
    No
    Subwoofer Specifications
    Subwoofer Size
    12"
    RMS Power Handling
    300 watts
    Total RMS Power Handling
    600 watts
    Woofer Surround
    Rubber
    Woofer Composition
    Kraft Pulp
    Voice Coil(s)
    Dual
    Impedance (Per Voice Coil)
    4 ohm
    Enclosure Specifications
    Box Type
    Ported
    Number of Subwoofers
    2
    Box Style/Shape
    Square/Rectangle
    Height
    13-1/2"
    Width
    34"
    Depth
    16"
    Second Width
    16"
    Wood Thickness
    3/4"
    Number of Terminals
    2
    Terminal Type
    Binding posts (banana clip ready)
    Box Exterior Color
    Black
    Box Finish
    Carpet
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    Model Number:

    2-SRX12D4_I2600

    Weight:

    103.15lbs

    Internal SKU:

    2-srx12d4_i2600

    Internal Product ID:

    39272

    Product and How-to Videos


    Customer Ratings & Reviews


    600W RE Audio + Image Dynamics Complete Bass Bundle thumbnail image

    5 star
    72%
    4 star
    21%
    3 star
    3%
    2 star
    0%
    1 star
    3%



    Durability
    4.4
    Value
    4.6
    Features
    4.4
    Design
    4.7
    Usability
    4.7

    Customer Reviews

    Sort by:

    Loading...

    Love it

    The following review is for SCXv2-12d4, which is a part of the bundle you are viewing.

    I've had this in my Access Cab Tacoma for 6 months now paired with a 500w amp in a sealed box. Absolutely love it. Handles a wide range of music well, hits hard, deep, and clear (within reason). Compliments my JL speaker setup perfectly, not over the top, just perfectly balanced.

    It has been hit by water bottles, dog balls etc while running with zero damage.

    In a larger vehicle it may not be strong enough, but in a small truck cab this thing is absolutely perfect.

    By Jay on October 15, 2014

    37 found this helpful


    Crazy Loud

    The following review is for SCXv2-12d4, which is a part of the bundle you are viewing.

    So i have this hooked up to a Hifonics HFI 1000.1 pushing just 475watts have crazy spl can hear it 3 to 4 blocks away this sub can take a beating very happy makes my outside mirrors flex

    By Jerdawg on February 8, 2015

    35 found this helpful


    RE Audio FTW

    The following review is for SCXv2-12d4, which is a part of the bundle you are viewing.

    I have to say that this is my first RE Audio product. I am extremely pleased with the sound quality. I am running a 500 watt alpine mono amp and a 1.25 cubic ft sealed enclosure. The excursion capabilities are ridiculous. Good bang for your buck.

    By Ed on April 17, 2015

    31 found this helpful


    Great subs!!

    The following review is for SCXv2-12d4, which is a part of the bundle you are viewing.

    Built a box and installed these subs in my '14 Camry. They sound great! Ordered a bigger amp because the one I have doesn't help these subs reach their full potential, and I want all that they have.

    By Dane on September 5, 2015 Checkmark Icon Verified purchase

    19 found this helpful


    Works Well

    The following review is for SCXv2-12d4, which is a part of the bundle you are viewing.

    I bought this sub to replace a blown version 1 Image dynamics Idq 12 a second hand sub that served me well for 5+ years. The install was straight forward. I wish the sub came with some mounting hardware. As far as performance compared to my old image dynamics this sub holds it own. It plays every type of music i throw at it effortlessly. The bass note is warm and provides a very tight and punchy bass note in my sealed box. I am running an alpine monoblock with 300 w rms and this speaker can be very loud if you want it to be. Could definitely handle more power without distortion. Overall i'm impressed with the value of this speaker and the over all fit and finish is nice.

    By Rich on September 25, 2015

    16 found this helpful


    great buy still performs like the best

    The following review is for SCXv2-12d4, which is a part of the bundle you are viewing.

    These subs bump and sound great. Put them in my boat with a 1000 watt crossfire d class and they seem to handle the punishment.

    By jred delta 209 on September 18, 2015

    16 found this helpful


    clean old school sound

    The following review is for I2600, which is a part of the bundle you are viewing.

    this amp looks and sounds american made! inside looks like an oldschool PPI and definitely sounds like one. i have it on all 4 polk audio 6.5" at 2 ohms per channel in my 2002 40th annv. Pontiac Grand Prix GTP. no issues at all. sounds much better than factory Bose. no highs no lows must be bose! working on my 2002 trans am now! great value for the price!

    By Pontiac Man on August 25, 2013

    20 found this helpful


    Awesome subwoofer Awesome price

    The following review is for SCXv2-12d4, which is a part of the bundle you are viewing.

    I have owned many subwoofers and this RE audio SCX 12" is by far the best! The X-max alone puts this subwoofer in a class that costs almost double from other manufacturers. The sound quality is amazing. I would definitely recommend this subwoofer to anyone who is looking for an awesome sound at a good price. I have the 12" SCX in a 1.6cu.ft. vent style port tuned to 33hz and I am in heaven with its sound quality.

    By Ohmega1080 on January 5, 2016

    14 found this helpful


    Hard Hitters

    The following review is for SCXv2-12d4, which is a part of the bundle you are viewing.

    almost a year since I ordered these and they are still hitting hard as they were the day I installed them in my car. I'm going to upgrade to the 15's once I get my S.U.V . Great Speakers R.E Audio

    By Joseph on January 20, 2017

    13 found this helpful


    Decent subs for the price

    The following review is for SCXv2-12d4, which is a part of the bundle you are viewing.

    Theses subs are decent subs for price. I bought the 12's for a sealed box in my dodge ram 1500. And they do the job well and don't really have any complaints so far but wouldn't run anymore then the 450 rms power tho. And a side note these are re audio's only sub that is made in China.

    By Outcast432 on March 18, 2016

    12 found this helpful




    44L7S152, 15SQKV, FR4000.1, BAK42 small

    Kicker L7S152 15" Solobaric L7S Car Subwoofer+Vented Box+Mono Amplifier+Amp Kit

    2000W 15" Solo-Baric L7 Series Dual 2 ohm Car Subwoofer + Vented Enclosure + Monoblock Amplifier & 4 Gauge Amp kit Package

    $596.99

    List price $814.87

    SXV300V1,DDX9705S-2 small

    Kenwood DDX9705S Stereo + SiriusXM Tuner

    Double DIN Bluetooth In-Dash DVD/CD/AM/FM Car Stereo Receiver w/ Apple CarPlay, Android Auto

    (168)

    $469.94

    List price $839.98

    Related Searches


    Save up to 10 different vehicles in your garage
    Vehicle
    Store
    Delete

    2001 Chevrolet Prizm

    1994 BMW 740i

    2008 Toyota Sienna

    2011 Volvo S40

    2011 MINI Cooper

    2020 Ford Escape

    2007 Jeep Commander

    2015 Subaru Legacy

    2017 Dodge Durango

    1997 BMW 328is

    Vehicle
    Store
    Delete

    2008 Harley Davidson FXD Dyna Super Glide

    Vehicle
    Store
    Delete

    2013 Can-Am Commander 1000 LTD

    Add vehicle Clear all vehicles
    Where to find vehicle info
    Are you sure you want to clear your garage?
    This action cannot be undone. Confirm
    This page was not designed for products.
    If you continue, you will be redirected to a category customized for your vehicle. Continue
    Loading...
    Identify your vehicle and submodel details
    • Owner's manual
    • Vehicle's insurance card
    • Vehicle registration
    • Vehicle produced after 2005: Inside driver's side door
    • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
    Car Info Side Door Icon
    Vehicle Registration Icon
    Vehicle Insurance Icon

    Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

    • You see only parts engineered for your exact vehicle
    • You avoid incompatible radios, speakers, or wiring
    • Installation is smoother, faster, and frustration-free
    • You get the correct accessories the first time

    Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
