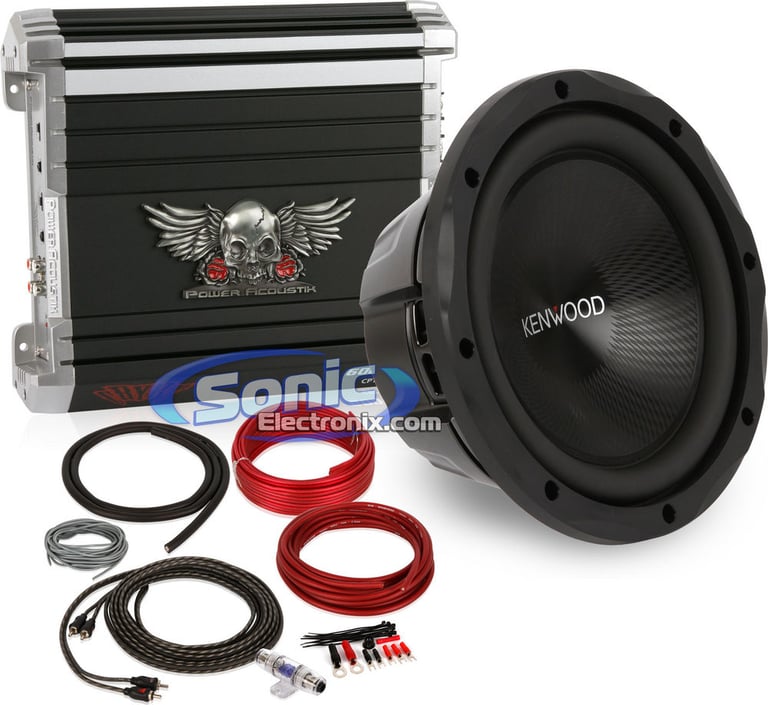

1000W Kenwood Subwoofer + Power Acoustik Bass Bundle

Kenwood KFC-W2513PS 10" Performance Series Subwoofer + Power Acoustik CPT2-600 Amplifier + Amp Kit

Kenwood
Shop all Kenwood
EXCLUSIVE
highlight-star-icon

10" Single 4 Ohm KFC Series Subwoofer • 300W RMS • CRYPT Series 2-Channel Class A/B Car Amplifier • MOSFET Power Supply • Selectable Bass Boost • Variable High/Low-Pass Filters • 8 Gauge Amp Kit

Learn more about the kfcw2513ps_cpt2600

We apologize

This item has been discontinued


Loading...
KMM-BT732HD main

Kenwood KMM-BT732HD

Single DIN Digital Media Bluetooth Receiver with HD Radio

3
-14.09%

$189.00

List price $220.00

R152-S main

Rockford Fosgate Prime R152-S

160W Peak (80W RMS) 5.25" Prime Series 2 Way Component 4-ohm Speakers

26

Description


Kenwood brand icon

Authorized dealer

Kenwood and Power Acoustik Bundle

This Sonic Electronix Exclusive Bass package showcases a Power Acoustik CPT2-600 Amplifier along with a 10" Performance series, Kenwood subwoofers. This excellent bass package pushes 300 watts of clean, continuous RMS power. The Kenwood subwoofer has a Single 4 Ohm Voice Coil; meant to be wired directly to the amplifier, to a final impedance of 4 Ohms at the bridged impedance. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Kenwood KFC-W2513PS Performance series subwoofer requires 300 watts of RMS power. The included Power Acoustik CPT2-600 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. The included 8 gauge amplifier kit is perfect to supply power to the amplifier. With the Kenwood subwoofer, Image Dynamics amplifier, and Belva BAK82 amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

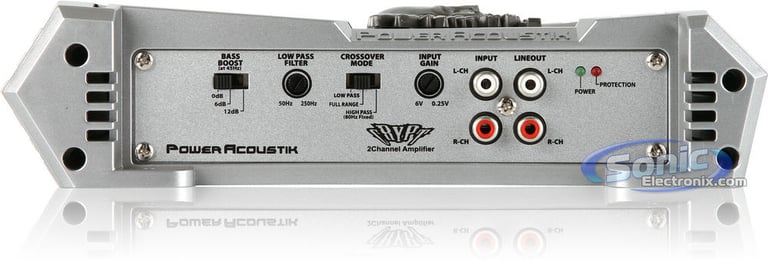

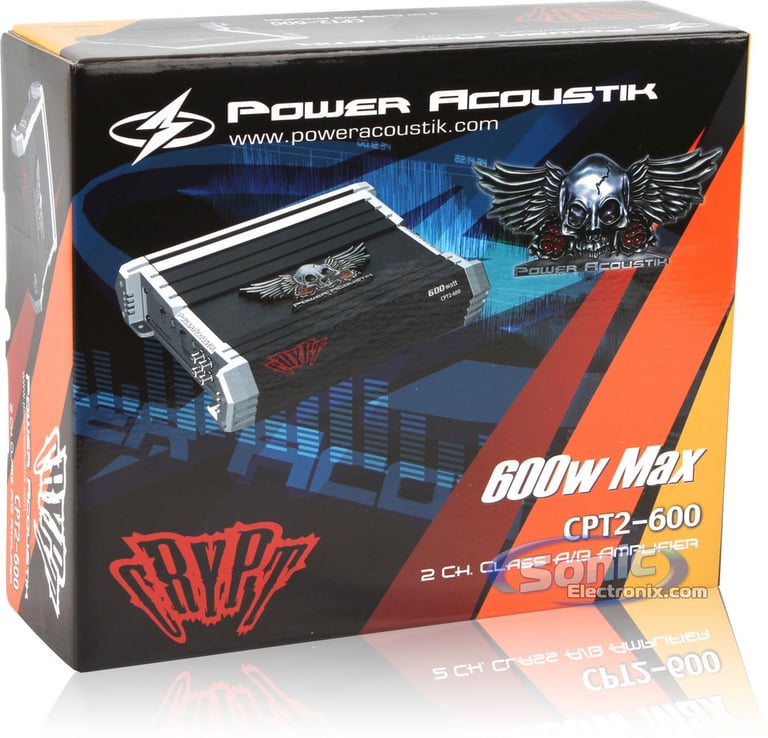

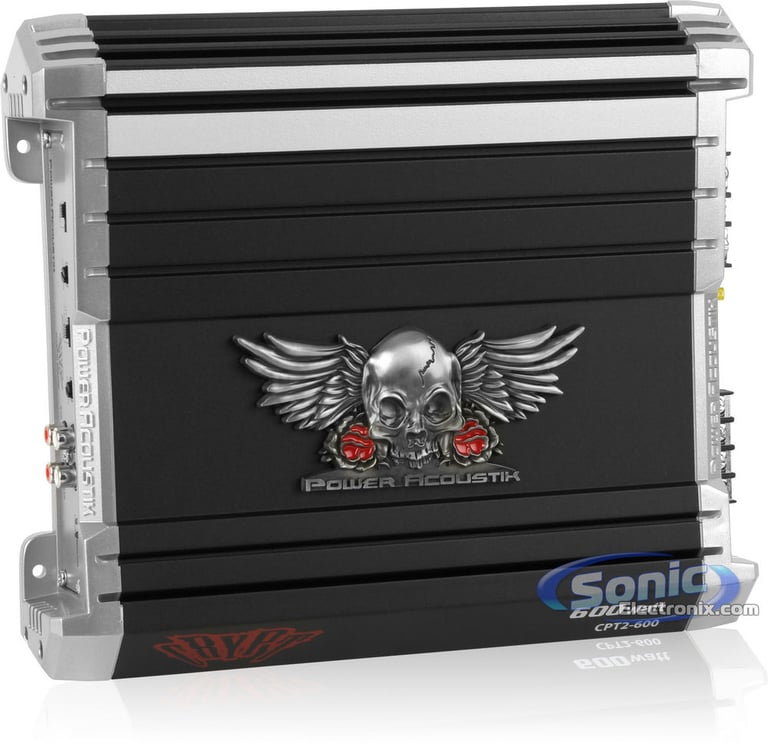

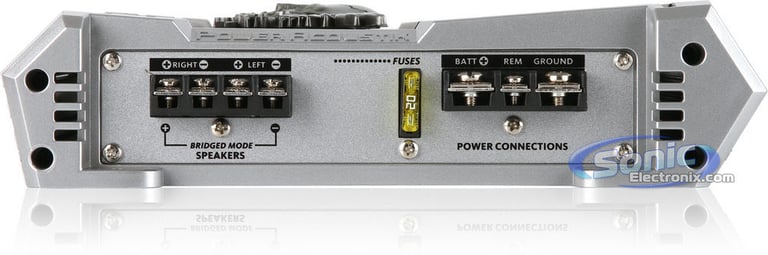

Power Acoustik CPT2-600

600W Max CRYPT Series 2-Channel Amplifier
Quantity: 1

  • CRYPT Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 2 chan.
    • 2 ohm: 125 watts x 2 chan.
    • Bridged, 4 ohm: 250 watts x 1 chan.
  • Max power output: 600 watts
  • DC-DC Pulse Width Modulated MOSFET power supply
  • PSU MOSFET Transistors
  • LED power (green) and protect (red) indicators
  • Black texture finish with silver trim cast metal badge
  • Tri-mode speaker capable
  • Selectable bass boost (0, 6, 12 dB at 45 Hz)
  • Soft Start Turn-on
  • 2/1 or Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty extruded aluminum alloy heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity:
    • Level: 250mV-6V
  • Fixed high-pass filter (80 Hz, 12 dB/octave)
  • Variable low-pass filter (50-250 Hz, 12 dB/octave)
  • Frequency response: 10-20,000 Hz
  • Dimensions: 11"L x 9-13/16"W x 2-5/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

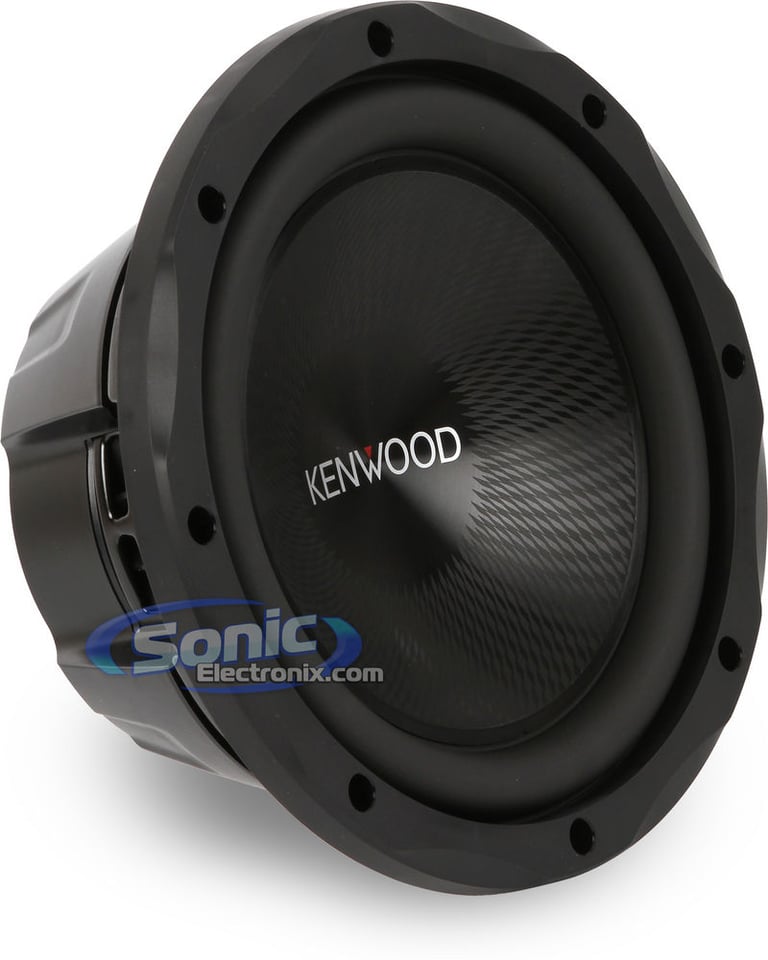

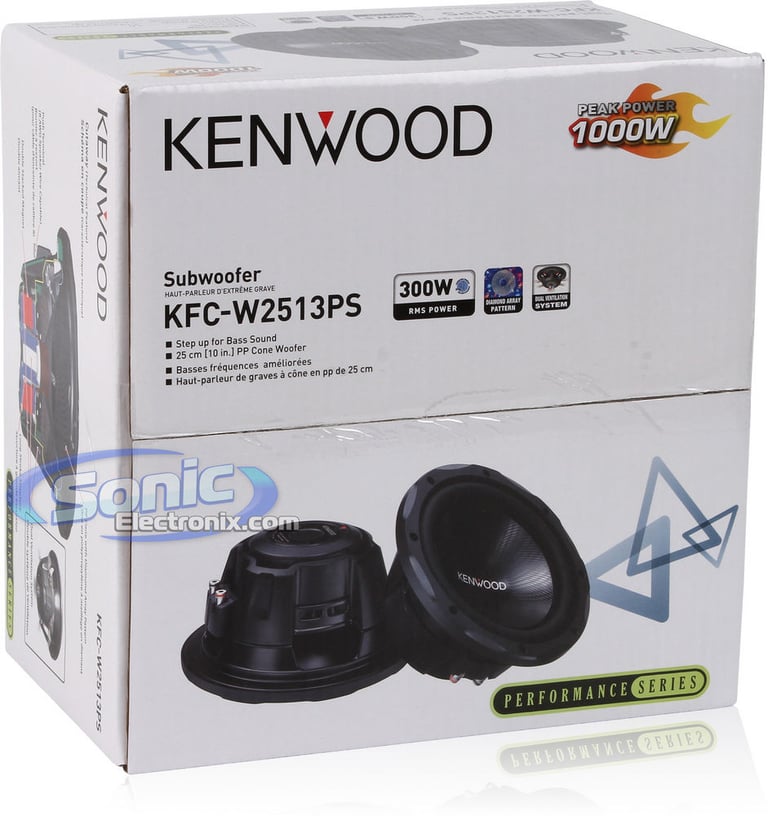

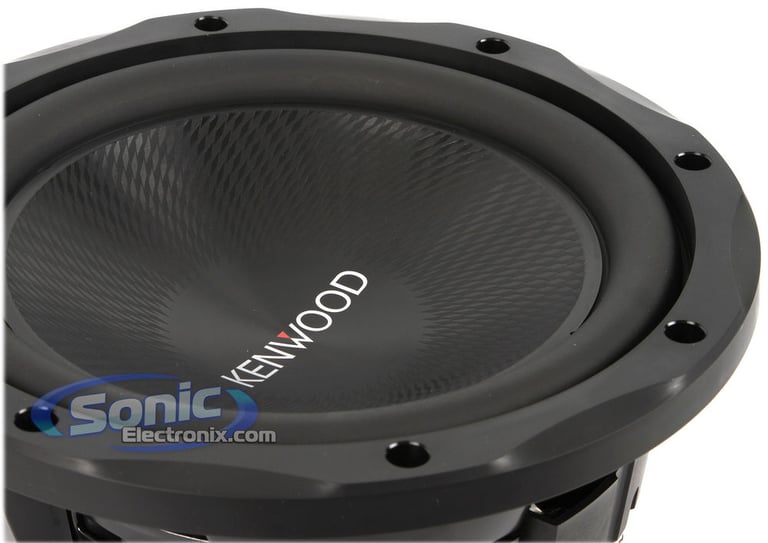

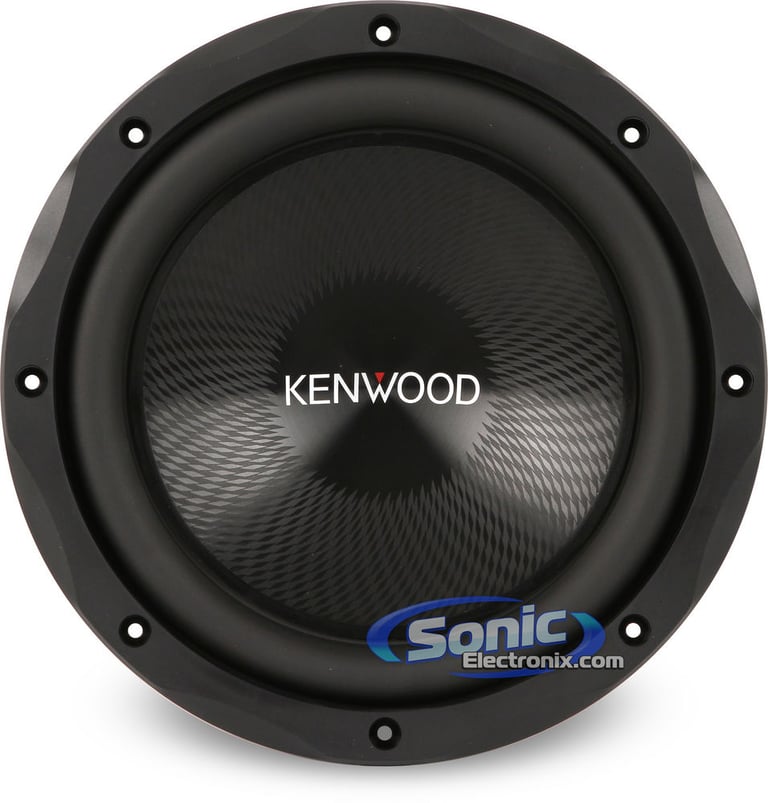

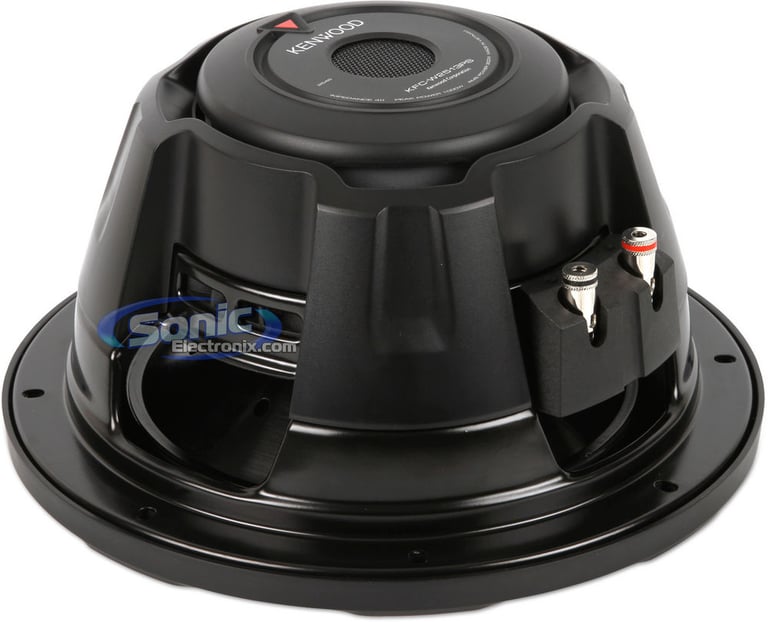

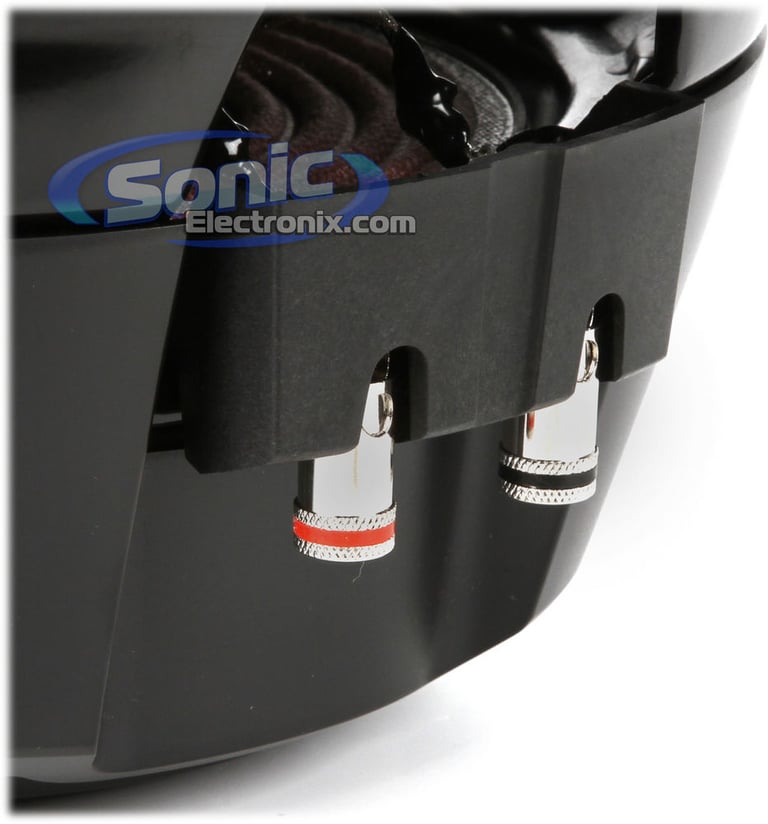

Kenwood KFC-W2513PS

300W 10" Single 4 ohm Performance Series Car Subwoofer
Quantity: 1

General Features

  • 10" Single 4 Ohm Performance Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 300 watts
  • Polypropylene cone woofer
  • Urethane foam surround
  • Super linear spider design
  • 2-Layer voice coil design
  • Double stacked magnet creates a powerful linear motor with increased excursion
  • Dual ventilation system
  • Frequency response: 39-300 Hz
  • Sensitivity: 82 dB
  • 1-year Sonic Electronix Warranty

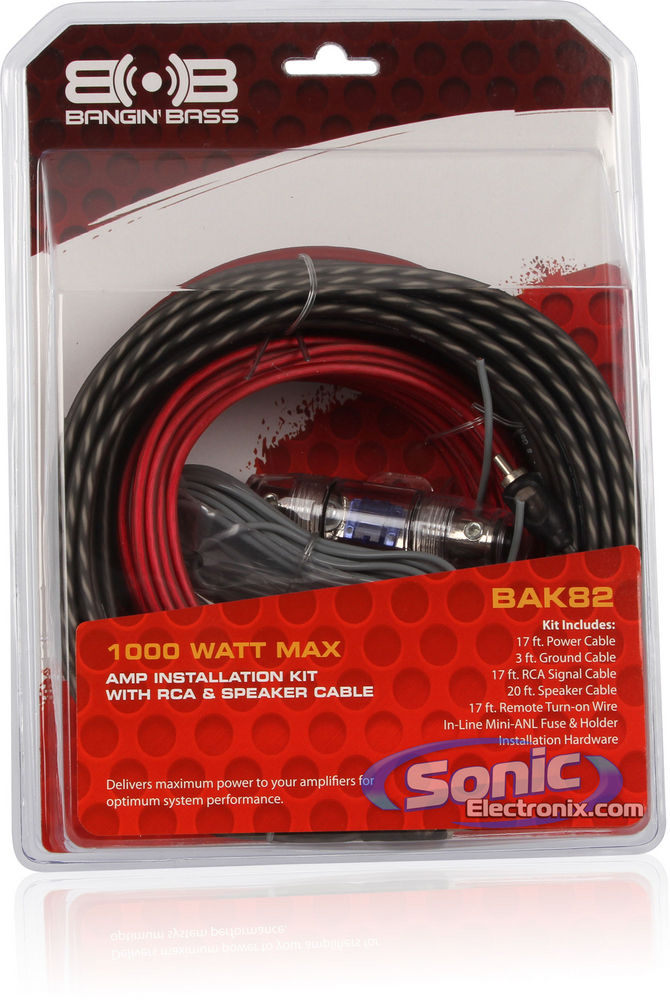

Belva BAK82

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED
Quantity: 1

Product Details:

  • 8 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards

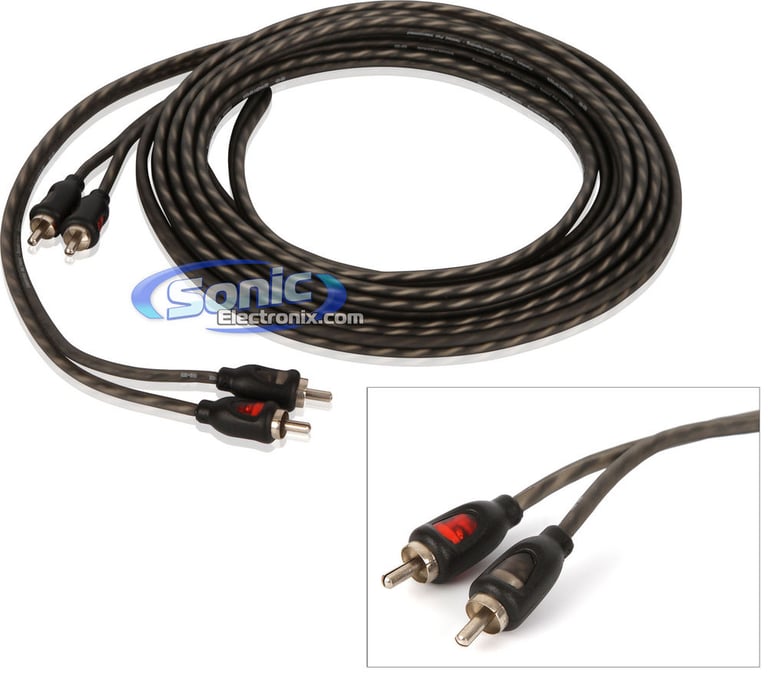

  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition

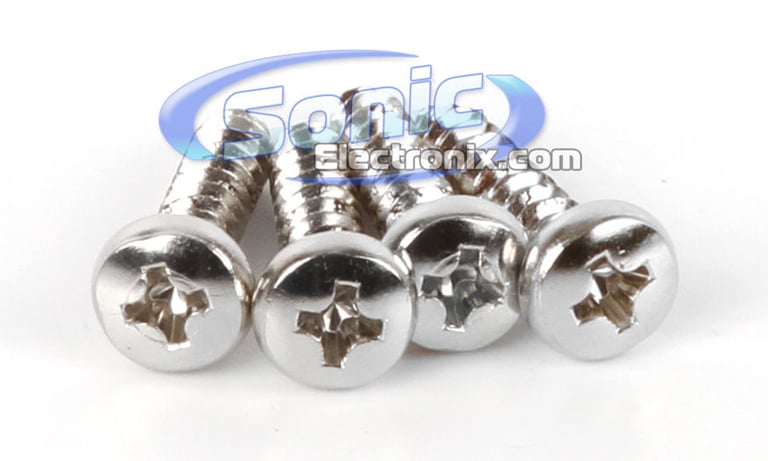

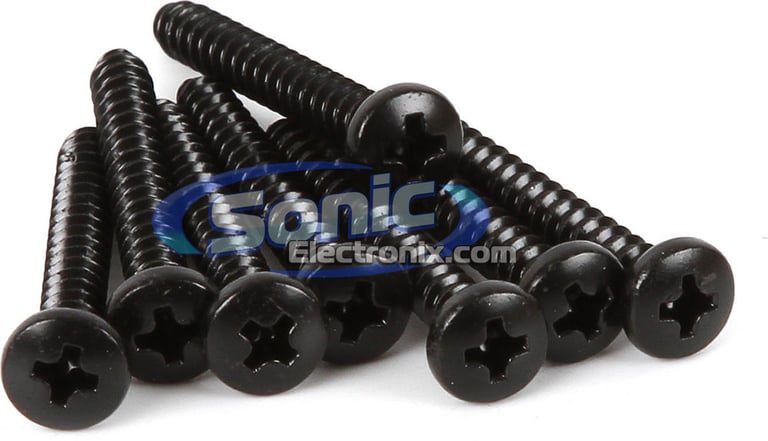

  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

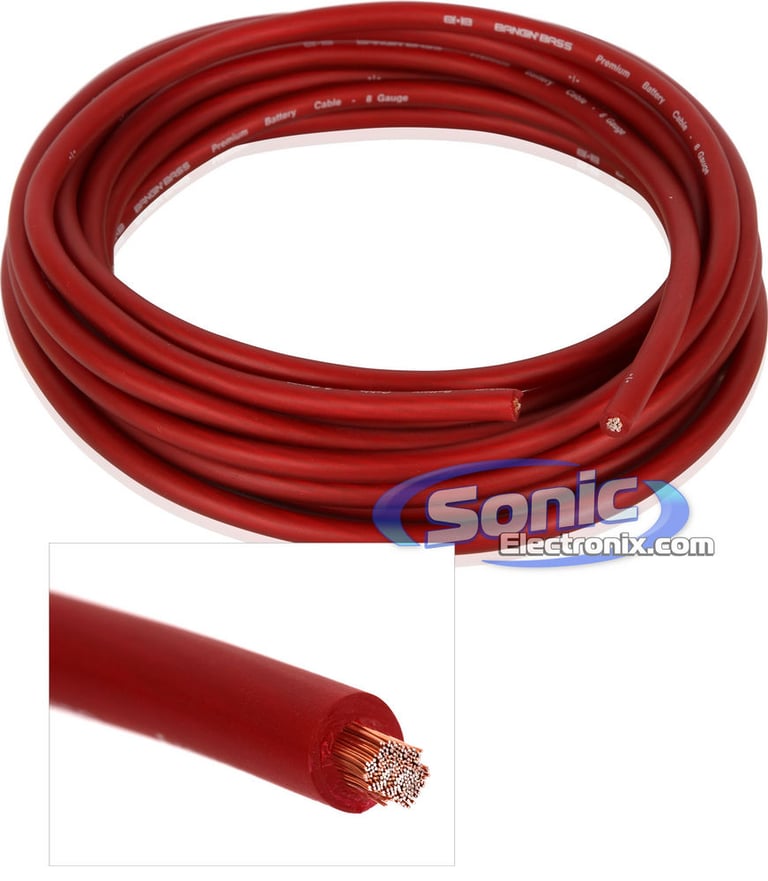

  1. 17 ft. Red 8 gauge power wire

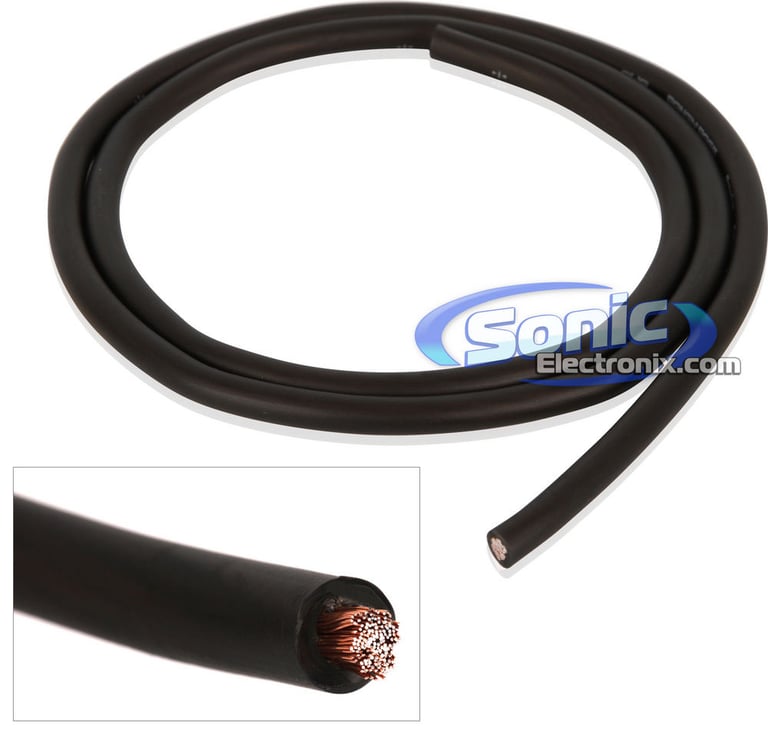

  2. 3 ft. Black 8 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 20 ft. 16 gauge speaker wire
  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable

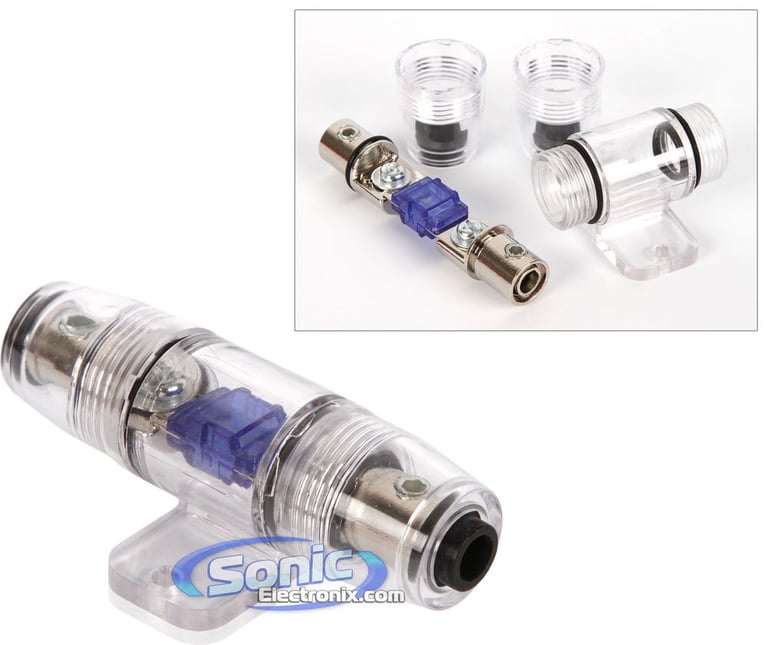

  6. One Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet

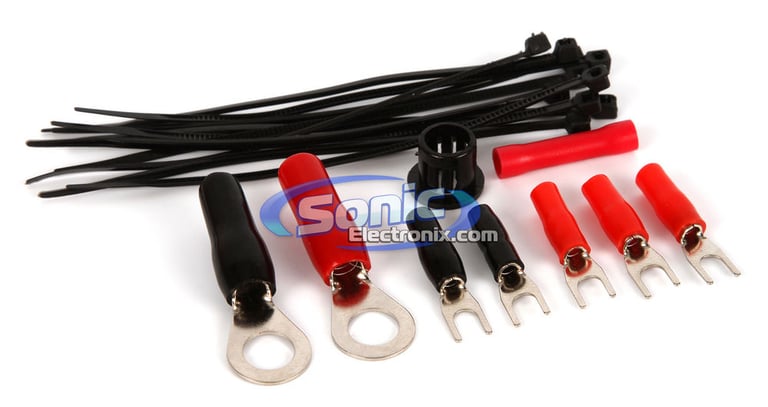

  8. Two 8 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
100 watts x 2 channel
RMS Power @ 2 ohms
125 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
250 watts x 1 channel
Peak Power Output
600 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
600 watts
Total RMS Power Output
250 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.01%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
80 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0dB, 6dB, 12dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
20A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Number of Subwoofers
1
Subwoofer Size
10"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
300 watts
Total RMS Power Handling
300 watts
Peak Power Handling
1000 watts
Total Peak Power Handling
1000 watts
Woofer Surround
Urethane
Woofer Composition
Polypropylene
Minimum Sealed Box Volume
.65 cubic feet
Maximum Sealed Box Volume
1.00 cubic feet
Minimum Ported Box Volume
1.00 cubic feet
Maximum Ported Box Volume
1.50 cubic feet
Sensitivity
82 dB
Frequency Response
39 - 300 Hz
Xmax (millimeters)
5.3 mm
Top-Mount Depth (Mounting Depth)
5"
Cutout Diameter
9-1/4"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KFC-W2513PS_CPT2-600

Weight:

18.30lbs

Internal SKU:

kfcw2513ps_cpt2600

Internal Product ID:

39363

Customer Ratings & Reviews


1000W Kenwood Subwoofer + Power Acoustik Bass Bundle thumbnail image

5 star
76%
4 star
16%
3 star
6%
2 star
0%
1 star
2%



Durability
4.6
Value
4.7
Features
4.6
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

BAK 82

The following review is for BAK82, which is a part of the bundle you are viewing.

Nice package, quality wire but could more end connectors for the larger wire.

By Sam on June 19, 2014

203 found this helpful


Good product

The following review is for BAK82, which is a part of the bundle you are viewing.

It's exactly what you need for your car amp installation. I bought this kit with Kenwood KAC-1502S amp for 75 bucks. Good deal from Sonic Electronix.

By Collins on January 6, 2014

185 found this helpful


Great kit for the cost

The following review is for BAK82, which is a part of the bundle you are viewing.

Very nice kit for $18.
Wire seems adequately thick. Good quality fuse (not AGU) and fuse holder. RCA's feel durable. Decent assortment of accessories. All together a solid budget kit IMO.

By n2audio on September 24, 2014

185 found this helpful


Don't know what the other guy is talking about.

The following review is for BAK82, which is a part of the bundle you are viewing.

This kit was awesome and included with my package that I bought. In comparison to others for the same price, there is simply not a comparison and the other review is just wrong on so many levels I felt compelled to write this.

The reality is there are a lot of real shoddy amp kits and wire as a whole being used in car audio in terms of cheap amp kits that have over-insulating wires and fake gauge ratings, huge amounts of aluminum, lousy RCA cables, fuse holders and other accessories. BUT and a BIG BUT, this kit excels in those areas where others fall flat on their face. I have bought a few inexpensive 8 gauge kits in my day and XScorpion, Raptor, Install Bay and others haven't even given me the 8 gauge of wire that I paid for, and in some cases gave me wire that heated up to a dangerous level due to the actual make up of the wire.

I also literally laughed when I see that the other reviewer was intending to use spade terminals to connect his amp power and ground wire... It is for the SPEAKER wire knucklehead :-). I am an installer and the smaller accessories work just fine when you use them correctly. Most amps will still work with them when used with the speaker wire. Of course one can be used for the remote wire connection to the amp and the other end with the butt connector being used to connect to the stereo. The funny thing is, if you do not need them, who cares? It is like ordering this kit for a compact car or single cab pickup. You will not use all of the power wire for these applications, so do you complain that the manufacturer gave you extra wire? That just made me laugh.

Now, onto the other accessories. The AFS fuse and holder that are included are so far superior to others in this price range and the amount of copper (albeit CCA) is much better than others in the price range. Lastly, the RCAs included are awesome for the price. I cannot find ANYTHING to complain about here for $21.99.

All in all, you will not get a better value for the money.

By Double Down on August 14, 2012

180 found this helpful


Good product for the price

The following review is for BAK82, which is a part of the bundle you are viewing.

Good wiring package, good quality fuse holder and wires, I would like more connectors on it and maybe some tube for the power wire, but overall is a good kit.

By Alfredo on October 29, 2014

175 found this helpful


Good Purchase

The following review is for BAK82, which is a part of the bundle you are viewing.

I used this kit to install a 2 channel Boss amp. The quality of the pieces in this kit is five stars, but I'm giving it 4 because it is my belief that to do a clean install you need (4) 8 gauge terminals (one at the batt, one at the amp, one at ground, one at the amp), not just two. I had to spend an extra six bucks at Orchard for the extra terminals, but since the cost of the kit here at Sonic was only $20 at the time, it was still a good deal.

By Jumbo Dumbo on December 19, 2013

167 found this helpful


Good kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Good kit for basic setups. Using it right now in my mothers system powering a simple 12. Could handle more if needed.

Pros: Handles power, Wires are HQ, More copper than rubber, Wires are good length, Fuse is HQ, Comes with lots of ties and rubbers.

Cons: None

I would recommend this kit to anyone who has a simple system. All around good kit.

By Mitch on January 31, 2014

174 found this helpful


Great wiring kit

The following review is for BAK82, which is a part of the bundle you are viewing.

works great on my MB Quart 2x100 watt amp.

By Eric on November 29, 2013

166 found this helpful


Good Kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Great kit for the price. the price is good. Long wires.

By Joshua on December 8, 2013

162 found this helpful


Belva BAK82

The following review is for BAK82, which is a part of the bundle you are viewing.

Worked very well for the money, great value for my system! Only thing that kept me from giving this 5 stars across the board is the design of the fuse holder and how you have to change/connect the fuse, minimal complaint.

By Dwight on April 9, 2014

151 found this helpful




No picture

Massive Audio MX65S (Open Box, Complete)

200W Max (100W RMS) 6.5" MX Series 3-Way Coaxial Shallow Mount Car Speakers

(2)

$47.24

List price $65.99

CV140SVR small

Coby CV140SVR Silver Jammerz DJ Style Headphone and Earbud Combo

DJ Style On-Ear Headphones and In-Ear Earbuds Combo

$8.95

List price $12.99

No picture

Deaf Bonce MLA-2160 (Like New (Open Box))

400W RMS Class AB Machete Series 2 Channel Car Amplifier

$93.42

List price $109.90

CHE00-02-12 small

Dual 12" Enclosure: 2000-2002 Chevrolet / GM Extended Cab Full-Size Pickup Trucks

Also known as 12CHEVY2001

$179.99

List price $299.99

Kunai Nintendo Wii U and 3DS (Red) small

Tritton Kunai Gaming Headset for Nintendo Wii U and 3DS (Red)

Stereo Gaming Headset/Headphones with Detachable Microphone for Wii U and 3DS (Red)

$54.99

List price $59.99

RP-HV41-A small

Panasonic RP-HV41-A Eardrops In-Ear Headphones (Light Blue/Light Green)

Light Blue/Light Green Eardrops In-Ear Headphones

$5.99

List price $19.99

H10-10000K small

HID Xenon Light H10 10000K (H10-1-10000K)

High Intensity Discharge (HID) Xenon Kit for Vehicles with H10 Head Lamp Bulbs

$69.99

List price $199.99

RP-HV41-K small

Panasonic RP-HV41-K Eardrops In-Ear Headphones (Black/Gray)

Black/Gray Eardrops In-Ear Headphones

$5.99

List price $19.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2005 BMW 325Ci

2004 Pontiac Aztek

2011 Hyundai Accent

2010 Kia Optima

2025 Genesis GV80

2002 Toyota Sienna

2013 Mazda CX-9

2001 Acura CL

2012 Ford Mustang

2006 Volvo S60

Vehicle
Store
Delete

2023 Can-Am Defender MAX

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
