1800W Alpine Subwoofer + Jensen Amplifier Bass Bundle

Alpine SWR-1043D 10" Type R Subwoofer + Jensen Power 900.1 Monoblock Amplifier + db Link Amp Kit

Alpine
Shop all Alpine
EXCLUSIVE
Product videos
highlight-star-icon

Sonic Electronix Exclusive Bass Bundle Combo Package • Alpine SWR-1043D 10" Type R Subwoofer + Jensen Power 900.1 Monoblock Amplifier + The InstallBay AK4

Learn more about the swr1043d_power9001

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Product Highlights


Sonic Electronix Exclusive Bass Bundle Combo Package • Alpine SWR-1043D 10" Type R Subwoofer + Jensen Power 900.1 Monoblock Amplifier + The InstallBay AK4

Description


Alpine brand icon

Authorized dealer

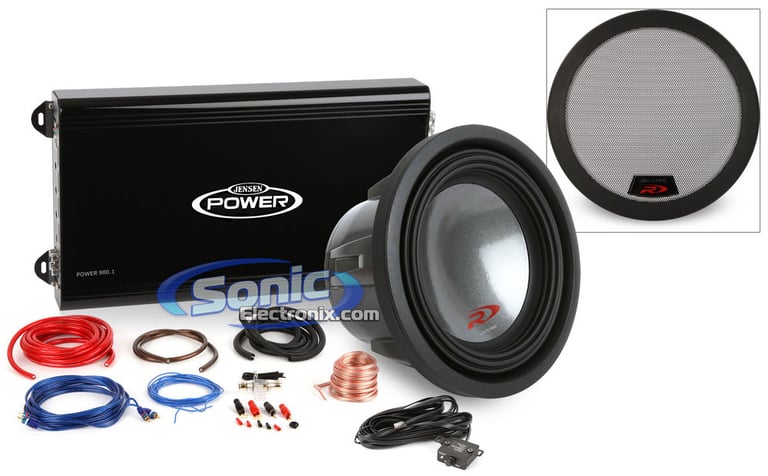

Sonic Electronix Exclusive Alpine Bass Bundle Combo

This exclusive bass package includes one Alpine SWR-1043D 10" Dual 4-Ohm Type R Subwoofer, one Jensen Power 900.1 Class AB MonoBlock Amplifier, and one db Link 4-Gauge Power Amplifier Installation Kit. The 10" subwoofer has a peak power rating of 1800 watts and an RMS rating of 300-600 watts. It is constructed with a kevlar reinforced pulp cone and an injection molded santoprene rubber surround for ultimate performance. The Alpine Subwoofer has a Dual 4 Ohm Voice Coil; meant to be wired in parallel, to a final impedance of 2 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram

The Jensen amplifier is a perfect compliment to the Alpine subwoofer, it is equipped with 900 watts max, 450 watts @ 2 ohms, and 300 watts @ 4 ohms. This amplifier features LED indicators, Preamp RCA outputs, heavy duty heatsink, 3-way system protection circuitry, and much more. The InstallBay AK4 amp kit is the finishing touch to this incredible combo, it includes all the necessary wires/cables to provide generous amounts of power to the subwoofer and amplifier. Sonic Electronix is the only place you will find this one of a kind combo kit, enhance your sound system today.

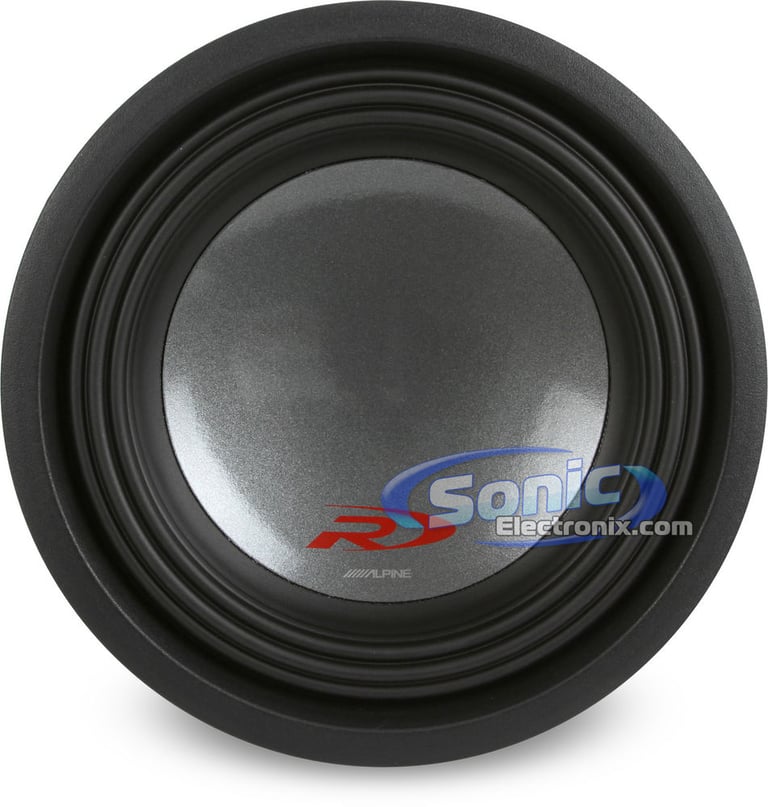

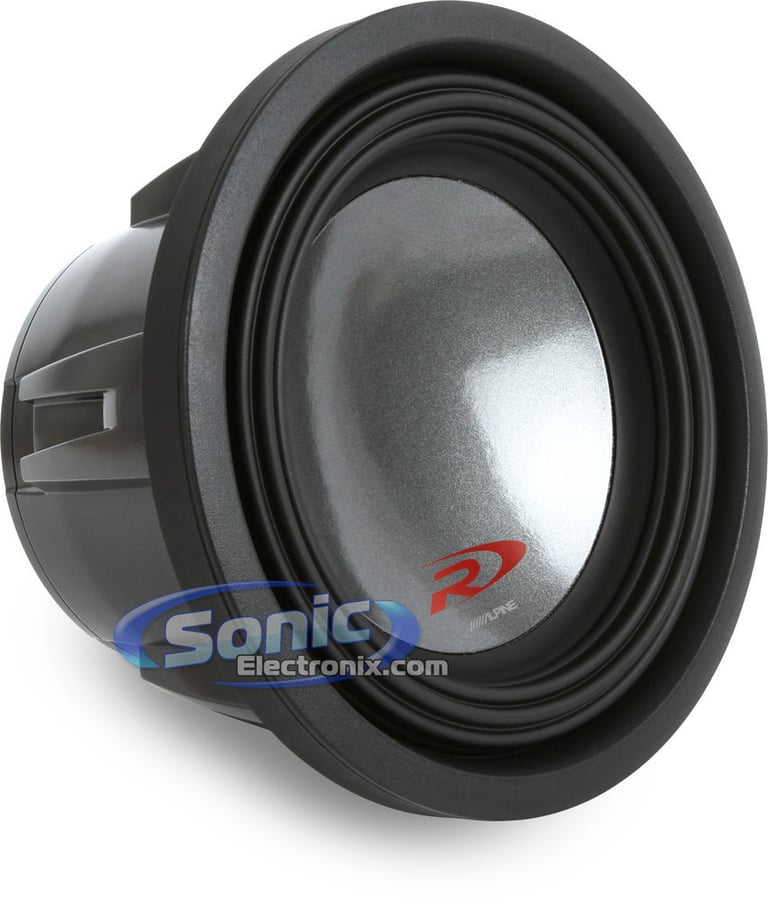

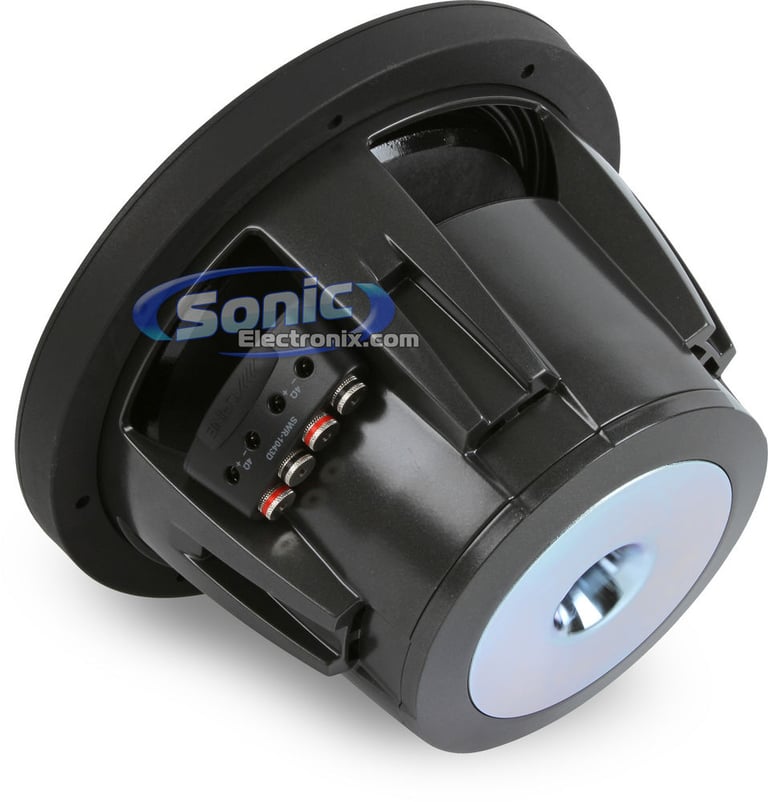

Alpine SWR-1043D Features
  • 10" Dual 4 ohm Type R Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 300-600 watts
  • Kevlar reinforced pulp cone woofer
  • 2-Piece Structural Parabolic diaphragm design
  • Injection molded Santoprene rubber surround
  • Alpine exclusive High Amplitude Multi-Roll (H.A.M.R) surround for impressive excursion and clean, accurate bass
  • FEA Optimized progressive NOMEX spider
  • Radial vented VC head sink
  • Concealed mount gasket system
  • Reinforced layer spider integration tinsel leads
  • Oversized 2-1/2" Voice coil
  • 4-Layer dual voice coil design
  • Voice coil made from 180°C high temperature wire on spiral cut aluminum former
  • Single-piece cast aluminum frame with Alpine Patent Pending Airflow Management System for efficient cooling
  • Airflow Management system controls the temperature of the voice coil by directing the air across the heatsink

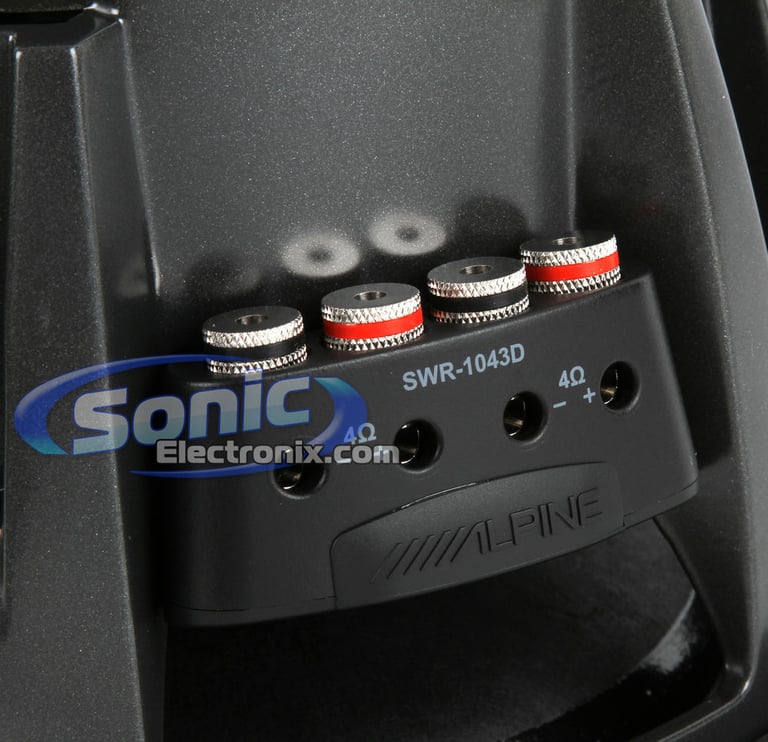

  • One sided push terminals make installation and wiring fast and simple
  • Each terminal accepts up to 8 AWG wire for high power signal transfer

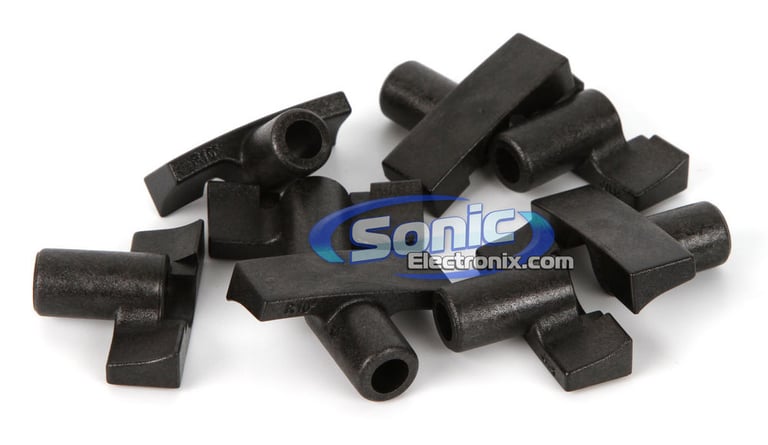

  • Concealed gasket mounting system hides the screw holes and makes for a clean install

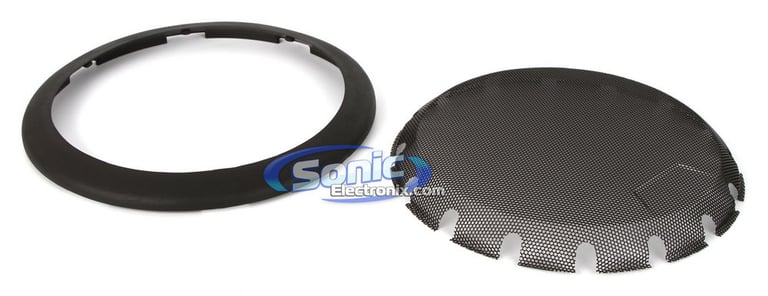

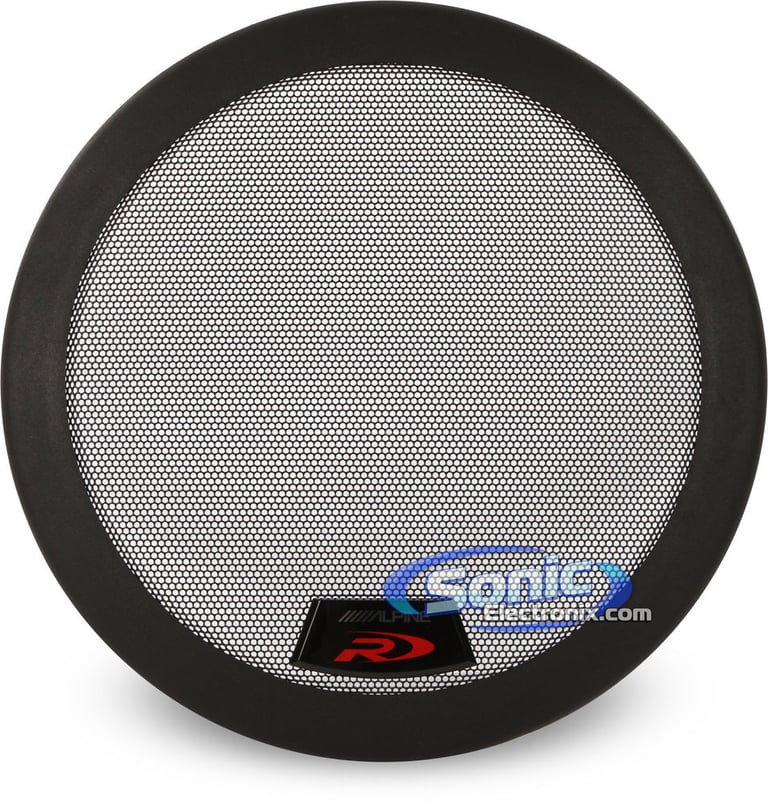

  • Integrated grill technology allows for a seamless installation of a grill
  • US Patented Compound Radius Curve (CRC) design with integrated short sleeve configuration
  • CRC Machined motor structure creates a symmetrical magnetic field for less distortion and improves power handling
  • High-power, double-stacked strontium magnet structure
  • Newly redesigned for a 20% depth reduction
  • Frequency response: 26-400 Hz
  • Sensitivity: 83 dB
  • 1-year Sonic Electronix warranty

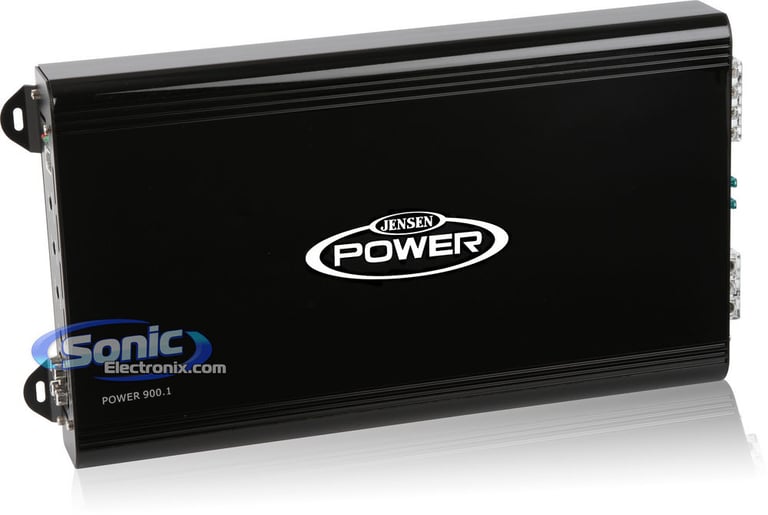

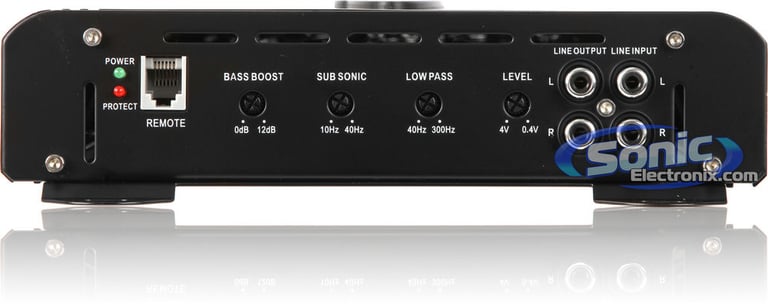

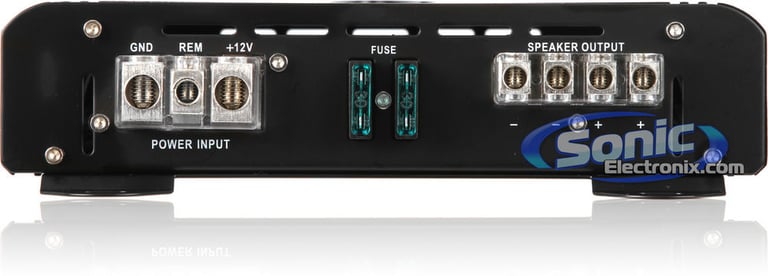

Jensen Power 900.1 Features
  • Monoblock Power Series Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 chan.
    • 2 ohm: 450 watts x 1 chan.
  • Max power output: 900 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

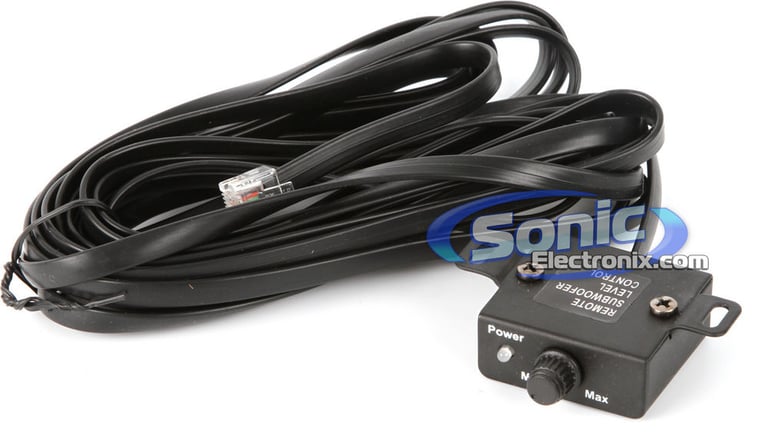

  • Remote input level control with 5m cable
  • LED power (green) and standby/fault (red) indicators
  • Variable bass EQ (0-12 dB @ 45 Hz)
  • Soft Start Turn-on
  • Monoblock operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, DC-Offset, and speaker short protection)
  • Heavy duty extruded heatsink for extreme heat dissipation
  • High current bi-polar output transistors
  • Optimized class AB design minimizes distortion and reduces idle current
  • Chrome-plated RCA level inputs
  • Chrome-plated screw terminals
  • Variable Low-Pass Filter (40-300 Hz, 12 dB/octave)
  • Subsonic Filter (10-40 Hz @ 12 dB)
  • Signal-to-Noise Ratio: >100 dB
  • Frequency Response: 5-300 Hz
  • Variable Input Level: 400mV - 5V
  • THD (Total Harmonic Distortion): 0.02%
  • Fuse Rating: 2 x 30 amps
  • Dimensions: 9"D x 15-3/4"W x 2-1/2"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
The InstallBay AK4
  • Complete 4 Gauge Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1600 watts

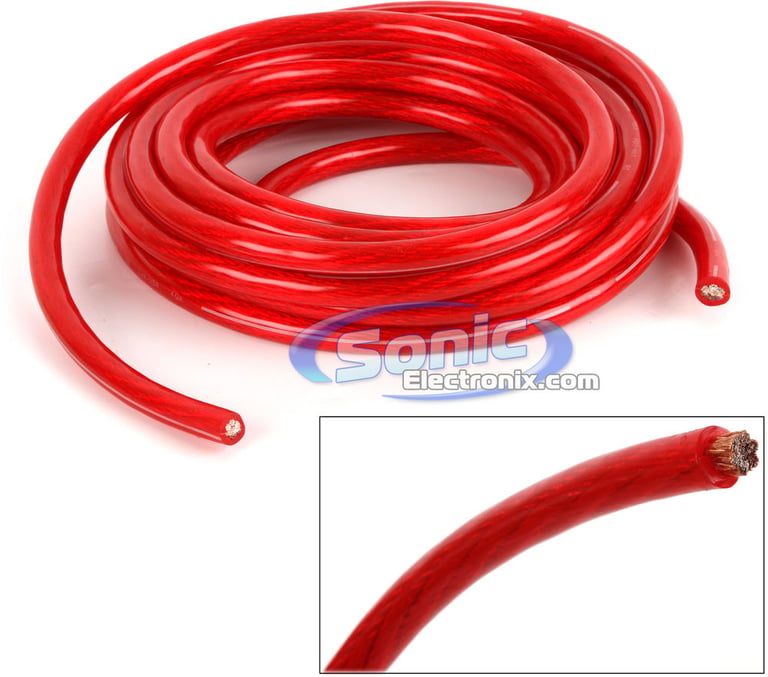

  • Premium power and ground wire provides optimal power transfer
  • Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
  • Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • Includes everything that you need to install a single amplifier

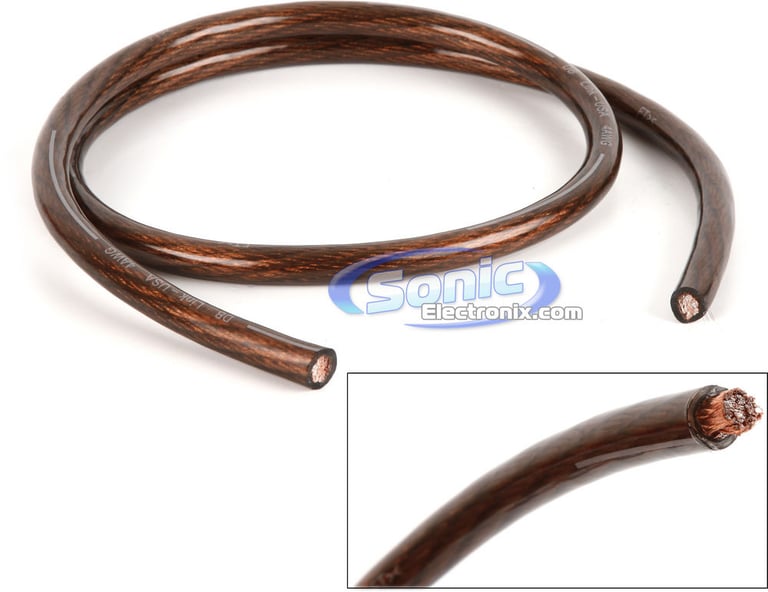

  • Premium power and ground cable
  • 1-year Manufacturer's warranty
Package Includes:
  1. 17 ft. of Blue power cable
  2. 3 ft. of Black ground cable

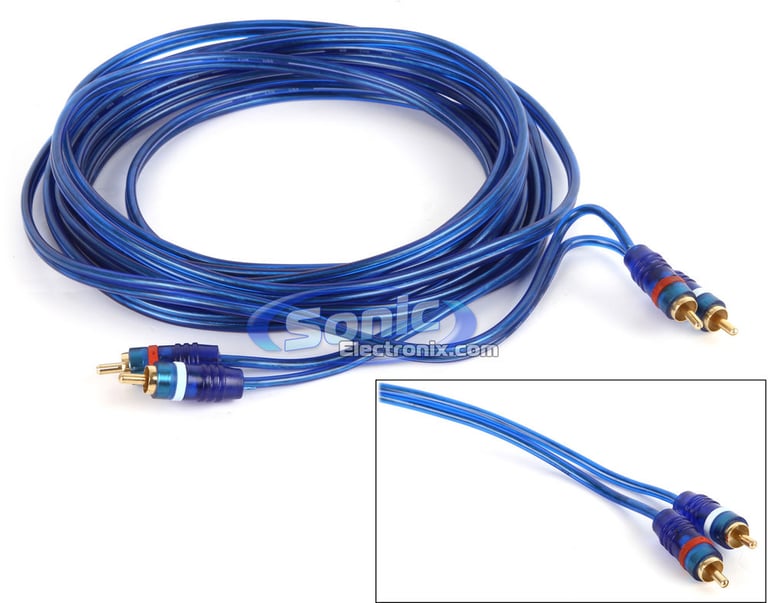

  3. 17 ft. of Clear/blue RCA cable

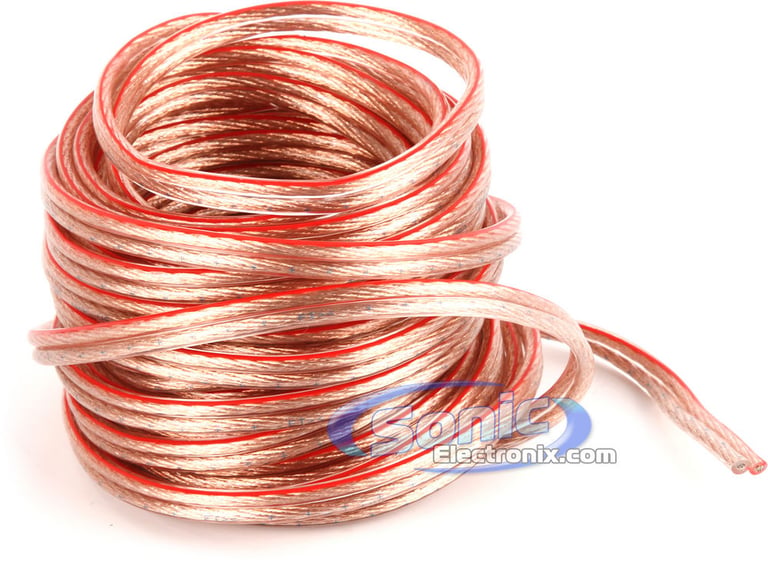

  4. 25 ft. of Speaker wire

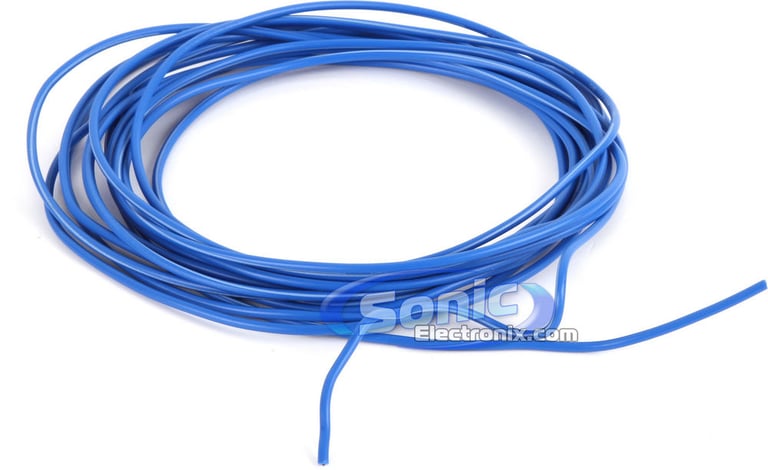

  5. 17 ft. of Remote turn-on wire

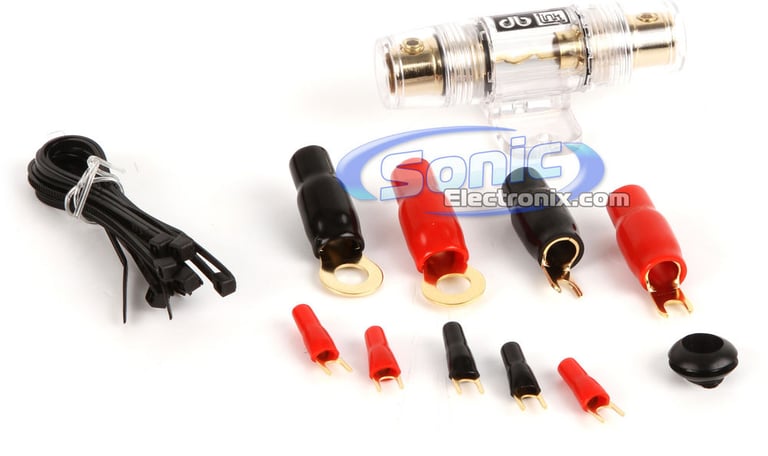

  6. In-line AGU fuse holder
  7. 60 Amp AGU fuse

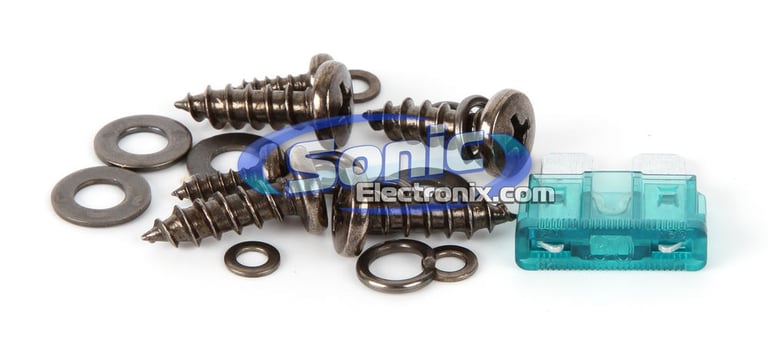

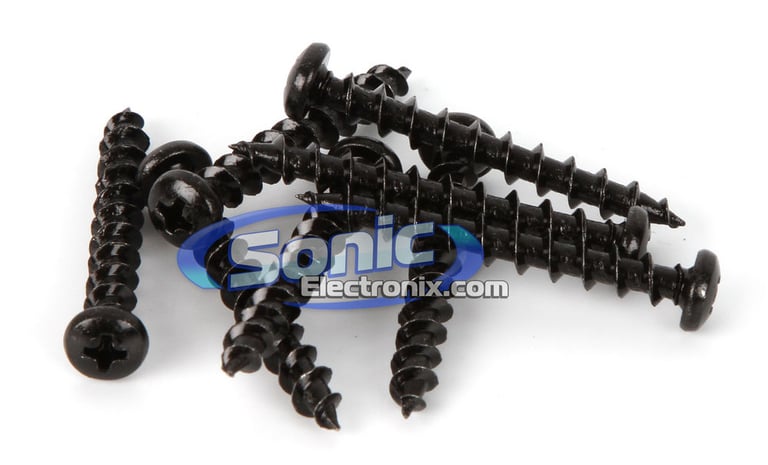

  8. Installation hardware

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
450 watts x 1 channel
Peak Power Output
900 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
900 watts
Total RMS Power Output
450 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 300 Hz
Subsonic Filter
10 - 40 Hz
Signal-to-Noise Ratio
>100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
30A x 2
CEA-2031 Compliant
No
Subwoofer Specifications
Number of Subwoofers
1
Subwoofer Size
10"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
600 watts
Total RMS Power Handling
600 watts
Peak Power Handling
1800 watts
Total Peak Power Handling
1800 watts
Woofer Surround
Santoprene Rubber
Woofer Composition
Kevlar Fiber
Minimum Sealed Box Volume
0.5 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
0.8 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Sensitivity
83 dB
Frequency Response
26 - 400 Hz
Xmax (millimeters)
20 mm
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
9-1/16"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SWR-1043D_Power 900.1

Weight:

35.55lbs

Internal SKU:

swr1043d_power9001

Internal Product ID:

39462

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How To Install an Amplifier: Car Amplifier Basics Part 2
