Name: Cerwin-Vega STEALTH500.1
Brand: Cerwin-Vega
SKU: stealth5001
Price: 159.95 USD
Availability: Discontinued

by Cerwin-Vega

About
Similar Products
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

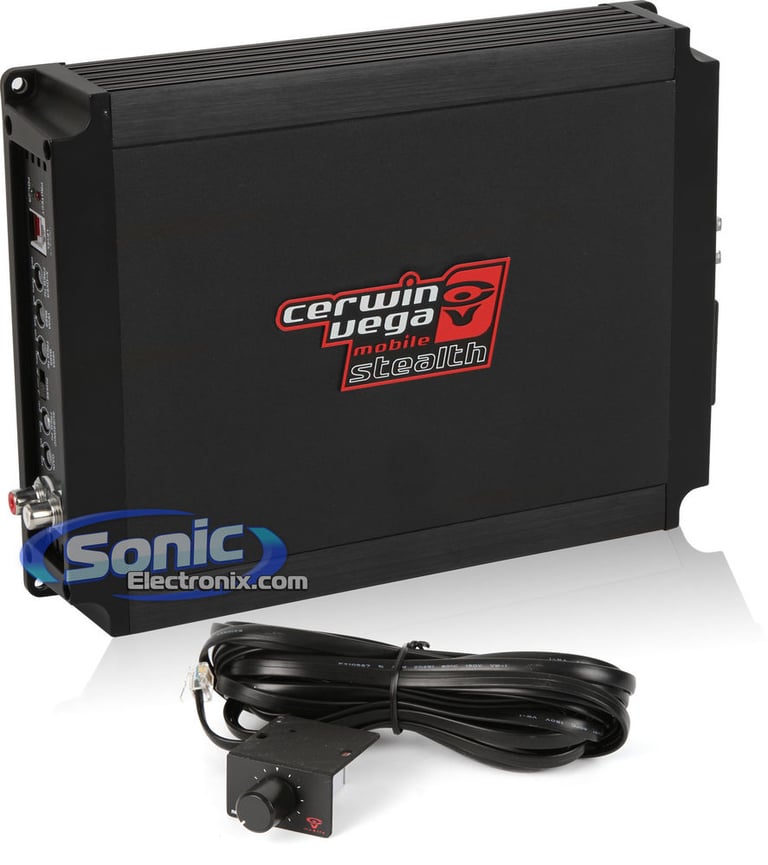

Cerwin-Vega STEALTH500.1 Image 1 — Cerwin-Vega STEALTH500.1

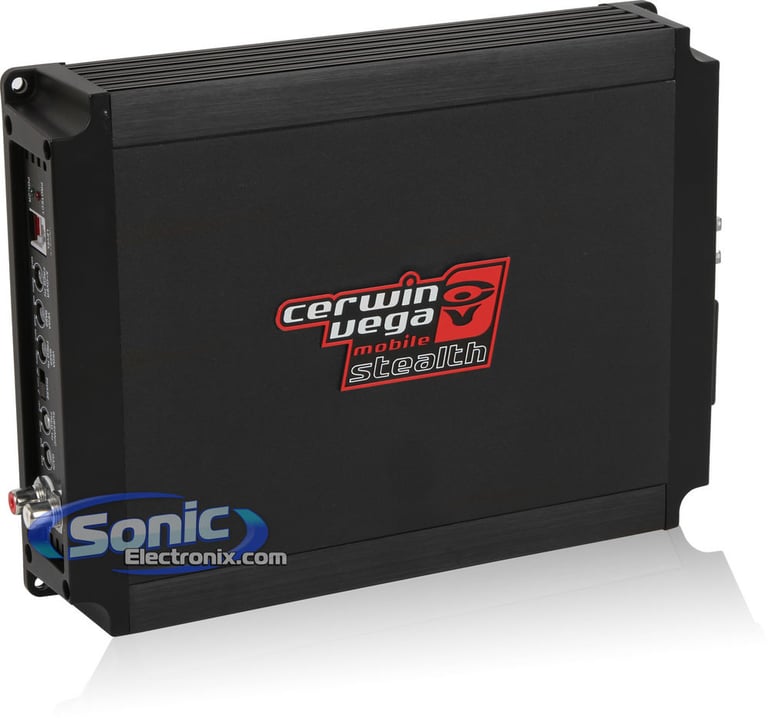

Cerwin-Vega STEALTH500.1 Image 2 — Cerwin-Vega STEALTH500.1

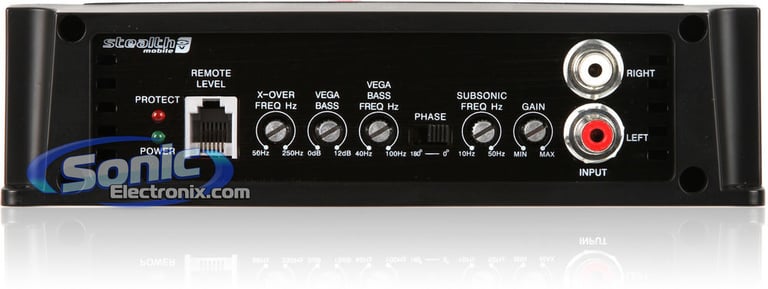

Cerwin-Vega STEALTH500.1 Image 3 — Cerwin-Vega STEALTH500.1

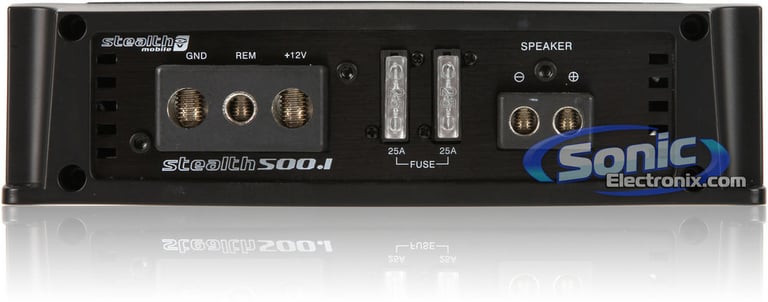

Cerwin-Vega STEALTH500.1 Image 4 — Cerwin-Vega STEALTH500.1

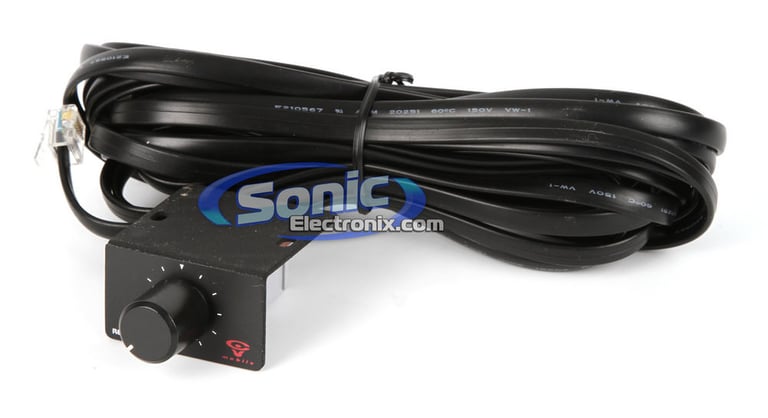

Cerwin-Vega STEALTH500.1 Image 5 — Cerwin-Vega STEALTH500.1

Cerwin-Vega STEALTH500.1 Image 6 — Cerwin-Vega STEALTH500.1

Cerwin-Vega STEALTH500.1 Image 7 — Cerwin-Vega STEALTH500.1

Product videos

Product highlights

Stealth Series Monoblock Class D Car Amplifier • 200W RMS x 1-Chan. @ 4 ohm • 325W RMS x 1-Chan. @ 2 ohm • 500W RMS x 1-Chan. @ 4 ohm Bridged • PWM MOSFET Power Supply • 12dB Vega Bass Boost • Low Level Inputs • Variable Low Filter • Differential-Balanced Inputs • Wired Remote Bass Level Control

Learn more about the stealth5001

Other Mazda Tribute owners bought

Product Highlights

Description

Authorized dealer

Hidden Power with Cerwin-Vega's Stealth Amplfiers

Cerwin-Vega's STEALTH500.1 monoblock amplifier is rated at 200W x 1 channel @ 4 ohms, 325W x 1 channel @ 4 ohms, and 500W x 1 channel at 1 ohm. These power ratings make this amplifier the perfect solution for when looking to amplify a new set of subwoofes (such as the HED or VMAX series subwoofes). Most importantly the Stealth series amplifier features a compact chassis that minimizes the foot print of the amplifier making it easier to mount just about anywhere inside a vehicle. So even if space is limited you can still get that Cerwin-Vega power with an amplifier half the size. The amplifier features a Thermal Management System that monitors internal thermal temperature by reducing power output when the amplifier begins to overheat. This gives the amplifier the ability to have a better flow of uninterrupted power allowing you to play your music for longer periods of time. The amplifier also features low-pass and sub-sonic filters that allow a finer tuning of all frequencies that will let you adjust your sound reproduction to better meet your needs. Stealth amplifiers utilize a full range class D chip set that improves the efficient and reliability of the amplifier and reduces the amount of noise or other sonic issues. So if you are looking for an amplifier that can fit under your seat but can still provide enough power to sufficiently run your devices, then look no further than Cerwin-Vega's STEALH500.1 car amplifier.

Stealth Series Monoblock Class D Car Amplifier
RMS Power Rating:
- 4 ohm: 200 watts x 1 chan.
- 2 ohm: 325 watts x 1 chan.
- 1 ohm: 500 watts x 1 chan.
PWM MOSFET power supply
Wired remote bass level control included
LED power (green) and protect (red) indicators
Vega Bass Boost (0 to +12 dB bass boost at 45 Hz)
Soft Start Turn-on
Mono channel operation
Panel mount RCA inputs
Recovering Thermal Management System, monitors internal thermal temperature by reducing amplifier output when overheating occurs
Differential-balanced inputs
High-density aluminum alloy heatsink for extreme heat dissipation
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Input sensitivity:
- Low level: 1153mV-4.3V
Variable low-pass filter (50-250 Hz, 12 dB/octave)
Variable sub-sonic filter (10-50 Hz, 12 dB/octave)
Frequency response: 9-47,000 Hz
Dimensions: 9-3/8"L x 7"W x 1-7/8"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website (SonicElectronix.com) when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Product history:

	Cerwin-Vega STEALTH 600.1 (newest, current model)
	Cerwin-Vega STEALTH500.1 (previous model, replaced by Cerwin-Vega STEALTH 600.1)
	Cerwin-Vega SX500.1 (Stealth 500.1) (previous model, replaced by Cerwin-Vega STEALTH500.1)
