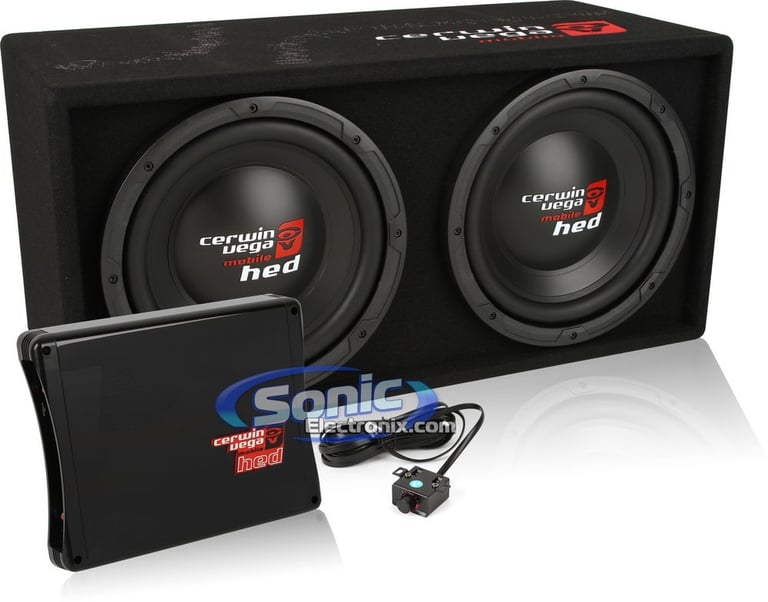

Cerwin-Vega HEDBK212

Dual 12" HED Series Bass Kit Amplified Sealed Enclosure

Cerwin-Vega
Shop all Cerwin-Vega
highlight-star-icon

Dual 12" Sealed Amplified Loaded Enclosure • 300W MAX Subwoofer • 600W MAX 2-Channel Amplifier • Sealed Carpeted Enclosure • 3/4" MDF Construction • Custom Embroidery for Enhanced Cosmetics • Factory Tune for Optimum Performance

Learn more about the hedbk212

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

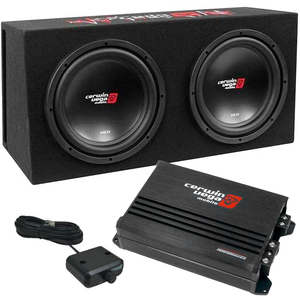

bkx212v thumbnail

Cerwin-Vega BKX212V

OUR PRICE: $429.99

View item

Loading...
Limited time!
KFC-X3C main

Kenwood eXcelon KFC-X3C

240W Peak (100W RMS) 3.5" Excelon Series 2-way 4-ohm Coaxial Car Speakers for select 2002-2024 vehicles from Toyota, Dodge, Chevrolet

2
-32.73%

$74.00

List price $110.00

72-6515 main

Metra 72-6515

Install New Speakers in select 1999-2024 vehicles from Dodge, Jeep, Chrysler

11
-10.01%

$8.99

List price $9.99

72-7902 main

Metra 72-7902

Install New Speakers in select 1990-2024 vehicles from Ram, Dodge, Jeep

19
-28.59%

$9.99

List price $13.99

99-6520B main

Metra 99-6520B

Single/Double Din Dash Kit for select 2011-2020 Journey

2
-39.39%

$499.99

List price $824.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
-12.50%

$69.99

List price $79.99

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

Lowest price in 30 days
H7694 main

Cerwin Vega H7694

800W Peak (150W RMS) 6x9" HED Series 4-Way Coaxial 4-ohm Speakers

32
-25.93%

$79.99

List price $107.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Description


Cerwin-Vega brand icon

Authorized dealer

Ready To Go with Cerwin-Vega's HED Amplified Loaded Enclosures

Why spend countless hours looking to match the sub with an amplifier and perfect enclosure, when the HED Series Bass Kit amplified loaded enclosures by Cerwin-Vega offer an all-in-one package deal. The HEDBK212 features a pair of 12" HED series subwoofers that have been pre-loaded into a specifically tuned sealed enclosure. The sealed design and custom tuning will bring out the best possible sound reproduction from the loaded subwoofers. Included in this bass kit will be a 2-channel HED series amplifier that will provide more than enough power to run the subwoofers efficiently and safely. The enclosure is made from quality 3/4" MDF wood and features single push pin terminals for easy installation and set-up. The sleek black look will accommodate any vehicle while the added remote bass know will allow for gain control from the drivers seat. If you are looking to get your feet wet in this crazy world we call car audio but don't want to spend a bundle then look no further than the Cerwin-Vega amplified sealed enclosure.

Subwoofer Features
  • Pair of 12" HED Series Single 8 Ohm Car Subwoofer
  • Impedance: Single 8 ohm
  • Composite polypropylene cone design provides the perfect weight to strength ratio & excellent durability
  • Rubber surround allows high amounts of excursion
  • Radial contact convex domes geometrical design minimizes cone flex to reduce distortion
  • Rolled aluminum former for superior thermal capabilities and increased power handling
  • Linear rolled spider provides control and dynamic sound at all volume levels
  • Nickel-Plated pushpin terminals provide low-resistance connection & corrosion resistance
  • Woven tinsel leads sewn directly into spider for greater reliability
  • Single 8 ohm high temperature aluminum voice coil
  • Cross-flow window venting reduces VC temperatures
  • Forged alloy yoke for superior magnetic field retention
  • Deep drawn heavy gauge stamped steel basket
  • 1-year Manufacturer's warranty

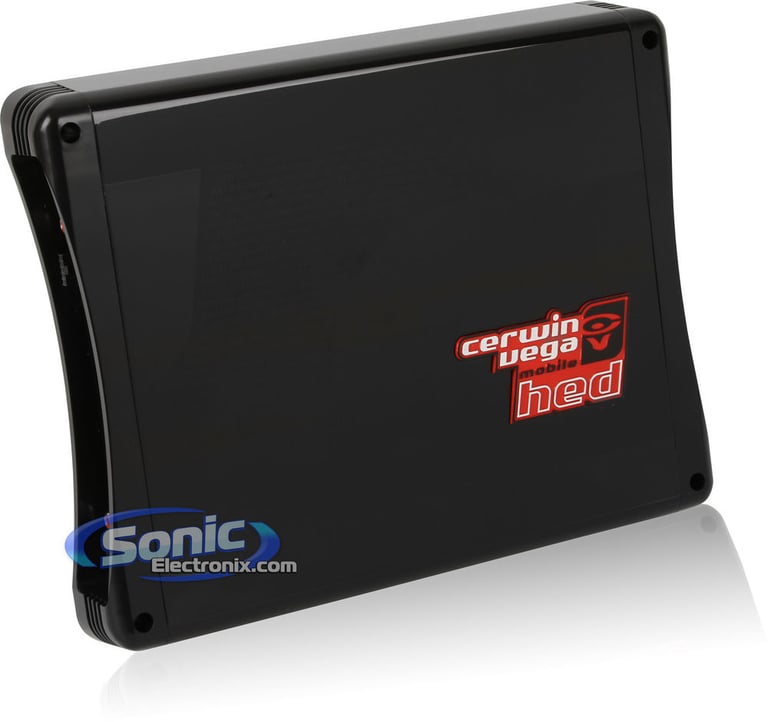

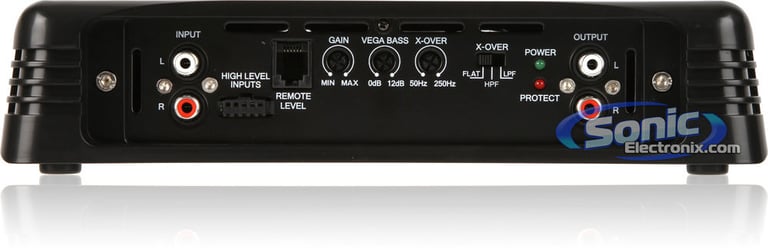

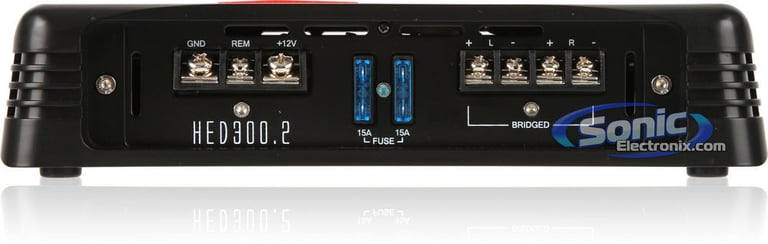

Amplifier Features:
  • HED Series 2-Channel Class AB Car Amplifier
  • PWM MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Vega Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on

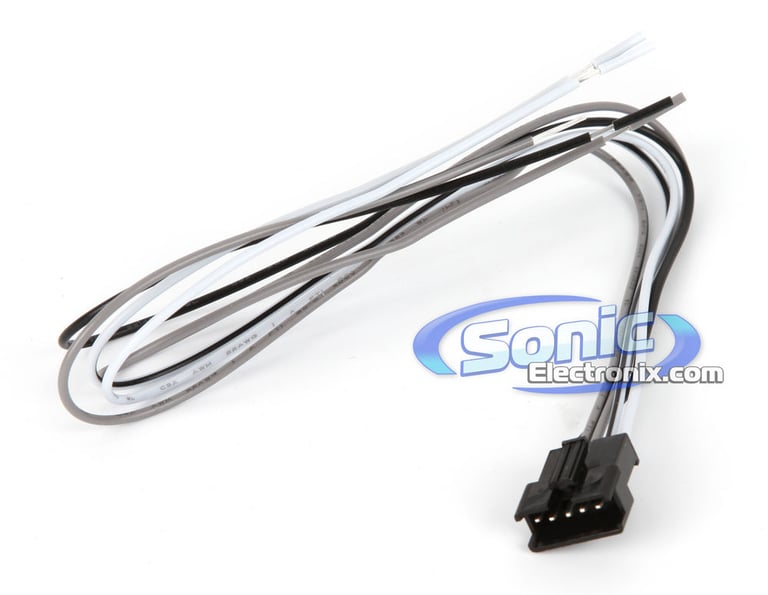

  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry
  • High-density aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 122mV-5V
    • High level: 3.8V-20V
  • Crossover selection switch
  • Variable high-pass filter (50-250 Hz, 12 dB/octave)
  • Variable low-pass filter (50-250 Hz, 12 dB/octave)
  • Damping factor: >363 at 50 Hz
  • Frequency response: 20-49,000 Hz
  • Dimensions: 11-5/8"L x 9-7/16"W x 2-1/8"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website (SonicElectronix.com) when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

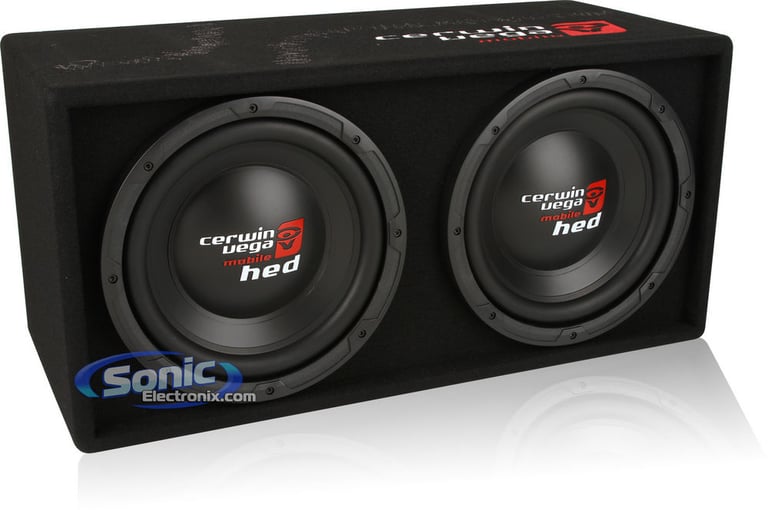

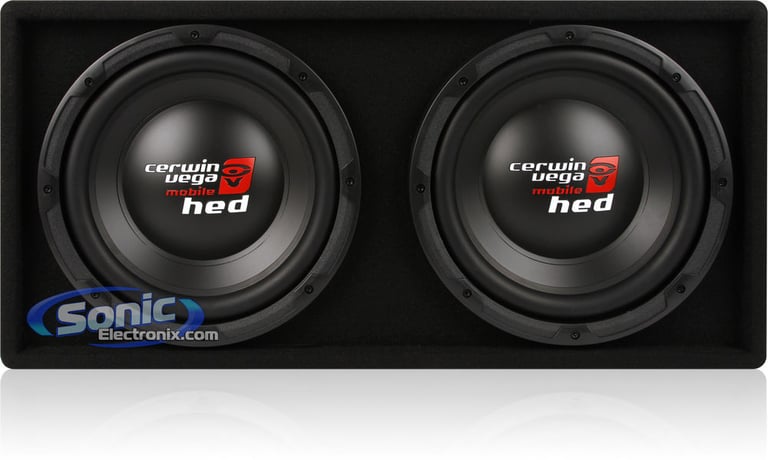

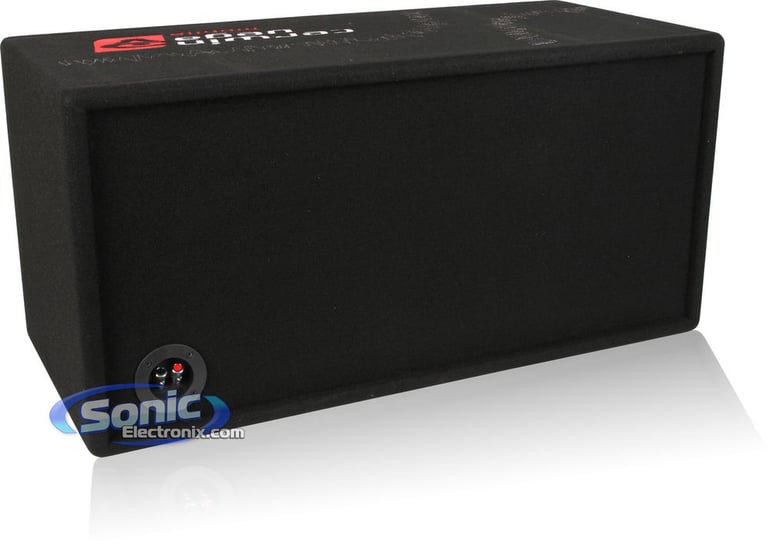

Enclosure Features
  • Dual 12" sealed loaded enclosure
  • High-quality 3/4" MDF wood construction
  • Factory tuned for optimum performance
  • Custom embroidery for enhanced cosmetics
  • Single push pin terminal cup for quick and easy installation and set-up
  • Durable black carpet
  • Dimensions: 29-3/4"L x 14-1/2"W x 13-1/2"H

Product history:

Cerwin-Vega BKX212V thumbnail
(newest, current model)
Cerwin-Vega HEDBK212 thumbnail
(previous model, replaced by Cerwin-Vega BKX212V)

Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.29%

$211.34

List price $232.98

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
40 watts x 2 channel
RMS Power @ 2 ohms
75 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
150 watts x 1 channel
Peak Power Output
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
0.08%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
108 dB
Bass Boost
0 - 12 dB

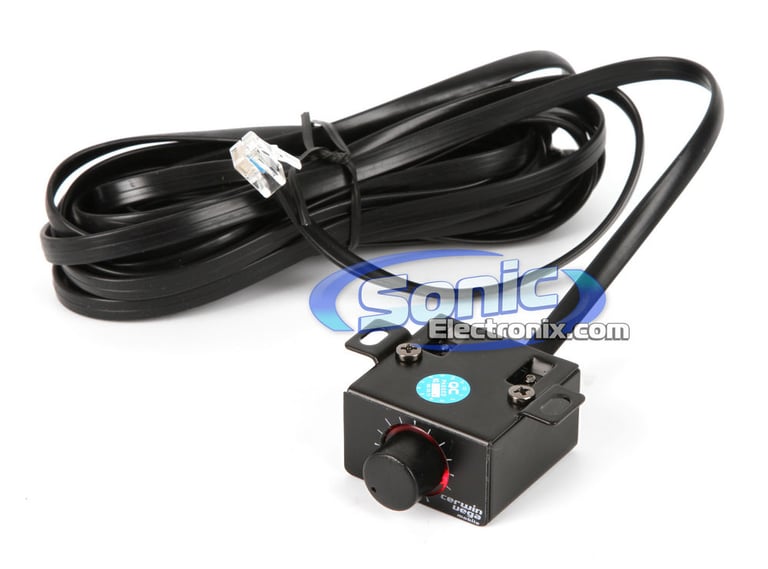

Remote bass/level controller
Optional (Accessory required and sold separately)

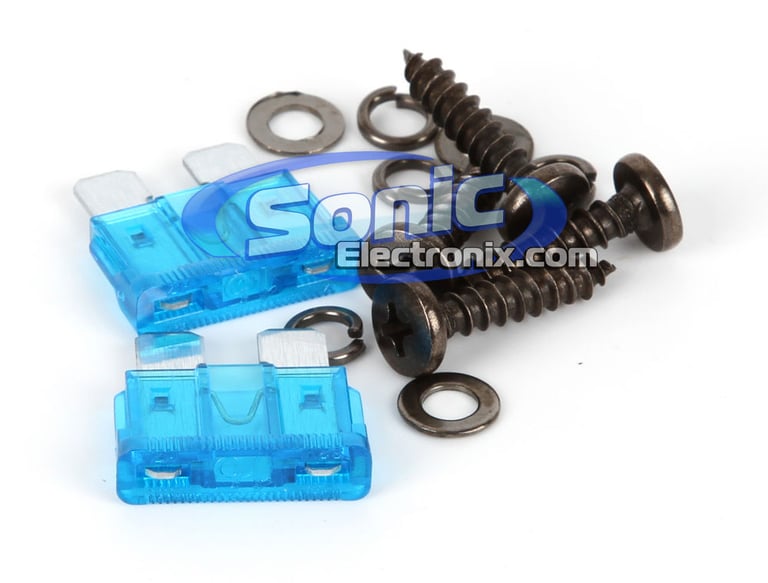

Fuse Rating
15A x 2
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
150 watts
Total RMS Power Handling
150 watts
Peak Power Handling
300 watts
Total Peak Power Handling
300 watts
Woofer Surround
Rubber
Woofer Composition
Composite Polypropylene Cone - CPPC
Voice Coil(s)
Single
Impedance (Per Voice Coil)
8 ohm
Sensitivity
86.00 dB
Frequency Response
Not specified by manufacturer
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
2
Box Style/Shape
Square/Rectangle
Height
13-1/2"
Width
14-1/2"
Depth
29-3/4"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Spring posts
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HEDBK212

Weight:

66.00lbs

Internal SKU:

hedbk212

Internal Product ID:

39705

Customer Ratings & Reviews


Cerwin-Vega HEDBK212 thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


HED500.1 small

Cerwin-Vega HED500.1 Open Box

500W MAX, HED Series Monoblock Class AB Car Amplifier

$94.95

List price $199.99

C3 501_2-V 12 small

1000W Massive Audio + Crossfire Complete Bass Package

2 Massive Audio V 12 12" V Series Subs + Crossfire C3 501 Monoblock Amplifier + Amp Kit + Enclosure

(35)

$223.34

List price $639.83

TS-W309D4 small

Pioneer TS-W309D4

12" Dual 4 Ohm Champion Series Car Subwoofer

(53)

$79.99

List price $130.00

FS-20 small

Crimestopper Fortress FS-20

Car Alarm Vehicle Security System w/ Keyless Entry, DPII Technology, 2-way Data Port, and Two Ultra-Slim Remote Transmitters

$49.99

List price $129.99

OVN1-4000D small

Power Acoustik OVN1-4000D

4000W Max, Class D Monoblock Gothic Series Amplifier

(18)

$179.99

List price $519.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2008 Kia Spectra

2008 Audi A3

2015 Chevrolet Sonic

1981 Cadillac DeVille

1999 Mazda B4000

2018 Dodge Journey

2016 Lexus ES300h

2015 GMC Canyon

2020 Ford Transit Connect

2017 Lexus RC F

Vehicle
Store
Delete

2018 Can-Am Defender DPS HD5

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
