500W JL Audio Subwoofer + Realm Amplifier Bass Bundle

JL Audio 12WX-4 12" WX Series Subwoofer + Realm A200.2 2-Channel Amplifier + Amp Kit + Enclosure

JL Audio
Shop all JL Audio
EXCLUSIVE
highlight-star-icon

12" Single 4 ohm WX Series Subwoofer • 500W Max • 200W RMS • Realm by Scosche 2-Channel Class A/B Car Amplifier • MOSFET Power Supply • Discrete Plug Style • 8 Gauge Amplifier Installation Kit

Learn more about the 12wx4_a2002

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Description


JL Audio brand icon

Authorized dealer

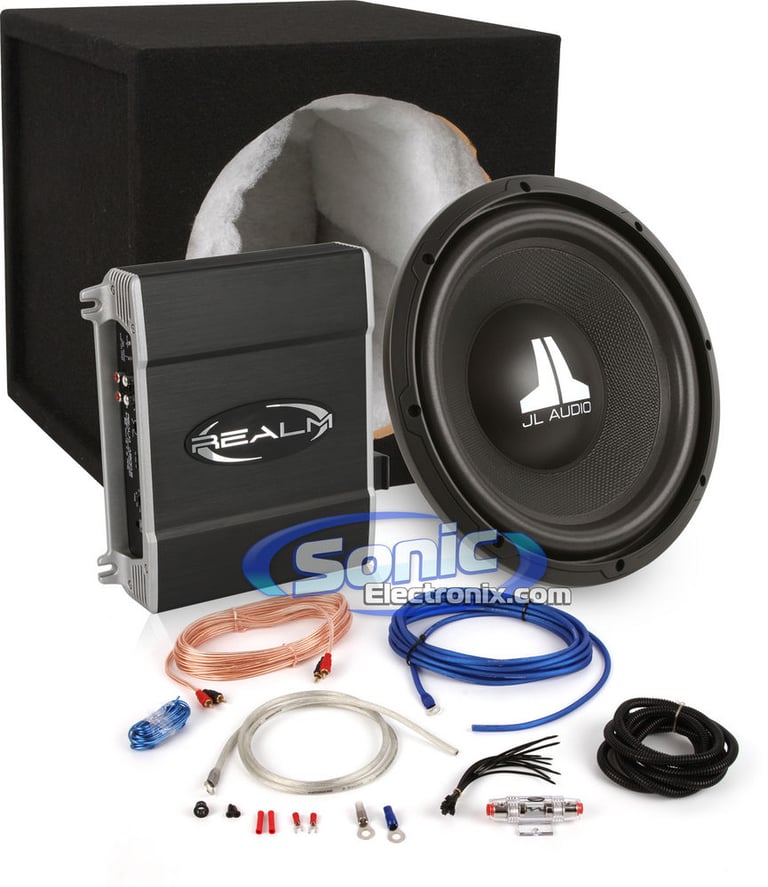

JL Audio and Realm Complete Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a Realm A200.2 Amplifier along with a 12" WX series JL Audio subwoofer. This excellent bass package pushes 200 watts of clean, continuous RMS power. The JL Audio subwoofer has a Single 4 ohm voice coil; meant to be wired in directly to the amplifier, to a final impedance of 4 Ohms Bridged. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This JL Audio 12WX-4 WX series subwoofer requires 200 watts of RMS power. The included Realm A200.2 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes an 8 gauge amplifier kit which is perfect to supply power to the amplifier. Also included is a single 12" sealed enclosure. The enclosure is made from 3/4" MDF wood and is pre-lined with Poly-Fil for optimum sound production. With the JL Audio subwoofer, Real amplifier, sealed enclosure, and Tsunami amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

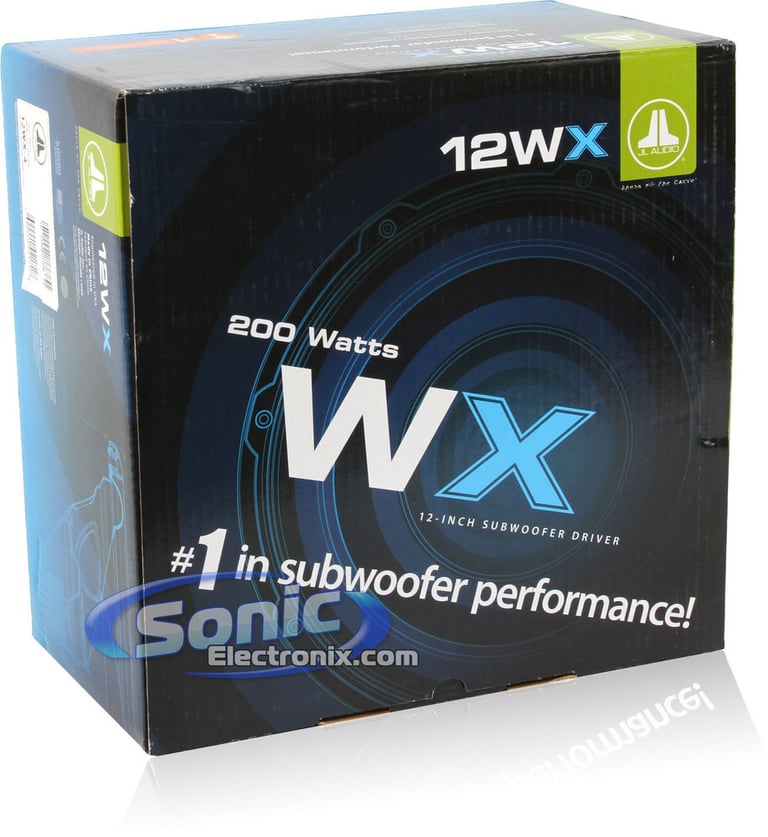

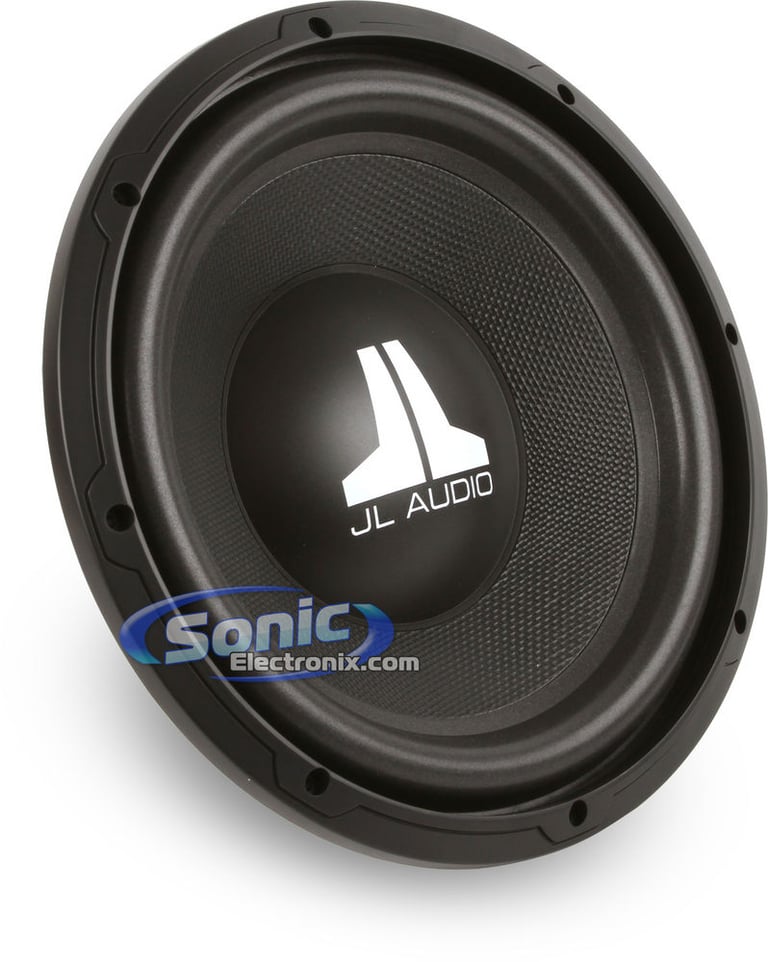

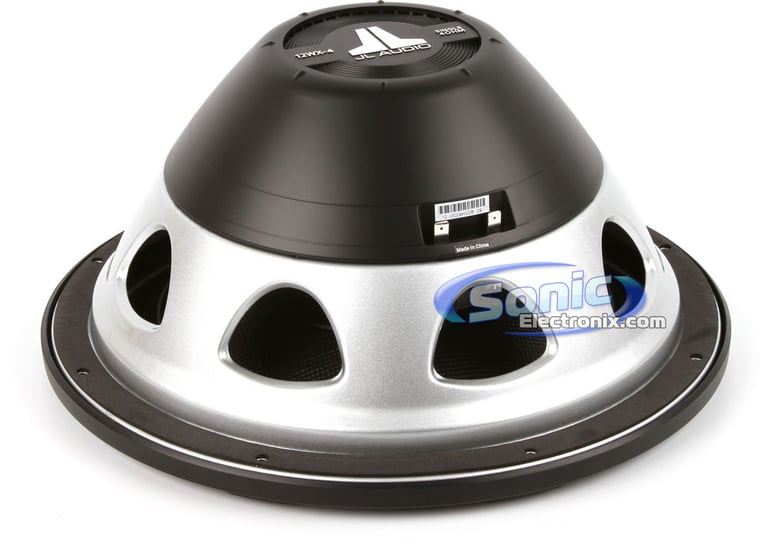

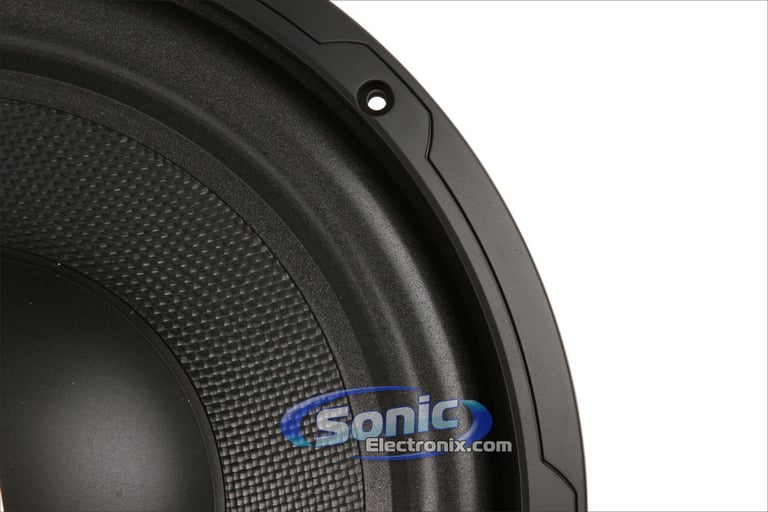

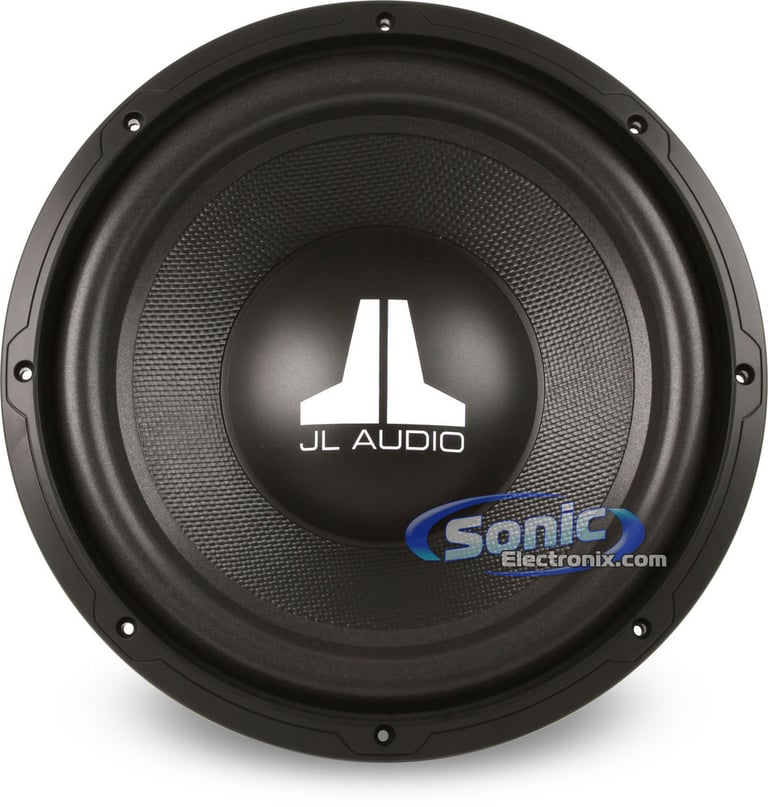

JL Audio 12WX-4 Features:
  • 12" Single 4 ohm WX Series Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 200 watts
    • Recommended Power Range: 50-200 watts
  • Impedance: 4 ohm
  • Polypropylene woofer cone material
  • Foam woofer surround type
  • Proprietary dynamic motor analysis (DMA) improves motor behavior
  • Elevated frame cooling delivers cold air above the top plate to the voice coil
  • Resists breakdown under extreme conditions
  • Integrated foam rear gasket which provides an optimal seal
  • Great application flexibility with small or medium enclosures
  • Frequency response: 22-250 Hz
  • Sensitivity: 87.17 dB
  • Top Mount Depth: 5-5/16"
  • Cutout Diameter: 10-13/16"
  • 1-year Sonic Electronix warranty

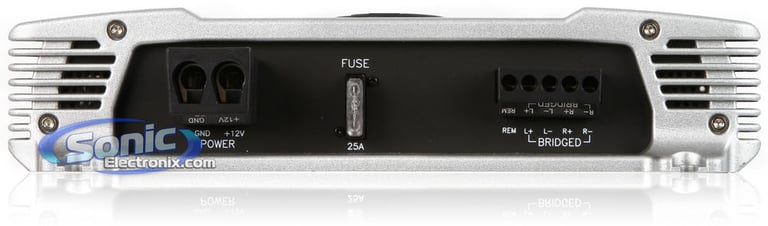

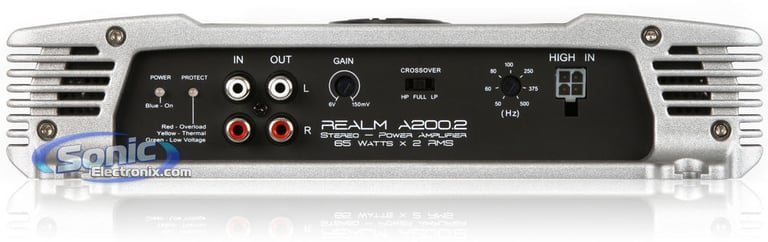

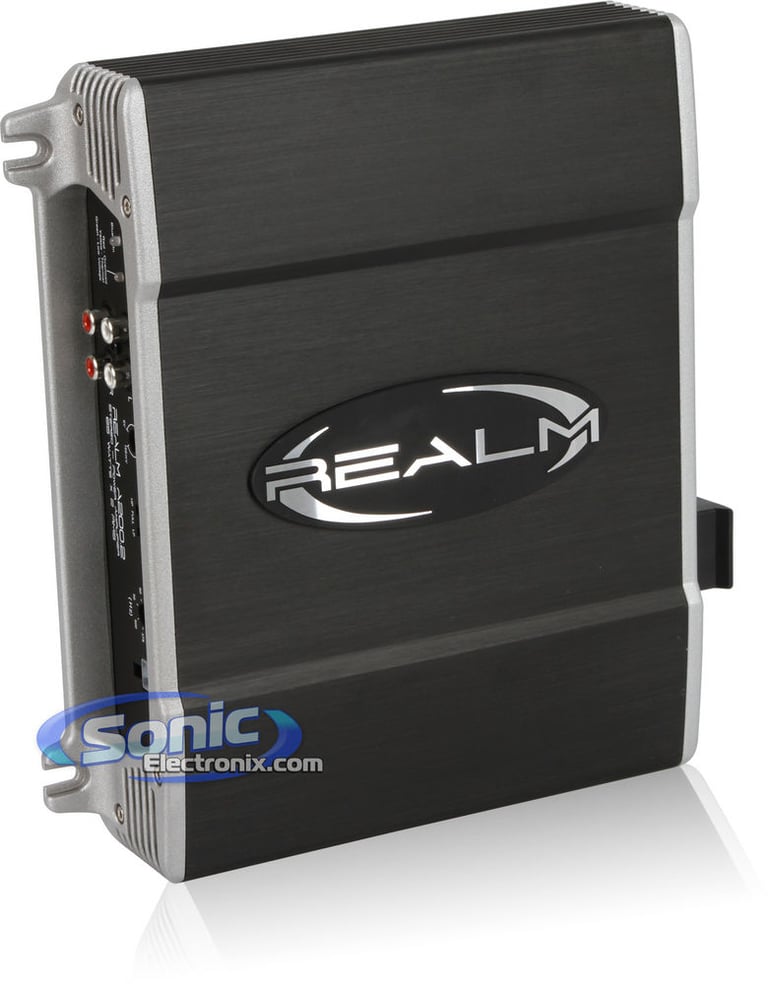

Realm A200.2 Features:
  • Realm by Scosche 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 2 chan.
    • 2 ohm: 100 watts x 2 chan.
    • Bridged, 4 ohm: 200 watts x 1 chan.
  • MOSFET power supply
  • Power LED (blue) indicatior
  • Multi-Color LED Protection:
    • Red: overload or circuit problem
    • Yellow: thermal problem
    • Green: low voltage problem
  • Soft Start Turn-on
  • 2/1 channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry
  • Illuminated dial controls

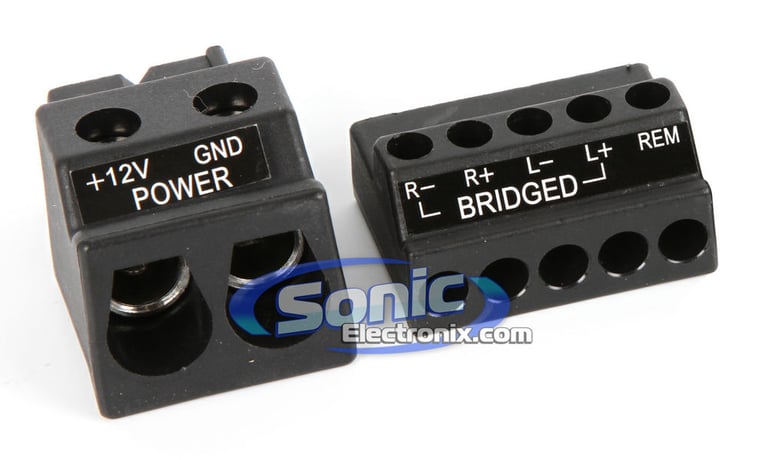

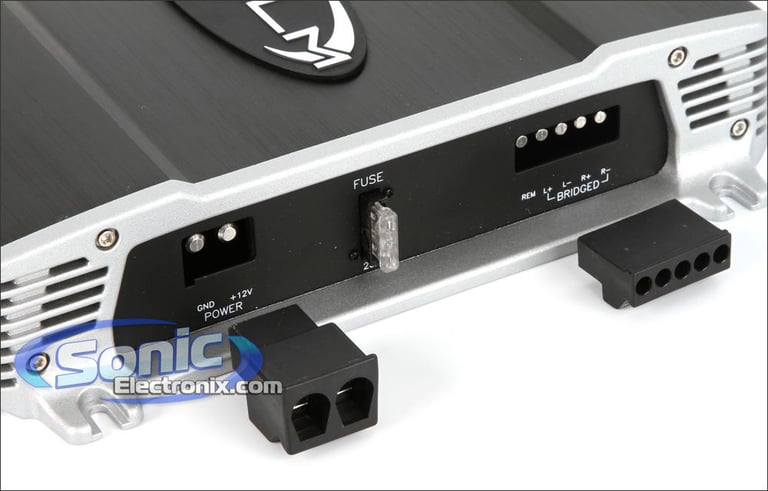

  • Discrete plug style terminals
  • Double sided glass-epoxy circuit boards
  • Internal transistor heat sinks for maximum heat dissipation
  • Input sensitivity:
    • Low level: 150mV-6V
    • High level: 325mV-10V
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable high-pass filter (50-500 Hz, 12 dB/octave)
  • Variable low-pass filter (50-500 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20,000 Hz
  • Dimensions: 9-1/8"L x 9-13/16"W x 2-1/8"H
  • 8-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

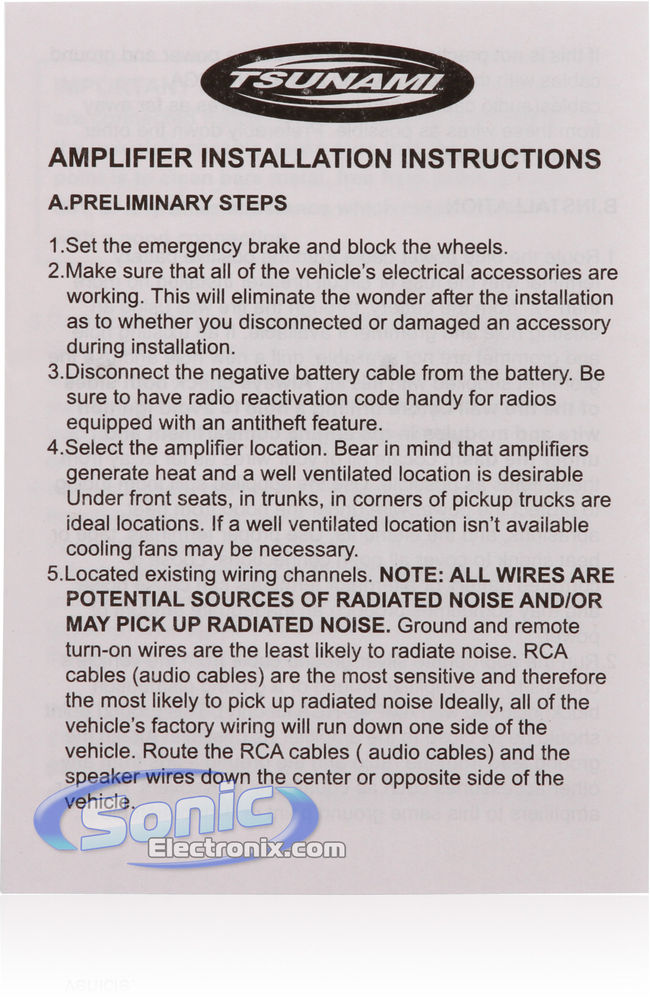

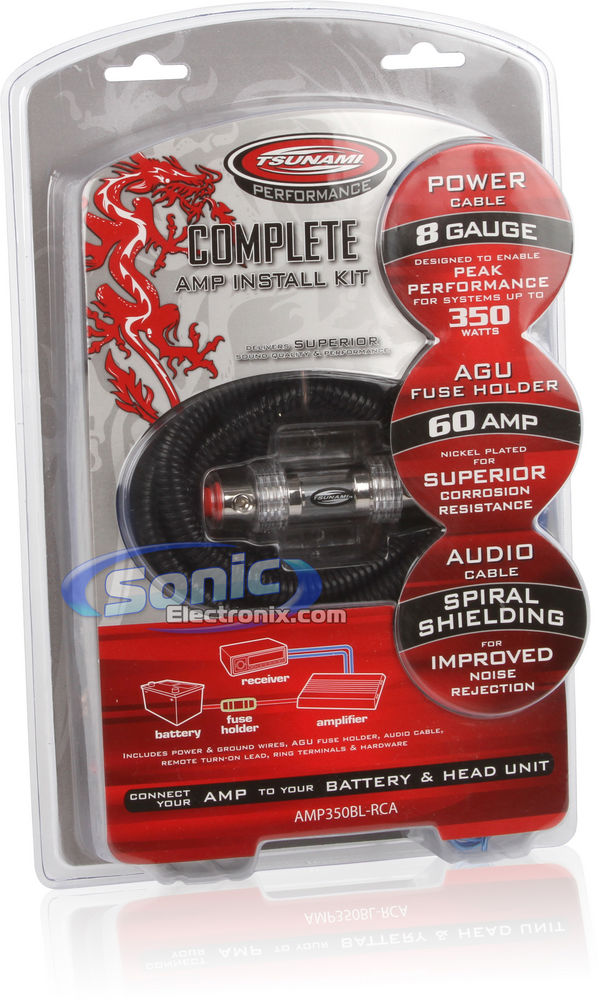

Tsunami AMP350BL-RCA Features:
  • Tsunami AMP350-RCA 8 Gauge Amplifier Installation Kit
  • For systems up to 350 watts
  • Designed to enable peak performance
  • AGU 60 amp fuse holder
  • Gold-Plated connectors for improved corrosion resistance
  • Spiral shielding for improved noise rejection
  • Color: Blue
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Tsunami AMP350BL-RCA Includes:

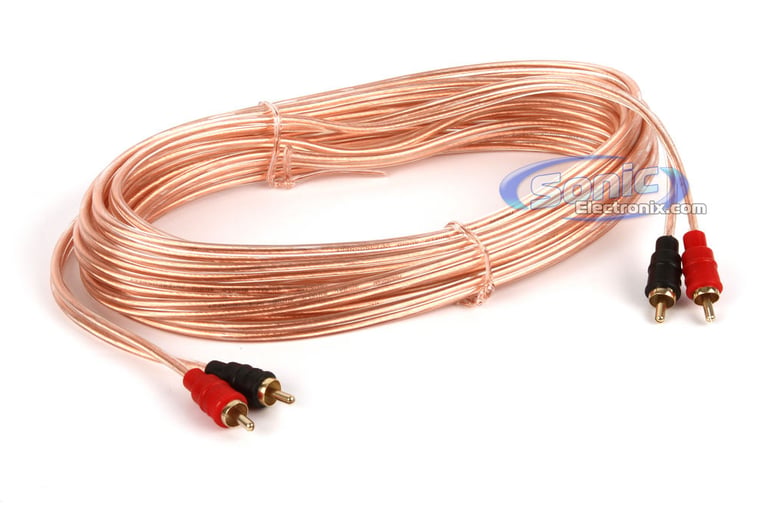

  • 20' RCA gold patch cord

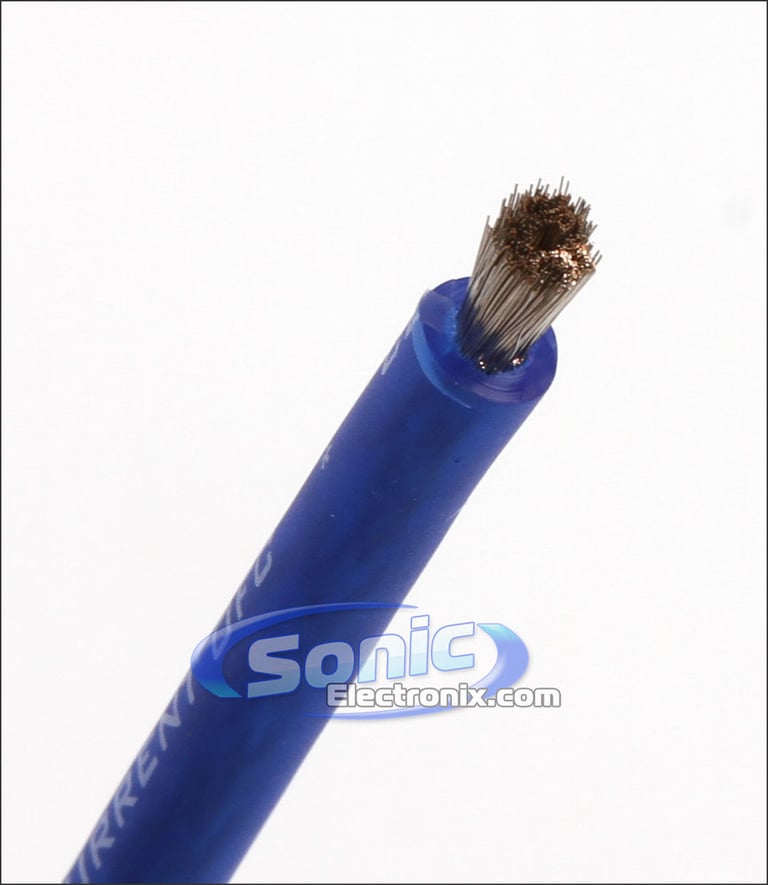

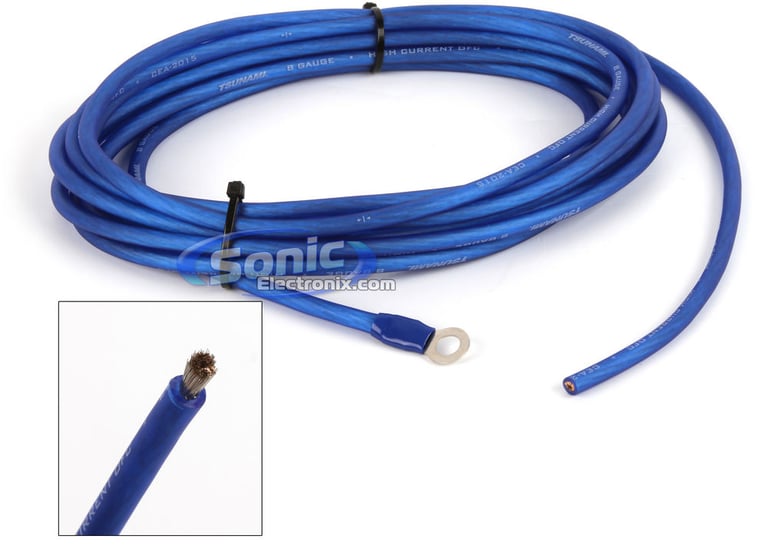

  • 20' 8 Gauge blue power cable

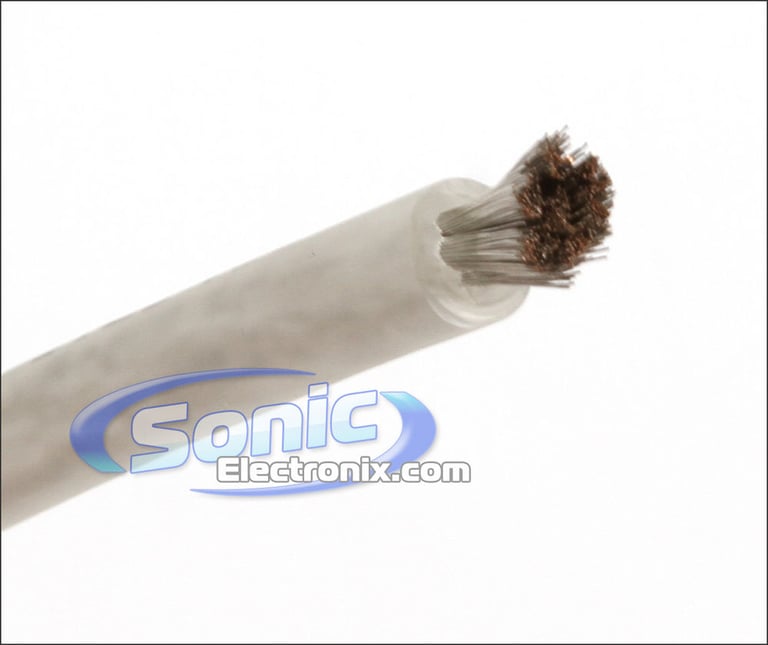

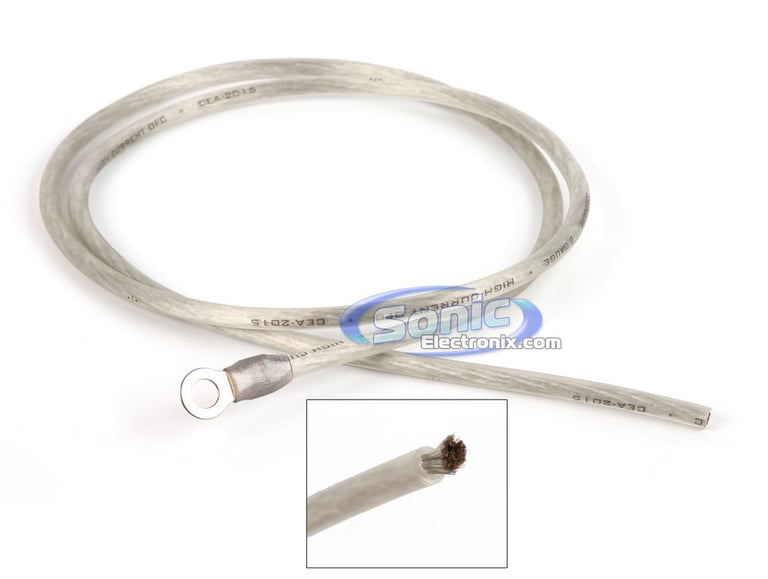

  • 2' 8 Gauge silver ground cable

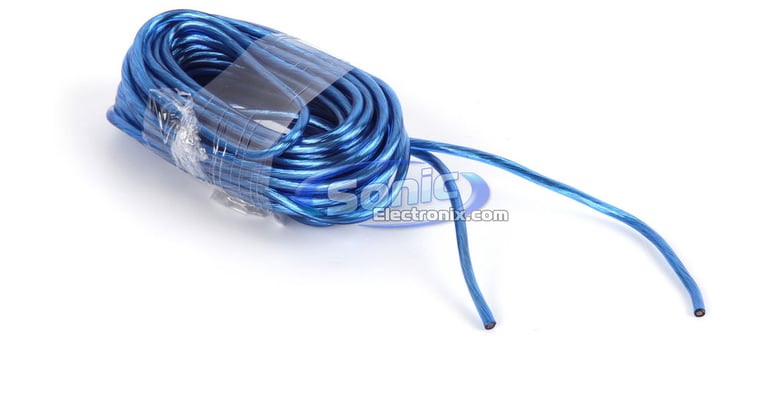

  • 16' 18 Gauge blue remote turn-on wire
  • 16' 18 Gauge silver ground wire

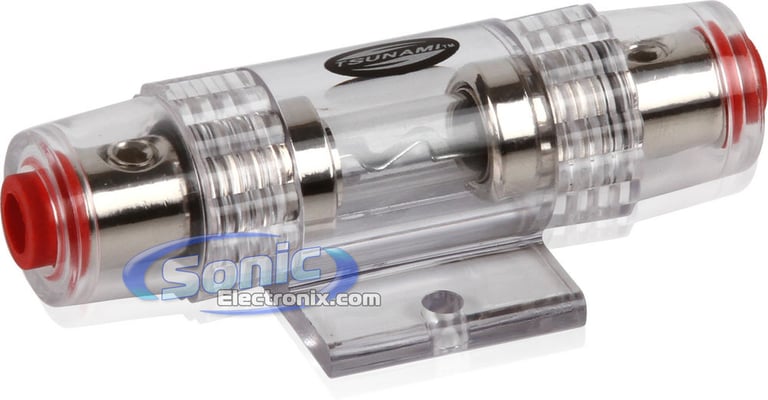

  • AGU 60 amp fuse holder

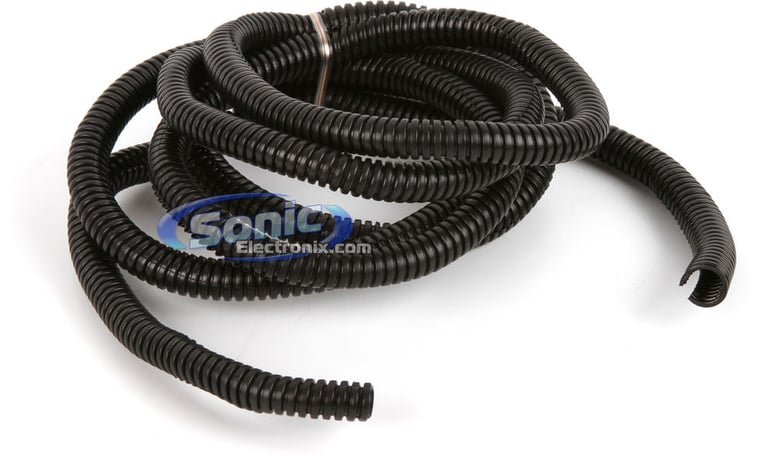

  • 6' 1/4" Split loom tubing

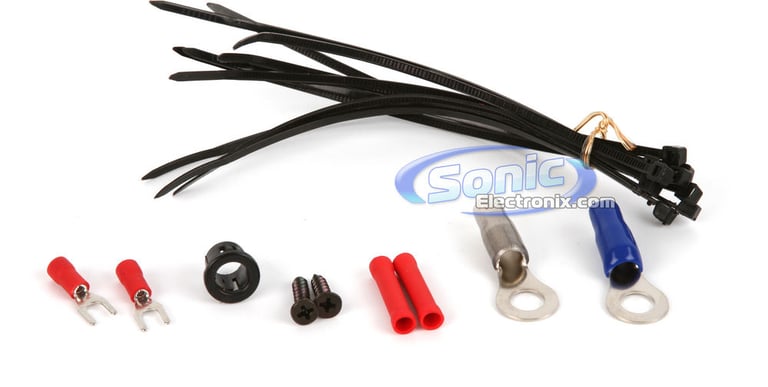

  • Push-in grommet
  • 2 x 8 Gauge 5/16" ring terminals
  • 2 x 4" Black wire ties
  • 2 x blue vinyl butt connectors
  • 2 x blue vinyl #10 spade connectors
  • 4 x #8 3/4" Pan head phillips screws

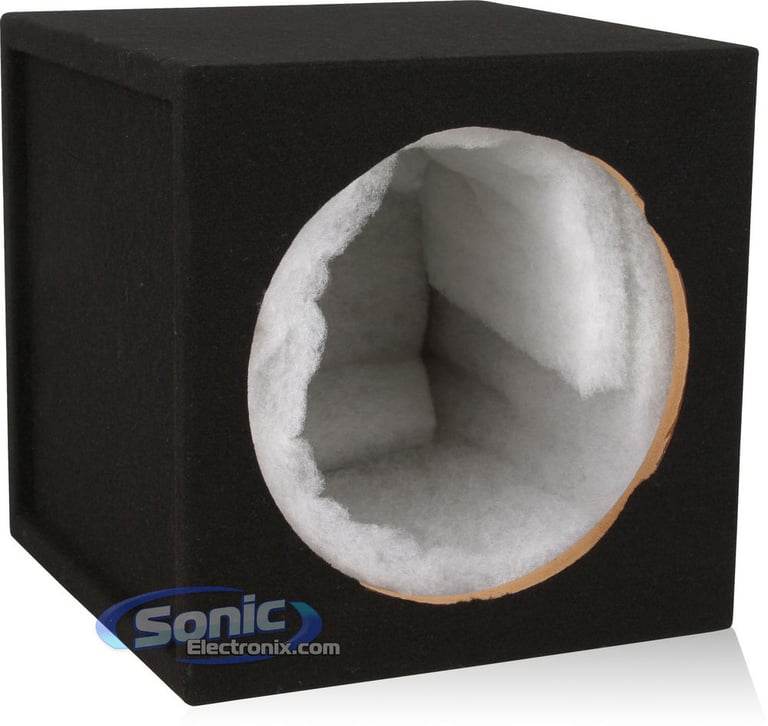

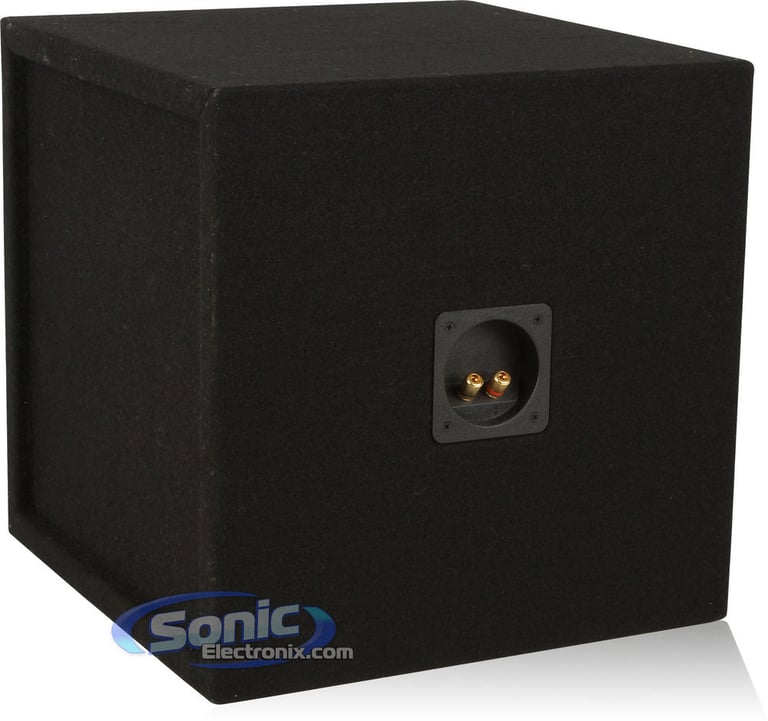

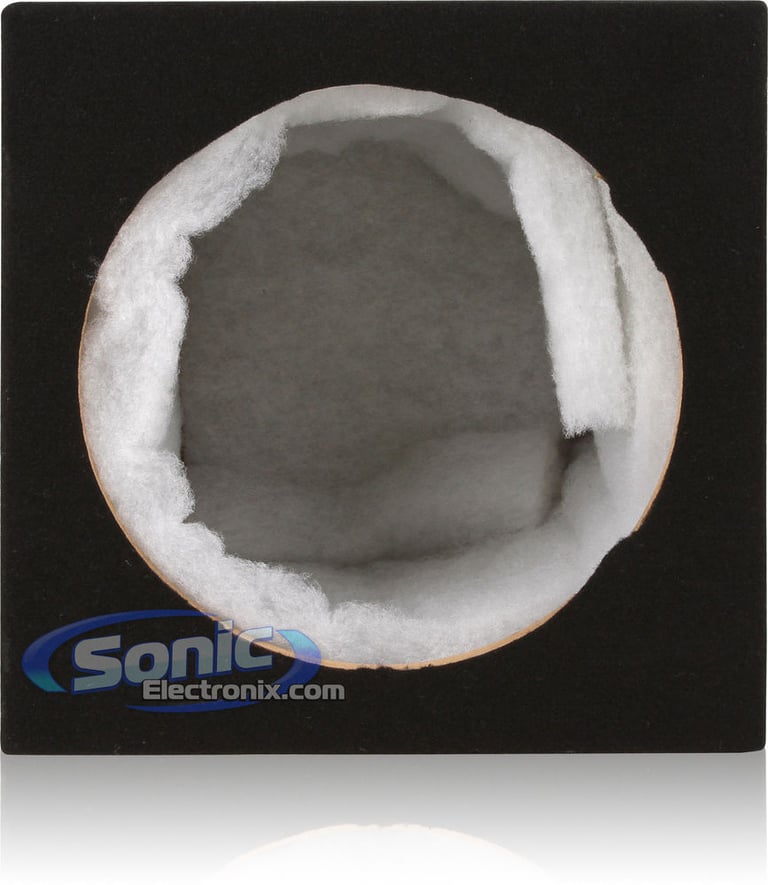

12SSPF Enclosure Features:
  • 12" Single Sealed Subwoofer Enclosure
  • Durable MDF enclosure for car subwoofers
  • Covered in a black carpet
  • Pre-lined with Poly-Fil

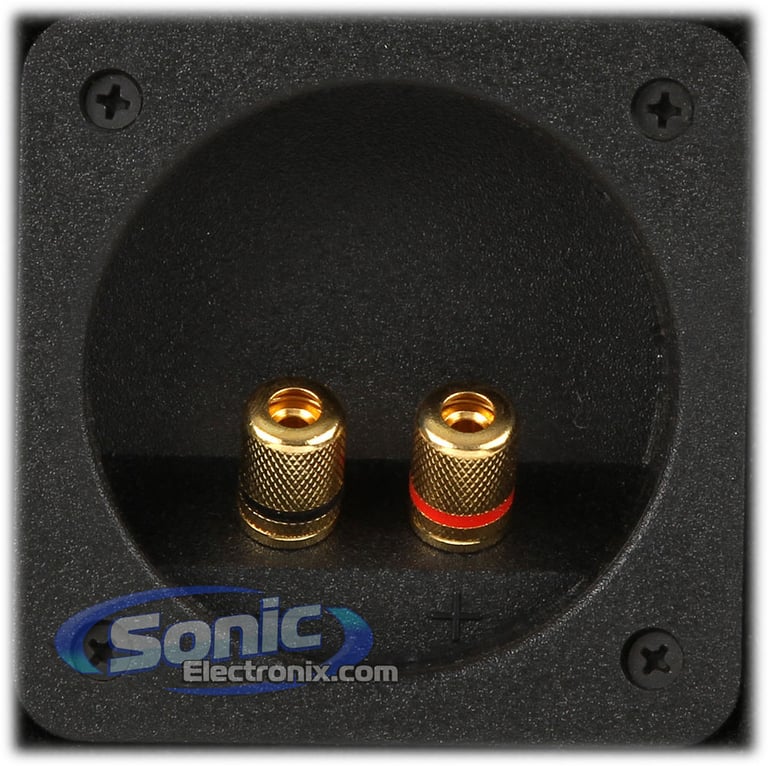

  • Gold-plated speakers terminals
  • Banana-clip ready
  • Subwoofer mounting depth: 12-1/2"
  • Subwoofer cutout diameter: 11"
  • Box volume: 1.0 cubic feet (per chamber)
  • Total box volume: 1.0 cubic feet
  • Dimensions: 14"D x 14"W x 14"H

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
60 watts x 2 channel
RMS Power @ 2 ohms
100 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
200 watts x 1 channel
Amplifier Specifications
Amplifier Class
AB / D
Number of Channels
2-Channel
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
0.03%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
98 dB
Remote bass/level controller
No
Fuse Rating
25A x 1
CEA-2031 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
200 watts
Peak Power Handling
500 watts
Woofer Surround
Foam
Woofer Composition
Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87.17 dB
Frequency Response
22 - 250 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
14"
Width
14"
Depth
14"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

12WX-4_A200.2

Weight:

34.90lbs

Internal SKU:

12wx4_a2002

Internal Product ID:

39778
