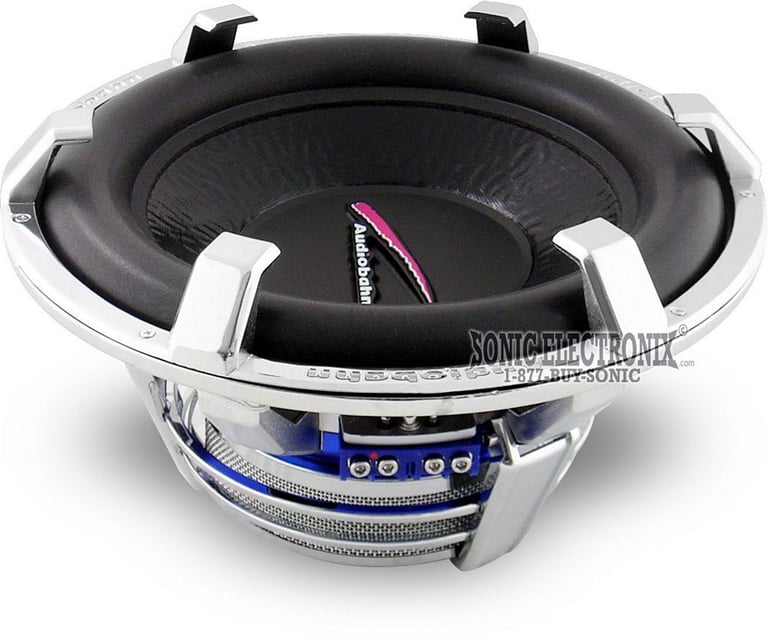

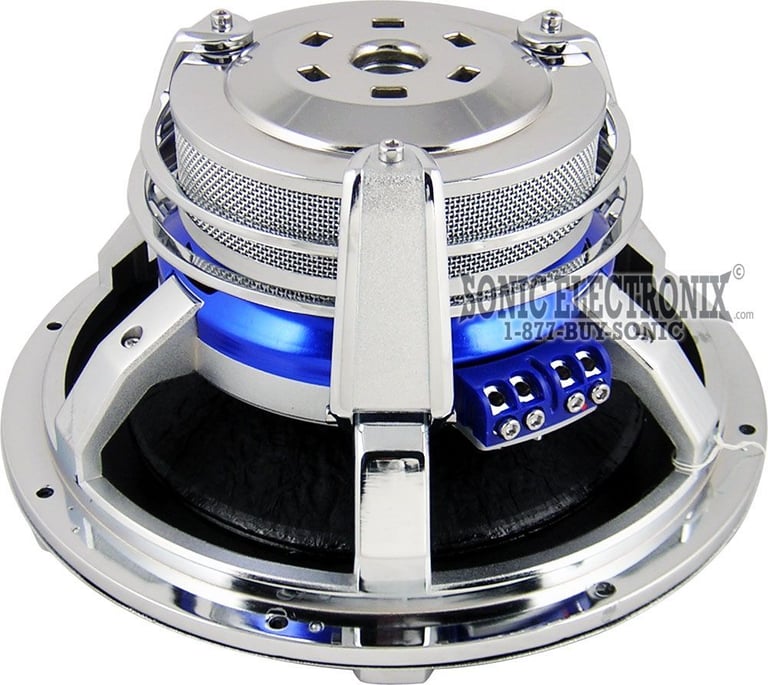

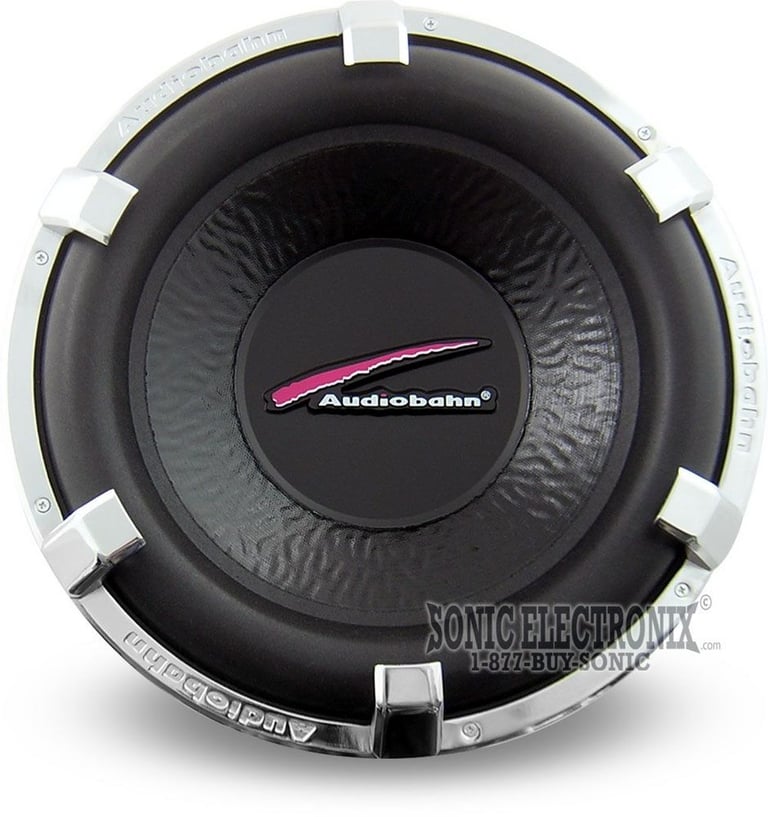

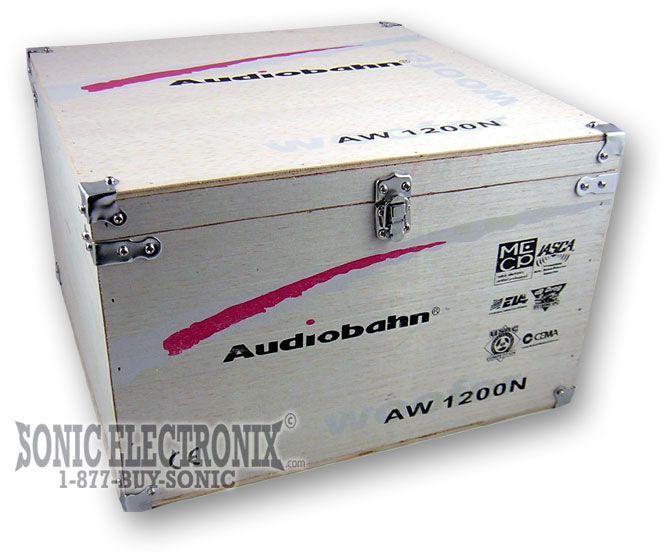

Audiobahn AW1200N

12" High-Excursion Subwoofer ( NEW Version of AW1200Q )

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

12" 700W RMS High Excursion Woofer • KM3 Coated for little to no cone distortion • Dual 4 Ohm • Chrome Finish • 120 oz. Magnet • PHAT 2" Foam Surround

Learn more about the aw1200n

We apologize

This item has been discontinued


Loading...
KAAB main

Scosche KAAB Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2007-2025 vehicles from Hyundai, Kia, Genesis

11
-10.96%

$6.99

List price $7.85

72-7303 main

Metra 72-7303

Install New Speakers in select 2005-2022 vehicles from Hyundai, Kia

1
HY07B main

Scosche HY07B Wiring Harness

Install a new car stereo in select 2005-2018 vehicles from Kia, Hyundai

19
95-7353CH main

Metra 95-7353CH Dash Kit

Install a new Double-DIN car stereo in select 2012-2015 Rio (Charcoal)

3
-46.95%

$25.99

List price $48.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

115
-37.15%

$21.99

List price $34.99

DM724 main

Dual DM724

7″ Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

4
Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

D65SP main

Dual D65SP

200W Peak (100W RMS) 6.5" 2-Way Coaxial 4-ohm Car Speakers

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154

JBL Stage3 627F (STAGE3627FAM)

270W Peak (90W RMS) 6.5" Stage3 Series 2-way Coaxial 3-ohm Speakers

3
-20.01%

$79.95

List price $99.95

Product Highlights


12" 700W RMS High Excursion Woofer • KM3 Coated for little to no cone distortion • Dual 4 Ohm • Chrome Finish • 120 oz. Magnet • PHAT 2" Foam Surround

Description


  • New Design with Chrome Finished Cast Basket
  • Aluminum Voice Coil Former
  • Extended Pole Piece
  • Vented Oversized Back Plate
  • Flat Spider
  • Convex Dust Cap
  • 120 oz. Magnet
  • RMS Power Handling: 700 watts
  • Peak Power Handling: 1400 watts approx.
  • Frequency Response: 20Hz - 500Hz
  • Sensitivity: 92.7dB
  • Impedance: Dual 4 ohm
  • Operation in 2 ohm or 8 ohm
  • Poly Coated Cone
  • PHAT 2" Treated Foam Surround
  • KM3 Coated for little to no cone distortion
  • 2" 4-layer ASV Voice Coil
  • Mounting Depth: 5-5/8"
  • Mounting Hole: 11-1/8"
  • Woofer Diameter: 12-3/4"
  • Multi-Connect Lug Lock Terminals
  • 1-year SonicElectronix.com warranty

Product history:

Audiobahn AW1200N thumbnail
(newest, current model)
Audiobahn AW1200Q thumbnail
(previous model, replaced by Audiobahn AW1200N)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiobahn AW1200N Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiobahn AW1200N Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiobahn AW1200N Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Audiobahn AW1200N Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(1)

$599.99

List price $719.99

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1400 watts approx.
RMS Power Handling
700 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 500 Hz
Sensitivity
92.7 dB
Woofer Surround
Foam
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
5-5/8"
Cutout Diameter
11-1/8"

Item Details


Manufacturer:

Model Number:

AW1200N

Weight:

25.00lbs

Internal SKU:

aw1200n

Internal Product ID:

3984
