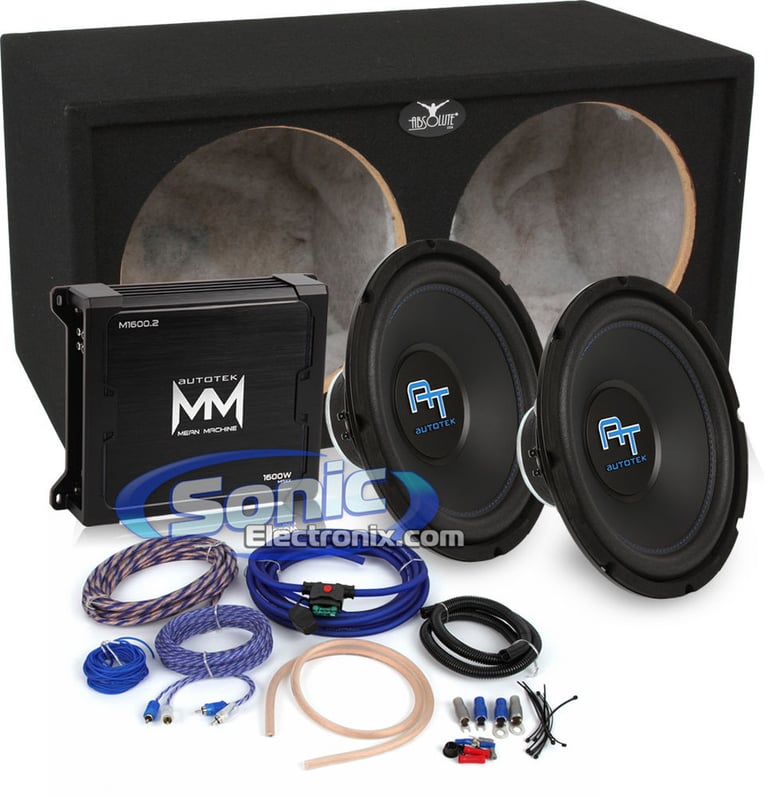

Autotek Subwoofer and Amplifier Complete Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a Autotek M1600.2 Amplifier along with a pair of 12" ATX series Autotek subwoofers. This excellent bass package pushes 700 watts of clean, continuous RMS power. The Autotek subwoofers each have a Dual 4 ohm voice coil; meant to be wired in series/parallel, to a final impedance of 4 Ohms at the bridged impedance on the amplifier. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

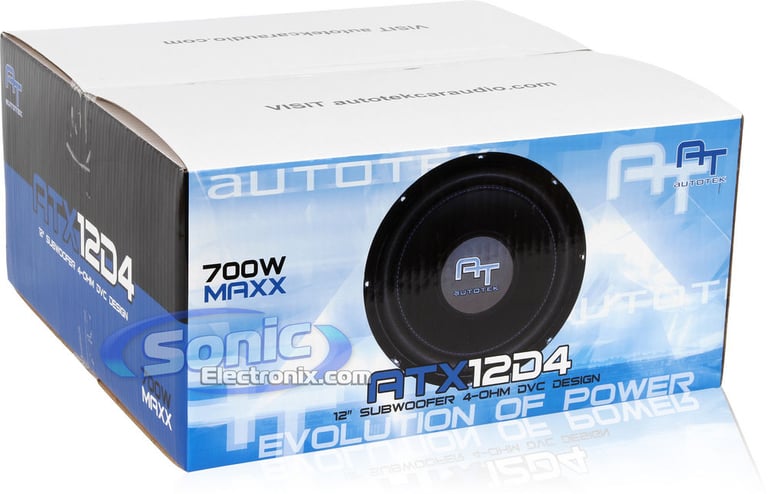

These Autotek ATX12D4 ATX series subwoofers require 350 watts of RMS power each. The included Autotek M1600.2 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a 4 gauge amplifier kit which is perfect to supply power to the amplifier. Also included will be a dual 12" sealed enclosure, this enclosure will come with pre-line Poly-Fil and will be made with durable MDF wood. The sealed design will provide a tighter and quicker responsive bass. With the Autotek subwoofer, Autotek amplifier, sealed enclosure, and Power Acoustik amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

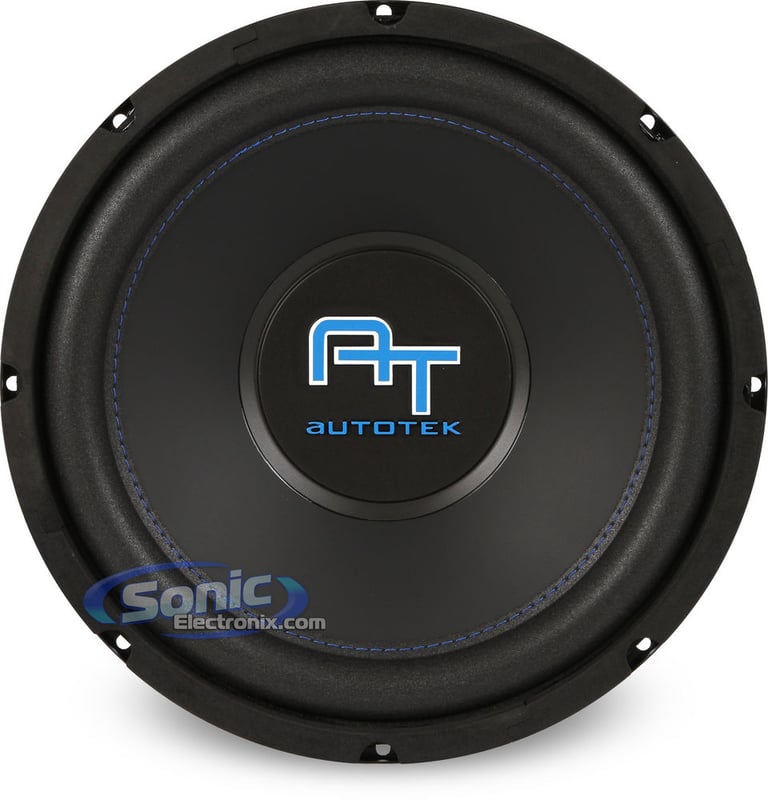

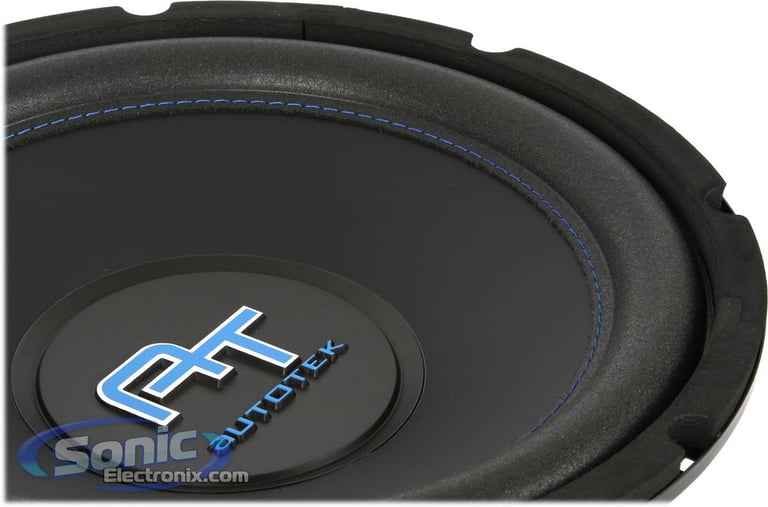

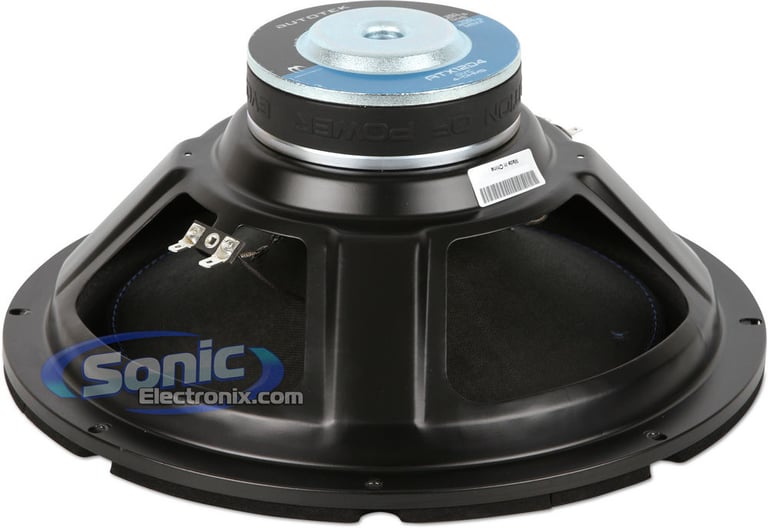

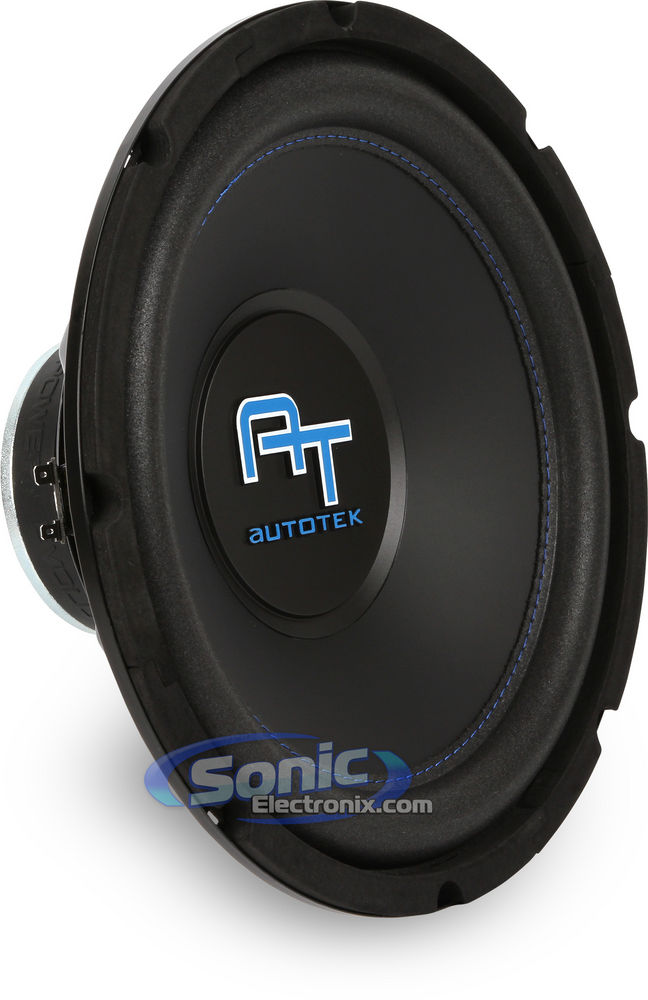

Autotek ATX12D4 Features:
  • Pair of 12" Dual 4 ohm ATX Series Subwoofers
  • Power Handling:
    • Peak: 1400 watts total / 700 watts each
    • RMS: 700 watts total / 350 watts each
  • Impedance: 4 ohm
  • Paper woofer cone is lightweight & durable
  • Foam surround for high excursion
  • Stitched and glued bond for surround to cone security
  • Front-Plate and voice coil cooling
  • Ultra rigid stamped steel basket

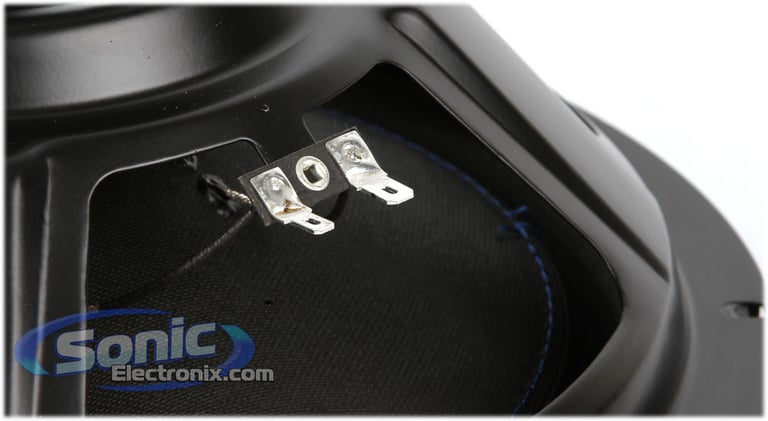

  • Dual 4 ohm multi-layer high temp voice coil
  • High energy magnet structure with ABS motor cao
  • Sensitivity: 87.8 dB
  • Xmax: 10.25mm
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

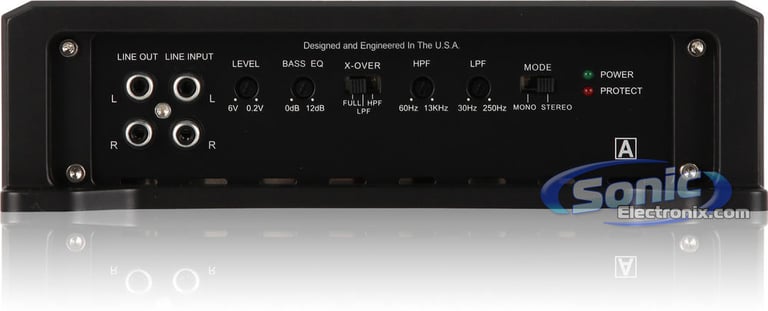

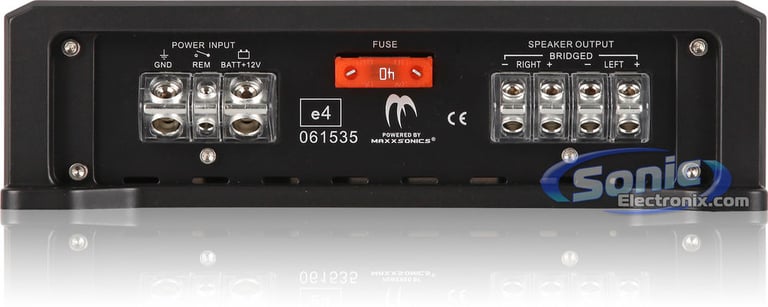

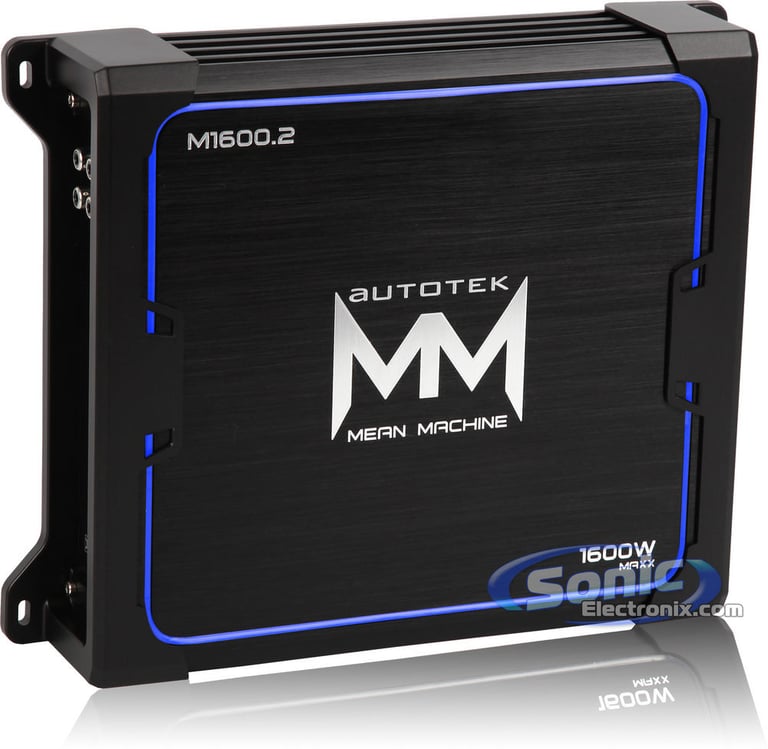

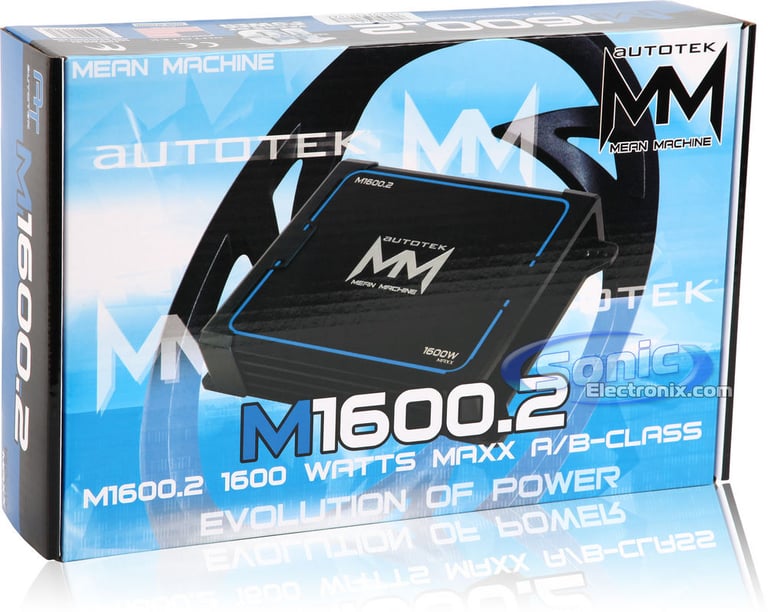

Autotek M1600.2 Features:
  • Mean Machine Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 2 chan.
    • 2 ohm: 400 watts x 2 chan.
    • Bridged, 4 ohm: 800 watts x 1 chan.
  • Dynamic Power Rating:
    • 4 ohm: 400 watts x 2 chan.
    • 2 ohm: 800 watts x 2 chan.
    • Bridged, 4 ohm: 1600 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • 2/1 channel operation
  • Illuminated badge and heatsink
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity:
    • Level: 200mV-6V
  • Variable high-pass filter (60-13,000 Hz, 24 dB/octave)
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Damping factor: >180
  • Frequency response: 30-13,000 Hz
  • Dimensions: 11-5/16"L x 9-1/16"W x 2-1/2"H
  • 4-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

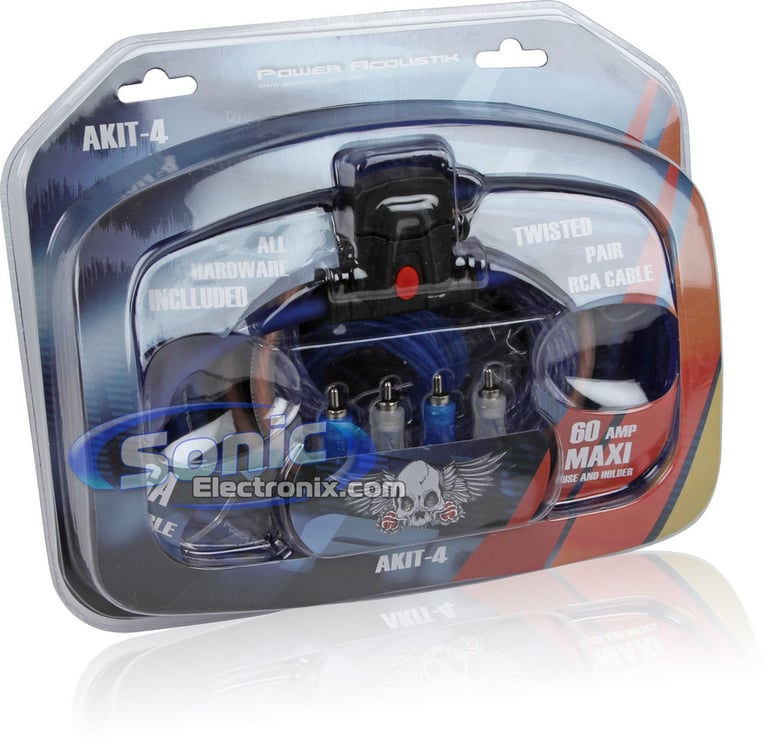

Power Acoustik AKIT-4 Features:
  • 4 Gauge Complete Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1000 watts
  • Power and ground wire provides optimal power transfer
  • Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
  • Includes a 2-channel RCA interconnect cable for the audio signal connection from the receiver to the amplifier
  • RCA Interconnects are made with twisted-pair technology for noise reduction
  • Terminals are nickel-plated for excellent signal transfer
  • In-line Maxi fuse holder offers ideal protection for entry-level systems
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Power Acoustik AKIT-4 Includes:

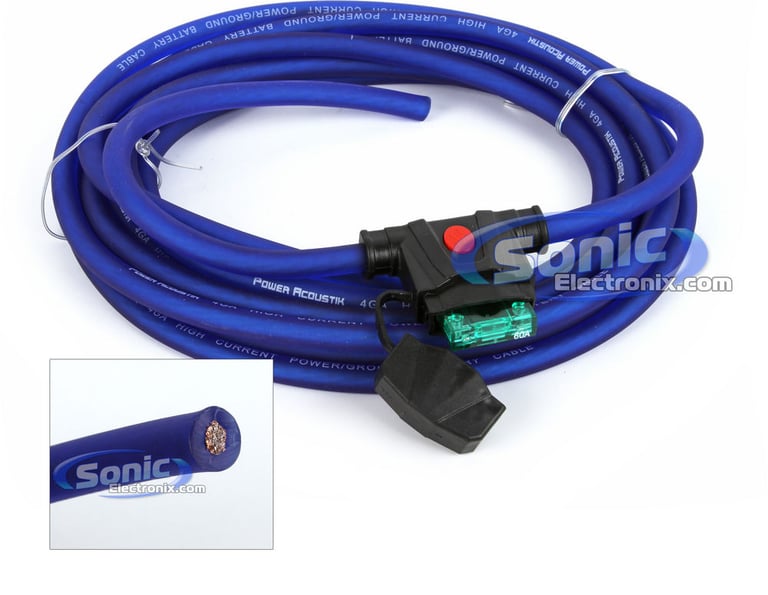

  1. 17 ft. of 4 AWG Blue power cable

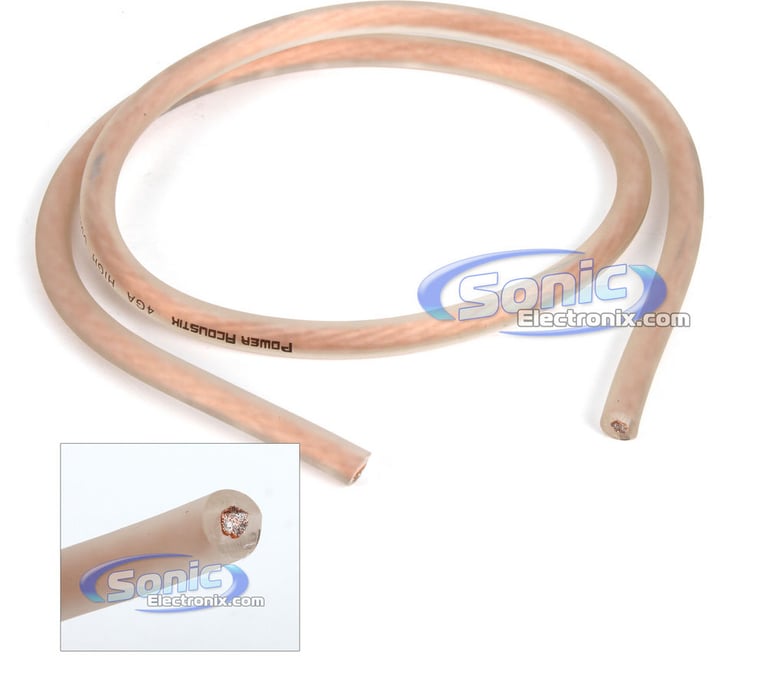

  2. 3 ft. of 4 AWG Clear ground cable

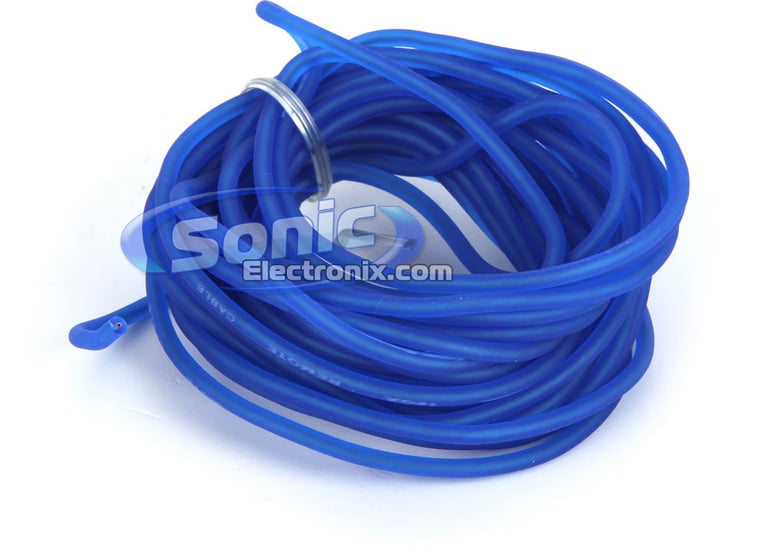

  3. 17ft. of 18 AWG Blue remote turn-on wire

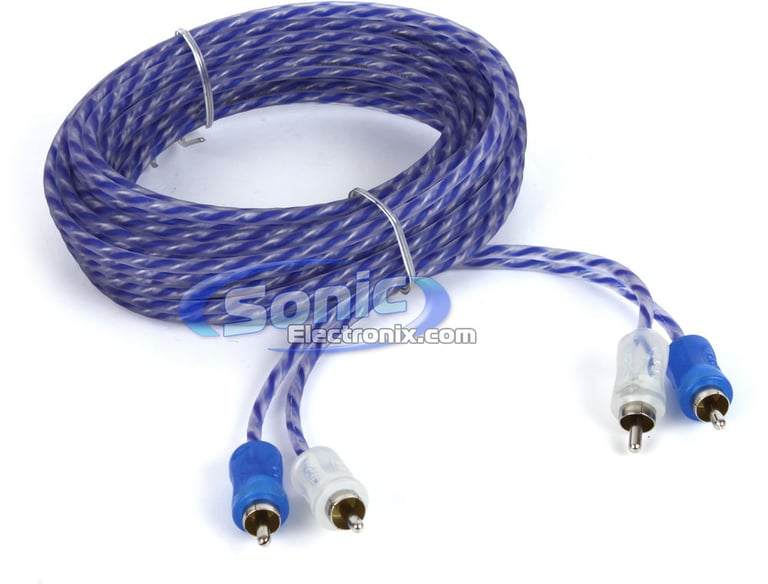

  4. 17 ft. of Blue twisted pair shielded RCA cable

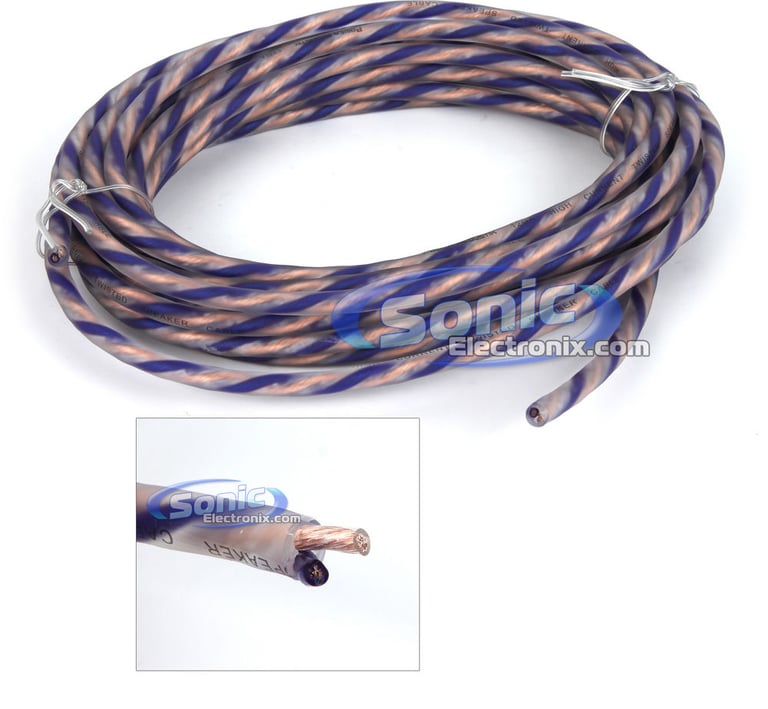

  5. 25 ft. of 16 AWG Clear speaker wire
  6. 4 AWG In-line Maxi fuseholder
  7. 60 Amp Maxi fuse

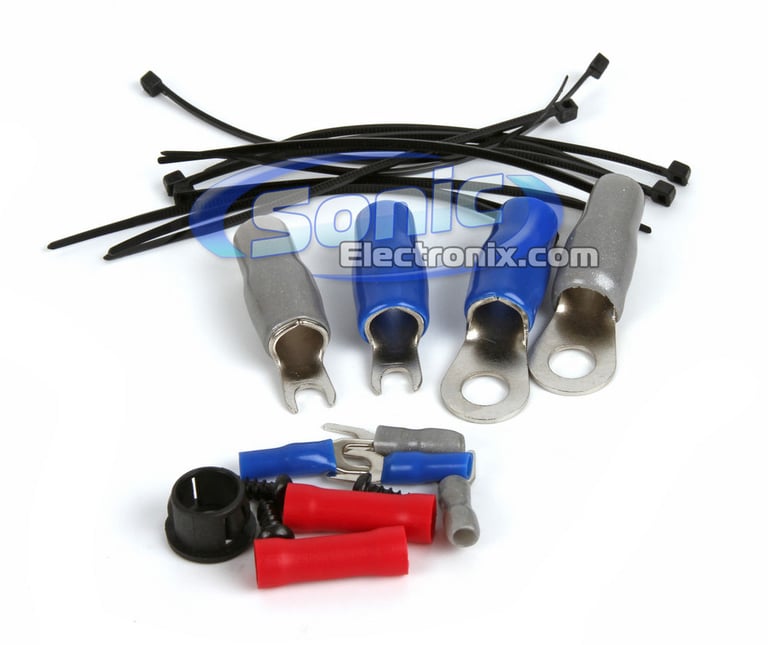

  8. Installation Hardware

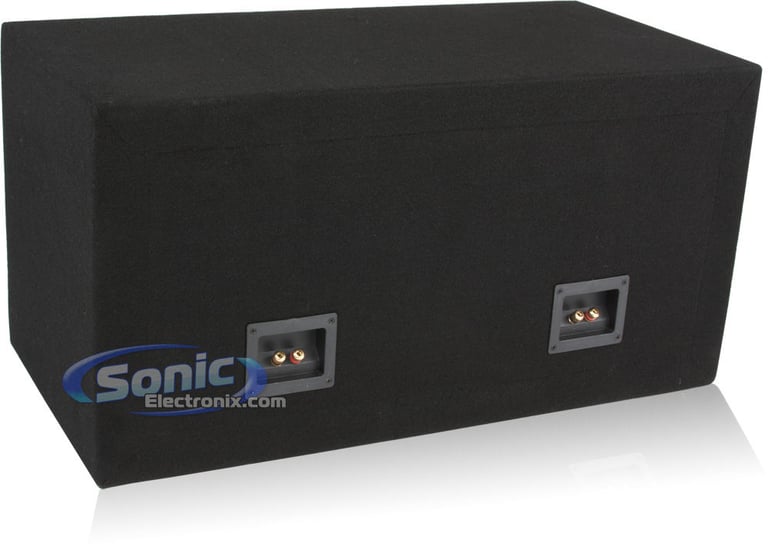

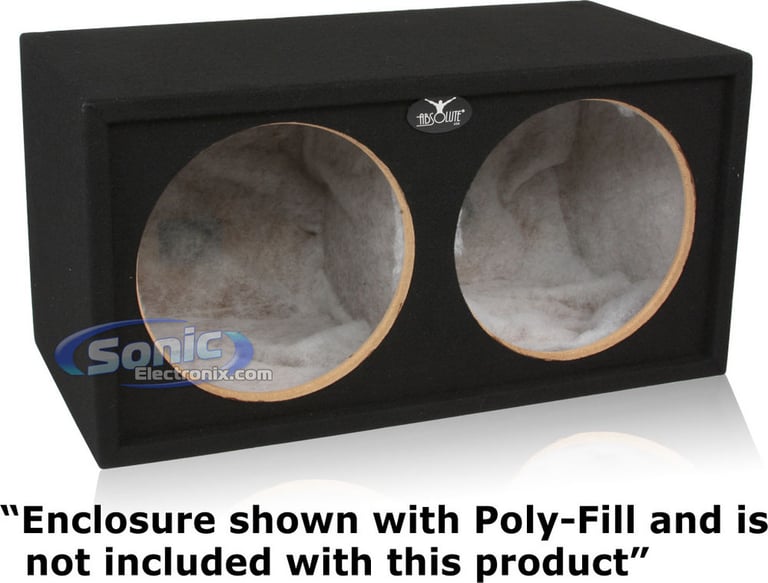

Absolute DSS-12 Features:
  • Dual 12" Sealed Subwoofer Enclosure
  • Made from durable 3/4" Medium Density Fiberboard (MDF)
  • Covered in black carpet
  • Absolute logo places on the front of the enclosure
  • Two binding post terminals on the back of the enclosure
  • Square box enclosure universal for most vehicles
  • Mounting depth: 13-3/8"
  • Cutout diameter: 11-1/8"
  • Recessed front panel does not allow subwoofers trim ring to extend beyond 7/8" mounting diameter
  • Box volume: 2.8 total cubic feet (1.4 cubic feet per chamber)
  • Dimensions: 15-3/8"D x 28-1/2"W x 14-1/2"H
  • Authorized Internet Dealer

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
200 watts x 2 channel
RMS Power @ 2 ohms
400 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
800 watts x 1 channel
Peak Power Output
800 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
<0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 13,000 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
>90 dB
Channel Separation
>80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
40A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
350 watts
Total RMS Power Handling
700 watts
Peak Power Handling
700 watts
Total Peak Power Handling
1400 watts
Woofer Surround
Foam
Woofer Composition
Reinforced Paper
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87.8 dB
Frequency Response
Not specified by manufacturer
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
2
Box Style/Shape
Square/Rectangle
Height
14-1/2"
Width
28-1/2"
Depth
15-3/8"
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

2-ATX12D4_M1600.2

Weight:

66.10lbs

Internal SKU:

2-atx12d4_m16002

Internal Product ID:

39858

Customer Ratings & Reviews


1400W Autotek Subwoofer and Amplifier Complete Bass Bundle thumbnail image

5 star
54%
4 star
29%
3 star
15%
2 star
0%
1 star
2%



Durability
4.3
Value
4.5
Features
4.2
Design
4.5
Usability
4.6

Customer Reviews

Sort by:

Loading...

good buy

The following review is for M1600.2, which is a part of the bundle you are viewing.

put this on two alpine type r tens in a ported box and it pushes them really good. surprised me at first. i would buy again.

By kyle on November 1, 2012

14 found this helpful


Good amp

The following review is for M1600.2, which is a part of the bundle you are viewing.

I have this amp powering a single RE audio SE-x subwoofer in a ported box. It it rated at 800 watts rms, but I don't think it is really putting out that much. It is loud and delivers pretty good sound quality, but I have to say that I did expect more out of it when I ordered and am slightly disappointed. For the money, it is a good amp though.

By drew on March 1, 2011

16 found this helpful


Okay performance, Nice chassis

The following review is for M1600.2, which is a part of the bundle you are viewing.

Well, first off I would like to say that this amp initially kind of seems like it's lacking power. I was previously using a Lightning Audio B300.2 900W 4 Channel amp linked to a Kicker TSV10 inch sub and thought I needed more power as the RMS is only about 150 bridged and 300 max for the amp and the sub takes 200 rms and maxes at about 700. Well, hooked it up, tuned it a little and this amp doesn't sound any better or worse than my previous amp. That asside, I will give it some props, the chassis looks great, the blue neon goes well with my interior, and the black case is nice because in a standard cab truck, there's not much room to hide anything, so window tint and mostly black interior is great.

Now for a few gripes. I do not like how the remote terminal screw is about the size of a grain of rice and it's a allen wrench style screw head, and they don't send a wrench or anything to get to it. After only about 20 minutes of use the case gets super hot, I don't know if maybe the amp is stuck in 2ohm and I'm over loading it by having it hooked to a 4ohm sub, but regardless, it's unassuringly hot. I've only had the amp for about 2 days so more tuning is in order and I still need to figure out it's strengths and weaknesses.

By Andrew on June 26, 2012

14 found this helpful


decent

The following review is for DSS-12 BLACK, which is a part of the bundle you are viewing.

Well it is well built strong and stuff but I ordered a black one and got a gray one. And put 2 12 inch Rockford Fosgate punch P3's in it but had to cut some of the mdf so they would fit so if you want to put p3s in it you probably will have to modify it.

By memo on October 24, 2010

12 found this helpful


great product

The following review is for M1600.2, which is a part of the bundle you are viewing.

this is a great amplifier ive had no issues with it and it hits hard its exactly what i expected i would recommend this amp to anyone

By cowboy on August 20, 2012

12 found this helpful


bamf amp

The following review is for M1600.2, which is a part of the bundle you are viewing.

This is one bad a$$ amp it slames my two jackhammers sounds great. If your looking for a nice amp for the cash this is it i also have 2 10 memphis d4 subs and it will flex my backglass in my regular cab s10 this is a monster.

By bassaholic212 on August 11, 2011

13 found this helpful


KILLER MIDS

The following review is for M1600.2, which is a part of the bundle you are viewing.

i got this amp and use it to run my mids n highs speakers in my doors. 2 6.5s in each door. this amp doesnt get hot for me, its wired to 2 ohms and the mids and highs are CRYSTAL clear. i dont know about sub use but if you have a good set of mids and highs, i definately recommend it if you have a real way to tune your system such as a dd1.

By Pimpnfosgates on July 22, 2012

11 found this helpful


not a bad amp for less than $100

The following review is for M1600.2, which is a part of the bundle you are viewing.

I would recommend this amp for someone who's on a tight budget. I powered my 6.5" alpine Type-R's in the front and it did good, of course it's not putting out that 1600 watt like it said. Not that I want too, but there was decent power. I'm not a pro but i can definitely tell it wasn't really clean power. But you get what you paid for.

By say on May 9, 2012

11 found this helpful


decent box

The following review is for DSS-12 BLACK, which is a part of the bundle you are viewing.

It's alright for a smaller sealed box. they make the sub holes big enough for almost any 12 so theres a good chance theyre a bit too big for your sub and you need to center the sub and drill outward to not strip the screws.

By Brian on February 6, 2012

9 found this helpful


Great amp

The following review is for M1600.2, which is a part of the bundle you are viewing.

I have a single 15" L7 hooked up to this and it hits so hard. I love it.

By Tyler on August 29, 2011

11 found this helpful




SB-H-CRV2/10TW3/TN small

JL Audio Stealthbox® SB-H-CRV2/10TW3/TN

Custom fit subwoofer enclosure for select 2012-2016 CR-V (Ivory)

$899.99

List price $899.99

43CWR122 BBX212BL BRX11161D BAK42 BBIC3 TC4SW1625 small

2 Kicker 43CWR122 COMPR12 2000W 12" Subwoofers+Vented Box+Mono Amplifier+Amp Kit

2 Kicker 43CWR122 COMPR12 2000W 12" Subwoofers+Vented Box+Mono Amplifier+Amp Kit

$439.95

List price $948.87

SB-F-F1502/10W3v3/TN small

JL Audio Stealthbox® SB-F-F1502/10W3v3/TN

Custom fit subwoofer enclosure for select 2004-2014 F-150 and Mark LT and F-150 Heritage (Tan)

$1199.99

List price $1199.99

44L7S152, PD21001, BAK42 small

Kicker L7S152 15" 1000 Watt Solobaric L7S Car Subwoofer+Mono Amplifier+Amp Kit

2000W Peak (1000W RMS) 15" Solo-Baric L7 Series Dual 2 ohm Car Subwoofer Package

(80)

$483.99

List price $819.97

SB-GM-SLVEXT/12W3v3/GA small

JL Audio Stealthbox® SB-GM-SLVEXT/12W3v3/GA

Custom fit subwoofer enclosure for 1999-2002 Chevrolet Silverado / GMC Sierra Extended Cab Trucks with Medium Gray interior

$799.99

List price $1199.99

(2) 44L7S152,SS5000.1D,BBSW167,BAK02BL,15KDV small

(2) Kicker 44L7S152 15" 4000 Watt L7S Subwoofers+Amp+Sub Box+ Free Amp Kit

(2) Kicker 44L7S152 15" 4000 Watt Solobaric L7S Subwoofers+Amp+Sub Box+ Bak02bl (Blue)

(56)

$1052.99

List price $1834.94

AK8,R1100M,10TK,P3SD2-10 small

Rockford Fosgate 600W Subwoofer + Enclosure + 1100W A/B Amp + Amp Kit

600W Max (300W RMS) 10" Punch Stage 3 Shallow Mount Dual 2-Ohm Subwoofer Package

(160)

$401.99

List price $502.96

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 Lexus GX460

2013 Lincoln MKT

1996 Toyota Corolla

2016 Toyota Tacoma

2011 Buick Lucerne

2006 Subaru Outback

1995 Chevrolet K1500 Pickup

2004 Subaru Baja

2006 GMC Canyon

1983 Porsche 930

Vehicle
Store
Delete

2016 Can-Am Defender XT CAB HD10

2019 Can-Am Commander 800R DPS

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
