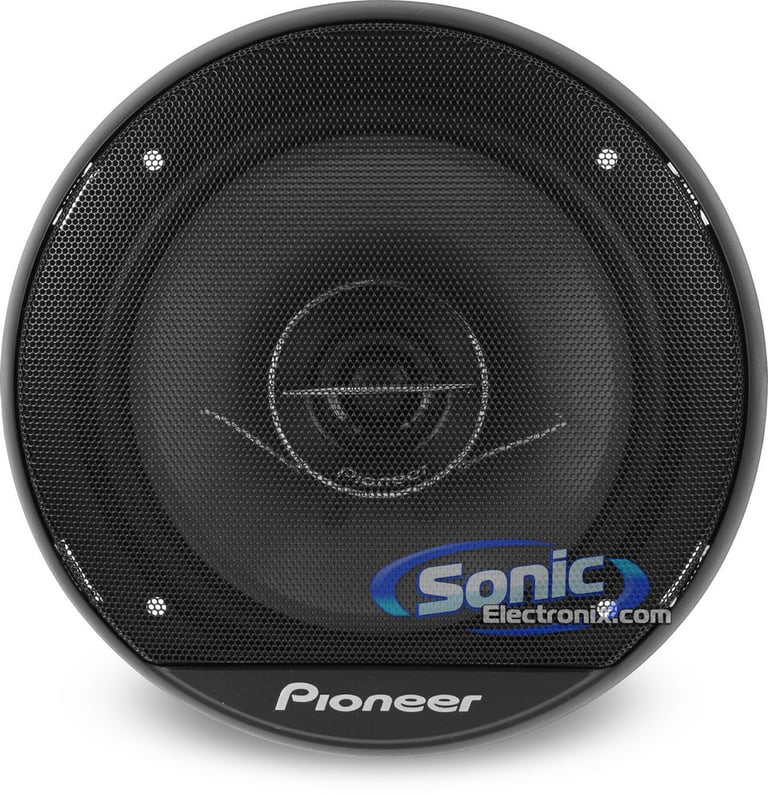

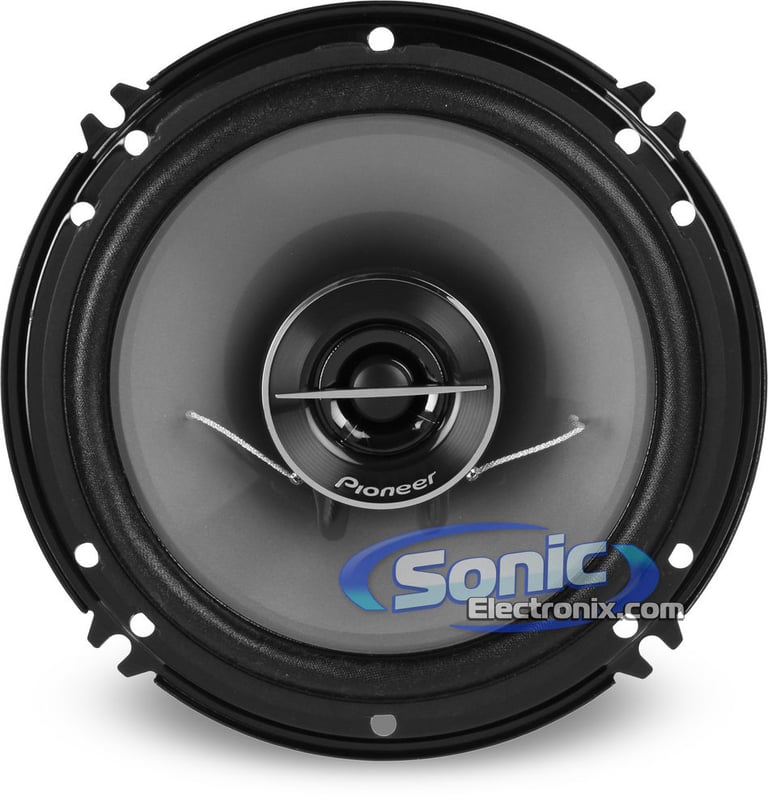

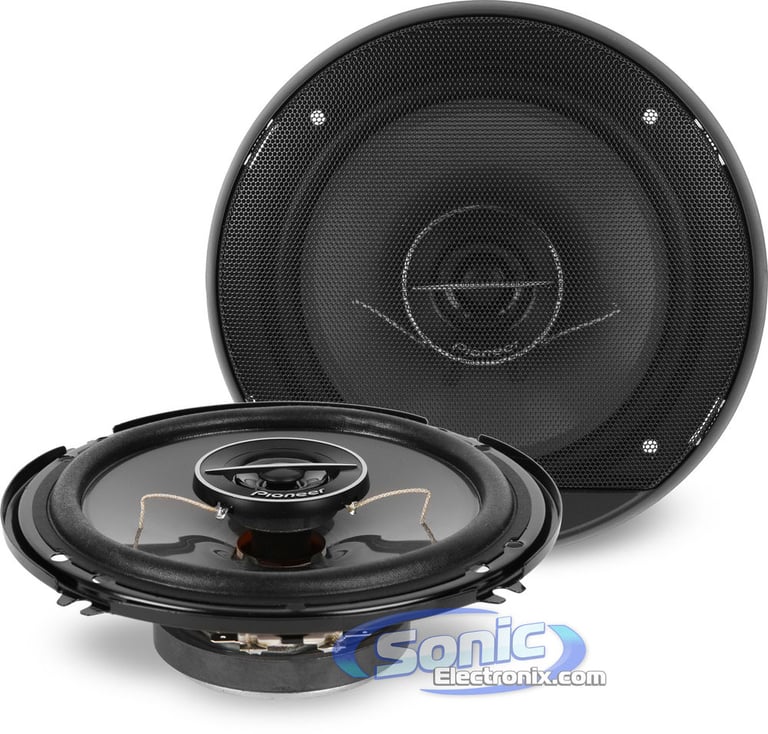

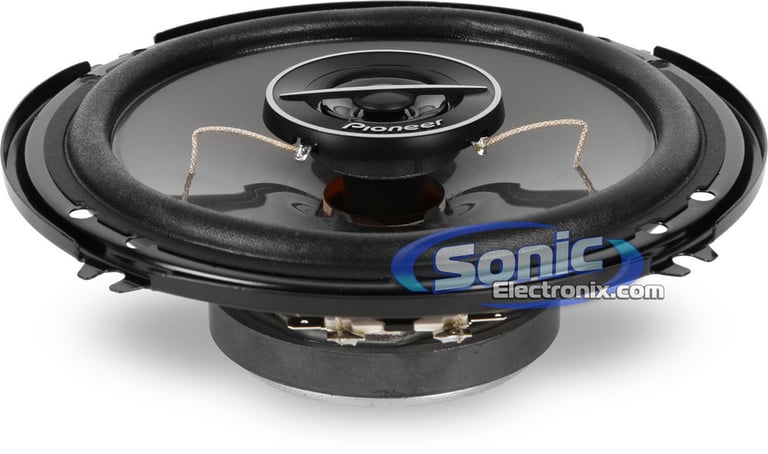

Pioneer TS-G1644R

80W 6.5" / 6.75" 2-Way G-Series Coaxial Speakers w/ PEI Tweeters

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• Peak Power: 500W
• RMS Power: 80W

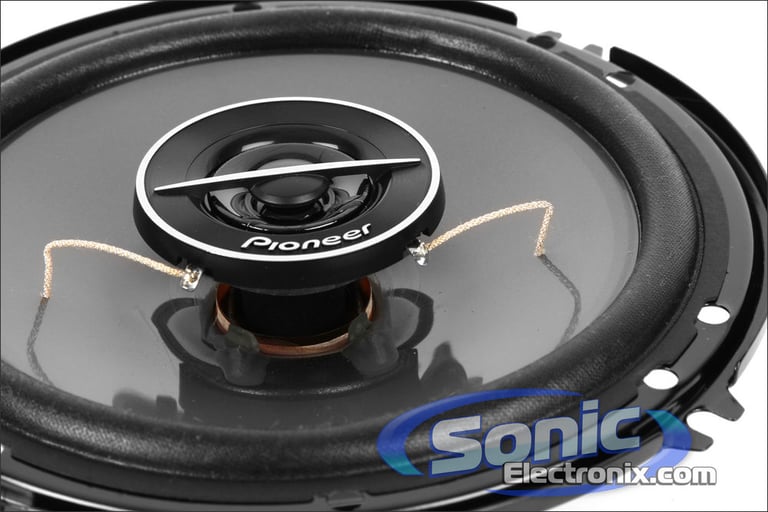

• 1-3/16" Poly-Ether Imide Balanced Dome Tweeter
• Mounting Depth: 1-5/8"
• Injection-Molded Polypropylene Woofer Cone
• 4 Ohm Impedance
• Sensitivity: 91dB

Learn more about the tsg1644r

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

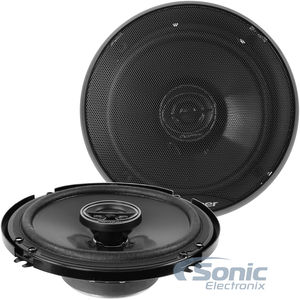

tsg1645r thumbnail

Pioneer TS-G1645R

OUR PRICE: $39.99

View item

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

72-5605 main

Metra 72-5605

Install a New Tweeter in select 2011-2024 vehicles from Ford, Lincoln

-22.23%

$13.99

List price $17.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

C1-650 main

JL Audio C1-650

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Car Speakers

30

Product Highlights


• Peak Power: 500W
• RMS Power: 80W
• 1-3/16" Poly-Ether Imide Balanced Dome Tweeter
• Mounting Depth: 1-5/8"
• Injection-Molded Polypropylene Woofer Cone
• 4 Ohm Impedance
• Sensitivity: 91dB

Description


Pioneer brand icon

Authorized dealer

Meet Quality at a Great Price

Pioneer's G-Series high-powered speakers will re-produce music with intense accuracy. The shallow mounting design improves versatility which allows mounting in more locations than your average speaker. The cloth surround that is used on these speakers ensures durability as well as a great overall mid-frequency presence. These speakers are best powered off an amplifier due to their high power, and once you hear them you will be impressed.

Speaker Specifications

  • 6-1/2" or 6-3/4" G-Series Coaxial Car Speakers
  • Power Handling:
    • Peak: 500 watts per pair / 250 watts each
    • RMS: 80 watts per pair / 40 watts each
  • Injection-Molded Polypropylene (IMPP) cone material
  • Cloth edge-rolled midwoofer surround composition
  • 1-3/16" Poly-Ether Imide balanced dome tweeter
  • 4 ohm impedance
  • Heat resistant voice coil for proper ventilation

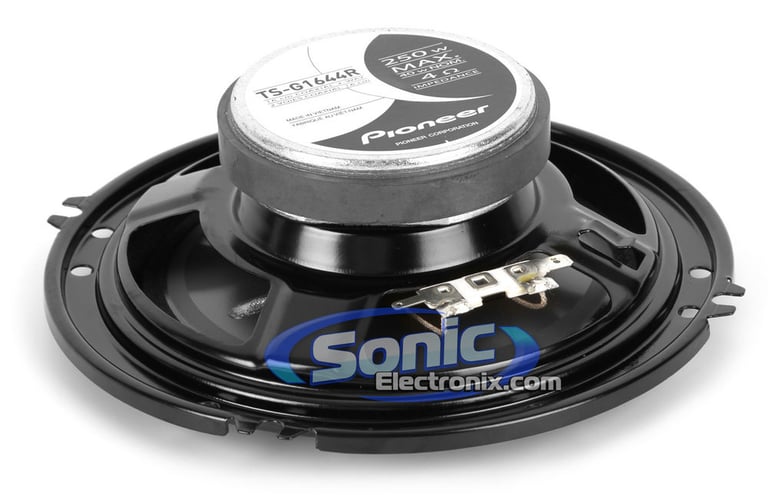

  • 6oz. Strontium magnet structure
  • Frequency response: 31-29,000 Hz
  • Top-mount depth: 1-5/8"
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer TS-G1645R thumbnail
(newest, current model)
Pioneer TS-G1644R thumbnail
(previous model, replaced by Pioneer TS-G1645R)
Pioneer TS-G1643R thumbnail
(previous model, replaced by Pioneer TS-G1644R)
Pioneer TS-G1642R thumbnail
(previous model, replaced by Pioneer TS-G1643R)
Pioneer TS-G1641R thumbnail
(previous model, replaced by Pioneer TS-G1642R)
Pioneer TS-G1640R thumbnail
(previous model, replaced by Pioneer TS-G1641R)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00


Best selling similar products

46CSC654 small

Kicker CSC65 (46CSC654)

• 300 watts Peak Each, 100 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(122)

$79.96

List price $119.99

43DSC6504 small

Kicker DSC650 (43DSC6504)

• 240 watts Peak Each, 60 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome zero-protrusion tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(28)

$84.99

List price $94.99

DB652 small

Polk Audio DB652 (DB 652)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(12)

$109.00

List price $119.99

Specifications & Details


Speaker Specifications
Series
G-Series (TSG)
Priced Per
Pair
Speaker Size
6-1/2" (also mounts in 6-3/4" w/ included brackets)
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Cloth
Peak Power Handling
250 watts
RMS Power Handling
40 watts
Sensitivity
91 dB
Frequency Response
31 - 29000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
Yes
Top-Mount Depth (Mounting Depth)
1-5/8"
Bottom-Mount Depth
1-13/16"
Cutout Dimensions
6-1/4" x 6-1/4"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-G1644R

Weight:

3.95lbs

Internal SKU:

tsg1644r

Internal Product ID:

39878
