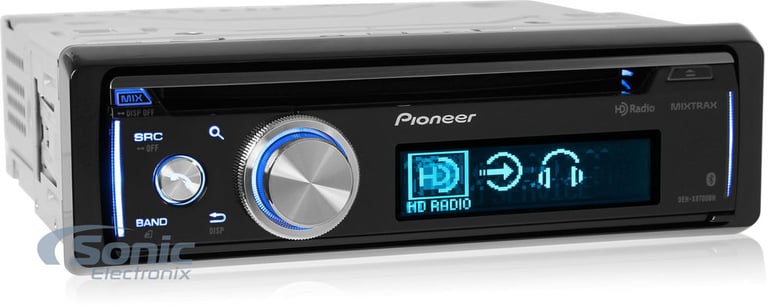

Pioneer DEH-X8700BH

Single DIN Bluetooth In-Dash CD/AM/FM Car Stereo w/ Dual Phone Pairing & HD Radio

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• Built-In HD Radio
• Bluetooth with Dual Pairing
• 5-Band EQ
• 3 Sets of 4V Preamp Outputs
• 50W x 4 Chan. MAX, 22W x 4 Chan. RMS

Learn more about the dehx8700bh

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

dehx8800bhs thumbnail

Pioneer DEH-X8800BHS

OUR PRICE: $190.00

View item

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

AXLOC-FD2 main

Axxess AXLOC-FD2

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ford with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

D9-MST2015L-64GB main

Dynavin D9-MST2015L-64GB

10.1" Custom-Fit Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto for select 2015-2023 Mustang (SiriusXM Ready)

2
82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

KIT-MUS2 main

iDataLink Maestro KIT-MUS2

Double DIN Stereo Dash Kit and Harness for select 2015-2025 Mustang and Mustang GTD (Requires MRR or MRR2 module)

-17.14%

$289.99

List price $349.99

HRN-AR-FO3 main

iDataLink Maestro HRN-AR-FO3 Wiring Harness

Install New Amplifier and Connect Maestro AR Module in select 2015-2025 Mustang

1
-20.46%

$34.99

List price $43.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-31.25%

$54.99

List price $79.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

Product Highlights


• Built-In HD Radio
• Bluetooth with Dual Pairing
• 5-Band EQ
• 3 Sets of 4V Preamp Outputs
• 50W x 4 Chan. MAX, 22W x 4 Chan. RMS

Description


Pioneer brand icon

Authorized dealer




















General Features:

  • Pioneer DEH-X8700BH In-Dash Receiver
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 22 watts x 4 channels
  • Full dot LCD display with LED backlight
  • 10-level brightness control
  • MIXTRAX app Illumination Effects
  • Dual-zone variable color customization

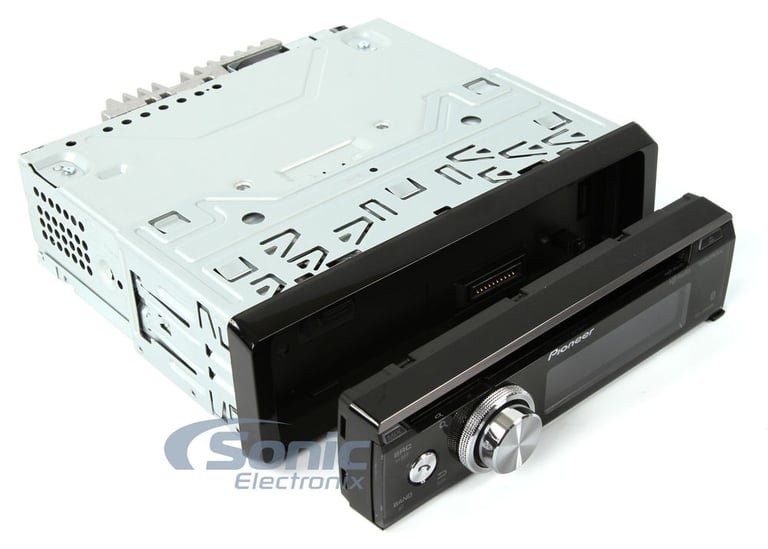

  • Detachable face plate

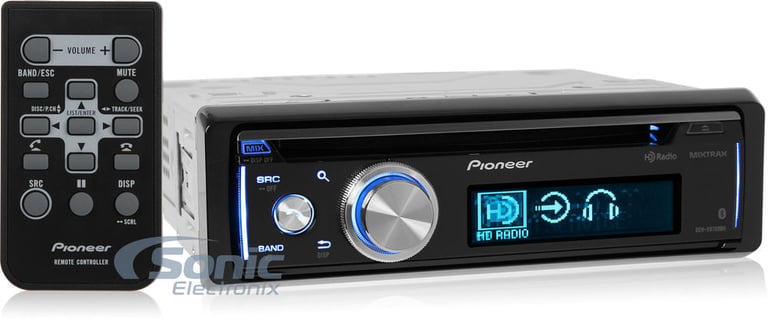

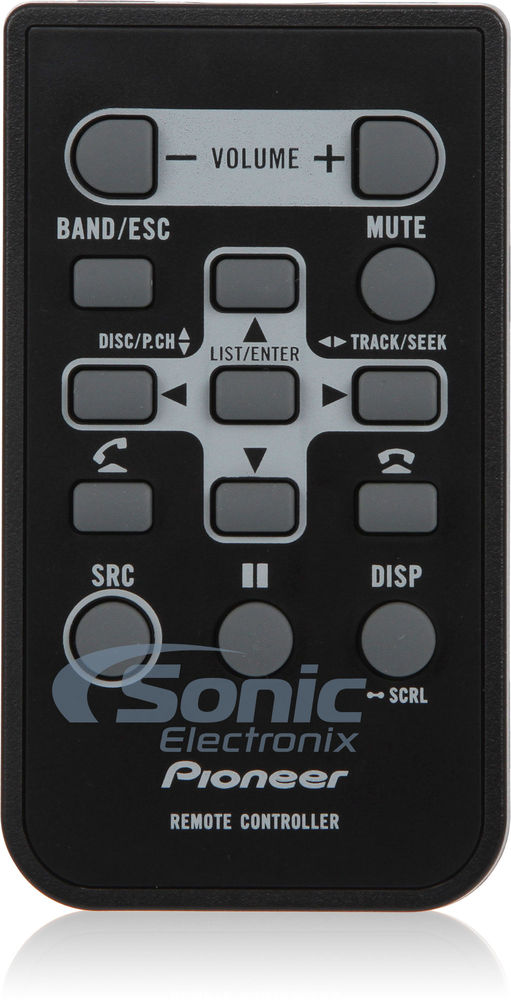

  • Remote control included
  • 1-year Sonic Electronix Warranty

Playback and Audio Features:

  • CD/CD-R/RW, MP3/WMA/AAC/WAC/FLAC
  • AM/FM tuner with 18FM/6AM presets
    • Best station memory
    Built-in HD radio
    • HD radio multicasting
  • Pandora station creation
  • Siri Eyes Free mode
  • iPod and iPhone Ready: Standard USB-to-iPod Cable and USB-to-Lightning Cable compatible
  • Android music support
  • Customizable 5-band graphic equalizer
  • Subwoofer Level Adjustable
  • Built-in LPF/HPF
  • Advanced Sound Retriever
  • 24-bit D/A converter
  • 3.5mm Rear Audio Auxiliary Input

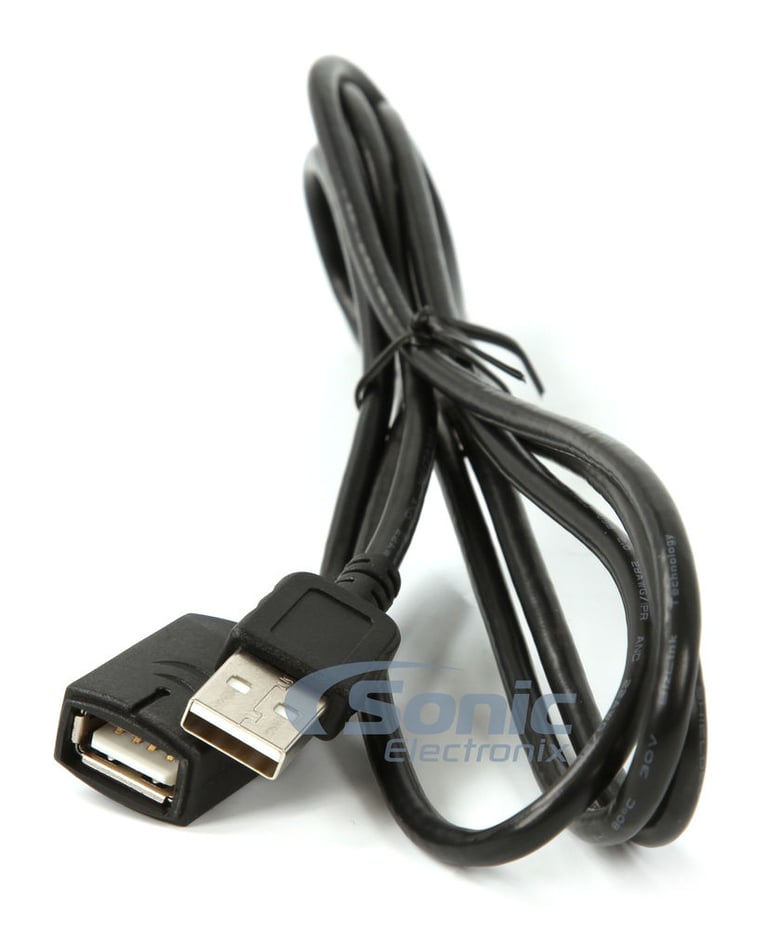

  • Rear USB Input
  • CD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Dual pairing allows for 2 phones to be connected simultaneously
  • Supports:
    • A2DP audio streaming
    • Hands Free Profile 1.6
    • AVRCP remote control 1.5
  • Secure Simple Profile
  • Serial Port Profile
  • Guest Mode
  • Works with most Bluetooth enabled cell phones

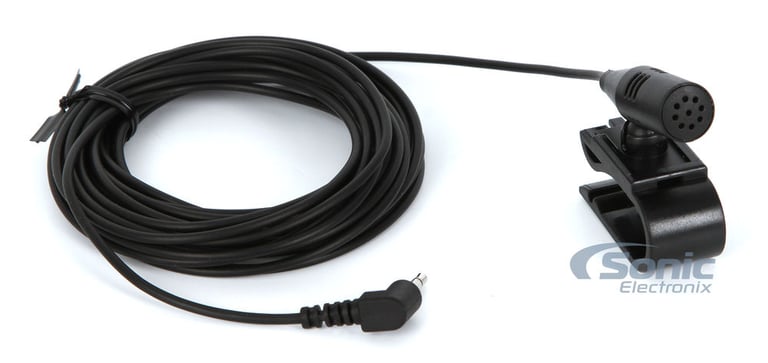

  • Includes an external wired microphone for clear, convenient talking

Expandability Options:

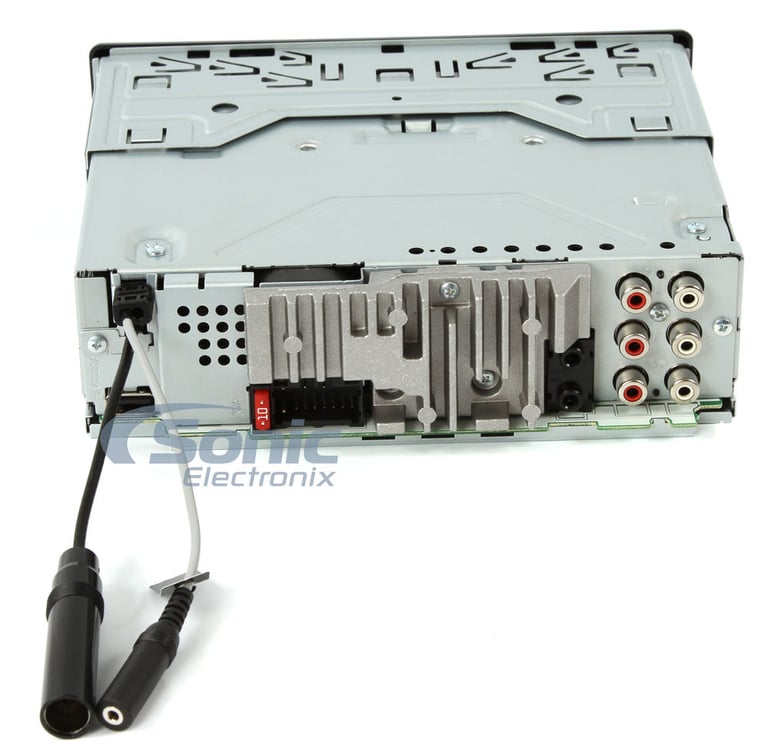

  • 3 Sets of 4V preamp outputs (front, rear and subwoofer)
  • Steering Wheel Control Ready: PAC ControlPRO or Axxess ASWC-1 are required and sold separately
  • CD changer controls

Product history:

Pioneer DEH-X8800BHS thumbnail
(newest, current model)
Pioneer DEH-X8700BH thumbnail
(previous model, replaced by Pioneer DEH-X8800BHS)
Pioneer DEH-X8600BH thumbnail
(previous model, replaced by Pioneer DEH-X8700BH)
Pioneer DEH-X8500BH thumbnail
(previous model, replaced by Pioneer DEH-X8600BH)
Pioneer DEH-P8400BH thumbnail
(previous model, replaced by Pioneer DEH-X8500BH)

Loading...
SB-F-MUSCPE/12TW3 main

JL Audio Stealthbox® SB-F-MUSCPE/12TW3

Custom fit subwoofer enclosure for select 2015-2025 Mustang and Mustang GTD

$1,349.99

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

CV15BT small

Cerwin-Vega CV15BT

• Single DIN Bluetooth Digital Media Receiver
• Digital LED Backlit Display
• USB/SD/AUX Input
• Three sets of 5 volts preamp outputs
• Multiple Preset EQ

(3)

$69.99

List price $69.99

UTE-73BT small

Alpine UTE-73BT

• Single DIN Digital Media Receiver
• 1-line Digital LED Backlit Display with RGB illumination
• Control music/other apps via iPhone and Android
• 3 sets of 2 volts preamp outputs
• 3-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• NFC-compatible for select Android devices
• Built-in amplifier

(43)

$149.95

List price $180.00

XAV-AX8500 small

Sony XAV-AX8500

• Single DIN Bluetooth Digital Multimedia Receiver
• 10.1" TFT Active Matrix Display
• Apple CarPlay (wireless) and Android Auto (wired and wireless) compatible
• 3 sets of 5 volts preamp outputs
• 14-Band Graphic EQ and 8-Band Parametric EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro compatible
• Flexible installation in both single and double-DIN dashboards

(2)

$798.00

List price $999.99

DEH-S7200BHS small

Pioneer DEH-S7200BHS

• Single DIN Bluetooth CD Digital Media Receiver
• LCD Text Display
• Voice Recognition
• Built-in HD Radio
• 3 sets of 4 volts preamp outputs
• 13-Band Equalizer
• SiriusXM Satellite Radio Ready
• Pioneer Smart Sync

(2)

$249.99

List price $280.00

XRM59BT, CSDF620X2 small

Dual XRM59BT Stereo + (2-Pairs) of JVC CSDF620

• Mechless AM/FM receiver with Bluetooth Connectivity
• Front 3.5mm aux input
• Front panel USB 1A charging port
• 2-band EQ & 4 preset EQ
• 1 pair of 2V RCA preamp outputs

(32)

$88.25

List price $177.99

KMM-X705 small

Kenwood eXcelon KMM-X705

• Single DIN Bluetooth Digital Multimedia Receiver with USB and AUX
• LCD Text Display
• iPhone and Android Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic Equalizer with Digital Time Alignment
• SiriusXM Satellite Radio Ready

(6)

$199.00

List price $250.00

KDC-X305 small

Kenwood eXcelon KDC-X305

• Single DIN Bluetooth CD Multimedia Receiver with USB and AUX
• LCD Text Display
• iPhone and Android Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Equalizer with Digital Time Alignment
• SiriusXM Satellite Radio Ready

(23)

$199.00

List price $240.00

CAR1013 small

Jensen CAR1013

• Single DIN Bluetooth Digital Multimedia Receiver
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 10 Band Equalizer with 7 Presets
• Dual (front/rear view) camera
• Built-in subwoofer with gain control

(5)

$349.99

List price $349.99

KDC-BT782HD small

Kenwood KDC-BT782HD

• Single DIN In-Dash Bluetooth CD Receiver
• LCD Text Display
• SiriusXM ready and Amazon Alexa compatible
• iPhone, iPod, and Android compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic Equalizer with Digital Time Alignment
• Built-in HD radio tuner

(5)

$219.00

List price $270.00

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security
Detachable Faceplate
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Preamp Voltage
4 volts
Built-In Equalizer
5-Band
Display Type
Digital LED Backlit Display
Smartphone Integration
Compatible Smartphones
iPhone (iOS)
Android
iPhone Control
Navigation App Compatible
Siri Eyes Free Control
Pandora Control
Android Control
Pandora Control
Expandability Features
Inputs
Auxiliary (Rear)
USB (Rear)
Steering Wheel Control Compatible
DO NOT USE - Universal (Accessory required and sold separately)
  • PAC SWI-CP5: PAC ControlPRO Universal Steering Wheel Control Interface
  • Axxess ASWC-1: Axxess ASWC-1 Universal Steering Wheel Control Interface
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Radio Data System (RDS)
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

DEH-X8700BH

Weight:

3.50lbs

Internal SKU:

dehx8700bh

Internal Product ID:

91060

Product and How-to Videos

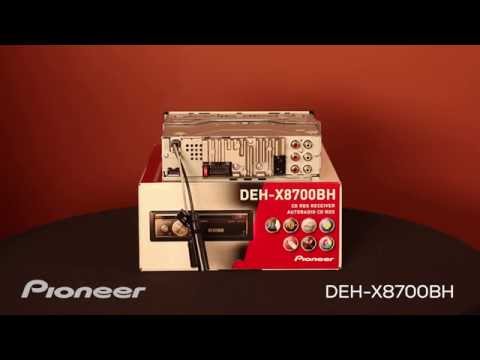

  • DEH-X8700BH What's in the Box?
  • How To Install a Car Stereo (Single & Double DIN) | Car Audio 101

Customer Ratings & Reviews


Pioneer DEH-X8700BH thumbnail image

5 star
65%
4 star
29%
3 star
6%
2 star
0%
1 star
0%



Durability
4.8
Value
4.7
Features
4.6
Design
4.4
Usability
4.2

Customer Reviews

Sort by:

Loading...

Awesome!

All around great stereo! Great sound quality, and lots of tuning options to fine tune the sound! As posted above there is a play pause on the front it is also the band button.

By Brian on December 28, 2014

41 found this helpful


Great head unit!

Tons of features, everything works flawlessly. I've always had the best luck with Pioneer stereos, and this new model doesn't disappoint. HD radio is nice to have, and the equalizer has several bands. The only thing I haven't used is the Mixtrax. Pretty sure it doesn't work with a Bluetooth connection. Overall this is the best (single din) head unit I've owned to date.

By Michael on January 3, 2015

38 found this helpful


BEST BANG FOR YOUR BUCK!!!!!!!!!!!! STOP LOOKING!!!!!!

Well I got this amp thinking, Ok it's got HD Radio, surely it's got a good clean sound that it produces and thats what I was after, not looks or features so much.... Well, it's phenomenally clear. This head unit is able to reproduce music on such a clear level that the background noise in a song, like pianos, bass guitar, little tiny things you never noticed before, actually stand out and littleraly make you smile, cause you're hearing music like you're supposed to. Just like it was meant to be heard in the studio.

The thing is with this head-unit, is, it's like a grown-up head unit. No, it doesn't look flashy, or have a tv attached to it, but mo-money-mo-problems. Besides, I think it looks rather; classy, modern, and adult. And the more stuff you have.... the more that can break, and the more SH-TUFF you have in it the less time and energy can be focused on the sound, like this one. This unit mainly THRIVES in one area. MAKING THE CLEANEST PUREST SIGNAL POSSIBLE. With a THD of 0.02 at the CD player, I knew it would be good start, but it not only doesn't distort the sound... but It picks up on all the subtle ones too, especially the lower end frequencies. You wanna have good clean bass? Thats a subtle sound (it's supposed to be anyway), that usually tries to have a big impact!! It's gotta come from somewhere. And the thing with stereo systems is that it's only as good as it's weakest link. If you have a high quality amp but crappy sound going to it, it's still gonna sound bad when it gets to the subs. This head-unit has added the lower range bass in the vocals that I was so DESPERATELY looking for. I was thinking about getting 15"s to make the same tone difference this head-unit creates. It's SUCH A FULL-ER SOUND. I can't wait to hook up the crescendo amps!!!!!!!!! I'm sure I'll be screaming about this amp then.

I mean, even if you want to do a competition build this thing has 6 pre-outs!!! They're even 4+ volts too (So this not only does it put out a good clean signal. But that signal is nice and clean, and STRONG) There's nothing more than what you need here. And it does what it's supposed to do, to perfection.... And I can even answer my phone calls through this thing and talk right through the stereo!!!??? I paid around 130 at a pawn shop for that last head-unit, and I couldn't do that then. But it had a dvd player, 7 inch screen, 16 different things you change with the eq.... It also claimed to have a working USB in the front. Never worked for me just charged my phone. (But the DEH-X8700BH worked flawlessly, and it's in the back so it can/has to be professionally installed by pro/you. lol and it looks so much cleaner. Even if you just make that usb cord go in the glove box. you can completely control your phone once it's playing through the head-unit) the "OLD DVD player" head-unit I had, also had a front and rear pre-out, but only 1 single output for my sub. And it was always tuned so G-D HIGH. Now, NONE, and I mean NOTHING hits the vocal lows like this thing does (i thought I had to put in 15" pro-audio mids to reach the lows in the vocals to the likes that this unit already creates) I never heard anything from a head unit under 180 bucks sound this well rounded. (I have changed out 4 head units in my truck, and listened to countless others.) This one sounds the most well rounded, and I the eq adjusted maybe 1 up on one frequency and 1 down on the bass and thats it. You really don't have to adjust the EQ too much cause it already sounds so good. I know I said that twice but I was about to waste 300 bucks on that. (I might still do it anyway lol :-P)


Yes this sound is obtainable elsewhere but pioneer has done very well here, and the price is tough to beat. But from someone who wants a super clear media center/source, and have plenty of expansion room to work with, or not just the head-unit and a sub, might be good for some people, cause it does get a little loud too. (But again thats not this things purpose. It purpose is to give you a super clear signal to your amps in the back.) With good quality components behind the uint like high end amps and speakers and subs, it will be a thing of beauty. Not only that but it is a classy looking head-unit too. This is not a kids radio by any means... "welcome to the big boys"

By Marcus32701 on February 27, 2015

29 found this helpful


a GREAT sounding car stereo and upgrade

I bought this unit to replace the stock stereo in my '99 Ford Taurus. The good part is that I was able to remove my underdash ashtray/storage and mount it in that space and it was easy to run the harness kit I got from you from the trunk to the front of the car and hook it up. I got this model mainly for its features (Bluetooth, HD Radio, remote device, etc). TIP: this unit did not sound so great until I turned on the "Loudness" controls (which is apparently a "pre-amp" circuit in the unit). ...then it really sounded good. After tweaking everything to my liking (EQ, etc) I find I can turn this deck up past 3/4 volume without distortion, so at this point I don't really need to add an external amp.
PROS: sounds great at low or high volume. Easy to hook up. Phone feature is very clear w/ both parties without feedback or echo.
CONS: The interface for the controls is not that user-friendly. Be prepared to sort & search thru menus. But....the remote control makes things much easier (I have it mounted on my center console).

By Pioneer Car Stereo User Guy on February 21, 2015

29 found this helpful


Great!

I bought this for my wife and installed myself in her Jeep Liberty. So far we both really like the unit. I originally was looking at the Pioneer 6700, but figured she may like the USB on the back so it can go through the glovebox, and also the display is much better. Since it doesn't have as many buttons on the front like a traditional single DIN receiver, there is a little bit of a learning curve. It only took me about a half an hour to figure everything out, but i had to show her how to do a few things like select preset stations on the HD radio. The interface is pretty intuitive. The ONLY thing i dont like, is that there is no play/pause button the unit. There is a silly mixtrax button, which we will never use, and it would have been perfect if they replaced that button with a play/pause button, or included it somewhere else. Overall we're very happy. Install was a breeze, and the sound quality and features are perfect. Bluetooth audio and phone functions are excellent

By Ryan on December 23, 2014

29 found this helpful


good unit

picked this unit over a similarly priced Nakamichi for a few reasons - simple faceplate, HD Radio, and the reviews. have to say I'm super pleased so far. I love the convenience of Bluetooth both for music and phone, the endlessly customizable lights to match my car's dash, and the sound quality. the CD player does not skip even on rough roads and the fit and finish feel good (the knob could be better but it's totally acceptable).

By jksymz75 on February 16, 2015

25 found this helpful


DEH-X8700BH

Sounds great in my wrangler. Gets above road noise well. Bluetooth was a breeze to set up. I do miss the channel buttons but its a great unit!

By Richard on March 29, 2015

22 found this helpful


Nice unit.

We upgraded our jeep with this unit, it works and sounds great, Bluetooth features work well, and it can communicate with both driver and passengers phones, plus has adjustable led colors to match any vehicle.

By Lucas on May 31, 2015 Checkmark Icon Verified purchase

18 found this helpful


Very nice

Very good stereo couldn't ask for a better one to push my system

By Sam on March 16, 2015

20 found this helpful


Nice unit

This is a very good unit with plenty of features for the buck. It sounds good & does more than I need it to do. Doesn't take long to learn how to navigate the menus. It's a unit that I highly recommend if you're looking to upgrade.

By Tommy on August 20, 2015 Checkmark Icon Verified purchase

6 found this helpful




D1500 small

Black and Decker D1500

Digital Advantage Iron

$36.39

List price $49.99

IMM178 small

iLuv IMM178 Vibe Plus Alarm Clock Dock

Vibe Plus Bed Shaker Dual Alarm Clock Dock for iPhone and iPod

$39.99

List price $79.95

AJ7030D/37 small

Philips AJ7030D (AJ7030D/37)

iPhone/iPod 6-watt Dock With Digital Tuner & Dual Alarms

$74.99

List price $80.00

6594-000-000 small

Oster 6594-000-000

2-slice Toaster

$28.00

List price $29.99

DEH-P7400HD small

Pioneer DEH-P7400HD

In-Dash CD/MP3/WMA Car Stereo Receiver w/ HD Radio, iPod Control, Pandora Support and Rear USB Input

(11)

$109.99

List price $200.00

90-7011 small

Vizualogic 90-7011 Universal Water Proof Back-Up Camera

High Resolution Wide Angle Reverse Color Camera w/ Guided Parking Lines

$39.00

List price $49.00

ICF-CS15IP Silver small

Sony ICF-CS15IP (ICFCS15IP/SC) iPhone/iPod Alarm Clock Speaker Dock - Silver Open Box

Stereo Speaker Dock for iPod and iPhone with Wireless Remote Control

$64.99

List price $119.99

WT-5120U-CBP small

La Crosse Technology WT-5120U-CBP

Projection Alarm Clock with Indoor/Outdoor Temperature Sensor by LaCrosse

$29.99

List price $39.99

EDB-302 small

Maxi-Matic Elite Cuisine EDB-302

Electric Double Buffet Burner (EDB302)

$32.99

List price $49.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1997 Audi A8

2017 Ford Mustang

1967 Ford Bronco

2016 Ford Expedition

2002 Chevrolet Astro

2004 Dodge Viper

1986 Merkur XR4Ti

1997 Ford Expedition

2004 Mazda RX-8

2008 Dodge Dakota

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
