Polk Audio PA D1000.1

1200W RMS PA D Series Class-D Monoblock Car Amplifier

Product videos
highlight-star-icon

• 500 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• Wired remote bass level control included
• CEA-2006 Compliant
• Signal to Noise Ration: 105 dBA
• Variable Bass Boost: 0 to +12 dB bass boost at 44 Hz
• Dimensions: 6-3/4" W x 12-15/16" L x 1-13/16" H

Learn more about the pad10001

We apologize

This item has been discontinued

Product Highlights


• 500 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• Wired remote bass level control included
• CEA-2006 Compliant
• Signal to Noise Ration: 105 dBA
• Variable Bass Boost: 0 to +12 dB bass boost at 44 Hz
• Dimensions: 6-3/4" W x 12-15/16" L x 1-13/16" H

Description


Polk Audio brand icon

Authorized dealer

Polk Audio PA D1000.1

Taking the Polk Audio PA D Series Into the Digital Era

The PA D1000.1 is Polk Audio's high-efficient digital monoblock amplifier. This amplifier is able to output power at 4 ohms, 2 ohms, and even 1 ohm. With this many different power ratings this monoblock amplifier is sure to fit various applications or installations that you are seeking to perform. Anything from "SQ" subwoofers at the 4 ohm rating to "SPL" heavy bass hitting subwoofers at the 1 ohm rating.

How does Polk Audio improve on their already popular and very well known PA D series amplifiers? With technology advances, Polk Audio has taken their PA D series into the digital amplification arena. This means a smaller foot print, a super-efficient design which allows for lower power consumption and does away with a larger power supply. This allows the new digital PA D series amplifiers to run far more efficiently with lower distortion and cutting or clipping. The new PA D Digital series amplifiers are available in a monoblock, 2-channel, 4-channel, and 5-channel configuration making them accessible for any application. With a height of under 2 inches for all four configurations, these amplifiers also offer a mounting convenience making them practically perfect for any vehicle. All four configurations feature a 4-way protection circuitry and stainless steel hardware that will not corrode, giving the amplifier longevity and a sleek and stylish look. Polk Audio is a known and trusted company and with these new PA D Digital series amplifiers not only are you getting the high Polk Audio quality, you are now getting the quality in a very high and efficient digital range.

Product Features:





  • PA D Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 800 watts x 1 chan.
    • 1 ohm: 1200 watts x 1 chan.
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (blue) and protect (red) indicators
  • Soft start turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-way protection circuitry (thermal, overload, reverse polarity & speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 20 - 220 Hz
  • Damping Factor: >150
  • Total Harmonic Distortion (THD): <0.1%
  • Signal to Noise Ration: 105 dBA
  • Variable low-pass filter: 40 - 220 Hz, 12 dB/octave
  • Variable subsonic filter: 20 - 38 Hz , 12 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 44 Hz
  • Fuse Rating: 40A x 3
  • Supply Voltage: 10V - 16V
  • 12 AWG Speaker Connections
  • 4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 6-3/4"W x 12-15/16"L x 1-13/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Polk Audio PA D1000.1 Owner's Manual Important Note: Early versions of this amplifier included a "Terminal Adapter". As of 2015, Polk Audio has confirmed that they are no longer sending this adapter with their amplifier, albeit referenced in the user manual. We apologize for any inconvenience, and suggest browsing our selection of "Gauge Adapters" if you wish to use larger than recommended wiring. Thank you!

Best selling similar products

Alpine MRV-M500

• 300 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(52)

$196.99

List price $230.00

Kicker CXA1200.1

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(15)

$399.99

List price $429.99

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$399.99

List price $399.99

Crunch GP-3500.1D

• 875 watts x 1 channel @ 4 ohm
• 1750 watts x 1 channel @ 2 ohm
• 3500 watts x 1 channel @ 1 ohm
• Total Peak Power: 3500 watts
• Class D 1 ohm Stable Monoblock Amplifier

(17)

$99.99

List price $219.99

NVX XQA25001

• 1000 watts x 1 channel @ 4 ohm
• 1500 watts x 1 channel @ 2 ohm
• 2500 watts x 1 channel @ 1 ohm
• Total RMS Power: 2500 watts
• Class D 1 ohm Stable Monoblock Amplifier

$699.99

List price $839.99

Kicker CXA800.1

• 300 watts x 1 channel @ 4 ohm
• 600 watts x 1 channel @ 2 ohm
• 800 watts x 1 channel @ 1 ohm
• Total RMS Power: 800 watts
• Class D 1 ohm Stable Monoblock Amplifier

(17)

$299.99

List price $329.99

Rockford Fosgate Power T1500-1BDCP

• 1000 watts x 1 channel @ 4 ohm
• 1500 watts x 1 channel @ 2 ohm
• 1500 watts x 1 channel @ 1 ohm
• Total RMS Power: 1500 watts
• Class BD 1 ohm Stable Monoblock Amplifier

(70)

$769.99

List price $769.99

JL Audio XDM600/1

• 400 watts x 1 channel @ 4 ohm
• 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable Monoblock Amplifier

(3)

$599.99

List price $599.99

JL Audio RD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(21)

$379.99

List price $379.99

Kicker CXA1800.1

• 900 watts x 1 channel @ 4 ohm
• 1800 watts x 1 channel @ 2 ohm
• 1800 watts x 1 channel @ 1 ohm
• Total RMS Power: 1800 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$499.99

List price $549.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
800 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
40 - 220 Hz
Subsonic Filter
20 - 38 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 3
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PA D1000.1

Weight:

7.50lbs

Internal SKU:

pad10001

Internal Product ID:

39886

Product and How-to Videos

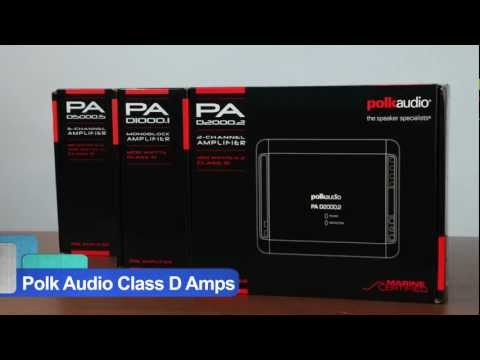

  • Polk Audio PA D1000.1 Class D Monoblock PA Digital Series Car Amplifier
