Alpine HCE-C117D

Direct Connect Rear View Backup Camera w/ Wide Viewing Angle

Alpine
Shop all Alpine
highlight-star-icon

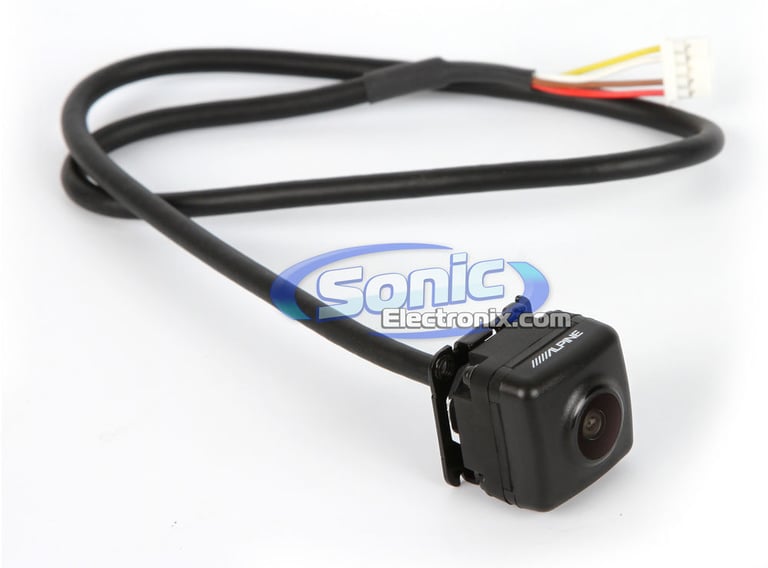

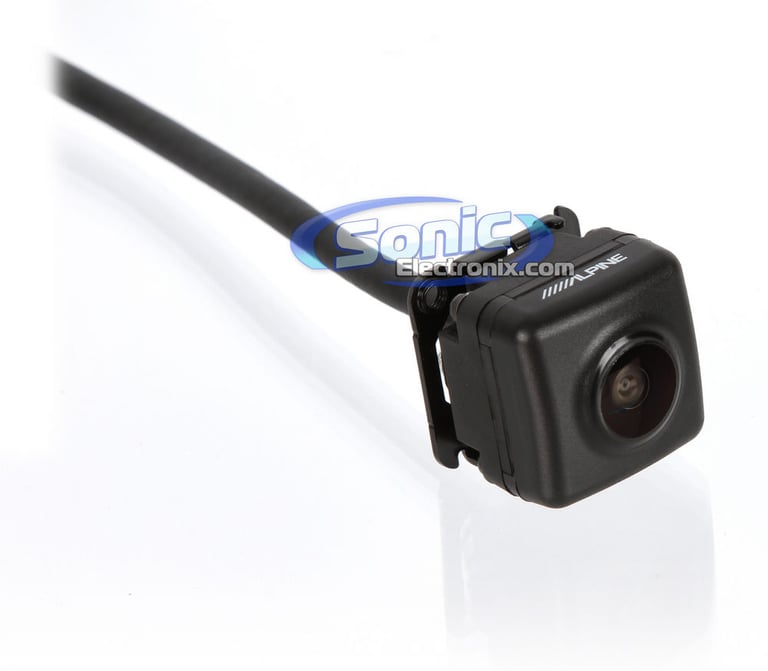

• Direct Connect Rear View Backup Camera
• Wide Viewing Angle
• High Visibility In Day and Night Environments
• Compatible With Certain Alpine Head Units

Learn more about the hcec117d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

AXDI-FD1 main

Axxess AXDI-FD1

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2006-2022 vehicles from Ford, Lincoln, Mercury

-10.46%

$136.99

List price $152.99

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

Limited time!
KW-M590BT main

JVC KW-M590BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto

1
-32.58%

$269.00

List price $399.00

Limited time!
DDX5707S main

Kenwood DDX5707S

6.8" Double DIN Touchscreen DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

5
-31.21%

$399.00

List price $580.00

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

Limited time!
46CSC684 main

Kicker CSC68 (46CSC684)

450W Peak (150W RMS) 6x8” CS Series 2 Way Coaxial 4-ohm Speakers

11
-33.36%

$79.96

List price $119.99

PRO-X8.4BM main

DS18 PRO-X8.4BM (Sold Individually)

550W Peak (275W RMS) 8” PRO-X Series 4-ohm Mid-Range Loudspeaker

1
Limited time!

Infinity Kappa 683XF (INFSPKKA683XFAM)

600W Peak (200W RMS) 6x8" Kappa Series 2-Way Coaxial 3-ohm Car Speakers

3
-32.13%

$223.95

List price $329.95

Description


Alpine brand icon

Authorized dealer

HCE-C117D Features:

  • Direct connect rear view backup camera
  • High visibility in day and night environments
  • Wide viewing angle

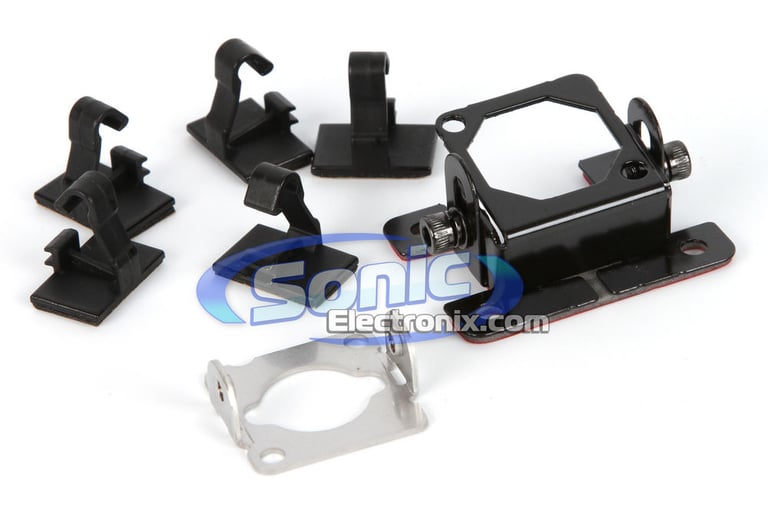

  • Easy install with included bracket
  • Compatible with the INA-W910, INA-W900BT, INA-W900, iXA-W404, and iXA-W407
  • Dimensions: 3/4"D x 15/16"W x 15/16"H
  • 1-year SonicElectronix.com warranty

HCE-C117D Specifications:

  • Power Requirements: 6.0V DC (5.5 to 6.5V Allowable)
  • Ground Type: Negative ground type
  • Max. Power Consumption: 0.9W
  • Output Image: Mirror image, NTSC video signal
  • Image Output Impedance: 1Vp-p (75 ohm)
  • Image Sensor: 1/4 Type color CMOS
  • Aspect Ratio: 4:3
  • Effective Number of Pixels: 640(H) x 480(V)
  • Megapixels: 0.3
  • Focal Length: f=1.16mm
  • Brightness: f=2.8
  • Field Angle: 127°(H) and 101°(V)
