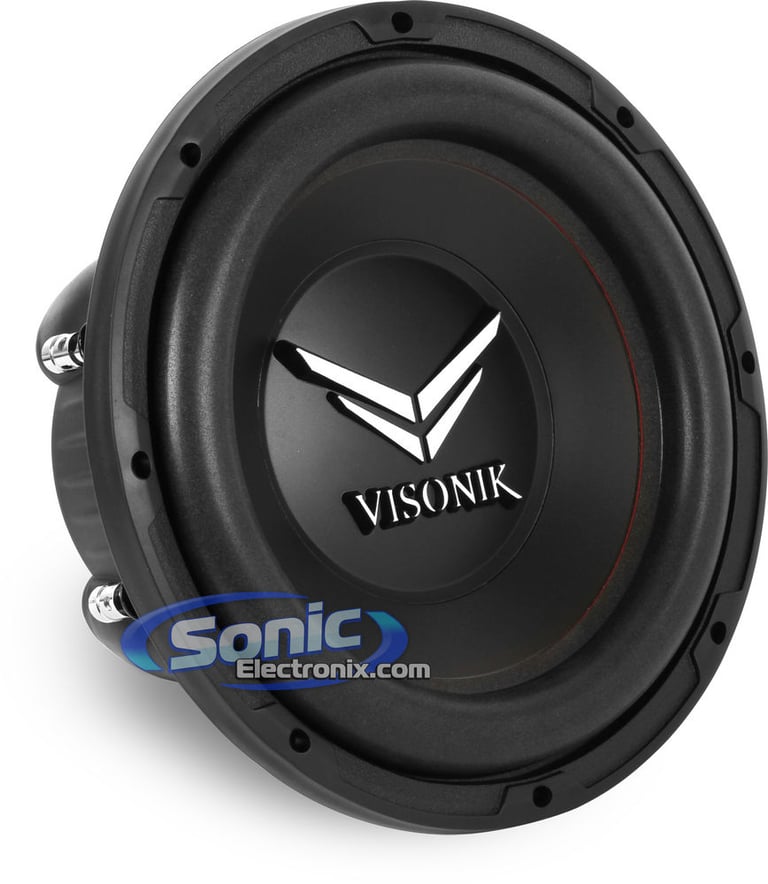

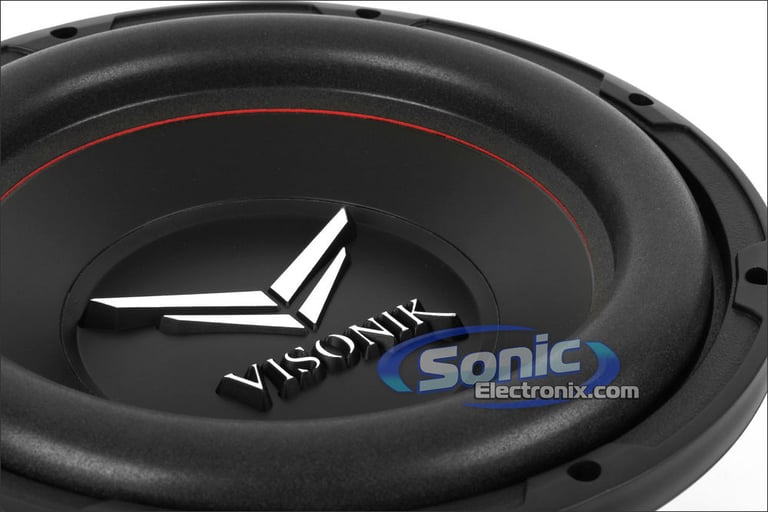

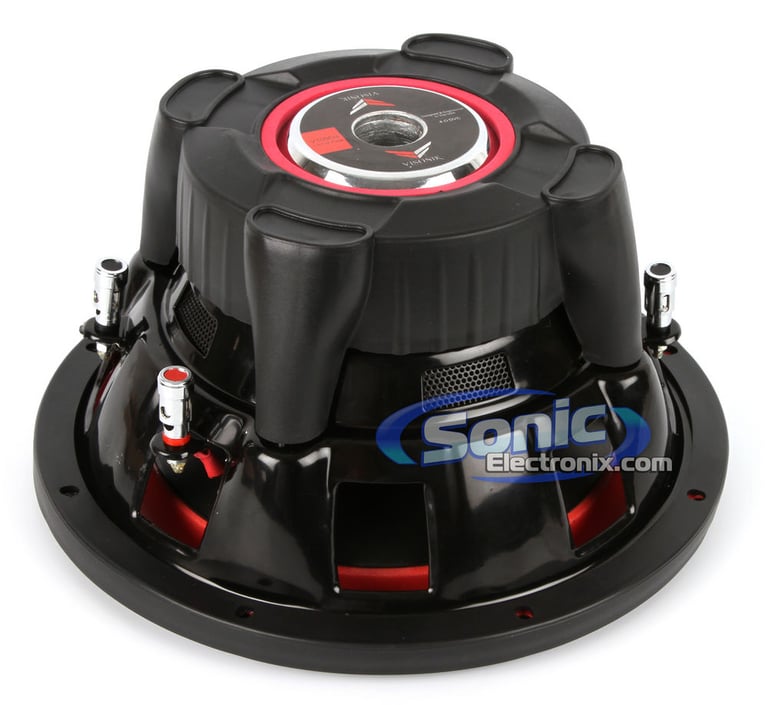

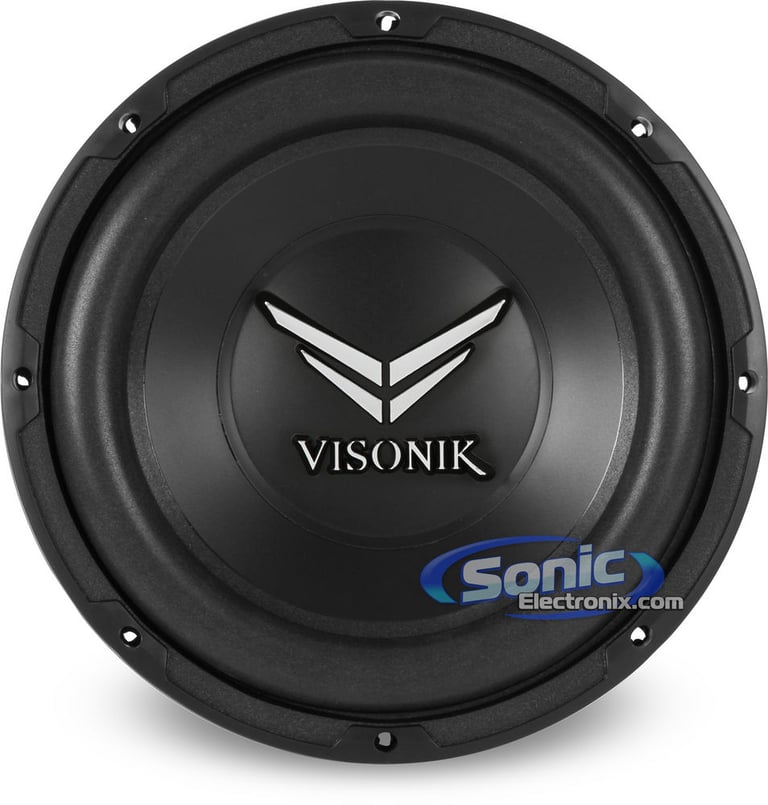

Visonik V109D4

10" Dual 4 ohm High Performance Car Subwoofer

Visonik
Shop all Visonik
Product videos
highlight-star-icon

10" Dual 4 ohm High Performance Car Subwoofer • 1300W Max • 650W RMS • Non-Pressed Polly Treated Paper Woofer Cone • Aggressive High Excursion Triple Treated Foam Woofer Surround • Progressive Rolled Nomex Spider • Double Stacked Strontium Magnets • Patented Thermo-Cooling Motor Structure

Learn more about the v109d4

We apologize

This item has been discontinued


Loading...
72-4568 main

Metra 72-4568

Install New Speakers in select 1990-2021 vehicles from Chevrolet, GMC, Buick

121
-33.36%

$9.99

List price $14.99

40-GM10 main

Metra 40-GM10

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

45
SAC656 main

Scosche SAC656

Add 5-1/4" or 6-1/2" Speakers to Factory 7" Mounting Locations

50
-6.69%

$13.95

List price $14.95

70-1858 main

Metra 70-1858 Wiring Harness

Install a new car stereo in select 1986-2006 vehicles from Chevrolet, GMC, Pontiac

63
95-3004 main

Metra 95-3004

Double DIN Stereo Dash Kit for select 2002 Escalade and Escalade EXT

-47.70%

$33.99

List price $64.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

AP-M67AN main

Deaf Bonce Apocalypse AP-M67AN

1200W Peak (600W RMS) 6.5" Apocalypse Series Midrange 4-ohm Car Speakers

2
XED52 main

Cerwin-Vega XED52

550W Peak (60W RMS) 5.25" XED Series 2-Way Coaxial 4-ohm Speakers

7
-16.67%

$44.99

List price $53.99

DEH-S1200UB main

Pioneer DEH-S1200UB

Single DIN CD Receiver with Pioneer ARC App and USB Control for Android Phones

1
-8.34%

$109.99

List price $120.00

Product Highlights


10" Dual 4 ohm High Performance Car Subwoofer • 1300W Max • 650W RMS • Non-Pressed Polly Treated Paper Woofer Cone • Aggressive High Excursion Triple Treated Foam Woofer Surround • Progressive Rolled Nomex Spider • Double Stacked Strontium Magnets • Patented Thermo-Cooling Motor Structure

Description


Visonik brand icon

Authorized dealer

  • 10" Dual 4 ohm High Performance Car Subwoofer
  • Power Handling:
    • Peak: 1300 watts
    • RMS: 650 watts
  • Impedance: Dual 4 ohm
  • Non-pressed polly treated paper cone material
  • Aggressive high excursion triple treated foam surround
  • Black aluminum former with cooper clad wire
  • Patented thermo-cooling motor structure
  • Progressive rolled nomex spider
  • Heavy duty alloy basket with air emergence technology
  • Rubber sealed gasket
  • Double stacked 120 Oz strontium magnet structure
  • Frequency response: 25-500 Hz
  • Sensitivity: 87 dB
  • Cutout Dimensions: 9-1/8"
  • Mounting Depth: 5"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Visonik V109D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Visonik V109D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Visonik V109D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Visonik V109D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
(2) SMW10D4_A19210CP main

Atrend A192-10CP with NVX SMW10D4 for 2002-13 Chevy Avalanche, Cadillac Escapade

350W RMS Shallow-Mount 10" Dual 4-Ohm Subwoofer + Dual 10" Subwoofer Enclosure

11
-16.86%

$369.97

List price $444.97

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
1300 watts
RMS Power Handling
650 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
25 - 500 Hz
Sensitivity
87 dB
Xmax (millimeters)
11 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Foam
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.0 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
2.25 cubic feet
Maximum Ported Box Volume
2.25 cubic feet
Top-Mount Depth (Mounting Depth)
5"
Cutout Diameter
9-1/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
40 Hz
Equivalent Compliance (Vas)
20 liters
Total Speaker Q Value (Qts)
0.747
Electrical Q Value (Qes)
0.785
Electrical Resistance of Voice Coil (Re)
3.8 ohm
Mechanical Q Value (Qms)
15.466
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

V109D4

Weight:

11.00lbs

Internal SKU:

v109d4

Internal Product ID:

41252
