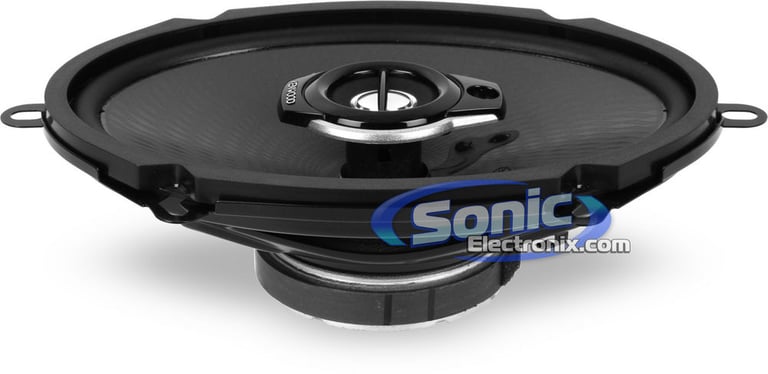

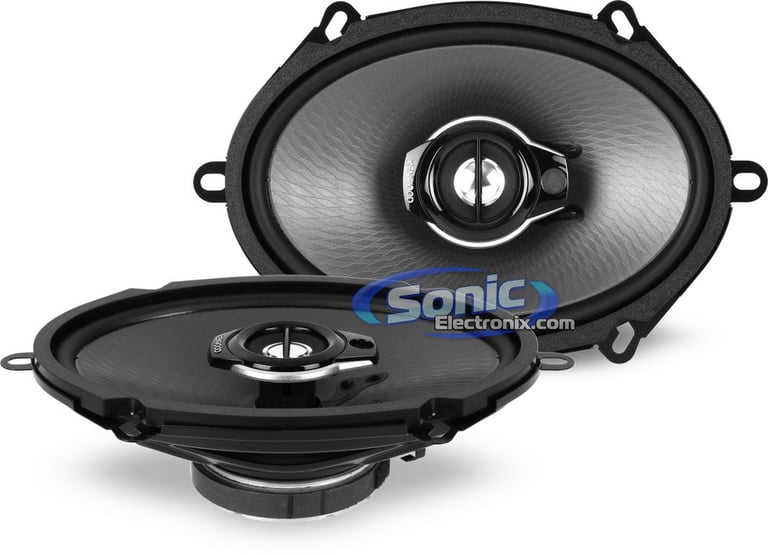

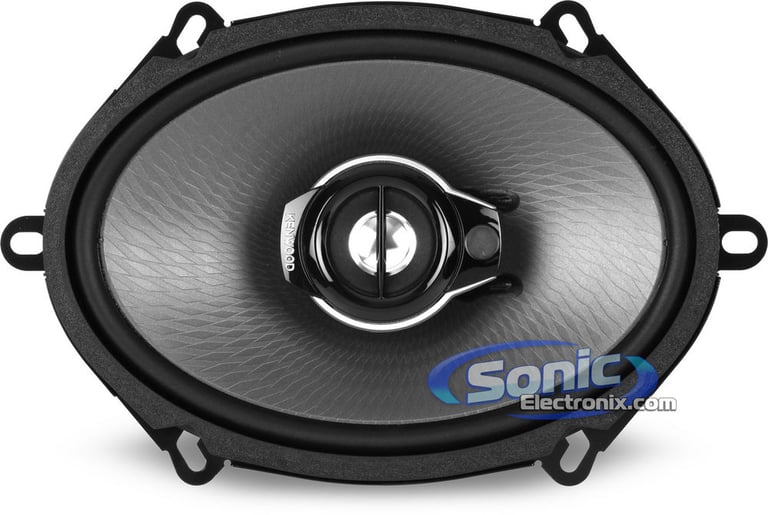

Kenwood KFC-C5794PS

5" x 7" 3-Way Performance Series Coaxial Car Speakers

Kenwood
Shop all Kenwood
highlight-star-icon

• 220W Max
• 75W RMS
• 3-Way Coaxial
• 4 ohm Impedance
• Polypropylene Speaker Cone
• Rubber Speaker Surround

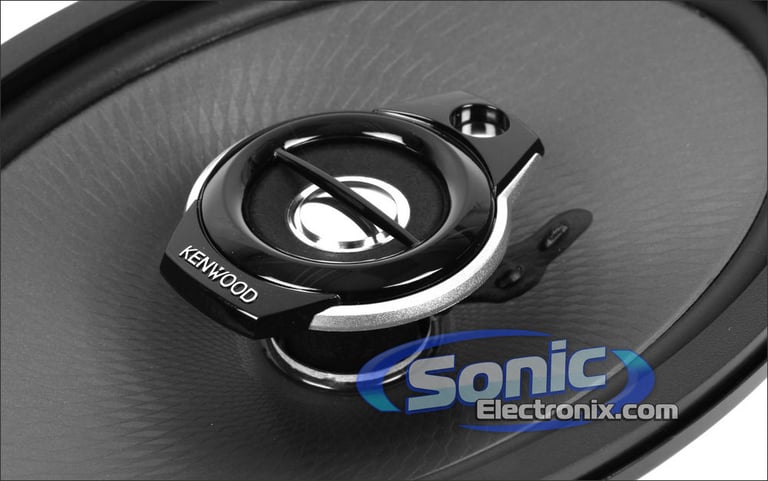

• Treated Paper Dome Tweeter
• Ceramic Flat Supertweeter

Learn more about the kfcc5794ps

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

kfcc5795ps thumbnail

Kenwood KFC-C5795PS

OUR PRICE: $44.99

View item

Loading...
480BRGB main

Boss Elite 480BRGB

Double DIN Digital Media Receiver with Bluetooth

17
XED693 main

Cerwin-Vega XED693

700W Peak (90W RMS) 6x9" XED Series 3-Way Coaxial 4-ohm Speakers

25
-16.67%

$54.99

List price $65.99

H752 main

Cerwin Vega H752

550W Peak (80W RMS) 5.25” HED Series 2-Way Coaxial 4-ohm Speakers

5
-16.67%

$69.99

List price $83.99

Description


Kenwood brand icon

Authorized dealer

General Features:

  • 5" x 7" Performance Series 3-Way Car Speakers
  • Power Handling:
    • Peak: 440 watts per pair / 220 watts each
    • RMS: 150 watts per pair / 75 watts each
  • Polypropylene speaker cone material
  • Rubber speaker surround for increased longevity
  • 1-3/16" Treated Paper Dome tweeter design
  • 1/2" Ceramic flat supertweeter
  • 4 ohm impedance
  • Frequency response: 63-21,000 Hz
  • Top-mount depth: 2-1/16"
  • Sensitivity: 87dB
  • 1-year Sonic Electronix Warranty

Priced Per Pair

Also Found As: KFCC5794PS, KFC5794PS, KFCC5794

Product history:

Kenwood KFC-C5795PS thumbnail
(newest, current model)
Kenwood KFC-C5794PS thumbnail
(previous model, replaced by Kenwood KFC-C5795PS)
Kenwood KFC-C5793PS thumbnail
(previous model, replaced by Kenwood KFC-C5794PS)
Kenwood KFC-C5782ie thumbnail
(previous model, replaced by Kenwood KFC-C5793PS)
Kenwood KFC-C5780ie thumbnail
(previous model, replaced by Kenwood KFC-C5782ie)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00


Best selling similar products

C1-570x small

JL Audio C1-570x

• 50 watts RMS Each
• 3/4" Silk-Suspended Aluminum Edge Driven Dome tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$129.99

List price $129.99

V68 small

Cerwin-Vega V68

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" Silk Balanced Dome Tweeters
• Carbon Fiber Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

$139.99

List price $139.99

VTEK-57Xi small

Earthquake Sound VTEK-57Xi

• 400 watts RMS Each
• 3/4" Silk Dome swiveling tweeters
• Glass Fiber cone material
• Impedance: 2 ohm
• Sensitivity: 90 dB

$129.99

List price $169.00

PK1-168 small

MB Quart PK1-168

• 110 watts Peak Each, 55 watts RMS Each
• 1" Magnesium Dome tweeters
• Tunable waveguide tweeter housing
• Pop Paper-Mica Blend cone material
• Curvilinear cone design geometry
• Impedance: 4 ohm
• Sensitivity: 88.5 dB

$129.99

List price $189.99

P1683 small

Rockford Fosgate Punch P1 P1683

• 130 watts Peak Each, 65 watts RMS Each
• 3/4" tweeter and 1/2" super tweeter PEI (Polyetherimide) Dome tweeters
• Injection-molded Mineral-filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(85)

$109.99

List price $109.99

NSP68 small

NVX NSP68

• 270 watts Peak Each, 90 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB
• Mounting Depth: 2.63"

(59)

$79.99

List price $95.99

VSP68 small

NVX VSP68

• 300 watts Peak Each, 100 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB
• Mounting Depth: 2.59"

(46)

$99.99

List price $119.99

46CSC684 small

Kicker CSC68 (46CSC684)

• 225 watts Peak Each, 75 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters with neodymium magnets
• Polypropylene cone material with EVC™ (Extended Voice Coil) technology
• Impedance: 4 ohm
• Sensitivity: 90 dB

(11)

$79.96

List price $119.99

H7683 small

Cerwin Vega H7683

• 360 watts Peak Each, 60 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

(50)

$79.99

List price $95.99

EXL-SQ5.7 small

DS18 EXL-SQ5.7

• 400 watts Peak Each, 120 watts RMS Each
• 1-1/8" PEI (Polyetherimide) Dome Tweeters
• Glass Fiber cone material
• Impedance: 3 ohm
• Sensitivity: 90 dB

$124.95

List price $124.95

Specifications & Details


Speaker Specifications
Series
Performance Series
Priced Per
Pair
Speaker Size
5" x 7"
Design
3-way Coaxial
Tweeter Design
Dome
Tweeter Composition
Paper
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Peak Power Handling
220 watts
RMS Power Handling
75 watts
Sensitivity
87 dB
Frequency Response
63 - 21000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-1/16"
Bottom-Mount Depth
2-15/16"
Cutout Dimensions
4-3/4" x 7"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KFC-C5794PS

Weight:

3.20lbs

Internal SKU:

kfcc5794ps

Internal Product ID:

43776
