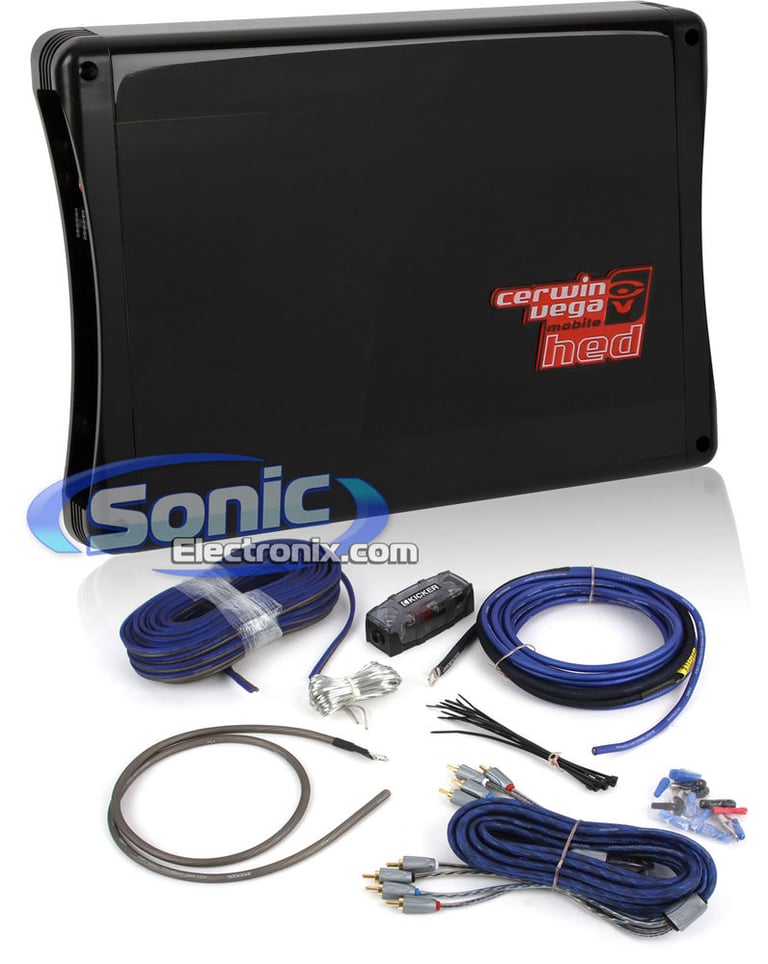

600W Max Cerwin-Vega Amplifier + Kicker Amplifier Kit

Cerwin-Vega HED600.4 Amplifier + Kicker ZCK84 Amplifier Kit

EXCLUSIVE
Product videos
highlight-star-icon

600W Max Cerwin-Vega Amplifier + Kicker Amplifier Kit • 4 ohm: 40 watts x 4 chan. • 2 ohm: 75 watts x 4 chan • Bridged, 4 ohm: 150 watts x 2 chan. • HED Series 4-Channel Class AB Car Amplifier

Learn more about the hed6004_09zck84

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Product Highlights


600W Max Cerwin-Vega Amplifier + Kicker Amplifier Kit • 4 ohm: 40 watts x 4 chan. • 2 ohm: 75 watts x 4 chan • Bridged, 4 ohm: 150 watts x 2 chan. • HED Series 4-Channel Class AB Car Amplifier

Description


Cerwin-Vega brand icon

Authorized dealer

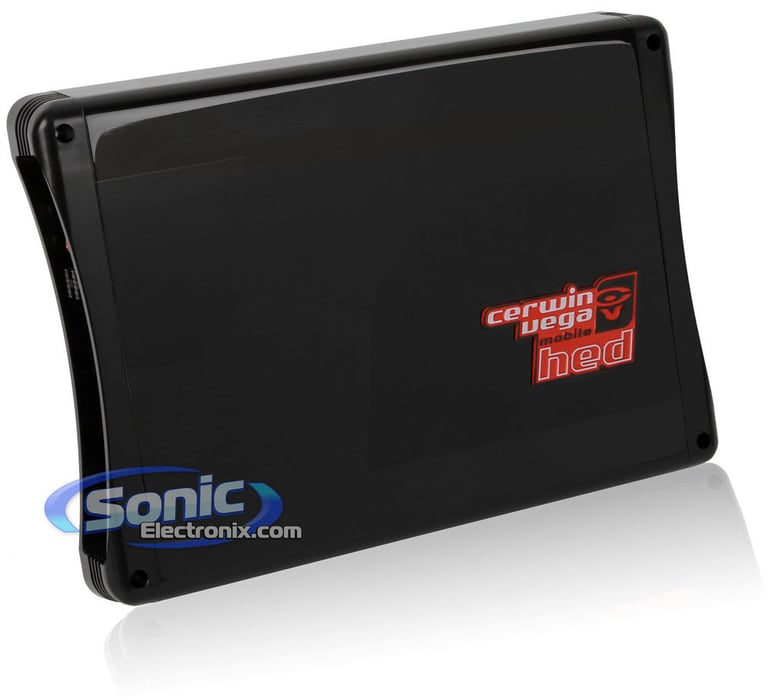

Cerwin-Vega HED600.4

600W MAX, HED Series 4-Channel Class AB Car Amplifier
Quantity: 1

Amplifier Features

  • HED Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 40 watts x 4 chan.
    • 2 ohm: 75 watts x 4 chan.
    • Bridged, 4 ohm: 150 watts x 2 chan.
  • Max power output: 600 watts
  • PWM MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Vega Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • 4/3/2 Channel operation

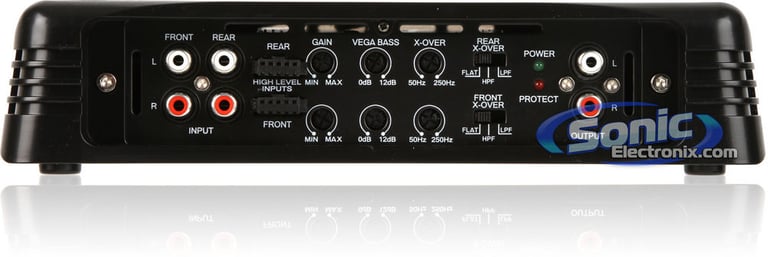

  • Rear/Front speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry
  • High-density aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs

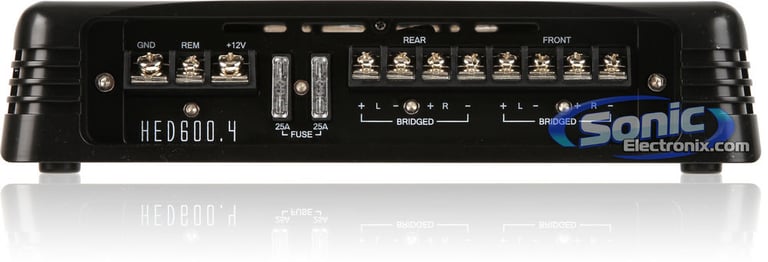

  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 113mV-5.3V
    • High level: 3.65V-20V
  • Crossover selection switch
  • Variable high-pass filter (50-250 Hz, 12 dB/octave)
  • Variable low-pass filter (50-250 Hz, 12 dB/octave)
  • Damping factor: >134 at 50 Hz
  • Frequency response: 10-91,000 Hz
  • Dimensions: 12-3/4"L x 9-7/16"W x 2-1/8"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website (SonicElectronix.com) when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Kicker ZCK84

Complete 8 Gauge Z-Series 4-Channel Amplifier Installation Kit with RCA Interconnect Cable (09ZCK84)
Quantity: 1

Amplifier Kit Features:
  • Complete 8 Gauge Z-Series Amplifier Installation Kit
  • Designed specifically for car audio systems up to 500 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
  • Includes 4-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • Direct-connect engineering
  • Fewer connections for less signal distortion
  • Twisted-pair technology eliminates noise for crystal clear sound
  • AFS Fuse holder offers ideal protection for high powered systems
  • Hyper-flex cable and wire
  • Full spec cable is true to gauge
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Kit includes:

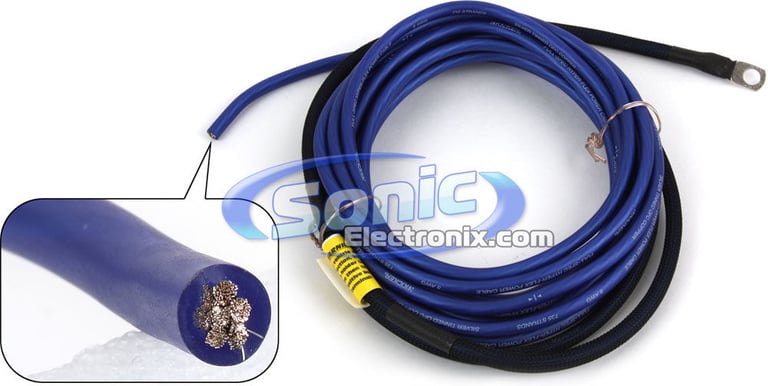

  1. 20ft(6.1m) Blue 8 AWG power wire

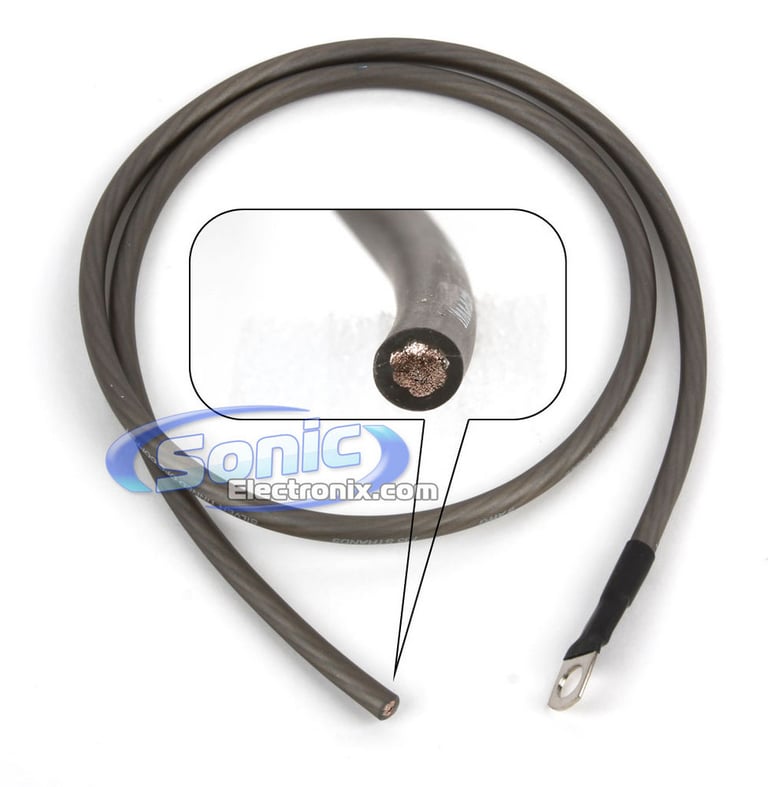

  2. 3ft(0.9m) Black 8 AWG ground wire
  3. 20ft(6.1m) Blue 18 AWG remote lead wire

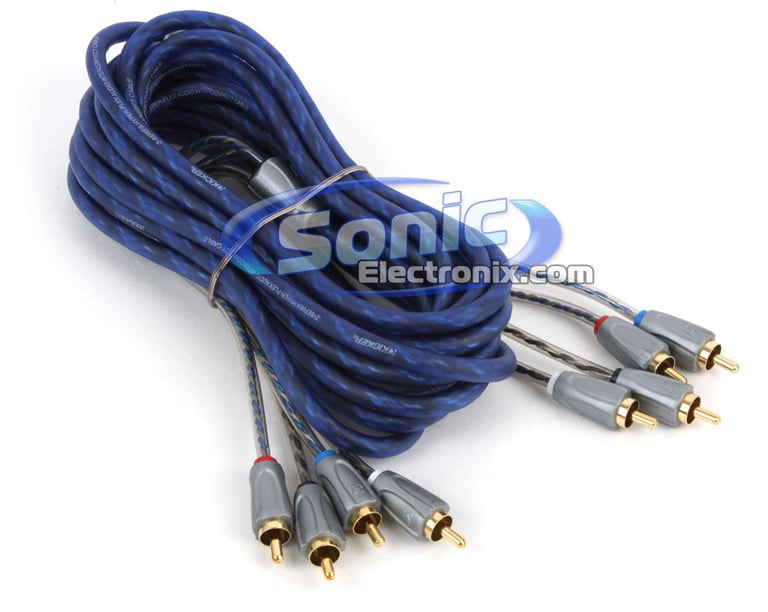

  4. 16.4(5m) Blue, black, and gray 4 Channel RCA cable

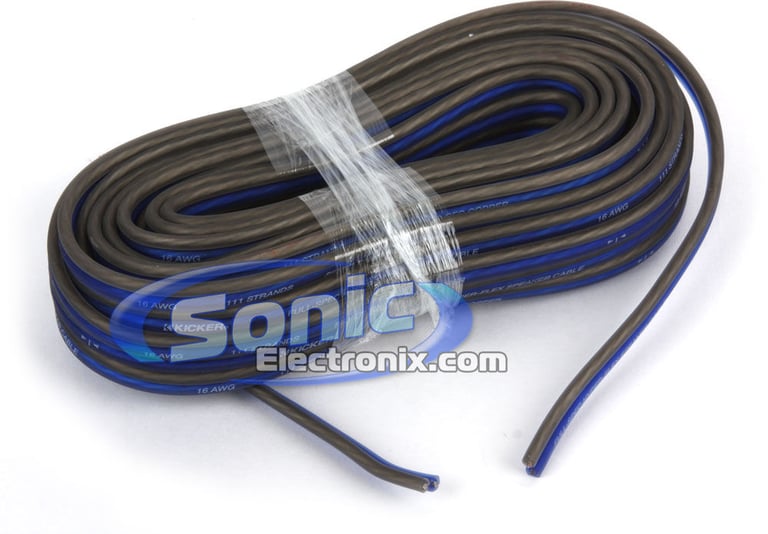

  5. 60ft(18.3m) Blue and gray 16AWG speaker cable

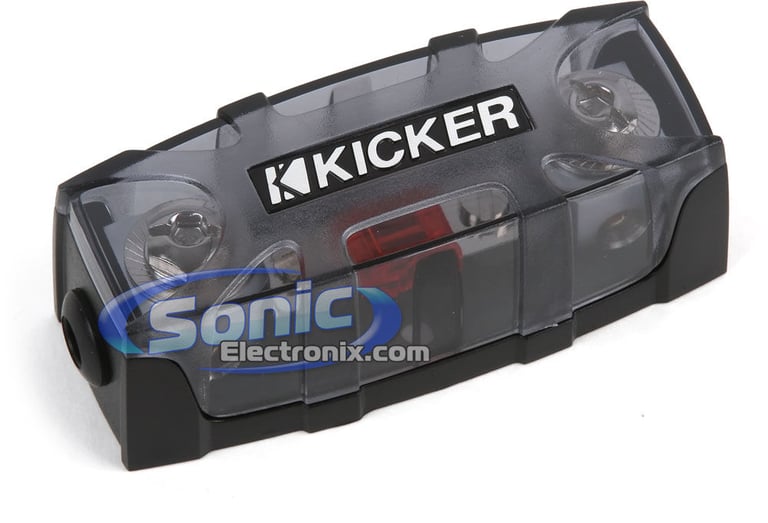

  6. 1 Kicker 09FHS Fuse holder with 50 amp AFS fuse
  7. Black rubber firewall grommet

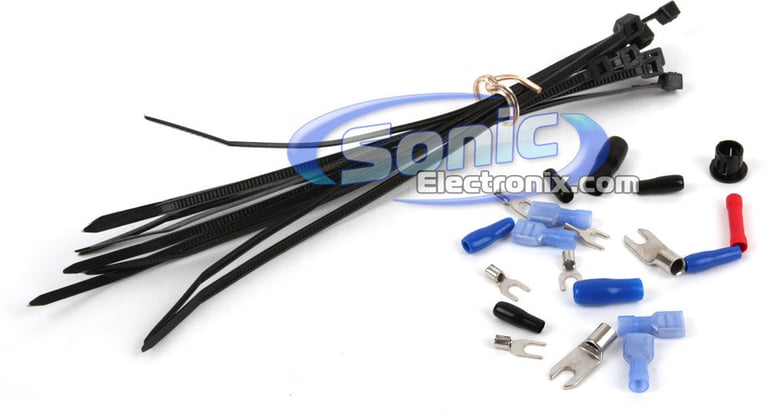

  8. 2 8AWG Spade terminals
  9. 5 18AWG Spade terminals
  10. 4 Female quick disconnect connectors
  11. Black zip ties
  12. Red butt connector

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
40 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
150 watts x 2 channel
Peak Power Output
300 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
600 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.03%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
112 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 2
CEA-2031 Compliant
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
8 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
60 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
4 Channel
Fuse Holder
AFS
Fuse Size
50A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HED600.4_09ZCK84

Weight:

13.90lbs

Internal SKU:

hed6004_09zck84

Internal Product ID:

44232

Product and How-to Videos


Customer Ratings & Reviews


600W Max Cerwin-Vega Amplifier + Kicker Amplifier Kit thumbnail image

5 star
89%
4 star
11%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.8
Features
4.8
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Excellent Quality

The following review is for 09ZCK84, which is a part of the bundle you are viewing.

I'm using this wiring to power my 4 channel amp in a full size crew cab truck. There is plenty of wire to run all the way from the head unit around the door sills to under the back seat. Very impressed with the quality of the cables and Sonic's delivery and prices.

By Scott on November 3, 2011

20 found this helpful


Good Product

The following review is for 09ZCK84, which is a part of the bundle you are viewing.

I used this kit to wire up my amp in my boat. Lots of wire and great quality made this an easy choice for me. Love the Kicker stuff!

By Ron on September 23, 2010

19 found this helpful


quality at its best

The following review is for 09ZCK84, which is a part of the bundle you are viewing.

Good kit, enough to wire 1 4-channel amp. Quality of product is superb, I highly recommend this.

By Daniel on March 19, 2012

14 found this helpful


perfect power.

The following review is for HED600.4, which is a part of the bundle you are viewing.

I like this amp so much i bought 2. (for later use.)
Replaced 94 Z28 Bose system with this
Hed600.4 (40 w x4 sounds excellent. )
Hed500.1 (250w x1 nice thump)
Hed65c in front x 4 (Also bought 4 Hed65 for later use)
Hed 104 sub in trunk.
Kenwood KIV BT901 deck (22w x4 rms)

I call it my 21st century upgrade and o what a beautiful sound.

I love cerwin vega and also have a set of AT-15's in my house for the
last 20+ years and never herd anything to compare yet.
Best sound, best boom, cleanest sounding speakers I have ever herd.
HANDS DOWN. I would buy cerwin vega socks if they made them.
GO VEGA
I will say i have heard some complaints, i don't believe they had enough
power to speakers. I have 120w kenwood speakers and deck in plough
truck and they sound muffled. Guess where the second
HED600.4 amp and HED65 speakers are going. Ploughing was never
so much fun.
REMEMEBR

By Tom on July 30, 2012

12 found this helpful


Clear choice.

The following review is for HED600.4, which is a part of the bundle you are viewing.

This amp has lots of punch. 40w/ channel may not sound like much but it sure sounds good on (4) HED65v speakers.

By Thomas on December 13, 2012

12 found this helpful


Very satisfied.

The following review is for HED600.4, which is a part of the bundle you are viewing.

After comparing specs and prices for dozens of amps, I purchased the C-V HED600.4. I found the power more than adequate; clean and loud. The size turned out to be a perfect fit under the seat of my F-150. Installed it myself with no problem. Very pleased.

By 2 Bruskis on July 26, 2012

10 found this helpful


CV HEAD EQUIPMENT FOR MY TRUCK

The following review is for HED600.4, which is a part of the bundle you are viewing.

THESE GUYS I HIGHLY RECOMMEND PROMPT DELIVERY AND GREAT EQUIPMENT ALL PACKED NICELY, THANKS WILL DEFINITELY USE YOU AGAIN. THANKS

By EDDY on April 18, 2014

8 found this helpful


It's a good 4 ch amp

The following review is for HED600.4, which is a part of the bundle you are viewing.

I love cerwin vega new to their amps though I was impressed to see that it has a built in cooling fan I have my componets, 3 sets of tweeters and a set of 6x9s ran of of it and the amp does it's job with a little help of a memphis equilizer to really fine tune everything so far I'm satisfied. A little side note it doesn't like cheap rca cables I had some t spec rca cables and they were quickly replaced with some skar rca cables.

By alexander on March 11, 2014

8 found this helpful


Nice sounds.....

The following review is for HED600.4, which is a part of the bundle you are viewing.

I added a second HED 600.4 amp and bridged to 150w rms- 300w max x 4 speakers.
Also upgraded to 60th anniversary component 6.5". They are higher watts, 75w rms- 150w max.
They sound great. I do NOT turn it full throttle. It hurts.
I took the 40w 6.5" I replaced and made one large speaker that has 4 tweeters x 4 mid range and one 10" 500w sub. 36" high x 24" wide box painted kubota orange.(I have a B2650) So of corse now I need another 600.4 and another size for the sub for one channel.... Shop speaker....,,, I can hardly wait.... I'm thinking video monitor.... and new usb kenwwod deck in a birds eye maple wooden box on top,,,hmmm On the cover of the rolling stones,,,lol

By Tom on February 2, 2022



BT OV STUDIO BLK small

Beats By Dre Studio - Black

Professional Over-Ear Studio Headphones with Built-In Active Noise Cancelling Function

$229.95

List price $349.99

PMX-2 small

Rockford Fosgate PMX-2

2.7” Square Gauge Mount Style Digital Audio Marine Receiver with Bluetooth

(2)

$549.99

List price $549.99

CB1-8000D small

Power Acoustik CB1-8000D

8000W Peak (4000W RMS) Calber Class-D Monoblock 1-Ohm Stable Amplifier With Bass Knob Included

(7)

$209.99

List price $299.95

MPC-P300-8S-5 small

Monster Cable MPC P300 8S-5

5 Ft of 8 Gauge Monster 300 PowerFlex Power & Ground Cable

(1)

$10.00

List price $14.99

SI1220 small

Stinger SI1220

20 Ft 1000 Series 2-Channel Audiophile Grade RCA Stereo Interconnect Cable

(4)

$11.99

List price $19.00

CCA748 small

Clarion CCA-748-600

iPod Audio/Video Connection Cable Adapter for Select Clarion Receivers

(4)

$29.99

List price $59.99

DSC-480_AMP850BL small

MB Quart DSC 480 + Amplifier Kit

640W RMS, Class A/B 4-Channel Discus Series Amplifier (DSC480d) w/ 4 Gauge Amp Kit

(44)

$146.59

List price $582.97

THA475 small

Blaupunkt THA475

Thin Series 4-Channel Amplifier

$119.99

List price $299.99

REV-20X small

Boss REV-20X Electronic Crossover

$29.99

List price $49.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Volvo S60

2017 Audi S8

2019 Ford Ranger

2017 Dodge Journey

2015 Audi A5

2002 Chevrolet Express 2500

1996 Dodge Dakota

2008 Mazda B2300

2012 Mitsubishi Eclipse

2011 Kia Rio5

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
