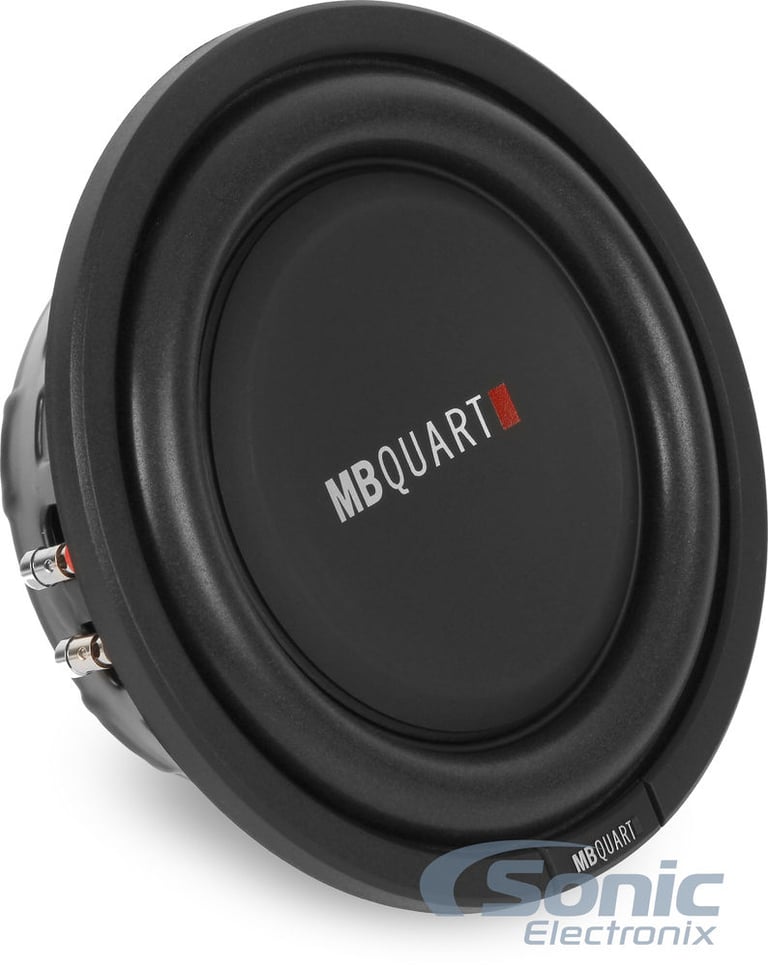

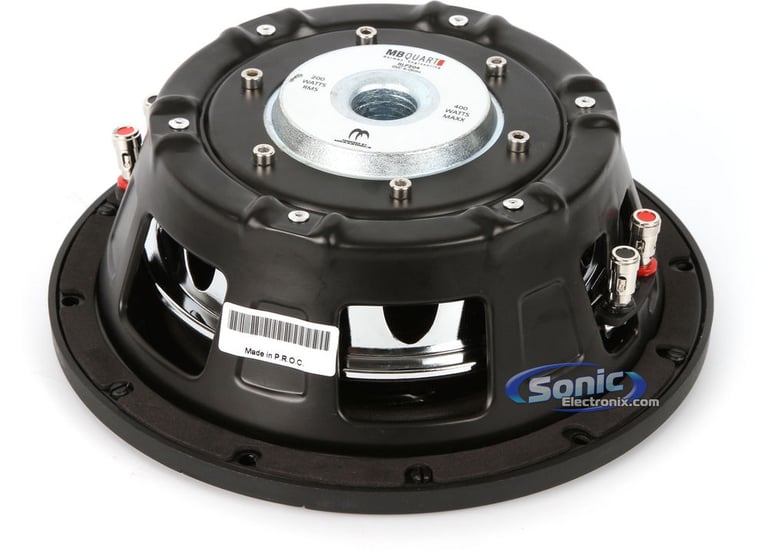

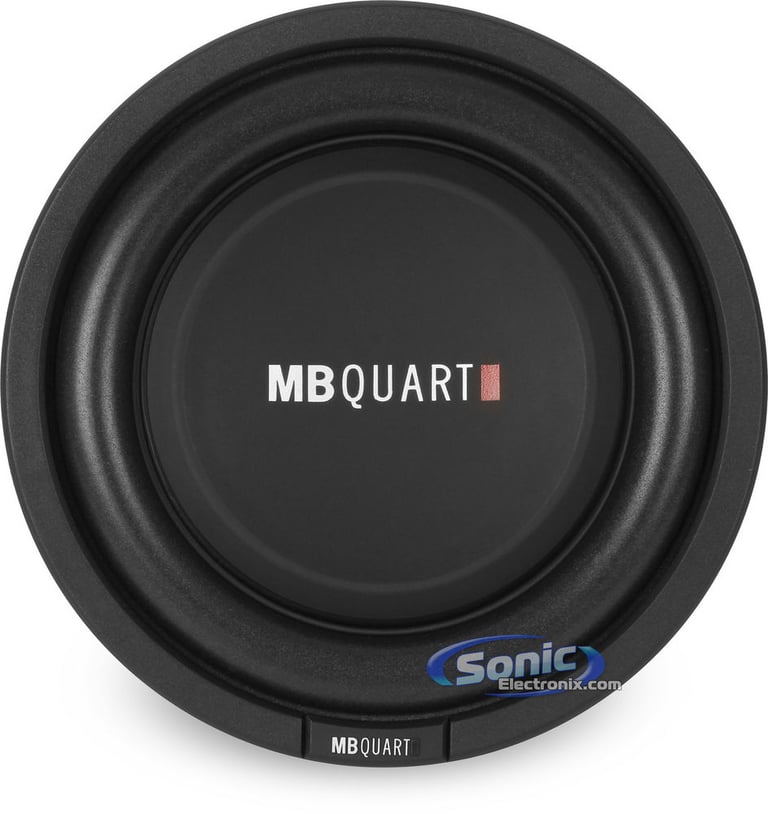

MB Quart RLP204

200W 8" Reference Series Low-Profile Dual 4 ohm Subwoofer

MB Quart
Shop all MB Quart

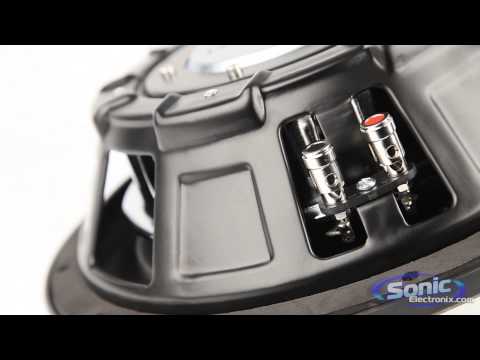

Product videos
highlight-star-icon

• 400W Peak
• 200W RMS
• Shallow Mount
• Dual 4 Ohm
• Injection Molded Polypropylene Cone
• NBR Rubber Surround
• Recommended for Sealed Enclosures

Learn more about the rlp204

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

SWR-A main

Crux SWR-A

Steering Wheel Control Retention Interface for Analog SWC

1
-35.71%

$58.05

List price $90.30

70-7552 main

Metra 70-7552 Wiring Harness

Install a new car stereo in select 2007-2024 vehicles from Nissan, Subaru, Suzuki

34
-15.40%

$10.99

List price $12.99

82-8900 main

Metra 82-8900

6.5" Multi Speaker Adapter for select 2005-2021 vehicles from Subaru

1
-55.90%

$14.99

List price $33.99

SU6 main

PAC SU6

Install a New Car Stereo and Retain the Factory Antenna in select 2005-2014 vehicles from Subaru

-58.33%

$10.00

List price $24.00

SBK924P main

American International SBK924P

Single DIN or Double DIN Stereo Dash Kit for select 2010-2014 Legacy and Outback

2
-65.93%

$14.99

List price $44.00

AXBUCS-SB286V2 main

Axxess AXBUCS-SB286V2

Install a New Car Stereo and Retain Steering Wheel Control and Other Features in select 2013-2014 Legacy and Outback

-10.00%

$62.99

List price $69.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Product Highlights


• 400W Peak
• 200W RMS
• Shallow Mount
• Dual 4 Ohm
• Injection Molded Polypropylene Cone
• NBR Rubber Surround
• Recommended for Sealed Enclosures

Description


MB Quart brand icon

Authorized dealer

General Features:

  • 8" Dual 4 ohm Low-Profile Reference Series Subwoofer
  • Power Handling:
    • Peak: 400 watts
    • RMS: 200 watts
  • Impedance: 4 ohm
  • Injection polypropylene flat piston cone for maximum damping and structural rigidity
  • High NBR rubber surround for more cone area and excursion
  • Double-roll reinforced steel frame with extreme shallow mounting for optimized installation
  • Single flat poly cotton spider with woven tinsel lead wire
  • Custom nickel plated push type terminal
  • Recommended use is in sealed enclosures with heavy poly fill
  • Dual 4 ohm 2-1/2” (64mm) voice coils
  • Frequency response: 35-120 Hz
  • Resonance Frequency (Fs): 41.5 Hz
  • Top-mount depth: 2-12/16"
  • Sensitivity: 81.23 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MB Quart RLP204 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MB Quart RLP204 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MB Quart RLP204 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 MB Quart RLP204 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

DB-SA2508 D1 small

Deaf Bonce Apocalypse DB-SA2508 D1

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 5.22"
• Sensitivity: 84.7 dB

(1)

$229.90

List price $229.90

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

SPK-8S4 small

AudioControl SPK-8S4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 4.291"
• Sensitivity: 81.9876 dB

(1)

$179.00

List price $229.00

KAPPA 83WDSSI small

Infinity Kappa 83WDSSI (INFSUBKA83WDSSIAM)

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 5.42"
• Sensitivity: 91 dB

(2)

$149.95

List price $289.95

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

CWRT84 small

Kicker CWRT84 (48CWRT84)

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 2-11/16"
• Sensitivity: 81.8 dB

(4)

$151.96

List price $209.99

Specifications & Details


Subwoofer Specifications
Series
Low Profile Reference Series
Subwoofer Size
8"
Peak Power Handling
400 watts
RMS Power Handling
200 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2-1/2"
Frequency Response
35 - 120 Hz
Sensitivity
81.23 dB
Xmax (millimeters)
8.15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Nitrile Butadiene Rubber NBR
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
0.25 cubic feet
Maximum Sealed Box Volume
0.50 cubic feet
Top-Mount Depth (Mounting Depth)
2-12/16"
Cutout Diameter
7-3/16"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
41.5 Hz
Equivalent Compliance (Vas)
12.19 liters
Total Speaker Q Value (Qts)
0.83
Electrical Q Value (Qes)
1.01
Electrical Resistance of Voice Coil (Re)
6.2 ohm
Mechanical Q Value (Qms)
4.66
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RLP204

Weight:

5.13lbs

Internal SKU:

rlp204

Internal Product ID:

44463

Product and How-to Videos


  • MB Quart Low-Profile Reference Series Subwoofers
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


MB Quart RLP204 thumbnail image

5 star
79%
4 star
14%
3 star
7%
2 star
0%
1 star
0%



Durability
4.7
Value
4.7
Features
4.7
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

Really good Amplifier

I installed the amp in my ford truck and i immediately experienced a significant improvement in the depth and power of the bass.

By Keith K on January 3, 2013

25 found this helpful


Worked Great!

Spent some time trying to find the OEM replacement for my Suburban's subwoofer, only to confirm that it has been discontinued.

This speaker fit perfectly and sounds as good, maybe better than my original at a fraction of the price.

My stereo sound is back to normal with full bass.

By Regel on September 17, 2013

23 found this helpful


MB Quart - If you haven't heard of it, you should!

Deep, heart pounding bass out of a little 8" sub? That's what the MB Quart RLP204 delivers. Used it to replace a factory sub in my GMC Yukon XL and it blows it away even with the stock radio.

By MJ on October 10, 2012

24 found this helpful


MB Quart

I have two of these in the rear doors of my 2006 subaru liberty hooked up to a 1100rms alpine sub amp & they are awesome.I would highly recommend these speakers to everybody.

By Paul on December 30, 2012

21 found this helpful


Great Speakers

These speakers are great and fit perfect in factory locations on 05 Nissan frontier.

By troy on October 14, 2012

21 found this helpful


sealed box big sound

great sub. Not the best sub you can buy but, has good response and good range. mine is in a sealed 3/4 at about .25sq. for the money and size im very satisfied

By nick on November 29, 2013

19 found this helpful


Amazing sound Quality

these 8 inch woofers rock,solid punchy bass,and a good price too thanks sonic.

By manny on February 9, 2015

18 found this helpful


Good product

Looks good and sounds good. But don't expect big punch. These really are only designerd for small enslosures and tigh spots in little cars. They are a good compromise.

By T on September 17, 2013

19 found this helpful


Great Product

MB Quart RLP204 arrived on time and performs exactly as expected. No complaints at all!

By Hipockets on October 20, 2014

16 found this helpful


Surprisingly good!!!!

I bought this sub next expecting much from an 8", but after I paired with Rockford Fosgate Prime R250X1 and it was surprising! The lows sound great and it's enough for me to pump up when I want to ride and enough to turn down when the kids are in the vehicle. Great sub for the money!

By Hakim on May 10, 2015

14 found this helpful




SRX10D4 small

RE Audio SRX10D4

300W 10" SRX Series Dual 4 ohm Subwoofer

(21)

$100.00

List price $324.98

MPS-B07 small

Metra MPS-B07

Side Pillar Light Brackets for 2" to 4" Cube and Round Work Lights in select 2016-2017 vehicles from Yamaha

$24.99

List price $42.00

KX1-3000D small

Kole Audio KX1-3000D

3000W Max, KX Series Class D Monoblock Amplifier

(3)

$199.99

List price $349.99

95-00-CHEVY-CK-S-INF small

Infinity Reference Series Factory Speaker Upgrade Package

Fits select 1995-2000 vehicles from Chevrolet

(149)

$252.87

List price $332.87

PRO-CF6.2SLN small

DS18 PRO-CF6.2SLN (Sold Individually)

300W Peak (150W RMS) 6.5" Pro Audio Midrange 2-ohm Shallow Motorcycle and Powersports Loudspeaker

$174.95

List price $174.95

PS1200L small

XS Power PS1200L

1500W 55Ah Absorbent Glass Mat (AGM) Powersports Battery

$259.99

List price $259.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 Subaru Outback

2004 Buick Rainier

2007 Bentley Continental

2012 Nissan Maxima

2012 Ford Transit Connect

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
