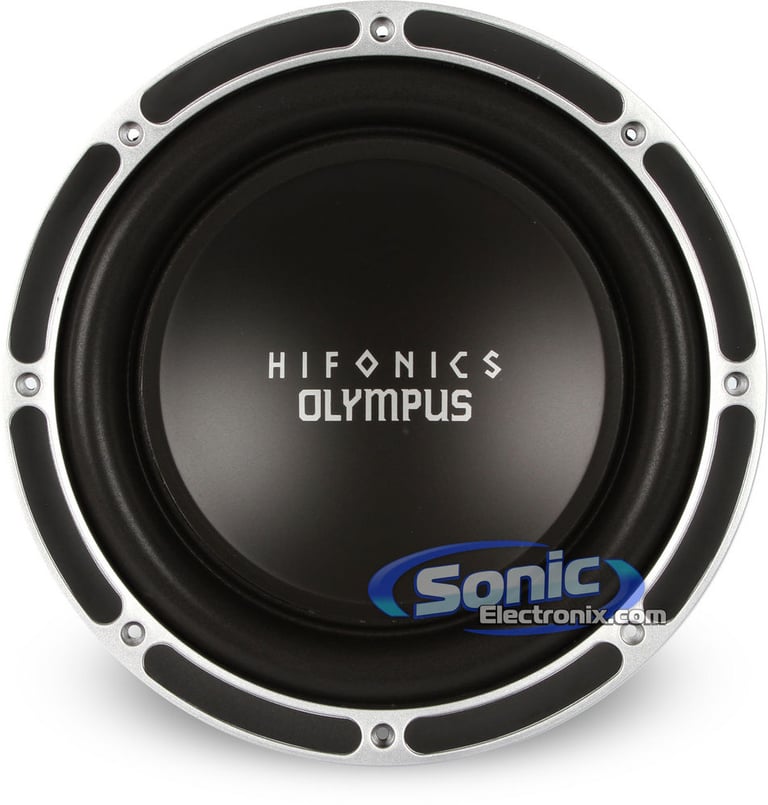

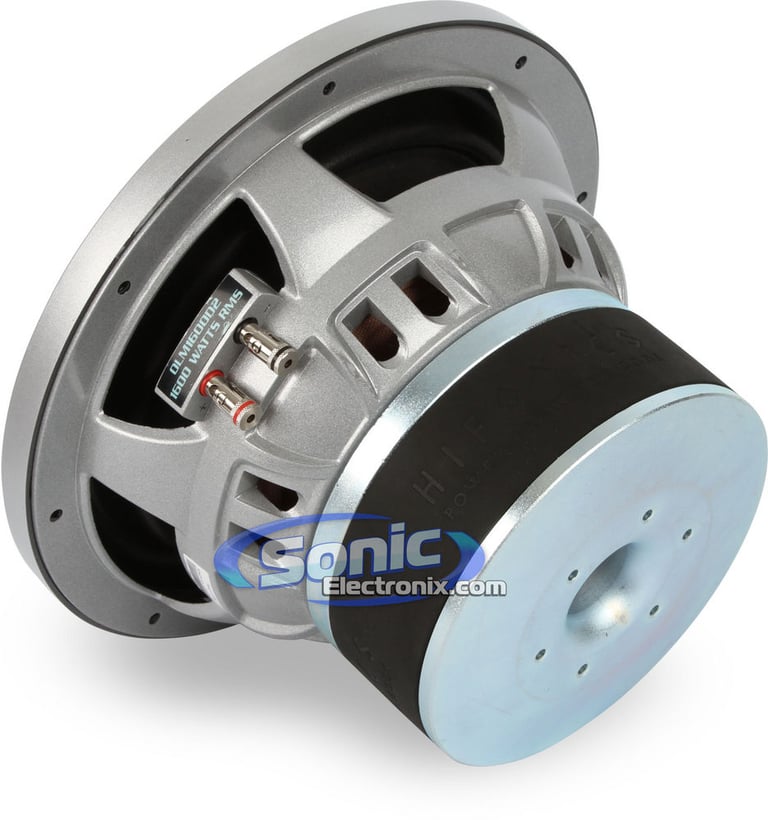

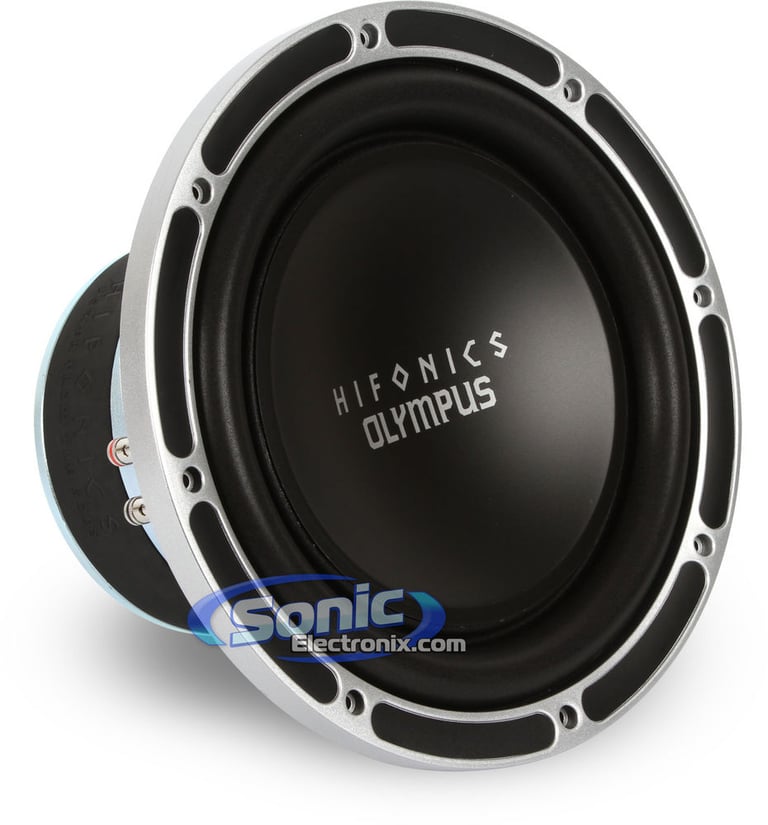

Hifonics OLM1600D2

1600W 12" MT. Olympus Competition Series Dual 2 ohm Subwoofer

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

• 3200W Peak
• 1600W RMS
• One-Piece Pressed Paper Cone
• High Roll Santroprene Rubber Surround

Learn more about the olm1600d2

We apologize

This item has been discontinued


Loading...
050147 main

Boom Mat 050147

Sound Deadening Headliner Kit for select 1997-2006 Wrangler and Wrangler Unlimited (Gray)

1
-32.78%

$199.99

List price $297.52

CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

CHR02B3 main

GROM Audio CHR02B3 Bluetooth Streaming Kit (GROM-BT3-CHR02)

Add Bluetooth Hands Free Calling and Music Streaming to Select 2002-2007 Chrysler, Dodge and Jeep Factory Radios

1
72-6512 main

Metra 72-6512

Install New Speakers in select 1984-2007 vehicles from Dodge, Chrysler, Jeep

7
-37.52%

$9.99

List price $15.99

CR02B main

Scosche CR02B Wiring Harness

Install a new car stereo in select 2002-2007 vehicles from Dodge, Chrysler, Jeep

109
-10.73%

$7.99

List price $8.95

95-6541 main

Metra 95-6541

Double DIN Stereo Dash Kit for select 2003-2006 Wrangler

1
-38.46%

$111.99

List price $181.99

82-1011 main

Metra 82-1011 Speaker Mounting Bracket

Speaker Adapter to Install 4x6" Speakers into Factory Speaker Location for select 1997-2006 Wrangler and Wrangler Unlimited

2
-54.56%

$14.99

List price $32.99

70-6502 main

Metra 70-6502 Wiring Harness

Install a new car stereo in select 2002-2010 vehicles from Dodge, Chrysler, Jeep

17
82-1013 main

Metra 82-1013

5-1/4" Speaker Adapter for select 1997-2006 Wrangler and Wrangler Unlimited

4
-52.79%

$16.99

List price $35.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Product Highlights


• 3200W Peak
• 1600W RMS
• One-Piece Pressed Paper Cone
• High Roll Santroprene Rubber Surround

Description


Hifonics brand icon

Authorized dealer

The Gods Have Spoken

The Gods of HIFONICS are proud to introduce the MT Olympus Competition OLM1600 series subwoofers! From top to bottom these subs have been designed for incredible SPL and SQ!

Here are the important features: The OLM1600 series features a DVC 2-Ohm (OLM1600D2) and DVC 4-Ohm (OLM1600D4) model to allow for multiple wiring configurations making this series versatile for any application you can imagine. Starting with a massive 182oz high energy magnet with a ported back plate for heat dispersion, you know they mean business. Supporting the motor structure is an ultra ridged aluminum die-cast basket with a polished grey finish. The moving parts feature a one-piece pressed paper cone/dustcap for structural integrity, high roll santoprene rubber surround for long excursion, reinforced cone-neck support for stability and optimally spaced dual spiders for precise inward and outward excursion control. The 3” high-temp voice coil is wrapped on an aluminum former and ready to take every bit of the 1600w RMS/3200w MAXX! The OLM1600’s are designed for both ported and sealed enclosure designs.

General Features:

  • 12" Dual 2 ohm Mt. Olympus Competition Series Subwoofer
  • Power Handling:
    • Peak: 3200 watts
    • RMS: 1600 watts
  • Impedance: Dual 2 ohm
  • One-Piece pressed paper Cone
  • High roll Santroprene Rubber Surround
  • Reinforced Cone-Neck Joint
  • Optimally spaced dual spider cast basket
  • 3" High temperature voice coil
  • 182oz. High Energy magnet motor structure
  • Frequency response: 20-250 Hz
  • Resonance Frequency (Fs): 29.14
  • Top-mount depth: 6"
  • Sensitivity: 83.8 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Hifonics OLM1600D2 thumbnail
(newest, current model)
Hifonics OLM1612 thumbnail
(previous model, replaced by Hifonics OLM1600D2)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Hifonics OLM1600D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Hifonics OLM1600D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Hifonics OLM1600D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Hifonics OLM1600D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
JWTJ97C20A-TN main

MTX Audio Thunderform JWTJ97C20A-TN (Charcoal, Amplified)

1997-2006 Jeep Wrangler, Wrangler Unlimited, Amplified 2 10" 4 ohms Loaded Vehicle Specific Thunderform Sub Enclosure

1
JWTJ97C20-TN main

MTX Audio Thunderform JWTJ97C20-TN (Charcoal, Loaded)

Dual 10" Loaded Thunderform Subwoofer Enclosure for select 1997-2006 Wrangler and Wrangler Unlimited

1
21576K main

Select Increments Intra-Pod (21576K)

Custom-fit center console subwoofer enclosure with 8" Kicker Subwoofer for select 1976-1995 CJ7 and Wrangler and Scrambler

1
-7.02%

$529.91

List price $569.94

21576KA main

Select Increments Intra-Pod (21576KA)

Custom-fit center console with 8" Kicker subwoofer and Amplifier for select 1976-2006 vehicles from Jeep

108
-13.10%

$729.90

List price $839.92

63092KA main

Select Increments Sono-Pod (63092KA)

Custom-fit subwoofer enclosure with 10" Kicker Subwoofer and 400W Monoblock

109
-17.58%

$543.90

List price $659.92

40473KA main

Select Increments Stealth-Pod (40473KL)

Custom-fit subwoofer stealth pod with 10" Kicker subwoofer and Kicker Amplifier for select 1987-2018 vehicles from Jeep

108
-16.34%

$593.90

List price $709.92

63092K main

Select Increments Sono-Pod (63092k)

Custom-fit enclosure with 10" Kicker subwoofer for

2
-11.80%

$343.91

List price $389.94

40473K main

Select Increments Stealth-Pod (40473K)

Custom-fit subwoofer stealth pod with 10" Kicker subwoofer for select 1987-2018 vehicles from Jeep

1
-10.46%

$393.91

List price $439.94

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

P3D4-12 small

Rockford Fosgate Punch P3 P3D4-12

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 6.66"
• Sensitivity: 85 dB

(134)

$229.99

List price $259.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$89.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(1)

$599.99

List price $719.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

Specifications & Details


Subwoofer Specifications
Series
Mt. Olympus Series
Subwoofer Size
12"
Peak Power Handling
3200 watts
RMS Power Handling
1600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
3"
Frequency Response
20 - 250 Hz
Sensitivity
82.86 dB
Xmax (millimeters)
33.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Pressed Pulp Fiber
Woofer Surround
Santoprene Rubber
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Minimum Sealed Box Volume
1.00 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
2.00 cubic feet
Maximum Ported Box Volume
2.25 cubic feet
Top-Mount Depth (Mounting Depth)
6-7/8"
Cutout Diameter
10-13/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30.86 Hz
Equivalent Compliance (Vas)
26.54 liters
Total Speaker Q Value (Qts)
0.56
Electrical Q Value (Qes)
0.62
Electrical Resistance of Voice Coil (Re)
3.21 ohm
Mechanical Q Value (Qms)
5.5
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

OLM1600D2

Weight:

31.00lbs

Internal SKU:

olm1600d2

Internal Product ID:

44484

Product and How-to Videos


  • NEW Hifonics OLM Mt Olympus Subwoofers | Car Audio Sub
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Hifonics OLM1600D2 thumbnail image

5 star
75%
4 star
17%
3 star
8%
2 star
0%
1 star
0%



Durability
4.6
Value
4.8
Features
4.9
Design
4.6
Usability
4.9

Customer Reviews

Sort by:

Loading...

Get it!!!

I was doubting myself if I should get this sub. Don't do that. If you are limited in space and $ this thing will pound in a 2 cubic foot ported enclosure tuned to 32hz. Can you get better, sure. But for 200 bucks you'll be surprised .You'll get tired of adjusting your mirror.

By KDragon on April 15, 2014

12 found this helpful


Amazing subwoofer!!

Paired with the matching hifonics amp the sound is so clear and responsive, it is biased a tad more towards low low frequencies so you need some quality speakers along side it, but in a full system it's the perfect addition. I have infinity kappa perfect components in front and rear powered by a Kenwood 4 channel amp with the sound coming from a pioneer premier head unit. Everything sounds balanced and clean once I tuned both amps and set all the crossovers etc. When I had it in a ported box it was louder, but due to space restrictions I swapped to a sealed box, it's not as loud, but it's sharper and much more responsive to more frequencies. If you want it to bang or create a movie theater this is great subwoofer.

By Brandan on December 15, 2013

9 found this helpful


Big Bass

I love these subs, hifonics didnt let me down. clear, crisp sound. these subs really shake the foundation. you cant beat the price either. thumbs up to sonicelectronix.com

By mike on September 18, 2013

10 found this helpful


Power

This sub provides a unique balance between sql and spl. I had an old school mofo 12 that plain hammered, so much so that it over played my mids. This new olm works more refined. Don't get it twisted though, this thing will hammer and hard. It moves so much air when turned up it literlly blows my doors to vibrating on the lock. I am actually afraid my back window is going to break, from the outside u can here rubber separating from the glass and the frame. I have only had it for a few days and have not completly broken it in yet, but so far I really love it!

By bigRod on August 22, 2012

10 found this helpful


Hard to beat

This beast will soak up every watt you can throw at it. Don't bother putting it in a ported enclosure unless you are willing to sacrifice SQ for a slight SPL gain. It won't gain enough over a sealed enclosure to justify the larger enclosure/loss of durability,( PROVIDED YOU ARE THROWING THE RECOMMENDED RMS WATTAGE TO IT). If you only have a small amp, you gotta do what you gotta do I guess......... The t/s specs on it suggest a sealed enclosure, and after trying it out in a few different sealed and ported enclosures, I have to agree with the T/S. 1.4 sealed and this thing really pounds with 1500 watts going into it. Good frequency response from 150 down to about 40. ..... I can't think of any other woofer remotely in this price range that will outperform this one.

By Joe on March 17, 2014

9 found this helpful


takes what u can throw at it but..

this sub want power! my only problem is ,,,,, i seem to not get the punch i want... i believe its my box as space is limited ..in the back of a saab vert. wish i knew a good box builder... ..buy this sub though it wont disappoint

By dee on April 4, 2014

8 found this helpful


Big Bang for little bucks

This sub performs superbly in any type of enclosure, started out with it in a sealed box but now have it in a ported box with a solid 1800 watts pushing it, even though I only have one, it hits harder than two 15s , I highly recommend this sub!!!!

By Fatbagger on September 23, 2013

8 found this helpful


Buy These Speakers!!!!

I had some power acoustic p3's in my truck before and thought I was doing big thangs... How wrong I was.. I put these hifonics woofers in my avalanche and maannnn.... No further words. These speakers are well worth the money

By shaun on March 7, 2013

7 found this helpful


Olm1600

Pushing this sub with a glx1400.1d in a sealed box and it sounds great. hard hitting and clean. would def recommend! i'm underpowering it a lit'l but will hook up the glx1800.1d on it soon and [maybe go ported]. But all in all.....

Great product from Hifonics.
and
SonicElectronix is the BEST on the web!!

By Aaron on January 15, 2013

5 found this helpful


First time ordering from Sonic and i'm impressed!

I have a complete HiFinics system all around and i always wanted these bad boys. I just need a custom box to house them so i can pound the ground! Thankx again Sonic Electronix God bless.

By Alex on October 28, 2013

6 found this helpful




CMRC1-BSS small

Clarion CMRC1-BSS

Waterproof Marine Remote Control Unit with Display

(1)

$129.99

List price $249.99

BBX-T600, XLCA2, BAK42 small

Alpine BBX-T600 + NVX XLCA2 Line-Output-Convertor + Free Amp Kit

600W Max (280W RMS) 2-ohm Stable 2-Channel Amplifier + NVX LOC with XBOOST Technology + 8 Gauge Amp Kit

$224.93

List price $409.98

CAP200-Silver small

Absolute CAP200 (Black with Silver)

2.0 Farad Digital Capacitor (CAP-200 Black with Silver)

(22)

$34.99

List price $69.99

HD650 Cable (092885) small

Sennheiser HD 650 Replacement Cable (092885)

Genuine Original HD650 Headphones Replacement Cable (3 Meters)

(3)

$27.95

List price $39.95

No picture

Alpine S2-A120M (Like New (Open Box))

1200W Class D RMS S-Series Monoblock Car Amplifier

$467.46

List price $660.00

BTD 800 USB small

Sennheiser BTD 800 USB

PC Dongle Designed to Work Seamlessly w/ PRESENCE and Mobile Business Pro Series Headsets

$54.00

List price $99.95

VTW43M small

BOYO Vision VTW43M

Mirror Your Smartphone on 4.3" OE Style Rear View Mirror Monitor with Built-In WiFi Miracast

(1)

$94.99

List price $339.00

AS851/37 small

Philips AS851 Fidelio FlexiDock

Fidelio Bluetooth Android Speaker with Flexible Micro USB Dock, Rear USB Charge Port, and SognBird

(2)

$149.99

List price $199.99

SHB9100RD/28 small

Philips SHB9100RD/28 (Red)

Semi-Open Wireless / Wired Bluetooth Headphones / Headset w/ Noise Reduction & Rechargeable Battery

(1)

$79.99

List price $129.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 Jeep Wrangler

2010 MINI Cooper

2014 Ram 2500

2002 Ford Expedition

2016 Chevrolet Corvette

2010 Kia Forte

2013 Kia Sorento

2017 Ford Taurus

2003 Toyota Camry

2015 Kia Rio

Vehicle
Store
Delete

2013 Can-Am Commander E LSV

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
