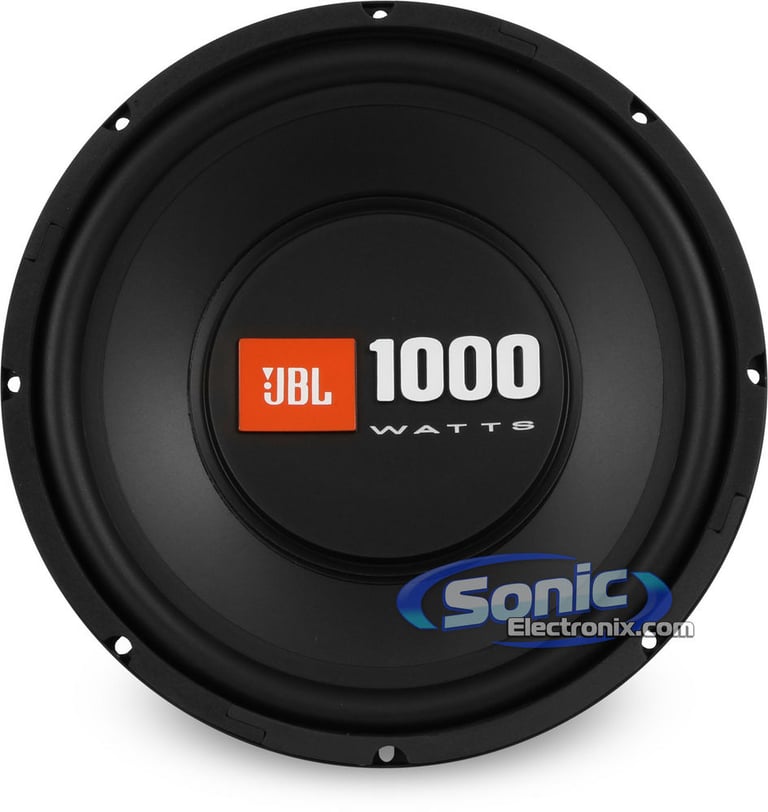

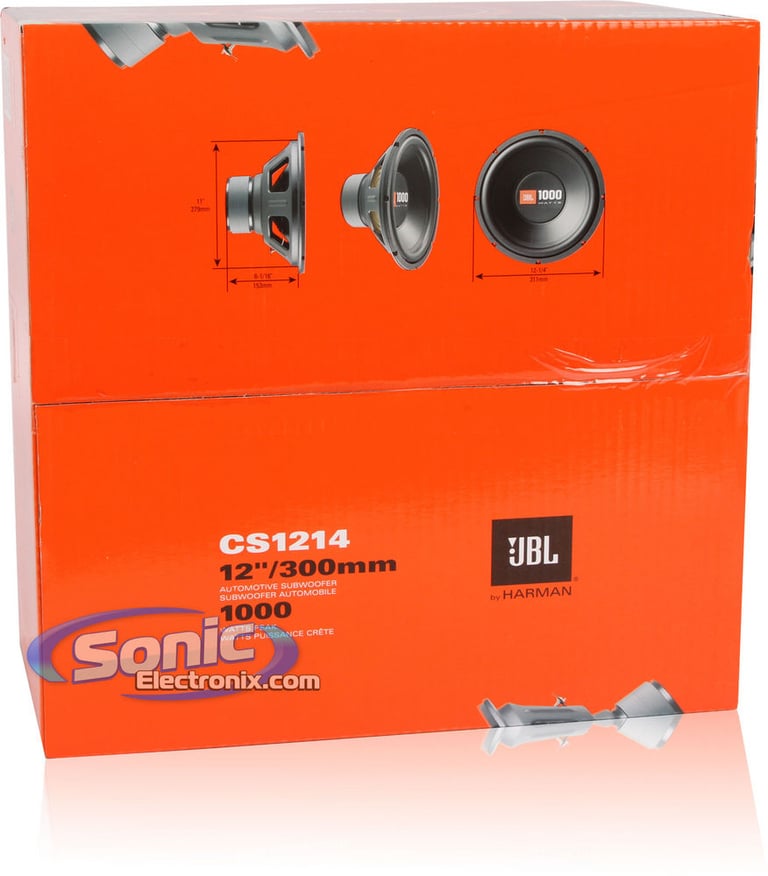

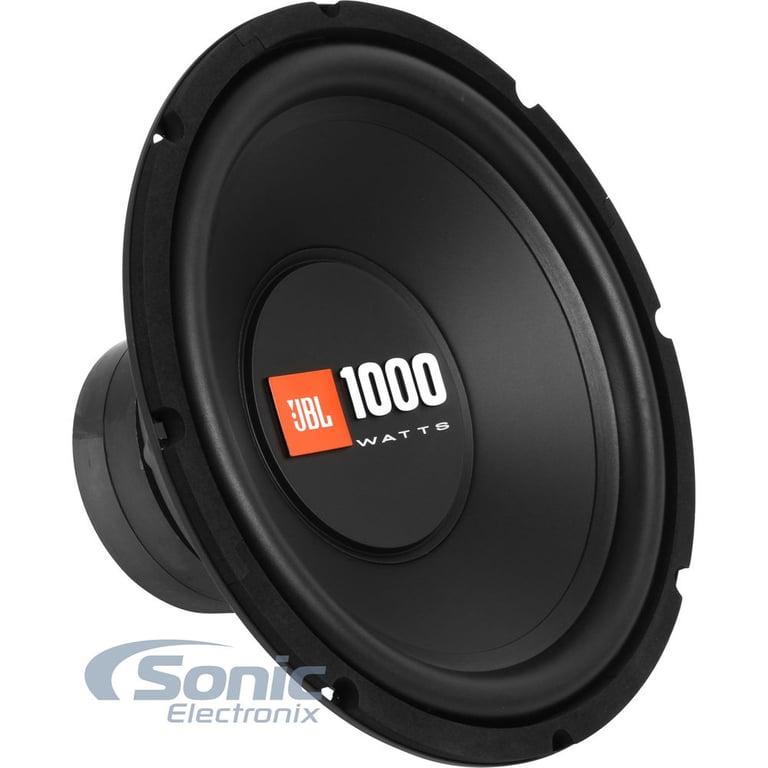

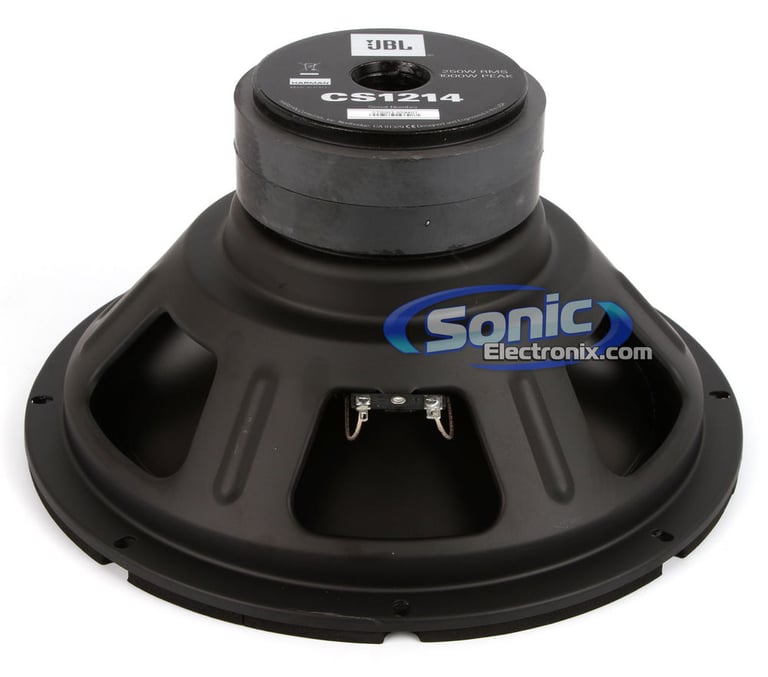

JBL CS1214

250W 12" CS Series Single 4 Ohm Subwoofer

JBL
Shop all JBL
Product videos
highlight-star-icon

• Peak Power: 1000W
• RMS Power: 250W
• Impedance: 4 ohm
• Polypropylene Cone
• Rubber Surround
• Resonance Frequency (Fs): 28 Hz

Learn more about the cs1214

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

R1675-S main

Rockford Fosgate Prime R1675-S

160W Peak (80W RMS) 6.75” Prime Series 2 Way Component 4-ohm Speakers

16
FRING525 main

NVX FRING525

Universal 5.25" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

2
-45.02%

$10.99

List price $19.99

Product Highlights


• Peak Power: 1000W
• RMS Power: 250W
• Impedance: 4 ohm
• Polypropylene Cone
• Rubber Surround
• Resonance Frequency (Fs): 28 Hz

Description


JBL brand icon

Authorized dealer



Great "Boom" For The Buck!

With 1000 watts of peak power handling and 250 watts RMS, the JBL CS Series CS1214 subwoofer handles a serious amount of power. Some of its great features include a frequency response of 35Hz – 200Hz which enables you to hear the wide bass range that you’ve always wanted. And with a sensitivity of 90dB, it provides for better performance at lower power levels. The woofer cone is polypropylene and very light, ensuring maximum performance and efficiency. JBL also uses a progressive spider on the CS Series, which offers better control at the excursion limits, rather than the linear spider commonly used by other manufacturers. This helps reduce distortion even at the highest output levels.



The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


General Features:

  • 12" CS Series Car Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 250 watts
  • Recommended power range: 100 - 250 watts RMS
  • Impedance: 4 ohm
  • High excursion, high BL motor
  • Polypropylene Cone
  • Rubber Surround
  • 1-1/2" Voice coil
  • Frequency response: 35-200 Hz
  • Resonance Frequency (Fs): 28 Hz
  • Top-mount depth: 6-1/16"
  • Sensitivity: 90dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Tips for Installing the your subwoofer


Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL CS1214 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JBL CS1214 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL CS1214 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL CS1214 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

DMDX675 main

Diamond Audio DMDX675

300W Peak (100W RMS) 6.75" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

H672 main

Cerwin-Vega H672

540W Peak (180W RMS) 6.75" HED Series 2 Way Coaxial 4-ohm Speakers

-16.67%

$159.99

List price $191.99

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

Limited time!
P1V2-675 main

Rockford Fosgate Punch P1V2-675

300W Peak (150W RMS) 6.75" Punch P1 Series 3 Way Coaxial 4-ohm Speakers

-25.00%

$179.99

List price $239.99

CK 165 main

Hertz CK 165

570W Peak (190W RMS) 6.5" Cento Series 2-way 4-ohm Component Speaker System

1
-16.67%

$399.99

List price $480.00

CK 165L main

Hertz CK 165L

600W Peak (200W RMS) 6.5" Cento Series 2-way 4-ohm Component Speaker System

2
-13.05%

$399.99

List price $460.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
CS Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
250 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
1-1/2"
Frequency Response
35 - 200 Hz
Sensitivity
90 dB
Xmax (millimeters)
6.6 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
.75 cubic feet
Optimum Sealed Box Volume
1 cubic feet
Maximum Sealed Box Volume
1.1 cubic feet
Minimum Ported Box Volume
.75 cubic feet
Optimum Ported Box Volume
1 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
6-1/16"
Cutout Diameter
11"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28 Hz
Equivalent Compliance (Vas)
76.7 liters
Total Speaker Q Value (Qts)
.54
Electrical Q Value (Qes)
.57
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
8.85
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

CS1214

Weight:

10.40lbs

Internal SKU:

cs1214

Internal Product ID:

45051
