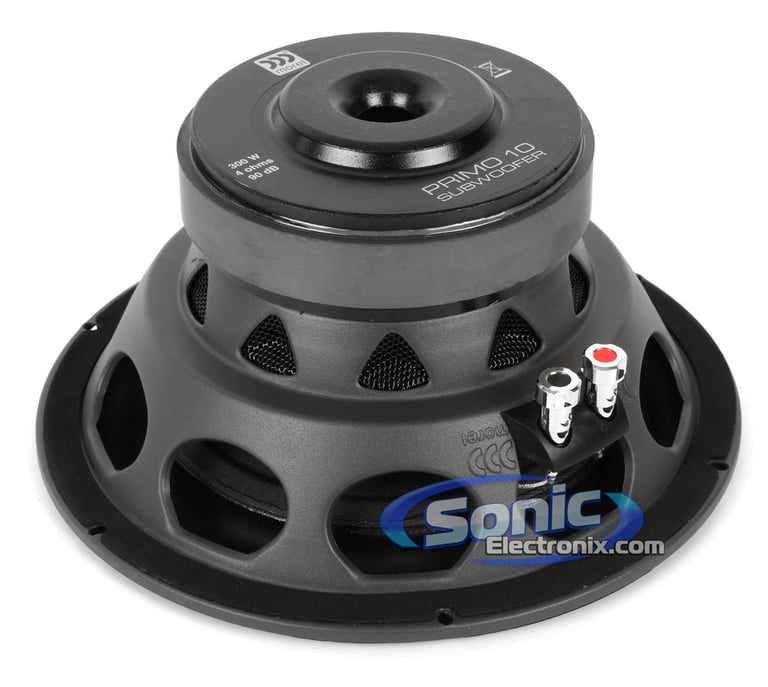

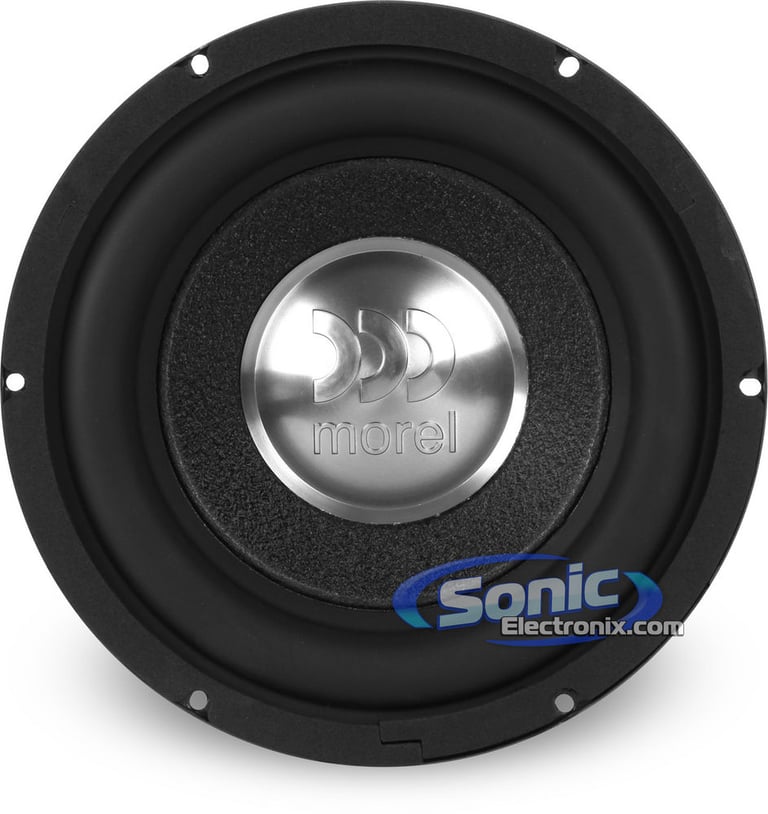

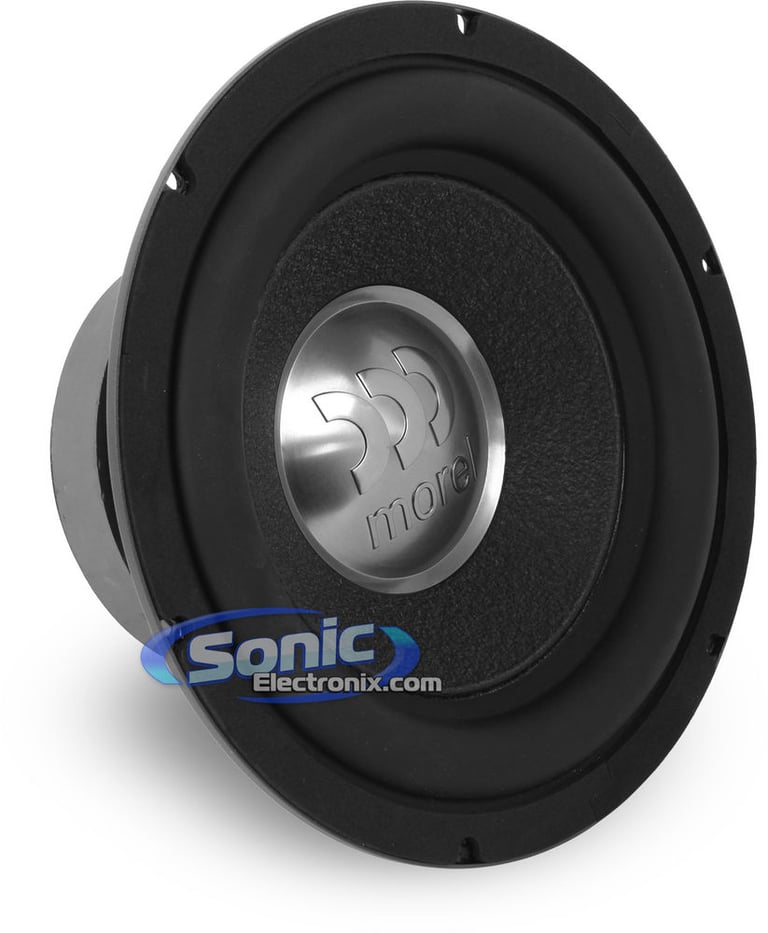

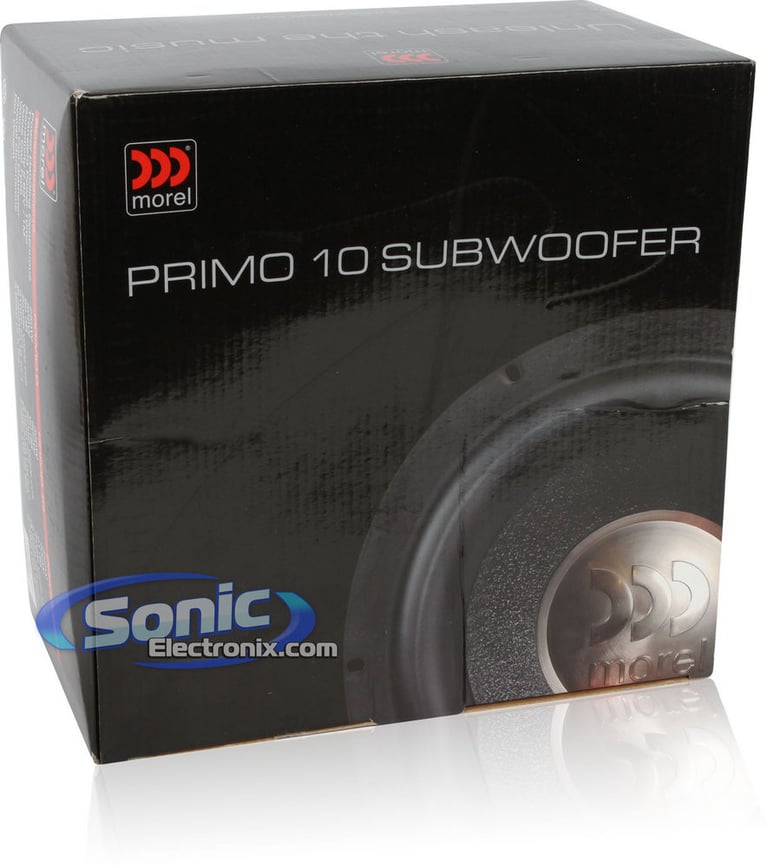

Morel Primo 104

10" Single 4 ohm Primo Series Subwoofer

Morel
Shop all Morel
Product videos
highlight-star-icon

10" Primo Series Subwoofer • Single 4 ohm • 500W Max • 250W RMS • Laminated Paper Cone • Rubber Woofer Surround • Single Layer, Vented Magnet Motor Structure

Learn more about the primo104

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Product Highlights


10" Primo Series Subwoofer • Single 4 ohm • 500W Max • 250W RMS • Laminated Paper Cone • Rubber Woofer Surround • Single Layer, Vented Magnet Motor Structure

Description


Legendary Morel Quality at a Great Price

Building on the success of the Ultimo series, the Primo was engineered to offer the Morel build and sound quality to those who are looking for a cost effective solution. Primo subwoofers feature stiff, treated paper cones and high-grade ferrite magnets and 2-inch voice coils to provide superior electromechanical force. Primo was designed to work well in both sealed and vented applications with great efficiency, enabling them to operate to high output levels with a modest power amplifier.

General Features:

  • 10" Single 4 ohm Primo Series Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Impedance: 4 ohm
  • Laminated paper cone
  • Rubber woofer surround type
  • 2" Aluminum voice coil
  • Single layer, vented magnet motor structure
  • Frequency response: 20 - 900 Hz
  • Resonance Frequency (Fs): 35 Hz
  • Top-mount depth: 4-7/8"
  • Bottom-mount depth: 5-1/8"
  • Sensitivity: 90 dB
  • 1-year SonicElectronix.com Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Morel Primo 104 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Morel Primo 104 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Morel Primo 104 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Morel Primo 104 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

Specifications & Details


Subwoofer Specifications
Series
Primo Series
Subwoofer Size
10"
Peak Power Handling
250 watts
RMS Power Handling
500 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
20 - 900 Hz
Sensitivity
90 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Laminate-Treated Paper
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.71 cubic feet
Maximum Sealed Box Volume
1.20 cubic feet
Minimum Ported Box Volume
0.80 cubic feet
Maximum Ported Box Volume
1.45 cubic feet
Top-Mount Depth (Mounting Depth)
4-7/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

Primo 104

Weight:

9.50lbs

Internal SKU:

primo104

Internal Product ID:

45429
