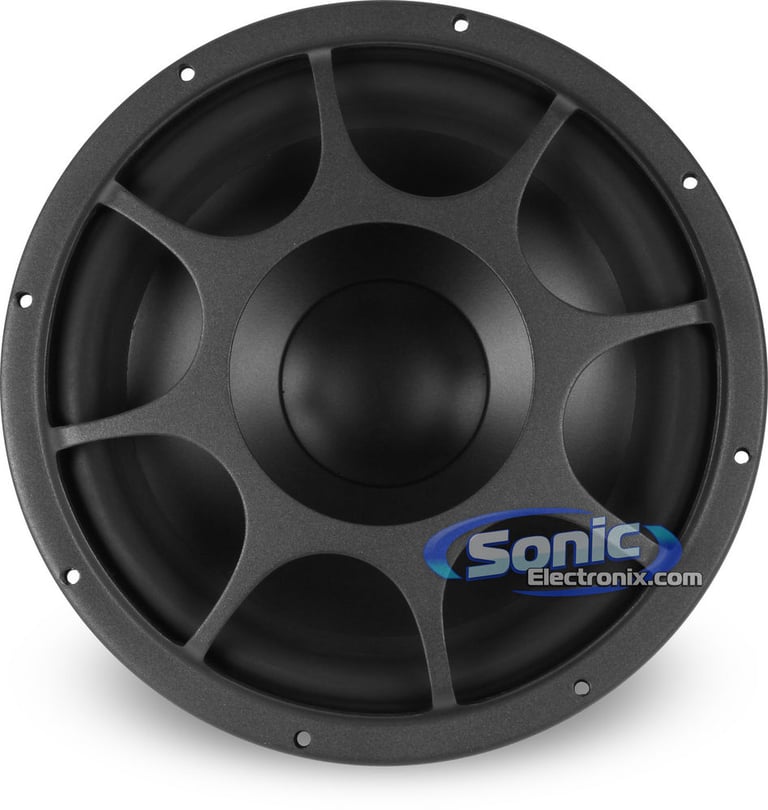

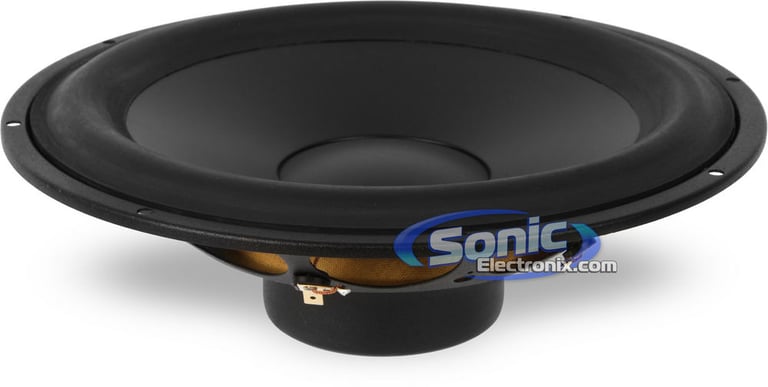

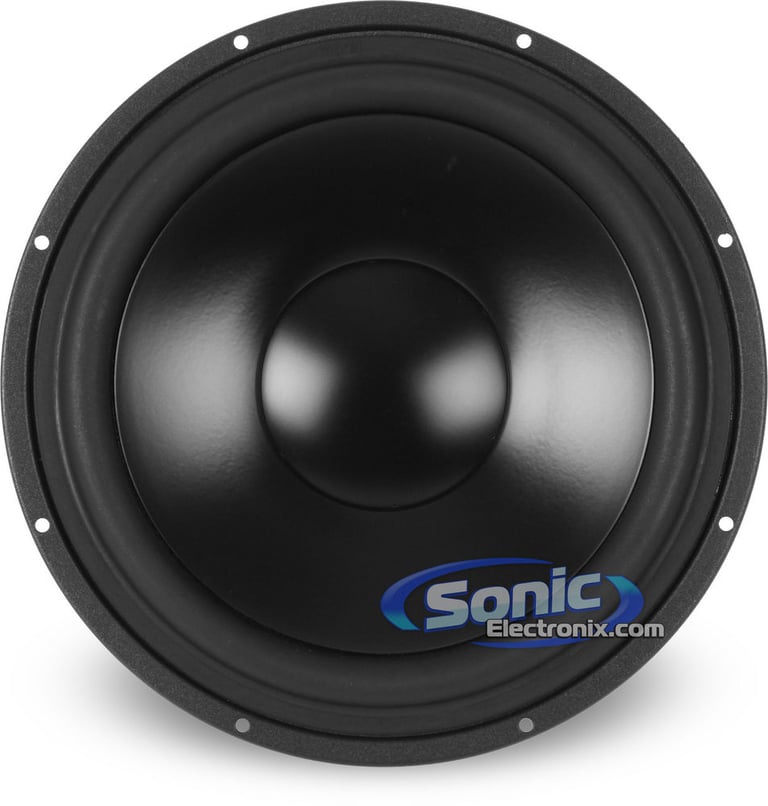

Morel ADMW 10

200W 10" ADMW SW Series Single 4 ohm Subwoofer

Morel
Shop all Morel
Product videos
highlight-star-icon

• Peak Power: 1000W
• RMS Power: 200W
• Impedance: 4 ohm
• Damped Polymer Composite Cone

Learn more about the admw10

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

5
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Product Highlights


• Peak Power: 1000W
• RMS Power: 200W
• Impedance: 4 ohm
• Damped Polymer Composite Cone

Description


Bass for Free-Air Applications

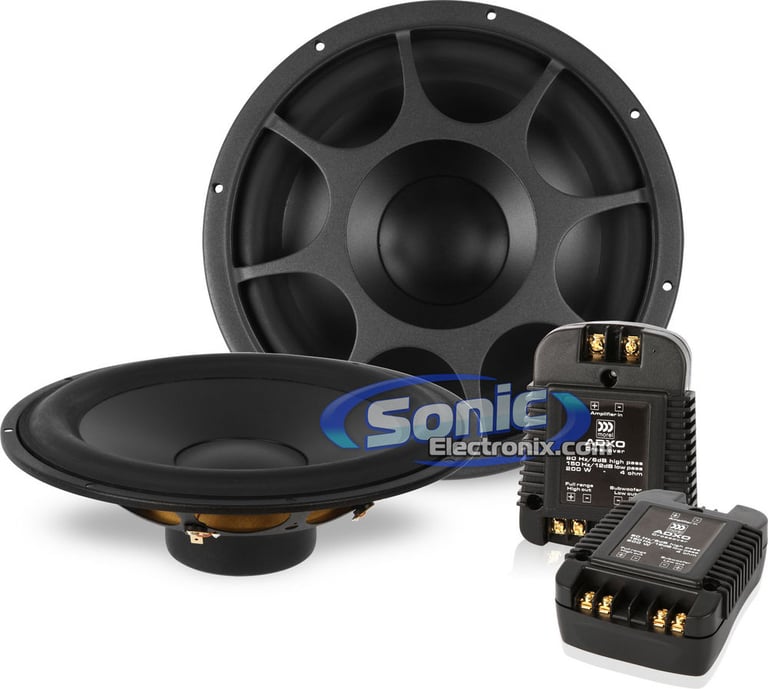

The ADMW SW subwoofers offer a perfect combination of power handling, deep bass and ease of installation for those who need musical but yet dynamic bass in their cars. They are made to be Combined with the Morel 2-way components systems, Morel Elate 5 2W and Morel Elate 6 2W for a perfectly balanced 3-way component system, or on their own.

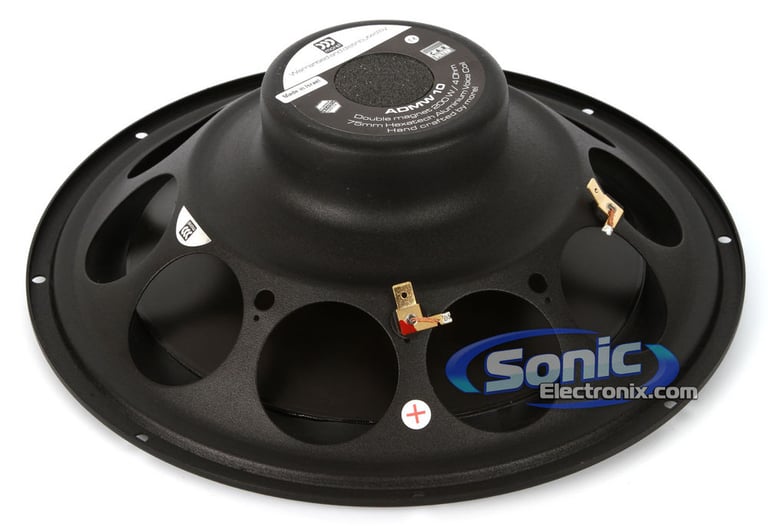

The ADMW SW employ Morel's Hybrid magnet motor system, manufactured exclusively by Morel, which combines two types of magnets, neodymium and ferrite, to create a motor of tremendous power, while retaining its compact size. By using a large 3" diameter Hexatech aluminum voice coil to support a large area of the DPC shallow cone, the profile of the woofer remains low and cone breakup distortion at high level is prevented.

The ADMW SW is rear vented making use of Morel's advance C.A.R (Controlled Acoustic Resistance) filter that improved the acoustical by controlling the cone movement, thus, making it ideal for free-air installations.

General Features:

  • 10" Single 4 ohm ADMW SW Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 200 watts
  • Impedance: 4 ohm
  • Combine these subs with the Morel 2-way components systems Morel Elate 5 2W and Morel Elate 6 2W for a perfectly balanced 3-way component system!
  • Damped polymer composite cone
  • Rubber woofer surround type
  • Large 3” Hexatech External Aluminum voice coil
  • Dual layer, vented magnet motor structure
  • C.A.R (Controlled Acoustic Resistance) filter
  • Frequency response: 20 - 2500 Hz
  • Resonance Frequency (Fs): 41 Hz
  • Top-mount depth: 2-15/16"
  • Cut-out: 9-1/16"
  • Sensitivity: 89 dB
  • 1-year SonicElectronix.com Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Morel ADMW 10 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Morel ADMW 10 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Morel ADMW 10 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Morel ADMW 10 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Frequency Response
20 - 2500 Hz
Sensitivity
89 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Damped Polymer Composite - DPC
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
41 Hz
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

ADMW 10

Weight:

13.00lbs

Internal SKU:

admw10

Internal Product ID:

45451
