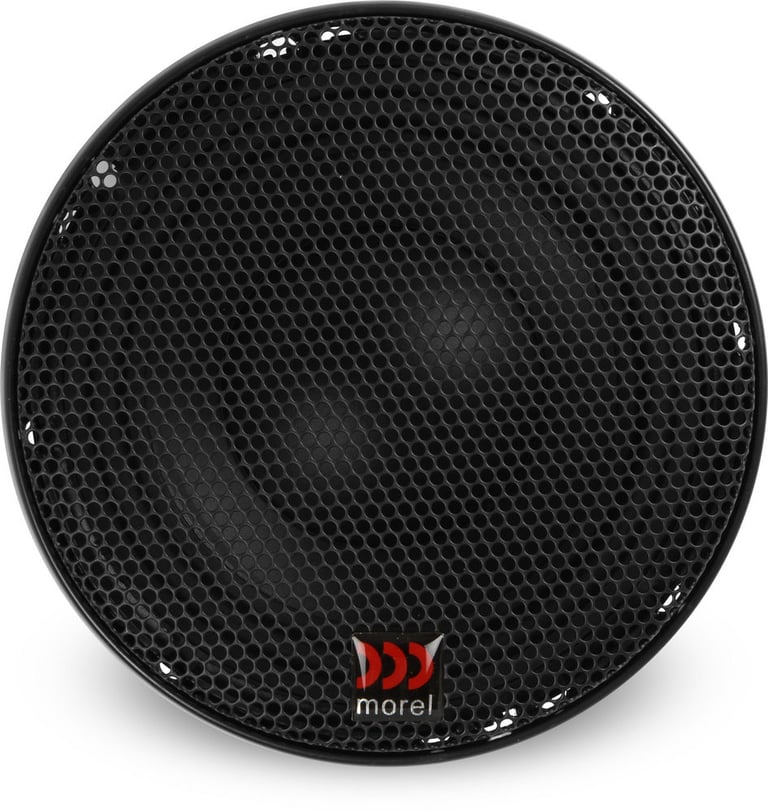

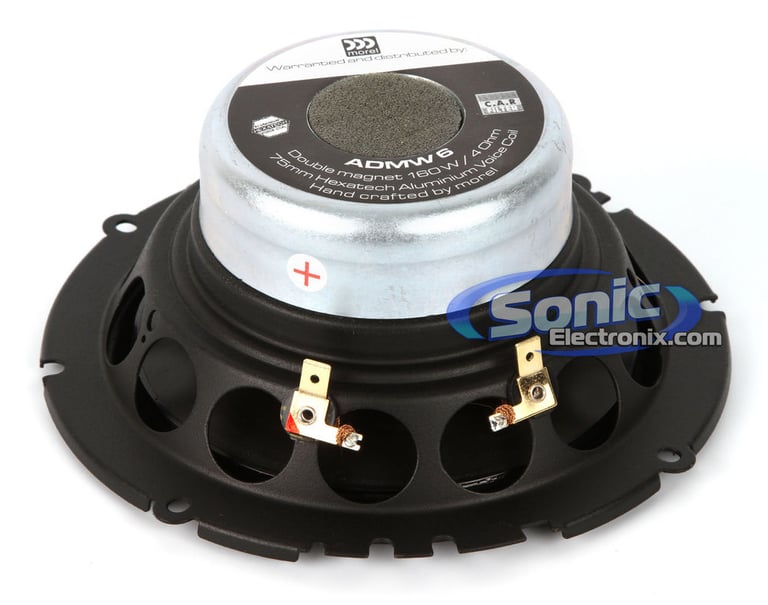

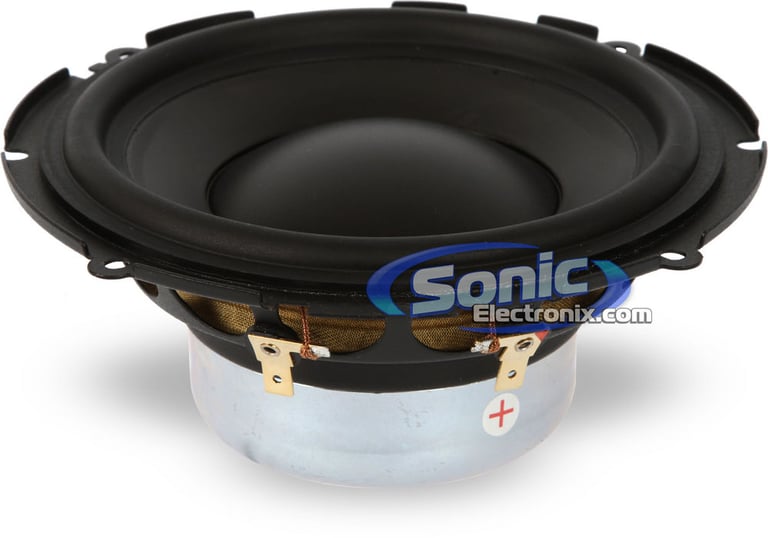

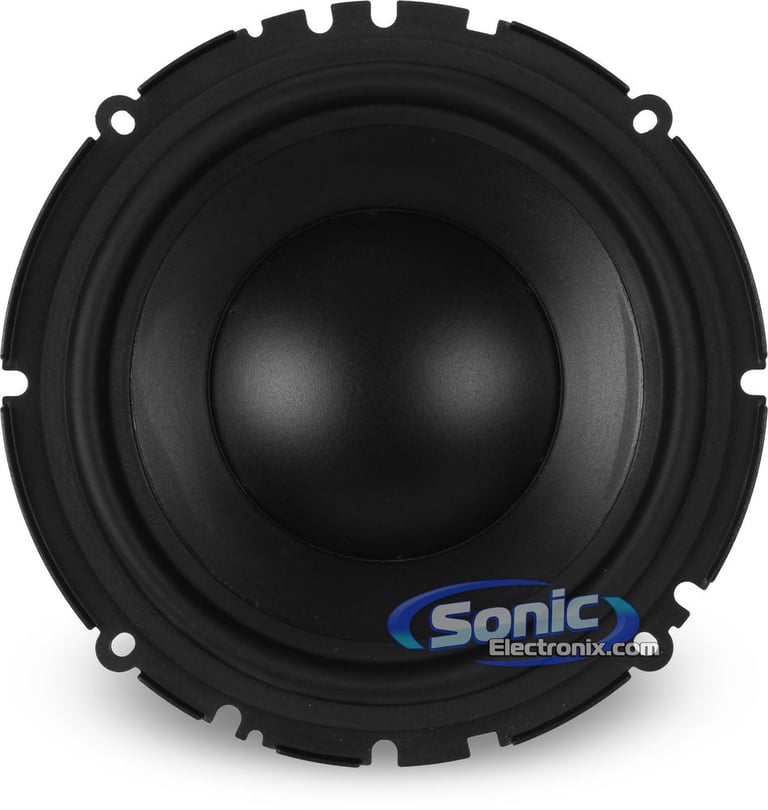

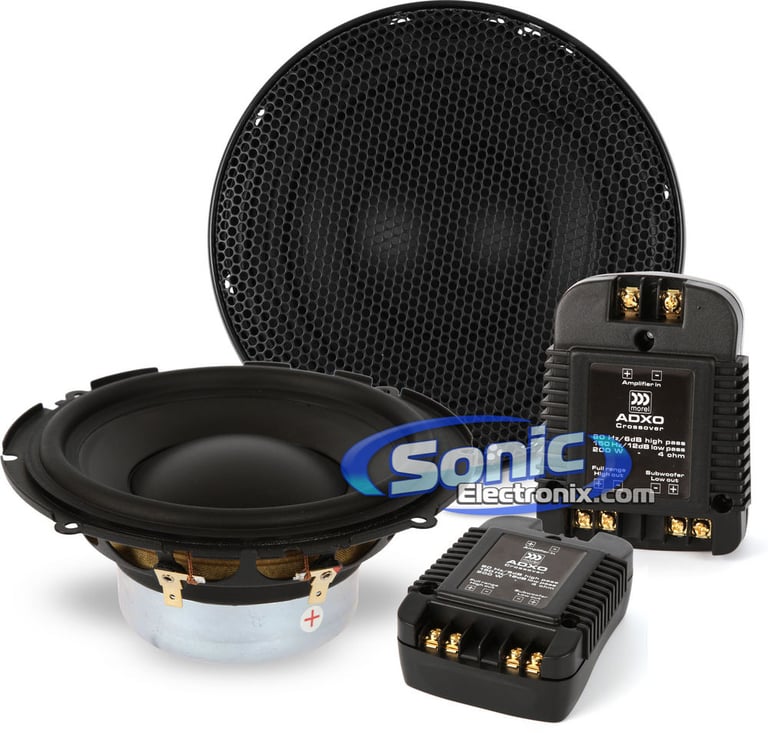

Morel ADMW 6

6" Single 4 ohm ADMW SW Series Mid-Range Subwoofer

Morel
Shop all Morel
Product videos
highlight-star-icon

6" Single 4 ohm ADMW SW Series Subwoofers • Peak: 1000 watts • RMS: 160 watts • Impedance: 4 ohm • Damped Polymer Composite Cone

Learn more about the admw6

We apologize

This item has been discontinued


Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

Limited time!
Kappa 603CF main

Infinity Kappa 603CF (INFSPKKA603CFAM)

660W Peak (220W RMS) 6.5" Kappa Series 2 Way 3-ohm Component Speaker System

6
-28.00%

$359.95

List price $499.95

Product Highlights


6" Single 4 ohm ADMW SW Series Subwoofers • Peak: 1000 watts • RMS: 160 watts • Impedance: 4 ohm • Damped Polymer Composite Cone

Description


Bass for Free-Air Applications

The ADMW SW subwoofers offer a perfect combination of power handling, deep bass and ease of installation for those who need musical but yet dynamic bass in their cars. They are made to be Combined with the Morel 2-way components systems, Morel Elate 5 2W and Morel Elate 6 2W for a perfectly balanced 3-way component system, or on their own.

The ADMW SW employ Morel's Hybrid magnet motor system, manufactured exclusively by Morel, which combines two types of magnets, neodymium and ferrite, to create a motor of tremendous power, while retaining its compact size. By using a large 3" diameter Hexatech aluminum voice coil to support a large area of the DPC shallow cone, the profile of the woofer remains low and cone breakup distortion at high level is prevented.

The ADMW SW is rear vented making use of Morel's advance C.A.R (Controlled Acoustic Resistance) filter that improved the acoustical by controlling the cone movement, thus, making it ideal for free-air installations.

General Features:

  • 6" Single 4 ohm ADMW SW Series Subwoofers

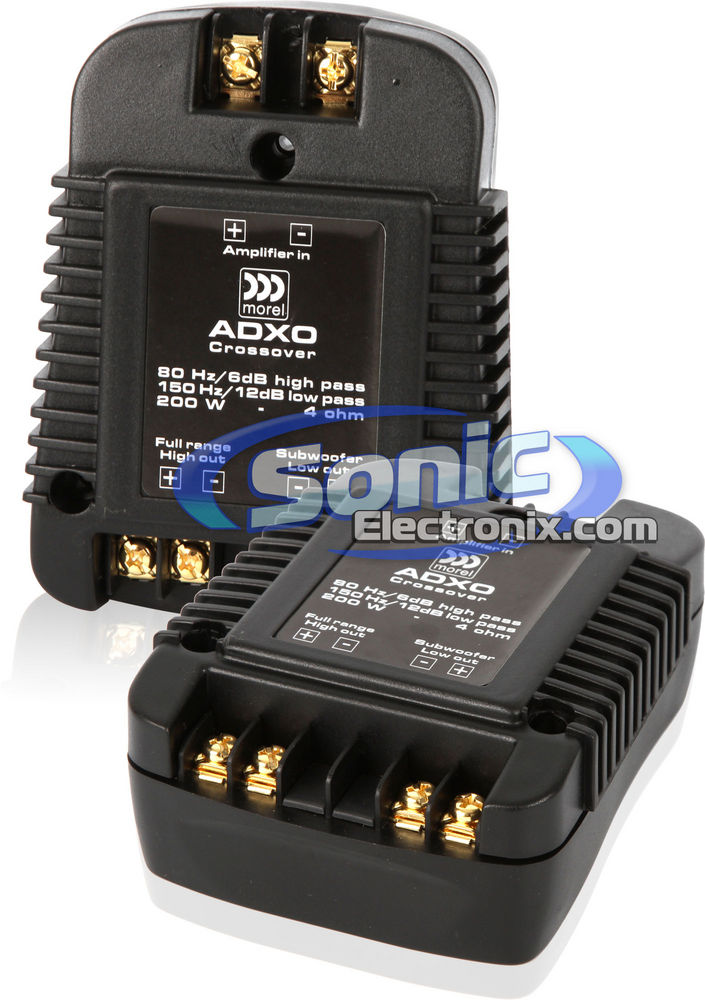

  • Includes external crossovers for pairing with additional speakers or subwoofers
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 160 watts
  • Impedance: 4 ohm
  • Combine these subs with the Morel 2-way components systems Morel Elate 5 2W and Morel Elate 6 2W for a perfectly balanced 3-way component system!
  • Damped polymer composite cone
  • Rubber woofer surround type
  • Large 3” Hexatech External Aluminum voice coil
  • Dual layer, vented magnet motor structure
  • C.A.R (Controlled Acoustic Resistance) filter
  • Linear Excursion: 11mm
  • Frequency response: 35 - 3000 Hz
  • Resonance Frequency (Fs): 51 Hz
  • Top-mount depth: 2-3/8"
  • Cut-out: 4-3/4"
  • Sensitivity: 87 dB
  • 1-year SonicElectronix.com Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Morel ADMW 6 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Morel ADMW 6 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Morel ADMW 6 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Morel ADMW 6 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

T2652-S main

Rockford Fosgate Power T2 T2652-S

400W Peak (200W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

42

Best selling similar products

TS9924-22 small

MTX TS9924-22

• Peak Power: 8000 watts
• RMS Power: 4000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 24.00"
• Sensitivity: 92 dB

(3)

$9999.95

List price $12500.00

13W7AE-D1.5 small

JL Audio 13W7AE-D1.5


• RMS Power: 1500 watts
• Impedance: Dual 1.5 ohm
• Polypropylene Cone
• Polyester Foam Surround
• Mount depth: 10.50"
• Sensitivity: 86.3 dB

(19)

$1899.99

List price $1899.99

13W7 small

JL Audio 13W7-D1.5

• Sensitivity: 86.3 dB
• OverRoll™ Surround
• W-Cone
• Forced-Air-Cooled Aluminum Alloy Frame
• Radially Cross-Drilled Pole Piece
• Dual Ultra-Long Voice Coils
• Black Powder-Coating

(59)

$1899.99

List price $1899.99

13TW5V24_2 small

JL Audio 13TW5v2-4 - Pair

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$1859.98

List price $1859.98

T2S2-16 small

Rockford Fosgate Power T2 T2S2-16

• Peak Power: 5000 watts
• RMS Power: 2500 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 10.47"
• Sensitivity: 90 dB

$1299.99

List price $1299.99

13TW5v2-4 small

JL Audio 13TW5v2-4

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$929.99

List price $929.99

13W3v3-2 small

JL Audio 13W3v3-2

• Sensitivity: 87.63 dB
• Mounting depth: 7.63"
• Injection-molded, mineral-filled polypropylene cone
• Nitrile butadiene rubber surround
•Customization trim ring
• Floating Cone Attach Method
• DMA Optimized Motor

(6)

$519.99

List price $519.99

T3S1-19 small

Rockford Fosgate Power T3 T3S1-19

• Peak Power: 6000 watts
• RMS Power: 3000 watts
• Impedance: Single 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 15.62"
• Sensitivity: 91 dB

$2199.99

List price $2199.99

T2S1-13 small

Rockford Fosgate Power T2 T2S1-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Triple 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 90 dB

(3)

$1099.99

List price $1099.99

T2S2-13 small

Rockford Fosgate Power T2 T2S2-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 87 dB

$1099.99

List price $1099.99

Specifications & Details


Subwoofer Specifications
Series
ADMW Series
Subwoofer Size
6"
Peak Power Handling
1000 watts
RMS Power Handling
160 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Frequency Response
35 - 5000 Hz
Sensitivity
87 dB
Xmax (millimeters)
11 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Damped Polymer Composite - DPC
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
2-3/8"
Cutout Diameter
4-3/4"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
51 Hz
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

ADMW 6

Weight:

8.00lbs

Internal SKU:

admw6

Internal Product ID:

45453
