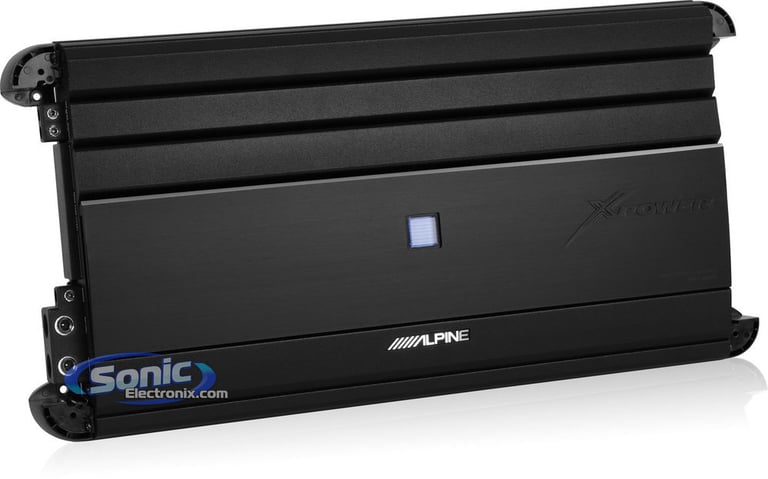

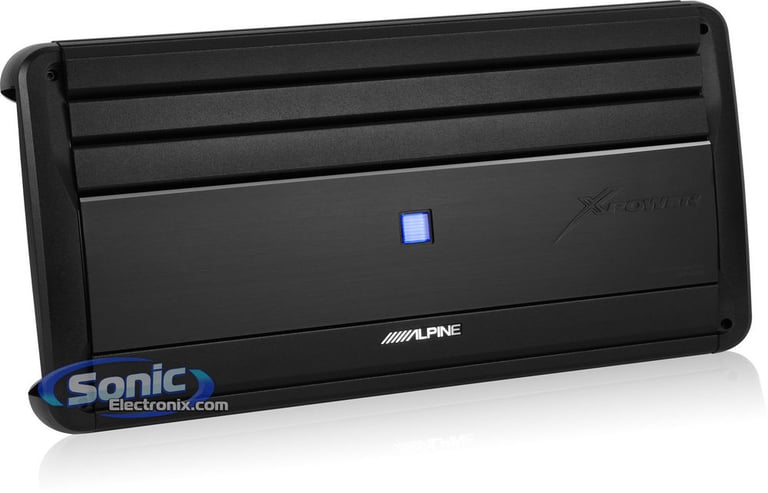

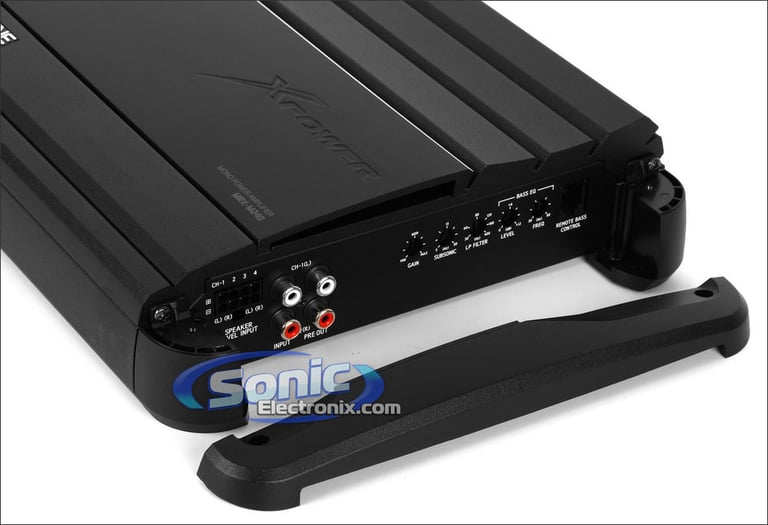

Alpine MRX-M240

2400W RMS Monoblock X-Power Series Class D Car Amplifier

Alpine
Shop all Alpine
Product videos
highlight-star-icon

• RMS: 1500W x 1 @ 4 ohm, 2400W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Total RMS Power: 2400W
• CEA-2006 Compliant
• Bass Boost: 0-12 dB at 50 Hz
• Multi-Stage Power Management Circuit
• Dimensions: 18"W x 9"D x 2-1/4"H

Learn more about the mrxm240

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Product Highlights


• RMS: 1500W x 1 @ 4 ohm, 2400W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Total RMS Power: 2400W
• CEA-2006 Compliant
• Bass Boost: 0-12 dB at 50 Hz
• Multi-Stage Power Management Circuit
• Dimensions: 18"W x 9"D x 2-1/4"H

Description


Alpine brand icon

Authorized dealer

General Features:

  • Monoblock X-Power Series Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1500 watts x 1 chan.
    • 2 ohm: 2400 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.
  • Sleek Aggressive Design w/ End Cap
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink

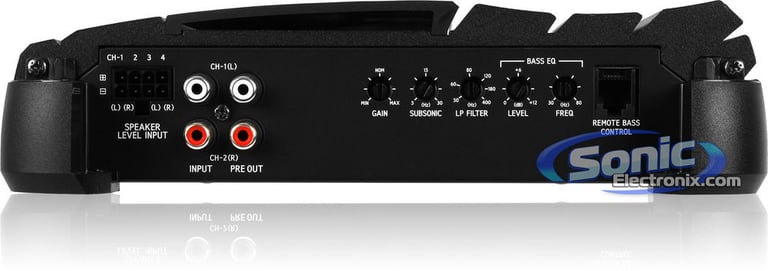

  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable low-pass filter (50-400 Hz, 24 dB/octave)
  • Subsonic filter (5-30 Hz)
  • Frequency response: 5-400 Hz
  • 1/0 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 18"W x 9"D x 2-1/4"H
  • 1-year Sonic Electronix Warranty
This amplifier is able to achieve a lower wattage at 1 ohm

Product history:

Alpine MRX-M240 thumbnail
(newest, current model)
Alpine MRP-M2000 thumbnail
(previous model, replaced by Alpine MRX-M240)

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1500 watts x 1 channel
RMS Power @ 2 ohms
2400 watts x 1 channel
RMS Power @ 1 ohm
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
2400 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
.01%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 400 Hz
Subsonic Filter
5 - 30 Hz
Signal-to-Noise Ratio
108 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No

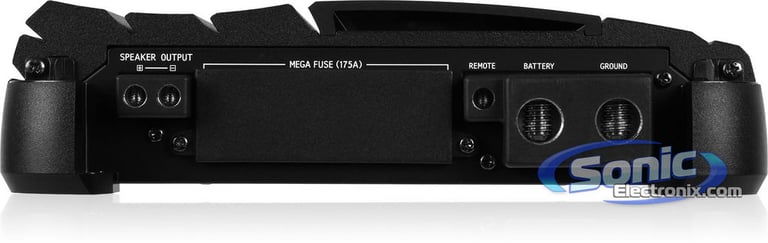

Fuse Rating
175A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

MRX-M240

Weight:

15.00lbs

Internal SKU:

mrxm240

Internal Product ID:

45518

Product and How-to Videos


Customer Ratings & Reviews


Alpine MRX-M240 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.7
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Alpine doesn't disappoint

I have 2 Pioneer Premier W3002D2, so I was looking for an amp that put out about 2K RMS @ 2ohms. Since this amp is discontinued I was having a tough time finding one seeing that it does 2400 @ 2ohms @ 14.4v. I'm glad I did though, this thing SLAMS my 2 Premiers. I have big 3 done, Kinetik HC2400, Kinetik HC1800, all 1/0 welding cable and stock 160 amp alt and I still get slight dimming. The amp accepts 1/0 gauge wire in the power terminals, the description on Sonic is wrong saying the max is 4 AWG. Gain is about 1/4 way and the amp still gets plenty loud. For those of you looking for POWER for a 2ohm load do yourself and find one of these, well worth every penny. Be sure to have enough power to feed it though.

By Mart on January 12, 2014

30 found this helpful


sick and loud

i really love this amp. i used it to power my 4 alpine type R 12s. the box was built by myself 8 cubes at 34hz hair tricks on normal music in my 2dr tahoe. the amp looks awesome you can make the whole set up look clean without having to add an amp rack. sonic was amazing to deal with i never have a problem when ordering from them. the amp is certified so you know you get the rms rating your shooting for. i will use two of these to power my new set up of 4 boston spgs i made it loud but want louder.

By AJ on February 22, 2013

30 found this helpful


B/A amp

I have 1 MA audio hard kore and this amp makes it sound good

By Fudge on November 24, 2012

23 found this helpful
