Crossfire C3 10D4

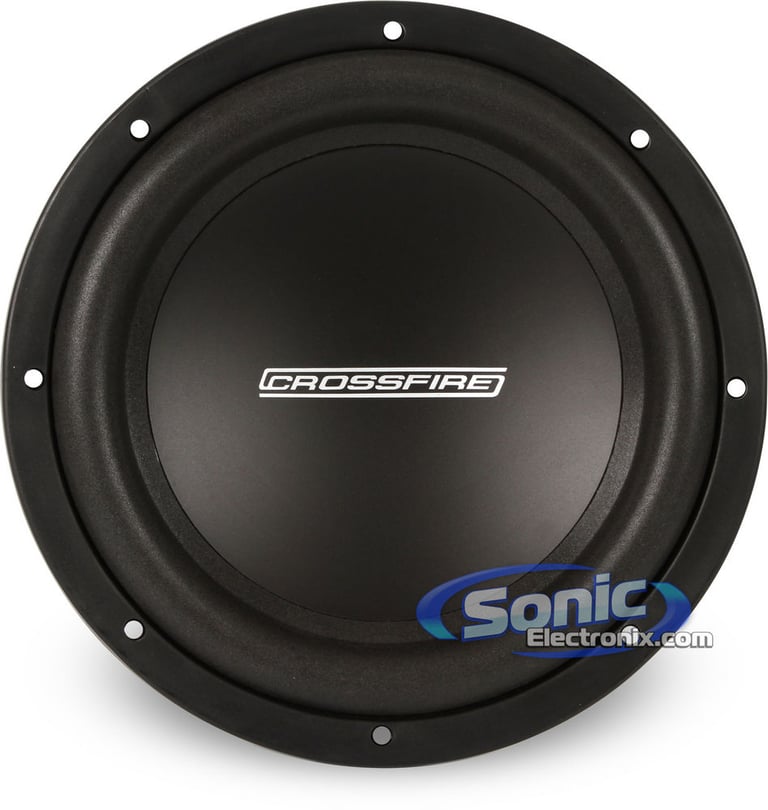

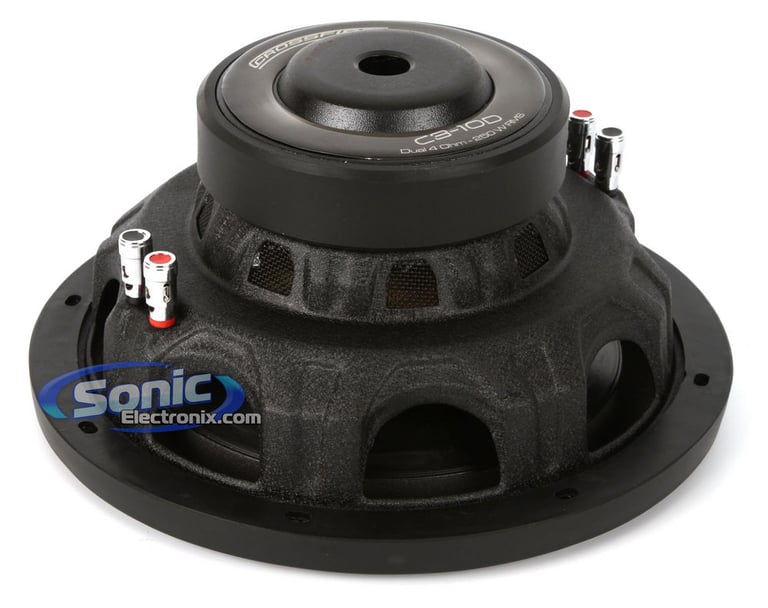

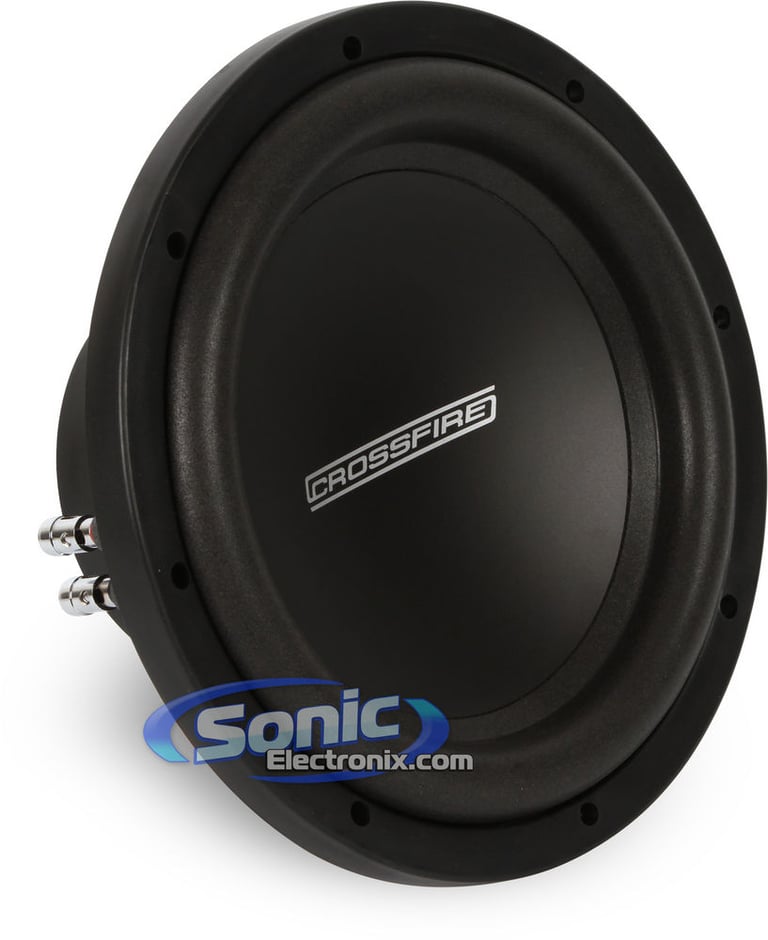

10" Dual 4 ohm C3 Series Subwoofer

Crossfire
Shop all Crossfire
Product videos
highlight-star-icon

10" Series Subwoofer • Dual 4 ohm Voice Coil • 500W Max • 250W RMS • Polypropylene Cone • Foam Woofer Surround • 2" Aluminum Voice Coil • 40oz. Magnet motor

Learn more about the c310d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

29
-28.13%

$22.99

List price $31.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

72-5605 main

Metra 72-5605

Install a New Tweeter in select 2011-2024 vehicles from Ford, Lincoln

-22.23%

$13.99

List price $17.99

FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

44
-10.01%

$17.99

List price $19.99

P1675 main

Rockford Fosgate Punch P1 P1675

240W Peak (120W RMS) 6.75” Punch Series 3 Way Coaxial 4-ohm Speakers

48
C1-650se main

JL Audio C1-650se

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Speaker System

2
APM67AC Pro main

Deaf Bonce Apocalypse AP-M67AC PRO (M67AC PRO)

1200W Peak (600W RMS) 6.7" Apocalypse Series Pro Audio Midrange 4-ohm Speakers

6
-8.74%

$209.90

List price $229.99

JBL Stage2 634 (STAGE2634)

500W Peak (80W RMS) 6.5" Stage2 Series 3 Way Coaxial 4-ohm Speakers

15
-26.00%

$73.99

List price $99.99

Rockford Fosgate Punch P1 P165-SE

240W Peak (120W RMS) 6.5" Punch Series 2 Way Component 4-ohm Speaker System

8

$199.99

Product Highlights


10" Series Subwoofer • Dual 4 ohm Voice Coil • 500W Max • 250W RMS • Polypropylene Cone • Foam Woofer Surround • 2" Aluminum Voice Coil • 40oz. Magnet motor

Description


General Features:

  • 10" Dual 4 ohm C3 Series Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Impedance: Dual 4 ohm
  • Polypropylene Cone
  • Foam woofer surround type
  • 2" Aluminum Voice Coil
  • 40oz. Magnet motor
  • Frequency response: 10 - 500 Hz
  • Sensitivity: 85.1 dB
  • Resonance Frequency (Fs): 32.6 Hz
  • Top-mount depth: 4-7/8"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Crossfire C3 10D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Crossfire C3 10D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Crossfire C3 10D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Crossfire C3 10D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Series
C3 Series
Subwoofer Size
10"
Peak Power Handling
500 watts
RMS Power Handling
250 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
10 - 500 Hz
Sensitivity
85.1 dB
Xmax (millimeters)
6 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Foamed Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
4-7/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32.6 Hz
Equivalent Compliance (Vas)
42 liters
Total Speaker Q Value (Qts)
0.52
Electrical Q Value (Qes)
0.61
Electrical Resistance of Voice Coil (Re)
1.6 ohm
Mechanical Q Value (Qms)
3.64
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

C3 10D4

Weight:

9.50lbs

Internal SKU:

c310d4

Internal Product ID:

45575
