Product Features:

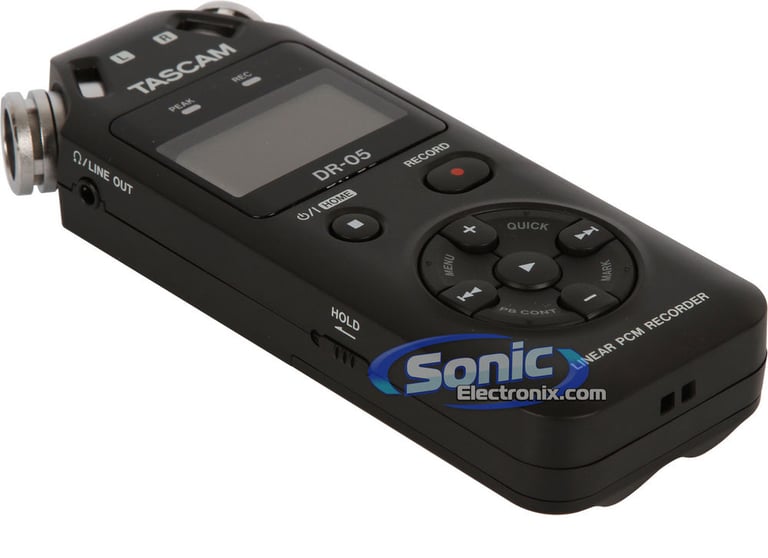

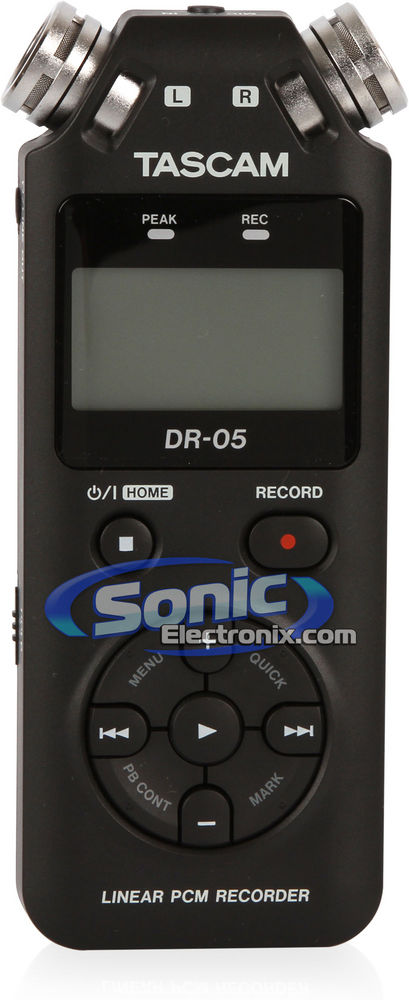

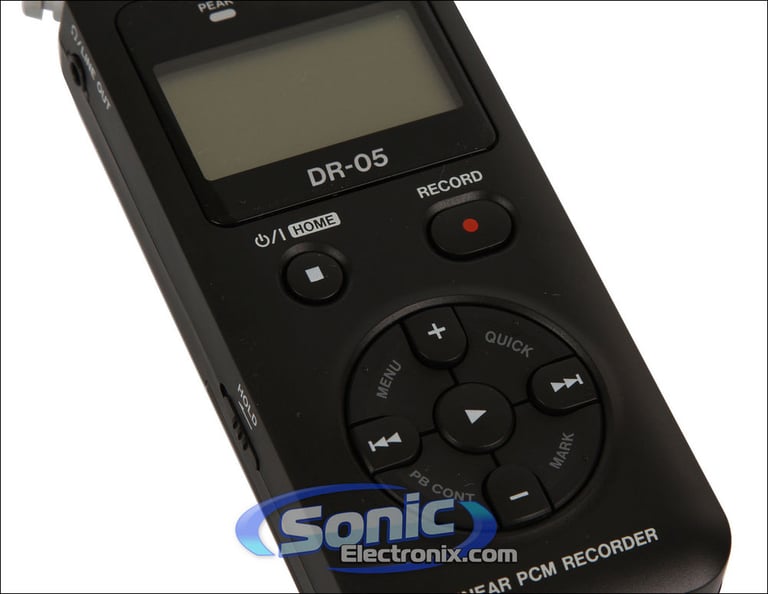

• Handheld Portable Recorder
• Stereo condenser omnidirectional microphones
• Up to 96kHz/24-bit WAV (BWF) linear PCM recording
• Stereo MP3 recording from 32-320kbps bit rate
• Optimized for music recording
• Limiter and low-cut filter to help prevent distortion
• Automatic or manual level setting
• Self timer recording starts recording after 5 or 10 sec.
• Variable speed playback (50%-150%) without changing the pitch
• Loop and repeat playback
• Level Align feature prevents uneven volume levels during playback
• Playback EQ setting Editing function (Divide and delete)
• Chromatic tuner
• 1/8” stereo mic/line input

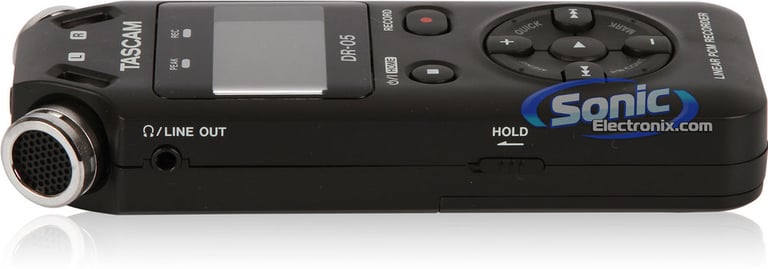

• 1/8” headphone/line output
• USB 2.0 port for transfer to PC and external power
• Up to 2-second pre recording buffer
• Built-in speaker

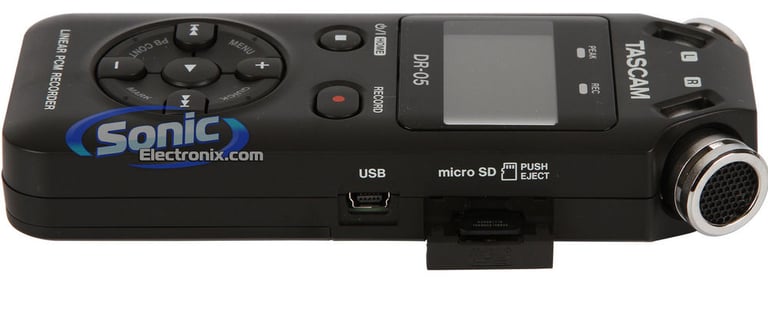

• microSD (64MB – 2GB) / microSDHC (4GB – 32GB) card slot
  (click here for list of compatible media)
• Powered by 2 AA batteries, AC adapter (optional: PS-P515U), or USB bus power
• Tripod socket hole
• Also found as: DR05, DR0-5
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Specifications:

• Recording Media:
• microSD card (64MB ~ 2GB)
• microSDHC card (4GB ~ 32GB)
• Recording and Playback Format:
• WAV: 44.1kHz/48kHz/96kHz, 16/24 bit
• MP3: 44.1kHz/48kHz, 32k/64k/96k/128k/192k/256k/320kbps
• Number of Channels: 2 Channels (Stereo)
• Playback Speed Control (VSA): 50-150% without changing pitch
  *Only with 44.1kHz/48kHz
• Built-In Microphone: Omnidirectional Condenser microphones

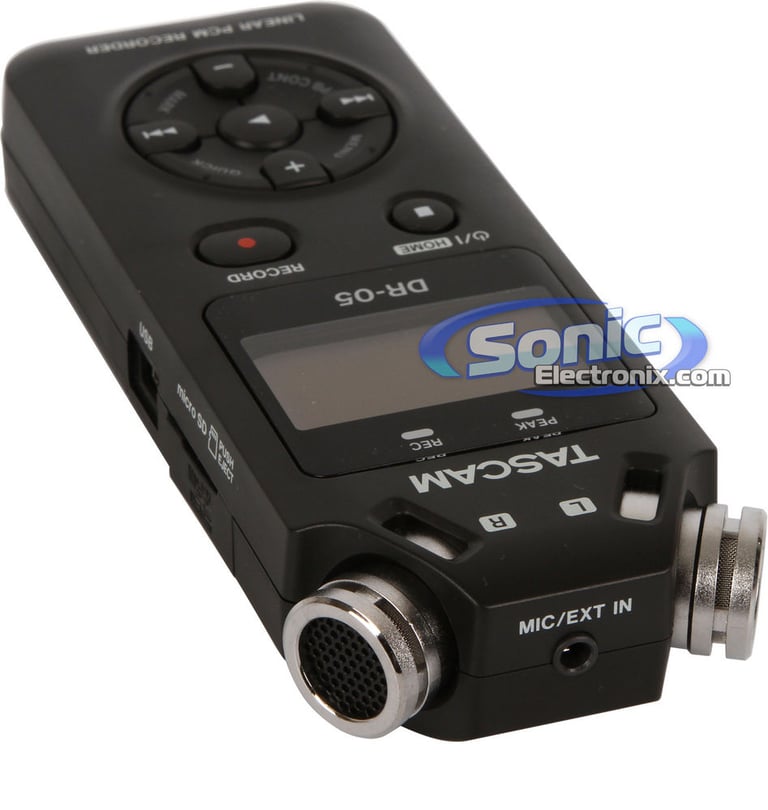

• MIC/EXT IN jacks (supporting plug-in power):
• Connector: 1/8" (3.5 mm) stereo mini
• Input Impedance: 25k ohm
• Nominal Input Level: -20dBV
• Maximum Input Level: -4dBV
• PHONES/LINE OUT:
• Connector: 1/8" (3.5mm) Stereo mini
• Output Impedance: 12 ohm
• Nominal Output Level: -14dBV (10k ohm loaded)
• Maximum Output Level: +2dBV (10k ohm loaded)
• Headphone Maximum Output: 20mW + 20mW (32 ohm loaded)

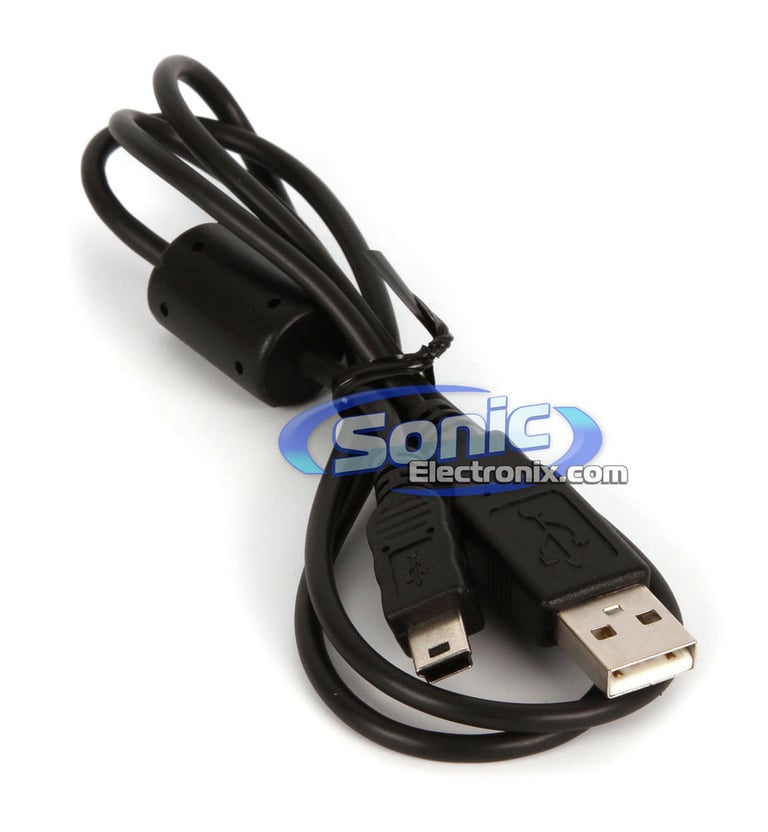

• USB:
• Connector: Mini-B type
• Format: USB 2.0 HIGH SPEED Mass Storage Class
• Power:

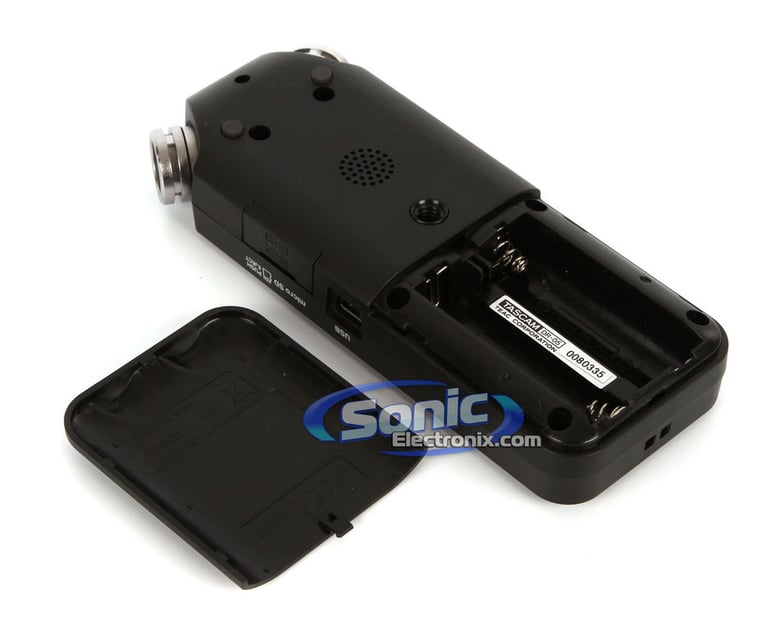

• Two AA batteries (Alkaline or NiMH batteries)
• USB bus power
• AC100 ~ 240V ,50-60Hz (AC adapter optional PS-P515U)
• Power Consumption: 1.7W (Max.)
• Battery Operation Time (continuous): Between 10 and 19-1/2 hours
• Size & Weight:
• Weight: 4.06 oz. (116 g) (w/o batteries)
• Width: 2-3/8" (61 mm)
• Depth: 1" (26 mm)
• Height: 5-9/16" (141 mm)

Audio Performance:

• Frequency Response:
• 20Hz ~ 20kHz +1dB/-3dB (Fs 44.1kHz, EXT IN→LINE OUT, JEITA)
• 20Hz ~ 22kHz +1dB/-3dB (Fs 48kHz, EXT IN→LINE OUT, JEITA)
• 20Hz ~ 40kHz +1dB/-3dB (Fs 96kHz, EXT IN→LINE OUT)
• Total Harmonic Distortion: Less than 0.05% (Fs 44.1/48/96kHz, EXT IN→LINE OUT, JEITA)
• S/N Ratio: Greater than 92dB (Fs 44.1/48/96kHz, EXT IN→LINE OUT, JEITA)

TASCAM® Portable Recorder Comparison, Jan 2012

	DR-05:	DR-07mkII:	DR-40:	GT-R1:	DR-100mkII:	DR-680:	HS-P82:
Estimated Street Price:	$99	$149	$199	$229	$329	$999	$3,599
Tracks @ 48 kHz:	2	2	4	2	2	8	10
Tracks @ 96 kHz:	2	2	4	-	2	8	8
Tracks @ 192 kHz:	-	-	-	-	-	2	4
Tracks @ MP3:	2	2	4	2	2	4	-
SMPTE Timecode:	-	-	-	-	-	Time of day BWAV stamp, but no sync in	Yes, Jamsync & Generate
Adjustable Playback Speed/Trainer:	Yes	Yes	Yes	Yes	Yes	-	-
Effects:	-	Reverb	Reverb	Guitar amp models, effects, reverb	-	-	-
Stereo Microphone Pattern:	AB, Omni	XY or AB, adjustable	XY or AB, adjustable	AB, adjustable	AB cardioid & omni, switchable	-	-
Mic Inputs:	1/8" mini	1/8" mini	(2) Locking XLR w/ phantom power	1/8" mini, 1/4" guitar input	(2) Locking XLR w/ phantom power	(4) XLR & (2) TRS w/ phantom power	(8) Locking XLR w/ phantom power
Digital I/O:	-	-	-	-	Stereo S/PDIF	Stereo S/PDIF	(8) AES/EBU In/Out
Remote Control:	-	-	RC-10, optional	-	Wired/wireless, incl.	-	RC-F82 fader/coms
Recording Media:	MicroSD/SDHC	MicroSD/SDHC	SD/SDHC	SD/SDHC	SD/SDHC	SD/SDHC	Dual CF
Optional Windscreen:	WS-DR2	WS-DR2 (X/Y)	WS-DR2d	WS-DR2d	(included)	-	-
Optional Case:	-	-	(carry bag included)	(padded case included)	(padded case included)	CS-DR680, Portabrace AR-DR680	Portabrace AR-P82
