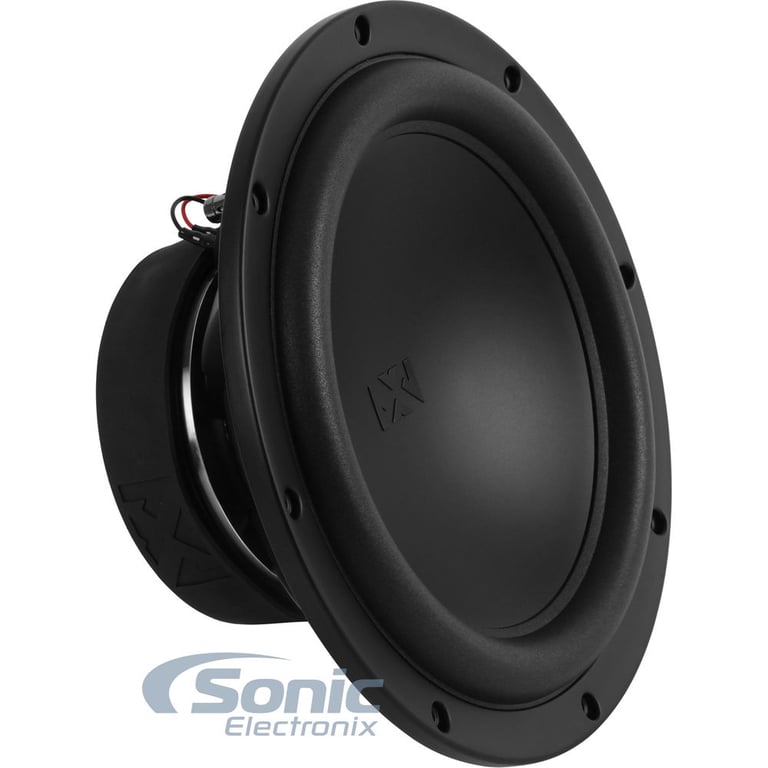

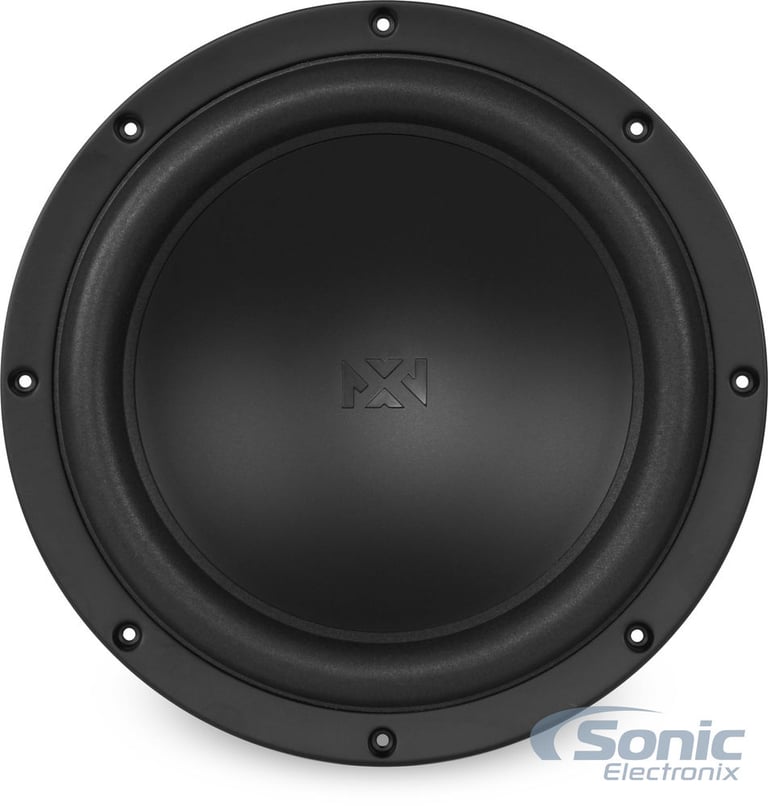

NVX XQW124 (Newest Version)

800W Peak 400W RMS, 12" X-Series Dual 4 ohm Car Subwoofer w/ Aluminum Shorting Ring (XQW 124)

NVX
Shop all NVX
Product videos
highlight-star-icon

• RMS Power: 400W
• Aluminum Shorting Ring
• Finely Milled Pulp/Egyptian Papyrus Cone
• Foam Surround
• 123 Oz Double Stacked Magnet
• oSd Surround Technology for Increased 8-12% Surface Area

Learn more about the xqw124

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

AXLOC-FD2 main

Axxess AXLOC-FD2

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ford with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

SAT-01 main

PAC SAT-01 Antenna Adapter

Connect your factory SiriusXM antenna to a new aftermarket radio for select 2004-2024 vehicles from Ford, Audi, GMC

1
-44.86%

$15.99

List price $29.00

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

82-5602 main

Metra 82-5602

6X9" Speaker Adapter for select 2011-2020 Explorer and F-Pace

2
-47.51%

$20.99

List price $39.99

82-5603 main

Metra 82-5603

6" to 6-3/4" Speaker Adapter for select 2011-2019 Explorer

2
-50.01%

$19.99

List price $39.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Product Highlights


• RMS Power: 400W
• Aluminum Shorting Ring
• Finely Milled Pulp/Egyptian Papyrus Cone
• Foam Surround
• 123 Oz Double Stacked Magnet
• oSd Surround Technology for Increased 8-12% Surface Area

Description


NVX brand icon

Authorized dealer



NVX X-Series Subwoofer Breakdown

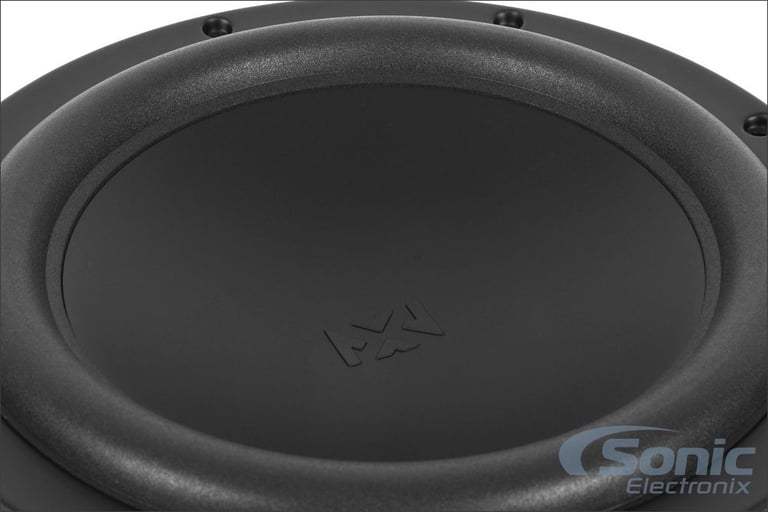

Hybrid Cone

Egyptian Papyrus-Blend Cone

The NVX X-Series features an ultra stiff, lightweight cone material custom made from finely milled pulp & Egyptian Papyrus fibers. The cone is treated with a soft matte black finish for a stylish and modern look.

Vertically Attached oSD Surround

Patented Surround Technology

XQW woofers are engineered with a unique oSD (oversized SD) surround. This patented technology involves attaching the surround on a vertical edge for increased surface area, which translates to more bass. Additionally, the surround itself is constructed with a multi-radius elliptical edge for incredibly symmetrical, linear cone movement.

Aluminum Shorting Ring

Aluminum Shorting Ring

Another feature which seperates the X-Series from other woofers on the market is the innovative aluminum shorting ring. The shorting ring is basically a conductive aluminum ring placed between the pole piece and the voice coil former. This ring will essentially reduce the negative effects of the inductance which is inherently present in any loudspeaker. In short, this shorting ring:

  • Improves power delivery to the voice coil
  • Decreases distortion
  • Contributes to linear cone movement
  • Improves high-end extension
  • Decreases risk of overheating

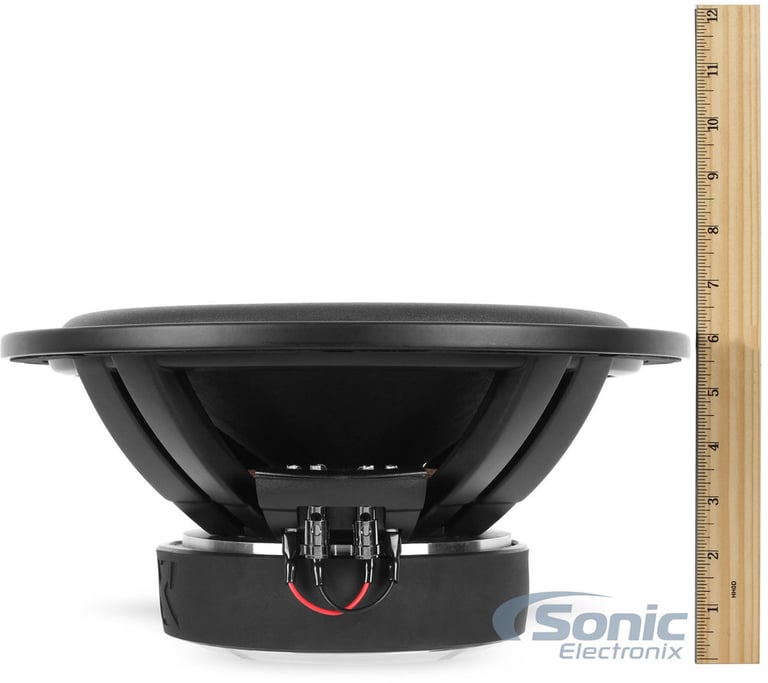

Optimized for Small Enclosures

Space Efficient Design

These subwoofers only require 6" of mounting depth to produce intensely powerful bass. NVX utilized the latest loudspeaker technology to design a space-saving subwoofer without the anemic sound of typical shallow-mount woofers. NVX claims that the X-Series is "The discerning listener's alternative" to such shallow subwoofers, and we agree.

High Temperature Voice Coil

3" High-Temp Voice Coil

The stout 3" high temperature voice coil is constructed from a copper wire wrapped around an TSV TIL former. This industry standard design is powerful enough to readily drive the cone with strict linear control, yet at the same time remains efficient enough for the compact, space saving magnet structure. The black appearance of the coil is a result of the special treatment which is applied to improve power handling and heat dissipation.

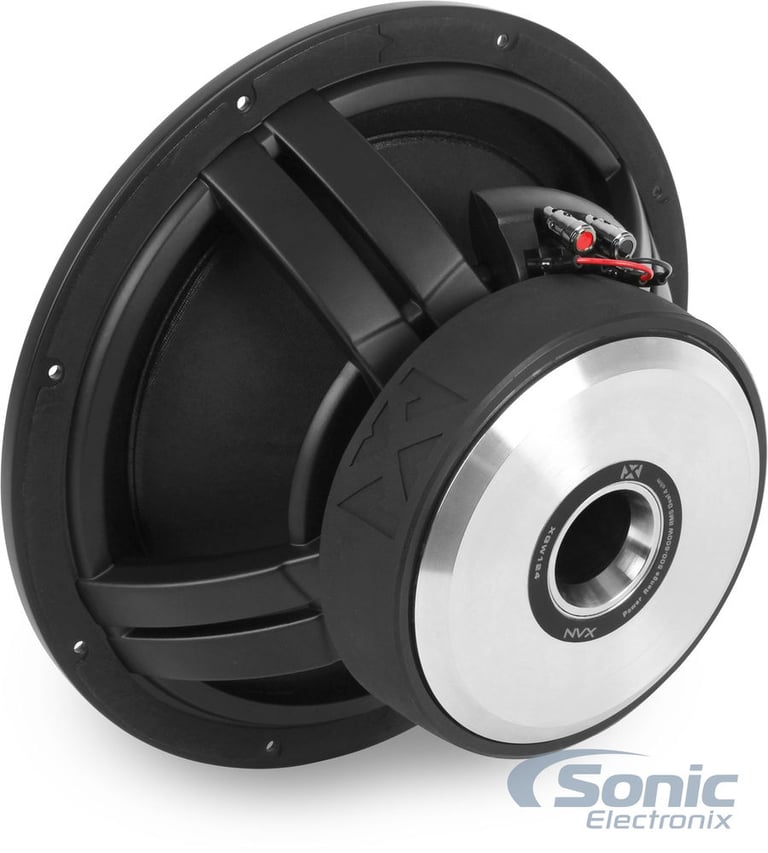

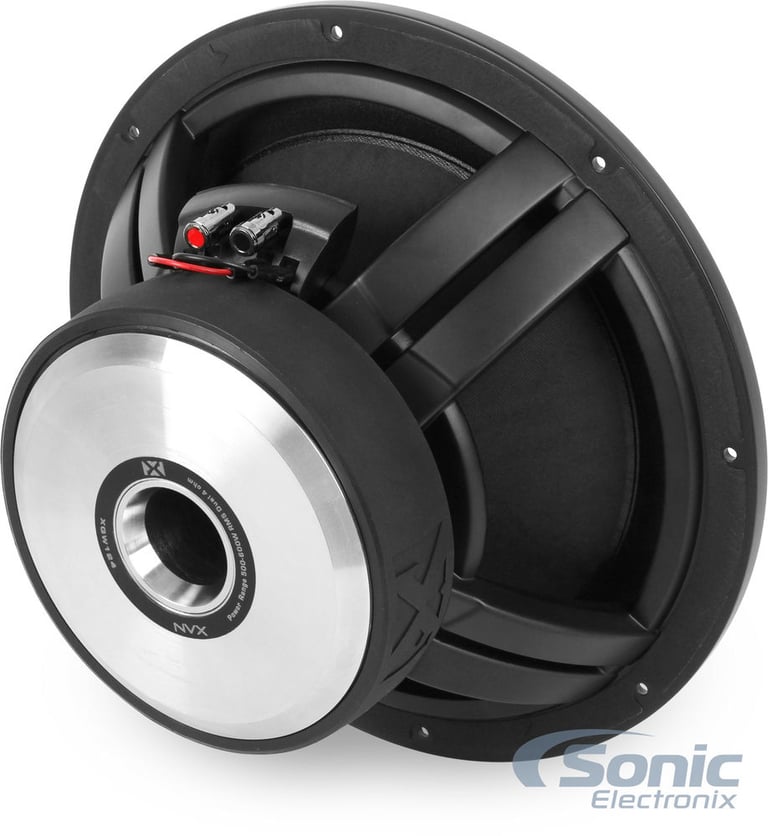

Low Turbulence Basket

Custom Cast Aluminum Basket

The custom basket of the X-Series woofer is striking in terms of both aesthetics and engineering. A particularly open basket was designed in order to improve airflow for superior cone response and reduced back-wave interference. NVX engineers chose aluminum both for its exceptional strength-to-weight ratio, as well as to eliminate interference with the magnet structure.

High-Excursion Tinsel Leads

High Excursion Tinsel Leads

The tinsel leads used in the X-Series woofer are a small example of the incredible attention to detail of the NVX engineers. These tinsel leads are attached at the basin of each fold in the spider with sufficient slack for full excursion. This prevents damage to the leads from the movement of the cone, while also keeping them securely attached to prevent mechanical noise.





General Features:

  • 12" Dual 4 Ohm X-Series Series Subwoofer
  • Power Handling:
    • RMS: 400 watts
  • Impedance: 4 ohm
  • Custom blend of finely milled pulp and Egyptian papyrus fiber cone with smooth matte finish
  • Multi-Radius Elliptical edge foam surround
  • Includes oSd surround technology (U.S. Patent #7,031,487) allowing for an extra 8-12% more surface area than competing subwoofers
  • Innovative aluminum shorting ring system with several positive impacts on the subwoofer:
    • Improved power delivery to the voice coil
    • Decreased inductive distortion
    • Improved cone linearity
    • Improved high-end extension
    • Decreased risk of overheating
  • 3" High temperature voice coil designed with an oxygen-free copper coil
  • 123 oz double stacked ferrite magnet
  • Optimal ported enclosure tuning frequency: 34 Hz
  • Frequency response: 20-200 Hz
  • Resonance Frequency (Fs): 29 Hz
  • Top-mount depth: 5-3/4"
  • Sensitivity: 89 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Tips for Installing the your NVX XQW124 subwoofer


Subwoofer Wiring Guide


Wiring Guide to Wire 1 NVX XQW124 (Newest Version) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 NVX XQW124 (Newest Version) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 NVX XQW124 (Newest Version) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 NVX XQW124 (Newest Version) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
X Series
Subwoofer Size
12"
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Frequency Response
20 - 200 Hz
Sensitivity
89 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Egyptian Papyrus Fiber
Woofer Surround
Foam
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.80 cubic feet
Optimum Sealed Box Volume
0.92 cubic feet
Maximum Sealed Box Volume
1.40 cubic feet
Minimum Ported Box Volume
1.10 cubic feet
Optimum Ported Box Volume
1.43 cubic feet
Maximum Ported Box Volume
1.90 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/4"
Cutout Diameter
12-1/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29 Hz
Equivalent Compliance (Vas)
64 liters
Total Speaker Q Value (Qts)
0.38
Electrical Q Value (Qes)
0.41
Electrical Resistance of Voice Coil (Re)
5.8 ohm
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XQW124

Weight:

30.00lbs

Internal SKU:

xqw124

Internal Product ID:

46486

Product and How-to Videos

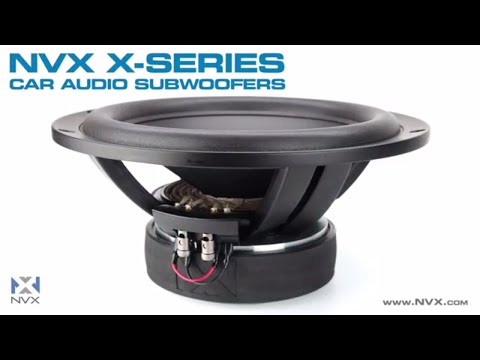

  • NVX X-Series Car Audio Subwoofers
  • NVX X-Series Subwoofers | Sound Quality Sub in a Small Box
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How to Install a Car Subwoofer in a Box
  • NVX X-Series 10" Subwoofer Bass Test | XQW104

Customer Ratings & Reviews


NVX XQW124 (Newest Version) thumbnail image

5 star
78%
4 star
11%
3 star
11%
2 star
0%
1 star
0%



Durability
4.9
Value
5
Features
4.9
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Incredible Sound Quality and Punch

Got a pair in a 1.5CF per side, FoxAcoustics box, tuned to 35htz, and wired to 1 Ohm, delivering 1100 RMS on a massive D2400. The sound quality is second to none. Transitions are tight and very pleasant. I can feel the percussion and get plenty of SPL. Beat the REAudio S E X hands down. Amazed at the quality of the woofer, and what it delivers in such a small enclosure.

By Cory on December 26, 2013

46 found this helpful


Install review

The construction of the sub looks solid and it has nice terminals(pre wired for 2ohm).
That being said it's really a 12.5 inch sub and may not fit in pre-made boxes such as the belva example I ordered with mine. I had to cut at into the side of the box walls to make the sub sit into the cutout.

Will update on how it sounds in the recommended sealed box ~1 cu. Ft. Once I have finished my install.

By Anonymous on October 1, 2018

20 found this helpful


Can’t be beat!

The quality for the price paid on these NVX XQW subs just can’t be beat .
Amazing value for your dollars.

By Knightstormz on May 7, 2018

19 found this helpful


Amazing subwoofer

I'd recommend this subwoofer to anyone looking for a quality subwoofer, with a great mixture of sq/spl!! Sounds amazing and the build quality of this subwoofer is very impressive for the price!! I had an enclosure made for this subwoofer at 1.9ft^3 tuned to 29 hz and the sound quality is phenomenal while hitting super low notes as well. Big upgrade from my JL audio w3v2 12". Not that much louder in this box during break in but it sounds much better. Would buy this again and recommend to anyone looking for a great all around sub. I've owned Rockford p3, pioneer champion pro series, kicker cvr, etc and none match the quality and sound quality of the subwoofer .

By Christopher on August 27, 2017 Checkmark Icon Verified purchase

19 found this helpful


high end

these speakers are very high end. they sound great and play a great range of sounds. i got them on a deal and was very happy

By Anonymous on July 28, 2019 Checkmark Icon Verified purchase

18 found this helpful


10 years and my search is over.

I've gone through just about every sub there is from typical lower end Pioneer, kicker, alpine, etc to image dynamics, JL, focal, eclipse, infinity kappa perfects. even offstream brands SD, DD, SQ, Skar, Arc, etc and EVERYTHING in between all brands all sizes. For the price point of this woofer the build and the absolute sound quality w crisp clean deep and accurate punchy bass. This sub is one of the best ive owned and heard. Its ran off the 5th channel from my JL slash 500/5 with a 1.5 cu ft net tuned @ 34hz. This sub wants more power so I will be getting the JL HD900/5 soon. But the accuracy of this 12" is outstanding. I do recommend at least 350 watts ported and at least 550 watts sealed. If your a bass guy you will need two of these with a quality 700-1000 watts. 1 is good for your average person and will fill any vehicle with bass.

By Jay on December 8, 2017 Checkmark Icon Verified purchase

18 found this helpful


High quality subwoofers. Don't let the price fool you!

Bought two of these along with the NVX ported enclosures built for them. I also have 40 sq. ft. of NVX sound deadener throughout my car. These things put out nothing but pure, clean bass. No unnecessary rattles and no extra vibrations other than the notes being played. I've previously had 2 dual kicker l5 12's setups in sealed and in ported enclosures. These aren't quite as loud as the L5's in the ported enclosure but that's more to do with the kickers taking 1300rms and these getting 800rms. These sound so much better than the kickers. and were much more affordable. It's unbelievable how much woofer you are getting for $200 a pair. The Kicker L5's costs 400-450$ back then and even more now (L7's). My only complaint is that I wish these were rated at 600+watts rms. I'm sure they can handle it just fine but I don't want to chance going against manufacturer specs and voiding warranties. Highly recommend this as well as NVX enclosures and sound deadening.

Edit 3/4/2026: These are still running strong 9 years later. My old car finally gave out and moved these to a new vehicle.

By Terrell on March 24, 2026 Checkmark Icon Verified purchase

17 found this helpful


Great Value! LITERALLY!!

I had originally bought the ported box for this XQW124 for one of my DC Level One 12 inchers. Had to do a minor mod to get the DC to mount and it sounded great! No doubt! DC is fan_asteriks_tastic! I then decided to buy another DC Level One 12 incher to run them in pair so I didn't need this box anymore... Or so I thought..... And then I decided to give this X-Series sub a try since I had the box for it already... And oh yeah!.. This sub sounds great! Hits notes with SQ and SPL. It is loud, clean and articulate! Now I want another X- 12" and another specific ported box to run these in pair!!! Great subwoofer, great bass, great box and definitely worth more $$$!! I want X-Series decals for my vehicle now! LOL. Great product by NVX!!!!!..... And great everything else from Sonic!!!!!!!!

By A A Ron on April 8, 2018 Checkmark Icon Verified purchase

17 found this helpful


Great Value

Quality sub at a great price. My only regret is not ordering 2z

By Frank on April 3, 2018 Checkmark Icon Verified purchase

17 found this helpful




SPW318RD small

Stinger SPW318RD

PRO Series 18 Gauge Red Primary Wire Red 500ft Roll

(1)

$71.99

List price $139.00

4113LX-2 small

Avital 4113LX (4113L)

1-Way Remote Start System w/ Virtual Tach and Bitwriter Programmable

(4)

$49.99

List price $199.99

E3-2 small

Encore E3 1-way Car Alarm

1-way 3-Channel Car Alarm with (2) 4-Button Transmitters and 2 Stage Shock Sensors

(3)

$39.99

List price $199.99

P1-1050.2 small

Crunch P1-1050.2 (Factory Refurbished)

1000W Max 2-Channel Power One Series Class AB Car Amplifier

(2)

$54.99

List price $179.99

ZN5K-00 small

StreetWires ZN5K-00

1/0 AWG Zero Noise ZN5 Series Amplifier Installation Kit

(1)

$324.95

List price $357.45

SWI-ECL2v1 small

PAC SWI-ECL2v1 (New Version of SWI-ECL2)

Interface for Eclipse to Factory Steering Wheel Audio Controls

(3)

$49.99

List price $85.95

420.4X small

Clifford Remote Start System - Matrix 420.4X Responder LE

Super Code 2-Way Responder LE Vehicle Remote Start Keyless Entry System w/ 5-Button 2-way Remote

(4)

$87.99

List price $339.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2005 Mercury Sable

2009 Audi TT

2015 Ford Explorer

2003 BMW 330xi

1982 Mazda RX-7

2009 Ford Explorer

2001 Ford Explorer

2014 Ford Explorer

2006 Lexus LX470

2011 Land Rover Range Rover

Vehicle
Store
Delete

2002 Harley Davidson FLTR Road Glide

2000 Harley Davidson FLTR Road Glide

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
