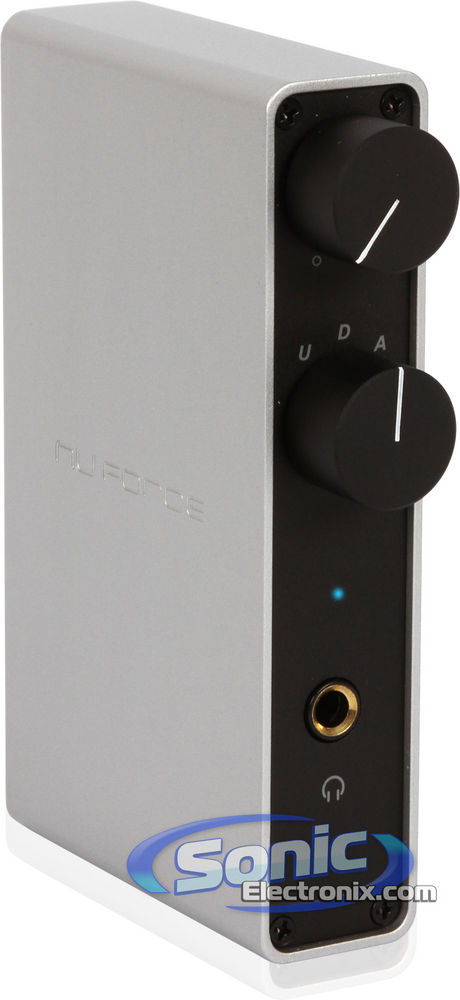

NuForce Silver Icon HDP Professional Grade Headphone Amp & DAC

Product Features:

• Headphone Amp and DAC
• USB DAC with 24-bit resolution and 96 kHz sampling rate
• S/PDIF and 3.5mm optical conversion at 24-bit resolution and 196 kHz sampling rate
• Quality headphone amplifying circuit and preamp out for complete integration and audiophile sound quality
• Supports digital USB, S/PDIF coaxial, and 3.5mm optical for a remarkably broad range of compatibility
• No capacitors in the signal path for absolutely no loss in signal quality
• Few components along the signal path further minimize possible sources of distortion
• To minimize electrical interference, the digital circuit is built on an independent daughter board
• Primary Color: Silver
• Manufacturer/Part Number: NuForce NF-ICON-HDP-SILVER
• Also available in Red, Blue, and Black
• Package includes:
• Toslink to optical mini adapter
• 6.3mm stereo plug (male) to 3.5mm stereo connector (female) adapter
• Silicone stand
• AC adaptor (15V, 1.6A, 100-240VAC)

Technical Specifications:

• Analog Inputs: RCA or 3.5mm
• Digital Input: S/PDIF Coaxial and 3.5mm Optical
• Coaxial Input Impedance: 75 Ohm
• THD: 0.001%
• USB Digital: USB 1.0 and 1.1 up to 44.1kHz/16-bit, USB 2.0 Full-Speed up to 96kHz/24-bit
• RCA Output: 2.6 Vrms, Output impedance 100 Ohm
• Headphone Output: 6.3mm full-size headphone output jack drives headphones up to 600-Ohm; Output impedance 10 Ohm
• Frequency Response: 10-100000 Hz
• SNR: >100 dB
• Power Requirement: 12-15V
• Dimensions: 6"W x 4-1/2"D x 1"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
