Name: NVX NSW122
Brand: NVX
SKU: nsw122
Price: 49.99 USD
Availability: Discontinued
Rating: 4.9677 (31 reviews)

Shop all NVX

by NVX

About
Wiring Guide
Specs & Details
Product Videos
Reviews
Add-ons
Similar Products
Related Searches

Product videos

Product highlights

• RMS Power: 200-350W
• Polypropylene Cone
• High Excursion Rubber Surround
• Stamped Steel Basket
• Nomex Single Spider

Learn more about the nsw122

Product Highlights

• RMS Power: 200-350W
• Polypropylene Cone
• High Excursion Rubber Surround
• Stamped Steel Basket
• Nomex Single Spider

Description

Authorized dealer

Power and Value with N-Series

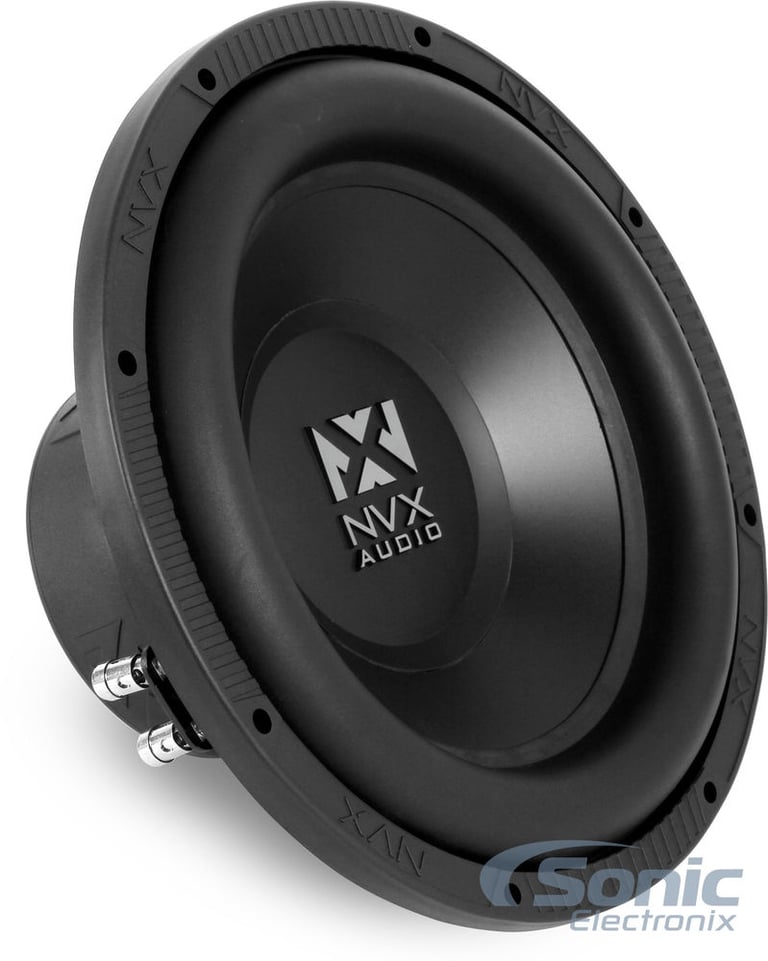

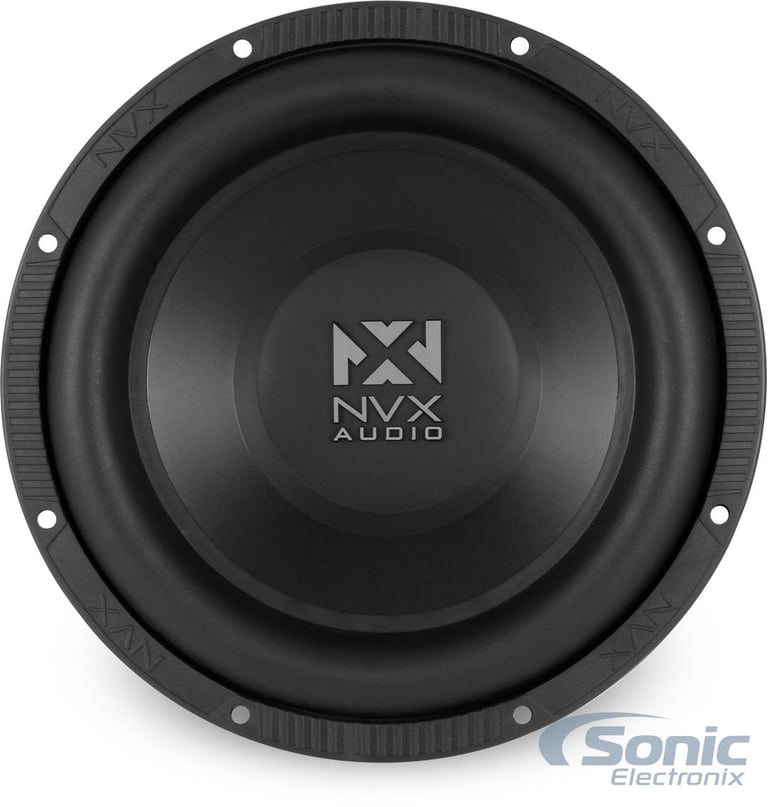

NVX's entry-level subwoofer is anything but "entry-level." NVX has engineered the NSW122 with exceptional features, such as a polypropylene cone, Nomex single spider and a high excursion rubber surround. This all adds up to a sub that moves more air for awesome, responsive and deep bass. The 2" dual 4-ohm KSV voice coil gives you a wide array of Ohm load wiring options for different applications. With an RMS Power Range of 200-350 watts, the NSW122 requires less power to operate efficiently without losing bass quality.

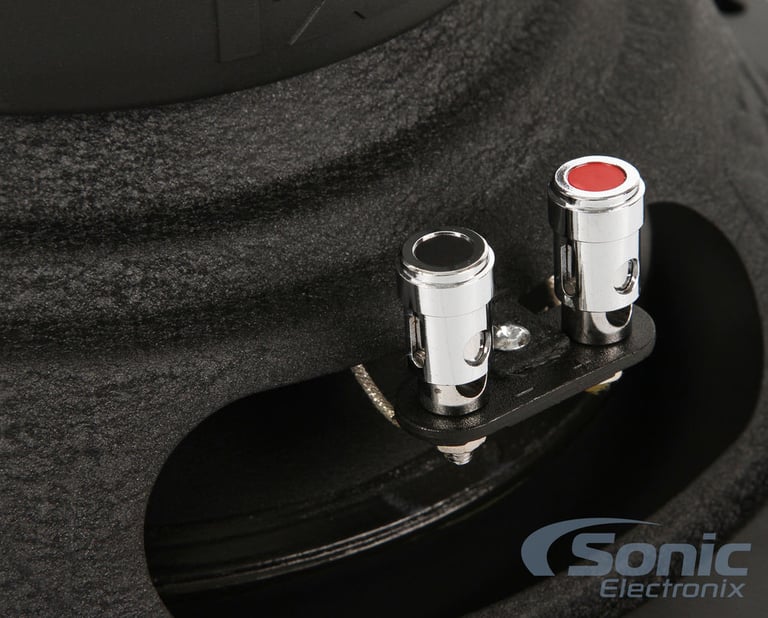

Continuing with the excellent engineering is a stamped steel basket that provides exceptional rigidity and the spring-loaded, chrome plated push terminals ensure a strong and dependable speaker wire connection. NVX's mission was to create an exceptional subwoofer at an entry-level price without sacrificing the quality and sound that the consumer deserves. They have succeeded!

General Features:

12" Dual 2-ohm N-Series Car Subwoofer
Power Handling:

Power Range (RMS) 200-350 watts

Impedance: Dual 2 ohms
Polypropylene cone
High excursion rubber surround

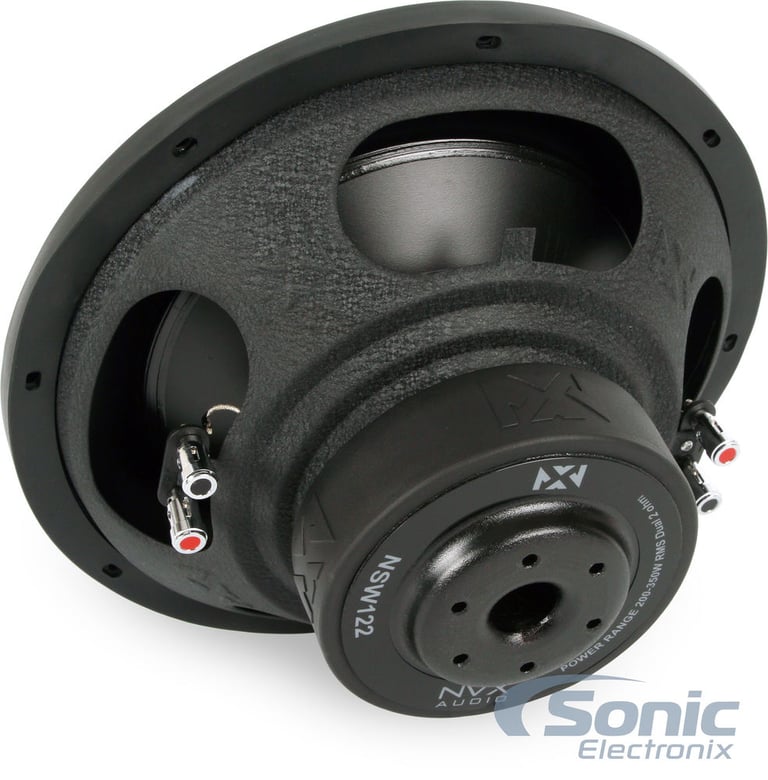

Stamped steel basket for maximum rigidity
Nomex single spider
2" KSV Voice coil
53oz. magnet motor structure with protective rubber boot
Frequency response: 20-200 Hz
Resonance Frequency (Fs): 27Hz

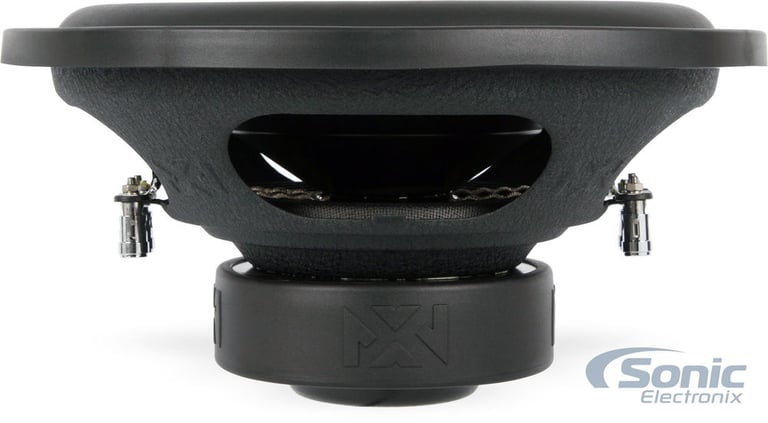

Top-mount depth: 5-1/2"
Sensitivity: 85dB
Authorized Internet Dealer
1-year Manufacturer's Warranty

Additional Information:

*CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.

Product history:

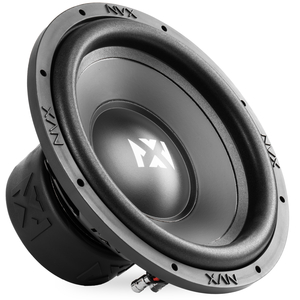

	NVX NSW122 Version 2 (NSW122v2) (newest, current model)
	NVX NSW122 (previous model, replaced by NVX NSW122 Version 2 (NSW122v2))

Subwoofer Wiring Guide

Wiring Guide to Wire 1 NVX NSW122 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 NVX NSW122 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 NVX NSW122 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 NVX NSW122 Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details

Subwoofer Specifications

Series

N Series

Subwoofer Size

12"

RMS Power Handling

350 watts

Voice Coil(s)

Dual

Impedance (Per Voice Coil)

2 ohms

Voice Coil Diameter

Frequency Response

20 - 200 Hz

Sensitivity

85 dB

Xmax (millimeters)

8 mm

Subwoofer Design

Round / Circle

Main Cone Color

Black

Woofer Composition

Polypropylene

Woofer Surround

Rubber

Magnet Structure

Single Stacked

Subwoofer Grille

Re-Cone Kit Available

Recommended Enclosure Specifications

Recommended Enclosure Type

Ported / Vented
Sealed

Optimum Sealed Box Volume

1.5 cubic feet

Optimum Ported Box Volume

2.0 cubic feet

Top-Mount Depth (Mounting Depth)

5-1/2"

Cutout Diameter

11-1/16"

Shallow Mount Installation

Electromechanical Parameters

Free-Air Resonance (Fs)

27 Hz

Equivalent Compliance (Vas)

63.51 liters

Total Speaker Q Value (Qts)

0.59

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
