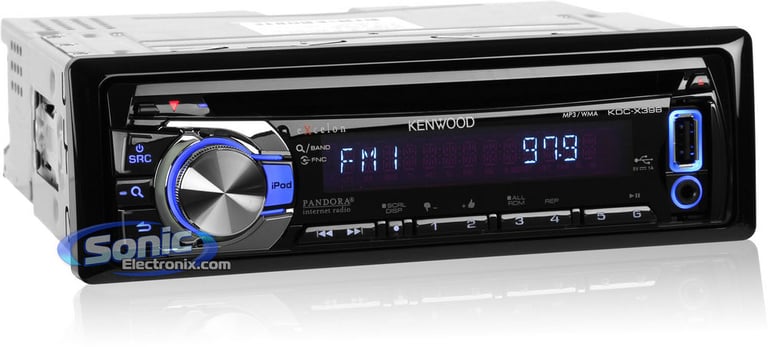

Kenwood eXcelon KDC-X396

In-Dash CD/MP3/USB Car Stereo Receiver w/ Pandora Support, Variable Color Illumination and Remote

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

In-dash AM/FM, CD, MP3 Receiver • 52W x 4 Chan. MAX • 22W x 4 Chan. RMS • 3 Sets of 4V Preamp Outputs • System Q 3-band Parametric Equalizer • 24-Bit Digital Analog Converter (DAC) • Direct iPod Control • Bluetooth Ready • iTunes Tagging

Learn more about the kdcx396

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

kdcx397 thumbnail

Kenwood eXcelon KDC-X397

OUR PRICE: $129.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Product Highlights


In-dash AM/FM, CD, MP3 Receiver • 52W x 4 Chan. MAX • 22W x 4 Chan. RMS • 3 Sets of 4V Preamp Outputs • System Q 3-band Parametric Equalizer • 24-Bit Digital Analog Converter (DAC) • Direct iPod Control • Bluetooth Ready • iTunes Tagging

Description


Kenwood brand icon

Authorized dealer












General Features:

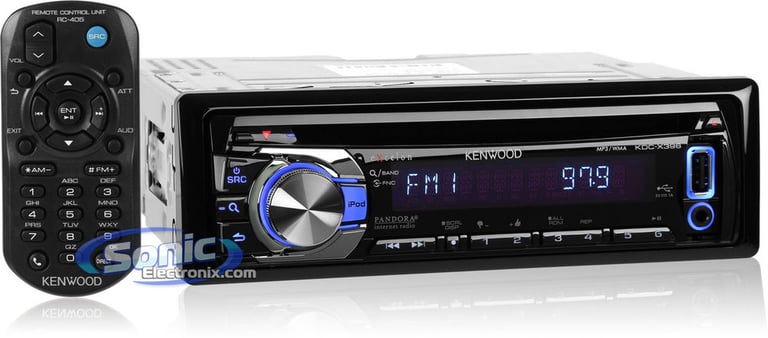

  • In-dash eXcelon Series AM/FM, CD, CD-R/RW, MP3, WMA player with Remote
  • Single-line blue illuminated backlit display
  • Pandora Link integrates your car stereo with your iPhone and Pandora Internet Radio
  • Music control app for Android will organize your music for playback from the receiver
  • Variable color illumination feature allows selectable display and button lighting

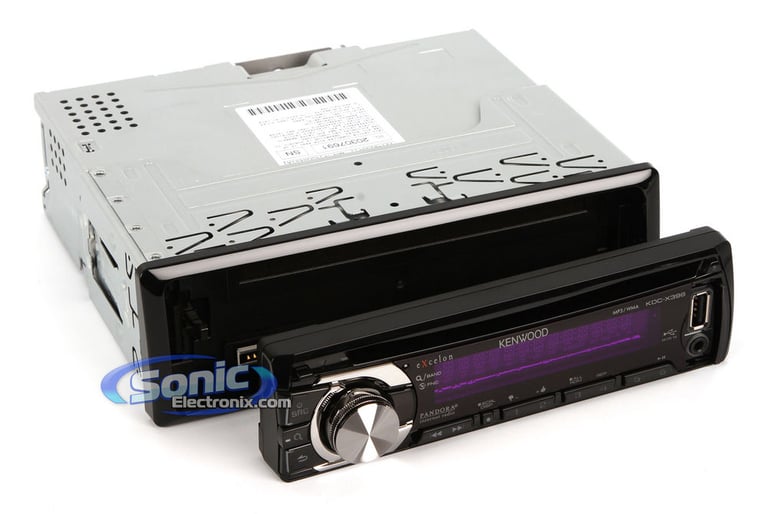

  • Theft-deterrent, detachable face plate
  • MOSFET Power Output:
    • Peak: 52 watts x 4 channels
    • RMS: 22 watts x 4 channels

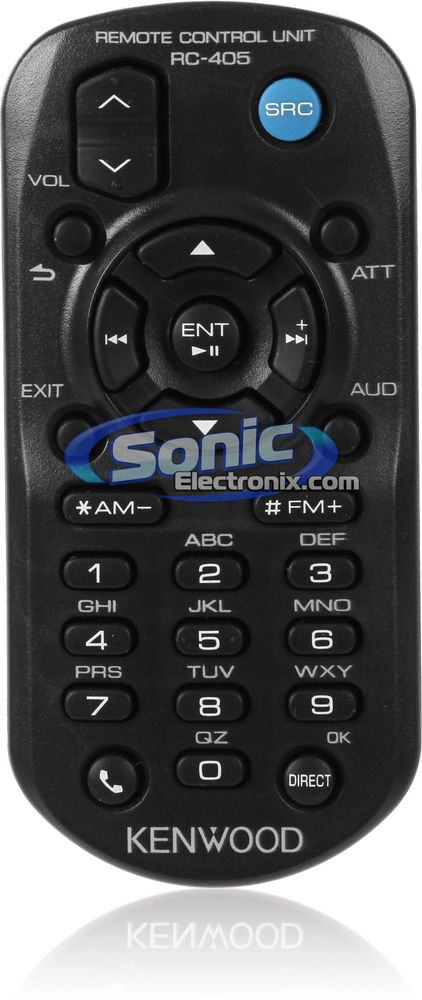

  • Wireless remote control included
  • CD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 1-year Sonic Electronix Warranty

Playback and Audio Features:

  • Playback of CD, CD-R, CD-RW, MP3, and WMA
  • AM/FM tuner with 18FM/6AM presets
  • 24bit Digital Analog Converter (DAC) to enhance your MP3/WMA playback
  • System Q 3-band Parametric Equalizer with 8 selectable tone curves (7 Preset, 1 User)
  • Separate subwoofer level control (-15db - +15db)
  • Subwoofer low-pass filter: Through, 85, 120, or 160hz
  • 2-way control allows your iPod or iPhone to be controlled via your stereo or from the iPod itself
  • iTunes Tagging lets you tag your favorite songs for later viewing in iTunes

Expandability Options:

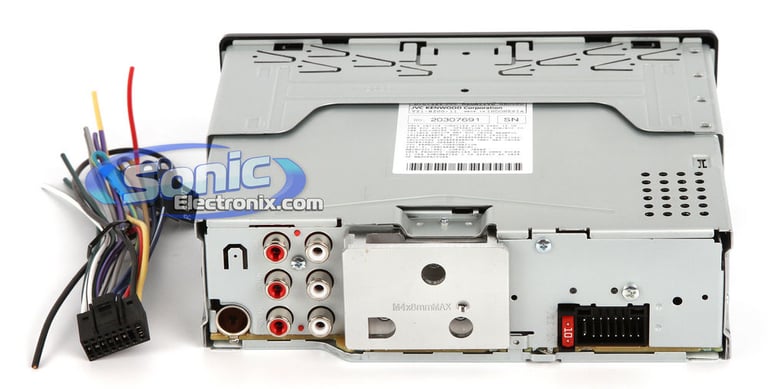

  • 3 Sets of 4V preamp outputs (front, rear and subwoofer)
  • Bluetooth Ready: Kenwood KCA-BT300 required and sold separately for hands free calls and audio streaming
  • iPod and iPhone Ready: Standard USB-to-iPod Cable compatible
  • Front Auxiliary Input: 3.5mm headphone jack allows connection to portable media devices such as MP3 players
  • Front USB Input: USB port allows connection to digital devices such as flash drives, portable media players, etc.
  • Marine Remote Ready: Kenwood KCA-RC60MR required and sold separately
  • Steering Wheel Control Ready: PAC SWI-JACKv1 or the Axxess ASWC required and sold separately

Product history:

Kenwood KDC-X397 thumbnail
(newest, current model)
Kenwood KDC-X396 thumbnail
(previous model, replaced by Kenwood eXcelon KDC-X397)
Kenwood KDC-X395 thumbnail
(previous model, replaced by Kenwood eXcelon KDC-X396)

Best selling similar products

UTE-73BT small

Alpine UTE-73BT

• Single DIN Digital Media Receiver
• 1-line Digital LED Backlit Display with RGB illumination
• Control music/other apps via iPhone and Android
• 3 sets of 2 volts preamp outputs
• 3-Band Parametric Equalizer
• NFC-compatible for select Android devices
• Built-in amplifier

(44)

$149.95

List price $180.00

CV15BT small

Cerwin-Vega CV15BT

• Single DIN Bluetooth Digital Media Receiver
• Digital LED Backlit Display
• USB/SD/AUX Input
• Three sets of 5 volts preamp outputs
• Multiple Preset EQ

(3)

$69.99

List price $69.99

AVH-3500NEX small

Pioneer AVH-3500NEX

• Single DIN with Flip-Out Screen Bluetooth DVD Multimedia Receiver
• 7" Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Advanced Sound Retriever

(9)

$829.99

List price $930.00

MVH-S322BT small

Pioneer MVH-S322BT

• Single DIN Bluetooth Digital Media Receiver
• Digital LED Backlit Display
• Pandora and Spotify capable
• 2 pairs of 4 volts preamp outputs
• 13-Band Equalizer

(7)

$129.99

List price $150.00

XAV-AX8500 small

Sony XAV-AX8500

• Single DIN Bluetooth Digital Multimedia Receiver
• 10.1" TFT Active Matrix Display
• Apple CarPlay (wireless) and Android Auto (wired and wireless) compatible
• 3 sets of 5 volts preamp outputs
• 14-Band Graphic EQ and 8-Band Parametric EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro compatible
• Flexible installation in both single and double-DIN dashboards

(2)

$798.00

List price $999.99

KMM-X705 small

Kenwood eXcelon KMM-X705

• Single DIN Bluetooth Digital Multimedia Receiver with USB and AUX
• LCD Text Display
• iPhone and Android Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic Equalizer with Digital Time Alignment
• SiriusXM Satellite Radio Ready

(6)

$199.00

List price $250.00

KDC-X305 small

Kenwood eXcelon KDC-X305

• Single DIN Bluetooth CD Multimedia Receiver with USB and AUX
• LCD Text Display
• iPhone and Android Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Equalizer with Digital Time Alignment
• SiriusXM Satellite Radio Ready

(28)

$199.00

List price $240.00

DEH-S7200BHS small

Pioneer DEH-S7200BHS

• Single DIN Bluetooth CD Digital Media Receiver
• LCD Text Display
• Voice Recognition
• Built-in HD Radio
• 3 sets of 4 volts preamp outputs
• 13-Band Equalizer
• SiriusXM Satellite Radio Ready
• Pioneer Smart Sync

(2)

$249.99

List price $280.00

XRM59BT small

Dual XRM59BT

• Single DIN Bluetooth Digital Media Receiver
• LCD Text Display Display
• 1 set of 2 volts preamp outputs
• 2-Band Equalizer with 4 Presets

(28)

$49.99

List price $49.99

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security
Detachable Faceplate
Wireless Remote
Yes
Peak Power Output
52 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
System Q 3-band Parametric Equalizer with 8 selectable tone curves (7 Preset, 1 User)
Display Type
Fluorescent Display
Expandability Features
Inputs
Auxiliary (Front)
Auxiliary (Rear)
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KDC-X396

Weight:

3.60lbs

Internal SKU:

kdcx396

Internal Product ID:

52148
