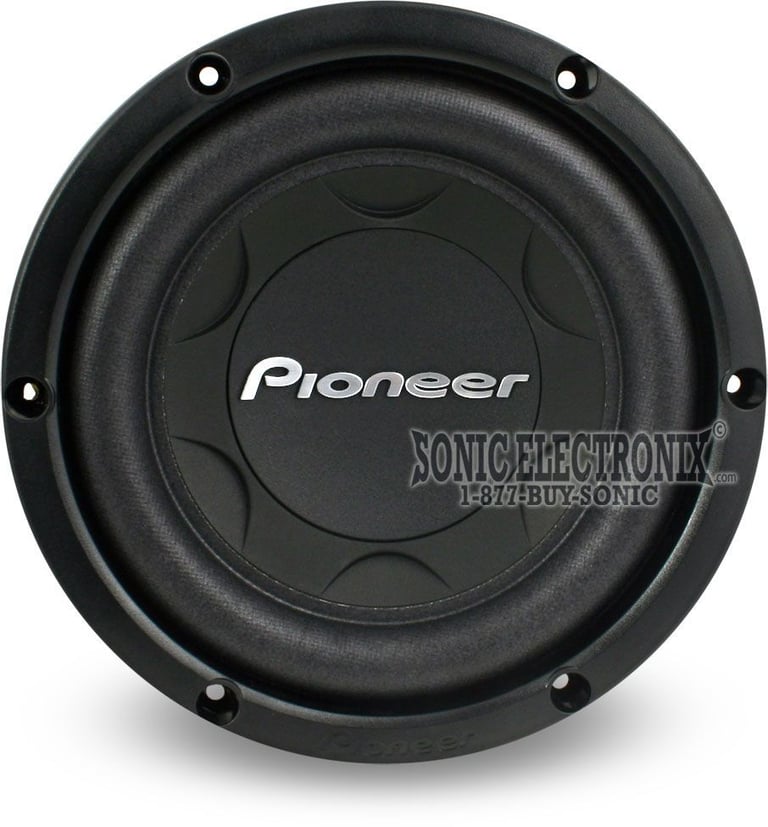

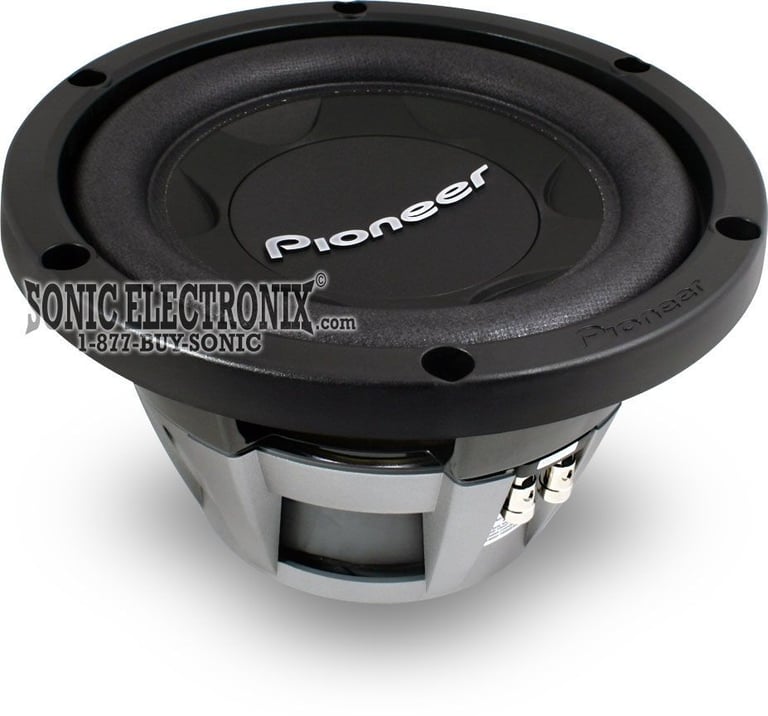

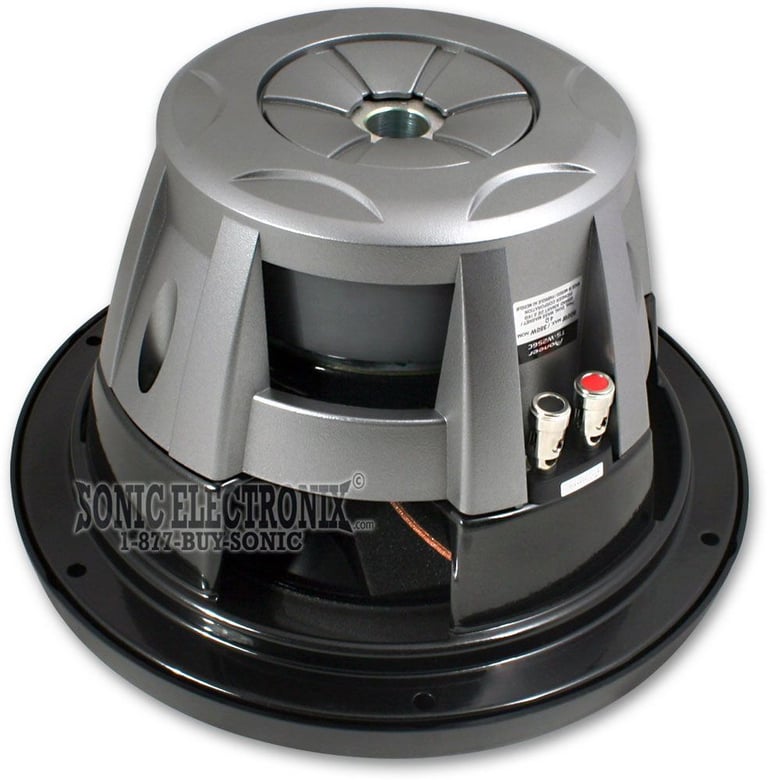

Pioneer TS-W306C

12" Subwoofer (FREE UPGRADE TO NEW 2007 MODEL: TS-W307D2)

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

12" Component Subwoofer • 1000W Max • 4 Ohm • IMPP Cone w/ Interlaced Aramid Fiber • 3-Layer Surround • 83 oz. Double Mass Magnet • 400W RMS • 4-Layer Aluminum Voice Coil

Learn more about the tsw306c

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsw308d2 thumbnail

Pioneer TS-W308D2

OUR PRICE: $89.99

View item

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

49ST9MR4 main

Kicker ST9MR4 (49ST9MR4)

1200W Peak (600W RMS) 9" Street Series Pro Midrange 4-ohm Speakers

-9.09%

$199.99

List price $219.99

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Product Highlights


12" Component Subwoofer • 1000W Max • 4 Ohm • IMPP Cone w/ Interlaced Aramid Fiber • 3-Layer Surround • 83 oz. Double Mass Magnet • 400W RMS • 4-Layer Aluminum Voice Coil

Description


Pioneer brand icon

Authorized dealer

General Features:

  • 12" Subwoofer
  • Power Handling:
    • Peak: 1000 Watts
    • RMS: 400 Watts
  • Impedance: Single 4-Ohm
  • Composite IMPP Woofer Cone with Interlaced Aramid Fiber
  • Cone Reinforcement Arcs
  • Wide Roll, Three-Layer Fiber Woven Radial Surround
  • 4-Layer Aluminum Voice Coil
  • Polyester-Imide Resin Coated Voice Coil Wire
  • 12 Slit Aluminum Voice Coil Bobbin
  • Conex Spider
  • Damper Ring
  • Top Plate Standard
  • Projected Pole Yoke with Vented Pole
  • 83 oz. Double Mass High-Power Magnet Construction
  • Stamped Basket with Magnet Cover
  • Molded Gasket
  • Spring-Compression Wire Terminals
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer TS-W308D2 thumbnail
(newest, current model)
Pioneer TS-W307D2 thumbnail
(previous model, replaced by Pioneer TS-W308D2)
Pioneer TS-W306C thumbnail
(previous model, replaced by Pioneer TS-W307D2)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W306C Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W306C Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W306C Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W306C Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
400 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
18 - 500 Hz
Sensitivity
89 dB
Xmax (millimeters)
8.7 mm
Woofer Surround
Urethane Foam
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
6-1/8"
Cutout Diameter
10-7/8"

Item Details


Manufacturer:

Model Number:

TS-W306C

Weight:

16.00lbs

Internal SKU:

tsw306c

Internal Product ID:

5292

Product and How-to Videos


Customer Ratings & Reviews


Pioneer TS-W306C thumbnail image

5 star
65%
4 star
29%
3 star
6%
2 star
0%
1 star
0%



Durability
4.7
Value
5
Features
4.6
Design
4.5
Usability
5

Customer Reviews

Sort by:

Loading...

4 THUMBS UP

in my truck i used to have all pioneer (2 months ago) i had a 9600 mp, 2 510d amps, pushing 2 of these 306c subs. it hit so hard it broke my back glass out of my 83 chevy pickup. i had them in a probox and the box cracked. for the price of these, you cannot get ANY better. al my friends want me to trade them, even my friends cvr 12's.

By John on November 5, 2005

42 found this helpful


Pioneer

Nice and Clear Sound bass. The Best Brand you can own. I Have All Pioneer Brand And I Love it.Pioneer the Best....

By Jesse on January 9, 2006

42 found this helpful


Great Price

My friend bought these for his car but he payed 100 dollars a piece from a different store. They are nice subs though.

By Dorothy on December 28, 2005

32 found this helpful


michael mullins from wise va.

I have two of these sub on an power aucostic 1200 watt amp and they hit so hard if I turn the bass boost all the way up I can set off car alarms from the opposite side of the street and I am really not running that much power to them only 600 watts a peice. Thus these subs are well worth the money and they are my favorite brand.

By Michael on March 16, 2006

42 found this helpful


its awesome

i got 4 of these in my blazer there being powered by 2 1600 watt lanzer amps. it really bumps i have had kicker and rockford fostgate subs but these blow them out of the water and their cheap so u need to get these

By shaun on September 30, 2005

32 found this helpful


amazing

The subs hit really hard. Great value. I have 2 of these subs with a 200 watt amp. It sounds pretty good i am about to get a 1600 watt boss gt riot amp. it will bump really hard

By shaun on April 27, 2006

11 found this helpful


Not Bad...

These things are simply amazing… they sound great & have great lows… + they even hold a little juice… for this sub 2 not be their power house models… I put them on my Hifonics Gex X I Colossus !!! only in 4 ohm stereo & 2 12’s in a 4.0 gross cu ft sealed box + on a audiocontrol epicenter. So with that much air space & playing around 25 – to 45 hz they were under lots of mechanical stress. & they still held up… my X I colossus is a older (2 channel amp) that has a regulated power supply… so it’s continually kicking out a true 600w @ 4 ohms per channel… So they were also under lots of electrical stress as well… & they still survived. Best sub in entry to mid level classes for the price!!! My 4star rating is equal to 95% good…

By Dominic on May 14, 2006

8 found this helpful


I hook up 2 12" Pioneer TS-W306C for a frined with a 1200watt sony amp and the subs hit nice.

By Sergio on December 20, 2005

8 found this helpful


Off Da Hook

I bought 2 of these subz and lemme tell you that they are banging for da price, and they pioneer what else could you ask for.... A+

By Eddie on April 13, 2006

7 found this helpful


this sub pounds

When i first got it i put it in a ported box and and it hits real hard and smooth its loud, these dont need hardly any power to thump. I cant wait til i get an amp. smooth clear sq! Great price!

By aaron on December 5, 2005

6 found this helpful
