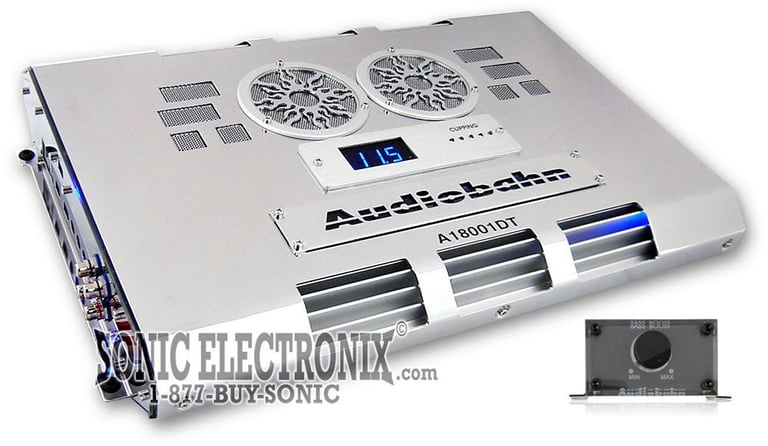

Audiobahn A18001DT

3600W Max, Class D MonoBlock Amplifier

Product videos
highlight-star-icon

Class D Monoblock Amplifier • 3600W Max • 1800W RMS @ 1 ohm • Blue Digital Volt Meter Display • Dual Cooling Fans • 4-way protection circuitry • Variable Low-Pass Crossover: 50-150Hz • Cobalt blue illumination (with on/off selector)

Learn more about the a18001dt

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

a18001dj thumbnail

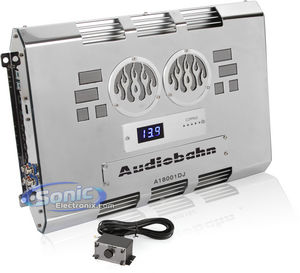

Audiobahn A18001DJ

OUR PRICE: $419.99

View item

Product Highlights


Class D Monoblock Amplifier • 3600W Max • 1800W RMS @ 1 ohm • Blue Digital Volt Meter Display • Dual Cooling Fans • 4-way protection circuitry • Variable Low-Pass Crossover: 50-150Hz • Cobalt blue illumination (with on/off selector)

Description


  • 3600W Max, Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 600 watts x 1 chan.
    • 2 ohms: 1200 watts x 1 chan.
    • 1 ohm: 1800 watts x 1 chan.
  • Max Power Output: 3600 watts @ 1 ohm
  • 4-way Protection Circuitry: Thermal, Short Circuit, Overload and DC Offset
  • Cobalt Blue LED Illuminated heat sink design (on/off switch for your preference)
  • Large Digital Volt-meter Display
  • Preamp outputs
  • Dual Cooling Fans
  • Chrome Flame Cooling Fan Grill covers included (other optional designs available and sold separately)
  • Multi-Stranded Power Supply Toroids
  • Double Sided Glass Epoxy Circuit Board
  • High gloss chrome plated finish
  • Variable Bass Boost: 0-18dB at 40-100Hz
  • Variable Low-Pass Crossover: 50-150Hz
  • Variable Subsonic Filter: 15-40Hz
  • Frequency Response: 15-150Hz
  • THD: 0.05%
  • Variable Phase Control: 0 or 180°
  • Dimensions: 16-7/8"L x 11-15/16"W x 2-1/2"H
  • 1/0-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • 1-year SonicElectronix.com warranty

Product history:

Audiobahn A18001DJ thumbnail
(newest, current model)
Audiobahn A18001DT thumbnail
(previous model, replaced by Audiobahn A18001DJ)

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
1200 watts x 1 channel
RMS Power @ 1 ohm
1800 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3600 watts
Total RMS Power Output
1800 watts
Minimum Impedance Unbridged
1 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB

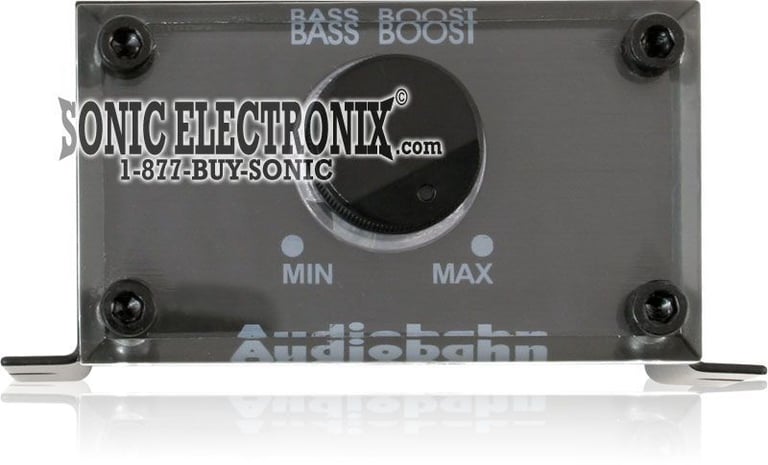

Remote bass/level controller
Yes
Fuse Rating
30A x 4
Warranty and Return Policy

Item Details


Manufacturer:

Model Number:

A18001DT

Weight:

24.00lbs

Internal SKU:

a18001dt

Internal Product ID:

58

Product and How-to Videos


Customer Ratings & Reviews



5 star
83%
4 star
0%
3 star
8%
2 star
0%
1 star
8%



Durability
4.6
Value
4.4
Features
4.4
Design
4.5
Usability
4.5

Customer Reviews

Sort by:

Loading...

Powerful Amp but....be careful!

I have this amp hooked up to one Cerwin Vega Stroker 12" Sub, in a 2007 Ford Fusion. I have a two battery setup to take some of the strain from the alternator. Howbeit, the amp slams the stroker like nothing you have ever seen, it just moves the cone in almost biblical proportions. I have had this amp 3 months now, and I went from 14.4 volts on my alternator to now a 13.1 and looking into getting my alternator rebuilt. This all happened in just three months time! That 1.3 volts has caused the system to go from a rocking 1200 watts, to just over 800 now with the loss of voltage. A factory Fusion alternator has a 150 amp output, and that's a lot for a car! This amp draws a massive 150 amps!!! So it draws the same amount of amperage the alternator is putting out!! Its fuse rating is 30x5! So its definitely an alternator killer! My advice is to make sure your vehicle can handle this beast or you'll be stuck on the side of the road one day wondering what happened! Very strong amp!

By Thomas on August 4, 2008

3

found this helpful.

*EDITED FOR CONTENT*

I had this amp hooked to 2 alum 12q subs and the amp totaly fried!.... So I had it replaced and guess what? The Next one fried also!!! It was not do to improper install because It Was installed by a pro. I had to prove it to get the 2nd one! DONT WASTE YOUR HARD EARNED MONEY ON THIS PIECE OF S___!

By David on July 9, 2005

3

found this helpful.

NeVaRo

1800 RaW Wattage.This iz The BomB

By Nevaro on April 12, 2004

3

found this helpful.

Really Nice

I have owned this amp for two weeks and have it hooked up to my two 12 inch L7s and it slams. They hit 150.4 db with this amp. I recomend you have really nice subs if you want this amp. TRUE POWER. Worth the money any day!!

By Billy Da Kid on March 20, 2012

2

found this helpful.

Get it!

This amp is awesome, it's sleek, shiny, and best of all, powerful. I got it hooked up to 2 awes12ps' and it bumps like crazy. Get one and you'll be satisfied.

By Kyle on July 25, 2007

2

found this helpful.

Audiobahn isent responsible for screw ups

I own numerous audiobahn products and they have some of the best amplifier board layouts in the industry. Their class D amps are the best out there next to hifonics. The 1800D is no exception, this amp cost 500 bucks for a reason. The sheer odds you could screw up two seprate amps that came from one of the best facilties in the world is next to nothing, old guy must have not had expirence with "real equipment" odds are he somehow managed put a 0.5 ohm load on it OR he couldent supply the 160+ amps this amplifier requires.

By Timothy on July 9, 2005

2

found this helpful.

GOOD AMP

THIS AMP IS GREAT AND NEVER OVER HEATS ON ME. YOU NEED SOME GOOD SUBS SO THEY CAN HANDLE THE POWER.

By MARCO on March 12, 2005

2

found this helpful.

Nice Stuff

My balls will never be the same...

By PATRICK on August 9, 2004

2

found this helpful.

BUY THIS AMP !!!!!

Best amp I ever had, never gets hot or shuts off, built in fans keeps everything cool. After pushing this amp to the limit for about an hour, it is still cool to the touch, extreme power, I have it pushing
2 15" kickers and I can not turn it all the way up. It will rattle my car loose...Must have amp.

By Randolph on March 24, 2008

1

found this helpful.

Awesome Refurbished Amp

I bought this amp from Sonic Electronix refurbished about a week ago. Best thing i ever did. This amp hits HARD. Its hooked up to two audiobahn 1208t's. Well worth the money, drains almost no power being class D, and stays amazingly cool even through heavy long lived loads.

By Daniel on October 25, 2007

1

found this helpful.
