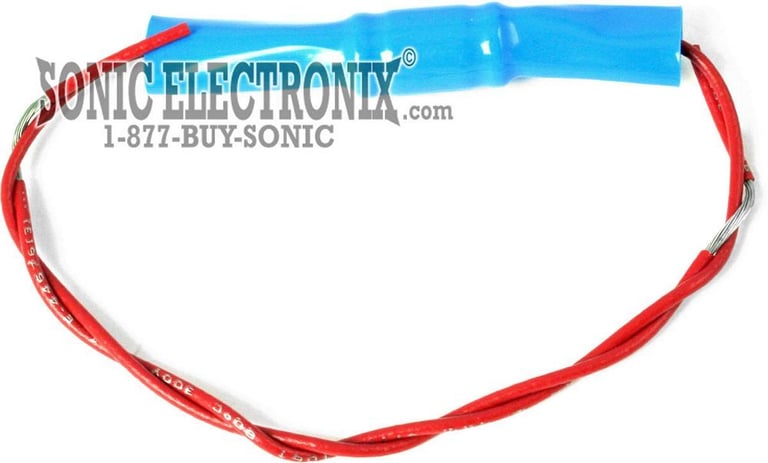

PAC BB-5

Bass Blocker / Passive Crossover; Removes 0-2.8kHz at 4 ohms, 0-1.4kHz at 8 ohms

PAC
Shop all PAC
highlight-star-icon

Bass Blocker • Removes Low Frequency Sounds • 0-2.8 kHz @ 4 Ohm • 0-1.4 kHz @ 8 Ohm • Red Wire Color

Learn more about the bb5

We apologize

This item has been discontinued


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

TS-A6991F main

Pioneer TS-A6991F

1400W Peak (240W RMS) 6x9" A-Series 5-Way Coaxial 4-ohm Speakers

9
-13.34%

$129.99

List price $150.00

Limited time!
TS-G1620F main

Pioneer TS-G1620F

600W Peak (80W RMS) 6.5" G-Series 2-Way Coaxial 4-ohm Car Speakers

13
-26.15%

$48.00

List price $65.00

CV62BM main

Cerwin-Vega CV62BM

6.2” Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

4
-16.67%

$169.99

List price $203.99

Pioneer DMH-2000NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, Alexa (Sirius XM Ready)

2

$429.99

Description


PAC brand icon

Authorized dealer

  • Bass Blocker Passive Crossover
  • Remove or "cut out" sounds that are below a certain frequency
  • Frequencies Blocked:
    • 4 Ohm: 0-2800 Hz
    • 8 Ohm: 0-1400 Hz
  • Designed to enhance the performance and power handling of tweeters and midrange speakers by removing frequencies beyond their capabilities
  • Easily handles power of up to 50 watts
  • Leads are color coded to prevent misapplication
  • Encased in shrink tube with wire leads for easy installation
  • Wire Color: Red
  • 1-year Manufacturer's warranty
Crossover Frequency (Hertz) 8 Ohm 4 Ohm 2 Ohm
80
248.44 uF
496.88 uF
993.75 uF
100 198.75 uF 397.50 uF 795.00 uF
120 165.63 uF 331.25 uF 662.50 uF
150
132.50 uF
265.00 uF
530.00 uF
200
99.38 uF
198.75 uF
397.50 uF
280
70.98 uF
141.96 uF
283.93 uF
400
49.69 uF
99.38 uF
198.75 uF
600
33.13 uF
66.25 uF
132.50 uF
800 24.84 uF 49.69 uF 99.38 uF
1000 19.88 uF 39.75 uF 79.50 uF
1200
16.56 uF
33.13 uF
66.25 uF
2000 9.94 uF 19.88 uF 39.75 uF
4000 4.97 uF 9.94 uF 19.88 uF
5000
3.98 uF
7.95 uF
15.90 uF
6000
3.31 uF
6.63 uF
13.25 uF
8000
2.48 uF
4.97 uF
9.94 uF
10000 1.99 uF 3.98 uF 7.95 uF
12000
1.66 uF
3.31 uF
6.63 uF

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

BB-6PR small

PAC BB-6PR (Black)

Bass Blockers • Removes Low Frequency Sounds • 0-5.6 kHz @ 4 Ohm • 0-2.8 kHz @ 8 Ohm • Black Wire Color

(12)

$12.99

List price $19.00

BB-1PR small

PAC BB-1PR

&bull Pair of Bass Blockers for 6" x 9" Speakers
• Blocks 0-300Hz @ 4 Ohm
• Blocks 0-150Hz @ 8 Ohm
• Filters Out Unwanted Frequencies Towards Speakers

(13)

$15.99

List price $29.00

BB-4PR small

PAC BB-4PR (Orange)

&bull Pair of Bass Blockers For 4" Speakers
• Blocks 0-1200 Hz @ 4 Ohm
• Blocks 0-600 Hz @ 8 Ohm
• Encased in Durable Plastic Casing
• Handles Power up to 50 Watts

(7)

$12.99

List price $19.00

BB-2PR small

PAC BB-2PR (Green)

• Pair of Bass Blockers For 6" Speakers
• Blocks 0-600 Hz @ 4 Ohm
• Blocks 0-300 Hz @ 8 Ohm
• Encased in Durable Plastic Casing
• Handles Power up to 50 Watts

(8)

$16.99

List price $29.00

BB99 small

The Install Bay BB99

• Metra Bass Blocker
• Non-Polar 10% Capacitor
• 4 Ohm: 400Hz
• 8 Ohm: 200Hz
• 100 Volts
• 99 uf
• White Heat Shrinked Capacitor
• Yellow Color Coded Silver Wire

(5)

$9.99

List price $11.99

Specifications & Details


Passive Crossover Specifications
Frequencies Blocked (4 ohms)
0 - 2,800 Hz
Frequencies Blocked (8 ohms)
0 - 1,400 Hz
Maximum Recommended Power Handling
50 watts
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

PAC

Model Number:

BB-5

Weight:

0.25lbs

Internal SKU:

bb5

Internal Product ID:

5920
