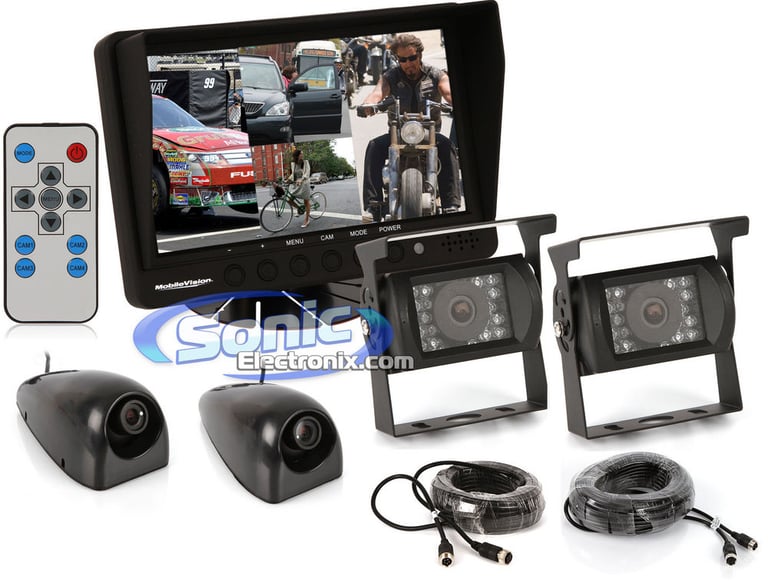

MobileVision M135C-4 4 CCD Camera System

Complete Front, Rear, & Side View Camera System for RVs, Motorhomes and Trucks

EXCLUSIVE
Product videos
highlight-star-icon

• Complete Front, Rear, & Side View Camera System for Motorhomes and Trucks
• 7" Color LCD Safety Quad Camera Monitor with 4 Camera Input
• Rear View Color CCD Camera w/ Black Housing
• 35 ft Monitor Cable for MobileVision Cameras and Monitors
• 70 ft Monitor Cable for MobileVision Cameras and Monitors

Learn more about the m135c4_ccd

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

95-7526B main

Metra 95-7526B Dash Kit

Install a new Double-DIN car stereo in select 2014-2018 3

-10.00%

$89.99

List price $99.99

40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

82-7501 main

Metra 82-7501

Speaker Brackets for select 2013-2023 vehicles from Mazda - Pair

3
-48.85%

$21.99

List price $42.99

70-7905 main

Metra 70-7905 Wiring Harness

Install a New Car Stereo in select 2016-2024 vehicles from Mazda

-11.12%

$23.99

List price $26.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Product Highlights


• Complete Front, Rear, & Side View Camera System for Motorhomes and Trucks
• 7" Color LCD Safety Quad Camera Monitor with 4 Camera Input
• Rear View Color CCD Camera w/ Black Housing
• 35 ft Monitor Cable for MobileVision Cameras and Monitors
• 70 ft Monitor Cable for MobileVision Cameras and Monitors

Description


MobileVision brand icon

Authorized dealer

360° Protection

Tired of having limited view when driving your motorhome or truck? This Sonic Electronix exclusive deal offers full 360° protection with front, rear, and side view cameras. This combo also comes with a 7" TFT LCD Monitor with wide angled viewing for optimum visual coverage. The monitor comes with a multi-directional pedestal for mounting on flat or angled surfaces. The monitor allows you to view a normal image or a mirror image with the push of a button. A convenient credit card size remote is included giving you free rein to switch between cameras and modes. The package contains four total cameras meaning you can back-up with no complications and monitor all sides of the vehicle from one single source. Pick up this MobileVision exclusive package today!

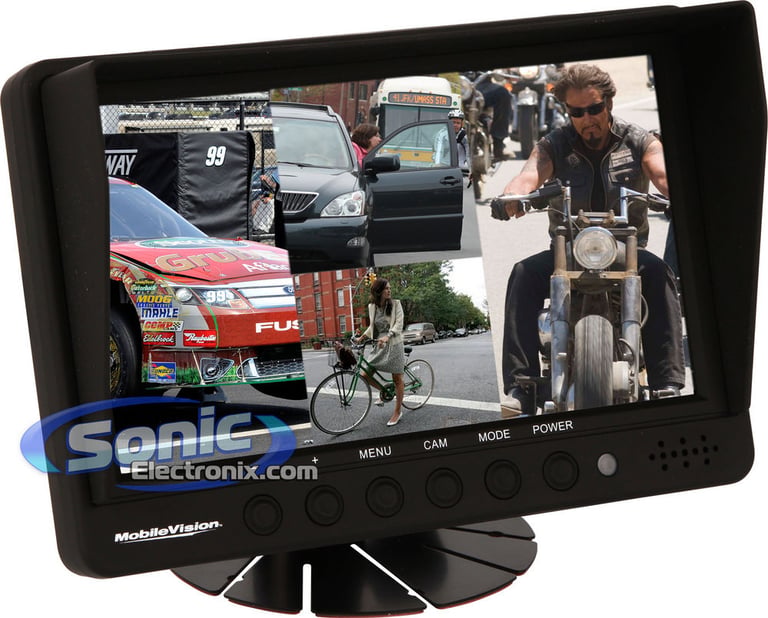

MobileVision M135C-4

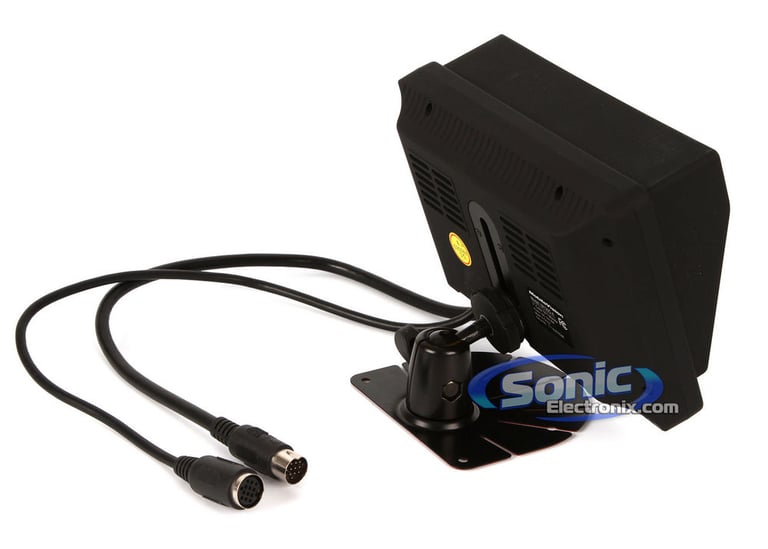

7" Color LCD Safety Quad Camera Monitor with 4 Camera Input
Quantity: 1

General Features:

  • 7" TFT-LCD monitor with wide viewing angle

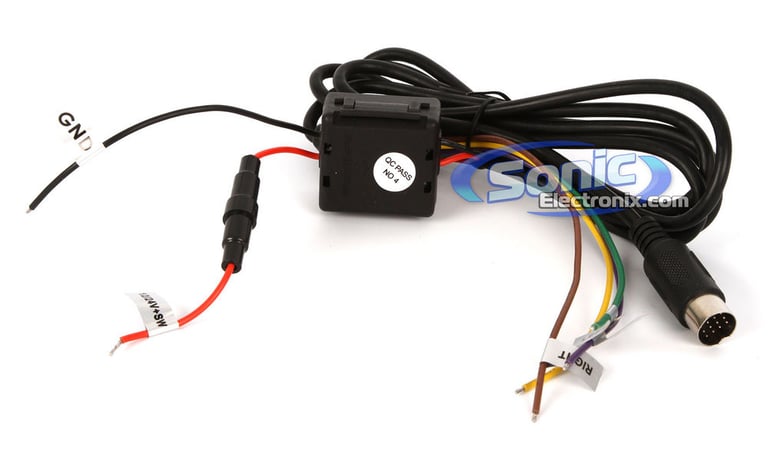

  • 4 Camera inputs with reverse and turn signal triggering for automatic camera switching
  • Rear Camera input supports backup cameras with audio
  • Built in Speaker for rear camera audio
  • Manual normal image and mirror image monitor view switching
  • Picture Resolution: 800 x 480 pixels
  • Display Format: 16:9
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Multiple Viewing Angles:

  • Front Camera
  • Left Turn Signal Camera
  • Right Turn Signal Camera
  • Rear Backup Camera
  • Dual View 1 (right and left cameras)
  • Dual View 2 (front and rear cameras)
  • Quad View 1 and Quad View 2

Supplied Accessories:

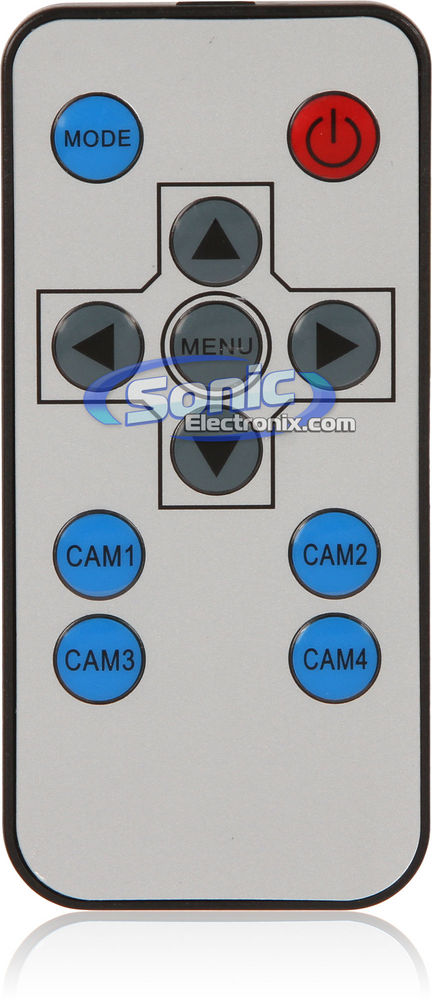

  • Credit card size remote control

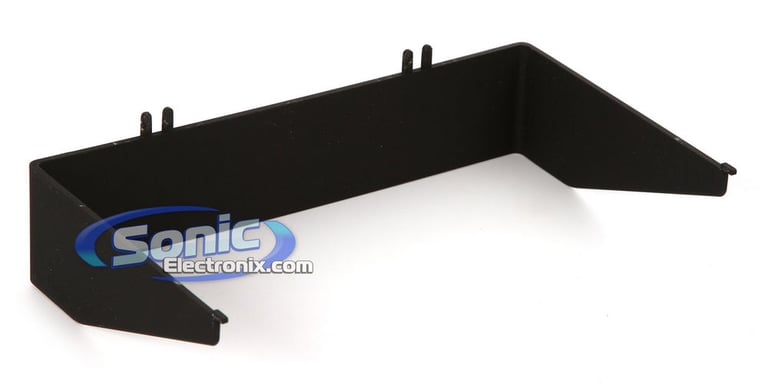

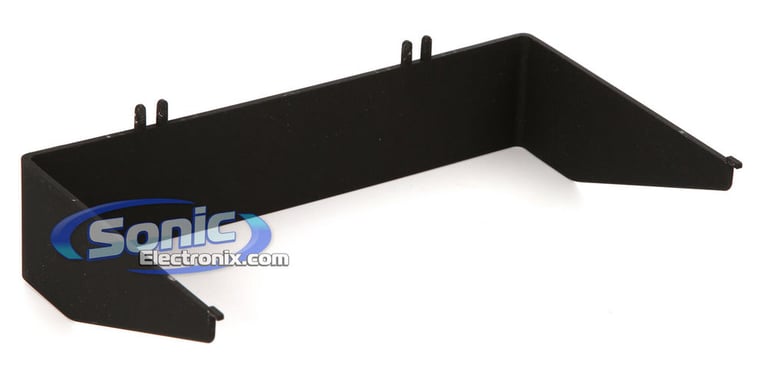

  • Detachable sun shield

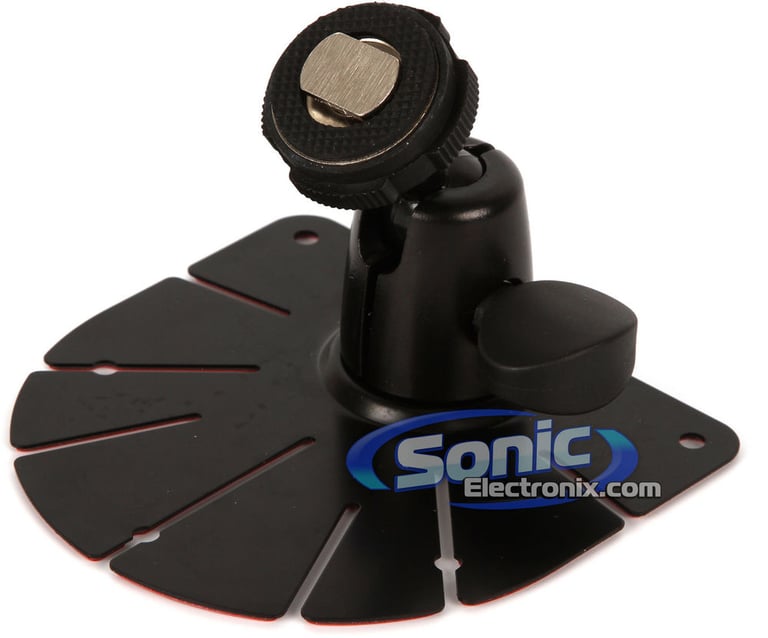

  • Multi-directional pedestal mounting on flat surfaces as well as angled or contoured surfaces

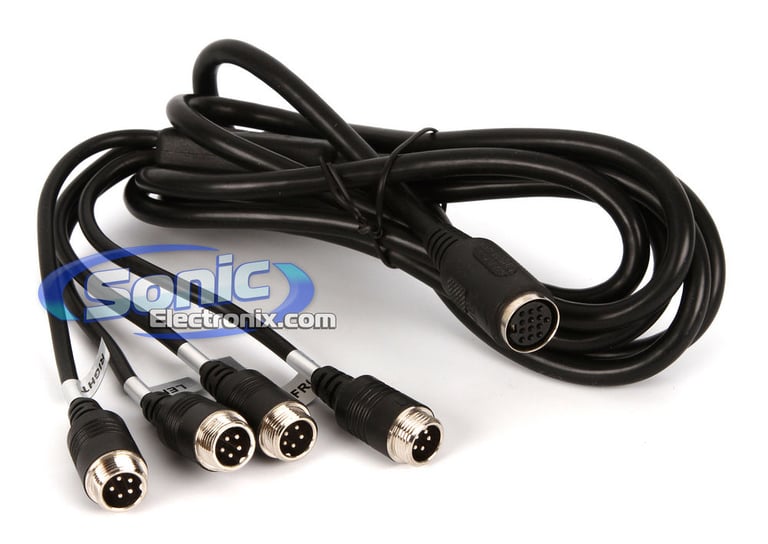

Cameras And Connection Cables:

The following waterproof cameras and connection cables are available to use with this monitor

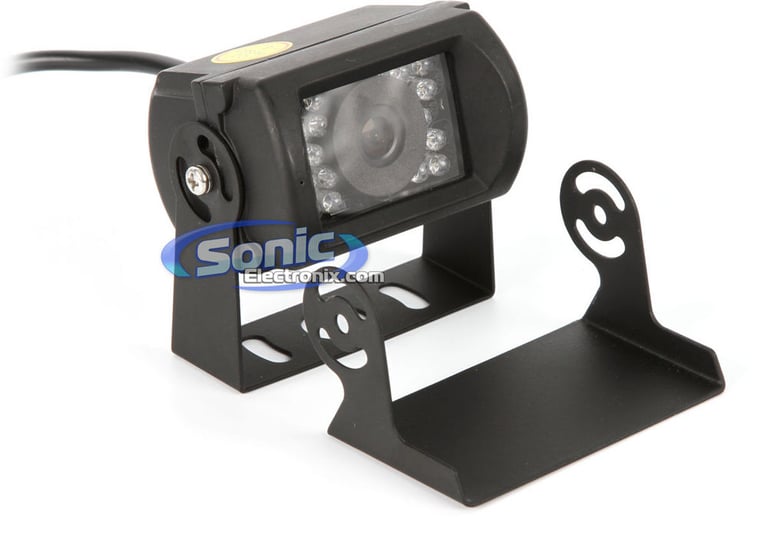

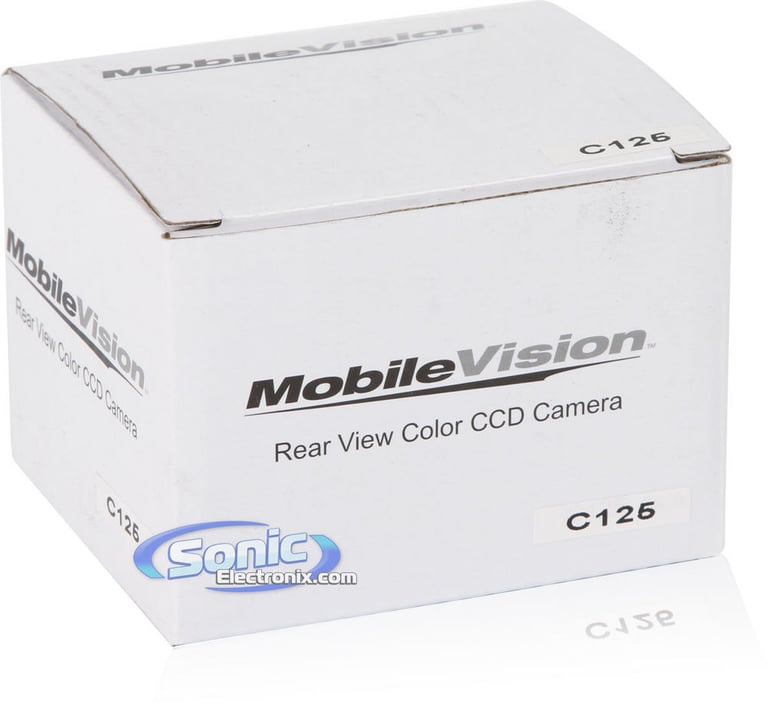

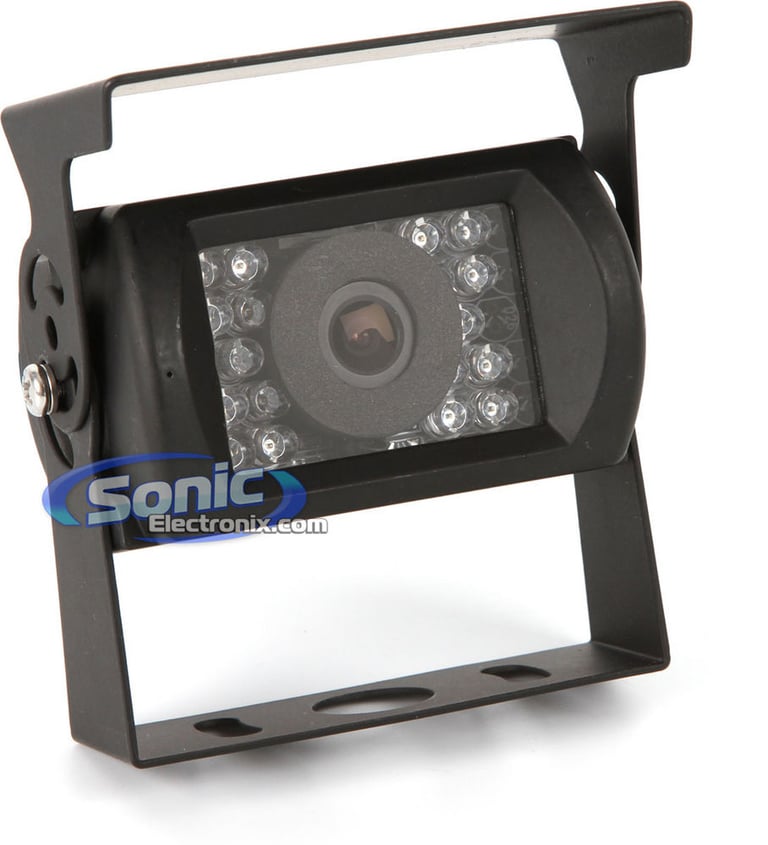

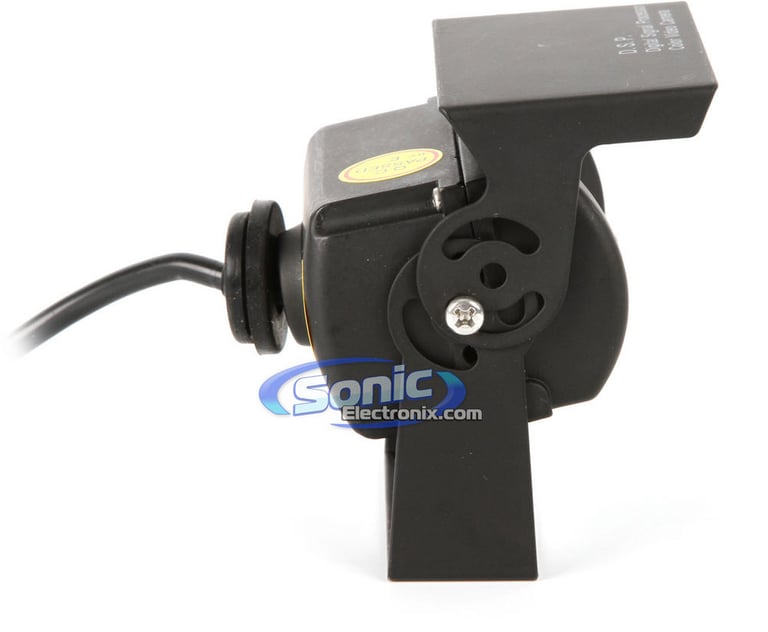

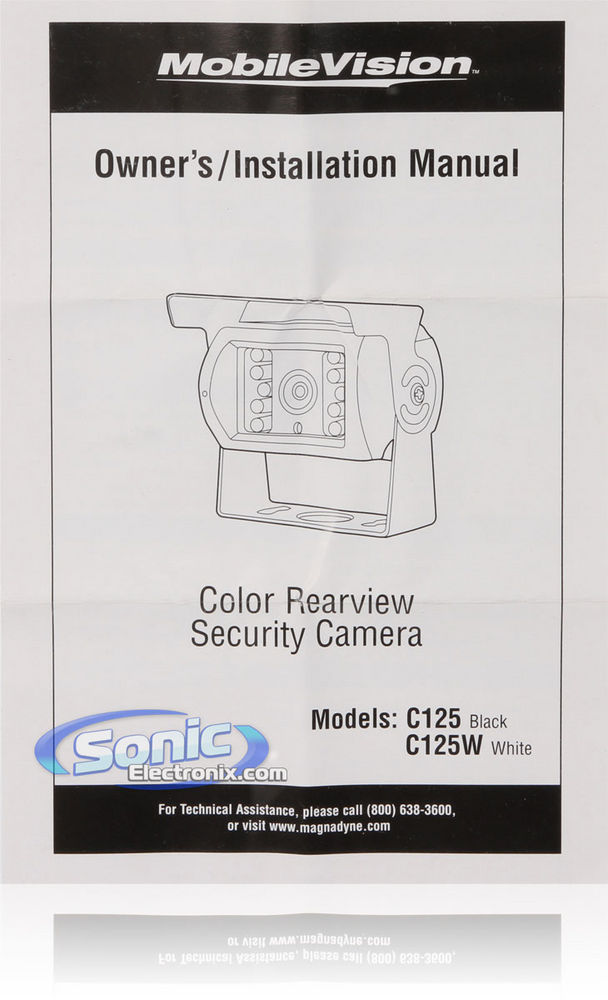

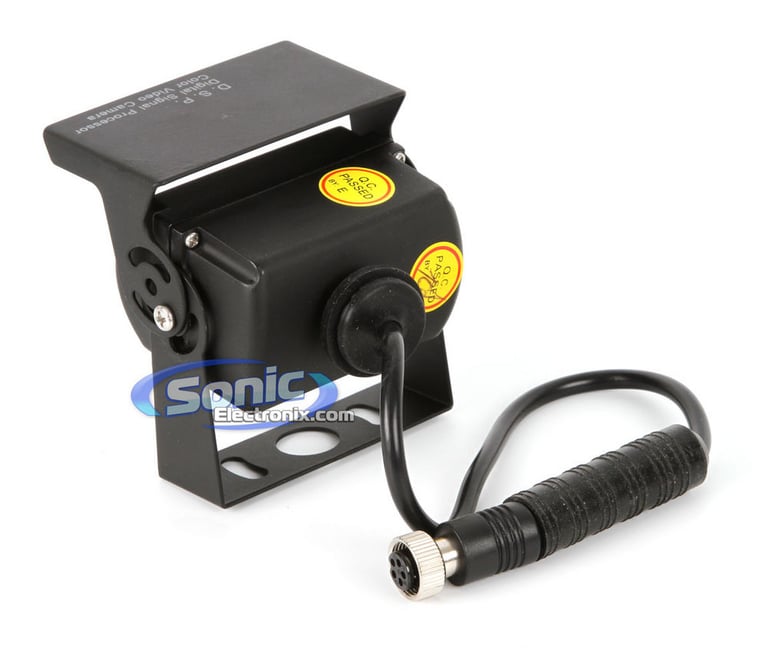

MobileVision C125
Rear View Color CCD Camera w/ Black Housing
Quantity: 2
Camera Features:
  • Rear View Safety Back-Up Camera
  • 1/3" Color CCD
  • Built-in Microphone
  • Adjustable viewing angle
  • Aluminum die-cast waterproof housing
  • Removable wind deflector
  • Illumination LEDs
  • Photo sensor
  • Black Housing
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Camera Specifications:
  • Image Sensor: 1/3" Sharp Color CCD
  • Board Lens: 2.8 mm
  • Resolution: 420 TV Lines
  • S/N Ratio: 48dB (AGC On)
  • Sync System: Internal Synchronization
  • Minimum Illumination: 0Lux (IR LED On)
  • Video Output: 1.0Vp-p 75 ohm
  • IR Project Distance: 15 Meters
  • Water Resistance: Ip67
  • Power Consumption: 300 mA
  • Camera & Bracket Weight: 350g
  • Operating Temperature: -20°C to -70°C

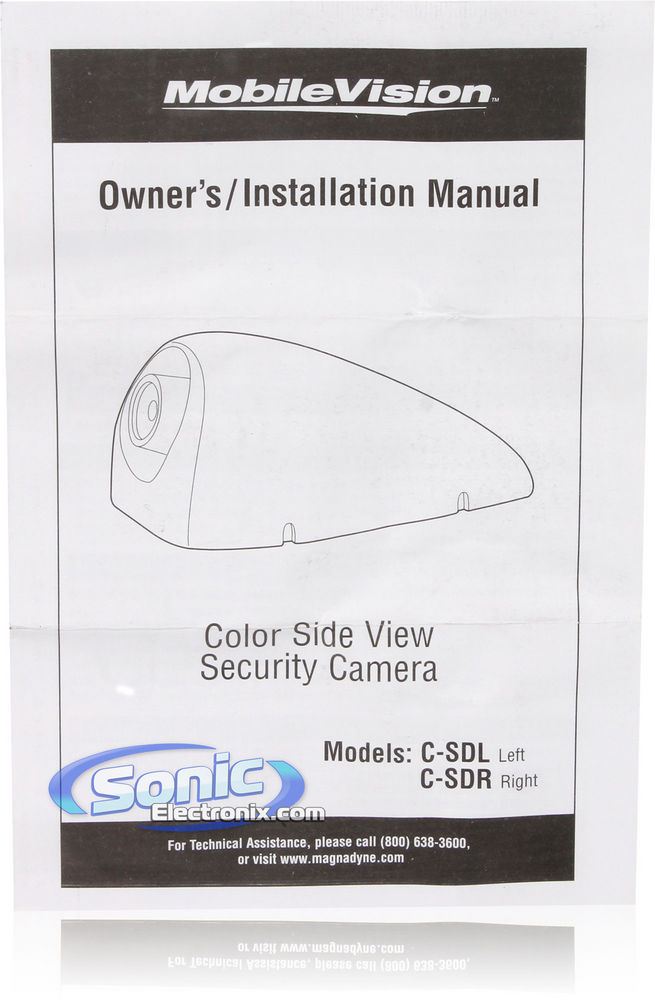

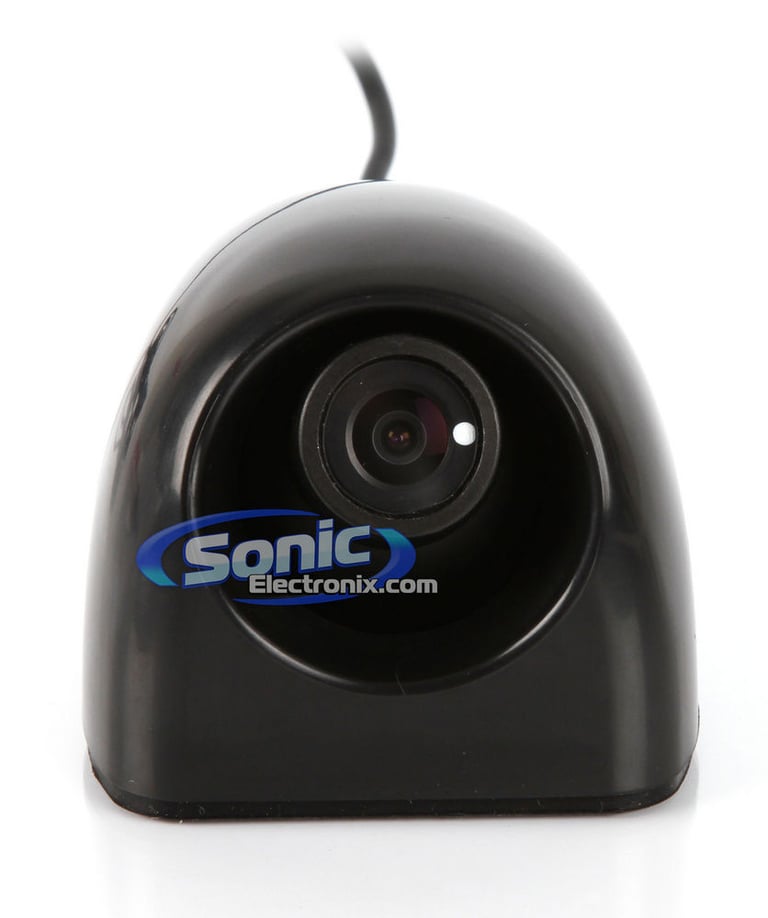

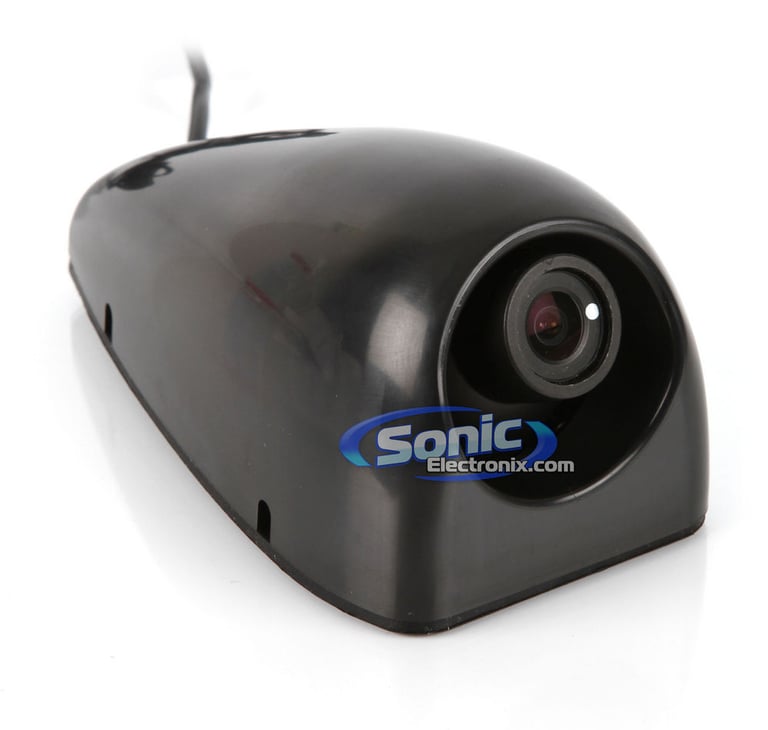

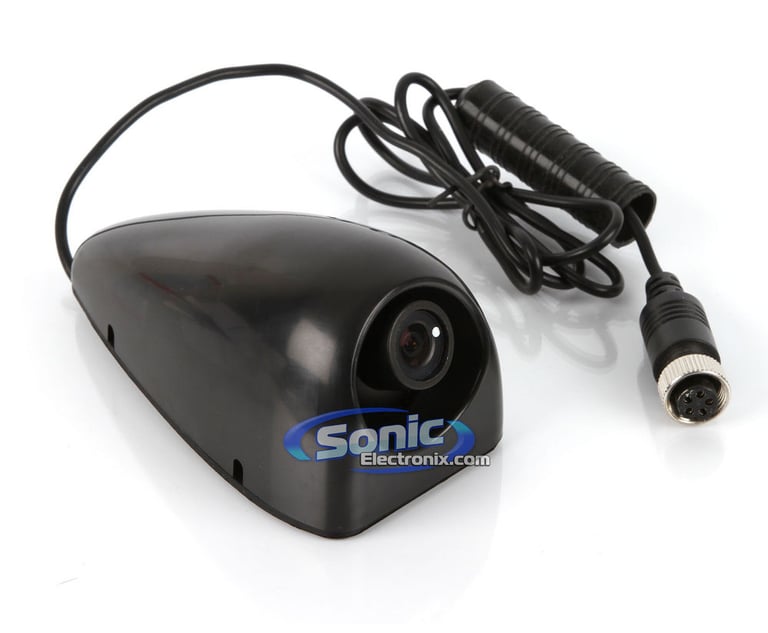

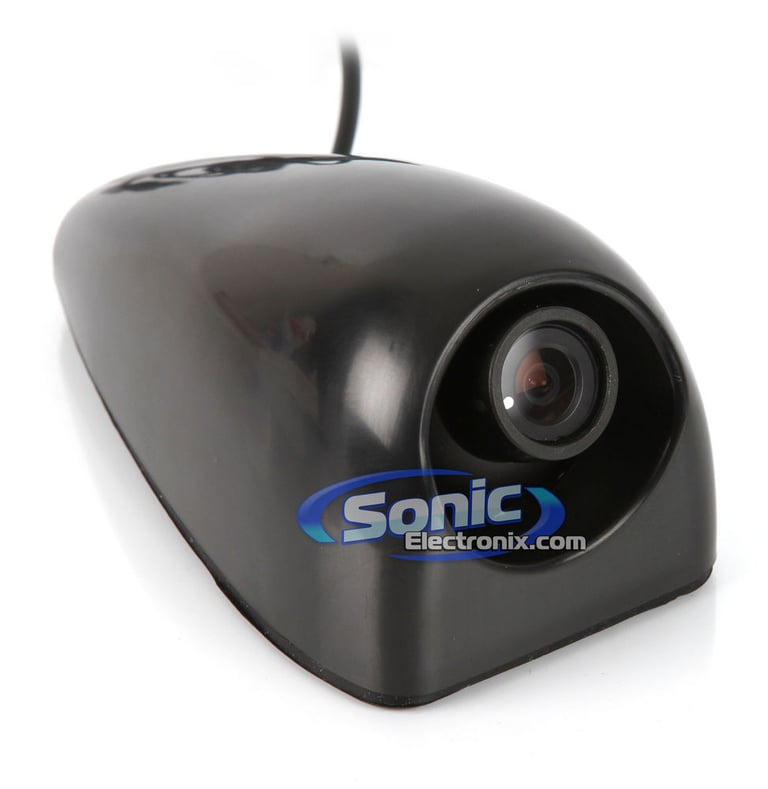

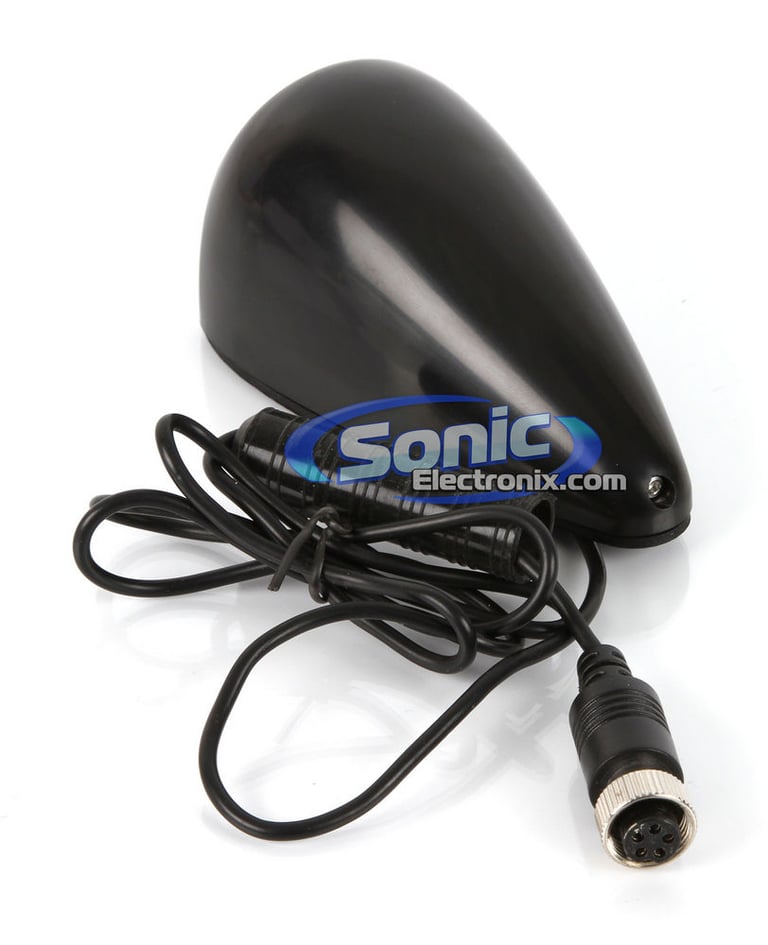

MobileVision C-SDL
Compact Color CCD Side View Camera (Left Side)
Quantity: 1
General Features:
  • Custom side mount 1/3" color camera
  • Specifically designed for left (model: C-SDL) side mounting
  • Easy mounting
  • Waterproof camera and housing
  • Reverse image
  • Night vision
  • 92°-120° adjustable viewing angle
  • Paintable housing
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Specifications:
  • Image Sensor: 1/3" Sharp Color CCD with Low Illumination
  • Board Lens: 2.8 mm
  • Resolution: 420 TV Lines
  • S/N Ratio: 48dB (AGC On)
  • Diagonal Lens Angle: 120°
  • Sync System: Internal Synchronization
  • Minimum Illumination: 1 Lux
  • Video Output: 1.0Vp-p 75 ohm
  • Water Resistance: Ip66
  • Power Consumption: 120 mA
  • Camera & Bracket Weight: 350g
  • Operating Temperature: -20°C ~ -70°C

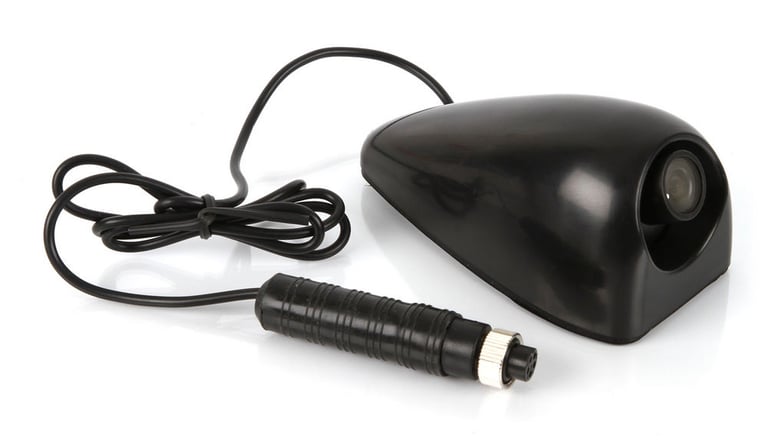

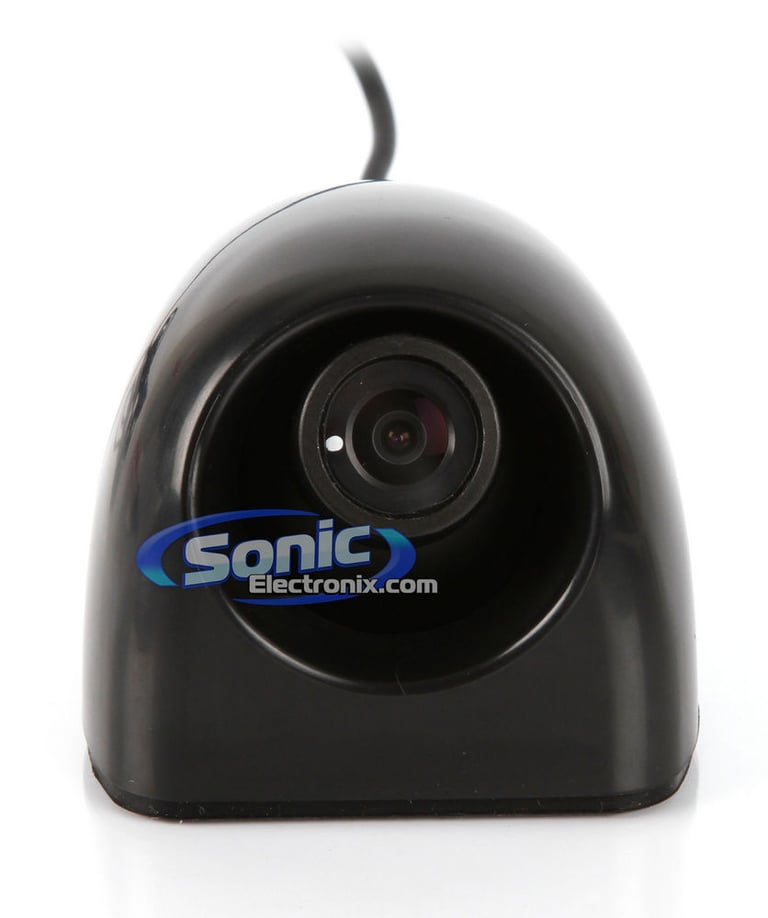

MobileVision C-SDR
Quantity: 1
General Features:
  • Custom side mount 1/3" color camera
  • Specifically designed for right (model: C-SDR) side mounting
  • Easy mounting
  • Waterproof camera and housing
  • Reverse image
  • Night vision
  • 92°-120° adjustable viewing angle
  • Paintable housing
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Specifications:
  • Image Sensor: 1/3" Sharp Color CCD with Low Illumination
  • Board Lens: 2.8 mm
  • Resolution: 420 TV Lines
  • S/N Ratio: 48dB (AGC On)
  • Diagonal Lens Angle: 120°
  • Sync System: Internal Synchronization
  • Minimum Illumination: 1 Lux
  • Video Output: 1.0Vp-p 75 ohm
  • Water Resistance: Ip66
  • Power Consumption: 120 mA
  • Camera & Bracket Weight: 350g
  • Operating Temperature: -20°C ~ -70°C

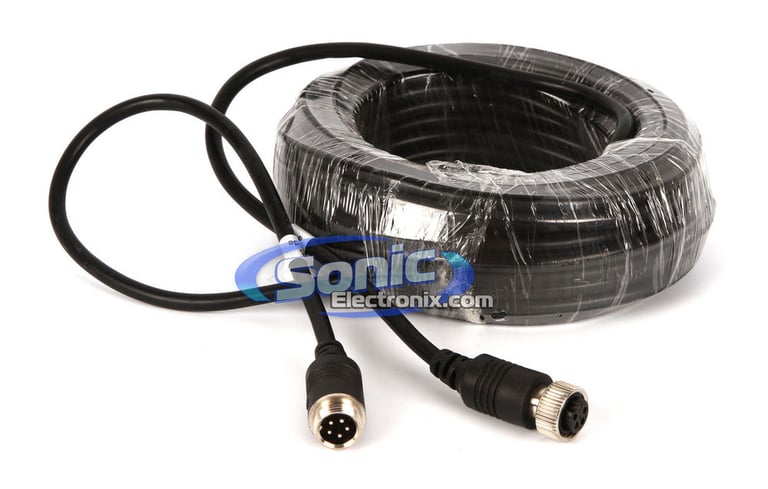

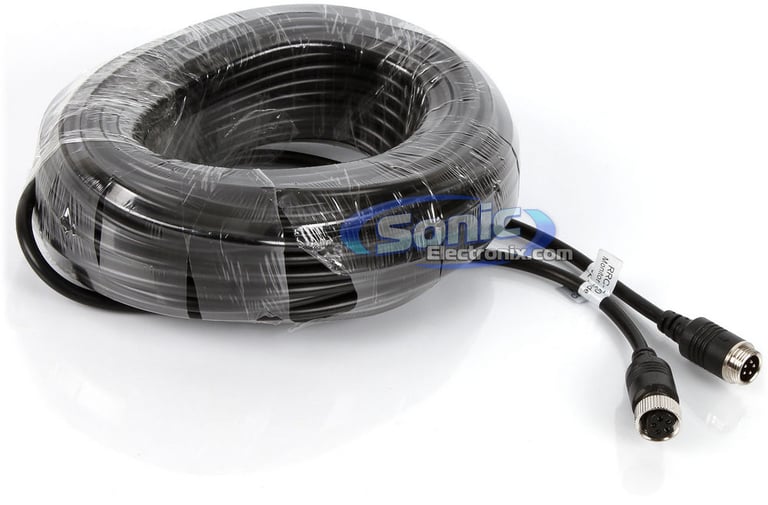

MobileVision RRC-35
35 ft Monitor Cable for MobileVision Cameras and Monitors
Quantity: 2

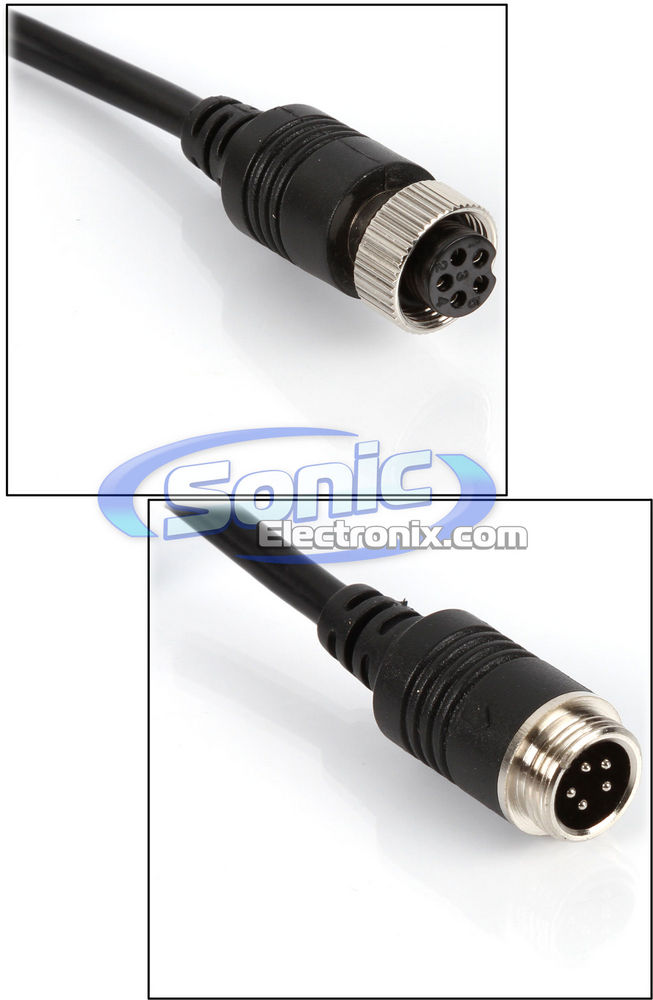

Cable Features:
  • Safety Camera Connection Cable
  • Monitor cable for MobileVision cameras and monitors
  • Secure screw type connectors
  • Cable includes the microphone audio connection
  • Length: 35 ft
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
MobileVision RRC-70
70 ft Monitor Cable for MobileVision Cameras and Monitors
Quantity: 2
Cable Features:
  • Safety Camera Connection Cable
  • Monitor cable for MobileVision cameras and monitors
  • Secure screw type connectors
  • Cable includes the microphone audio connection
  • Length: 70 ft
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
