Audiobahn A2300HCT

4800W Max, High Current 2-Channel Amplifier

Product videos
highlight-star-icon

4800W Max, High Current Series 2-Channel Amplifier with Bass Remote • 2400W RMS @ 1 ohm • 1200W RMS @ 2 ohm • 600W RMS @ 4 ohm • Blue Illuminated VU Meter • Beautiful Chrome Design Heatsink • S/N Ratio: 100dB • Bass Boost: 0-18dB

Learn more about the a2300hct

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

a2300hcj thumbnail

Audiobahn A2300HCJ

OUR PRICE: $519.99

View item

Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

82-8900 main

Metra 82-8900

6.5" Multi Speaker Adapter for select 2005-2021 vehicles from Subaru

1
-55.90%

$14.99

List price $33.99

SU6 main

PAC SU6

Install a New Car Stereo and Retain the Factory Antenna in select 2005-2014 vehicles from Subaru

-58.33%

$10.00

List price $24.00

70-8902 main

Metra 70-8902 Wiring Harness

Install a new car stereo and retain factory amplifier in select 2012-2014 Outback and Legacy

-37.51%

$19.99

List price $31.99

95-8903B main

Metra 95-8903B Dash Kit

Install a new Double-DIN car stereo in select 2010-2014 Outback and Legacy (Matte Black)

3
-56.77%

$15.99

List price $36.99

SBK924P main

American International SBK924P

Single DIN or Double DIN Stereo Dash Kit for select 2010-2014 Legacy and Outback

2
-65.93%

$14.99

List price $44.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
-12.50%

$69.99

List price $79.99

Product Highlights


4800W Max, High Current Series 2-Channel Amplifier with Bass Remote • 2400W RMS @ 1 ohm • 1200W RMS @ 2 ohm • 600W RMS @ 4 ohm • Blue Illuminated VU Meter • Beautiful Chrome Design Heatsink • S/N Ratio: 100dB • Bass Boost: 0-18dB

Description


  • 4800W Max, High-Current 2-Channel Car Amplifier
  • RMS Power Rating:
    • 300 watts x 2 chan. @ 4 ohm
    • 600 watts x 2 chan. @ 2 ohm
    • 1200 watts x 2 chan. @ 1 ohm
    • Bridged:
      • 600 watts x 1 chan. @ 4 ohm
      • 1200 watts x 1 chan. @ 2 ohm
      • 2400 watts x 1 chan. @ 1 ohm
  • Max Power Output: 4800 watts @ 1 ohm

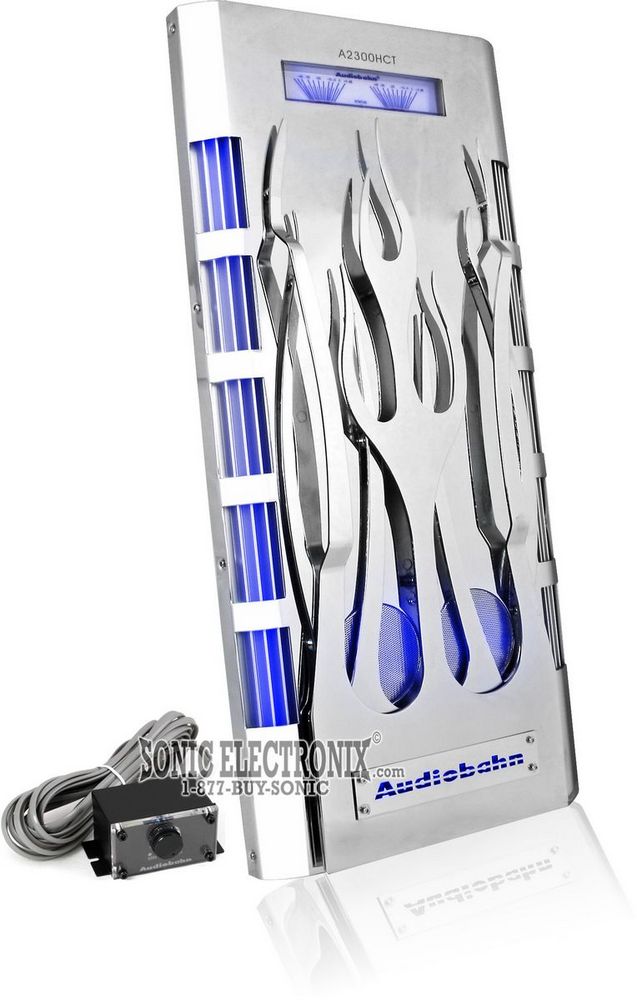

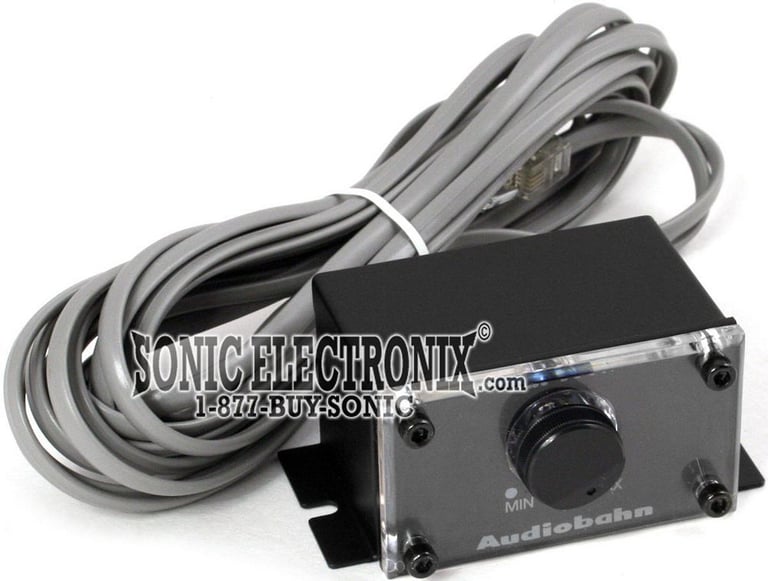

  • Wired Remote Bass Level Control Included with Blue Illuminated Knobs
    • Also illuminates red to indicate when amplifier is clipping
  • High-Current, Non-Regulated Power Supply
  • Preamp Outputs

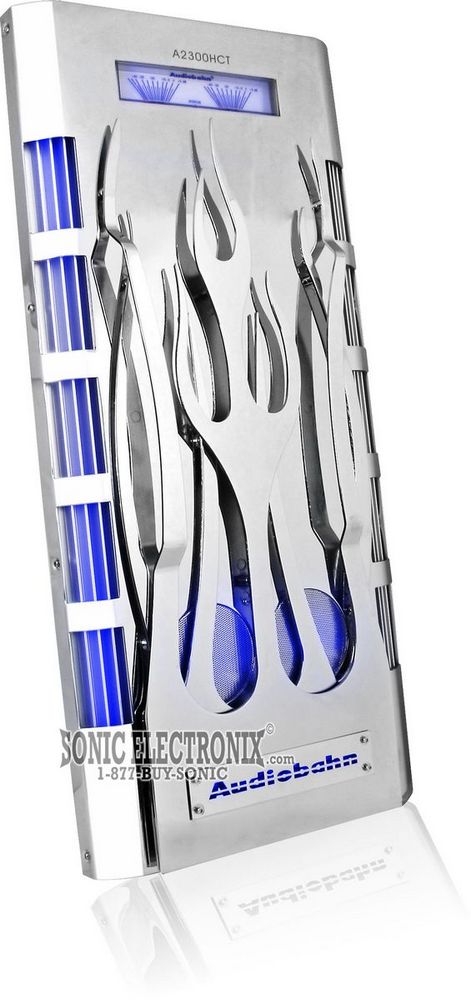

  • Cobalt Blue LED Illuminated Heat Sink Design (on/off switch for your preference)
  • Thermal Regulated, Air Induction Dual Cooling Fans
  • Double Sided PCB (Circuit Board)
  • High Gloss Chrome Plated Finish
  • Unique, Clean Chrome Fire/Flame Design
  • Blue Illuminated VU Meters Indicating Output Response

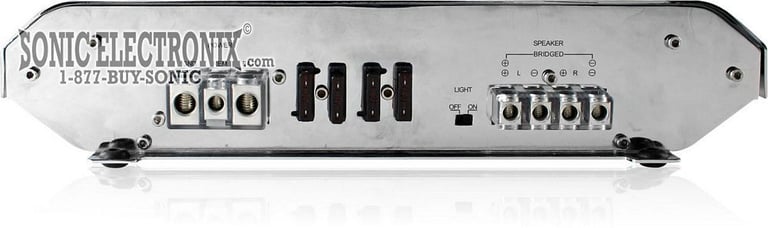

  • Clear Power and Speaker Connectors

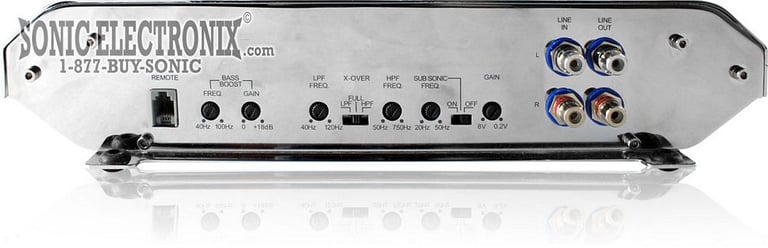

  • Variable Bass Boost: 0-18dB @ 40-100Hz
  • Variable Low-Pass Crossover: 40-120Hz
  • Variable High-Pass Crossover: 50-750Hz
  • Variable Subsonic Filter: 20-50Hz
  • Signal-to-Noise Ratio: 100dB
  • Frequency Response: 10Hz-40kHz
  • THD: 0.05%
  • Channel Separation: 50dB
  • Input Sensitivity: 200mV - 8V
  • 1/0- or 2-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Dimensions: 25-5/8" L x 11-15/16" W x 2-1/2" H
    • Note: Flames add an additional 1" to the height
  • 1-year SonicElectronix.com warranty

Product history:

Audiobahn A2300HCJ thumbnail
(newest, current model)
Audiobahn A2300HCT thumbnail
(previous model, replaced by Audiobahn A2300HCJ)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
300 watts x 2 channel
RMS Power @ 2 ohms
600 watts x 2 channel
RMS Power @ 1 ohm
1200 watts x 2 channel
Bridged RMS Power
2400 watts x 1 channel
Amplifier Specifications
Number of Channels
2-Channel
Total Peak Power Output
4800 watts
Total RMS Power Output
2400 watts
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
1 ohm
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 750 Hz
Low-Pass Crossover Frequency
40 - 120 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
100 dB
Channel Separation
50 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 4

Item Details


Manufacturer:

Model Number:

A2300HCT

Weight:

32.00lbs

Internal SKU:

a2300hct

Internal Product ID:

61
